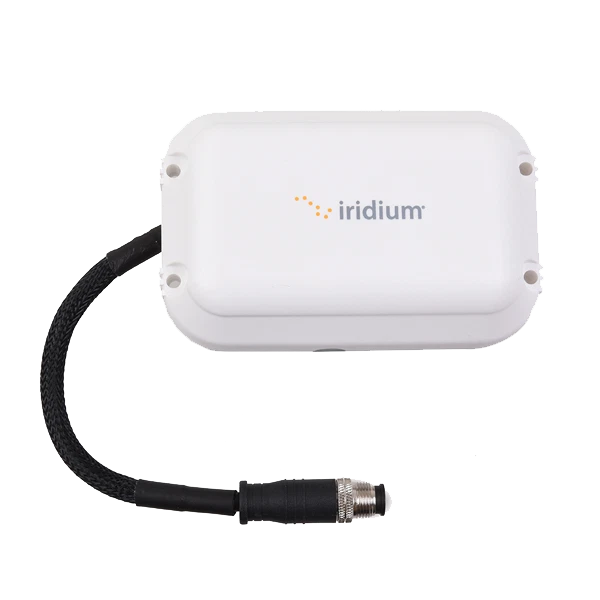

IRIDIUM EDGE SATELLITE ASSET TRACKER

Rugged, Reliable and Cost-effective Asset Tracking and Fleet Management.

Deliver more value to customers by leveraging your existing terrestrial-based IoT solution for fleet management, telematics, safety and other remote monitoring applications. Iridium Edge® is a cost-effective satellite IoT communications device that can be rapidly deployed and complements terrestrial-based solutions to create worldwide connectivity. Iridium provides global IoT coverage for the most remote and inaccessible areas of the world.

Key Features:

Global IoT Coverage

Extend connectivity beyond cellular limits with true worldwide coverage, keeping IoT devices reliably connected no matter where they are deployed.

Dual-Mode Satellite and Cellular Operation

A satellite-enabled add-on integrates seamlessly with cellular networks, delivering flexible and dependable communication across multiple environments.

Hardware-Ready for Easy Integration

Delivered preconfigured for deployment, reducing integration effort, complexity and risk during system implementation.

Cost-Effective Global Connectivity

An affordable hardware platform designed to lower adoption costs and make worldwide IoT connectivity more accessible.

Quick and Simple Installation

A ready-to-install design speeds up deployment, helping you reduce time-to-market and roll out solutions faster.

Industrial-Grade Power Design

Equipped with a robust power supply engineered to perform reliably in demanding industrial and remote environments.

Optimized for Challenging Locations

A 180° line-of-sight capability maintains connectivity even in partially obstructed or difficult installation scenarios.

Globally Certified for Deployment

Certified across key geographic regions, enabling compliant and hassle-free international deployment.

Included in the Package:

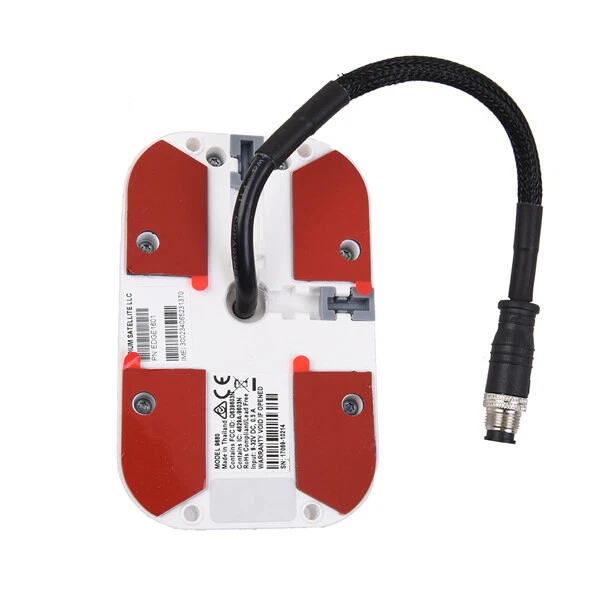

Iridium Edge Modem Unit
M12-8 Pin Cable (20 cm Pigtail)
Technical Documentation

Specification Details
Dimensions (W × H × D; 156.5 × 66.5 × 110.1 mm)
Dimensions (W × H × D; 156.5 × 66.5 × 110.1 mm)
Weight 730 g
Tx 25W Output 5 A
Rx Max. Audio 1 A
Power Supply Requirement 13.8 V DC nominal (10.8–15.6 V DC)
Type of Emission 16K0G3E (FM) / 16K0G2B (DSC)
Channels INT, USA* (*Available depending on version)
Operating Temperature -20°C to +60°C
NMEA Formats In: RMC, GCA, GNS, GLL, VTG
Out: DSC, DSE, RMC, GSA, GSV
Ingress Protection IPX7 (1 m depth for 30 minutes)
General Specifications
Dimensions 13 × 8 × 3 cm
IP Rating IP67
Cable Exits Side and bottom
Connector M12 8-pin male, terminated on 20 cm pigtail cable
Installation Options Pole, screw, tape
Environmental
Operating Temperature Range -40°C to +85°C
Storage Temperature Range -40°C to +85°C
Vibration SAE J1455, Section 4.10
Network
Frequency 1616 – 1626.5 MHz
Message Size 270 bytes (Receive), 340 bytes (Transmit)
SBD Transceiver Iridium 9602N
Antenna Integrated Iridium-certified antenna
