PRODUCT OVERVIEW

The Ultramax NP20-12 is a high-capacity 12V 20Ah sealed lead acid rechargeable battery, designed for a wide range of cyclic and standby power applications.

With a compact size of approximately 181mm x 77mm x 167mm and a capacity of 20Ah, this battery is suitable for applications where dependable rechargeable power is required without the maintenance associated with conventional flooded lead acid batteries.

The NP20-12 uses a sealed, maintenance-free construction and can be used in a wide variety of applications including golf trolleys, mobility equipment, lawn and garden equipment, UPS systems, emergency lighting, security systems, CCTV, alarm systems, medical equipment, telecommunications equipment and many other 12V applications.

Important: Always check your existing battery's voltage, capacity, physical dimensions, terminal type and polarity before ordering.

KEY FEATURES & BENEFITS

• 12V 20Ah capacity ? suitable for a wide range of medium-capacity 12V power applications.
• Rechargeable ? designed for repeated charging and use.
• Sealed construction ? no routine topping-up of electrolyte required.
• Maintenance-free design ? convenient for everyday use.
• Cyclic & standby use ? suitable for equipment that is regularly discharged/recharged as well as backup power applications.

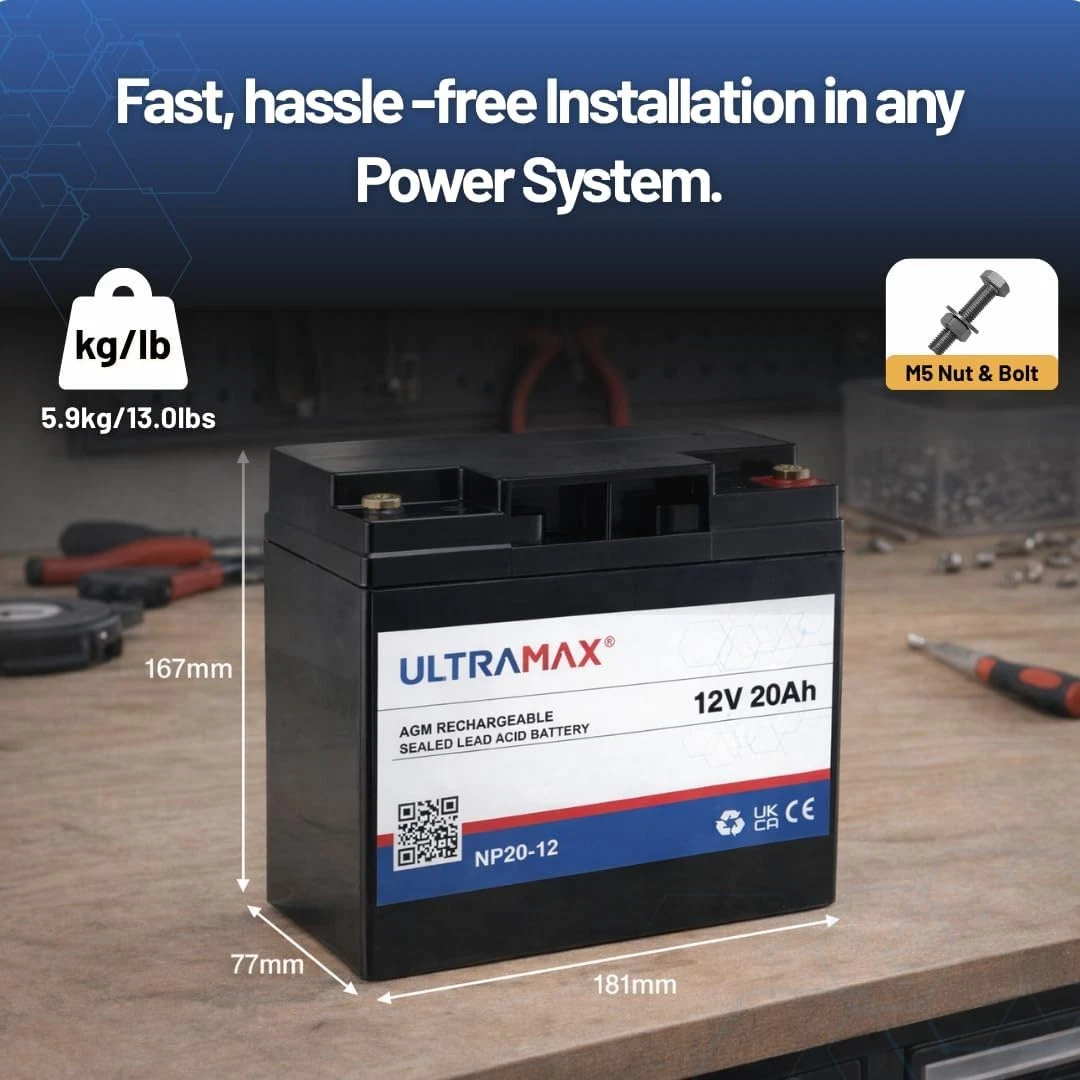

• Compact dimensions ? approximately 181mm x 77mm x 167mm.
• Threaded terminals ? supplied with suitable bolts and nuts for connection.
• 5.9kg approximate weight ? substantial capacity while retaining a compact footprint.
• 99.99% pure lead ? Ultramax construction uses high-purity lead.
• 12-month warranty ? supplied with manufacturer warranty support.
• Can be installed in different orientations where permitted by the equipment manufacturer and installation requirements.

WHERE CAN THE ULTRAMAX NP20-12 BE USED?

The Ultramax NP20-12 is suitable for many types of 12V equipment. Applications include:

GOLF & LEISURE ? Golf trolleys / golf caddies ? Electric golf trolleys ? Fishing trolleys ? Leisure equipment ? Portable power equipment ? Camping and leisure applications	MOBILITY EQUIPMENT ? Mobility scooters ? Electric wheelchairs ? Powerchairs ? Mobility aids ? Rehabilitation equipment ? Other compatible 12V mobility equipment
GARDEN & OUTDOOR EQUIPMENT ? Lawn mowers ? Ride-on lawn mowers ? Gardening equipment ? Electric garden equipment ? Outdoor utility equipment	SECURITY & SAFETY ? Security alarm systems ? Intruder alarm systems ? CCTV equipment ? Fire alarm panels ? Emergency lighting ? Access control systems
BACKUP POWER ? UPS systems ? Uninterruptible Power Supplies ? Backup power systems ? Emergency power equipment ? Standby power systems ? Portable power supplies	COMMERCIAL & INDUSTRIAL ? Telecommunications equipment ? Electronic equipment ? Control systems ? Industrial backup systems ? Monitoring equipment ? General 12V electronic applications
MEDICAL & CARE EQUIPMENT ? Medical equipment ? Rehabilitation equipment ? Patient-care equipment ? Compatible electrically powered care equipment	OTHER APPLICATIONS ? Ride-on toys ? Electric toys ? Solar power storage ? Marine electronics ? Lifts and access equipment ? Portable electrical systems ? General rechargeable 12V equipment

GOLF TROLLEY COMPATIBILITY

The Ultramax NP20-12 size and specification are commonly used in compatible golf trolley applications. It can be suitable for equipment from manufacturers and trolley brands including:

• PowaKaddy / Powakaddy
• Motocaddy
• HillBilly
• Mocad
• Topcart
• Taxi golf trolleys
• Other golf trolley systems requiring a compatible 12V battery

PLEASE CHECK: Golf trolley battery requirements vary between models and generations. Please compare your existing battery's dimensions, voltage, capacity, terminal arrangement and connector before ordering.

MOBILITY SCOOTER & POWERCHAIR APPLICATIONS

A 12V 20Ah battery of this physical size is used across a variety of mobility scooters and powered mobility equipment. Examples of equipment families where batteries of this specification may be found include:

• Kymco Mini mobility scooters
• Pride Go-Go mobility scooter range
• Pride Go-Go LX
• Pride Go-Go Sport
• Pride Go-Go Elite Traveller Plus
• Pride Apex Rapid
• Sterling Pearl
• Eden Bootmaster
• Compatible electric wheelchairs and powerchairs
• Other mobility equipment requiring a 12V 20Ah battery of the same dimensions and terminal configuration

PLEASE NOTE: Compatibility depends on the exact model, battery box, terminal arrangement and required voltage. For mobility scooters and powerchairs, two 12V batteries may be required to create a 24V system. Always check the original battery specification before purchasing.

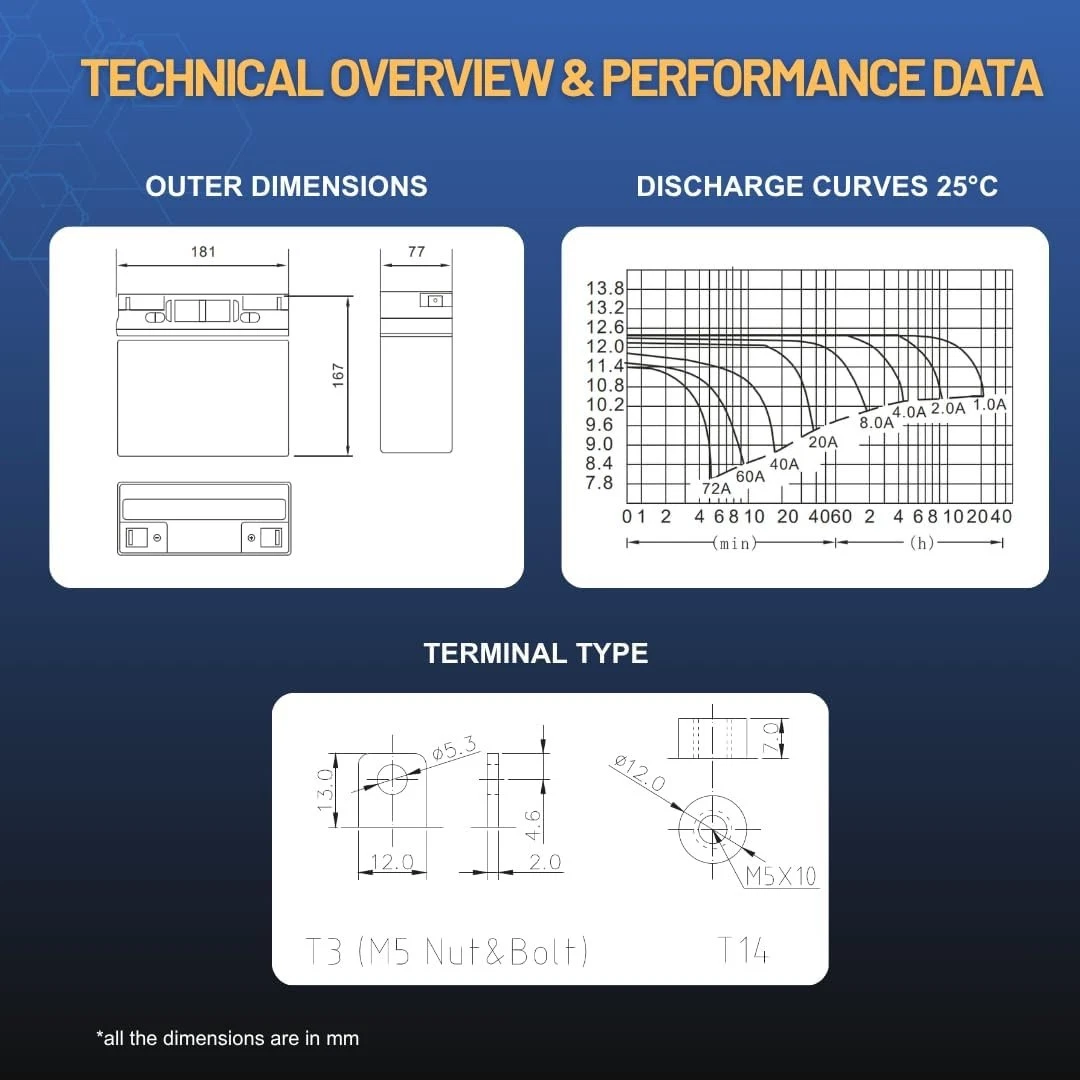

PRODUCT SPECIFICATIONS

Brand	Ultramax
Model	NP20-12
Part Number / SKU	SLAUMXNP20-12
Voltage	12V
Capacity	20Ah @ 20-hour rate
Battery Type	Sealed Lead Acid / SLA
Rechargeable	Yes
Maintenance	Maintenance Free
Usage	Cyclic & Standby
Length	181mm
Width	77mm
Height	167mm
Approx. Weight	5.9kg
Terminal Type	Threaded terminals
Terminal Hardware	Bolts & nuts included
Barcode / EAN	5036446800350
Warranty	12 Months

WHY CHOOSE ULTRAMAX NP20-12?

• 20Ah capacity ? provides a useful combination of capacity and compact size.
• Established Ultramax battery brand ? designed for a broad range of consumer, leisure, mobility and standby power applications.
• High-purity lead construction ? manufactured using 99.99% pure lead as specified for this model.
• Maintenance-free design ? no regular electrolyte topping-up required.
• Sealed rechargeable construction ? convenient for equipment where a conventional flooded battery would be unsuitable.
• Suitable for cyclic and standby applications ? versatile for both regular-use and backup-power systems.
• Threaded terminals ? secure connection using bolts and nuts.
• Compact standard footprint ? 181 x 77 x 167mm makes it suitable as a replacement for compatible batteries using the same dimensions.
• 12-month warranty ? additional peace of mind when purchasing.

The Ultramax NP20-12 is also designed as a replacement option for compatible batteries such as NPC17-12, Yuasa TEV12180, Yuasa TEV12210, YPC22-12, NP18-12 and NP18-12B, provided that the voltage, capacity, dimensions, terminal type and polarity are suitable for your equipment.

REPLACEMENT BATTERY CHECK

Before purchasing, please compare the following information with your existing battery:

Voltage	Must be compatible with your equipment ? this battery is 12V
Capacity	20Ah nominal
Dimensions	181 x 77 x 167mm
Terminal Type	Threaded terminal
Polarity / Connection	Must match your existing battery and equipment

DO NOT purchase based on Ah rating alone. Physical dimensions, terminal arrangement, polarity and the equipment manufacturer's battery requirements must all be checked before ordering.

IMPORTANT BATTERY INFORMATION

• For best results, use a charger designed for the correct type of 12V sealed lead acid battery.
• Do not use a charger that is unsuitable for sealed lead acid batteries.
• Avoid leaving the battery completely discharged for extended periods.
• Recharge the battery after use where appropriate.
• Store the battery in a cool, dry location when not in use.
• Actual runtime depends on the equipment's power consumption, discharge rate, temperature, battery condition and other system conditions.
• Always check the equipment manufacturer's requirements before installation.
