Introduction:
<+/-% Regulation
Economical Compact Design
For use in 50/60 Hz Brushless Generators
EMI Suppression
Under Frequency Protection
Over Excitation Current Shutdown
Specification:
Input Voltage 120VAC(90~140VAC)
1 phase 2 wire 45~65 Hz
Output voltage max.100VDC@120VAC input
Current continuous 8A
Intermittent 10A for 10 sec.
Resistance min.15 ohm
Voltage build-up residual volts at AVR terminal>5 VAC
Volate regulation <+/-1%(within 4% engine governing)
Thermal drift 0.03% per centidegree change in AVR ambient
External volts ajustment +/-5% with 5K o,1/2 watt trimmer
Under frequency protection knee point 47/57 Hz(adjustable)
Unit power dissipation max.6 watt
EMI suppression internal electromagnetic interference filtering
Enviroment:
Vibration 1.5G @ 5~30Hz 5.0G @ 30~500Hz
Relative humidity<95%
Operating Temp: -40~60 centidegree
Storage Temp: -40~85 centidegree
AVR Controls Functions:
VOLT Voltage adjustment
STAB Stability adjustment
U/F U/F* knee point set
Packing:

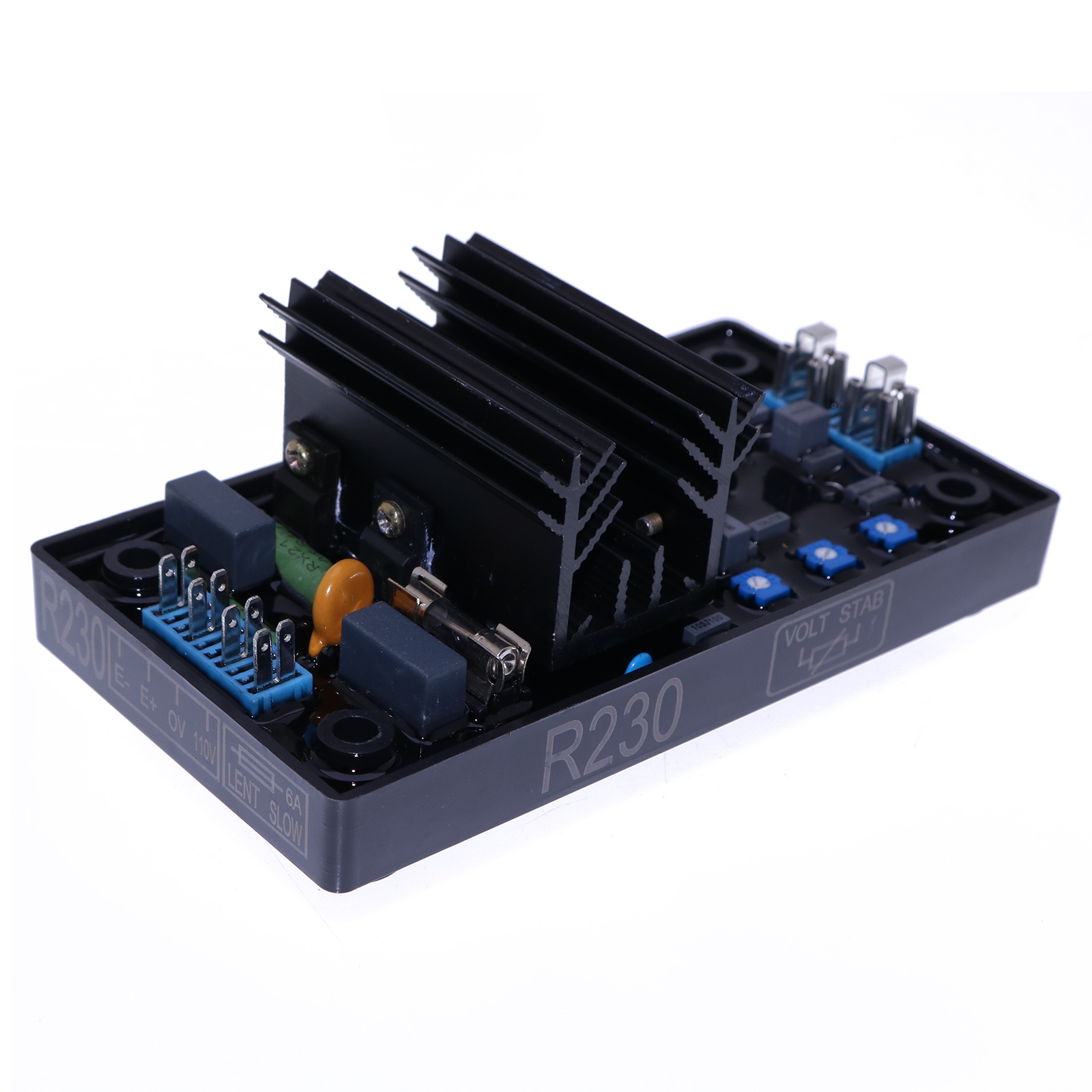

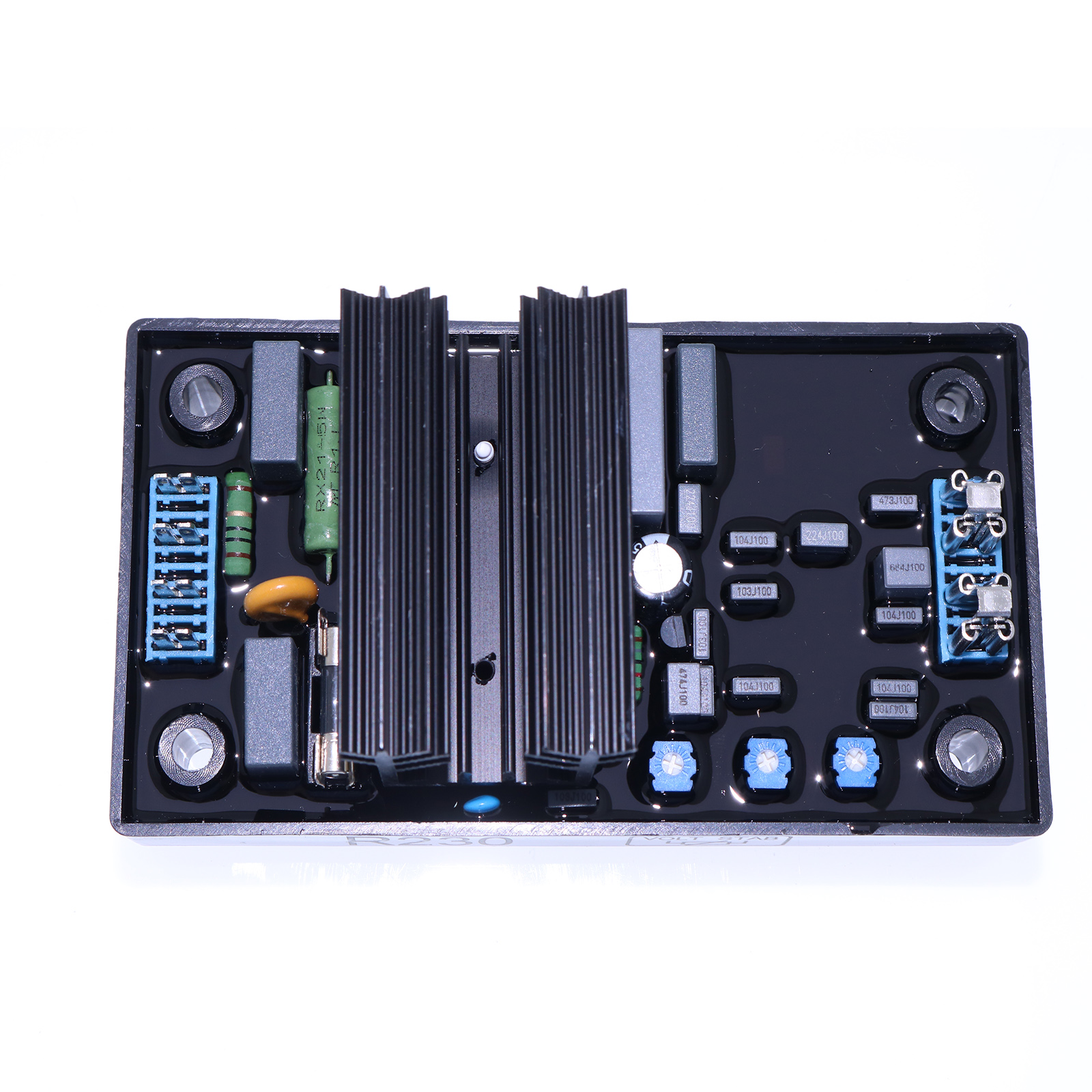

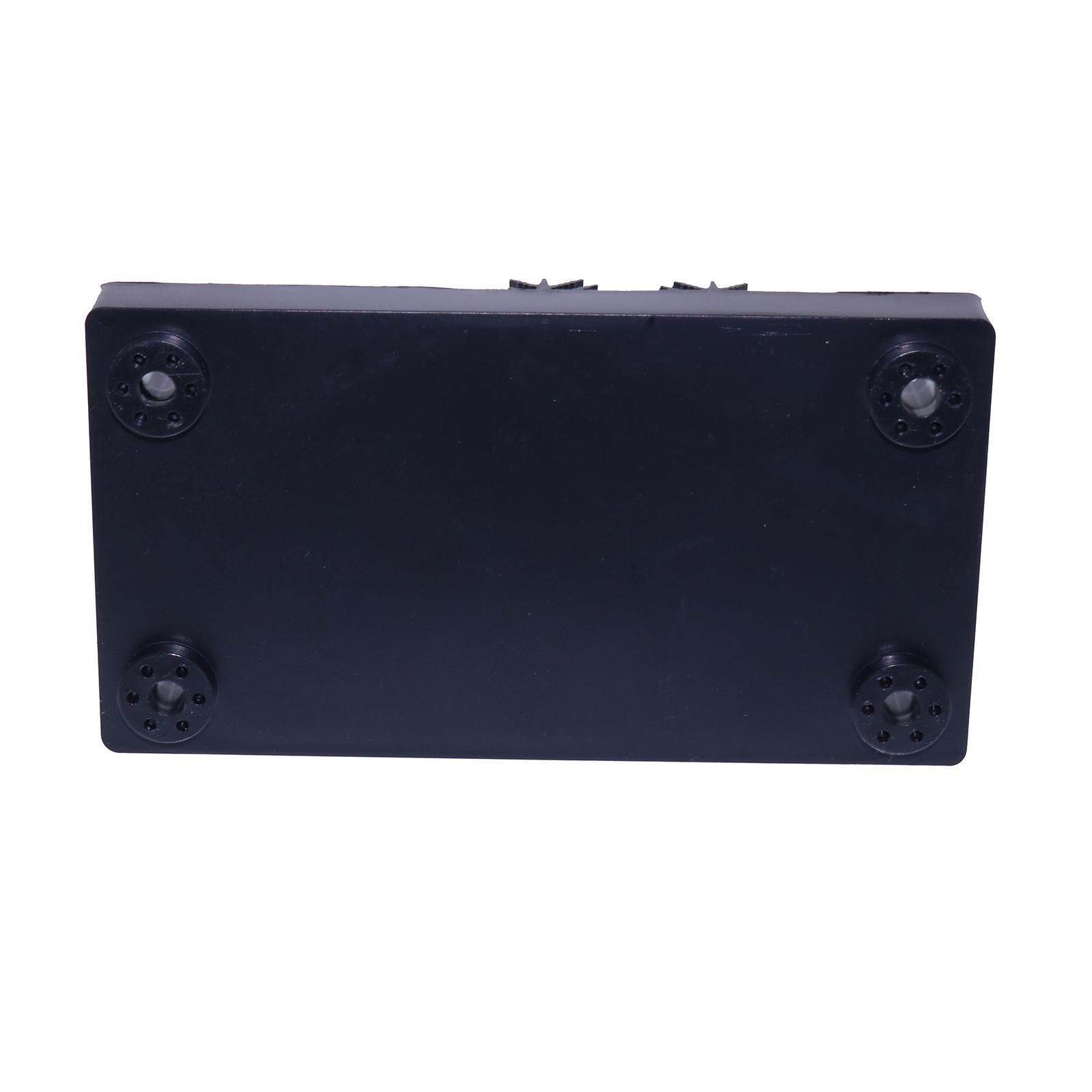

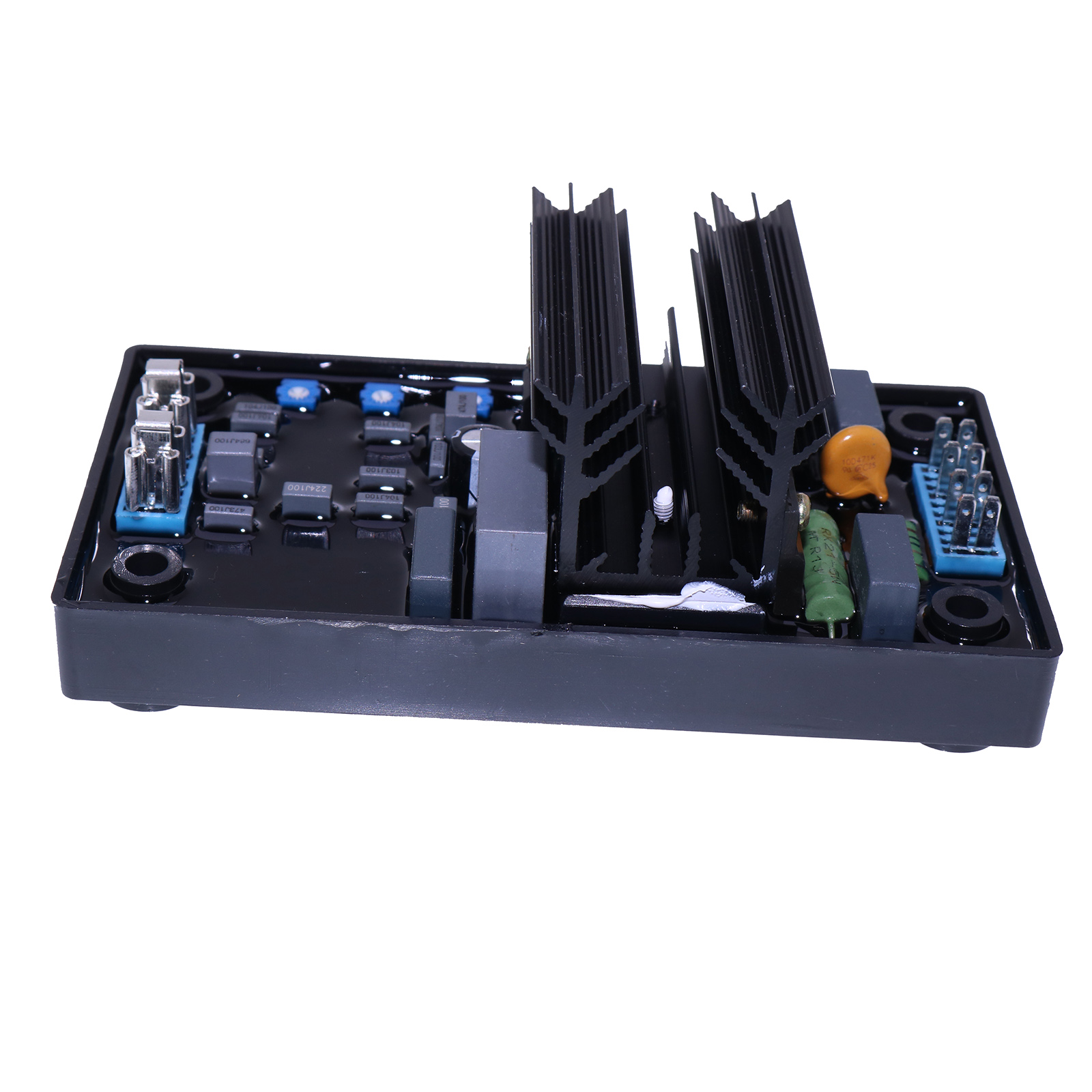

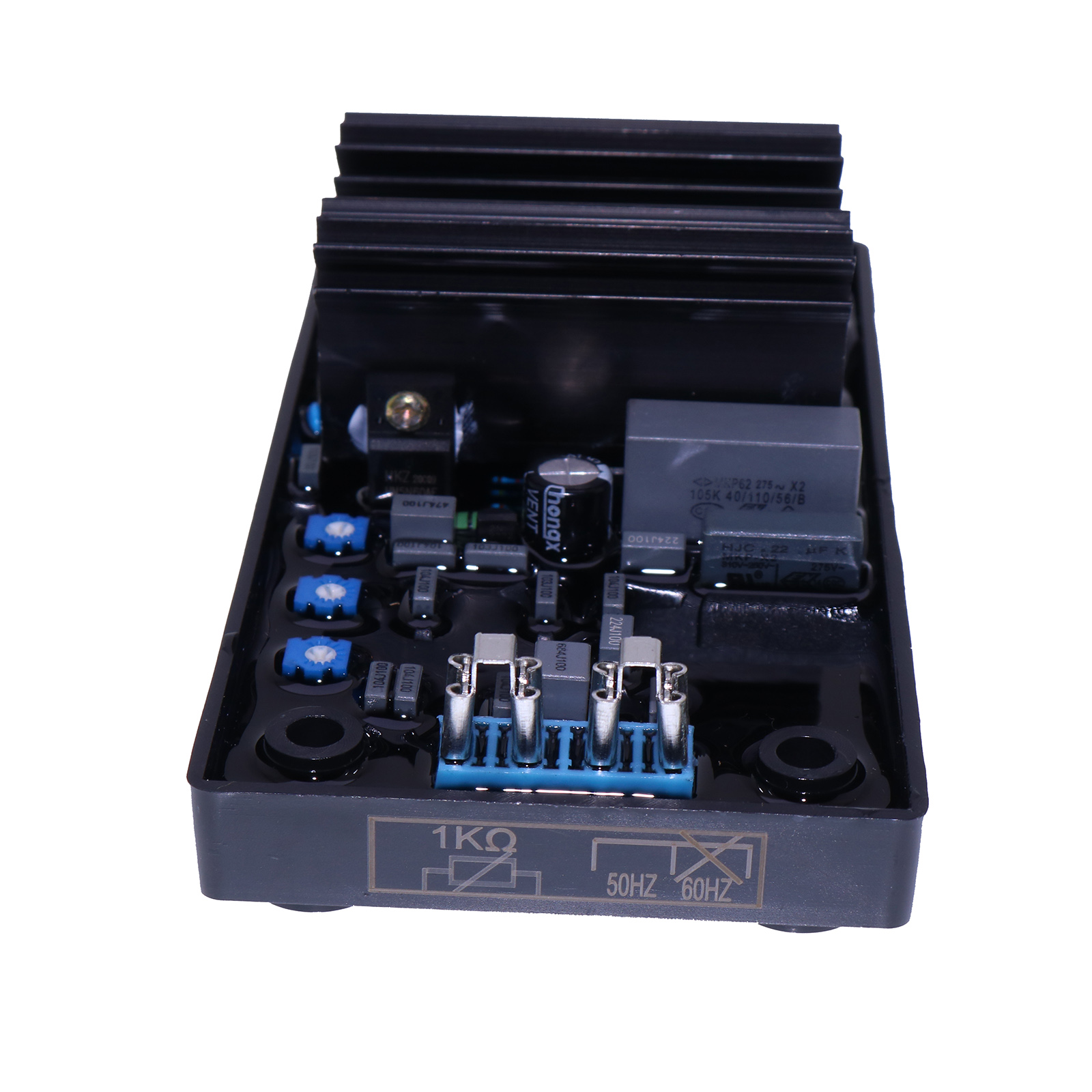

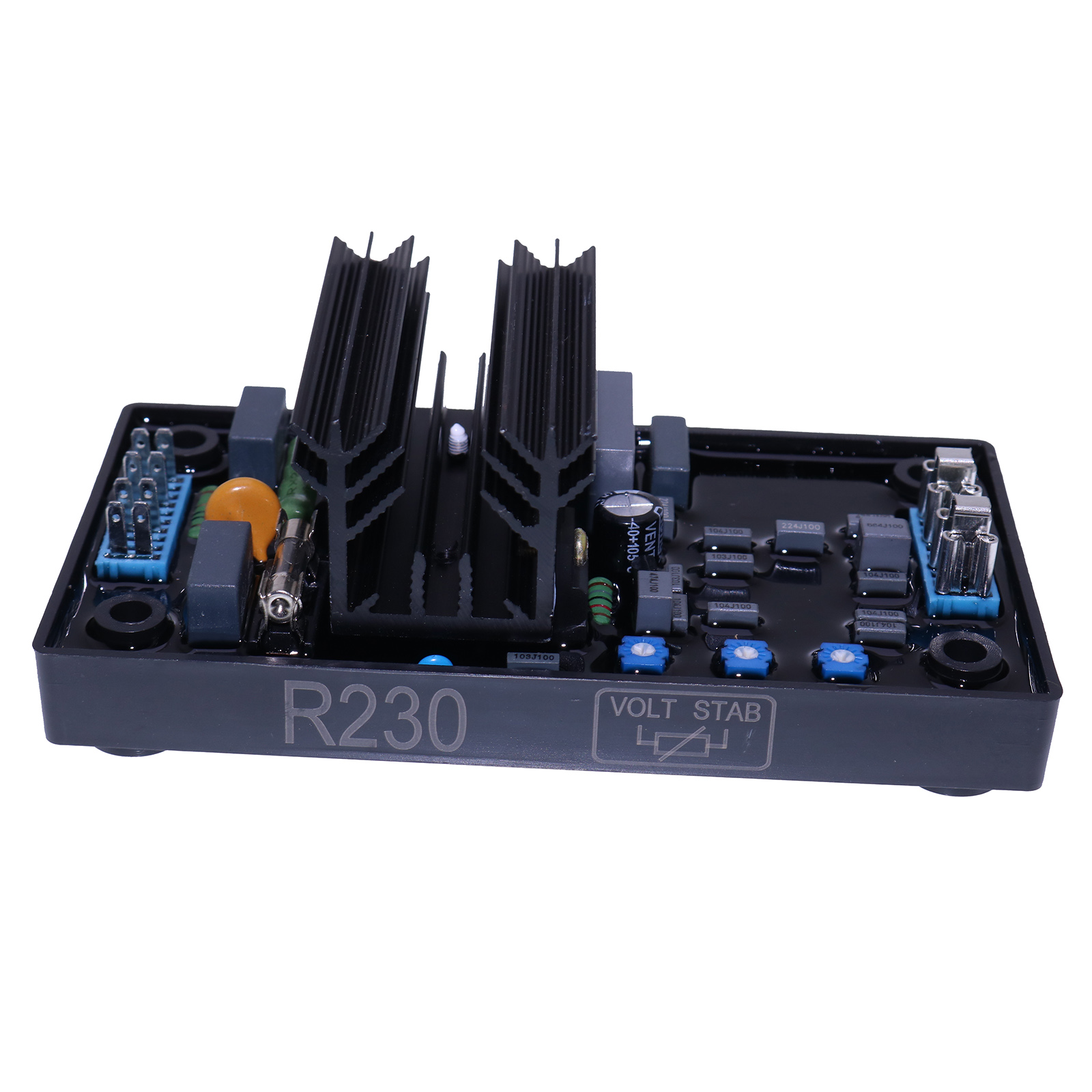

AVR R230 --------1Piece
English Manual---1Piece
Carring Box-------1Piece
