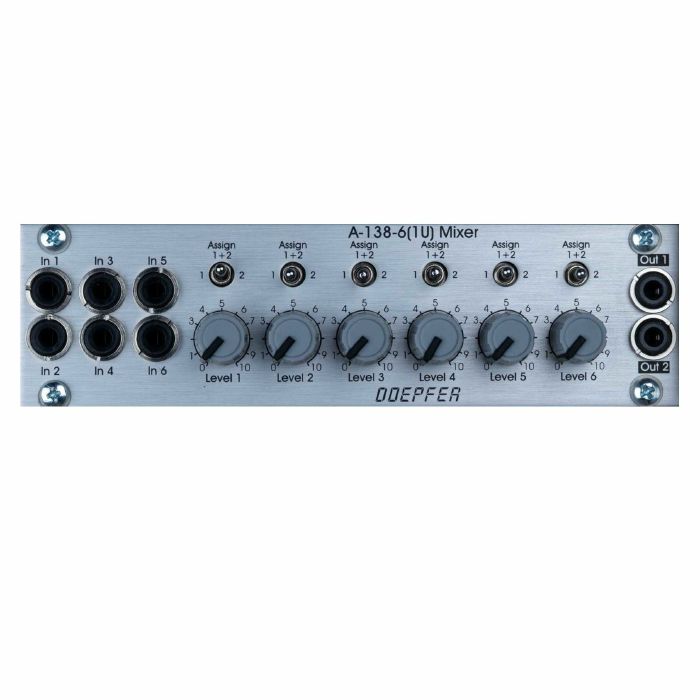

Doepfer A-138-6 1U 6-Channel Mixer Module

Module A-138-6(1U) is a mixer with 6 inputs and the feature to route each input to one of the two outputs or to both outputs

Doepfer's A-138 mixer module gets reconfigured for 1U format. With six inputs and two assignable outputs capable of handling audio or CV, the A-138-6 allows you to work in mono or stereo, or route any source to different modules for further processing.

Supplier's Notes:
Module A-138-6(1U) is a mixer with 6 inputs and the feature to route each input to one of the two outputs or to both outputs.

The module is equipped with these controls, inputs and outputs:

6 inputs (sockets In 1...6)
6 level controls (Level 1...6), linear characteristic
6 toggle switches (Assign) for the assignment of each input to the two outputs
switch in left position: channel 1
center position: both channels
switch in right position: channel 2
2 outputs (sockets Out 1 and Out 2)
All sockets are monophonic.

By means of a small solder bride the function of input 1 can be modified so that control Level 1 works as a DC offset generator (about 0...+5V) provided that no patch cord is plugged into socket In 1. Ex works this feature is disabled.

The solder bridge is labelled PP1 and is located on the bottom side of the large PC board below the sockets In 3 and In 5.

Height: 1U / 44.45 mm
Width: 28 HP / 141.9 mm
Depth: 45 mm (measured from the rear side of the front panel)
Current: +20mA (+12V) / -20mA (-12V)
