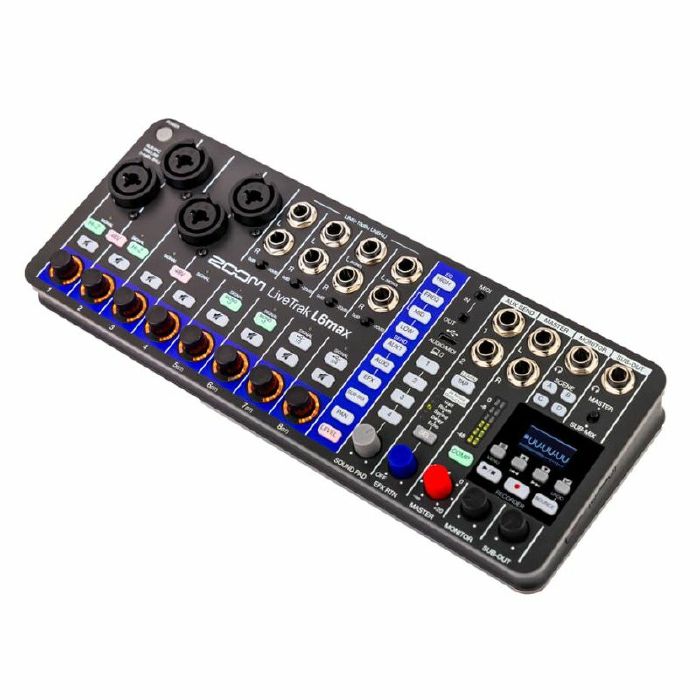

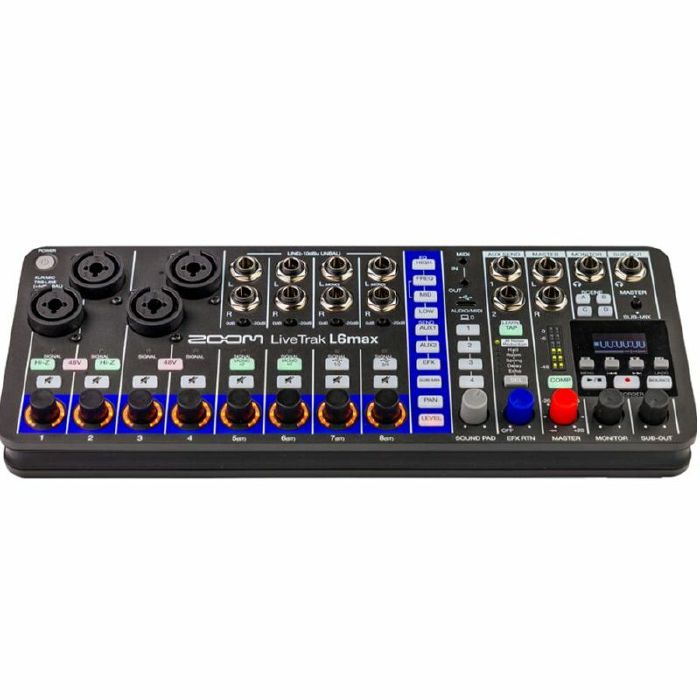

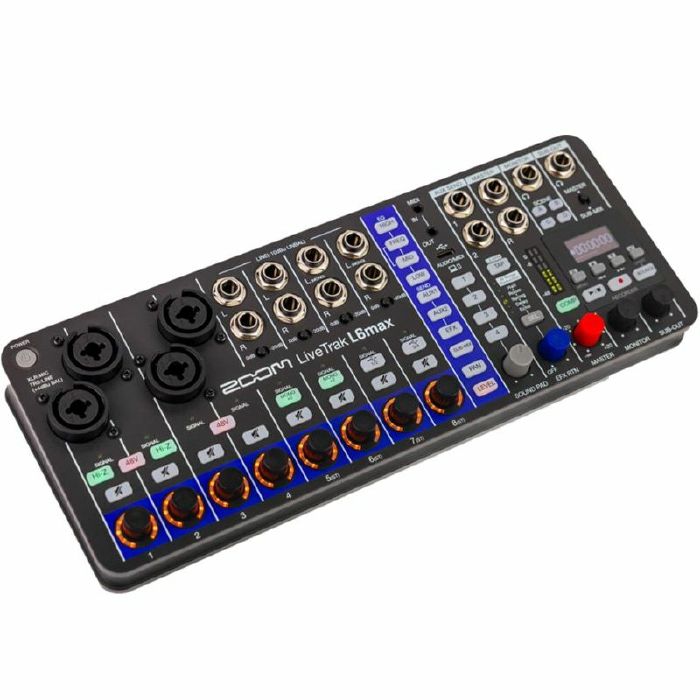

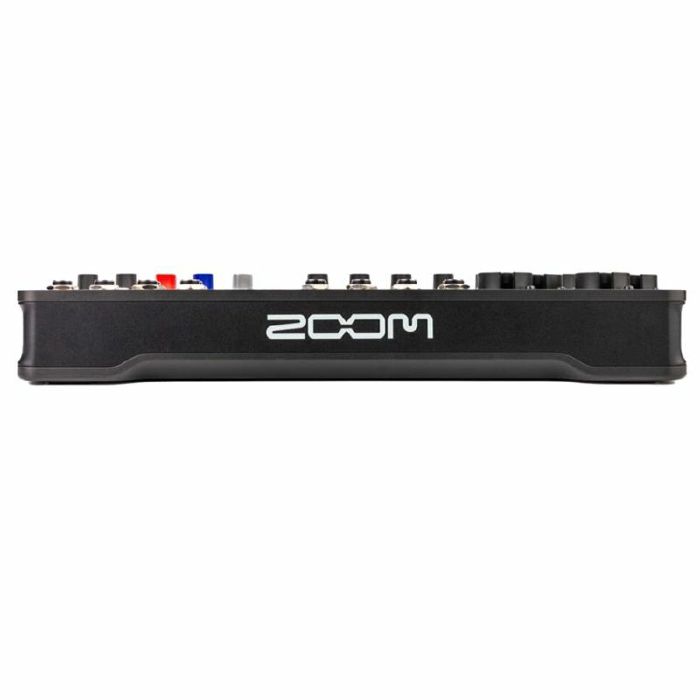

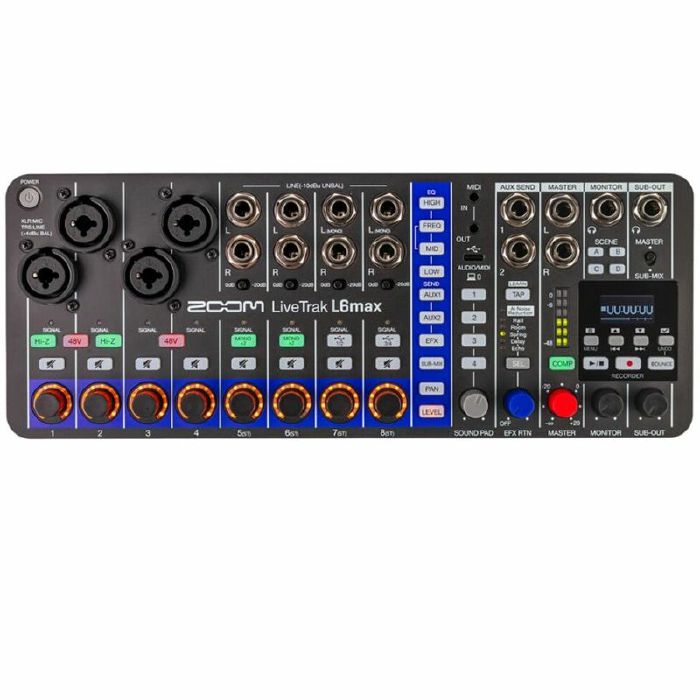

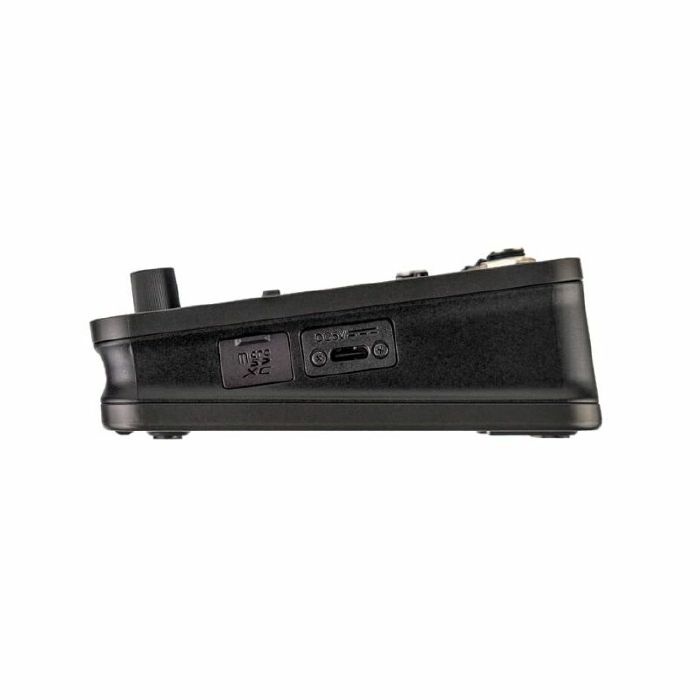

Zoom LiveTrak L6max 12-Channel Studio Mixer & Recorder

A 12-Channel Mixer & Recorder for Music, Streaming, and Podcasts.

Max version of the excellent L6 mixer/recorder takes things to the next level with the addition of a high-contrast OLED screen, two more inputs, noise reduction and an extra headphone output for even more versatility.

Supplier's Notes:
The Zoom LiveTrak 12-Channel Mixer & Recorder for Music, Streaming, and Podcasts. Packed with all the features you'd expect from a full-size mixer, plus a multi-track recorder. It's compact, battery powered, and ready to be the centerpiece of your live show, rehearsal, or podcast.

A 3-band EQ lets you dial in the perfect tone with LOW, HIGH, and variable MID EQ on each channel.

Build the perfect mix with onboard effects including Reverb, Delay, and Echo. Use the TAP key to set delay times.

The master track compressor adds punch and saturation to your mix. With 32-bit float the audio will never clip, even at high volumes.

Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB. Projects can be saved and recalled for mixing anytime.

You can mix and bounce tracks to the dedicated 'bounce track' freeing up additional channels to keep adding layers. If the bounce doesn't hit the mark, 'undo' it and try again. Even after a bounce, individual tracks are saved to the SD card for future mixing.

The free L6 Editor app for Mac and Windows lets you customize pads, effects, and MIDI assignments with ease.

Power the L6max via AA batteries, USB bus power, or a mobile battery pack.

Specs

Number of Input and output channels
Inputs MIC/LINE (mono): 4
LINE (stereo): 4
Outputs: AUX SEND (mono): 2
MASTER (stereo): 1
MONITOR (stereo): 1
SUB-OUT (stereo): 1

Inputs

MIC/LINE: Connectors 4 XLR/TRS combo jacks (XLR: 2 HOT, TRS: TIP HOT)
Input gain: Adjustment unnecessary (dual A/D converter circuits used)
Input impedance: XLR: 3.8 kO or more, TRS: 18 kO or more (when Hi-Z off) / 1 MO or more (when Hi-Z on)
Maximum input level XLR: +4 dBu
TRS: +24 dBu
Phantom power: +48 V
Channel total 20 mA or less

LINE
Connectors: 8 TS phone jacks
Input impedance: 30 kO or more
Maximum input level +4 dBu (when PAD is 0 dB)
+24 dBu (when PAD is -20 dB)

Outputs
AUX SEND:

Connectors 2 TRS phone jacks (impedance balanced)
Maximum output level: +9.5 dBu
Output impedance: 147 O

MASTER:

Connectors: 2 TRS phone jacks (balanced)
Maximum output level: +15 dBu
Output impedance: 147 O

MONITOR / SUB-OUT:
Connector: TRS phone jack
Maximum output level: 50 mW + 50 mW (63 O load)
Output impedance: 14.7 O

Buses
MASTER: 1
SUB-MIX: 1
AUX SEND: 2
SEND EFX: 1

Channel strip
EQ: HIGH- 10 kHz, +/-15 dB, shelving
MID: 100 Hz - 8 kHz, +/-15 dB, peaking
LOW: 100 Hz, +/-15 dB, shelving

Level meters: 6 segments
Send effects: 6 types

Recorder

Maximum simultaneous recording tracks: 14
Maximum simultaneous playback tracks: 14
Recording formats: 48 kHz, 32-bit float, mono/stereo WAV
Recording media: microSDHC memory cards (Class 10 or higher)
microSDXC memory cards (Class 10 or higher)

Display: 128×64 OLED

Audio interface
Numbers of inputs and outputs:
Input: 14 channels
Output: 4 channels
Sampling frequency: 48 kHz
Bit depth: 32-bit float / 24-bit
Interface: USB 2.0

Card reader
Class: Mass storage class USB 2.0 High Speed

Sampling frequency: 48 kHz
Frequency response: 20 Hz - 20 kHz, -1.0 dB / +0.5 dB
Equivalent input noise: -120 dBu or less (IHF-A) at 150O input

Power: 4 AA batteries- Alkaline, Lithium, or Rechargeable NiMH
AC adapter: ZOOM AD-17 : DC 5V/1A
USB bus power is supported.
Estimated continuous recording time using batteries
Alkaline batteries: About 1.5 hours
NiMH batteries (1900 mAh): About 2.5 hours
Lithium batteries: About 5 hours

Power consumption: 5 W maximum
Dimensions: 284 mm (W) × 114 mm (D) × 46.5 mm (H)
Weight (main unit only): 673 g
Weight (including batteries): 767 g

Note: 0 dBu = 0.775 Vrms

Features

• 2 more XLR/TRS Inputs expands to 12 channel mixer
• Hi-Z switch on Input 1+2
• 2 headphone outputs with one customizable Sub-Out
• Channels 5-8 include a -20 dB PAD switch so you can handle loud sources such as vintage synths and Eurorack modules. No attenuator required.
• You can mix and bounce tracks to the dedicated ‘bounce track’’ freeing up additional channels to keep adding layers.
• Turn on AI Noise Reduction and let the L6max intelligently remove hum, hiss, and background noise
• The high-contrast OLED display helps you create projects and adjust settings with ease.
• Capture up to 12 individual tracks plus a stereo mix directly to SD cards up to 2TB.
