Upgraded 4 Axis 6040 2.2KW Engraving Milling Fräsmaschine Mach3 CNC Router +MPG

【Ship from Germany Warehouse】

We will ship this product from Germany to you.

ship by Germany DHL to EU Customers

Welcome to choose our products
fast shipping time to the following EU Countries
Austria	Belgium	Bulgaria	Czech Republic	Denmark
Estonia	Finland	France	Germany	Greece
Hungary	Ireland	Italy	Latvia	Lithuania
Luxembourg	Netherlands	Poland	Portugal	Romania
Slovakia	Slovenia	Spain	Sweden	United Kingdom

Package included（Square linear rail guide verison）

· 1 x 4 Axis 6040 2200W USB Mach3 CNC Router machine with dust cover 220V Version

· 1 x Controller box (4 axis)

· 1 x USB cable

· 1 x Power cable ( EU Standard plug )

· 1 x Tool box and tools

· 3 x Axis nema23 stepper motors

· 1 x 2.2KW water cooled spindle motor ER20

· 1 x 2.2KW Inverter VFD

· 2 x connect wires

· 1 x the 4th rotary axis with tailstock

· 1 x water pump

1 x 4 Axis WHB04B-4 wireless USB MACH3 electronic handwheel
1 x Handwheel rocker
1 x USB wireless receiver

Note:

The machine is semi assembled, and you need to assemble it simply after receiving it.

Descriptions:

Product technical parameters:

1) Machine size: 750x610x390mm/29.5" x24" x15.3"

2) 3-axis effective travel: X=330mm/13", removing the dust cover can achieve 400mm/15.7", Y=580mm/22.8", Z=70mm/2.75", and removing the dust cover can achieve 95mm for the Z-axis;

3) Workbench size: 735x480mm/29x18.8" Slot width: 8.5mm/0.33"

4) Maximum workpiece thickness: ≤ 100mm/3.93"

5) Transmission device: Y-axis=2005 screw HGH15 square rail; X-axis=1605 screw HGH15 square rail; Z-axis=1605 screw HGH15 square rail. The shafts are all equipped with brand new SFU2005&SFU1605 ball screws and high-quality couplings.

6) Rack material: 6061-T5 aluminum alloy, high strength, precision machined by CNC machining center, all surfaces are precision machined by CNC, without any surface treatment, resulting in higher accuracy.

7) Track type: chrome plated shaft+linear bearing (surface hardened 61HRC)

8) Repetitive positioning accuracy: 0.05mm

9) Spindle fixture diameter: 65mm and 80mm can be interchanged. (Customer installation universal fixture required to achieve) Installation hole position 117.5x46mm M8

10) Applicable motor: nema23 stepper motor 3A

11) Packaging size: 680x230x460mm&680x830x180mm

12) Machine weight: 59KGS/130LB (including packing)

Specifications (4 Axis 6040Z-2200W)

Spindle Motor: Powerful Brushless frequency spindle, 2200W 2.2KW Water cooled spindle

Revolution Speed: 3000~24000rpm/min

Collet type: ER20 (equipped with 6mm collet)

X Y Z Motor: NEMA23 Stepper Motor

Stepper Drives: High performance,Each axis independently driven

Feed rate: 300~5000mm/min

Support system: Win XP,7,8,10 (32bit or 64bit)

Communication Interface: USB2.0 (Please use Mach3 control)

Command Code: G code/.nc/.ncc/.tab/.txt

Operation Environment: Temp: 5°~40° C; Humidity: 35 to 80%

Application

The 6040Z-2200W USB CNC engraving machines make it fast and easy to engrave or scribe a wide variety of materials. Spindle speed can be varied between 3,000 and 24,000 rpm for engraving a wide variety of materials, including wood, urethane foam, plastic, acrylic, and metals.

CNC 6040 is suitble for Industry,Technology Research,Advertising Design,Arts Creation,Teaching,Student Project and Hobby Purposes.CNC 6040 is designed for large area engraving work such as Industrial or Hobby Prototype Building, Building Model Making,PCB,Adverstising Signs,Artwork,Crafts,Aircraft Models,RC Model parts,etc.So,you can do engraving work at office or home.In addition,It is with four axis(rotary axis) and tailstock.

CNC 6040 is designed for large area engraving work .The Computerized CNC Engraving and Cutting Machine is suitable for various materials, such as WOOD, PMMA or other plastic,MDF board,native wood,PVC,Acrylic, wood,composite board plywood,It can be used widely to process or make adverstising signs,PCB,nameplates,badges,seals,bronzing plate,aluminium alloy,acryplates,ABS resin double color plate,PVC foaming board,indentation plates,signs,construction models,instrument panels,wooden products,etc.

Features:

1) Easy operation and installation.

2) Made of aluminum alloy frame material, it is more stable and sturdy.

3) X-axis, Y-axis, and Z-axis engraving make carving more precise and three-dimensional.

4) More precise control of engraving

5) Carving almost anything on almost any surface

6) The cover plate reduces contamination of the screw and shaft.

7) Strengthen and thicken the body to ensure safer transportation and longer service life.

8) The chrome plated shaft is not easily deformed and is suitable for long-term use.

9) Elastic couplings can be used for high torque transmission.

10) This project has been equipped with new SFU2005&SFU1605 ball screws. Anti black light, high accuracy, and long service life.

11) The spindle fixture can be interchanged with 65mm or 80mm. (Customer installation universal fixture required to achieve) Installation hole long service life.

4 Axis WHB04B-4 wireless electronic handwheel is optional!!!

Description:

1) Adopt frequency hopping transmission, strong anti-interference ability. Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.

2) With 64 frequency hopping channels, each channel interval 1MHZ.

3) Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.

4) Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other.

5) 100PPR manual pulse generator support 10 macro function button.

6) LCD display:Display Y Z A X axis of the mechanical coordinates and workpiece coordinates. Show the spindle speed, the value of the feed rate. Dot matrix LCD with backlight. Axis selection, power band switch control.

7) Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control. The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.

8) The series of remote control, providing DLL library files for customers to carry out the 2 development, suitable for the customer's own a variety of numerical control system. The series of remote control, based on the WINDOWS system.

Features:

- Adopt frequency hopping transmission, strong anti-interference ability

- Using 433MHZ, ISM wireless FR transmission technology, transmit power 10DB, receive sensitivity -98DB.

- With 64 frequency hopping channels, each channel interval 1MHZ.

- Intelligent wireless technology, automatic frequency hopping, automatic power saving, automatic to learn ID code.

- Frequency hopping transmission technology, the same room, can support 64 sets of equipment at the same time, do not affect each other

- LCD display

- Display Y Z A X axis of the mechanical coordinates and workpiece coordinates.

- Show the spindle speed, the value of the feed rate.

- Dot matrix LCD with backlight

- Axis selection, power band switch control

- Axis select band switch to achieve the electronic hand wheel off and the corresponding Y Z A X each axis function of the choice of control

- The choice of the step distance value is realized by selecting the switching value band, which is simple and convenient.

Application:

For Windows: All Mach3 CNC

Explanation:

1. Key success indication: when you press the button, the receives the key value, the indicator flasher about, indicating successful key operation.
2. Speed Indicator: when the band switch to select 1X,10X,100X,1000X,the LCD display value:0.001,0.01,0.1,MPG.
3. Axis selected location: Axis selection switch position, LCD display axis selected. X:X workpiece coordinate axis,1X:X axis mechanical coordinate.

Model	WHB04B	WHB04B-4
Radio frequency	ISM,433MHZ	ISM,433MHZ
Wireless transmission distance	40 meter	40 meter
Power	2pcs Alkaline batteries	2pcs Alkaline batteries
Pulse generator	100PDR	100PDR
Accept sensitivity	negative 98DB	negative 98DB
Max. axis	4	4 (WHB04B-4)
Material	ABS and PC material	ABS and PC material
Screen	LCD Display	LCD Display
Screen	Only displayed the current axis value	Can display 3 axis value meanwhile
Macro code button	Not support	Support
Step/Continuous mode switch	Not support	Support
Compatibility	Only support some USB card, th following cards can not be used	All card can be used
	All parallel cards	All parallel cards
	Some ethernet card	All ethernet card
	Some USB card	All USB card

Description :

1. Applications

WHB04B has 2 series：

1. WHB04B-4：support 4 axis with x,y,z,a

2. WHB04B-6：support 6 axis with x,y,z,a,b,c

application on mach3 cnc system in windows platform.

2. Product Overview

3. Application circut

4. Key feature

1 .Auto Frequency Hopping When Noise.

Frequency band:433Mhz,ISM ,the output power up to10DB，High receiver sensitivity-98DB.

32 hopping channels，the channel frequency gap is 1Mhz.

the transmission is encrypted， auto build communication network and pair. auto hopping when noise.

32 sets of wireless MPG could be used at the same time in one room.

2. LCD display

Display the X Y Z A B C axis work and machine coordinate data.

Display the spindle and feed speed.

The lcd display data with background light.

3. Axis/Step band switch

To choose X/Y/Z/A/B/C axis or close all axis by axis switch,to choose jog step by step switch.

4. support 10 macro function button

Parameter	Description
Frequency bands	ISM，433MHZ
Supply voltage	2 AA batteries
Wireless transmission distance	40 meter
MPG Encoder	100PPR
Function Key	16 Keys(support 10 macro function button)
Output power	10DB
Receiver sensitivity	-98DB
Maximum axis	4 axis (WHB04B-4)
LCD	Dot LCD with background light
Material	The material is ABS and PC with anti-impact and heat-resistant. With protected Silicon coat

6. LCD Display overview

7. Funciton key descripiton

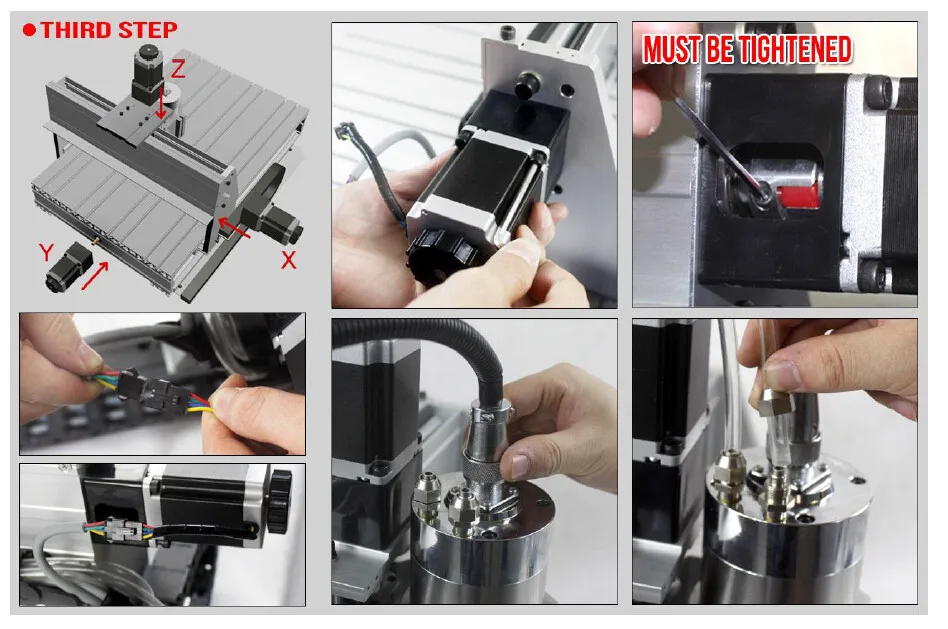

6040 machine install step with motors:
