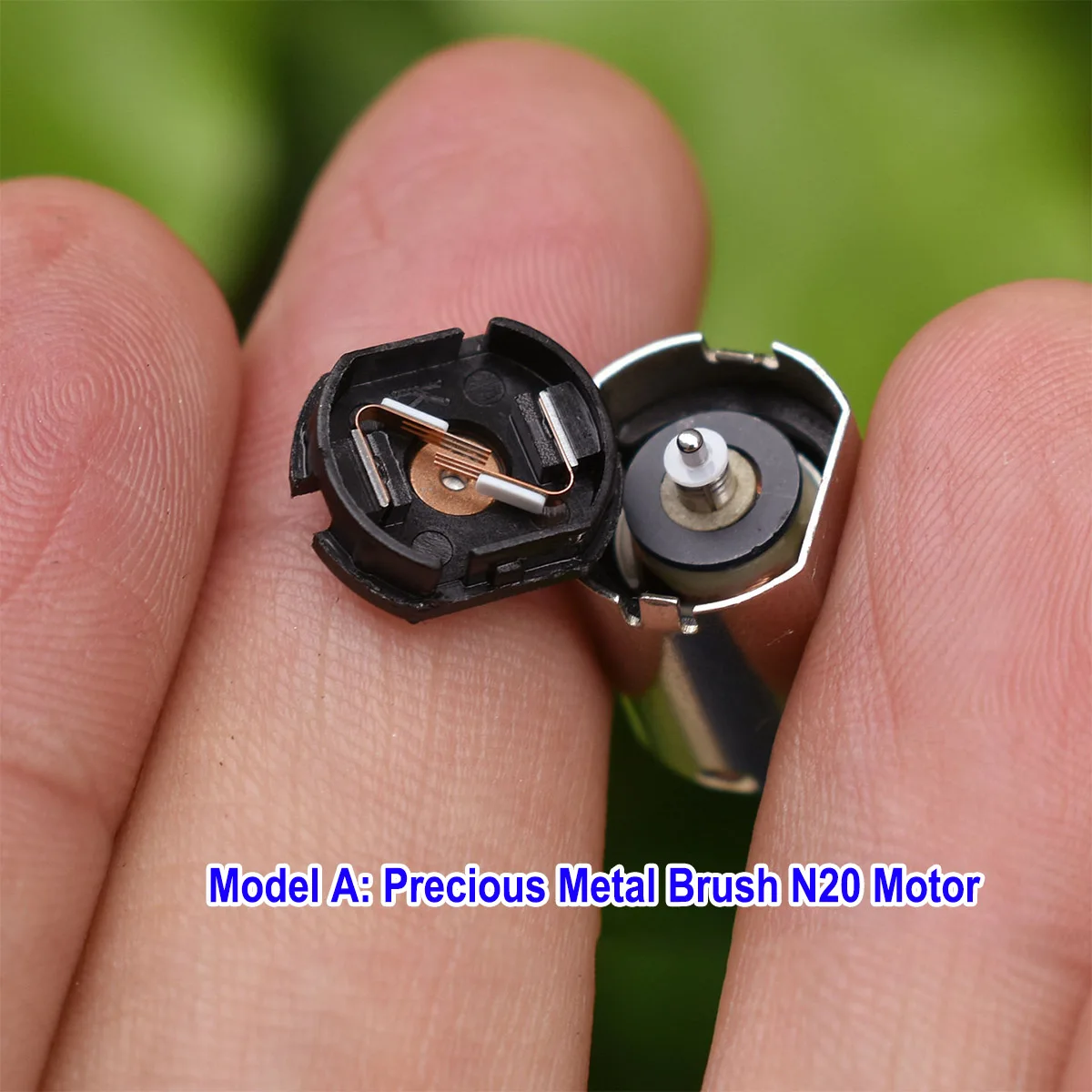

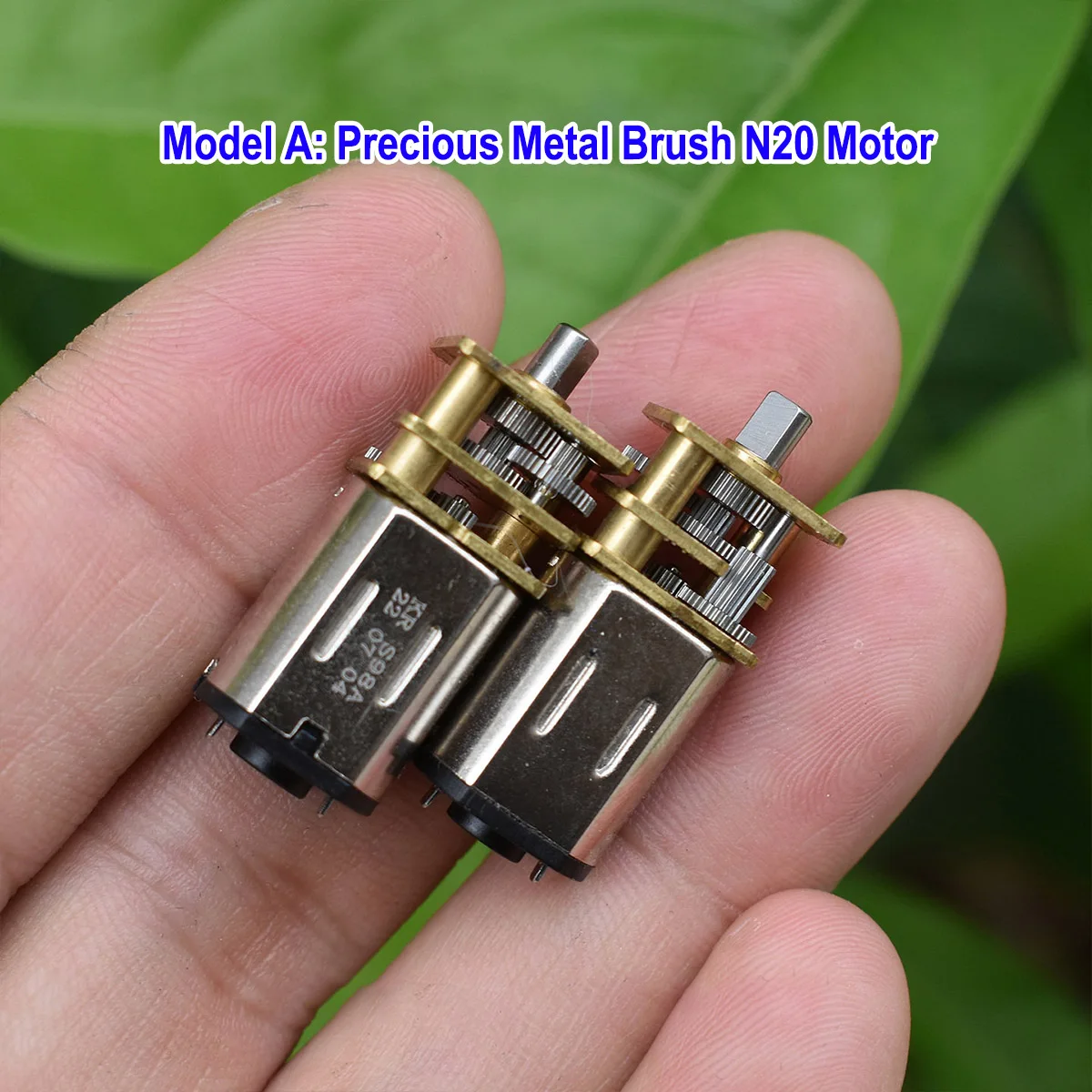

Model A: DC3-6V
Motor specifications: 10*12MM (N20 motor)

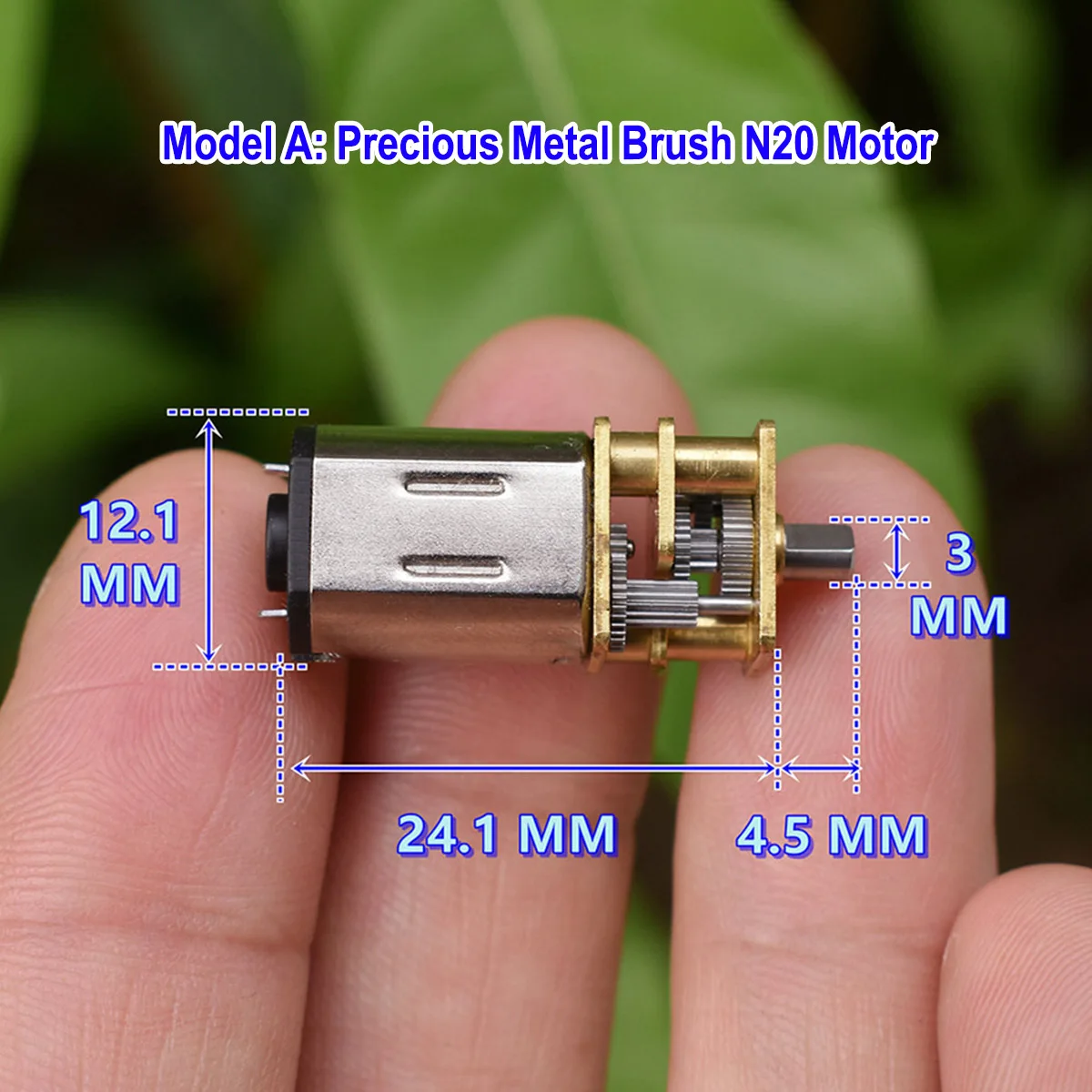

Reducer motor length: 24.1 MM

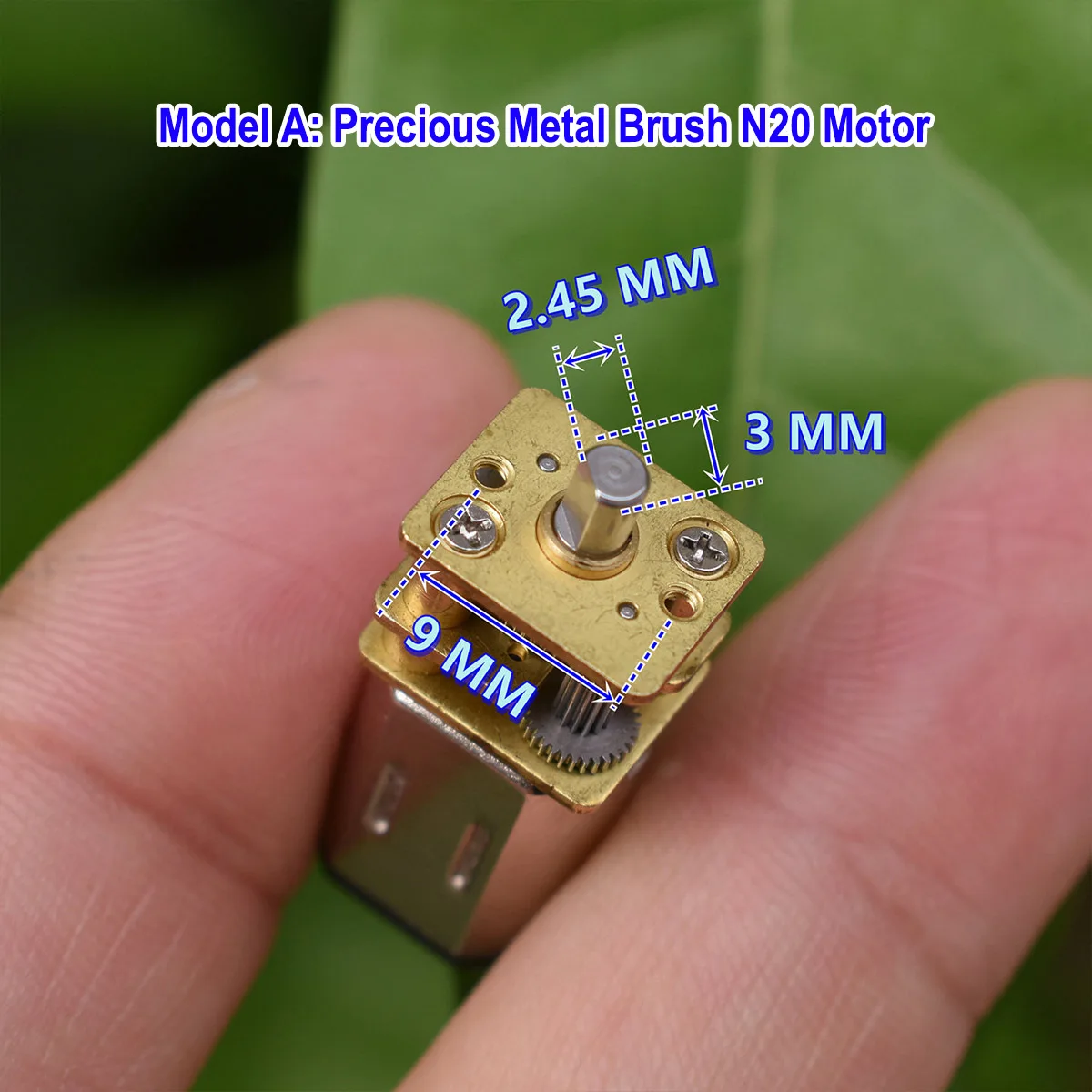

Output shaft outer diameter: 3 MM (with flange 2.45 MM)
Output shaft length: 4.5 MM
Weight: 10 grams
Reduction ratio: 1:50
Voltage: DC3.0V No-load current: 26 MA No-load speed: 188 RPM
Voltage: DC 3.7V No-load current: 26 mA No-load speed: 229 RPM
Voltage: DC4.2V No-load current: 28 MA No-load speed: 262 RPM
Voltage: DC5.0V No-load current: 31 MA No-load speed: 311 RPM
Voltage: DC6.0V No-load current: 35 MA No-load speed: 376 RPM
Model B DC5-9V
Motor size: 10*12MM (N20 motor)
Reducer motor length: 24.5 MM (motor + reducer)
Output shaft outer diameter: 3 MM (with flange 2.45 MM)
Output shaft length: 7 MM
Weight: 10 grams
Reduction ratio: 1:320
Voltage: DC5.0V No-load current: 30 MA No-load speed: 23 RPM
Voltage: DC 6.0V No-load current: 30 mA No-load speed: 28 RPM
Voltage: DC7.2V No-load current: 32 MA No-load speed: 35 RPM
Voltage: DC 9.0V No-load current: 35 mA No-load speed: 45 RPM
Package Include:
1PC * Motor
