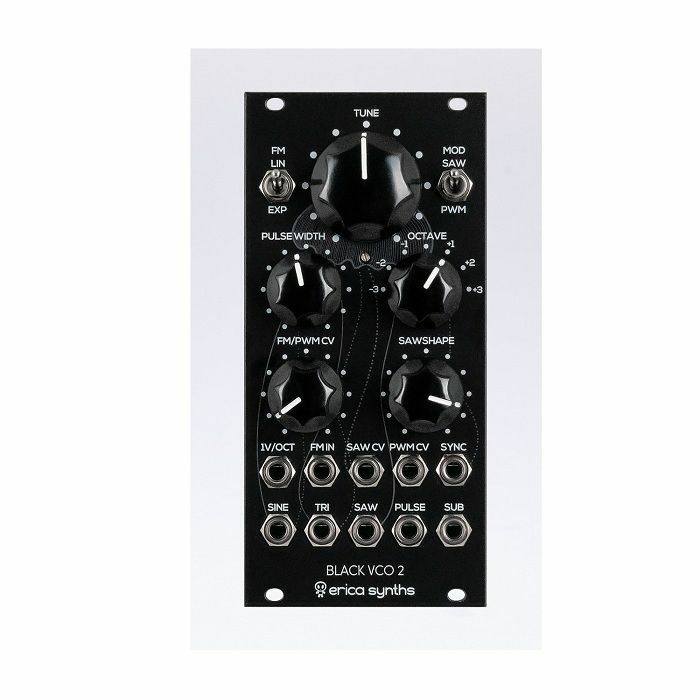

Erica Synths Black VCO2 Analogue Voltage Controlled Oscillator Module
TrustPilot
Erica Synths Black VCO2 Analogue Voltage Controlled Oscillator Module

Erica Synths Black VCO2 Analogue Voltage Controlled Oscillator Module

Analogue VCO module with built in SAW waveshaper & two modulation LFOs - 12HP

Erica Synths Black VCO2 is an analogue VCO with built in SAW waveshaper and two modulation LFOs.

Features
Simultaneous sine, triangle, saw and pulse wave outputs
-1 octave suboscillator
Highly accurate and stable tracking across 8 octaves
Saw waveshaper with manual and CV control
Manually adjustable and CV controlled pulse width
Exponential/Linear FM input with an attenuator
2 built-in modulation LFOs
Synchronization input
Octave switch - 7 octaves
Skiff-friendly design
Erica Synths Black VCO2 is all analogue, highly accurate and stable VCO with four simultaneous waveform outputs, one octave down suboscillator and some unique features. Unlike harsh, logic divider based sub-oscillators, Black VCO2 transistor-based suboscillator generates distinct, rounded squarewave. Furthermore, the Black VCO2 has built in SAW waveshaper and two modulation LFOs. Together with Black VCO Expander - waveform mixer you get massive analogue sound source with plenty of patch points for modular use.

Erica Black Series include high-end, unique functionality and superior quality modules. Only the best, highest quality components are used, all inputs and outputs are protected against undesired over-voltage. Erica Black Series consist of range of modules that are needed to put together entire synth.

Technical specifications:
Audio output amplitude: 10Vptp
Octave range: C0 - C8
Panel width: 12HP
Module depth: 35mm
Power consumption: 71mA@+12V, 62mA@-12V
Power consumption w. Expander: 102mA@+12V, 87mA@-12V

Features

  • Simultaneous sine, triangle, saw and pulse wave outputs
  • -1 octave suboscillator
  • Highly accurate and stable tracking across 8 octaves
  • Saw waveshaper with manual and CV control
  • Manually adjustable and CV controlled pulse width
  • Exponential/Linear FM input with an attenuator
  • 2 built-in modulation LFOs
  • Synchronization input
  • Octave switch - 7 octaves
  • Skiff-friendly design
