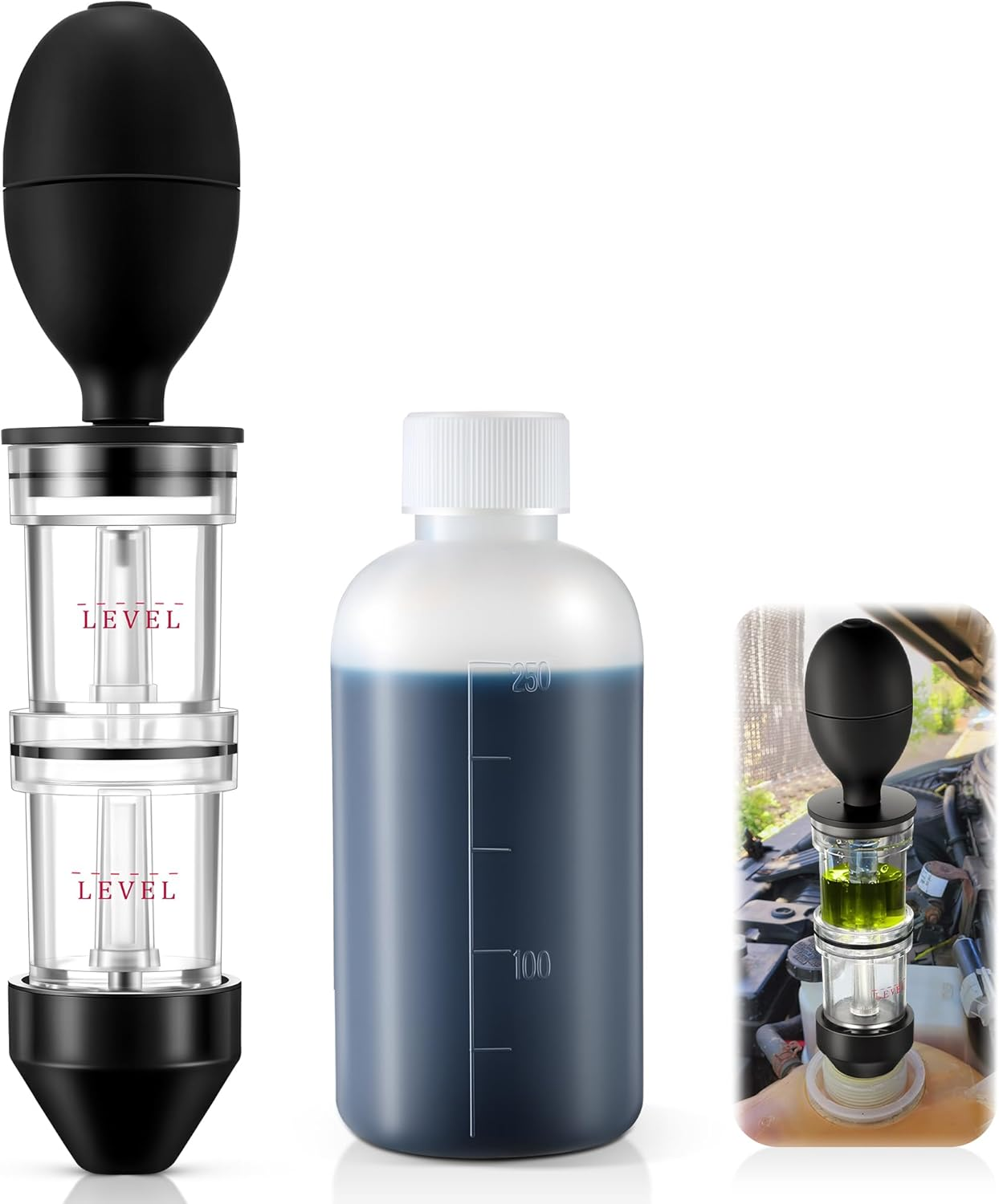

Head Gasket Tester Combustion Leak Test Kit Gas Diesel Dual-Chamber w/ Adapter

Description

Item model number	SO--2458
Manufacturer Part Number	SO--2458
Item Weight	1.01 pounds
Model	SO2458
Product Dimensions	5.91 x 5.71 x 2.56 inches

🔍 Dual-Chamber Combustion Leak Tester Kit – Head Gasket Diagnostic Tool

Identify head gasket failures with professional-grade precision. This advanced combustion leak tester features a unique dual-chamber design that sets it apart from standard single-tube testers. By filtering out water vapor and alkaline particles in the lower chamber, it ensures only pure combustion gases reach the detection fluid in the upper chamber. This prevents contamination and false positives, providing a highly accurate "Pass/Fail" result for gasoline and diesel engines. Whether you are a DIY mechanic or a shop professional, this kit is the fastest way to confirm cylinder head damage or gasket leaks before committing to a teardown.



---

🌟 Key Product Highlights

• [Innovative Dual-Chamber System] Maximum Accuracy: The two-stage filtration process blocks contaminants like coolant mist, allowing the test fluid to remain pure for repeated use and more reliable color-change results.

• [Instant Color Diagnostics] Easy to Read: The included blue-black detection fluid provides immediate visual feedback. If it stays blue, your gasket is sealed; if it turns yellow or green, CO2 (combustion gas) is present in your cooling system.

• [Universal Conical Adapter] 17mm to 45mm: The high-grade rubber cone adapter fits almost any radiator or coolant reservoir port. It is compatible with cars, trucks, tractors, excavators, and motorcycles.

• [High-Volume Test Fluid] 8.5 oz (250ml) Included: Every kit comes with a generous supply of test fluid, enough for multiple diagnostic sessions. The fluid is formulated to detect even trace amounts of exhaust gas in the coolant.

• [Heavy-Duty Construction]: Built for the garage environment with a durable rubber suction bulb and high-clarity chambers for easy observation.

---

📐 Technical Specifications

Feature	Details
Detection Method	CO2 Chemical Color Change
Adapter Range	17mm – 45mm (Universal Tapered)
Fluid Volume	8.5 oz ($250\text{ml}$)
Chamber Style	Dual-Filtration Structure
Engine Compatibility	Gasoline and Diesel
Applications	Automotive, Marine, Industrial, Agriculture

---

📋 Simple 3-Step Diagnostic:

1. Prep: Pour the blue test fluid into the upper chamber up to the dotted line.

2. Seal: Insert the conical adapter into the radiator port (ensure the engine is at a safe temperature to avoid burns).

3. Test: With the engine idling, squeeze the top rubber bulb several times to draw air through the fluid. Watch for a color change from blue to yellow/green.

---

🛠️ Pro-Diagnostic Tip

The "Vapor Trap" Secret: To avoid a false "fail," ensure your coolant level is about 2–3 inches below the radiator neck before starting. This creates a "gas pocket" for the tester to sample. If the coolant is touching the bottom of the tester, it can contaminate the fluid. Use a Siphon Pump to remove a small amount of coolant first for the cleanest, most accurate reading!



---

📦 Shipping & Service

• Condition: Brand New, professional diagnostic grade.

• What You Get: 1x Dual-Chamber Tester, 1x Universal Cone Adapter, 1x 250ml Bottle of Test Fluid.
