3.2KW 220V/380V BT30 ATC Water Cooled Spindle Motor 12000RPM+5.5KW Inverter VFD CNC Kit


Package includes:

  • 1x 3.2KW ATC Water cooled spindle motor 12000rpm (220V or 380V Optional)
  • 1x BT30-ER20 Tool Holder with pull stud
  • 1x 5.5KW Fuling Brand VFD Inverter 220V or 380V (Optional)
  • 1x φ100mm spindle clamp (Optional)
  • 1Set Accessories for spindle
  • Pdf. English manual


Descriptions:



https://image.pushauction.com/0/0/497c9edd-1781-4f98-8153-341b0f052054/d858b358-bb2b-49f2-9ad7-e5c4a27f446d.png




This spindle is a 2-in-1 tool used for loosening tools and dust removal, and of course, an air seal is also required.


The spindle itself has a taper hole runout of 0.002-0.003mm and a taper hole ovality of 0.002mm.

When the tool holder is installed, after measurement, the maximum runout within a 70mm - long tool holder is 0.01mm.

This level of precision can meet the vast majority of high - precision machining requirements.

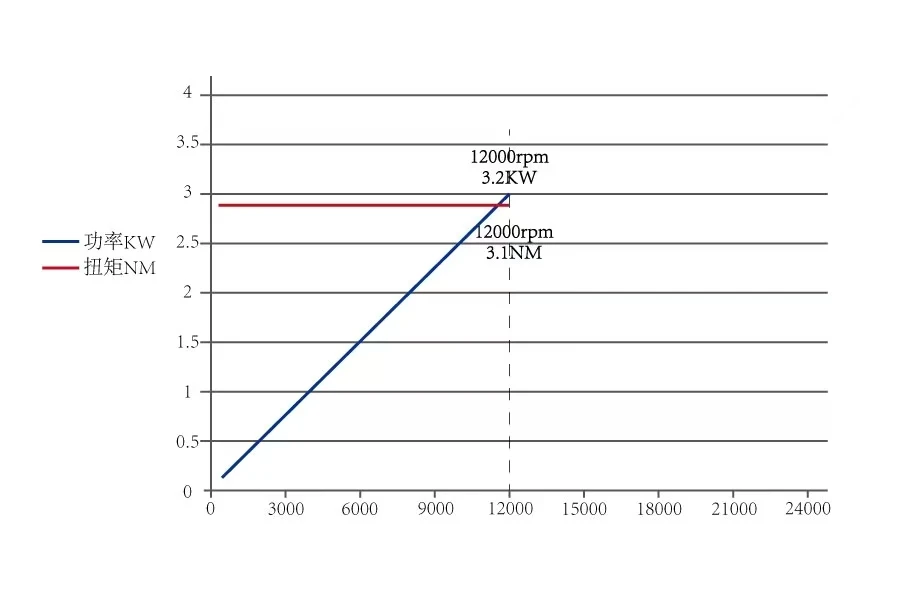

Model: LST100-3.2/R1.2-30

Number of motor poles: 4

Power: 3.2kw

Frequency: 400Hz

Maximum speed: 12000 rpm

Clamp outer diameter: 100mm

Current: 7A

Cooling method: water cooling

Voltage: 220V or 380V optional

Weight: 14kg



https://image.pushauction.com/0/0/497c9edd-1781-4f98-8153-341b0f052054/f8bc67fd-8683-4618-9b0f-6b7b1809b2ed.png



5.5KW Fuling Inverter VFD 220V or 380V











Feature:
It could adapt To the Dust working environment.

220V Configuration:

  • Brand Name:Fuling
  • Power:5.5kw
  • Rated output current:23A
  • Output voltage:3phase AC220V
  • Input voltage:1phase AC220V or 3phase AC220V
  • Frequency:0-1000HZ

380V Configuration:

  • Brand Name:Fuling
  • Power:5.5kw
  • Rated output current:13A
  • Output voltage:3phase AC380V
  • Input voltage:3phase AC380V
  • Frequency:0-1000HZ


Product features

◆ It can realize 8 segment speed running for convenient macro card control
◆ Adopt 32-bit microprocessor and sine PWM control
◆ Unique core algorithm and low interference
◆ Adopt independent air duct for many dust occasions
◆ Automatic torque promotion and automatic slip compensation function
◆ Built-in standard 485 communication function
◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging

The 220V version of the VFD does not support brake resistors.



    100mm Spindle Clamp








  • Made of cast aluminum, it is stable and stable.

  • 100mm diameter options.

  • Any engraving machine can be used.

  • The installation is simple and the required hole distance is required for drilling with a pistol.
