QYASM

Lowering Shock Absorbers Rear for Ford F150 97-2003 2-4" Drop Height



Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

Dust Defender

Triple-layered dust cover with abrasion-resistant fabric

"Stops grit at the gate — no more ruined seals or gritty grinding."

maXpeedingrods G1 Shock
Specification

Type：Lowering shock

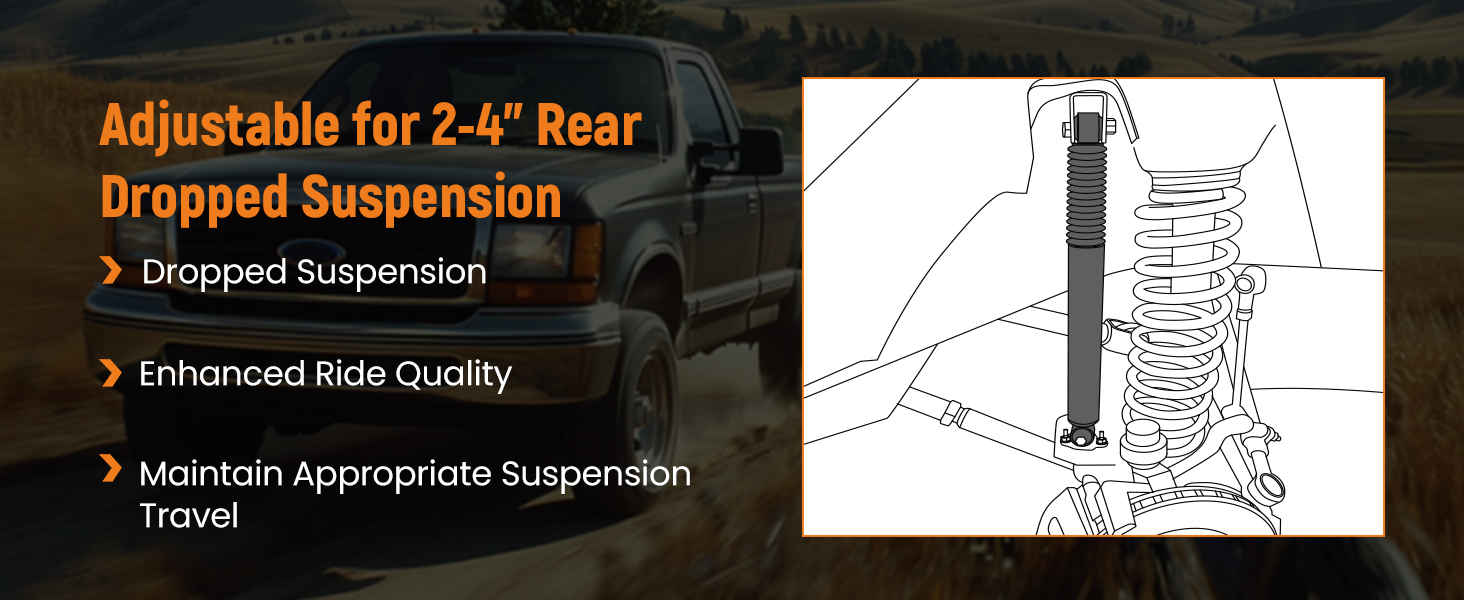

Compatible Height： 2"-4" lowering

Material: High Tensile Strength Carbon Steel

Finish: Powder coated

Bushing material: Rubber

Diameter of piston rod:  12.5mm/0.49"

Piston diameter：30mm/1.18"

Outer cylinder diameter: 45mm/1.77"

Nitrogen charged：yes

Dust cover equipped: yes

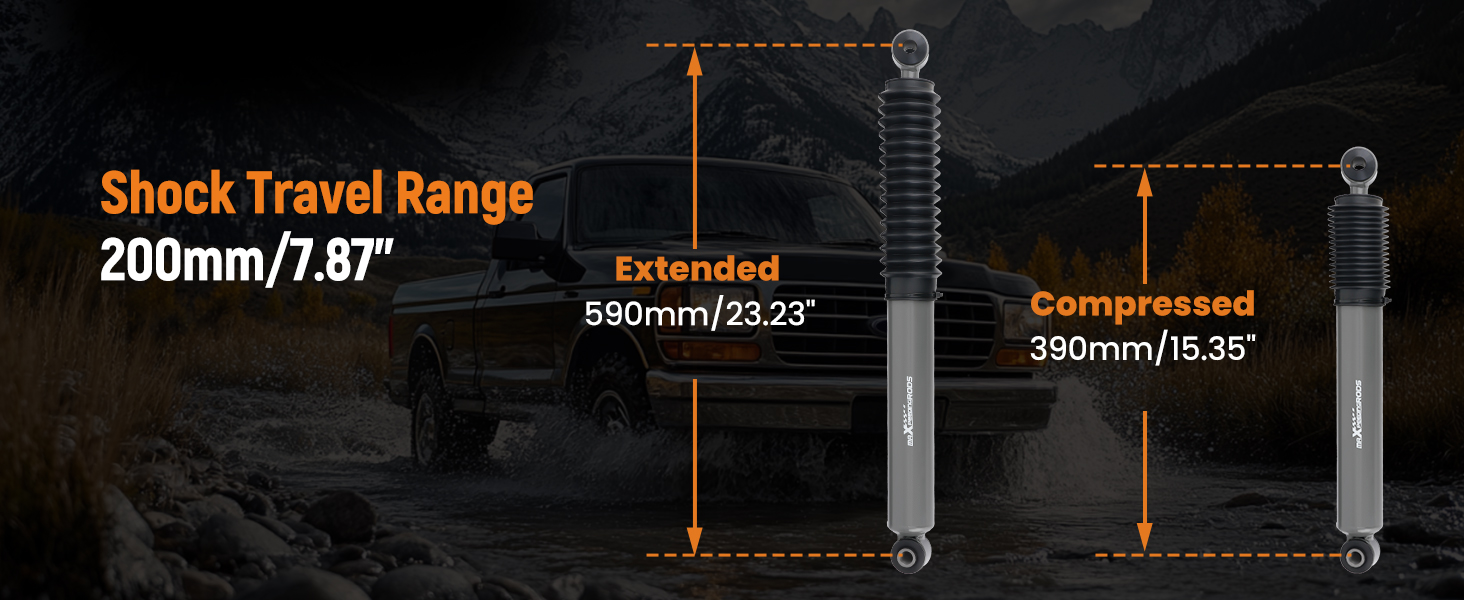

Extended length:590mm/23.23"

Collapsed length:390mm/15.35"

Travel range: 200mm/7.87"

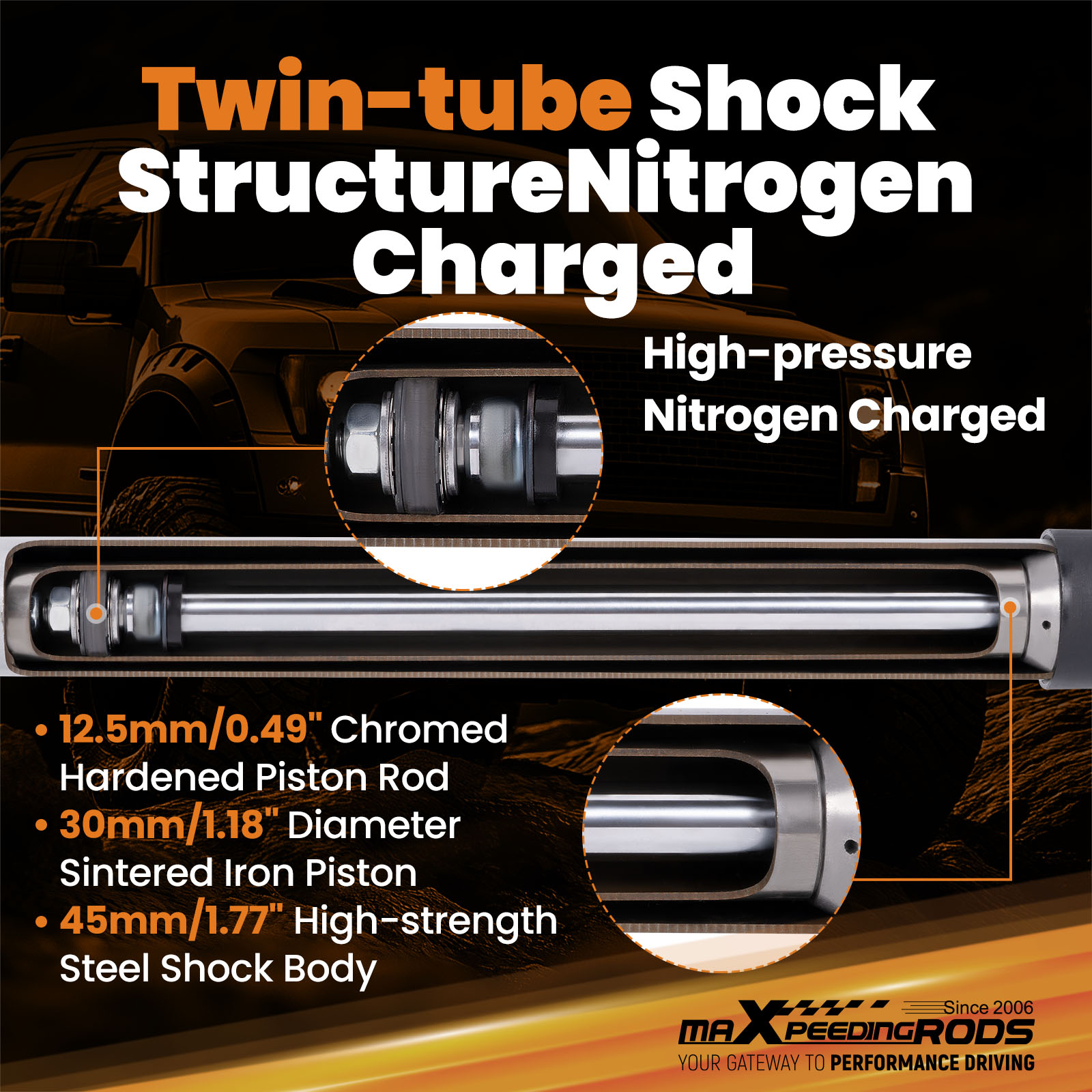

Shock Structure
  • Diameter of piston rod: 12.5mm/0.49"
  • Piston diameter: 30mm/1.18"
  • Outer cylinder diameter: 45mm/1.77"
Application

For Ford F150 1997-2003

only fit for vehicles with 2"-4" lowering kit

G1 Shock

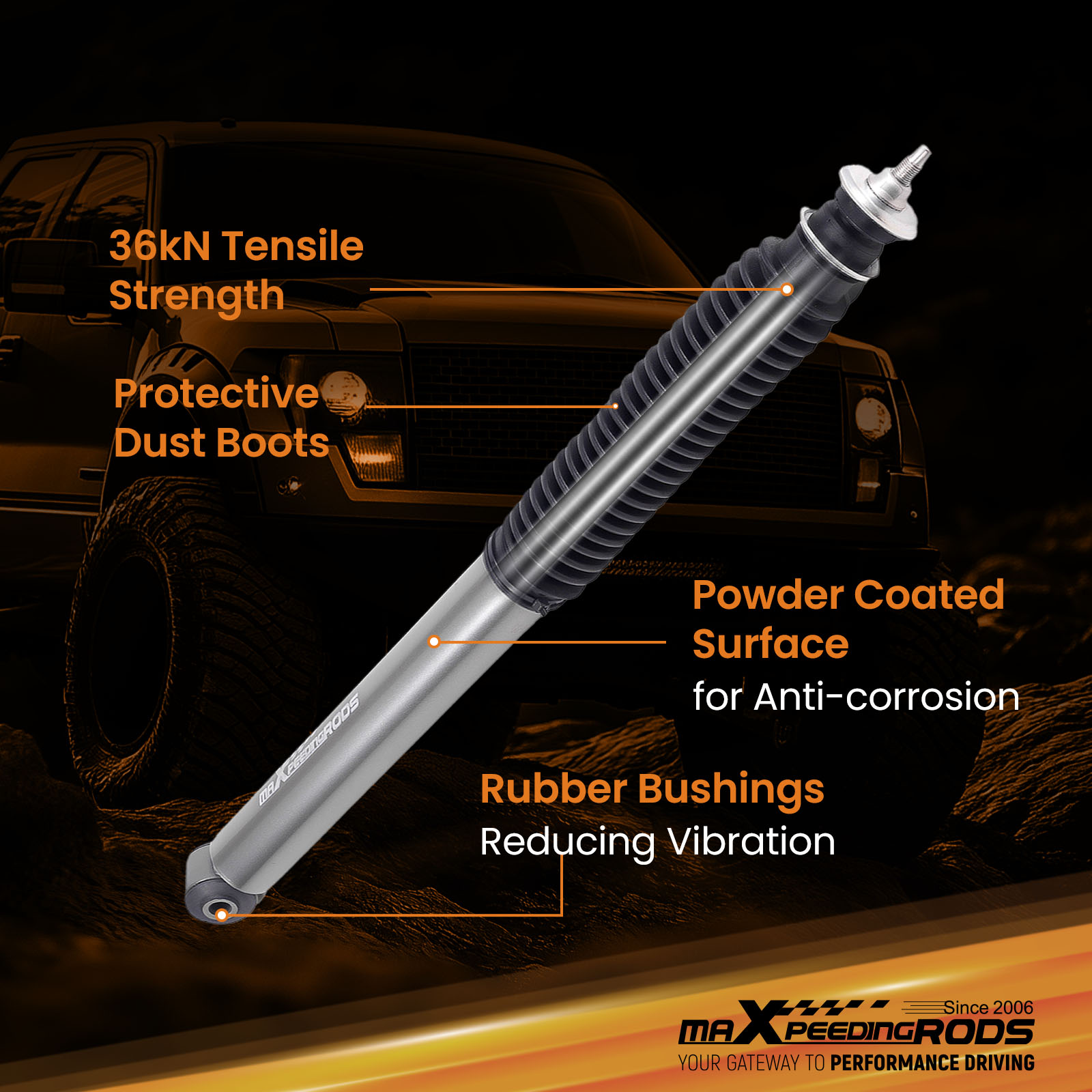

Feature

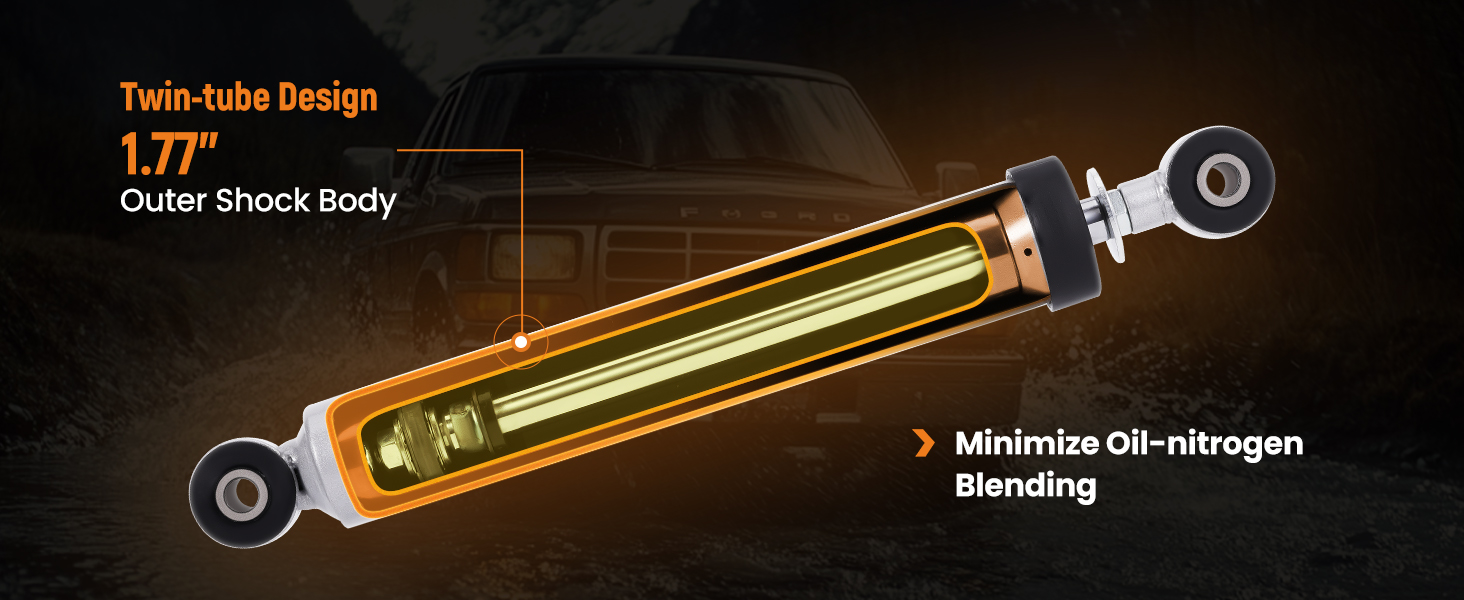

High-pressure nitrogen charged twin-tube shock absorber with high durability.

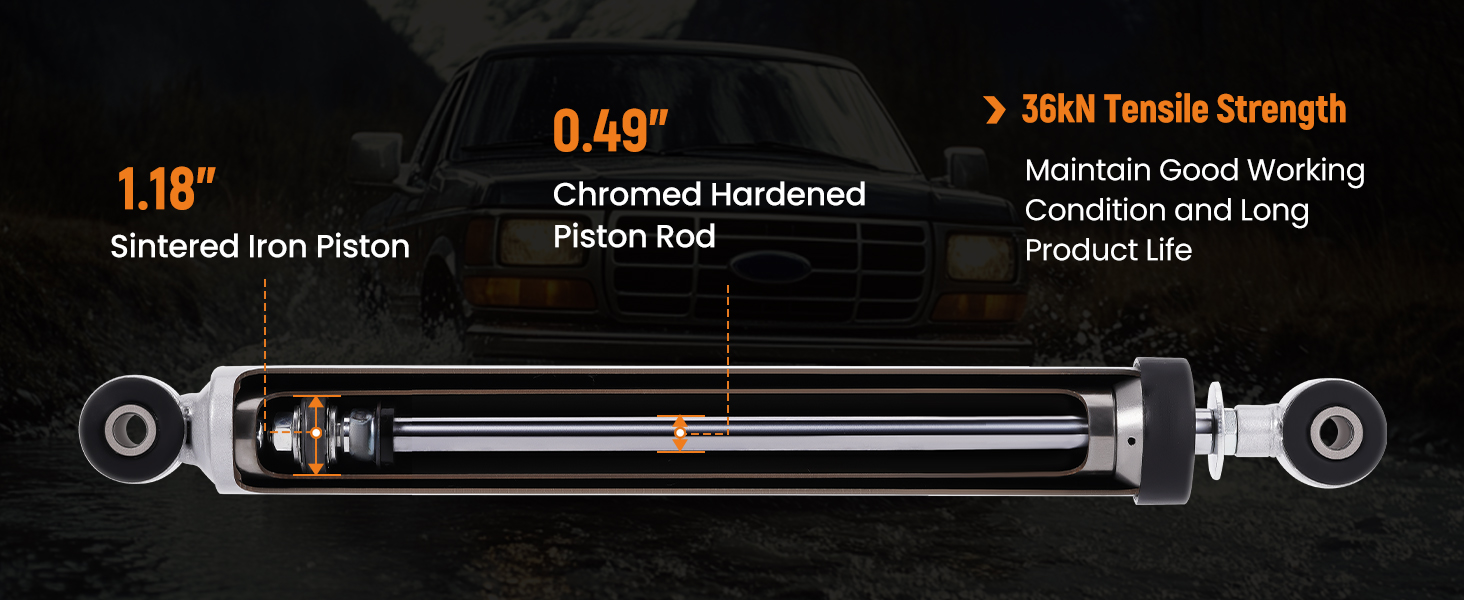

12.5mm Chromed Hardened Piston Rod.

30mm Diameter Sintered Iron Piston.

36KN Tensile Strength.

Precision Welding.

Easy bolt-on installation

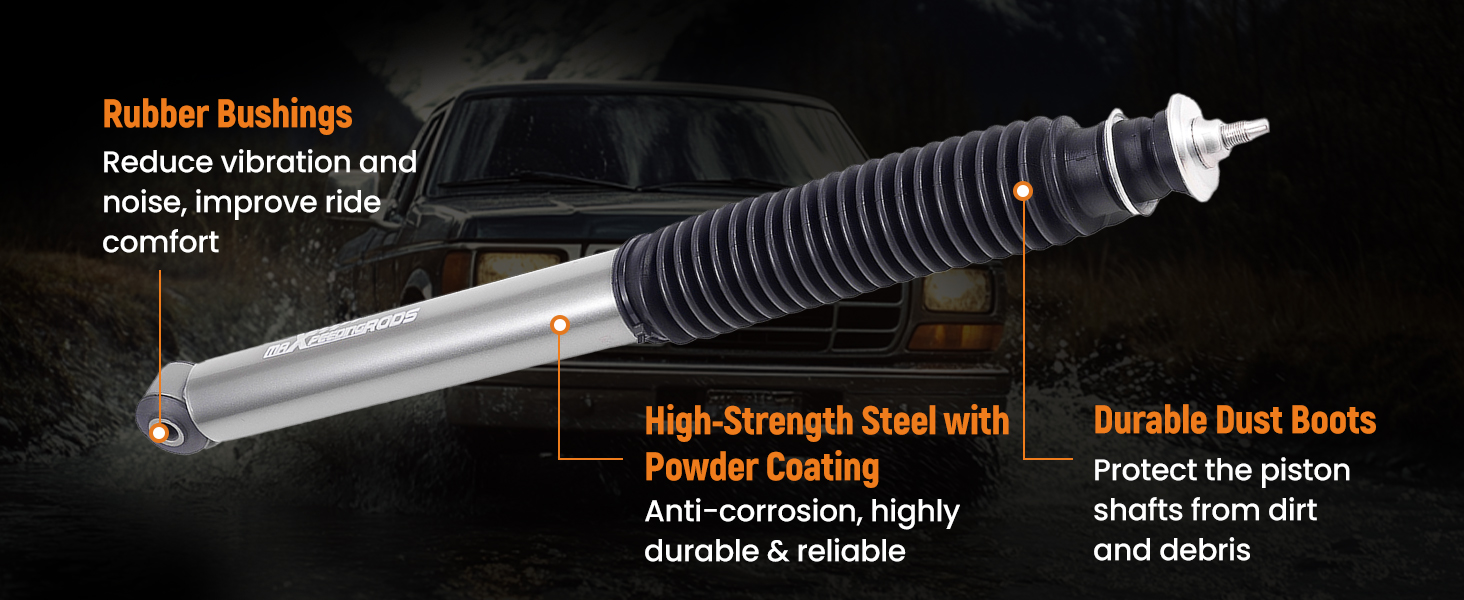

Power coated surface：provides superior corrosion resistance.

High Tensile Strength Carbon Steel for optimal durability and fitment.

Dust cover included prevent the shaft rod and oil seal from damaging.
