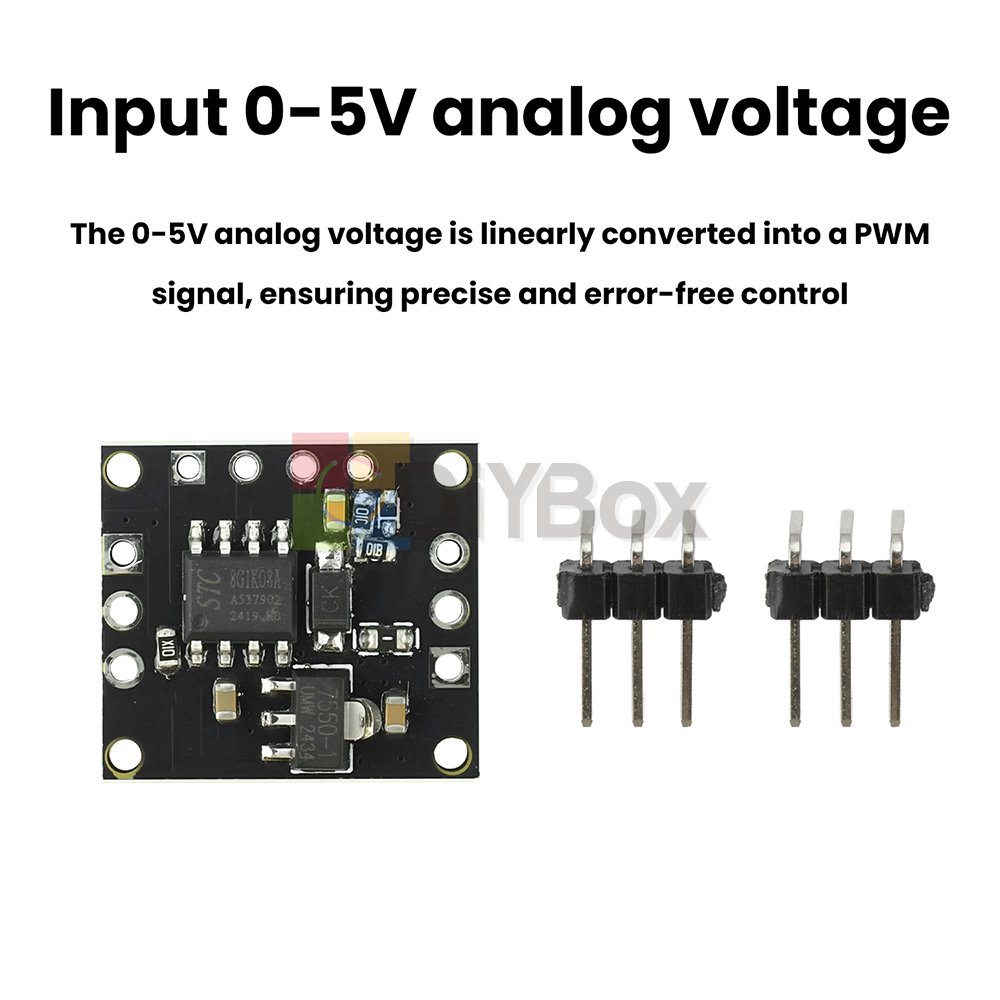

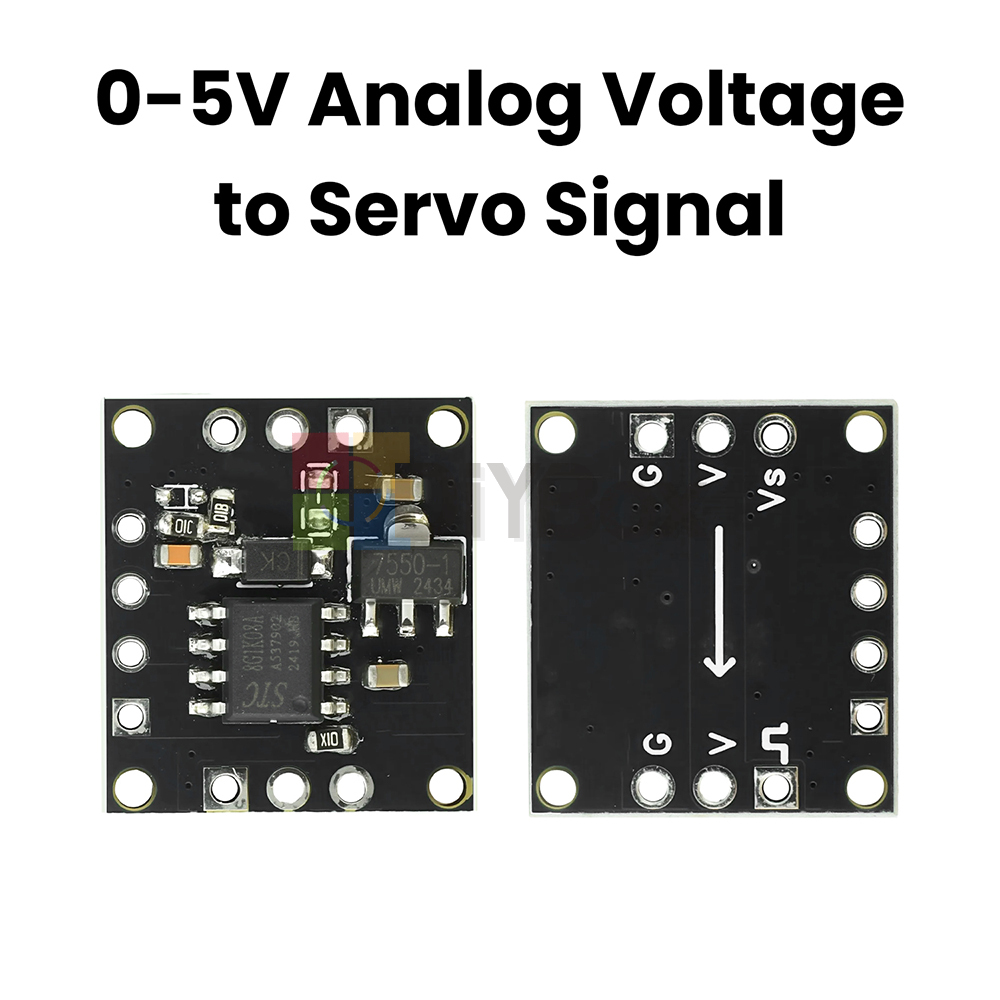

0-5V Input Analog Voltage to Servo Signal PWM Output Servo for RC Models Drones
Features
1. Linearly converts 0-5V analog voltage to PWM signal for precise, error-free control

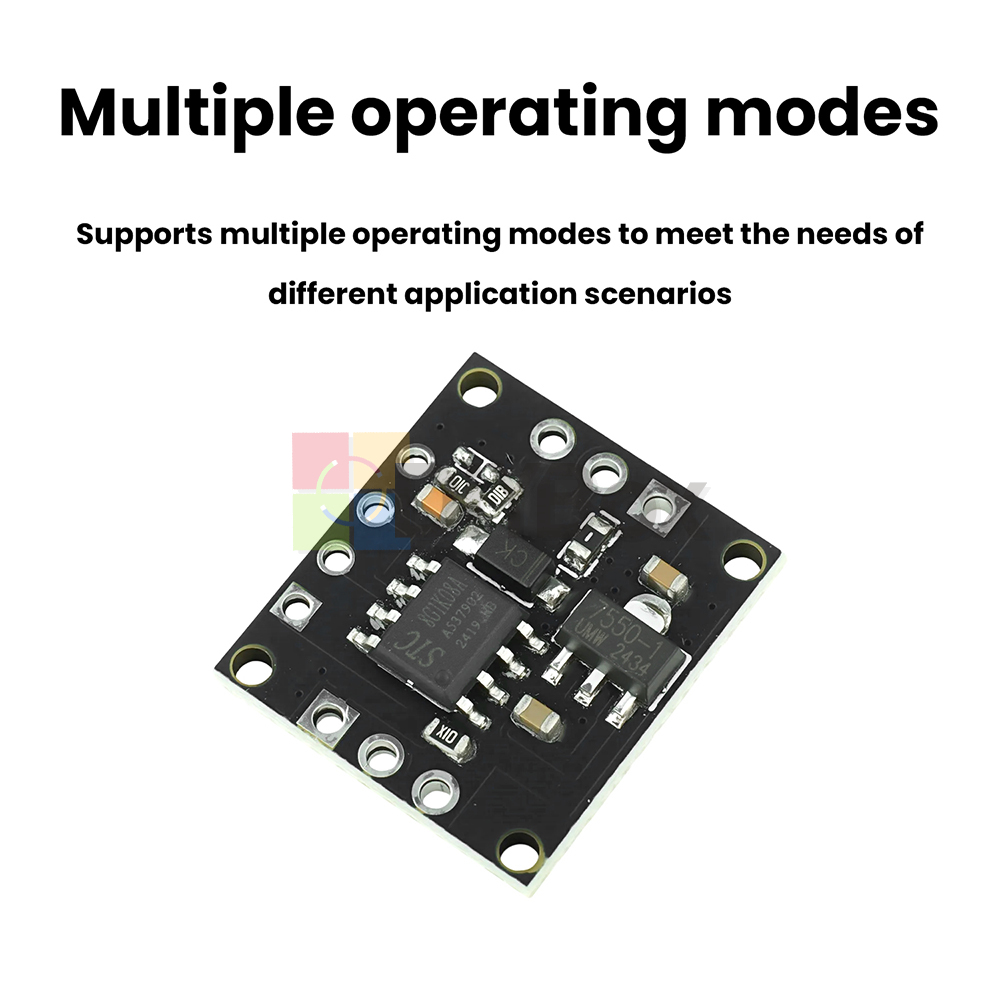

2. Supports multiple operating modes to meet diverse application requirements

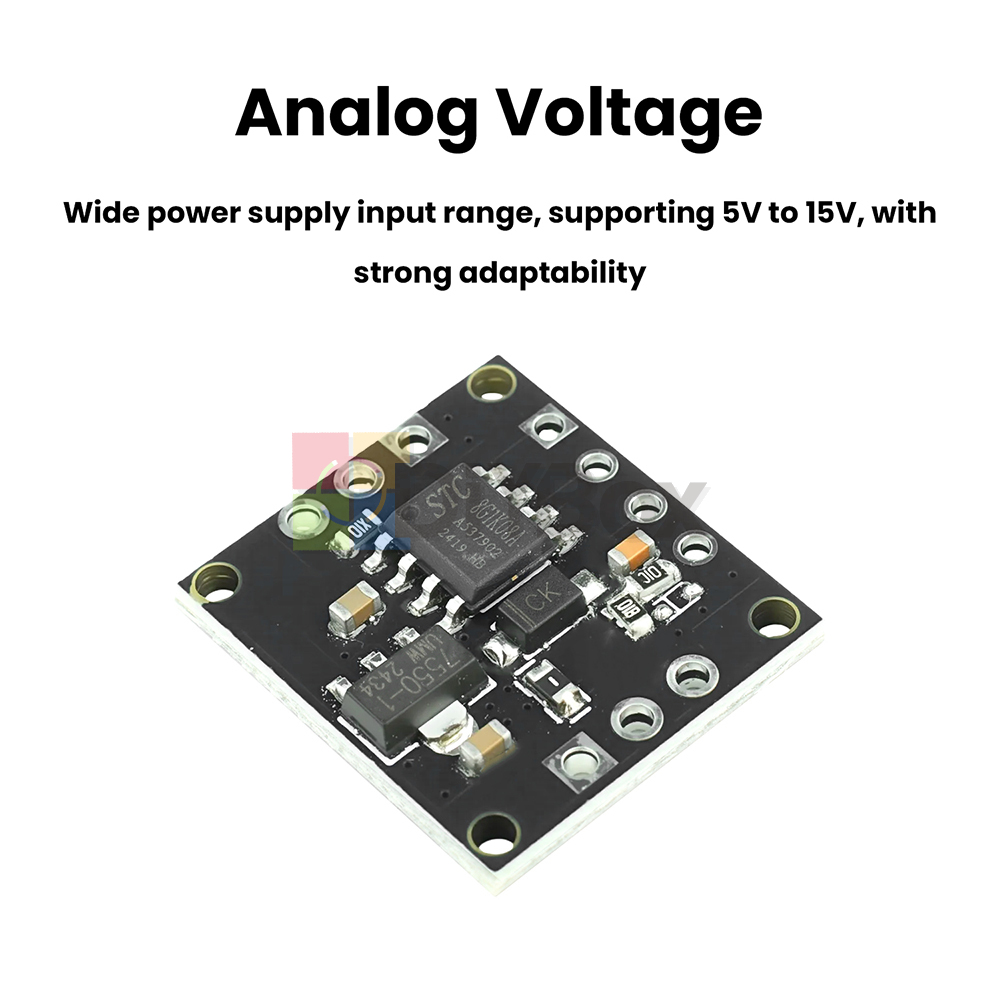

3. Wide power input range (5V to 15V) ensures strong adaptability

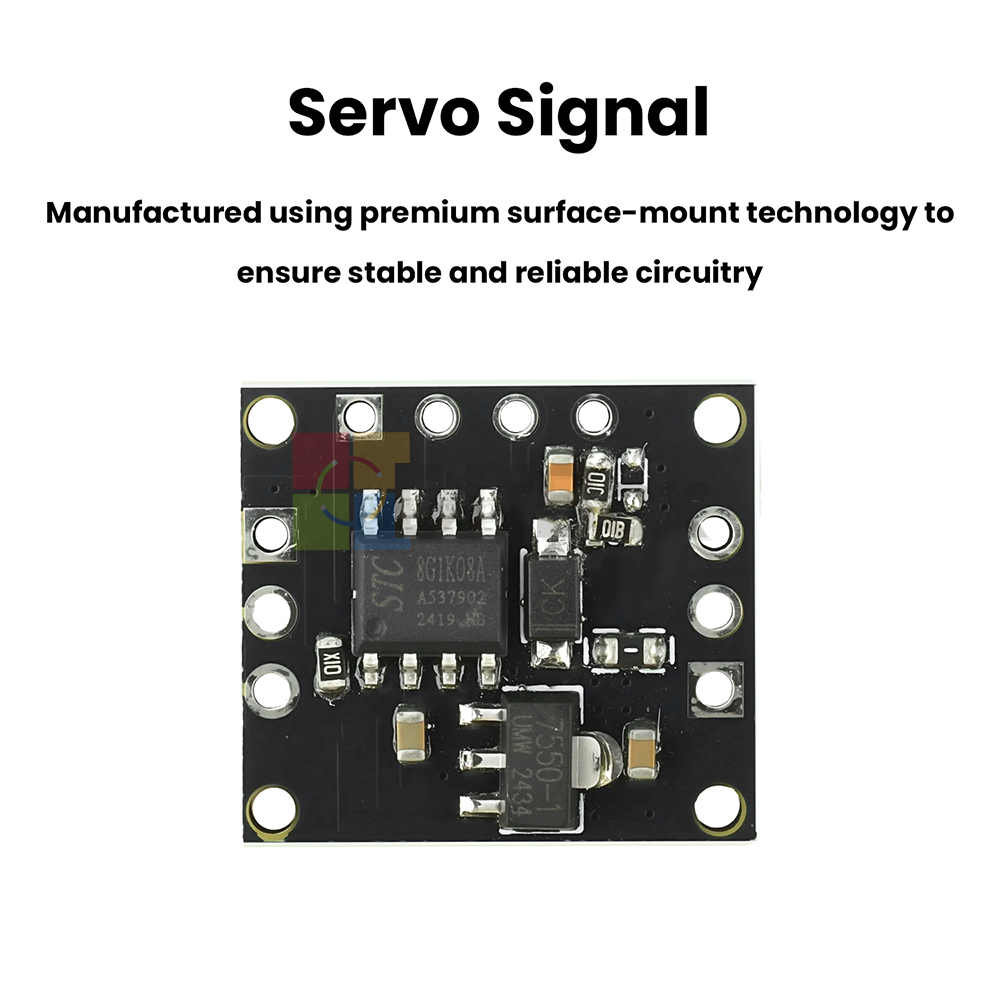

4. Manufactured using high-quality SMT technology for stable, reliable circuitry

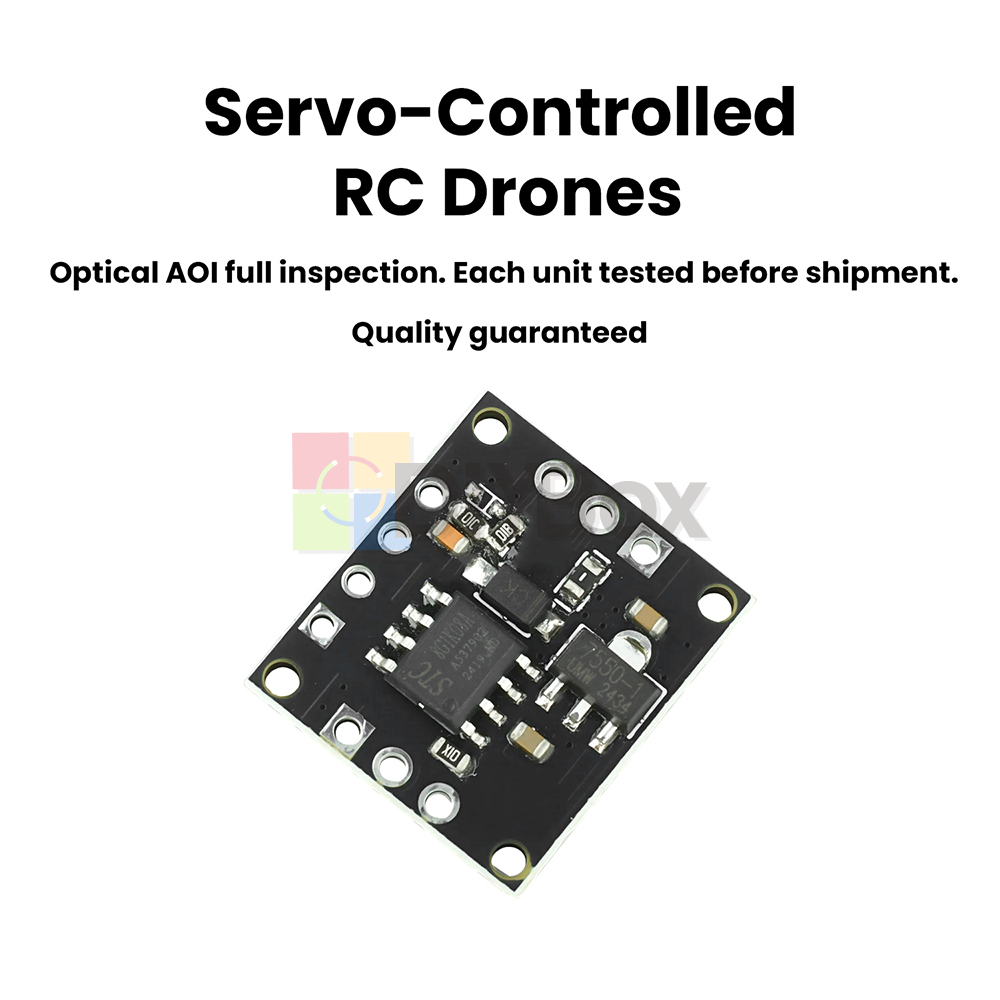

5. Fully inspected via optical AOI; each unit tested before shipment for guaranteed quality
Parameter

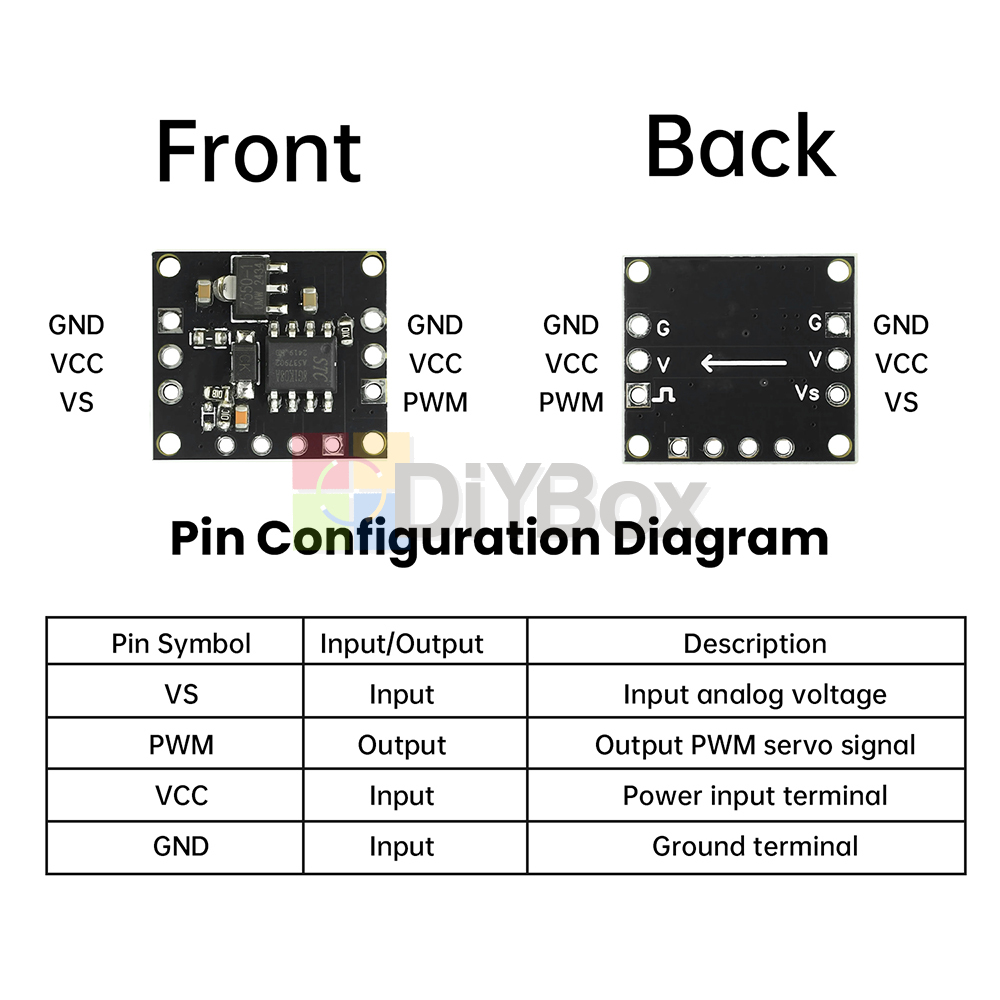

Power Supply VCC: 5-15V
Input Voltage Range VS: 0-5V
PWM Output Frequency: 50Hz
PWM Output Amplitude: 5V
PWM Output Drive Capacity: 10mA

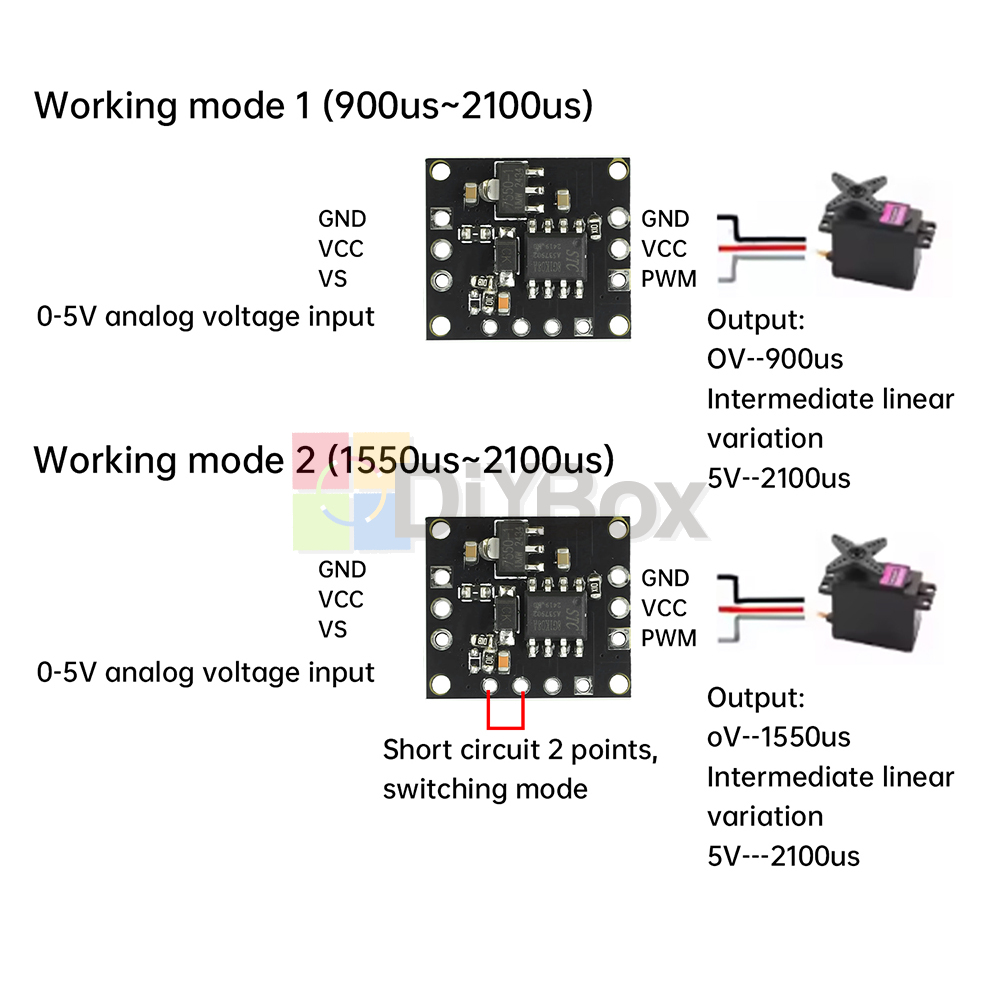

Mode Description
The initial output is servo PWM for controlling ESCs and servos.
1. Mode 1 (Default): Input 0-5V converts to 900μs-2100μs
2. Mode 2: Input 0.8-4.2V converts to 1500μs-2100μs
3. Mode 3: Input 0.8-4.2V converts to 1500μs-900μs

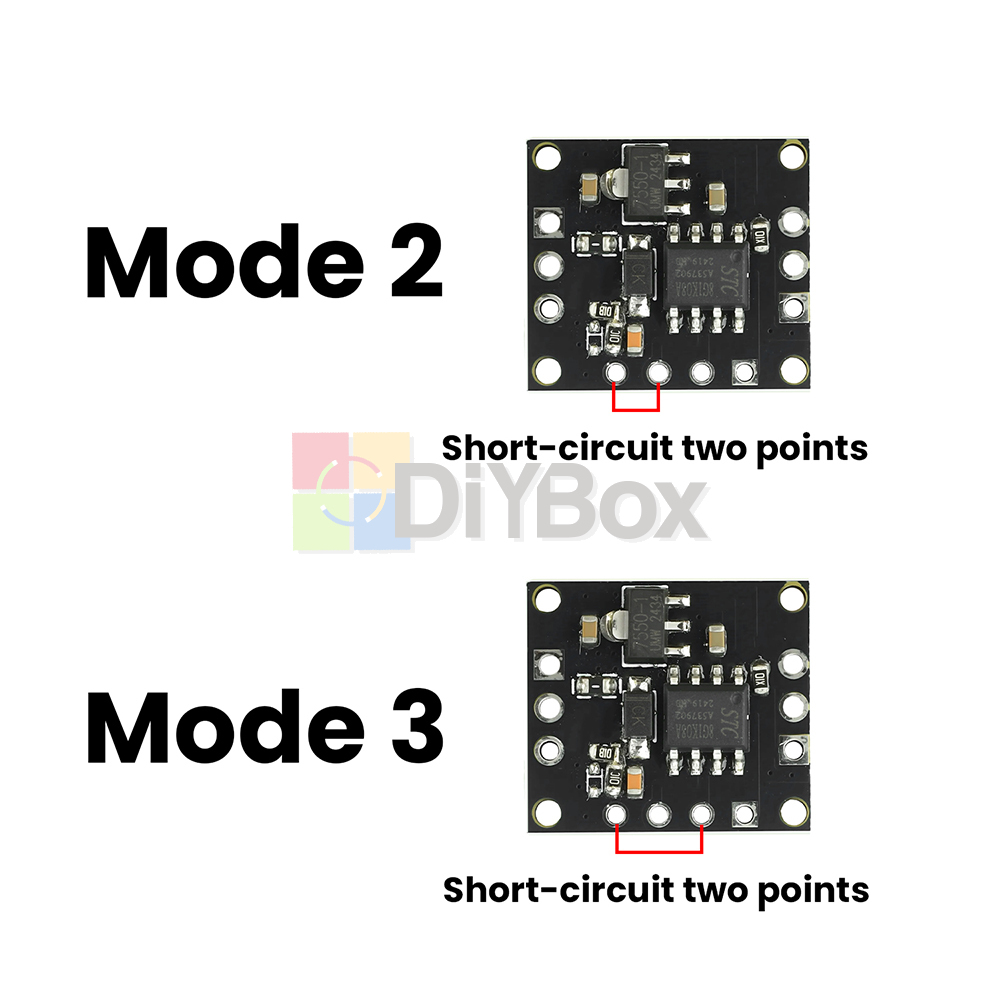

Modes 2 and 3 are switched via jumper connection
Notes
1. Basic soldering skills are required for module use
2. Thorough understanding of input/output signal characteristics is essential
3. Proficiency in multimeter analysis and measurement is necessary
4. Do not purchase if lacking the above skills.
5. Do not purchase if you only use pseudo-elimination methods or pseudo-control variable methods for troubleshooting.
6. Example of pseudo-elimination: (User asks: “Why does it work when I connect the servo debugger but not when I connect yours? Yours must be defective.”) This is pseudo-elimination.

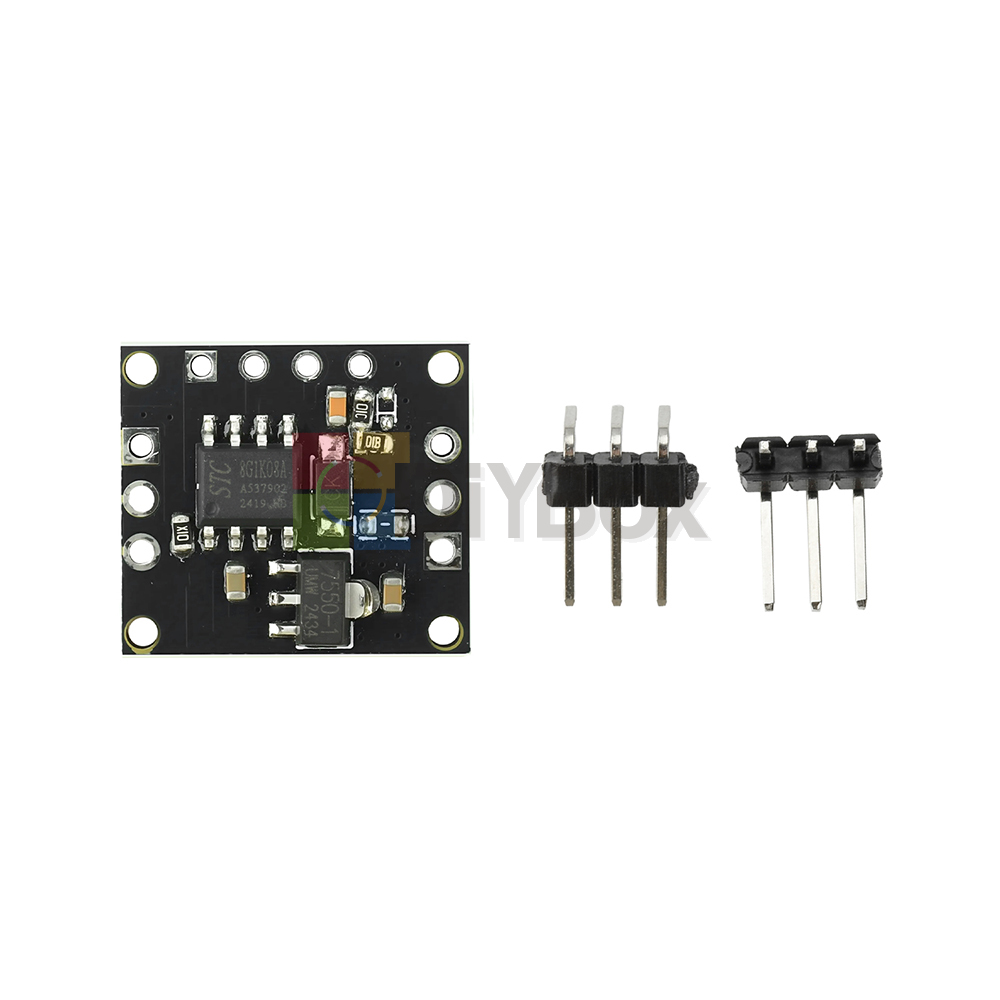

Package include
Module*1

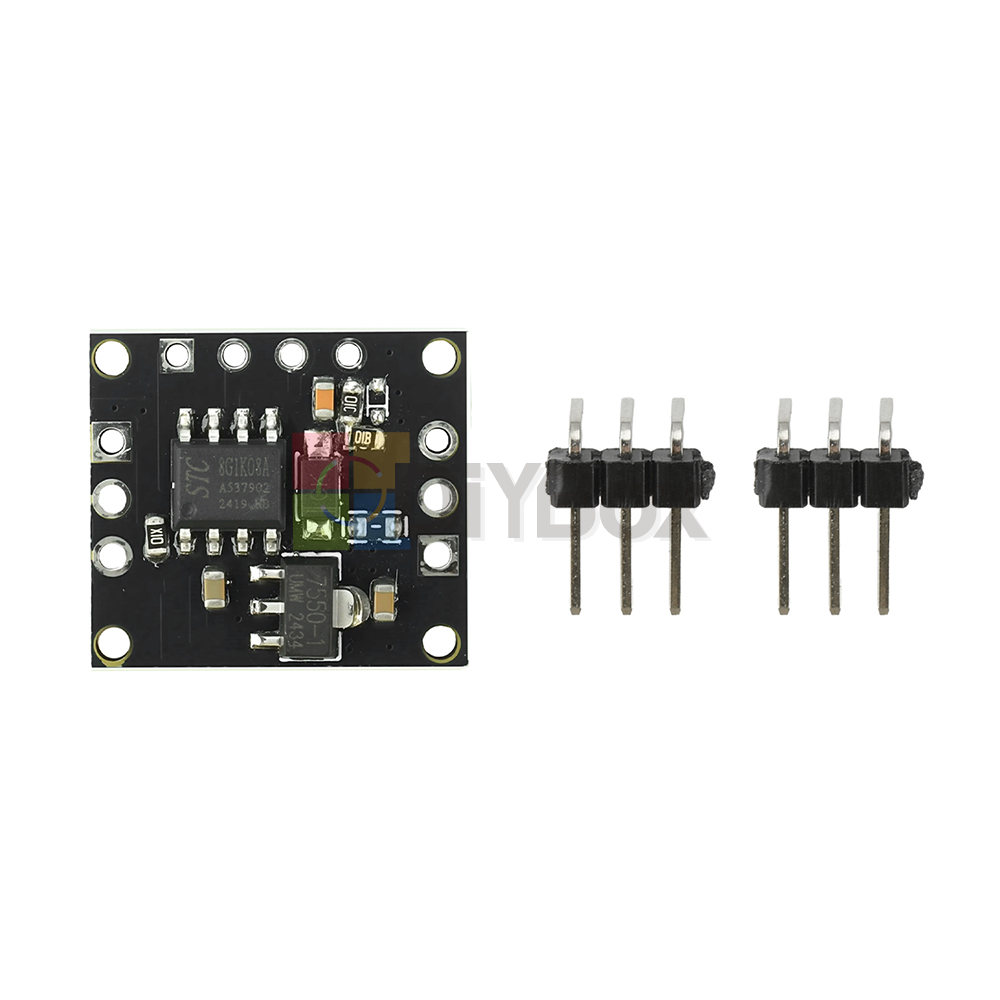

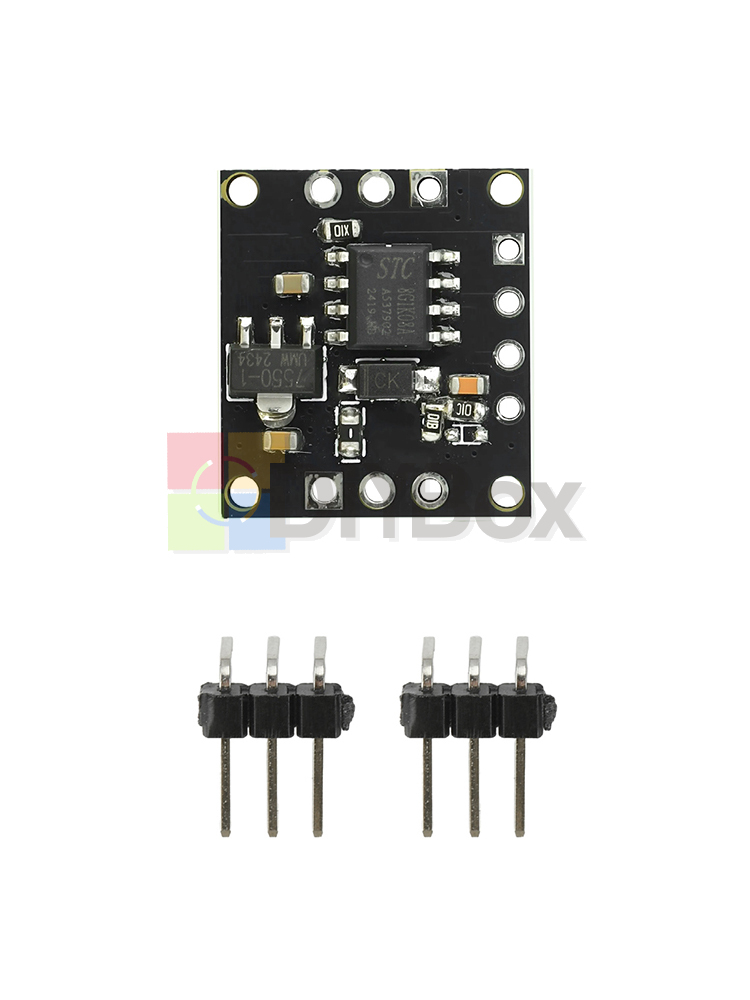

Header Pins*2
