Champion Cooling radiators are tig welded with aircraft grade aluminum. Every radiator comes with a limited lifetime warranty so you can buy with confidence! Product Specifications: Core (H x W): 18.25" x 20.25" - Overall (H x W): 23" x 25.75" - Hose Locations (In x Out): Pass x Driver - Hose Fittings (In x Out): 1.25" x 1.5" - TOC: 5/8-18UNFPlease click on the "Read more" link below to view a complete item description with product videos and additional items to upgrade your cooling system.

Part Information
Genuine Champion Cooling Systems Part #BC2101
This radiator is designed for either a 2.4L(148ci) L4, 2.5L(150ci) L4, 4.0L(241ci) L6, 4.0L(242ci) L6 or a 4.2L(258ci) L6 engine. The oil cooler on this radiator is not compatible with quick disconnects. It does include barbed oil cooler fittings.

(Please Verify Your Radiator Core size Before You Buy)

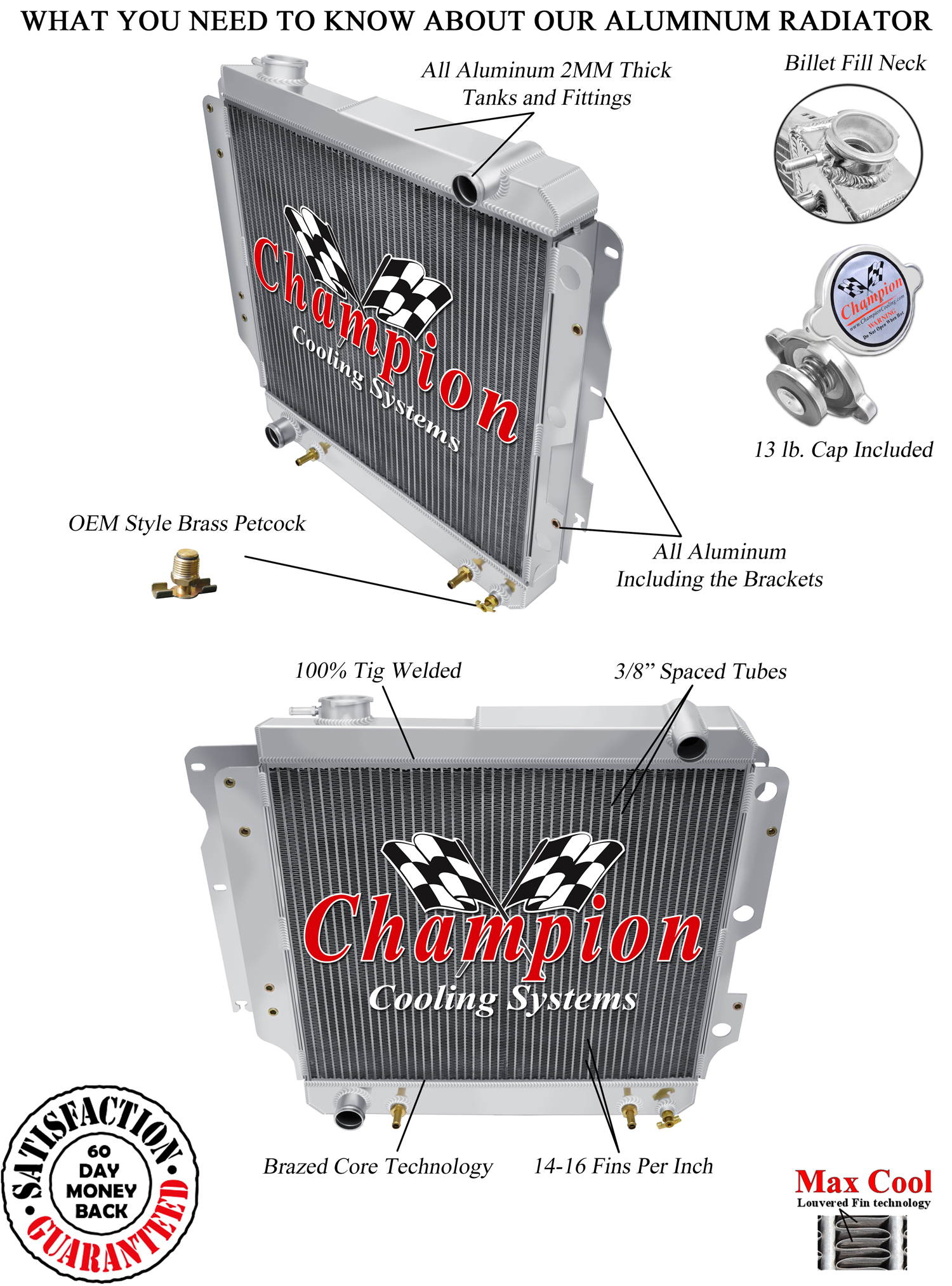

Atom Champion 1 Row Bar and Plate Radiator for 1987 - 2006 Jeep Wrangler #BC2101
  • Down Flow Or Cross Flow Type: Down Flow
  • Mounting Type: Bracket
  • Tank Material: Aluminum
  • Core Material: Aluminum
  • Overall Height: 23
  • Overall Width: 25 3/4
  • Core Height: 18 1/4
  • Core Width: 20 1/4
  • Inlet Location: Passenger
  • Inlet Diameter: 1 1/4
  • Outlet Location: Driver
  • Outlet Diameter: 1 1/2
  • Core Row Quantity: 1
  • Transmission Oil Cooler Fitting Type: 5/8-18UNF
  • Internal Transmission Oil Cooler: Yes
  • Core Thickness: 2 3/8
  • Tank Width: 2.375
This package includes a 1 Row Bar and Plate All Aluminum Radiator.

Champion Cooling Systems radiators are manufactured at their ISO certified facility.

They are made to high standards of quality and workmanship using the Highest Grades of aluminum available and are constructed with 100% welded seams, brazed core technology and no epoxy.

They come with a Lifetime Limited Warranty and are made to install with little or no modifications using your Original Mounts giving you the confidence you desire.
