Description:

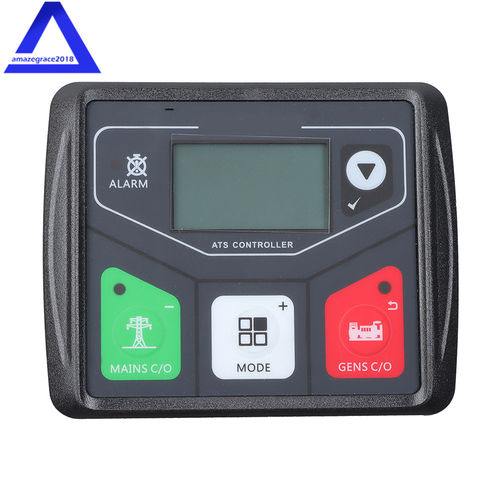

The controller is a mains/gens ATS controller, which can automatically or manually control the ATS dual power switch, suitable for the application of one mains and one power generation. The LCD screen can display various faults at the same time. Once the generator does not run normally, it can effectively achieve protection. It can display single-phase power generation voltage, power generation frequency, mains voltage, and mains frequency; the working mode (manual, automatic, test, shutdown) indicates the working status of the ATS switch through the LED indicator.
- 32bit high performance single chip microcomputer.
- LCD screen, Available in Chinese/English languages, user’s language set if necessary.
- Collection and display, gen, mains, phase and other parameters.
- Automatic/Manual mode. In manual mode, can force the switch to close or open.
- Suitable for various AC systems (3 phase 4-wires, single-phase 2-wire, and 2-phase 3-wire).
- Input/output function, status can be shown directly.
- Totally 3 relays output.
- Totally 2 configurable switch input.

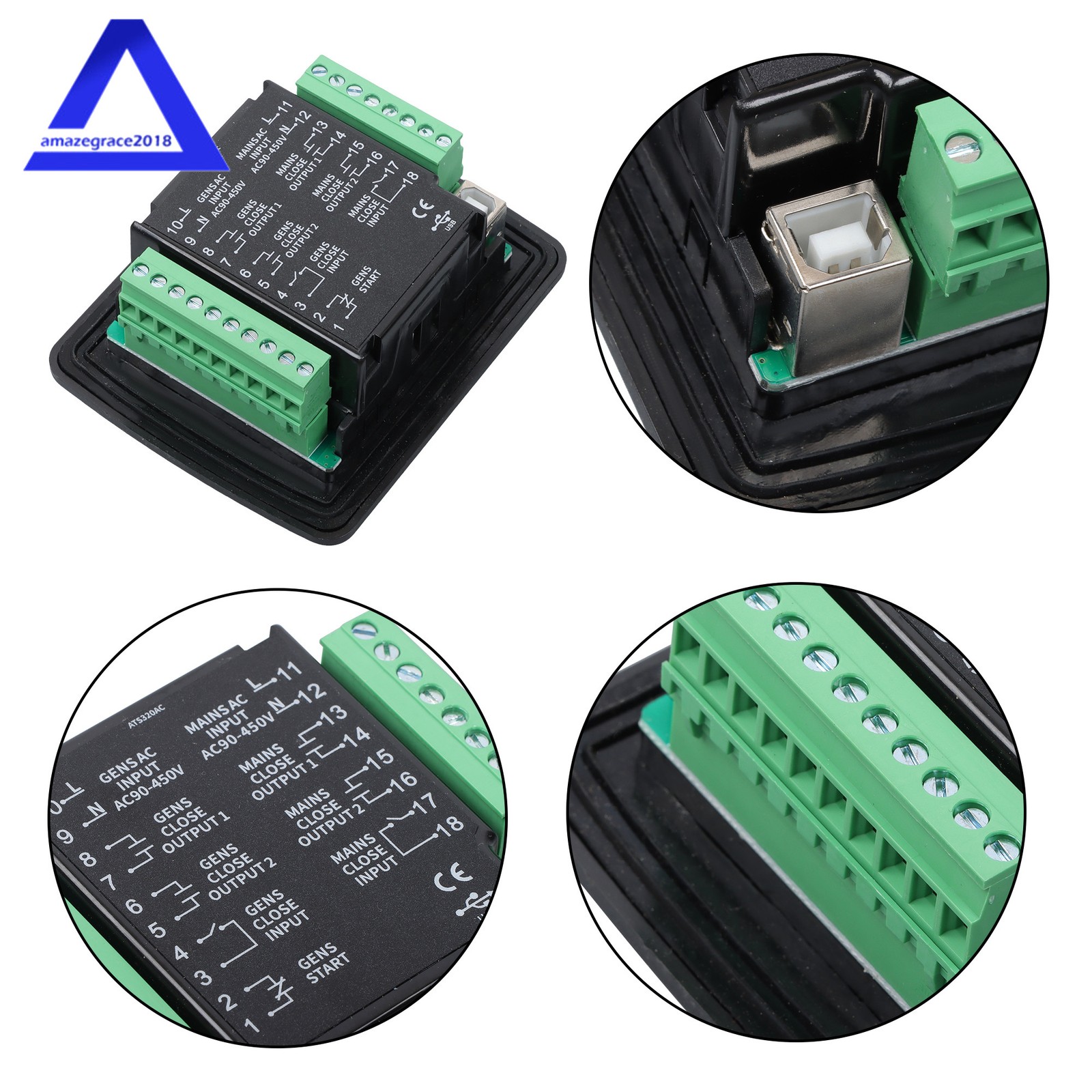

- USB Port: parameters can be set even without power through USB port to monitor in real time.
- Control Protection: Realize automatic ATS switching of generator sets, perfect fault display and protection functions.
- Standard water-proof rubber gasket. The waterproof can reach IP65.
- Module design: All the connections are adapted with European connectors so that installation, connection, repair and replacement can be more easily.
Feature:
High performance,reliable quality.
We work with every effort to provide quality products and professional service.
Specification:
Working voltage: AC 90V-450V(L1N1/L2N2)
Power Consumption: - Standby: MAX 1W , - Working: MAX 2W
Gens Voltage Input: 1P2W 90VAC-450VAC (ph-N)
Mains Voltage Input: 1P2W 90VAC-450VAC (ph-N)
MAX Accumulating Time: 99999.9Hours (Min Store time: 6min)

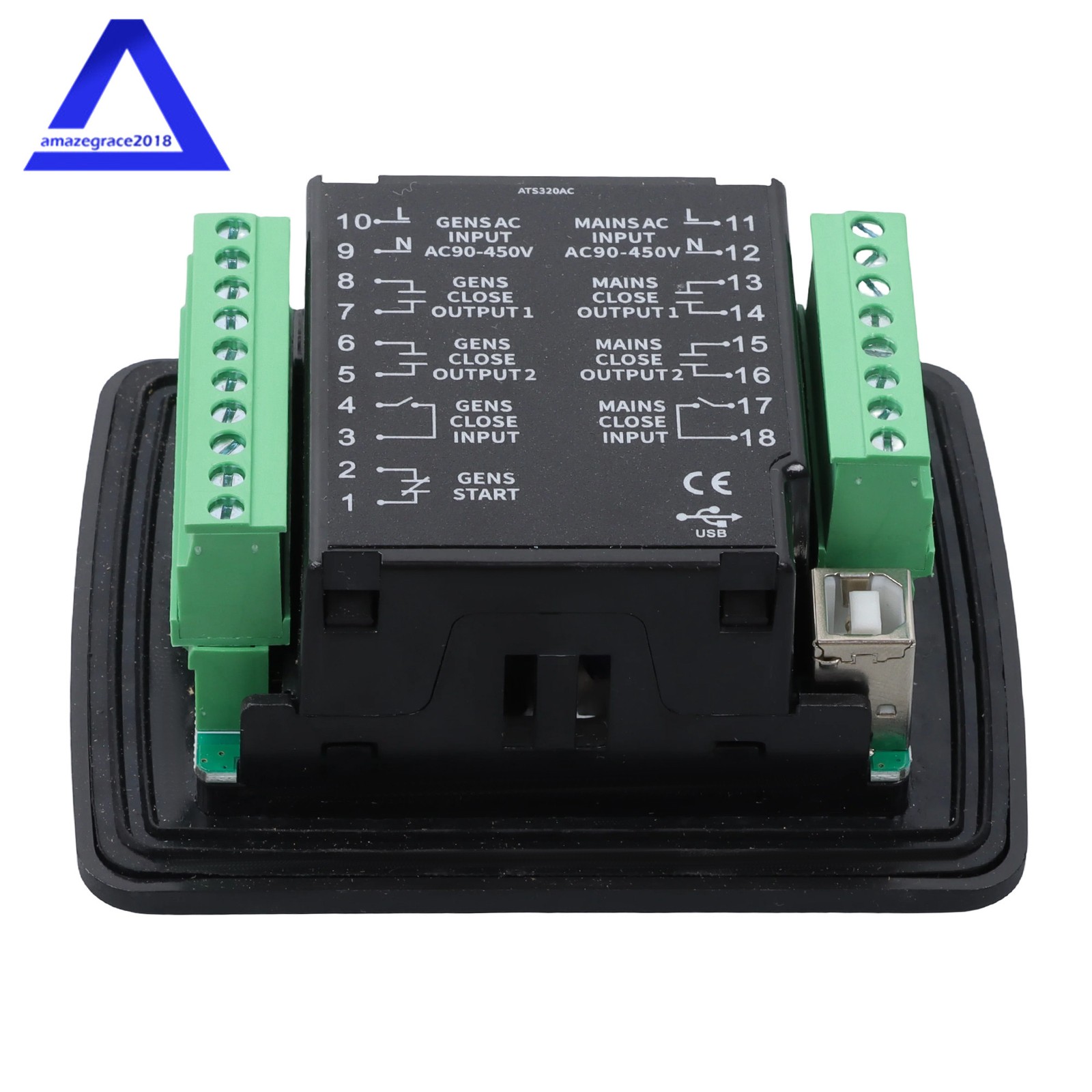

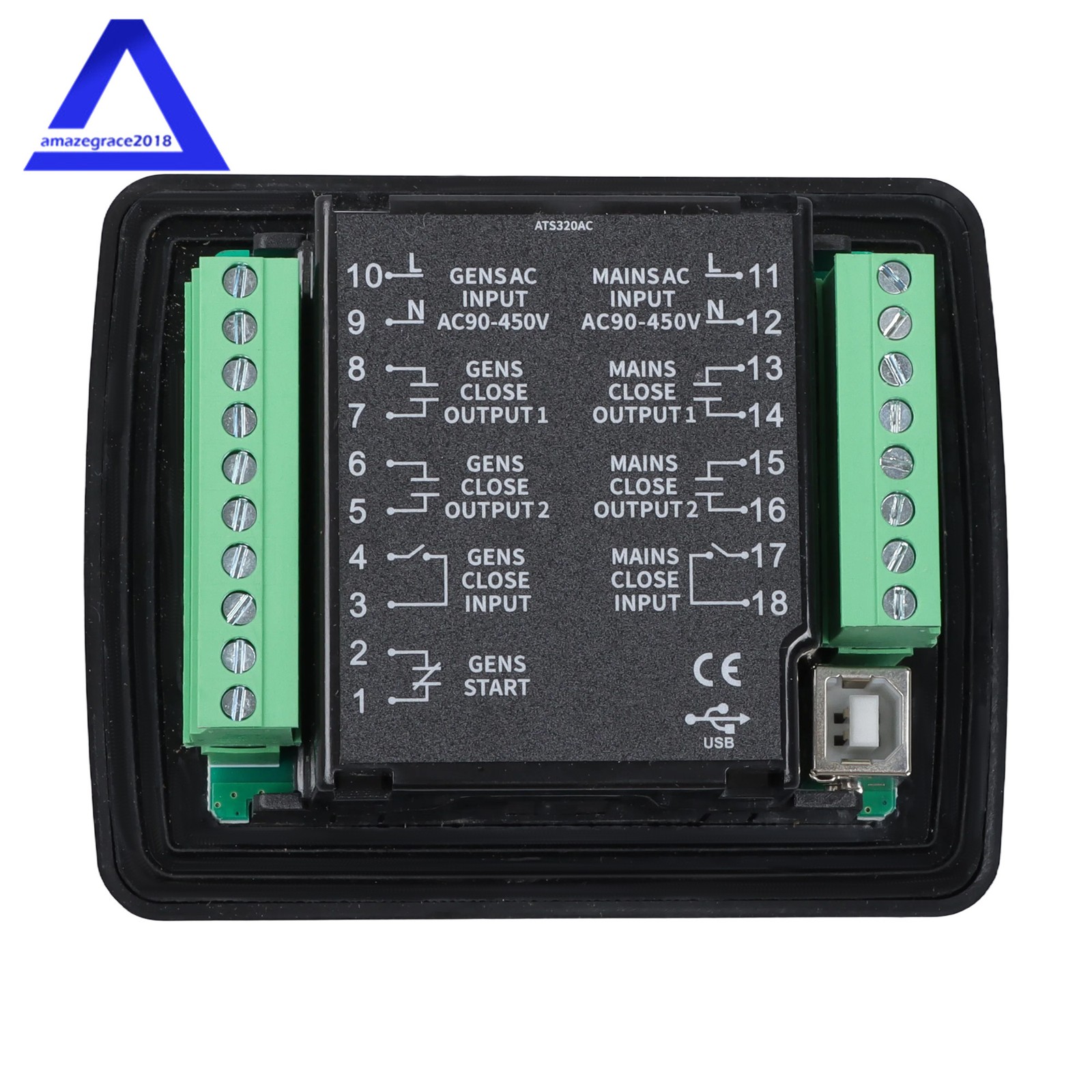

Closing gens output: 250V/5 AMP Non-contact normally Open output
Closing mains output: 250V/5 AMP Non-contact normally Open output
Remote start output: 250V/3 AMP Non-contact normally Close output
Closing Gens input: Engagement brake feedback signal valid
Closing Mains Input: Engagement brake feedback signal valid
Working Condition: -25~70℃
Storage Condition: -40~80℃
Protection Level: IP65:when waterproof rubber gasket is added between controller and its panel
Panel Cutout: 78mm*66mm
About Delivery:
We have warehouses in California and New Jersey.
We will follow the principle of nearest delivery.
When one warehouse is out of stock, it will be shipped from another warehouse.
Thank you for your understanding.
Package Product List:

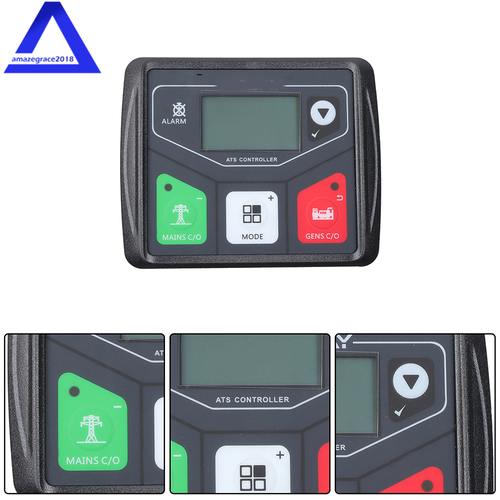

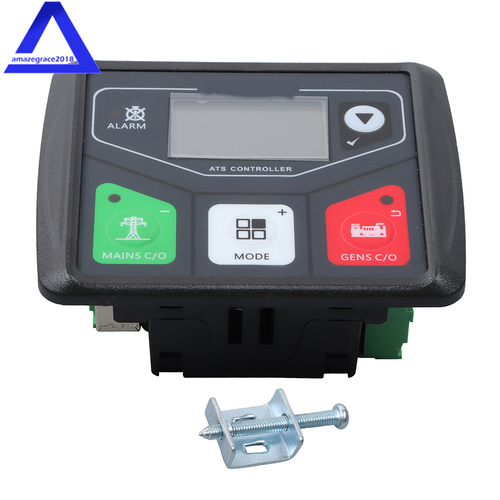

1 × ATS320AC Generator ATS Controller Panel Automatic Transfer Switch
