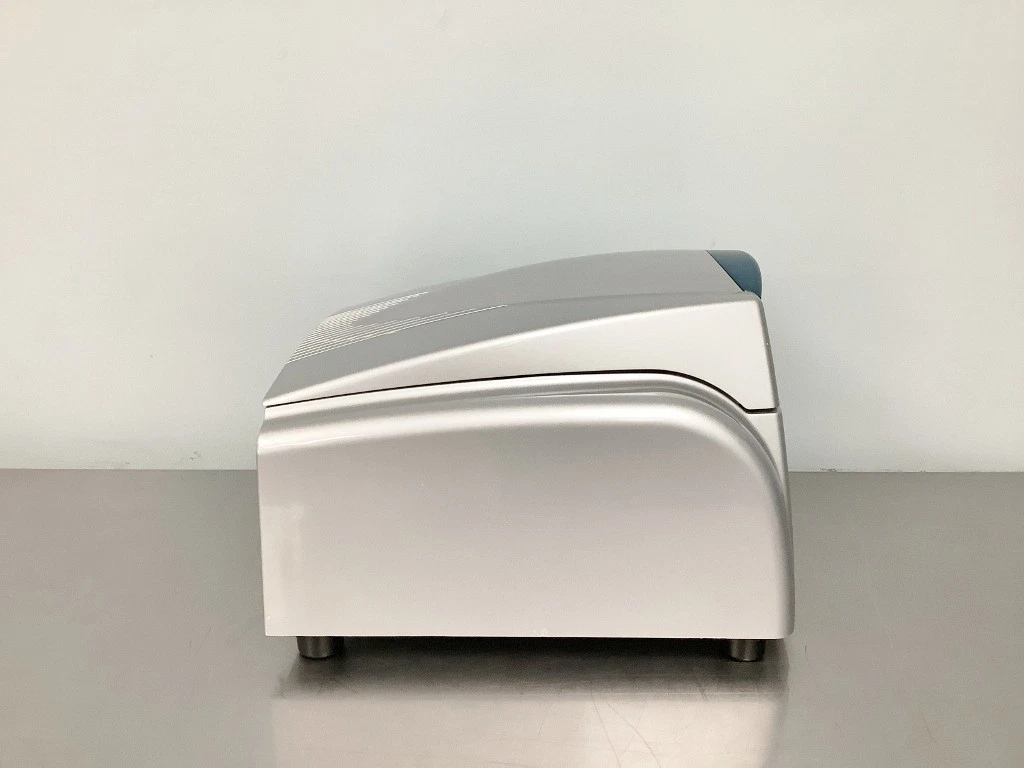

The Qiagen Rotor-Gene Q is a 5-plex HRM real-time PCR system with outstanding performance and a wide optical range, supporting up to 5 channels from UV to infrared wavelengths. This low-maintenance RT-PCR system features a unique rotary design that provides centrifugal force for precise and versatile real-time thermal cycling. With uniform optical detection, this rotary action spins each tube at the same temperature for highly sensitive, rapid results without the sample-to-sample variation you get from block-based instruments. Tube-to-tube variation of this rotary qPCR is ±0.02°C, and is capable of fast ramping, with ignorable equilibration times for short run-times. The Rotor-Gene Q Qiagen Real Time PCR 5Plex HRM System is configured with a high-resolution melting analysis, for more information and a wider range of applications. This method uses a specially tuned, high-intensity optical channel with a thermal resolution of 0.02°C.
Specifications:
| Dynamic range | 10 orders of magnitude |
| Heat dissipation/thermal load | Average, 0.183 kW (632 BTU/hour); Peak, 0.458 kW (1578 BTU/hour) |
| Humidity | 10–75% (noncondensing) |
| Operating temperature | 18-30ºC (64-86ºF) |
| Optical System | Up to 6 channels spanning UV to infra-red wavelengths |
| Excitation sources | High energy light-emitting diodes |
| Green | 470 ± 10 excitation (nm) 510 ± 5 Detection (nm) |
| Yellow | 530 ± 5 excitation (nm)557 ± 5 Detection (nm) |
| Orange | 585 ± 5 excitation (nm)610 ± 5 Detection (nm) |
| Red | 625 ± 5 excitation (nm)660 ± 5 Detection (nm) |
| Crimson | 680 ± 5 excitation (nm)712 ± 5 Detection (nm) |
| Detector | Photomultiplier |
| Acquisition time | 4 seconds |
| Samples per run | Tubes 0.2 ml; Strip Tubes 0.1 ml (4 tubes); Rotor-Disc 72; Rotor-Disc 100; Up to 100 samples per run using a Rotor-Disc 100 |
| Temperature range | 35 to 99ºC |
| Temperature accuracy | ±0.5ºC (type, measured 30 seconds after clock start) |
| Temperature resolution | ±0.02ºC (smallest programmable increment) |
| Temperature uniformity | ±0.02ºC; Ramp rate (peak ramp rates, air), >15ºC/s heating, >20ºC/s cooling |
| Typical run time | 40 cycles in 45 min with the QIAGEN RG Kits (assay dependent) |

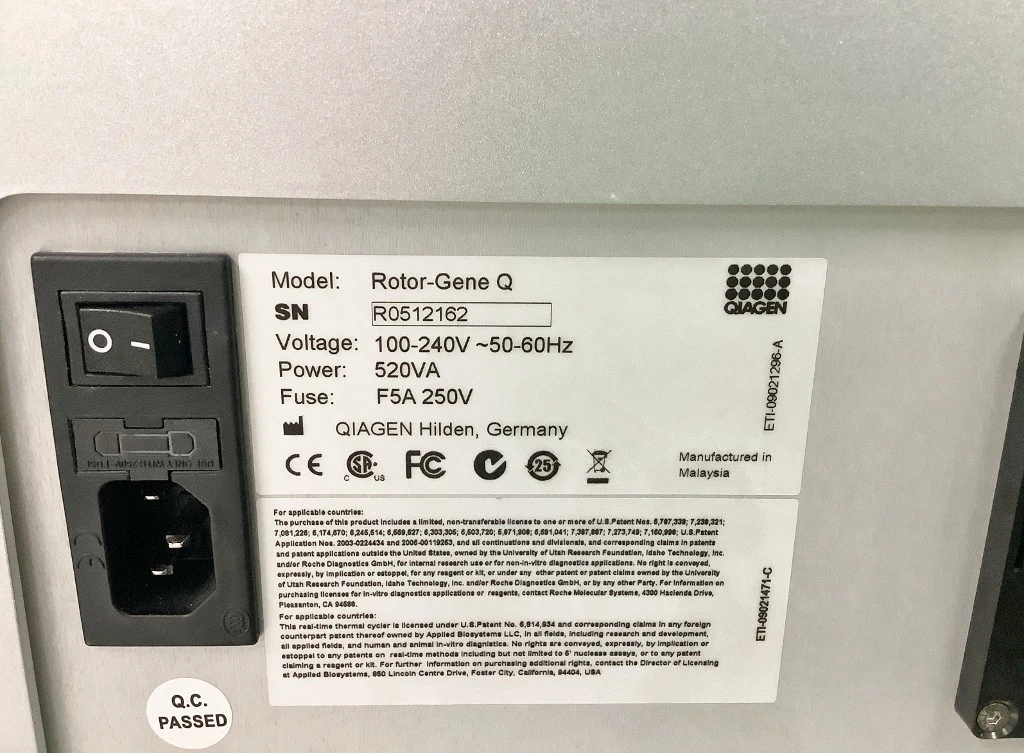

| Power | 100–240 V AC, 50–60 Hz, <520 VA (peak) |
| Dimensions | 16″ x 14″ x 11″ inches |
| Weight | 28 lbs |
Includes:

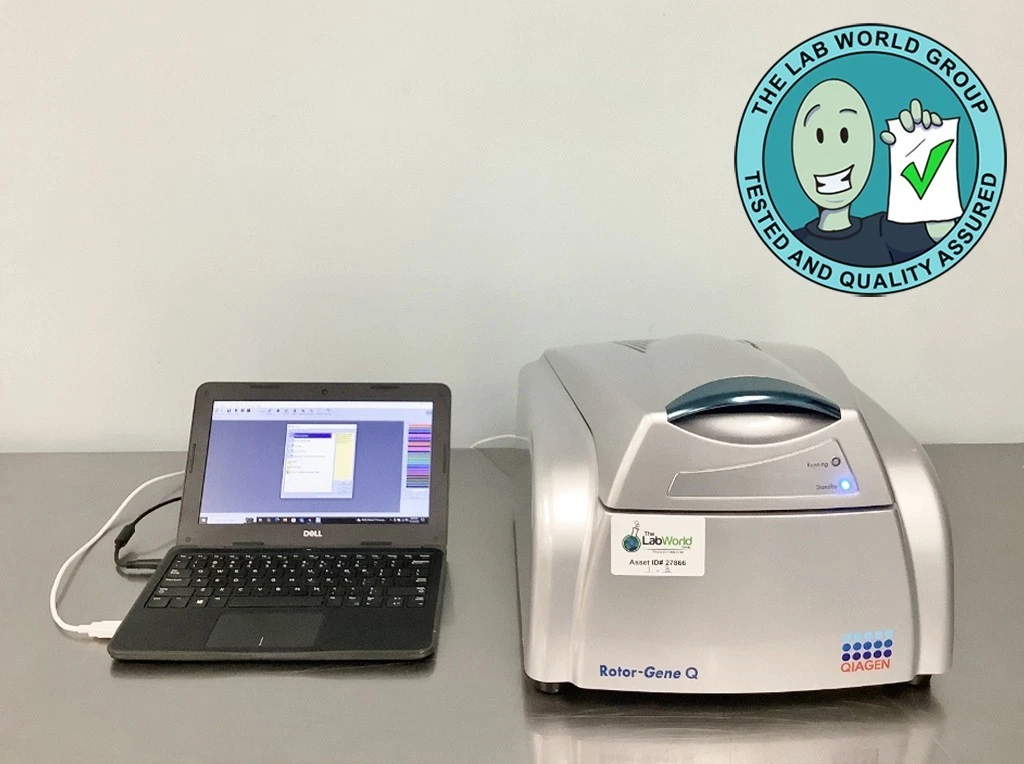

- Qiagen RotorGene 5 Plex Real Time PCR | CAT# Rotor-Gene Q | MSRP: $48,658.00
- Rotor with Locking Cap - 72 x 0.1ml | CAT# 9018903

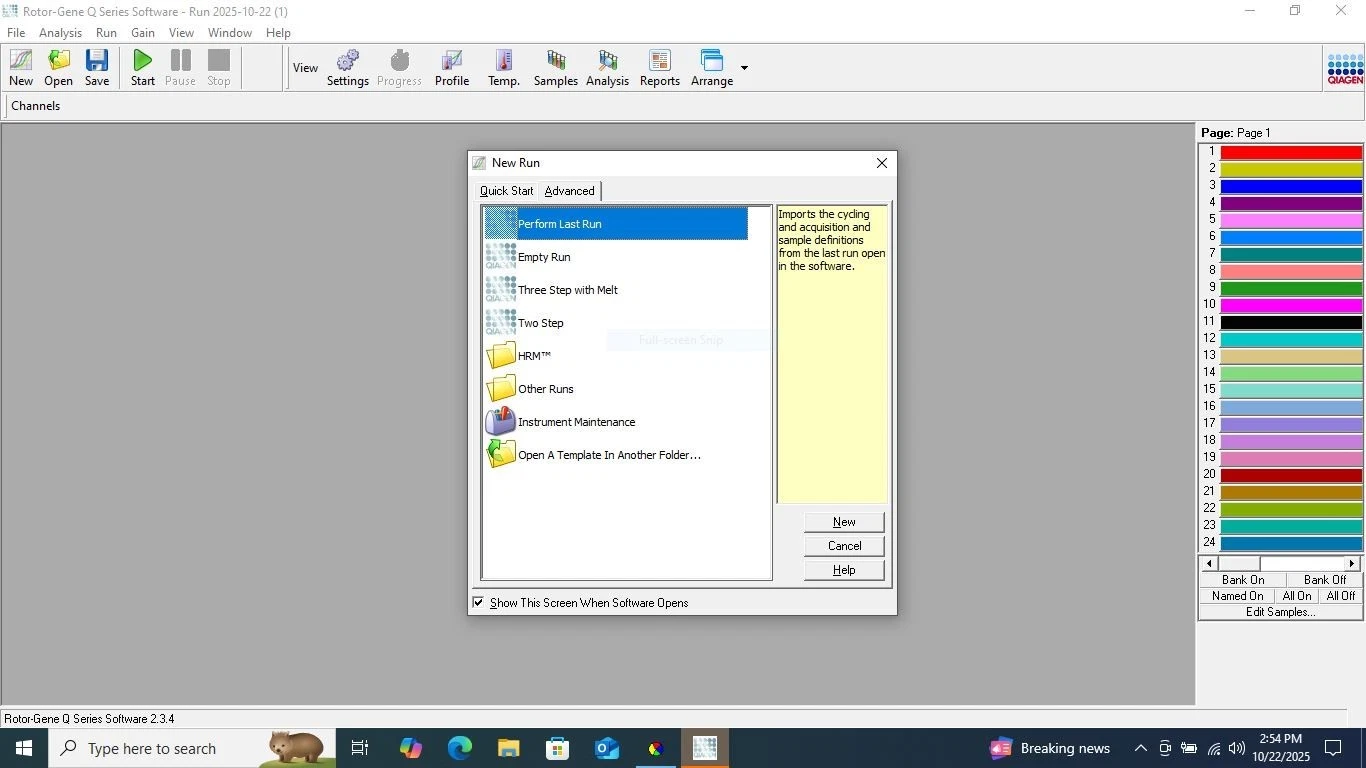

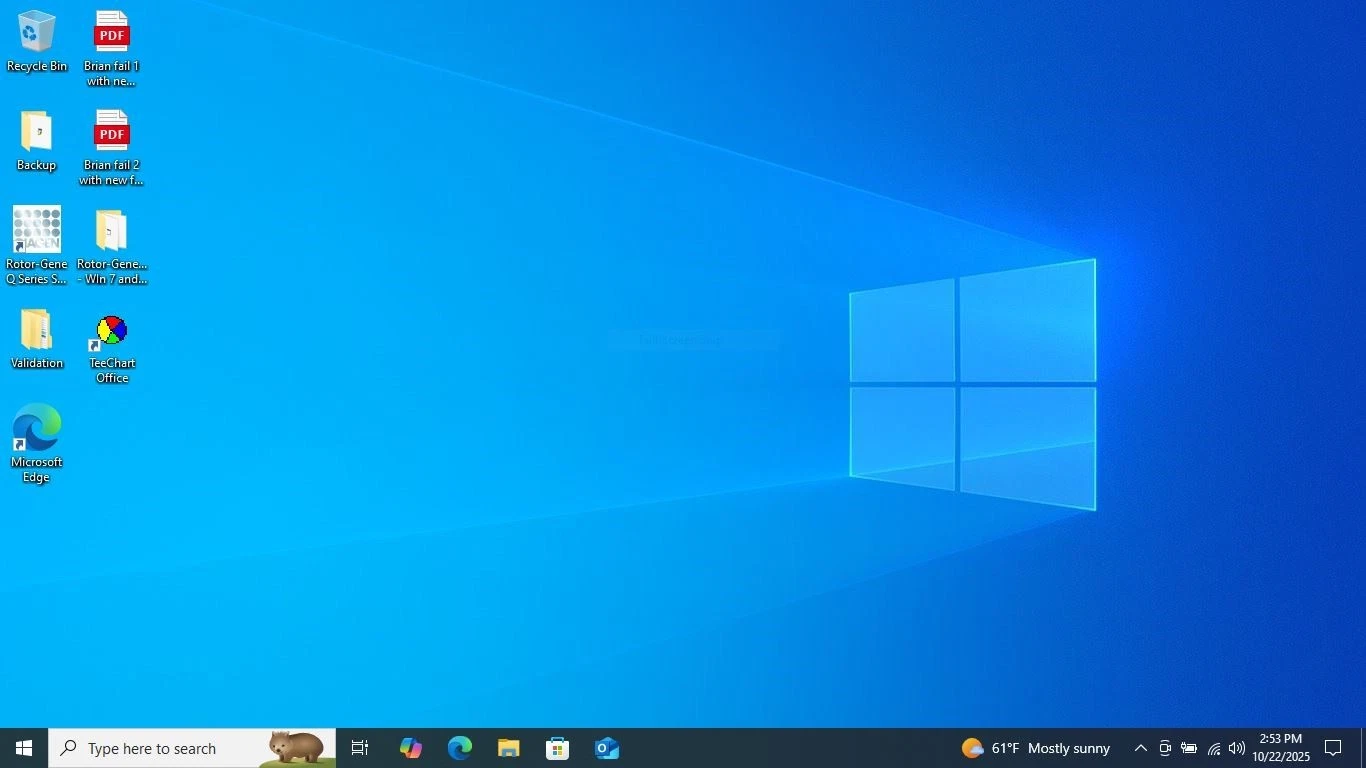

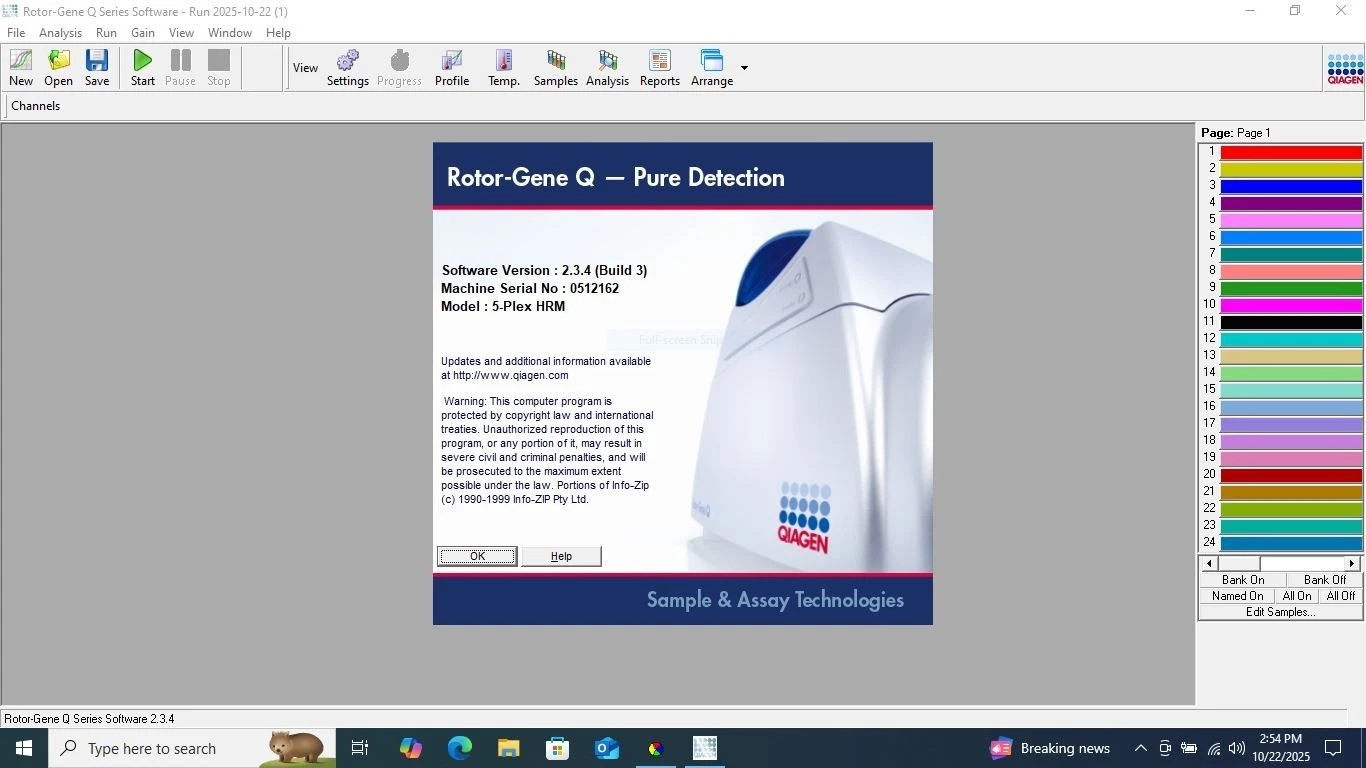

- Windows 10 Notebook Running Rotor-Gen Q Pure Detection Software
- Communication Cable
- User Manual

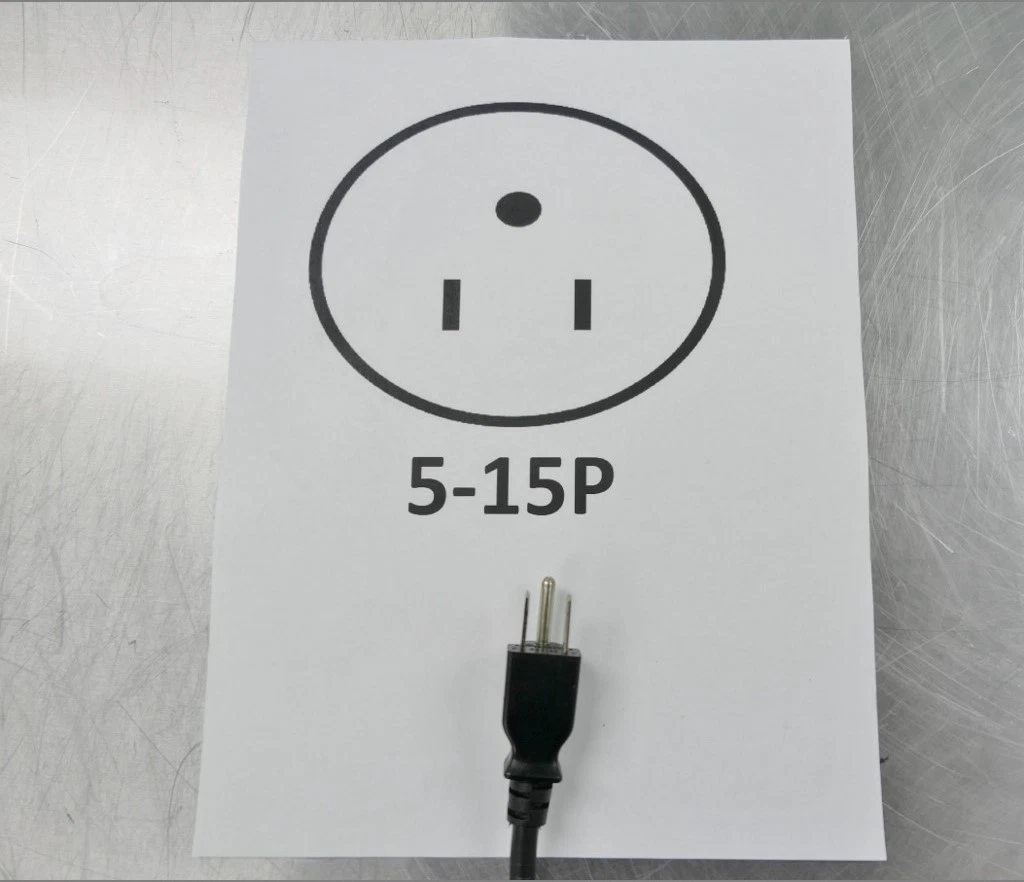

- 120V Power Cord (5A)
- 30-Day Warranty
Disclaimer: Please note any thermometers, gas supply tanks, regulators, or data-loggers seen in our photos is not included unless otherwise noted in the listing. This is our testing tools to show buyer(s) the instrument is working properly up to manufacturer specification and has been tested by our service department. If you see something and have questions please don’t hesitate to ebay message us.
