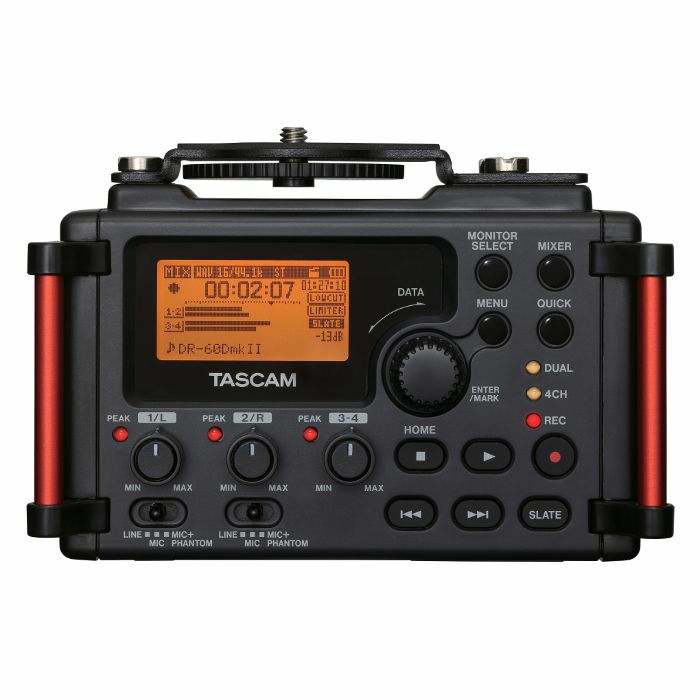

Tascam DR-60DMK2 4-Track Audio Recorder For DSLR Cameras

4-track audio recorder for DSLR cameras

The DR-60D MKII is a compact 4-track audio recorder for dedicated use with a digital single-lens reflex (DSLR) or digital single-lens mirrorless (DSLM) camera as a video system. It can be mounted directly to the camera and offers various audio inputs and outputs to allow the recording of high-resolution audio material in parallel to, but separated from the camera and its video data.

The recorder features Tascam original HDDA microphone preamps which are known for high S/N ratio, low input-referred noise and low distortion. Recordings can be made at 44.1/48/96 kHz, 16/24-bit in WAV or BWF format. In addition to ordinary stereo recording, it is possible to record up to four channels simultaneously which can then be mixed down to a stereo signal. Recording levels can be adjusted independently for inputs 1, 2 and 3-4 and the Dual Recording function allows two files to be recorded in parallel at different levels.

The DR-60D MKII can output high-quality audio to a DSLR/DSLM camera to be recorded there as a reference track, and a camera input enables convenient monitoring of audio sent from a DSLR camera. Mid-side decoding, slate tone functions (automatic/manual), selectable time delay and other functions for convenient recording are also available.

Features at a glance
Changes since the previous model are marked red

Compact, high-quality audio recorder designed to be used in combination with a DSLR camera
Uses an SD/SDHC card as recording medium
High-quality recording inputs through Tascam original High Definition Discrete Architecture (HDDA) microphone preamps
In addition to ordinary stereo recording, simultaneous recording of up to four channels is possible
Four channels can be mixed down to a stereo signal
Recording levels can be adjusted independently for inputs 1, 2 and 3-4
Dual recording function allows two files to be recorded simultaneously at different levels
Recording at 44.1/48/96 kHz, 16/24-bit, linear PCM (WAV format)
Broadcast Wave Format (BWF) supported as WAV recording format
New, smooth XLR/TRS combo jacks
XLR mic/line inputs can provide phantom power (+24V/+48V)
TRS mic/line inputs support +24 dBu input when used as line inputs
"HI+PLUS" setting allows a maximum input gain of 64 dB
Stereo mini jack input supports mics that require plug-in power, allowing the input of video mics and other high-output mics (+10 dBV maximum input level)
Low-cut filter conveniently reduces low-frequency noise (40 Hz, 80 Hz, 120 Hz)
High-quality audio can be output to a DSLR camera for recording
Two camera outputs with different levels allow audio signal to be sent to a line or mic input of the camera
Camera input enables convenient monitoring of audio from a DSLR camera
Selectable mid-side decoding for use with MS microphone setups
Slate tone functions (automatic/manual) to simplify synchronization with video files when editing
Pre-recording function allows the unit to record the two seconds of sound before recording is activated
Auto recording function to start start and stop recording by input level
A new file can be created during recording (manually or by file size)
Self-timer function to start recording after a set period of time
Jump-back function allows the last several seconds of the currently played file to be replayed again by simply pressing a button
Selectable delay to eliminate time lags caused by differences in the distances of two input sources
QUICK button allows easy access to various functions
Divide function allows files to be split where desired
Mark function convenient for moving to specific locations
Equalizers for playback, and level alignment function to enhance the perceived overall sound pressure
File name format can be set to use a user-defined word or the date
Resume function to memorize the playback position before the unit is turned off
Line output and headphones output with individual level controls (3.5-mm jack)
128 x 64 pixel LC display with backlight
USB 2.0 port
Stand adapter (14 inch) on bottom side to attach the unit to a tripod
DSLR bracket for easy camera attachment and removal with a coin
Dedicated remote control jack (for use with RC-10 and RC-3F (sold separately))
Hold switch to prevent accidental operation
Handles on the front left and right sides protect the screen and can be used to attach a shoulder belt
Operates on four AA batteries, an optional AC adaptor (Tascam PS-P520U), optional external battery pack (Tascam BP-6AA) or USB bus power
Power source switches automatically from external to internal when necessary (with pop-up message on display)

Features

• Record to SD/SDHC card (Up to 32GB)
• Simultaneously record up to 4 tracks
• Record Modes: MONO, STEREO, DUAL MONO, DUAL STEREO, 4-CHANNEL
• Recording format: 44.1/48/96kHz, 16 or 24-bit, WAV/BWF
• TASCAM HDDA microphone preamps wth 120dB EIN and 64dB of gain
• Recording levels can be adjusted independently for the 1/L, 2/R and 3-4 inputs
• Two combo XLR/TRS inputs support +4dBu mic/line level input
• Phantom power to channels 1/2 (24V or 48VDC on XLRF)
• Plug-in power and high-output mic input supported on inputs 3-4
• CAMERA OUT connector for output from the DR-60DmkII mixer (adjustable gain)
• CAMERA IN connector for sound monitoring from the camera
• Independent adjustable LINE OUT and HEADPHONE jacks for high-quality sound output
• 50mW/ch headphone amplifier
• Tripod mounting socket (bottom) and mounting screw attachment (top)
• 128x64 pixel LCD with backlight
• USB 2.0 connection for high-speed transferring of files
• Mini USB cable included
• Operates on 4-AA batteries, an AC adapter (sold separately) or USB bus power
• Self-timer function for solo recording
• DIVIDE function
• MARK function up to 99 points per audio trac
