ZK-1001U MT21 1002T 1002A Bluetooth Amplifier Board Audio Digital Amplifier 100W

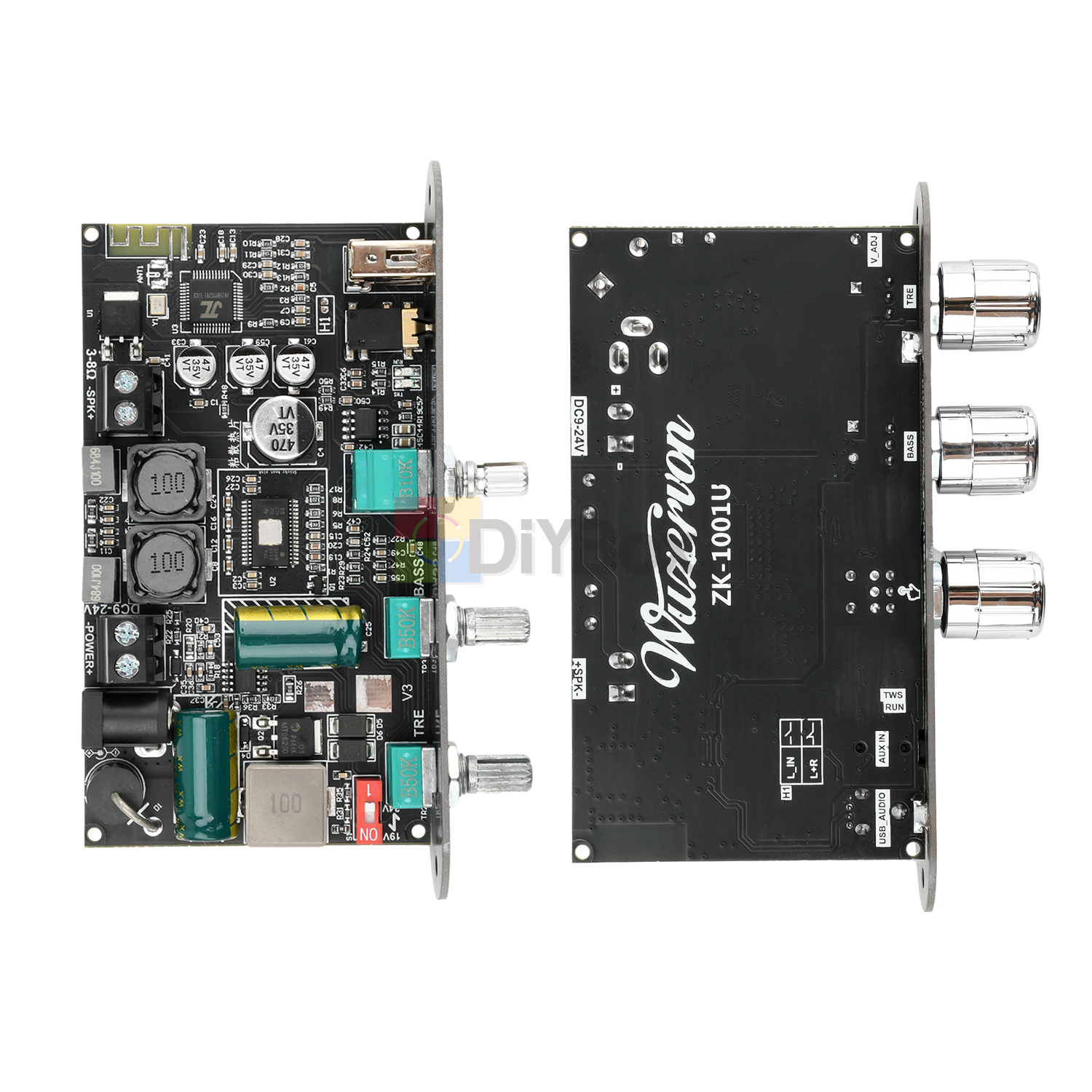

Model Number: 1001U

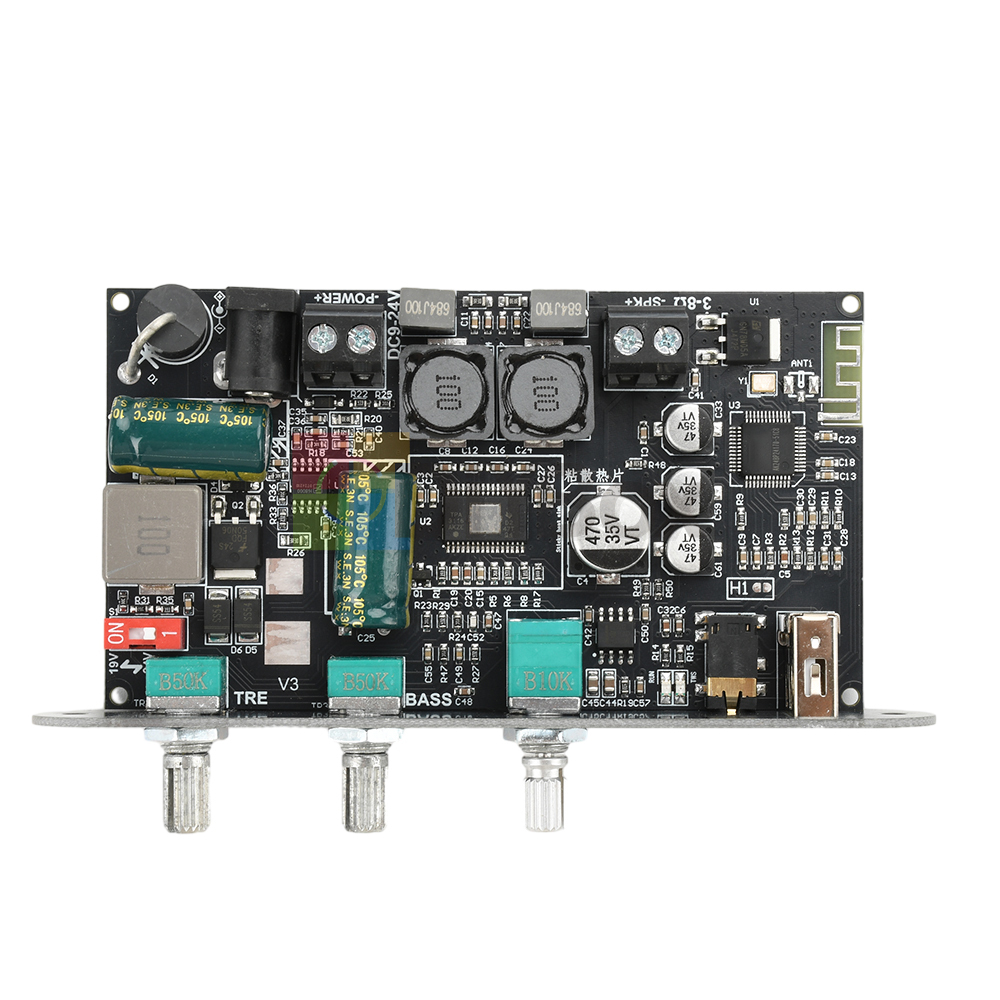

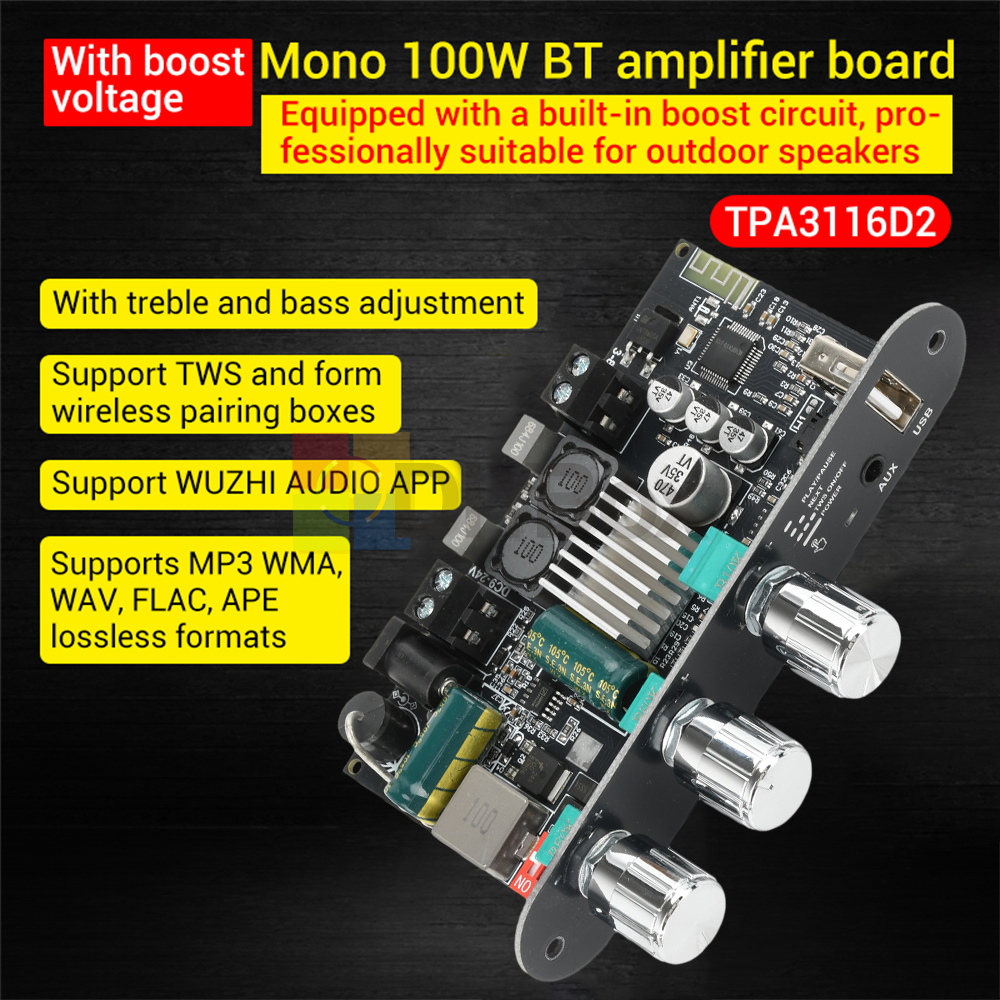

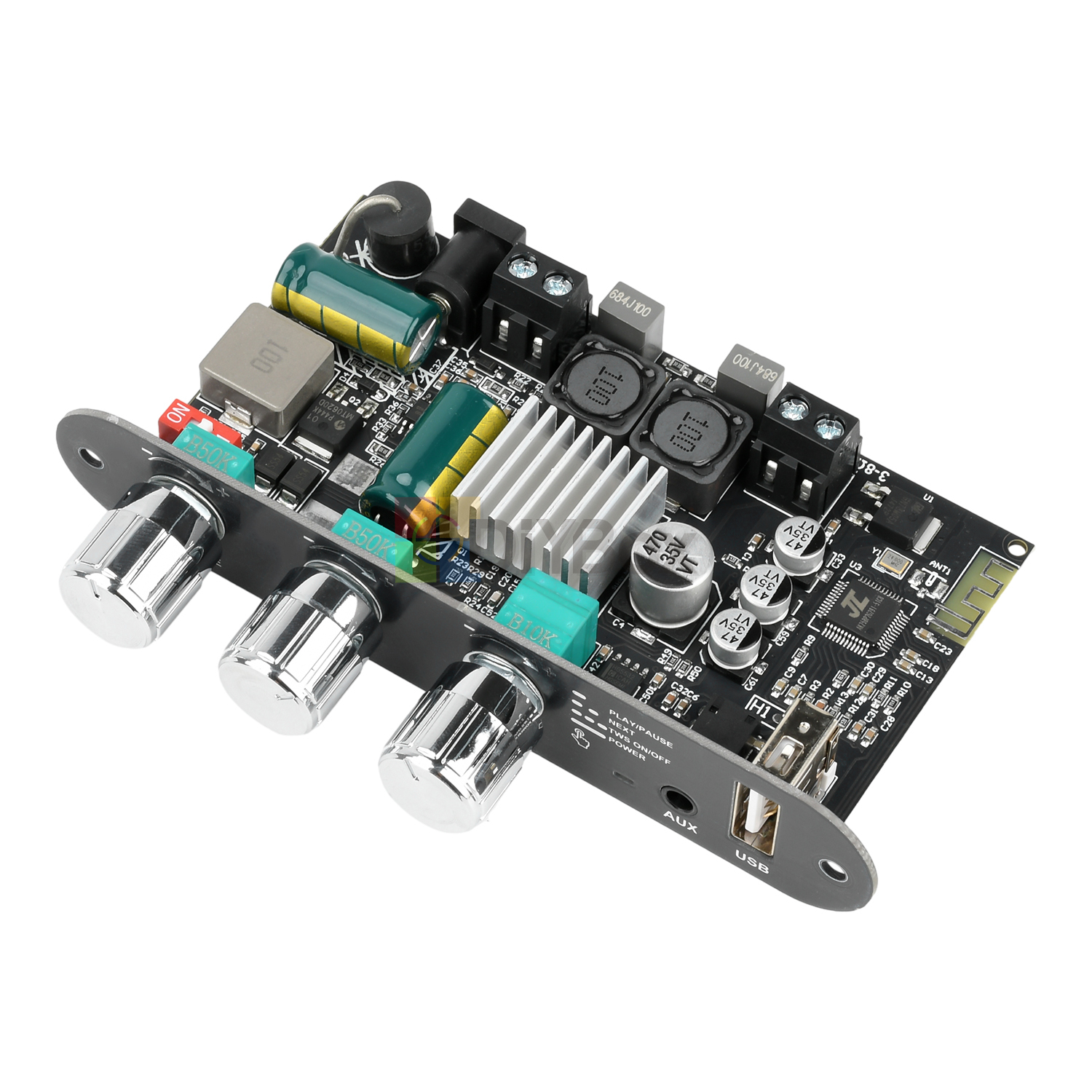

Product Name: Mono 100W Bluetooth Amplifier Module with Boost Circuit and Treble/Bass Adjustment
Amplifier Chip: TPA3116D2
Bluetooth Version: 5.3
Bluetooth Transmission Range: 15 meters
Audio Inputs: Bluetooth + AUX + USB Flash Drive + USB Sound Card
Audio Output: Mono 100W
Compatible Power Supply: DC 9-24V, ≥4A (AC power prohibited). Suitable for 7.4V, 12V, 21V batteries, but not 24V batteries (overvoltage risk when fully charged).
Compatible Speakers: 20-100W, 3-8Ω
Volume Control: Master volume with buttons
Single Click: Play/Pause
Double Click: Next Track
Triple Click: Enter/Exit TWS Mode
Long Press: Power On/Off
Protection Mechanisms: Reverse Polarity Protection, Over-Temperature Protection, Over-Current Protection, Short-Circuit Protection, ESD Protection
Special Features: Supports Wuzhi Audio APP. Modify Bluetooth name, password settings, alert volume adjustment, enable/disable alerts, sleep melodies, firmware upgrades, etc. Pairing function enables true wireless pairing of two speakers into left/right stereo channels for enhanced spatial positioning.
Product Dimensions: 99x75x22.8mm
Two independent speakers instantly become a left/right stereo pair via TWS connection, achieving true wireless pairing.

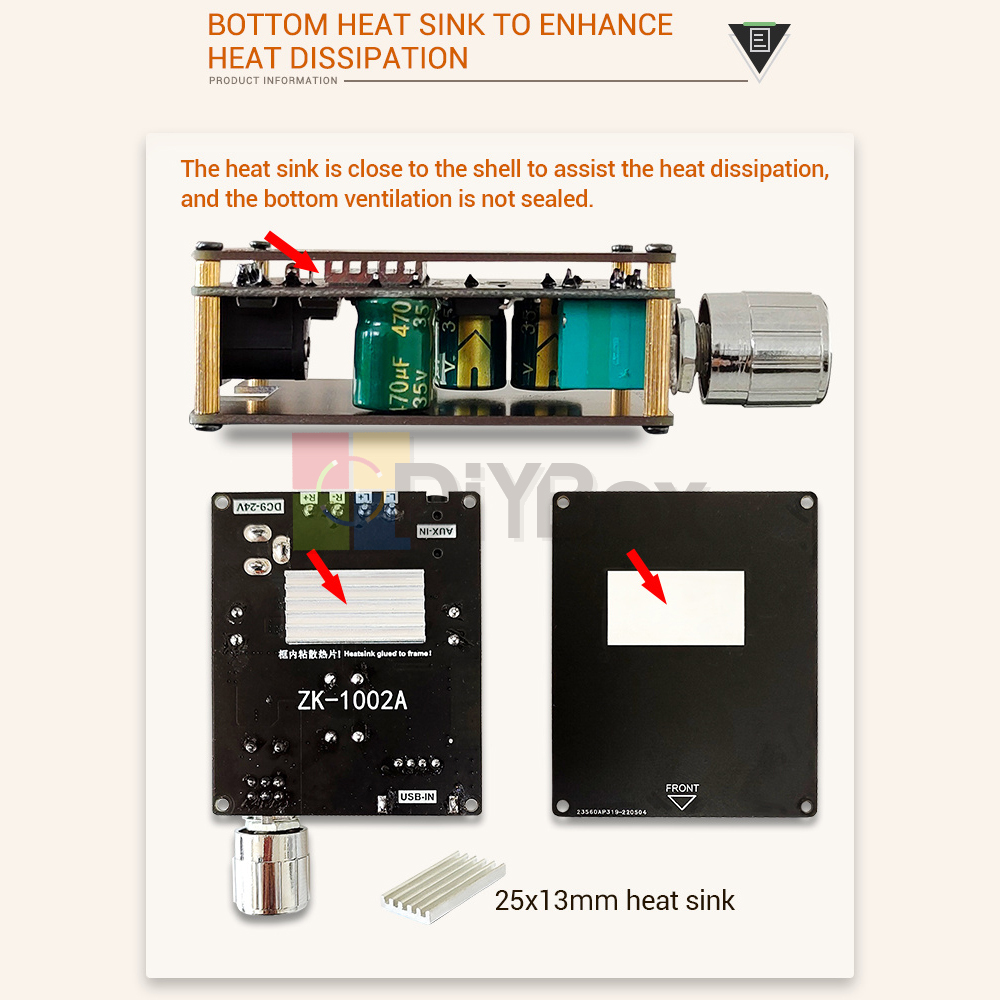

Amplifier Board (Heat sink and knob cap require separate installation)
Power Supply: DC 9-24V/≥4A (AC power not supported)
Bluetooth Version: 5.1
Audio Input: BT + AUX + USB Drive + USB Sound Card
Audio Output: Left Channel 100W + Right Channel 100W
Volume Control: Classic Mechanical Knob (with volume scale), Stepless Adjustment
Power On/Off: Classic Mechanical Switch, One-Turn Operation, No Long Press Required
Compatible Speakers: 20-100W, 4-8Ω
Protection Mechanisms: Overheat, overcurrent, short circuit, ESD protection
Product Weight: Net 50g, 85g with packaging
Special Features: Supports Wuzhi Audio APP. Modify Bluetooth name, password settings, alert volume adjustment, on/off alerts, sleep melodies, sound effect selection + custom sound effects, USB playlist.
Dimensions: 78*50*20mm
Note: Recommended for 8Ω speakers with 9-24VDC power supply. Do not exceed rated voltage.
When driving 4Ω speakers, power supply must not exceed 12V.
1*ZK-1002A Bluetooth Audio Digital Amplifier Board Module
Product Name: 2.1-Channel Bluetooth Audio Amplifier Module
Product Model: MT21
Bluetooth Version: 5.0 (line-of-sight range: 15 meters)
Input Sensitivity: 500mV
Input Methods: AUX + Bluetooth
Number of Channels: 2.1-channel
Amplifier Chip: Domestic amplifier chip
Compatible Power Supply: DC 12~24 V / 5A or higher (Do not connect to 24V battery packs)
Compatible Speakers: 20~100 W, 4-8Ω
Output Power: Left/Right Channels <50W
Subwoofer <100W
Protection Mechanisms: Reverse Polarity, Overheating, Overcurrent, Short Circuit Protection
Product Dimensions: 93mm*90mm*22mm
Product Weight: Approx. 185g (including packaging)
Higher power supply voltage yields greater output power; lower speaker impedance yields greater output power!!! Ensure the power supply capacity exceeds the amplifier's actual operating power!!!
Amplifier Board*1
Product Name: 100W*2 Bluetooth Audio Amplifier Module with Tone Control
Model Number: ZK-1002T
Bluetooth Version: 5.0 (10m range without obstruction)
Signal-to-Noise Ratio: > 90 dB
Input Methods: AUX + Bluetooth
Number of Channels: Left/Right Stereo
Amplifier Chip: TPA3116D2 (with AM interference suppression)
Power Supply: DC 12~24V/5A or higher (higher voltage increases output power)
Compatible Speakers: 20~200W / 4~8Ω
Audio Amplifier Board*1
