Features
1. Embedded Linux System, stable and effective.

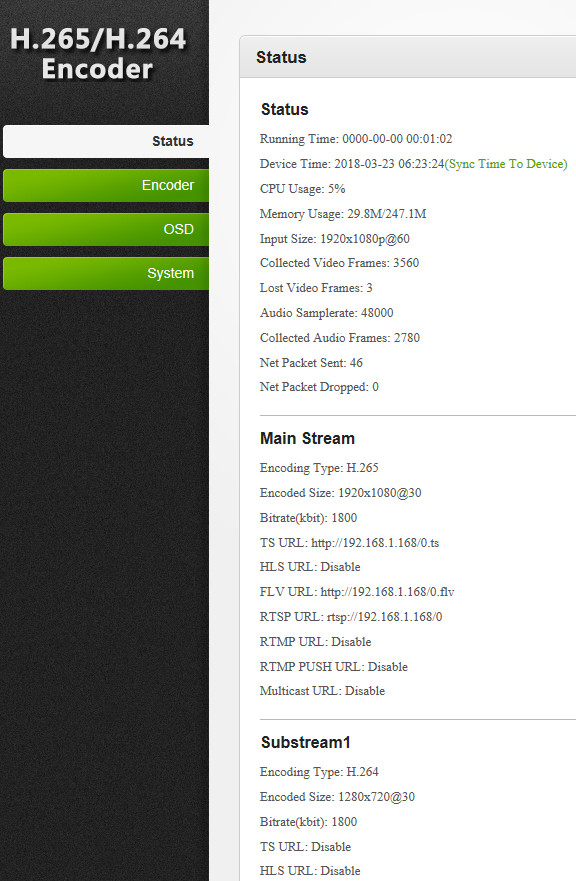

2. Friendly Web Control UI, default IP is 192.168.1.168. the user name is admin and the password is admin.
3. Support RTMP/RTMPS, RTSP, UDP, HTTP, HLS, SRT, FLV and ONVIF Protocols.
4. Support output 1 main stream and 3 sub stream to different Media Server at the same time.
5. Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
6. Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
7. Support two options, one is HDMI IN Video + HDMI IN Audio, the other is HDMI IN Video + Audio IN Audio.
8. Output Stream bitrate adjustable.
9. Support firmware upgrade.
10. IP address can be set by yourself.
11. Support remote control via router port forward.
Application
1. IPTV
2. Online Live Broadcast, such as YouTube, Ustream, Twitter, Sopplus, etc.
3. NVR (Net Video Recorder)
4. Teaching / Campus Broadcast
5. Hotel TV system
6. Video Conference
7. Digital Signage
8. Recording System
Usages:
You can play the video directly using some software tools like vlc or potplayer etc, for example,
1) http://192.168.1.168/0.ts
2) http://192.168.1.168/0.hls
3) http://192.168.1.168/0.m3u8
4) http://192.168.1.168/0.flv
5) rtsp://192.168.1.168/0
6) udp://@238.0.0.1:1234
notes: the IP address can be configured to anyone.
also,set the RTMP/RTMPS or SRT push address from the third live webcasting platform, such as Facebook, YouTube, Ustream, Twitter, Sopplus, etc.
Specifications
| Video | |
Input | 1 * HDMI |
Supports input HDMI Resolution | Max support 1920x1080P@60Hz |
Output Stream Resolution | Max support 1920x1080P@60Hz |
Data Rate | 0.1Mbps~32Mbps |
Rate Control | CBR / VBR |
GOP Structure | IBBP |
Advanced Pretreatment | De-interlacing, Noise Reduction, Sharpening |
| Audio ( ether HDMI IN Audio or Line IN, you can choose) | |
Encoding | AC3, AAC,MP3,MP2 |
Sampling rate | Auto |
Bit-rate | 48K/64K/96K/128K/160K/192K |
Sampling precision | 24 bit |
Data Rate | 64Kb/s~384Kb/s |
| System | |
Ethernet | 1000Base-T Ethernet interface |
Protocol | RTMP/RTMPS, RTSP, UDP,HTTP,HLS, FLV ONVIF |
User Interface | WEB default IP - http://192.168.1.168/indexE.html |
| Others | |
Dimension (W* L*H) | 105*78*30mm |
Weight | 0.3kg |
Power | 12V/DC |
Consumption | 5W |
