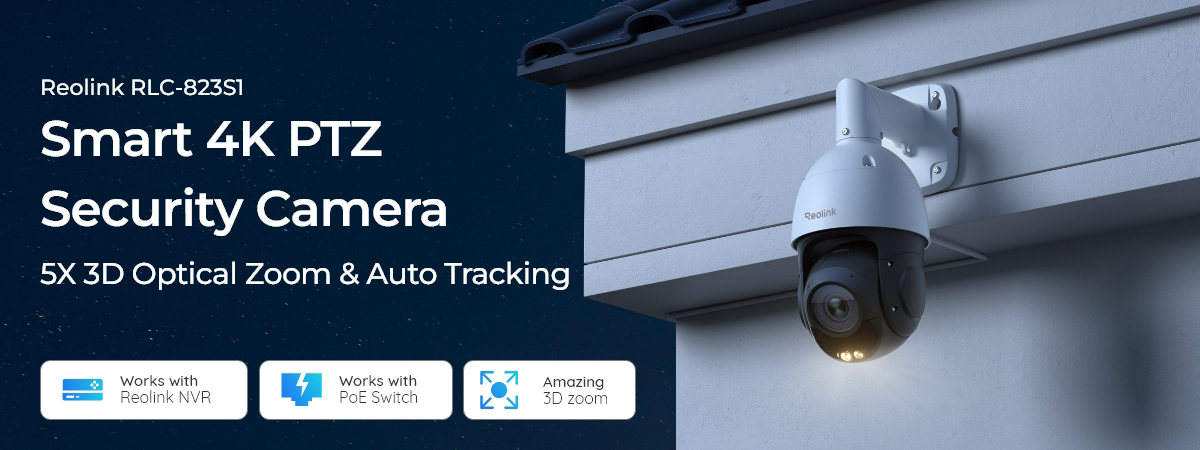

Reolink 4K UHD PoE PTZ Camera for Outdoor Security, 360° Pan & 90° Tilt for Auto Tracking, 5X Optical Zoom and 3D Zoom, AI Detection, Color Night Vision, 24/7 Recording, 2 Way Talk, RLC-823S1
360° Coverage. Dead-Zone Free.
Let the camera be your eye in the sky to cover every inch. With high-speed 360° pan and 90° tilt capabilities, RLC-823S1 provides all-around coverage within only 4 seconds and ensures that no corner goes unseen, be it your yard, driveway, or even the block.
Intelligent Auto Tracking
For any person, vehicle, or animal that enters the camera's view, it will automatically track them as they move, ensuring nothing suspicious slips by unnoticed.
Immersive 4K, Day and Night.
Capture stunning detailed footage that's four times sharper than HD, whether it's the bright daylight or the darkness of night. As night descends, select the ideal night vision mode that suits your preferences: the color night vision powered by spotlights or the black & white night vision powered by IR LEDs.
Drag to Zoom in at 5X
Unleash the smoothness of 5X optical zoom with the advanced 3D zoom technology. Whether you're zeroing in to see the finer points of scenes from afar, or expanding your view to cover a larger area, RLC-823S1 lets you see more with just a swipe of your finger.
*Viewing Angle: 123°-39°
*Motorized Lens: 2.7mm-13.5mm
*Viewing Angle: 123°-39°
*Motorized Lens: 2.7mm-13.5mm
Smart Guard at the Ready
By distinguishing between people, vehicles, and animals, this camera ensures you only receive alerts for true threats. Plus, no monthly fees are required.
With the powerful alerts of motion-triggered siren and spotlights, RLC-823S1 is always ready to deter intruders and leaves them no chances to commit a crime.
With the powerful alerts of motion-triggered siren and spotlights, RLC-823S1 is always ready to deter intruders and leaves them no chances to commit a crime.
Talk Like You're There
Whether you're saying hello to a friend or warning off would-be burglars, the two-way audio feature enables smooth, real-time communication anytime, from anywhere.
Mount It Wherever You Wish
Thanks to the adjustable dual-purpose bracket, the camera can work on a wall or go up high on the ceiling, catering to diverse usage scenarios.

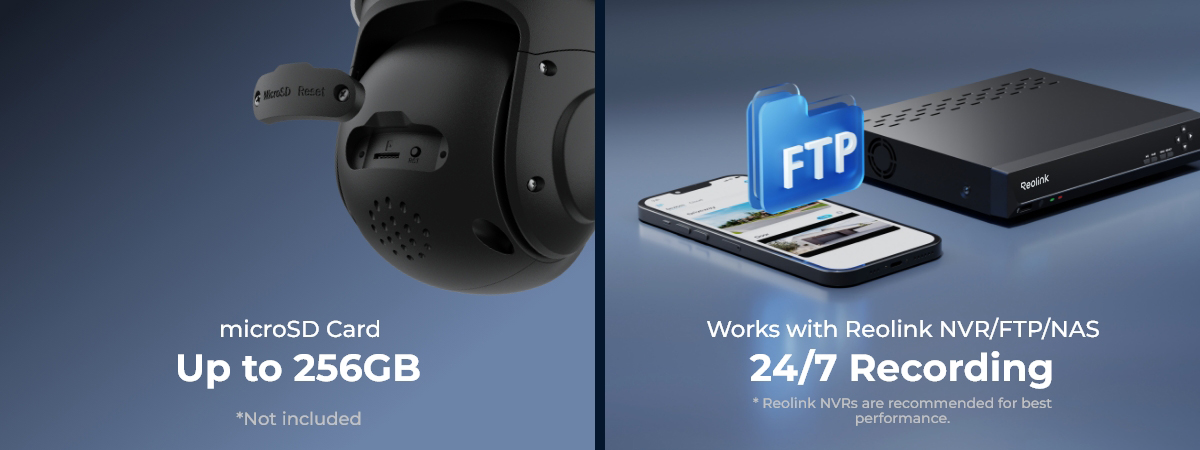

Flexible Options, Secured Storage
Keep your memories safe and secure on a microSD card (up to 256GB) for convenient standalone access, or opt for the expanded storage of a Reolink NVR. With local storage, your footage is always within reach, ensuring easy accessibility and protection. And for added backup, the FTP server support has you covered.
Dynamic Privacy Mask
Black out the private zones and keep them masked whether the camera rotates left or right, up and down, ensuring your privacy invisible in the live view.
*Currently, this function can only be operated through the Reolink App/Client.
*Currently, this function can only be operated through the Reolink App/Client.

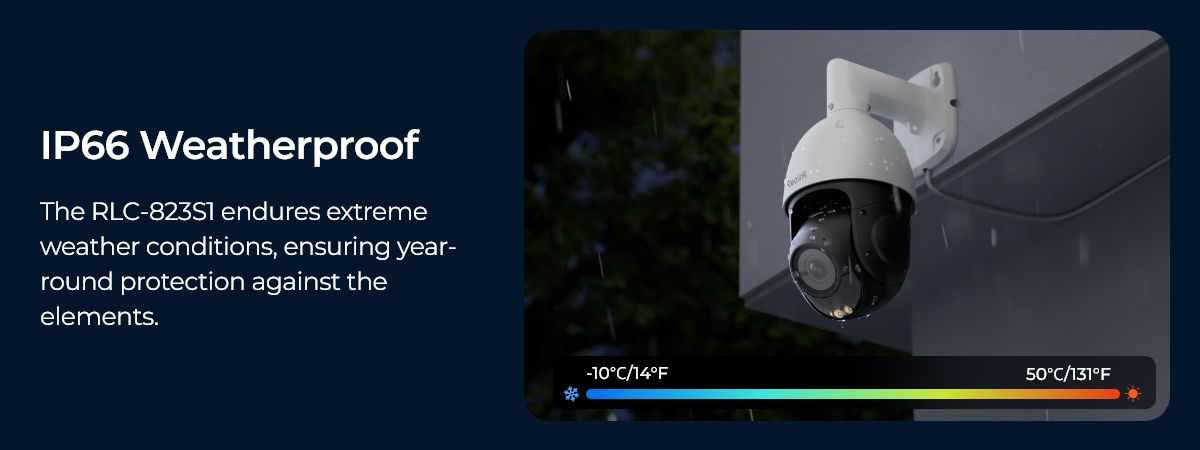

Endure All Weather Conditions
Built with robust IP66 weatherproof housing, this camera stands firm against all weather conditions, be it rain, snow, heat, or cold.
Easy Live View
Access real-time live view anytime, from anywhere, via Reolink App or Client, so you always know what's happening on your property.
Access the Camera, Hands-Free
As easy as saying "Hey Google, show me the Front Door", you can check what's happening there on your Google Nest Hub or Chromecast-enabled TVs.

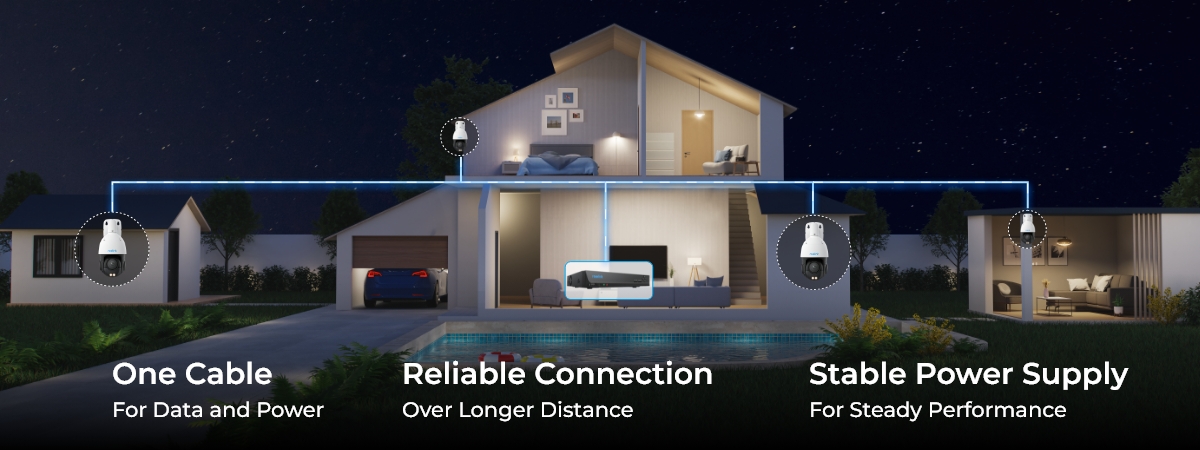

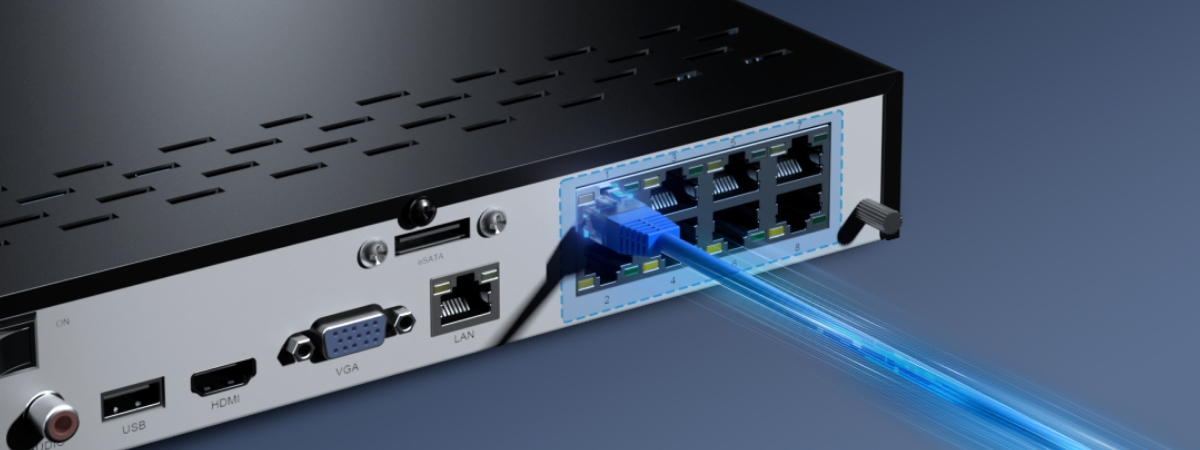

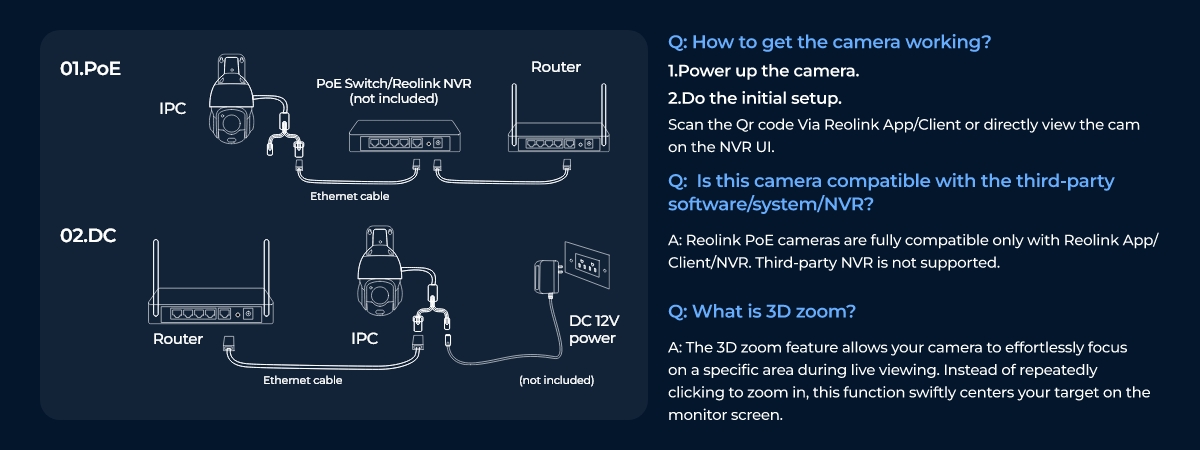

Make Installation a Breeze
Thanks to Power over Ethernet (PoE) technology, this camera only requires one network cable to transmit both data and power, making installation quick and hassle-free.
| Model | RLC-823S1 | |
| Video & Audio | Image Sensor | 1/2.8" CMOS sensor |
| Resolution | 3840x2160(8 Megapixels)@25FPS | |
| Lens | f=2.7-13.5mm/Max F1.6 | |
| Video Compression | H.265/H.264 | |
| Zoom | 5X | |
| Field of View | Horizontal: 100°-31° | |
| Vertical: 55°-17° | ||
| Diagonal: 123°-39° | ||
| Infrared Night Vision | Up tp 60 meters(196ft); LED: 7pcs/Max 5.5W/850nm (Auto-switching with IR-cut filter) | |
| Color Night Vision | With spotlights: 2pcs/4w/4000K (Adjustable) | |
| Frame Rate | Main stream: 2fps - 25fps (default: 25fps) | |
| Sub stream: 4fps - 15fps (default: 10fps) | ||
| Code Rate | Main stream: 2048Kbps - 8192Kbps (default: 6144Kbps) | |
| Sub stream: 64Kbps - 512Kbps (default: 256Kbps) | ||
| Audio | Two-way audio | |
| Power Requirements | PoE | IEEE 802.3at, 48V, active |
| DC Power | DC 12V⎓2A, <24W | |
| Interface | Power Port | DC power port |
| Ethernet Port | One 10M/100Mbps; RJ45 | |
| SD Card Slot | Supports Max. 256GB microSD card | |
| Reset Button | YES | |
| Audio In/Out | Built-in microphone and speaker | |
| Pan & Tilt | PT Angle (Max.) | Pan: 360°, Tilt: 90° |
| Pan Speed | 1.4°-90°/s (configurable) | |
| Tilt Speed | 1.4°-56°/s (configurable) | |
| Preset Points | Suppots 1 guard position & up to 64 preset positions | |
| Patrol | Supports 1 patrol; up to 16 presets per patrol | |
| Power-off Memory Function | YES | |
| Auto Tracking | YES | |
| Software | Browsers Supported | Edge, Chrome, Firefox, Safari |
| OS Supported | PC: Windows, Mac OS; Smartphone: iOS, Android | |
| Protocols & Standards | HTTPS, SSL, TCP/IP, UDP, HTTP,IPv4, UPnP, RTSP, RTMP, ONVIF, SMTP, NTP, DHCP, DNS, DDNS, FTP, P2P | |
| User Access | Max. 20 users (1 admin & 19 user); Max. 12 simultaneous streams (2 main & 10 sub streams) | |
| Other Features | Smart Alarm | Motion detection; person detection; vehicle detection; animal detection |
| Recording Modes | Motion-triggered recording (default); Scheduled recording, 24/7 recording | |
| Time Lapse | YES | |
| Smart Home Compatibility | Google Assistant | |
| Working Environment | Operating Temperature | -10°C~+50°C (14°F~126°F) |
| Operating Humidity | 10% ~ 90% | |
| Weatherproof | IP66 | |
| Mechanical | Dimensions | 373*177*140mm (Ceiling Mount) |
| Weight | 2.34kg | |
