Industrial Electronic Microscope Stand with Coarse/Fine Focus(0.002mm / scale) Single-Barre Focusing Stage Adjustment Bracket Liftable Lens Holder Compatible with 50/76mm Stereo Mounts & Base

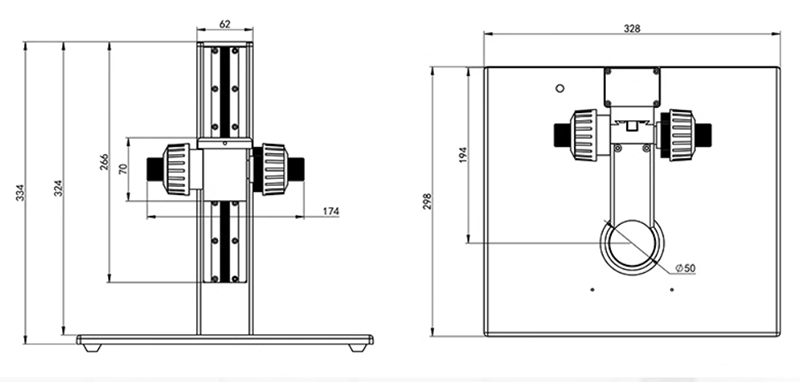

Specification:

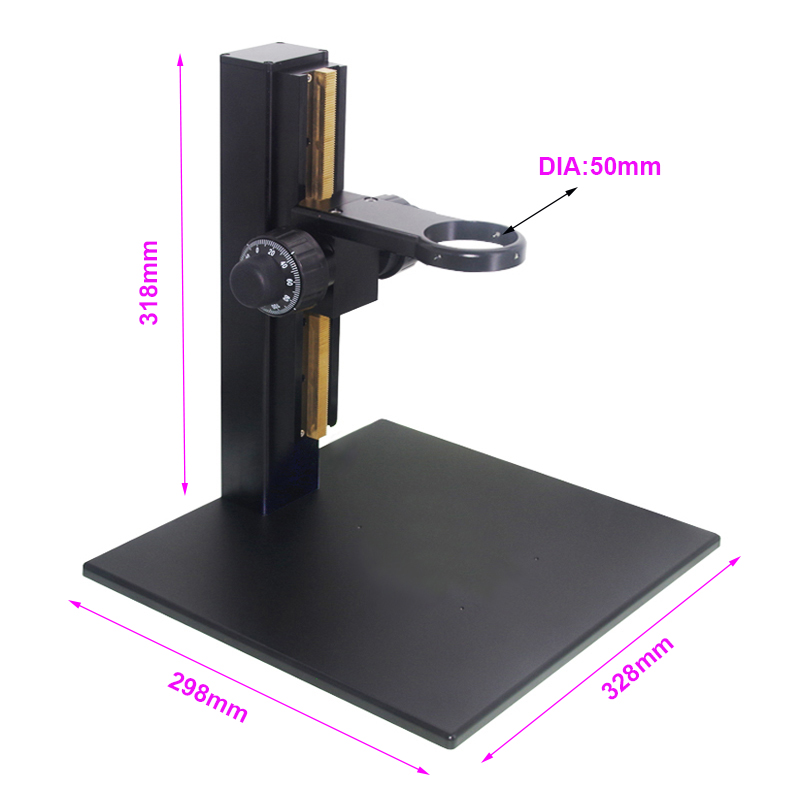

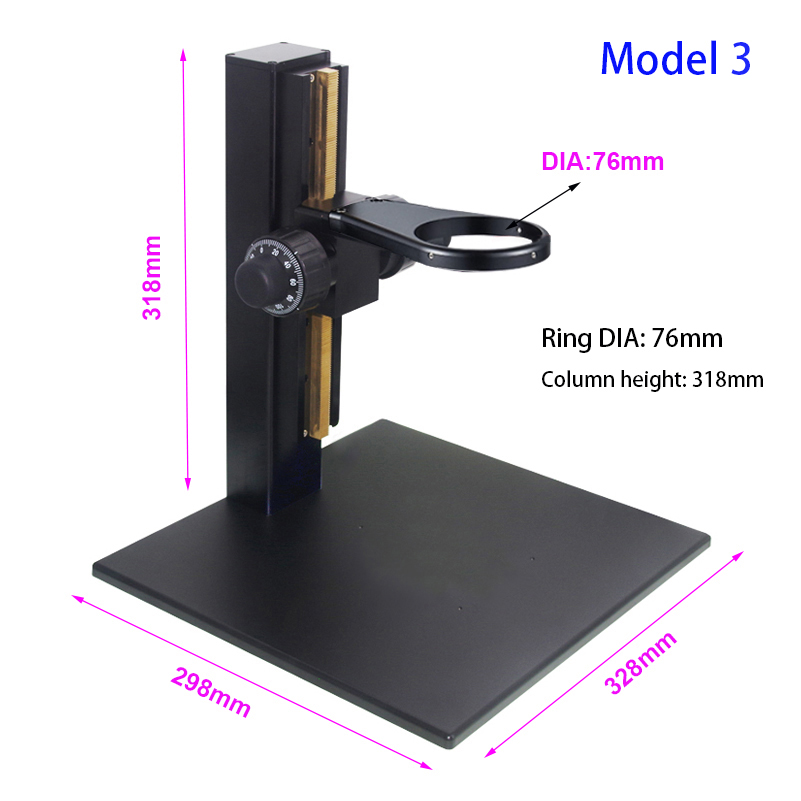

  • Installation Dimensions: 50mm (adaptable to 40mm), 76mm
  • Column Height: 318mm (standard), 398mm (extended)
  • Base Plate Dimensions: 328 × 298mm
  • Travel Range: 260mm
  • Center Distance: 124mm

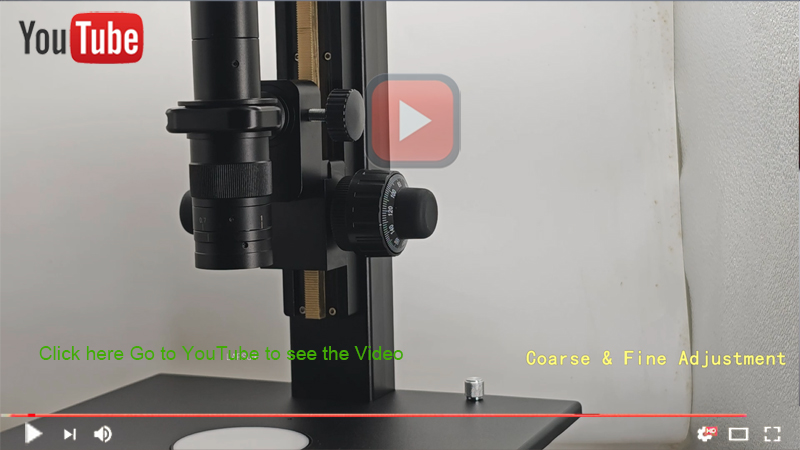

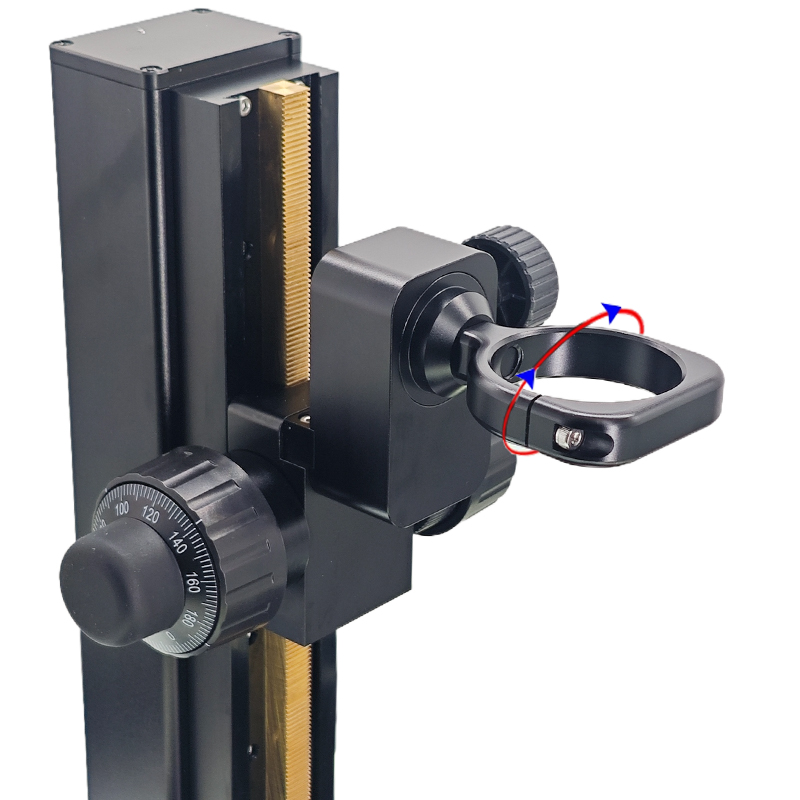

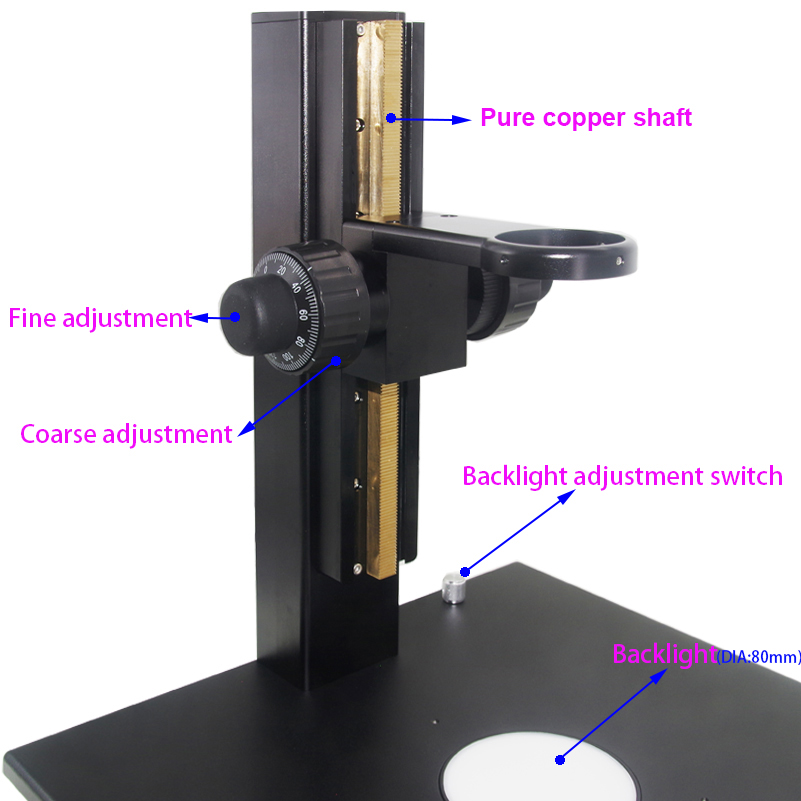

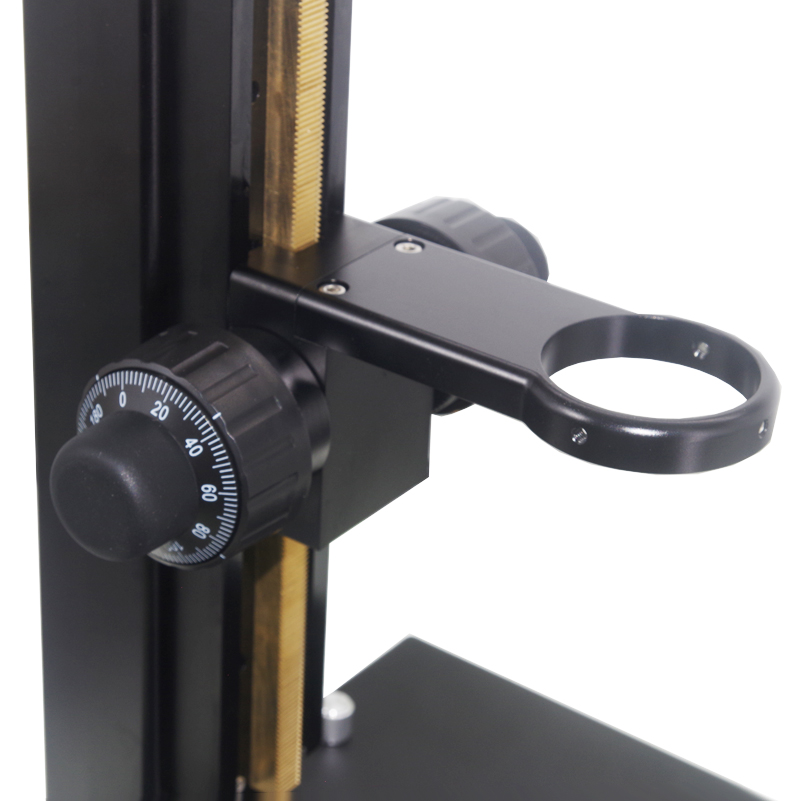

  • Focusing Mechanism: Coarse and fine adjustment modes
  • Fine Adjustment Precision: 0.002mm
  • Coarse Adjustment per Rotation: 37.7mm/revolution
  • Fine Adjustment per Rotation: 0.214mm/revolution
  • Surface Treatment: Anodized (anti-static)

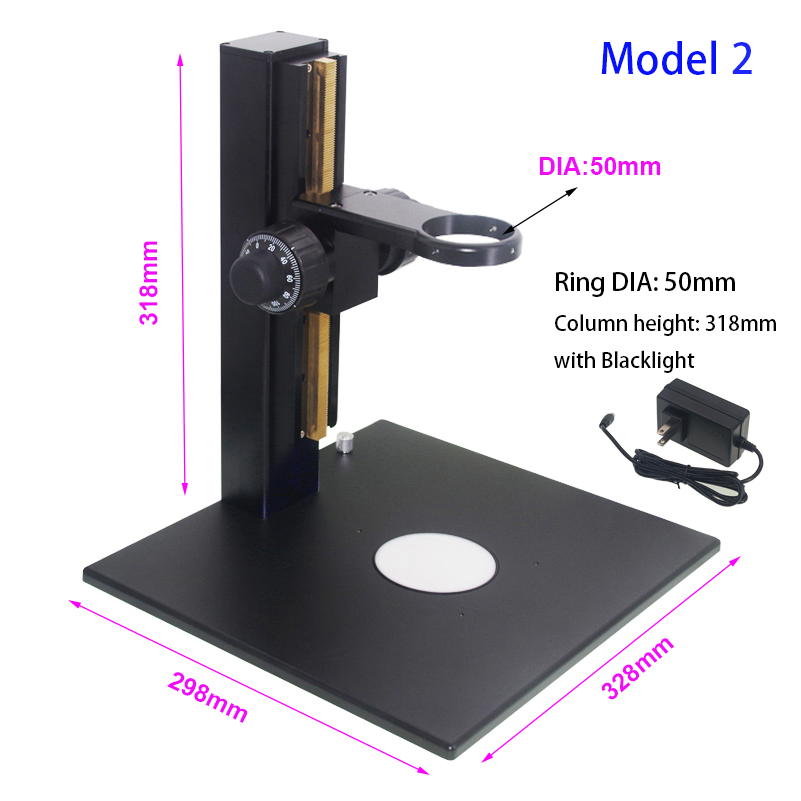

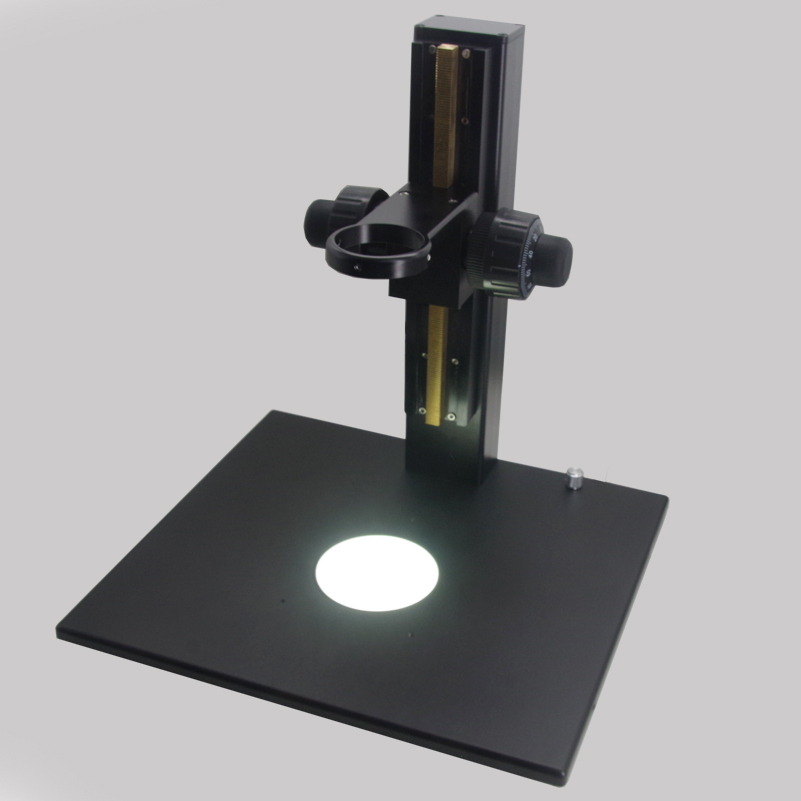

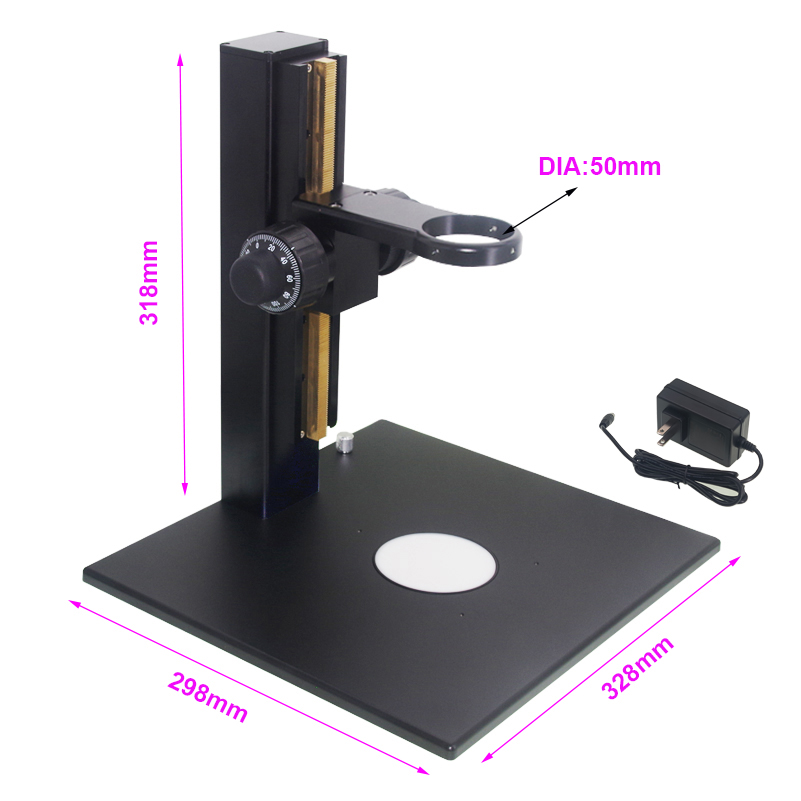

  • Bottom Illumination: 12V 5W transmitted light source, 0-100% brightness adjustable
  • Net Weight: 4KG

Package including:

  • 1 x Microscope Stand (option)

-------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------


-------------------------------------------------------------------------------------------------------------



-------------------------------------------------------------------------------------------------------------



-------------------------------------------------------------------------------------------------------------
