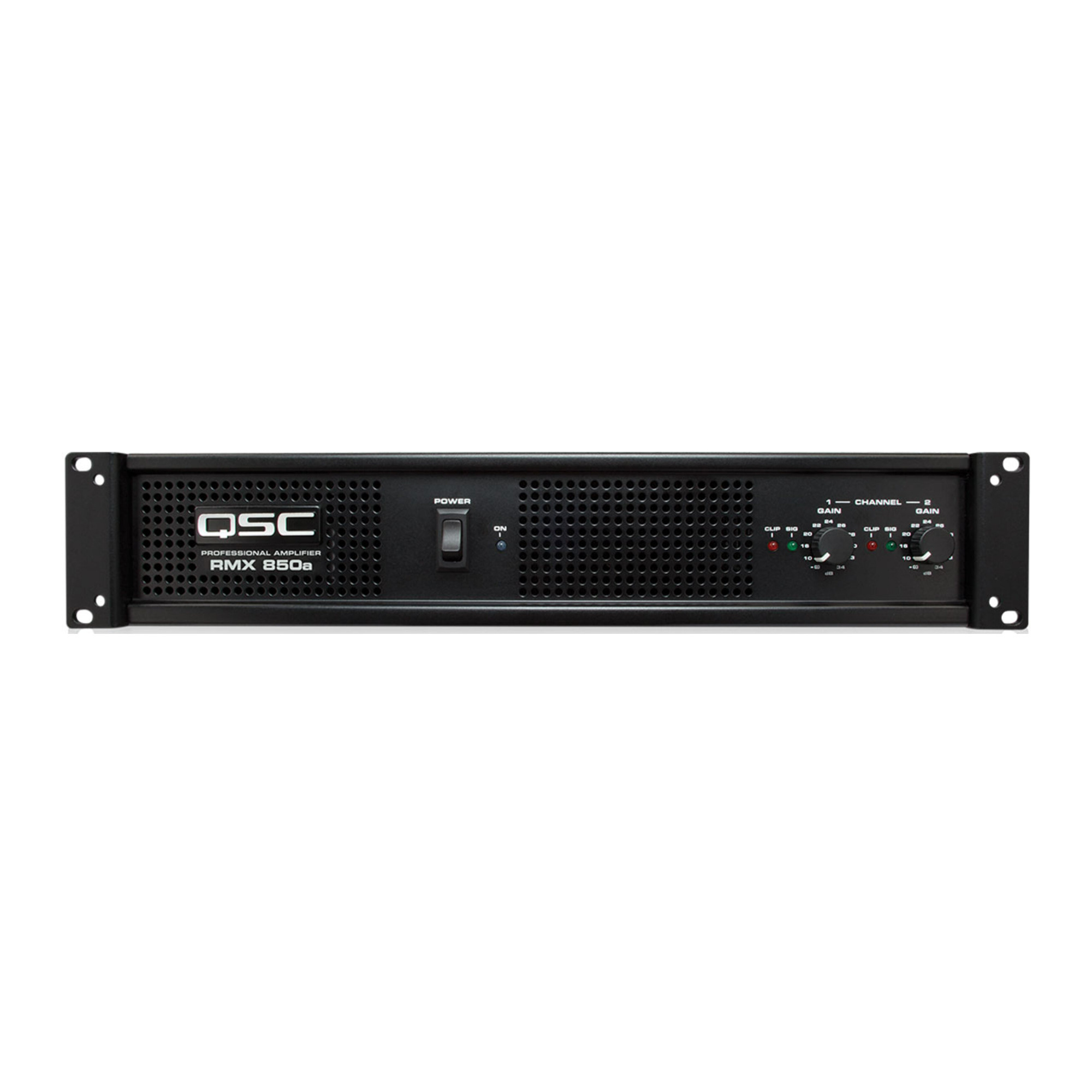

QSC RMX850a 850a Professional Performance Two Channels Compact Power Amplifier

Open box
RMX850A-120_MINT
Features
  • A professional-quality 2-channel amplifier
  • Features a compact size and delivers up to 430 watts
  • Features high-current toroidal transformers
  • Features independent clip limiter and low-frequency filter
  • Balanced 1/4-inch TRS, XLR, and barrier strip input connectors
  • Touch-proof binding post and Neutrik Speakon output connectors
  • Front-mounted gain controls for easy access
  • Signal and clip LED indicators for monitoring performance
  • Independent DC and thermal overload protection on each channel
  • Stereo, Bridge Mono, and Parallel modes of operation
What's in the Box
  • QSC RMX850a 850a Professional, Two Channels Power Amplifier with Input and Output Connectors
  • Quick Start Guide
  • Adhesive Rubber Feet
  • Rear Rack Ear Mounting Kit
  • IEC-Type Detachable Power Cord
  • Limited 3-Year Warranty
Item Description

The QSC RMX850a Power Amplifier is designed for professional quality performance. The QSC is known for incorporating road-proven designs into its products.

Compact Design

This amplifier is compact in size, delivering up to 430 watts. It is designed with a high-current toroidal transformer, which provides greater 2-ohm power and low noise. It features independent user-defeatable limiters that reduce distortion. It is enriched with selectable low-frequency filters to protect speakers and increase headroom.

Easy Connection

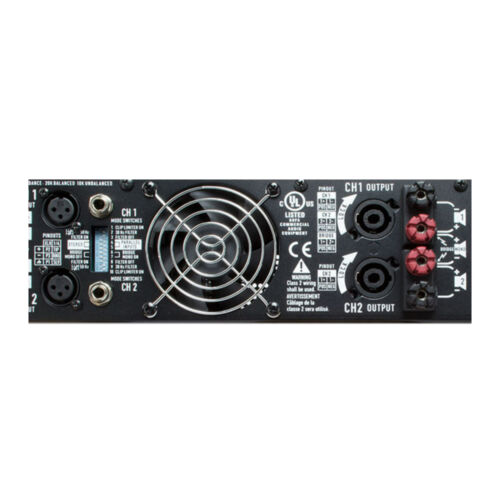

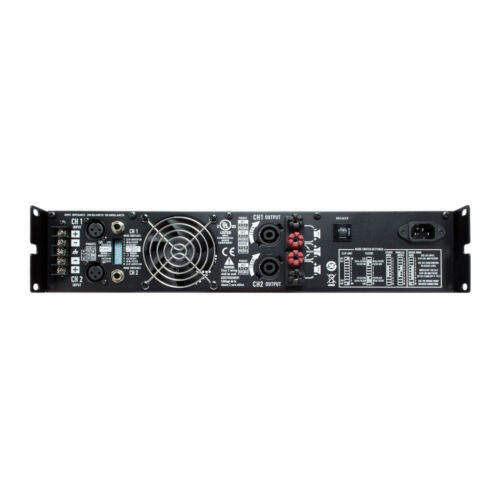

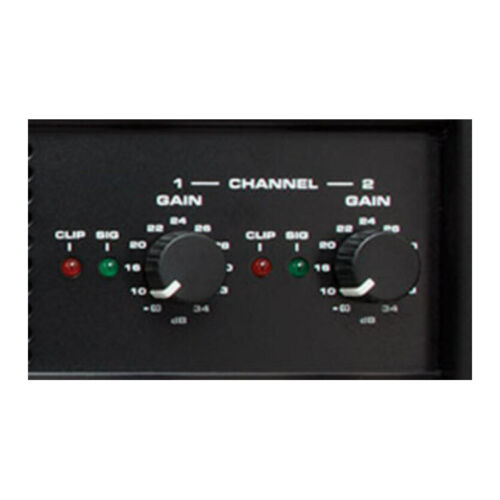

The QSC RMX850a amplifier has balanced 1/4-inch TRS, XLR, and barrier strip inputs, as well as touch-proof binding posts and Neutrik Speakon outputs. Its front-mounted gain controls allow for easy access and adjustment of gain levels.

Control

The amplifiers feature signal and LED indicators for monitoring performance. It has independent DC and thermal overload protection on each channel, which automatically protects the amplifier and speakers from damage.

Specifications

QSC RMX850a 850a Professional, Two Channels Power Amplifier with Input and Output Connectors

  • Power per Channel, Stereo Mode (both channels driven):
    • 8Ω, FTC 20 Hz to 20 kHz, 0.1 percent THD: 185 watt
    • 8Ω, EIA 1 kHz, 0. Percent THD: 200 watt
    • 4Ω, FTC 20 Hz to 20 kHz, 0.1percent THD: 280 watt
    • 4Ω, EIA 1 kHz, 0.1percent THD: 300 watt
    • 2Ω, EIA 1 kHz, 1percent THD: 430 watt
  • Power, Bridge-Mono Mode:
    • 8Ω, FTC 20 Hz–20 kHz, 0.1percent THD: 530 watt
    • 8Ω, EIA 1 kHz, 0.1percent THD: 600 watt
    • 4Ω, EIA 1 kHz, 1percent THD: 830 watt
  • Signal to noise (20 Hz to 20 kHz): -100 dB
  • Distortion (SMPTE-IM): < 0.01percent
  • Input sensitivity at 8Ω: 1.15V (+3.4dBu)
  • Voltage gain: 31.6x (30 dB)
  • Output circuitry: Class AB
  • Current draw (120 V AC):
    • Typical, 1/8 power pink noise at 4Ω: 4.5 A
    • Severe, 1/3 power pink noise at 4Ω: 6.6 A
    • AC mains plug 100/120V 230V: NEMA 5-15CEE7/7
  • Distortion (typical):
    • 20 Hz to 20 kHz, 10 dB below rated power: < 0.03percent tdD, 4Ω and 8Ω
    • 1 kHz and below, full rated power:  < 0.03percent tdD, 4Ω and 8Ω
  • Frequency response:
    • 20 Hz to 20 kHz: +0/-1 dB -3 dB points: 5 Hz and 50 kHz (LF filter bybassed, 8Ω)
  • Damping factor (1 kHz and below): > 300 at 8Ω
  • Input impedance: 10 kΩ unbalanced; 20 kΩ balanced
  • Input stage clipping: 10 V rms (+22 dBu)
  • Cooling: Continuously variable speed fan, back-to-front airflow
  • Connectors (each channel):
    • Input: Active balanced; 3-pin Euro-style detachable terminal block and XLR (pin 2+)
    • Output: Touch-proof binding posts; Neutrik Speakon
  • Controls:
    • Front: AC switch; Channel 1 and 2 gain knobs
    • Rear: 10-position DIP switch
  • LED indicators:
    • Power on: Green
    • Signal: Yellow (1 per channel)
    • Clip/protect: Red (1 per channel)
  • Amplifier protection: Full short circuit, open circuit, tdermal, ultrasonic, RF protection. Stable into reactive or mismatched loads
  • Load protection               :
    • Turn-on/off muting
    • AC coupling (850, 1450)
    • Triac crowbar (1850HD, 2450, 4050HD, 5050) on each channel
  • Product dimensions (H x W x D): 3.5 (2 RU) x 19 x 15.9-inch
  • Carton dimensions (H x W x D): 24 x 22 x 6-inch
  • Net weight: 35lb
  • Shipping weight: 41lb
  • Power requirements: 100, 120, 230 V AC (factory configured), 50 to 60 Hz
