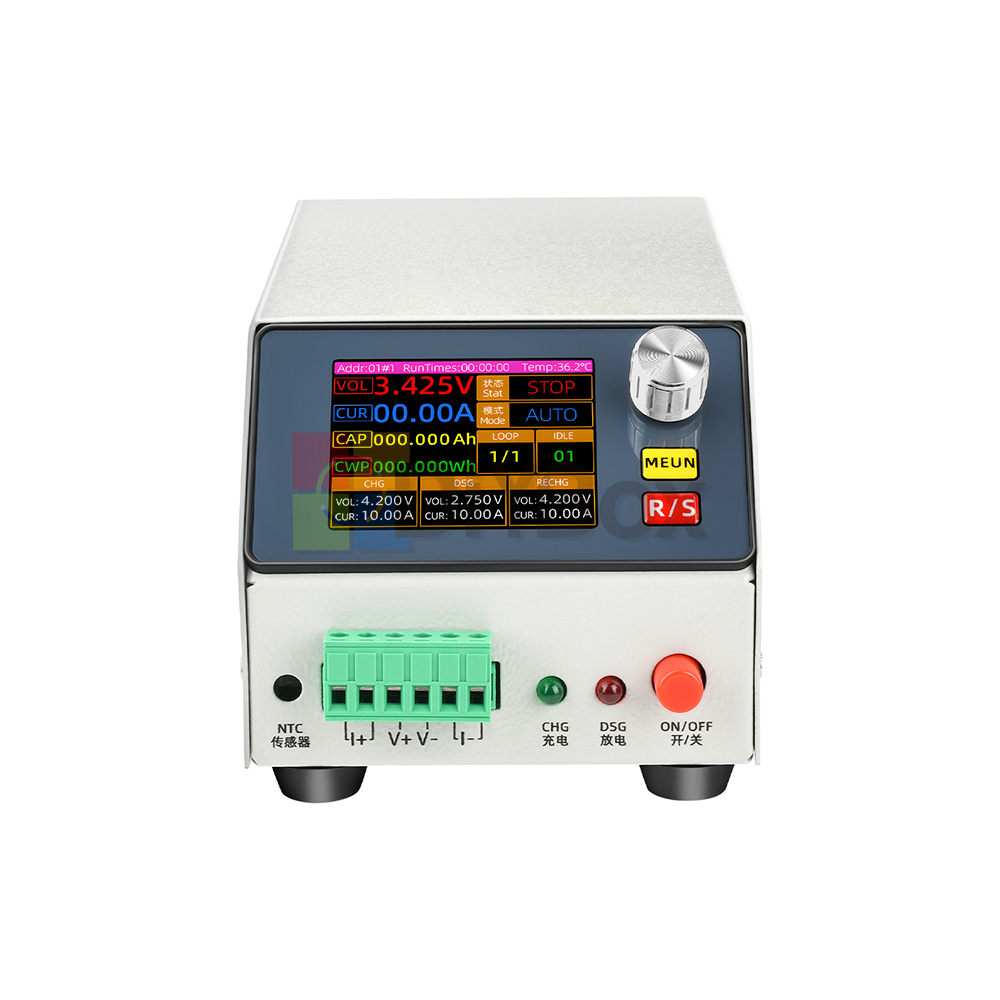

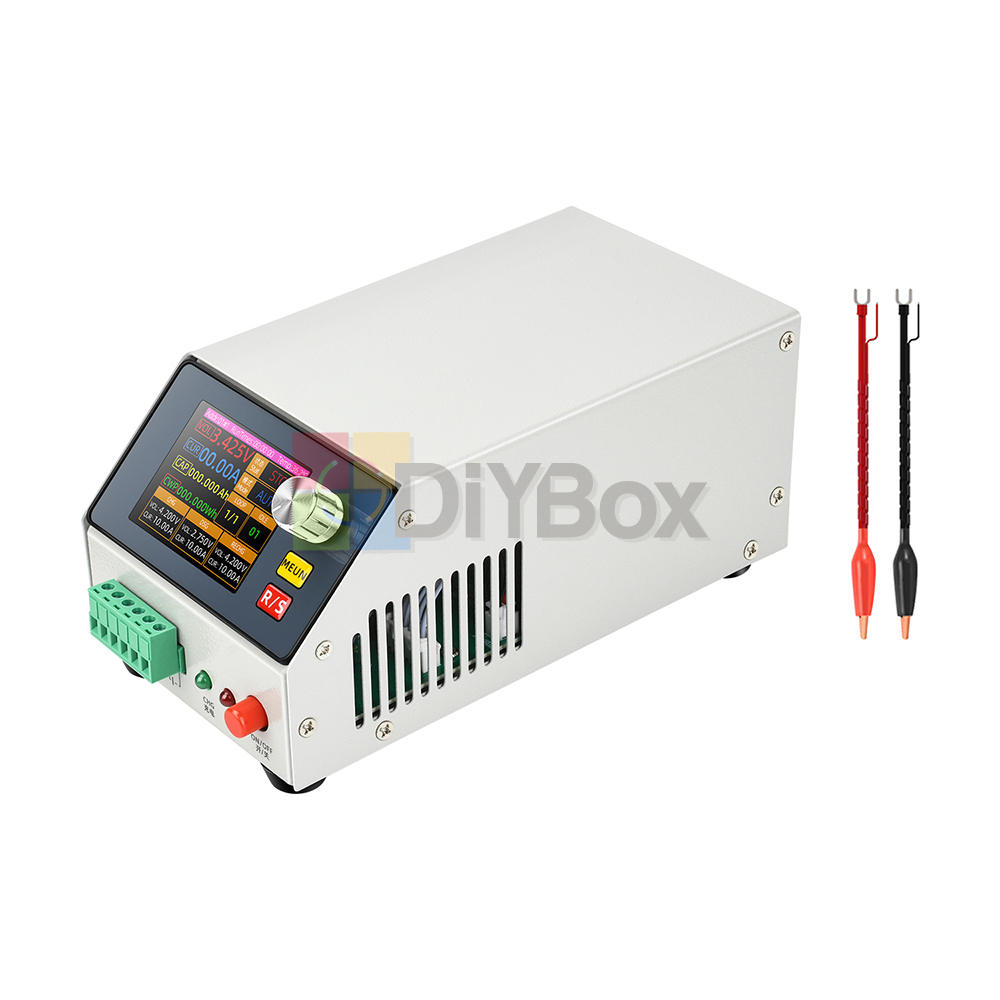

2.4" Battery Capacity Tester 1Channel Charging Discharging Integrated adjustable
Features:
1. High-definition visualization: 2.4-inch color display, clearly display data, intuitive and easy to read
2. Bilingual support: support for Chinese and English switching to meet the needs of different user languages
3.Sheet metal shell, with high mechanical strength, effectively protect the internal components, embedded infusion air ducts, strong and effective heat dissipation, to ensure stable operation of the equipment.

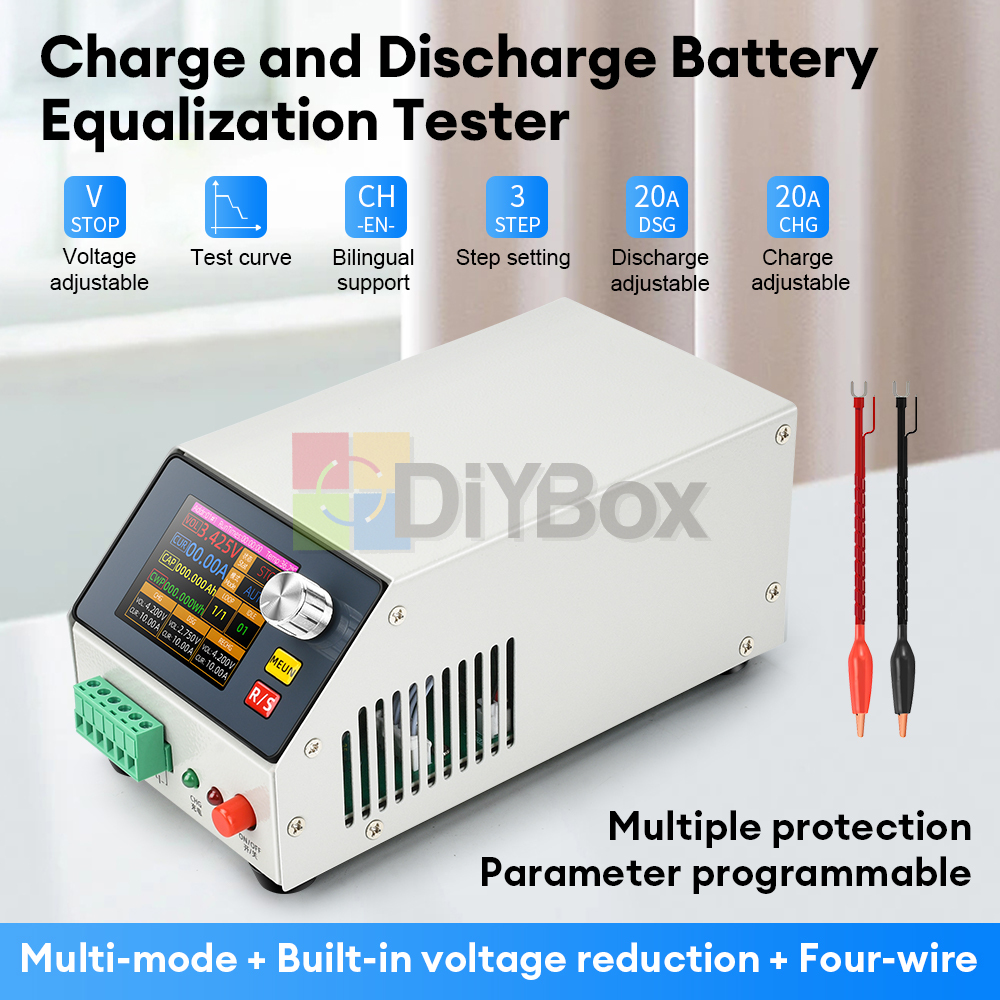

4. Charging and discharging integrated battery equalization tester: multi-mode testing, built-in voltage reduction module, programmable parameters, four-wire system, multiple protection
5. Battery reverse protection, prohibit reverse battery: reverse protection, but reverse operation will still be bad, so prohibit reverse connection!
Parameter:
Load Power: Maximum Load Power V(Voltage) × I(Current ≤ 20A)
Channel Type: Single Channel
Operating Mode:
①Automatic Mode: Charge-Discharge-Recharge-Complete
②Charge Before Discharge: Charge-Discharge-Complete
③Discharge Before Charge: Discharge-Charge-Complete
④Charge Mode: Charge-Complete
⑤Discharge Mode: Discharge-Complete
⑥Activation Mode:
For Professionals Only, During Use. The tester is not allowed to leave the field during use!
Forced charging with charging stop voltage,
will not stop automatically, need to end manually.
(7) Equalization mode: according to the set equalization parameters, automatic charging and discharging, until the trigger current is reached.
⑧ online: online computer program control operation mode
Cycle times:
Stand-alone: 1~9 times adjustable;
Online: set freely by software
Standing time:
Stand-alone: 1~30 minutes adjustable.
Online: set freely by software
Parameter overview display: support

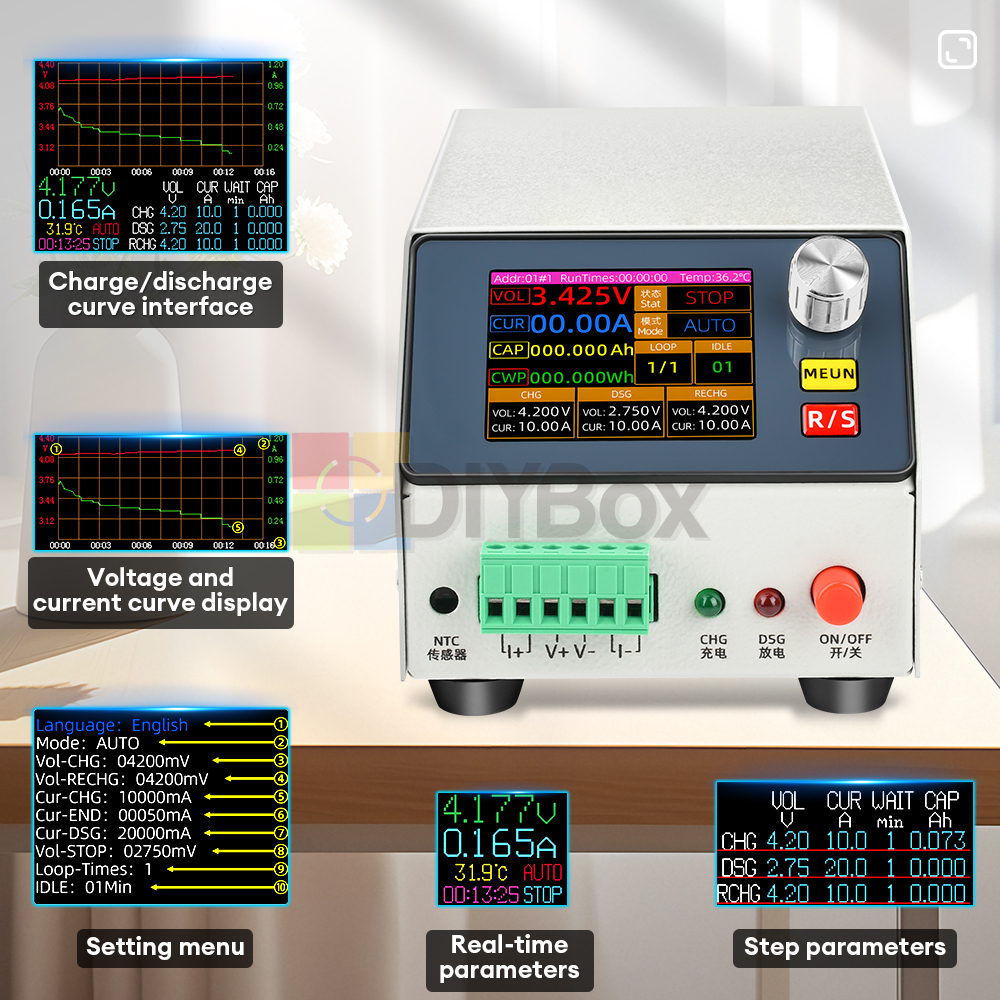

Charging and discharging curve display: support
Internal resistance detection: not support

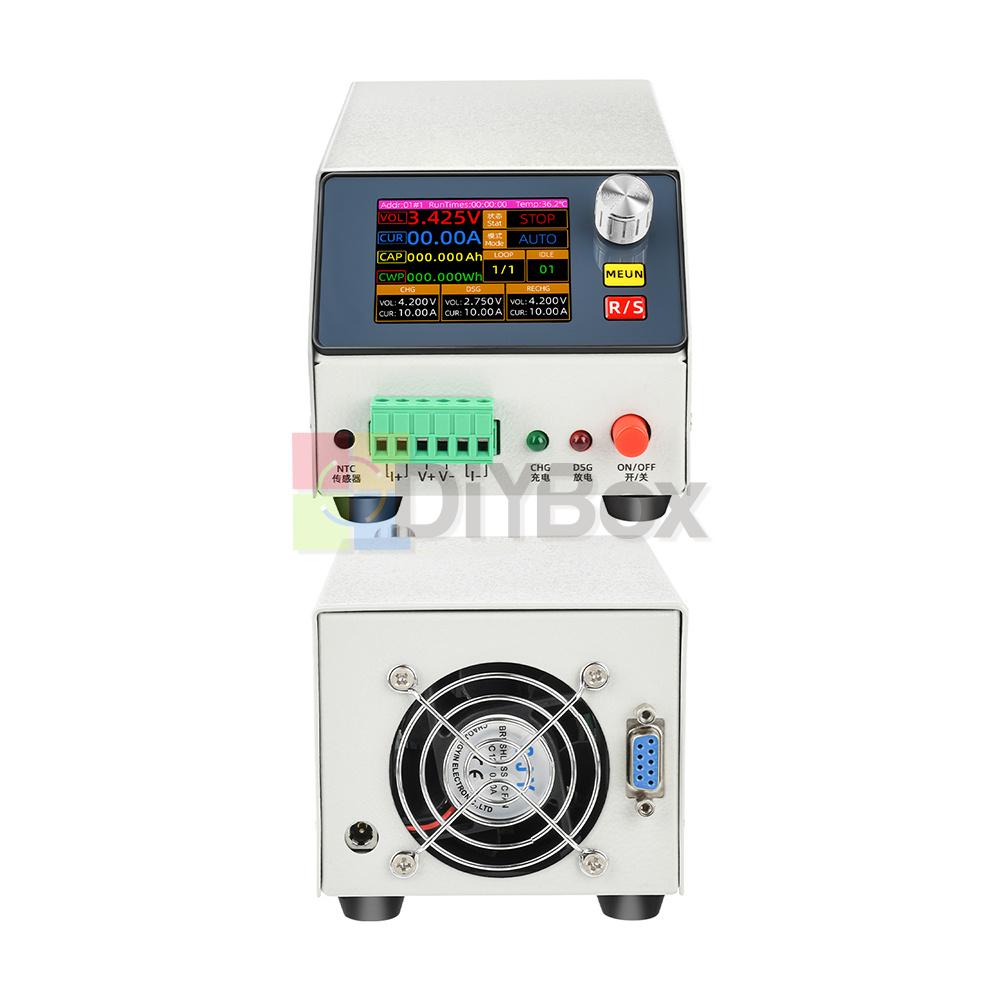

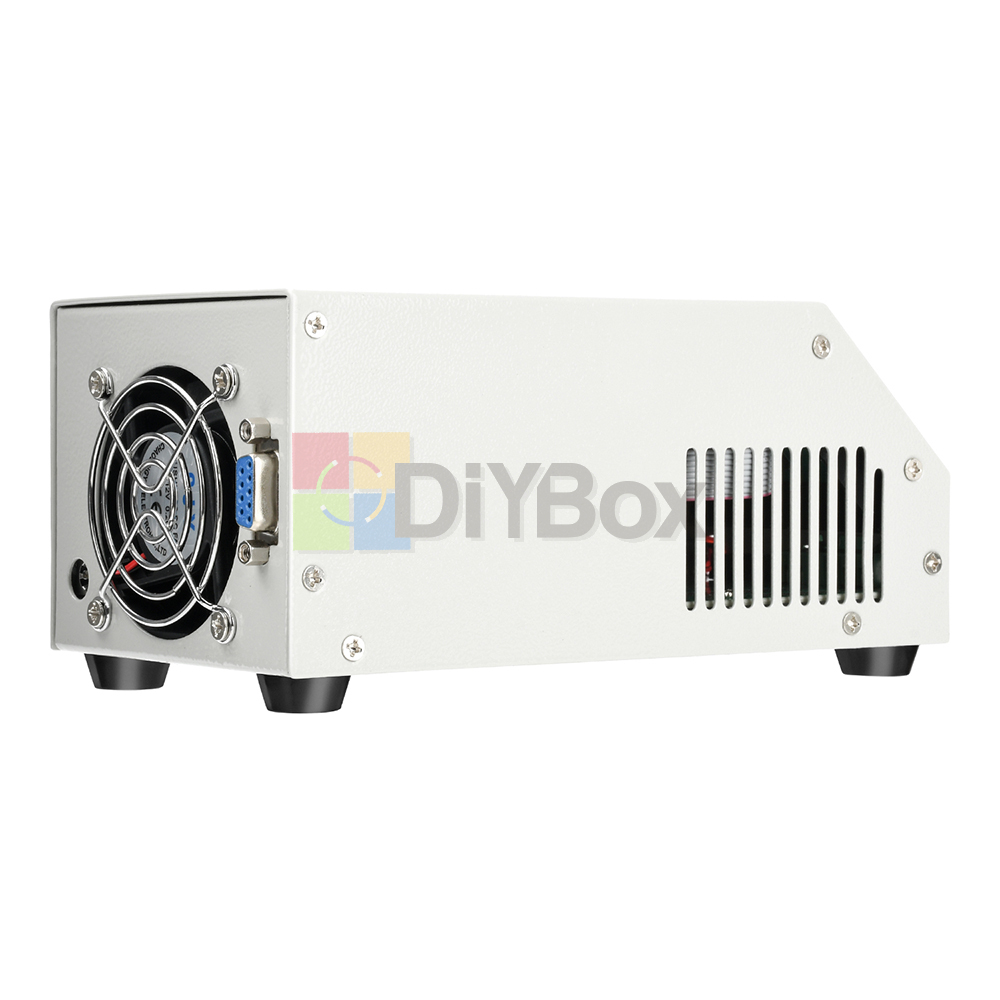

Heat dissipation: 60×60 fan active heat dissipation
Overheating protection: support
Reverse connection protection: with reverse connection protection, prohibit reverse connection of the battery.

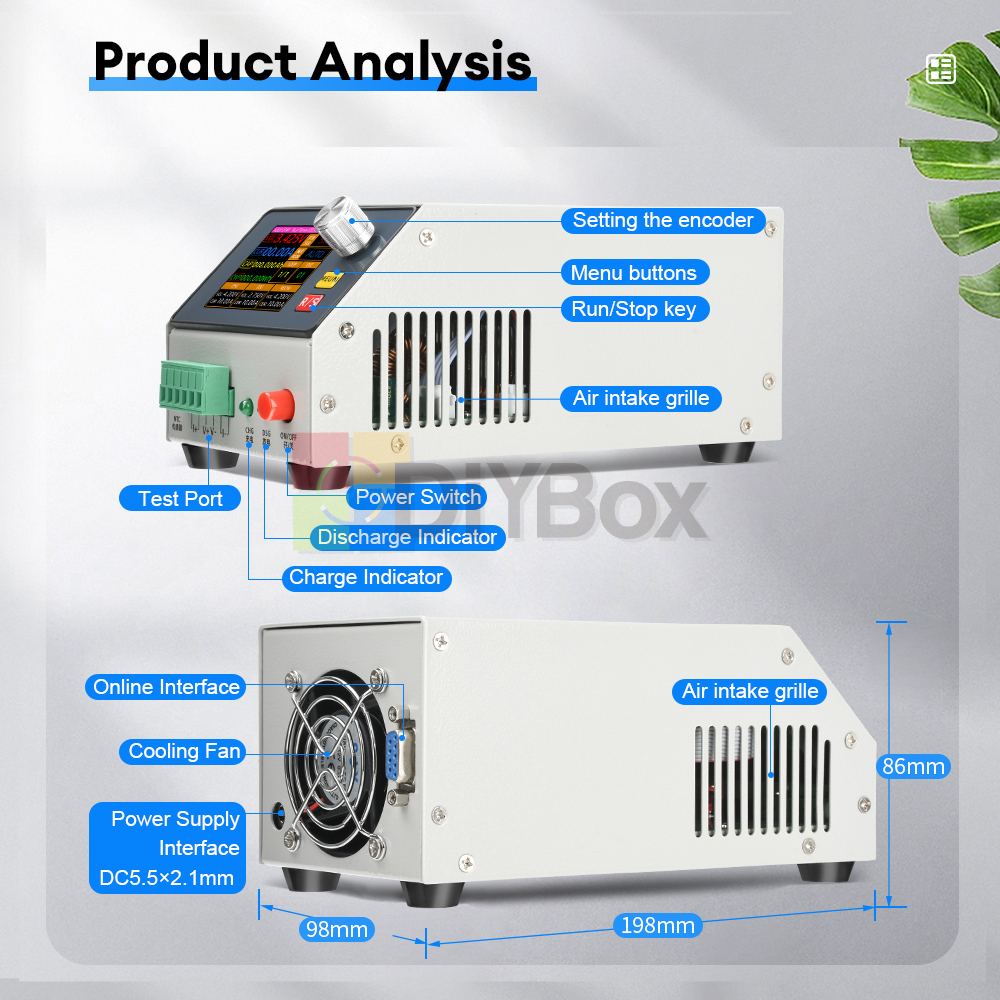

Product size: 198×96×86mm
Model No.: BT5V-2020A
Power Adapter: AC100~240V to DC19V 4.74A 90W
Charging Power: Maximum 70W, Current ≤20A

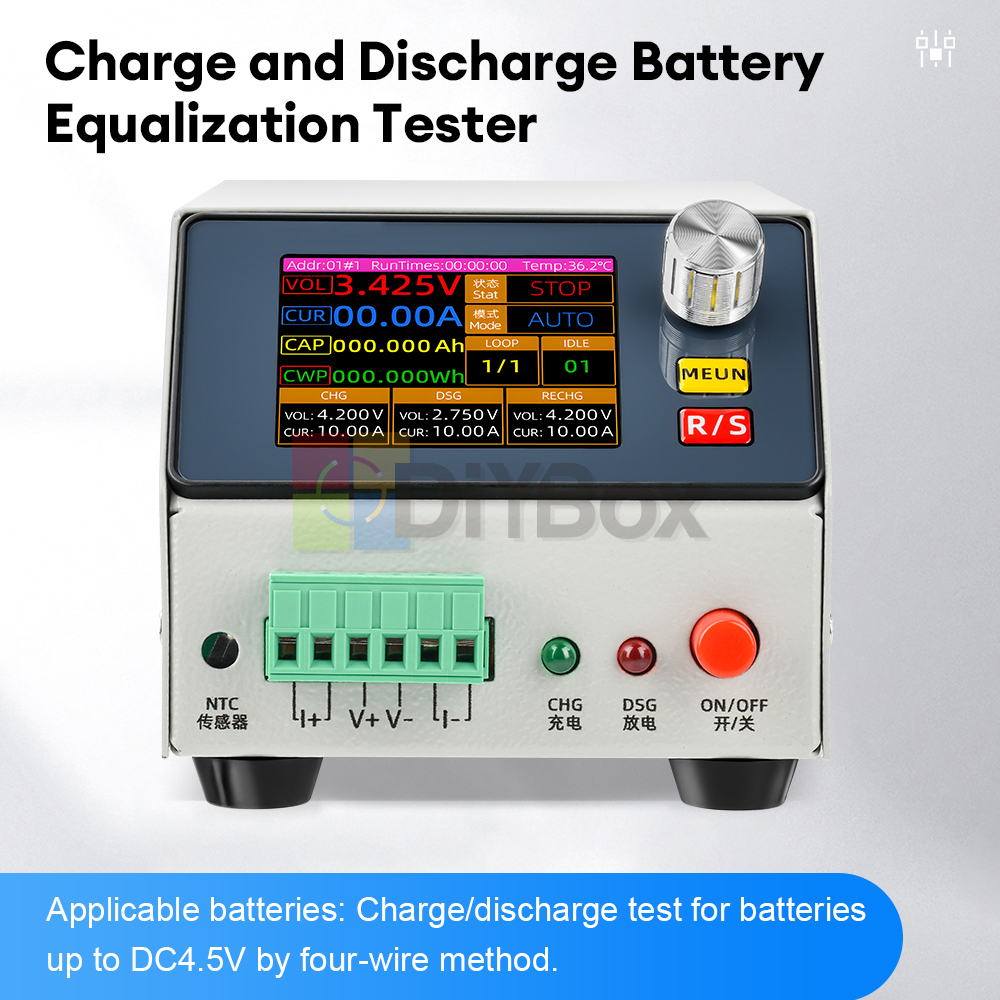

Applicable Battery: Charge and Discharge test for batteries up to DC4.5V by four-wire method
Charging (Stop) Voltage:

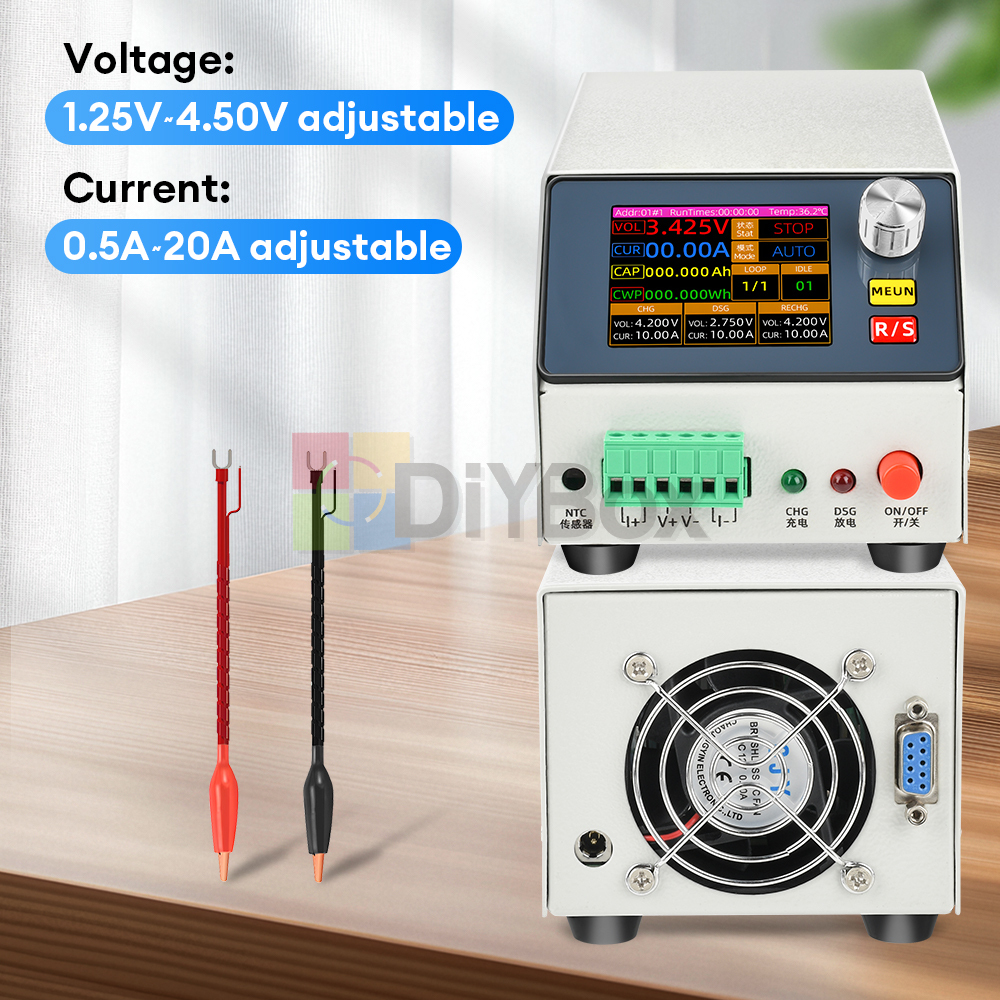

Stand-alone: 1.25V~4.50V adjustable, 0.05V/stage
Online: Free setup within 4.5V (by computer software) Recharge (Stop) Voltage: Stand-alone: 1.25V~4.50V adjustable, 0.5V/stage Charging (stop) voltage: Stand-alone: 1.25V~4.50V adjustable, 0.05V/speed
On-line: within 4.5V free setting (through computer software)
Charging current: charging voltage × charging current ≤ adapter power × 80%
Stand-alone: 0.5A~20A adjustable, 0.5A/speed,
On-line: within 20A free setting (through computer software) (through computer software)
(Charging) end current: charging current reaches the end current to stop charging.
Stand-alone: 50mA~2.0A adjustable,50mA/speed
Online: can be set freely by online software
Discharge current: Maximum discharge power 150W＞voltage×discharge current
Stand-alone: 0.5A~20A adjustable,0.5A/speed
Online: within 20A set freely (by computer software)
(Discharge) stop voltage:
Stand-alone: 1.0V~4.0V adjustable,0.05V/speed
Online: free setting within 18V (via computer software)

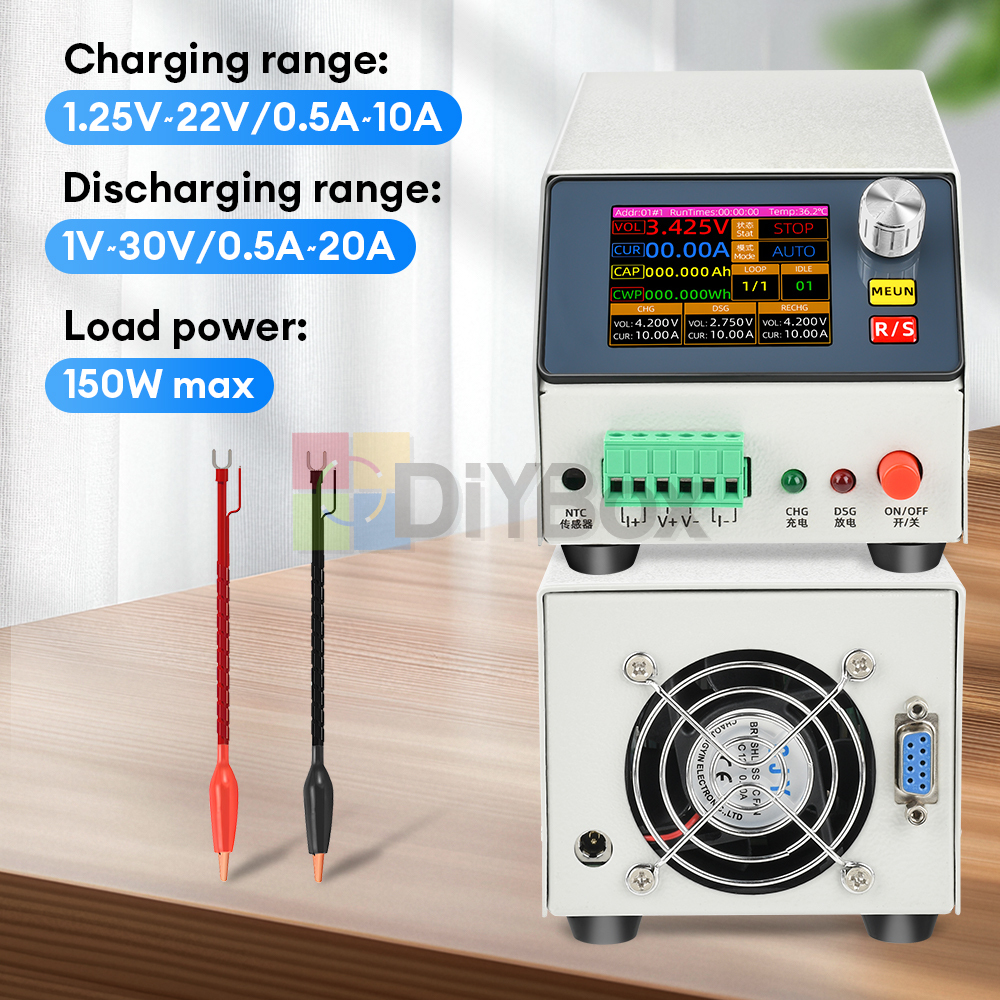

Model No.: BT22V-1020A
Power Adapter: AC100~240V to DC24V 5A 90W
Charging Power: Maximum 70W, Current ≤10A, Charging Voltage×Charging Current ≤Adapter Power×80%
Applicable Batteries: Charging and Discharging Tests for Batteries within DC1.25V~22V by four-wire method, Charging (Stop) Voltage: Standalone: 1.25V~22V adjustable, 0.05V/stage Online: Free setting within 22V (through computer software) Recharging (Stop) Test: Standalone: 1.25V~22V adjustable, 0.05V/stage Discharge test
Charging (stop) voltage:
Stand-alone: 1.25V~22V adjustable, 0.05V/speed
On-line: free setting within 22V (through computer software)
Re-charging (stop) voltage:
Stand-alone: 1.25V~22V adjustable, 0.5V/speed
On-line: free setting within 22V (through computer software)
Charging current: charging voltage × charging current ≤ adapter power ×80%
Stand-alone: 0.5A~10A adjustable, 0.5A/speed,
Online: free setting within 20A (via computer software)
(Charging) End Current: Charging current reaches the end current to stop charging.
Stand-alone: 50mA~1.0A adjustable,50mA/file
Online: can be set freely through online software
Discharge current: voltage×discharge current＜150W
Stand-alone: 0.5A~20A adjustable,0.5A/file
Online: set freely within 20A (through computer software)
(Discharge) stopping voltage:
stand-alone: 1.0V~29.999V adjustable, 0.05V/step
online: free setting within 30V (through computer software)
Package include:
Main unit*1
Red and black alligator clip leads*2
Instruction manual*1
