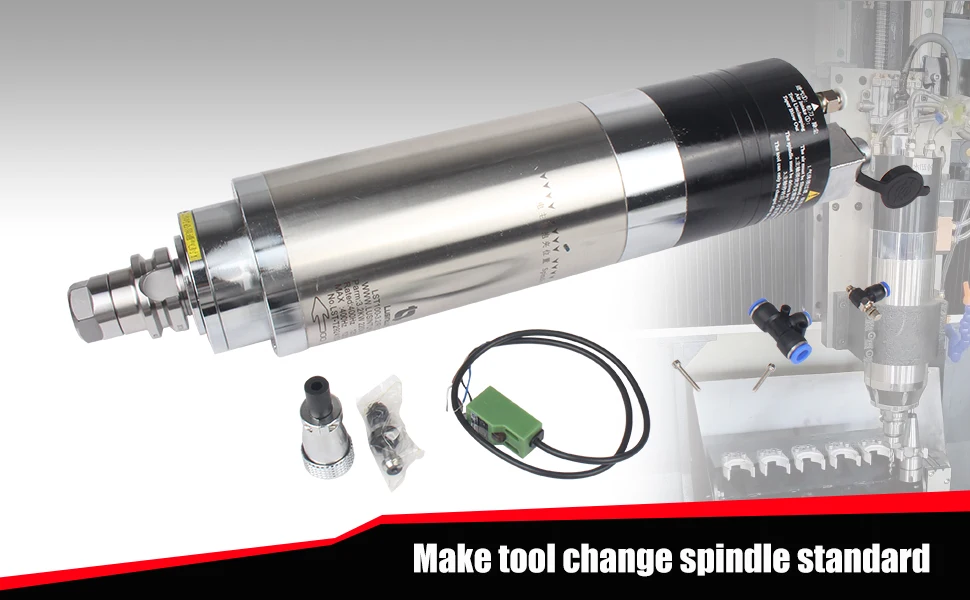

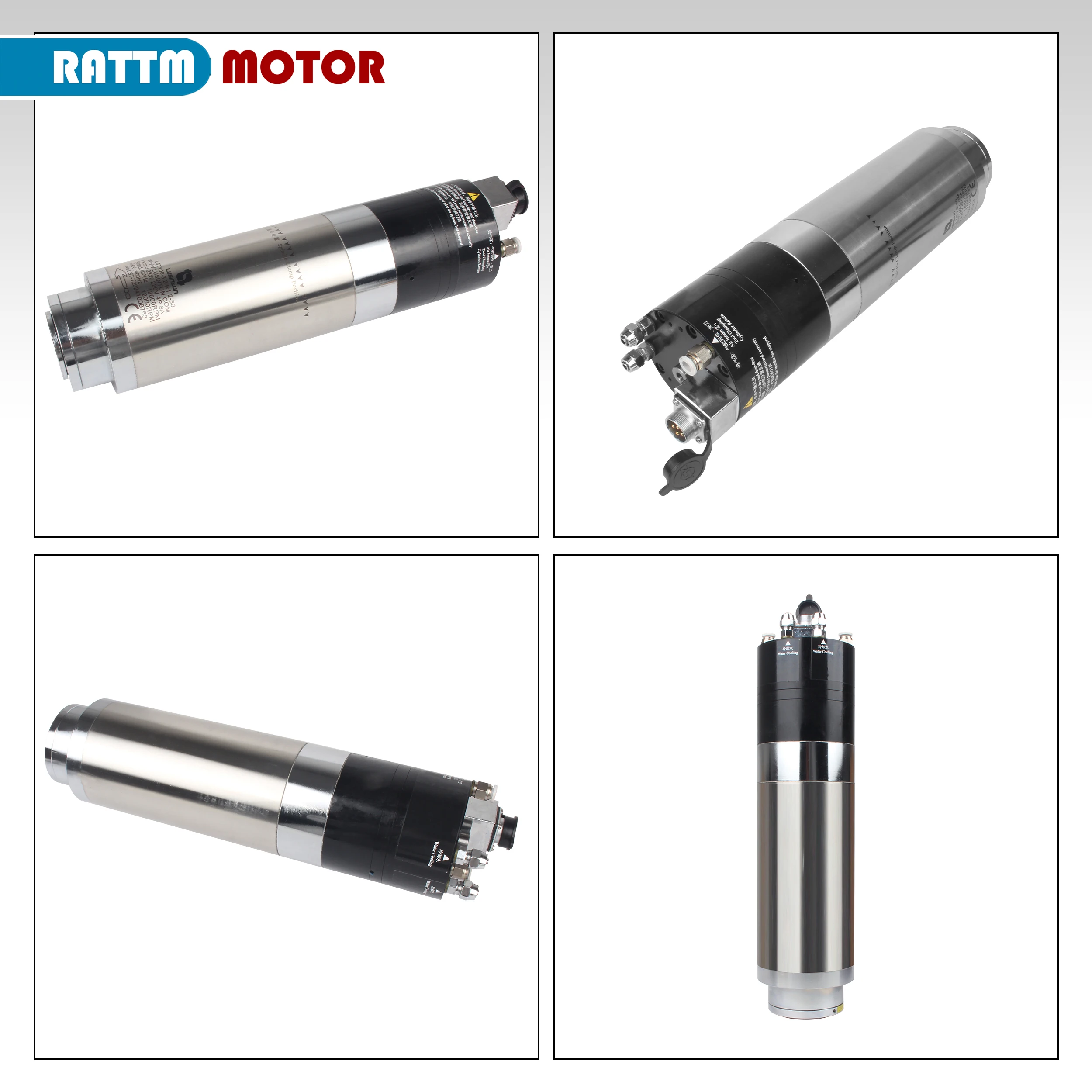

3.2KW ATC 220V 380V BT30 Automatic Tool Change Water Cooled Spindle Motor VFD


Package included:


Descriptions:



https://image3.pushauction.com/3/0/0/497c9edd-1781-4f98-8153-341b0f052054/d04eb064-4cd2-4cf6-bc14-d06239ed7620.png

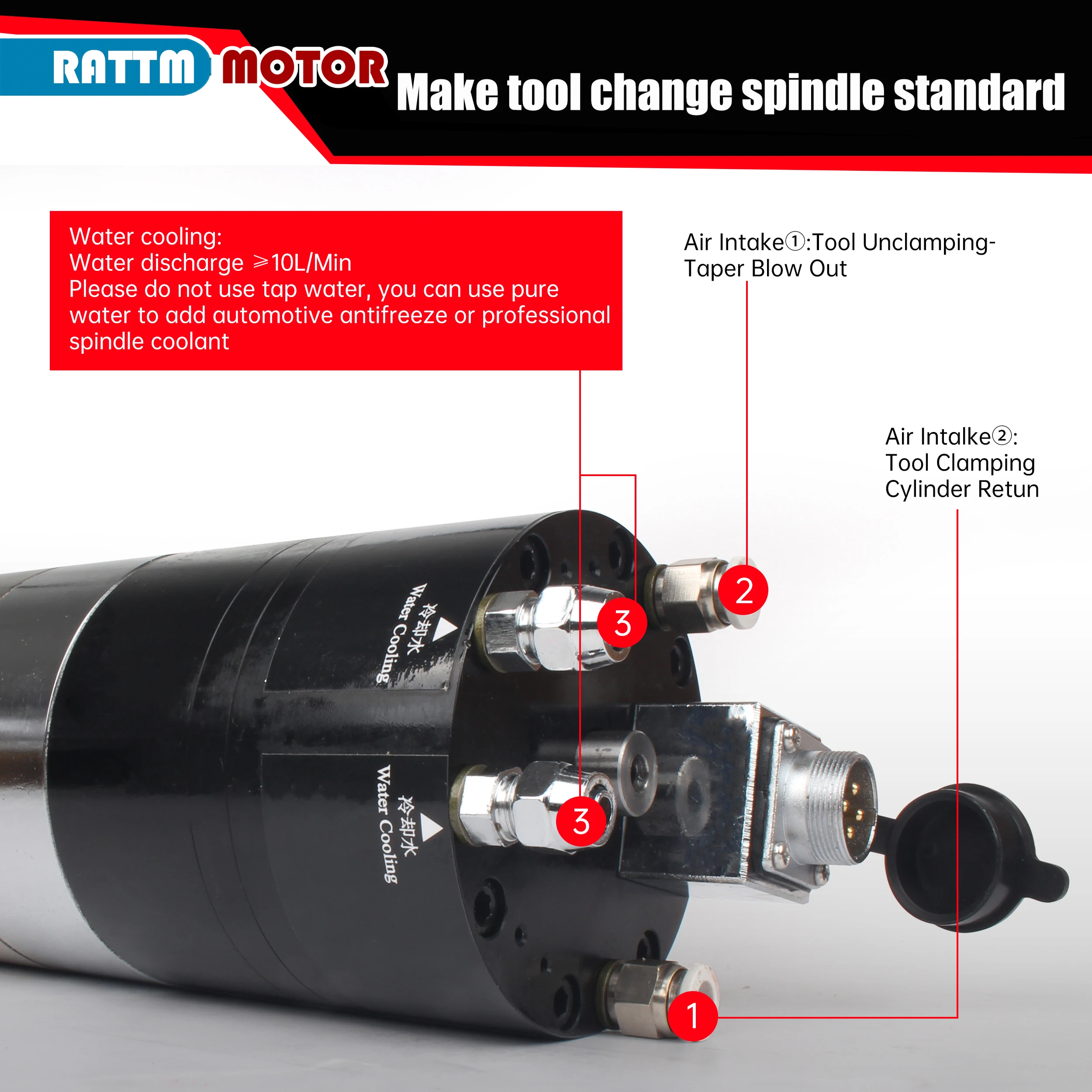

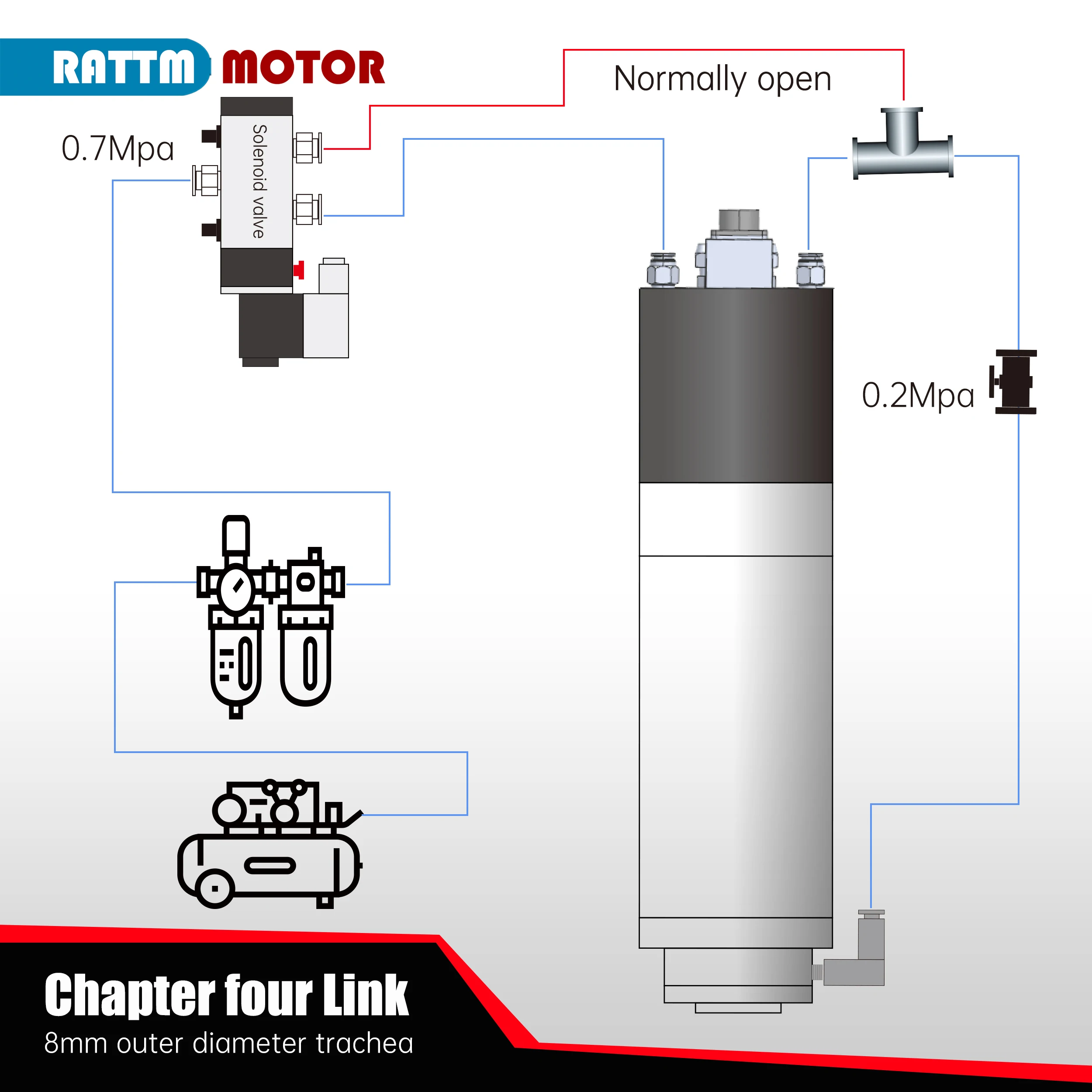

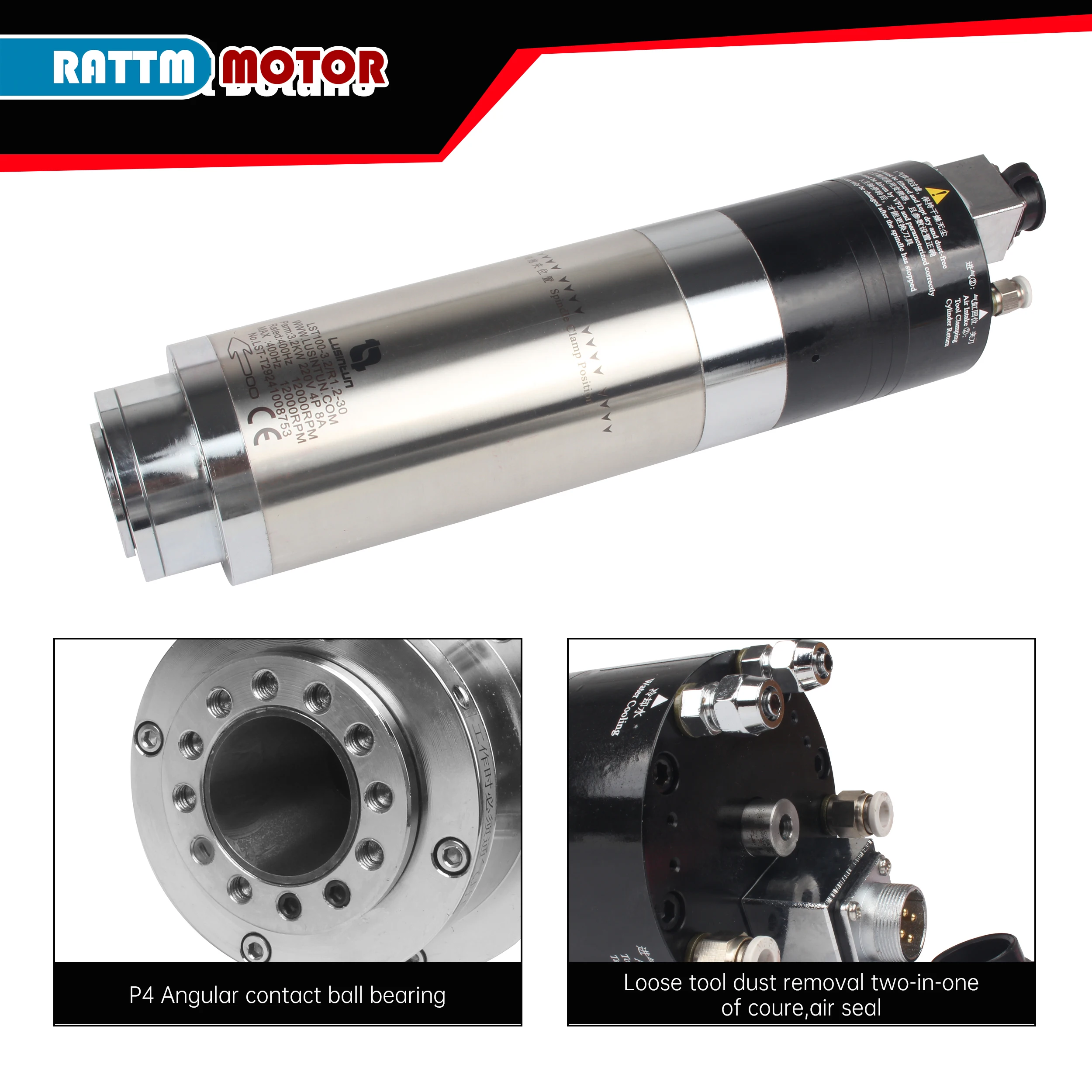

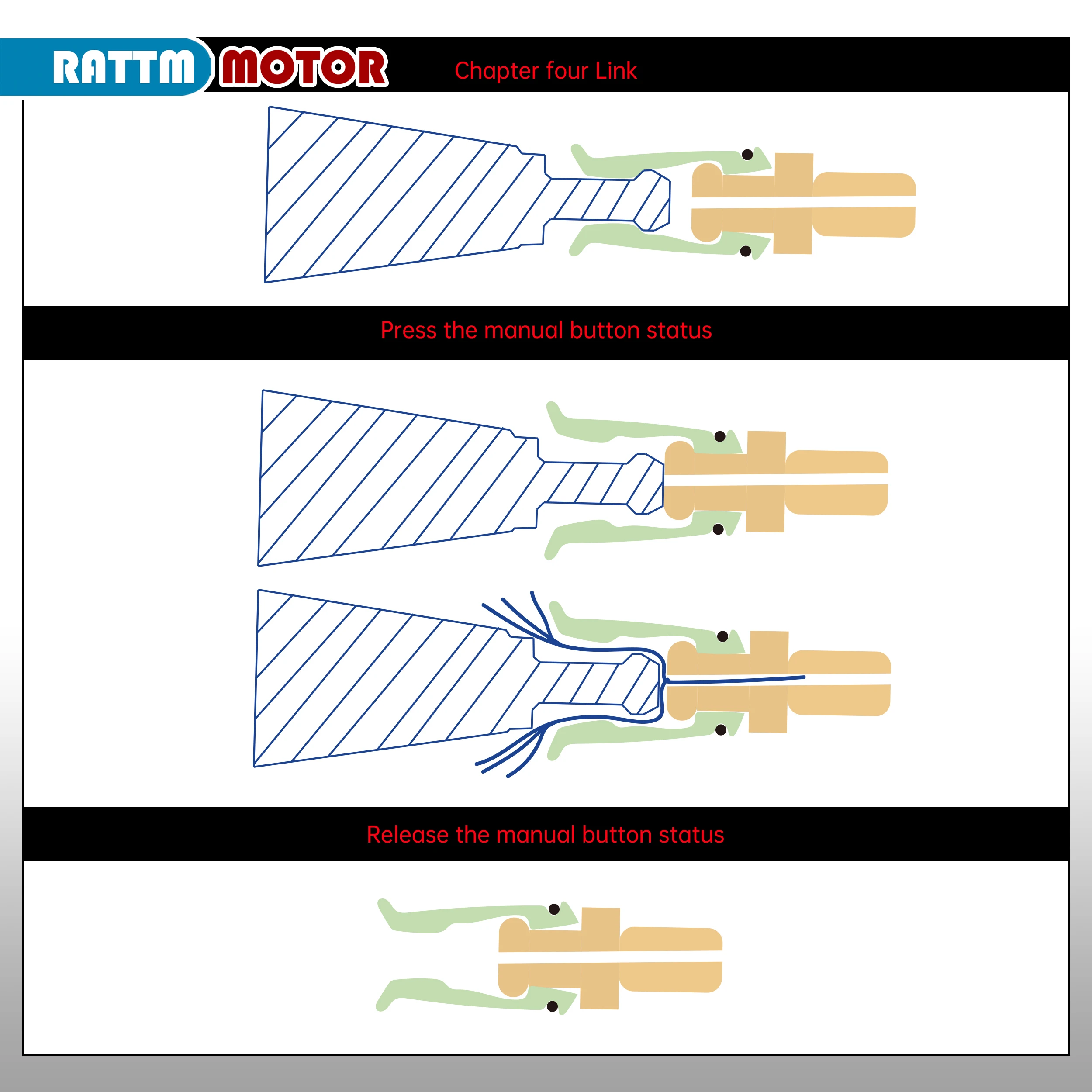

This spindle is a 2-in-1 tool used for loosening tools and dust removal, and of course, an air seal is also required.



Model: LST100-3.2/R1.2-30

Number of motor poles: 4

Power: 3.2kw

Frequency: 400Hz

Maximum speed: 12000 rpm

Clamp outer diameter: 100mm

Current: 7A

Cooling method: water cooling

Voltage: 220V or 380V optional

Weight: 14kg



https://image.pushauction.com/0/0/497c9edd-1781-4f98-8153-341b0f052054/f8bc67fd-8683-4618-9b0f-6b7b1809b2ed.png

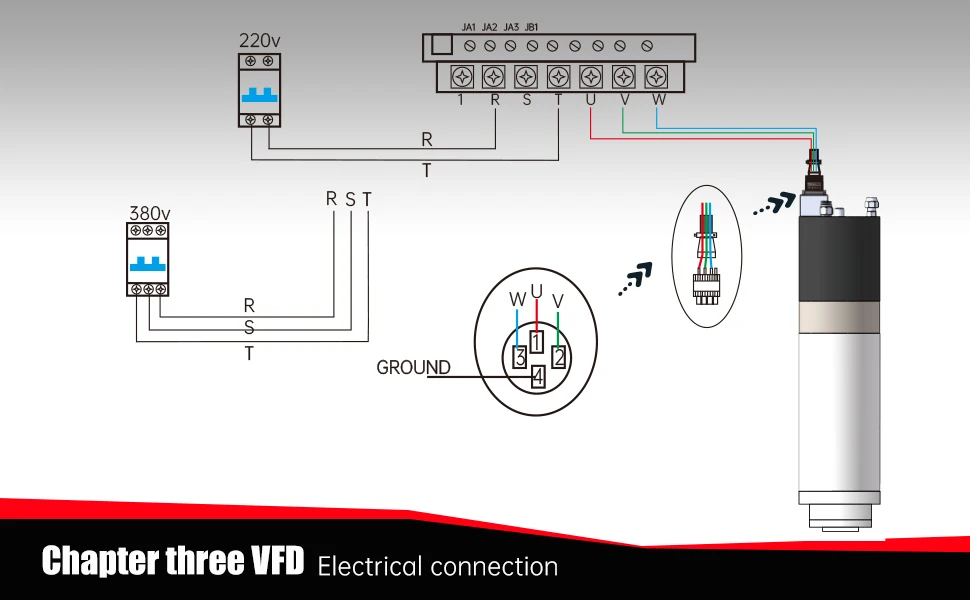

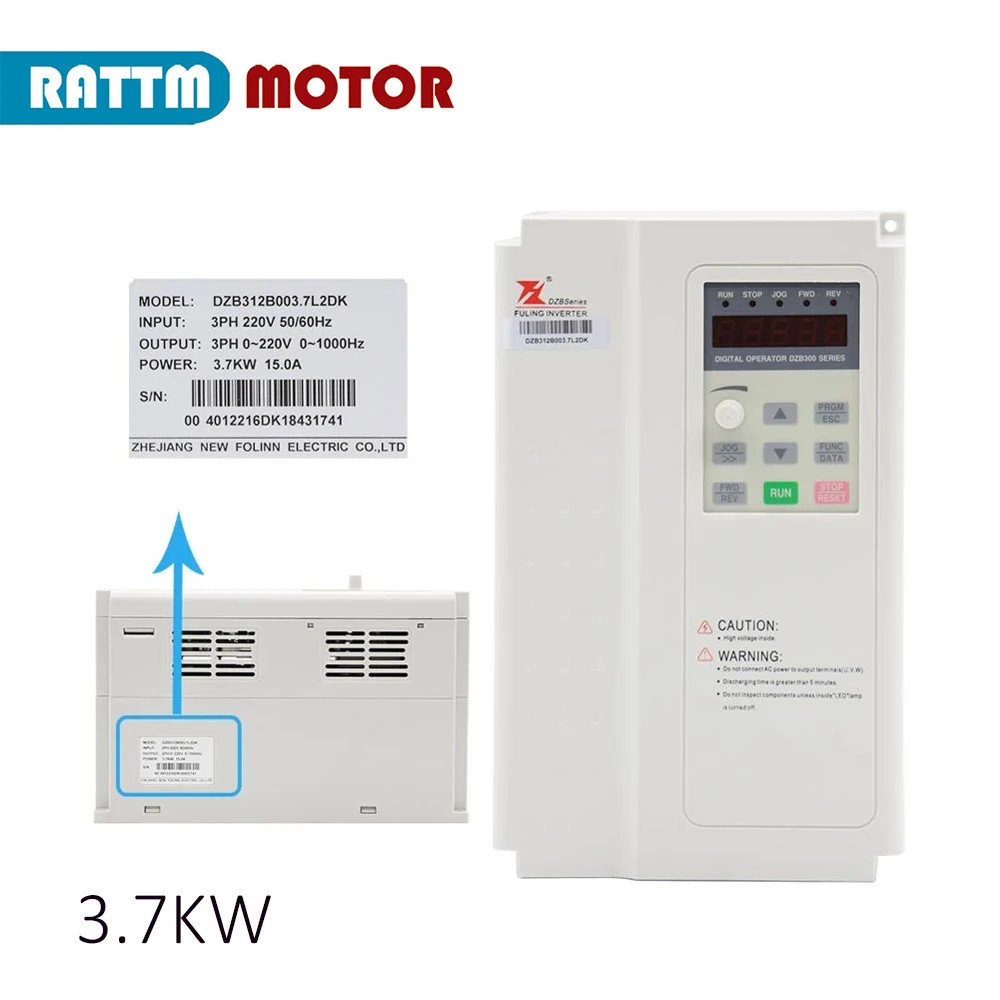

3.7KW Fuling Inverter VFD 220V or 380V



220V Configuration:

Input Voltage: 220V(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 1 phase or 3 phase (support single phase 220-240V input)
Output Voltage: 220VAC
Output Frequency: 0-1000 Hz
Output Current:15A
Output Phase: 3 phase

380V Configuration:
Input Voltage: 380V(+/-15%)
Input Frequency: 50/60Hz
Input Phase: 3 phase
Output Voltage: 380VAC
Output Frequency: 0-1000 Hz
Output Current:8.5A
Output Phase: 3 phase

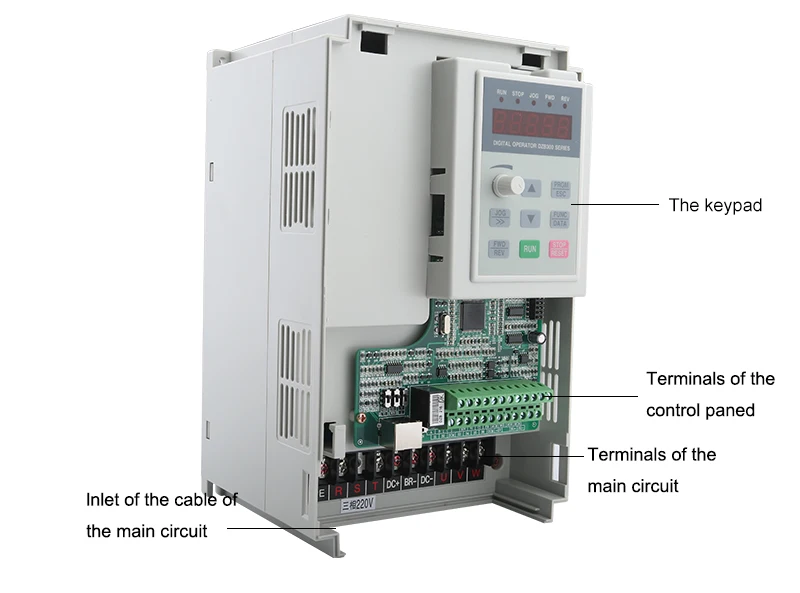

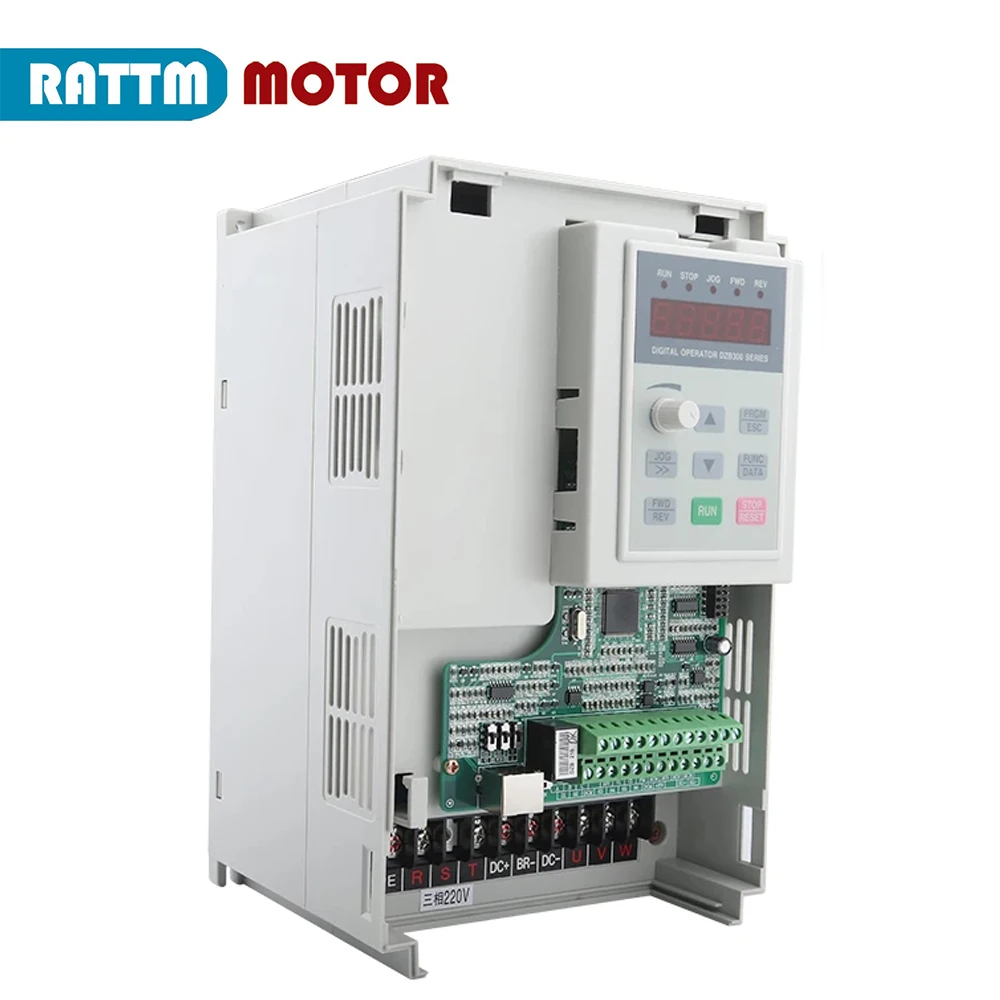

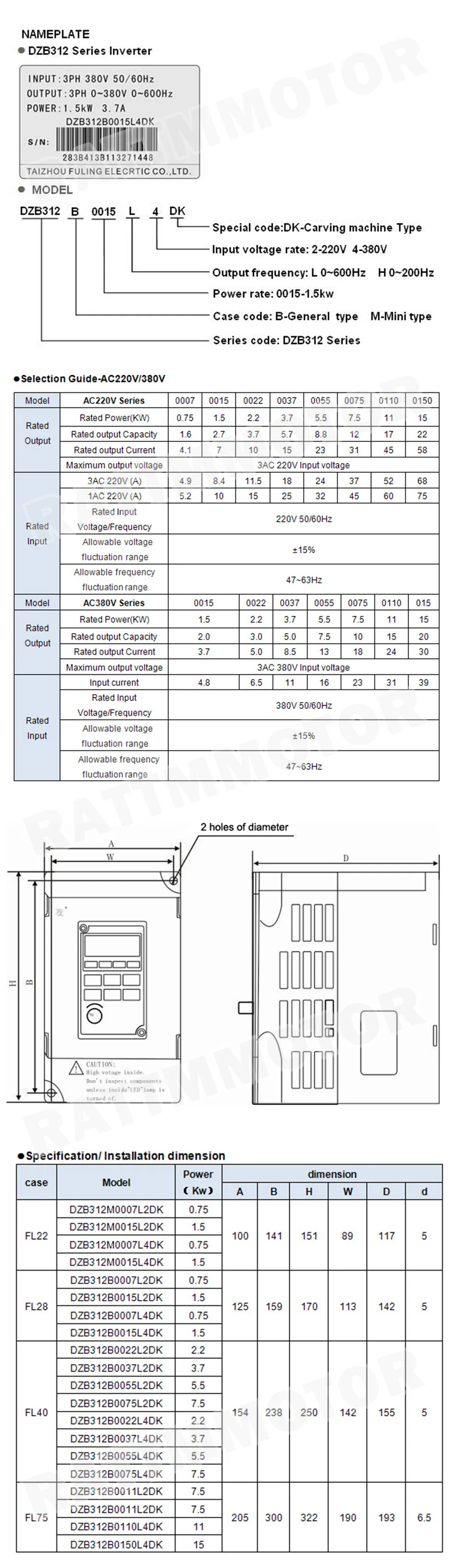

product overview

DZB312 series special inverter for carving machine is designed for carving machining industry, it adopts  sine wave pulse width vector control technology with specialized macro code function built-in, it's easy for installation and debugging,  reasonable wiring technology makes it stable and reliable.


Product features

◆ It can realize 8 segment speed running for convenient macro card control

◆ Adopt 32-bit microprocessor and sine PWM control

◆ Unique core algorithm and low interference

◆ Adopt independent air duct for many dust occasions

◆ Automatic torque promotion and automatic slip compensation function

◆ Output frequency range 0~600.0Hz，customized up to 2000Hz

◆ Built-in standard 485 communication function

◆ Humanized design: Carving machine specialized macro code factory set parameters, easy for debugging


Applications

◆ various engraving machine, high speed motorized spindle


Technical parameters

◆ input voltage：1AC220V±15%  3AC220V±15%  3AC380V±15%

◆ Output power range：220V：0.75kW~15kW，380V：1.5kW~15kW

◆ output frequency：0~600Hz，custom-made above 600Hz

◆ Input frequency 47~63Hz，power factor≥95%

◆ control mode：Non-PG vector control, V/F control

◆ Source of operation instruction：given by panel, terminal and   RS485 communication

◆ Source of given frequency：given by panel figure, analog quantity, RS485  serial communications, multi-speed simple PLC and PID etc.

◆ Overload capacity：130% rated current 60s、150% rated current 3s

◆ Carrier frequency：1.0kHz~15.0kHz，and can be automatically adjusted according to temperature and load characteristic.

◆ Frequency resolution：the given digital value is 0.01Hz，and the analog quantity is given as the highest frequency plus 0.1%

◆ Torque elevation：Manual torque can elevate 0~30%

◆ Inching operation：frequency range：0.0Hz~ Maximum output frequency Inching acceleration and deceleration time：0～3600.0s

◆ Simple PLC and multistage speed operation：it can realize up to 8 segments running

◆ Automatic voltage regulation： When grid voltage fluctuation occurred, it can automatically maintain constant output voltage

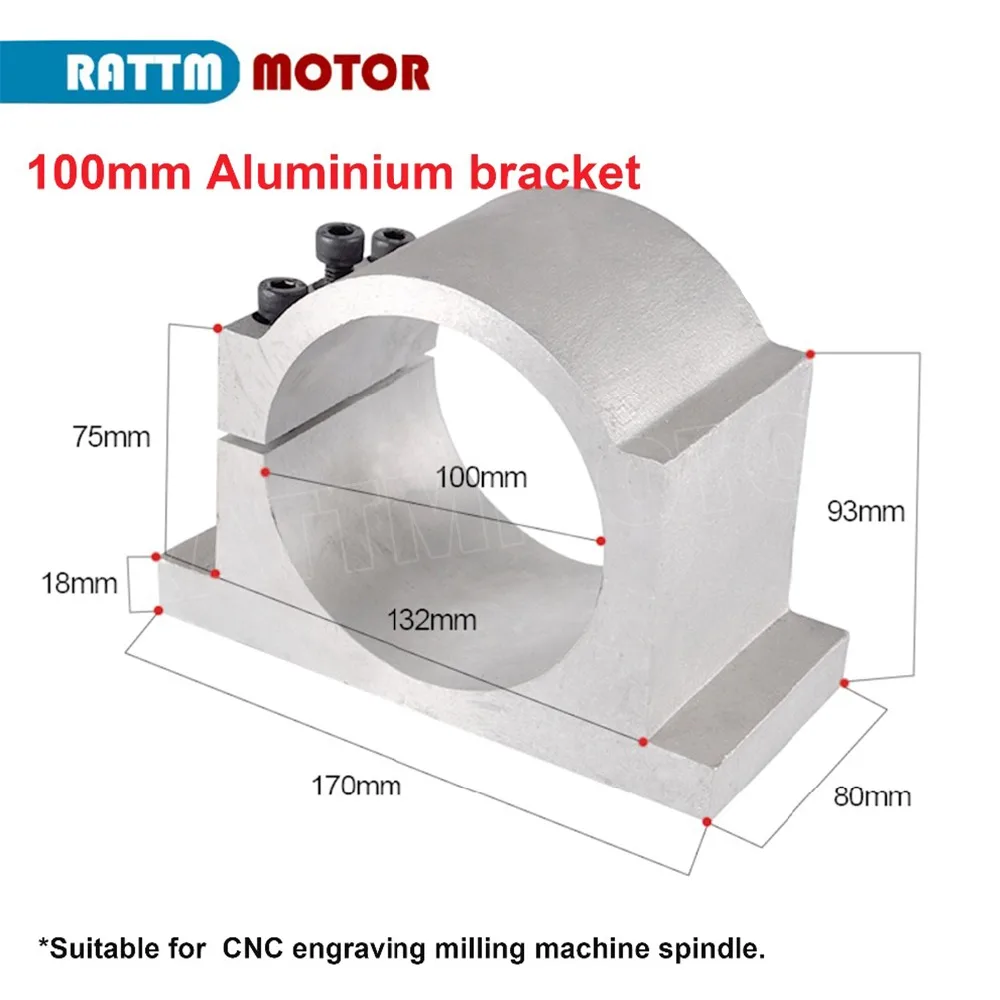

    100mm Spindle Clamp








  • Made of cast aluminum, it is stable and stable.

  • 100mm diameter options.

  • Any engraving machine can be used.

  • The installation is simple and the required hole distance is required for drilling with a pistol.
