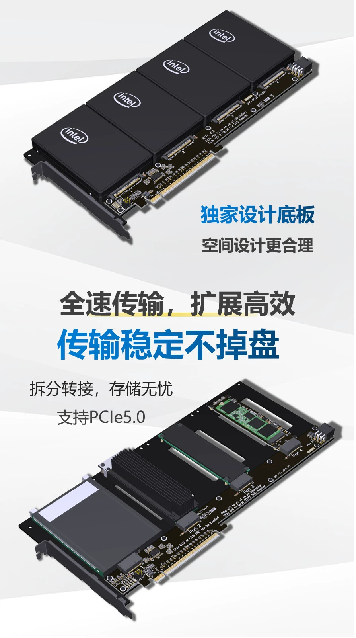

(ADT Link) PCIe 5.0x16 to 4-Port U.2/EDSFF hard drive split adapter expansion card
Brand：ADT
Model：R37A,R37D
Product Name：PCIe x16 to 4-Port U.2 Hard Disk Split Adapter Expansion Card, PCIe x16 to 4-Port E1.
PCIe x16 to 4-Port E1.S/E3.S(SFF-TA-1002) Hard Disk Split Adapter Expansion Card
Speed Bandwidth: PCIe 5.0 x16 4x128Gbps
Purchase Tips: Be sure to buy 1~2 samples first to test and verify that there is no error before purchasing large quantities. The store can open the invoice, if you need to open the invoice, please contact customer service when submitting the order.
Product Size: Size data are maximum values
R37A:Length 307.3mm*Height 151.9mm*Thickness 21.6mm
R37A:Length 336.7mm*Height 167mm*Thickness 21.6mm
Product weight: R37A(159g),R37D(200g)
Appearance Color: Black
Working temperature: -40℃~80
Flame retardant grade: 94V0
Product Model Description:
| Model | Content Description | Speed Bandwidth |
| R37A | PCIe x16 to 4-Port U.2 Hard Drive Split Adapter Expansion Card | Gen4 x16 |
| R37D | PCIe x16 to 4-Port E1.S/E3.S (SFF-TA-1002) Hard Disk Split Adapter Expansion Card | Gen5 x16 |

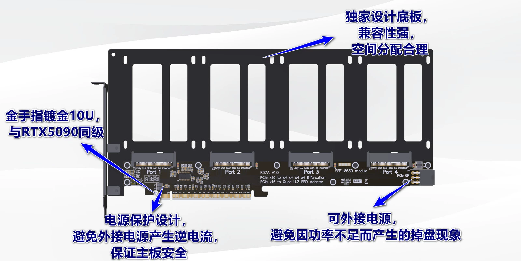

Product Advantage:
1. Support PCIe 5.0 x4 full-speed transmission, compatible with Gen3/Gen4/Gen5
2. Support external power supply, external power supply protection, effectively avoid reverse current problems, to ensure the safety of the motherboard power supply.
3. Exclusive chassis design, perfectly adapted to the different structure of the E1.S, E3.S hard disk.
4. Gold-plated gold fingers, gold thickness up to 10U, in line with the IPC level 1 international standards.
5. high-frequency, low resistance to high temperature and oxygen-resistant PCB boards, non-deformation of the color of yellow crystal translucent not white not black.
