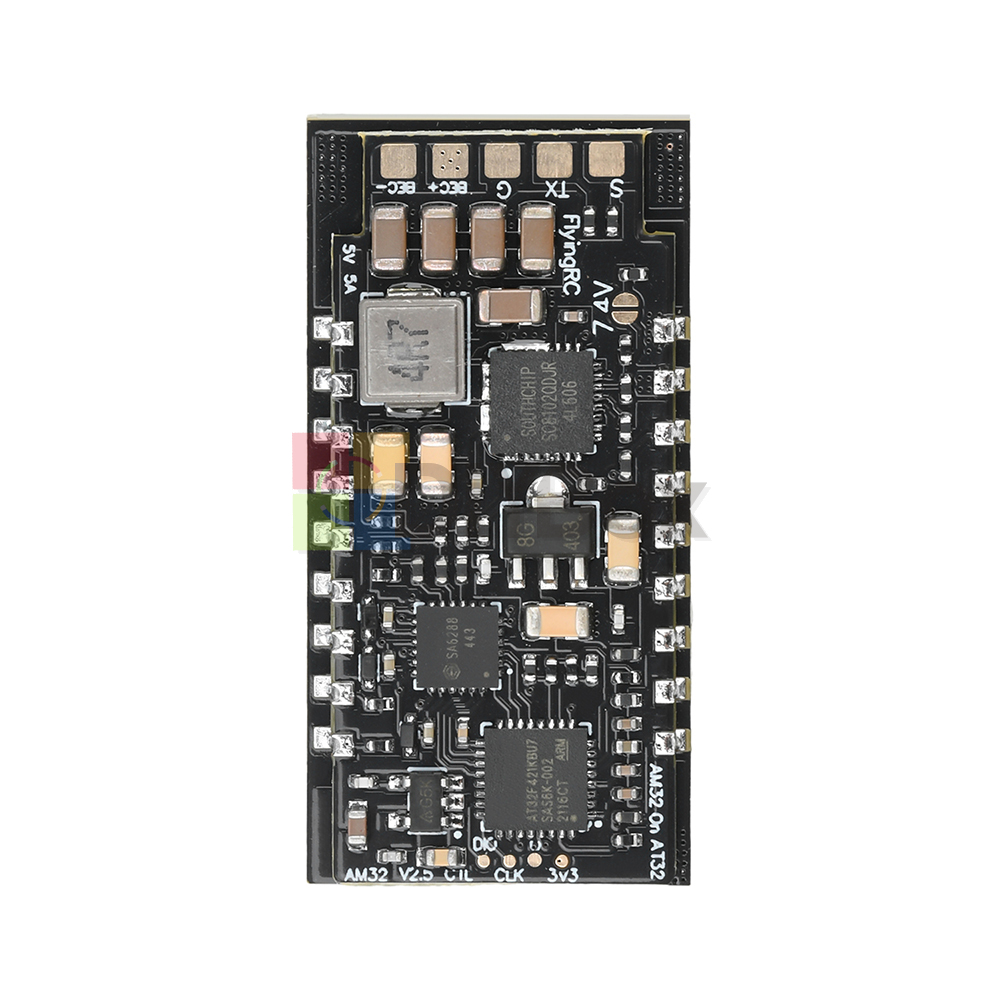

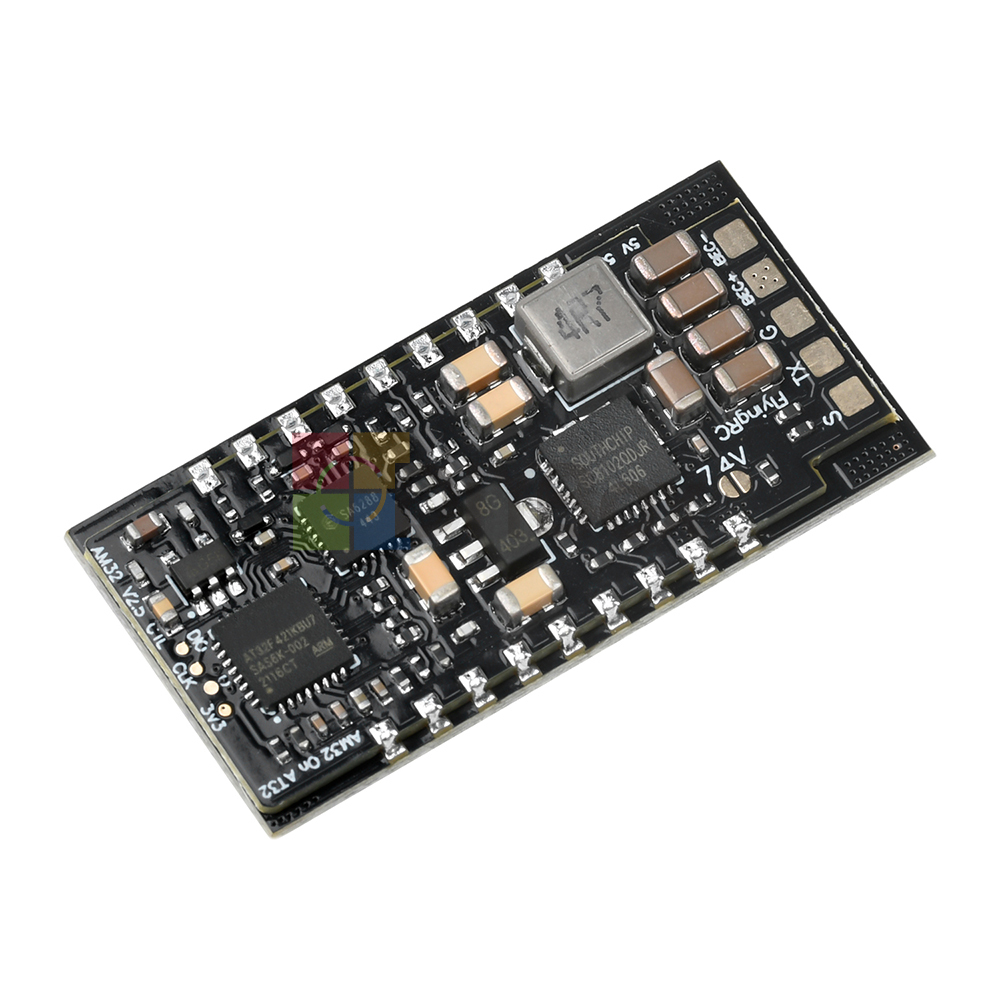

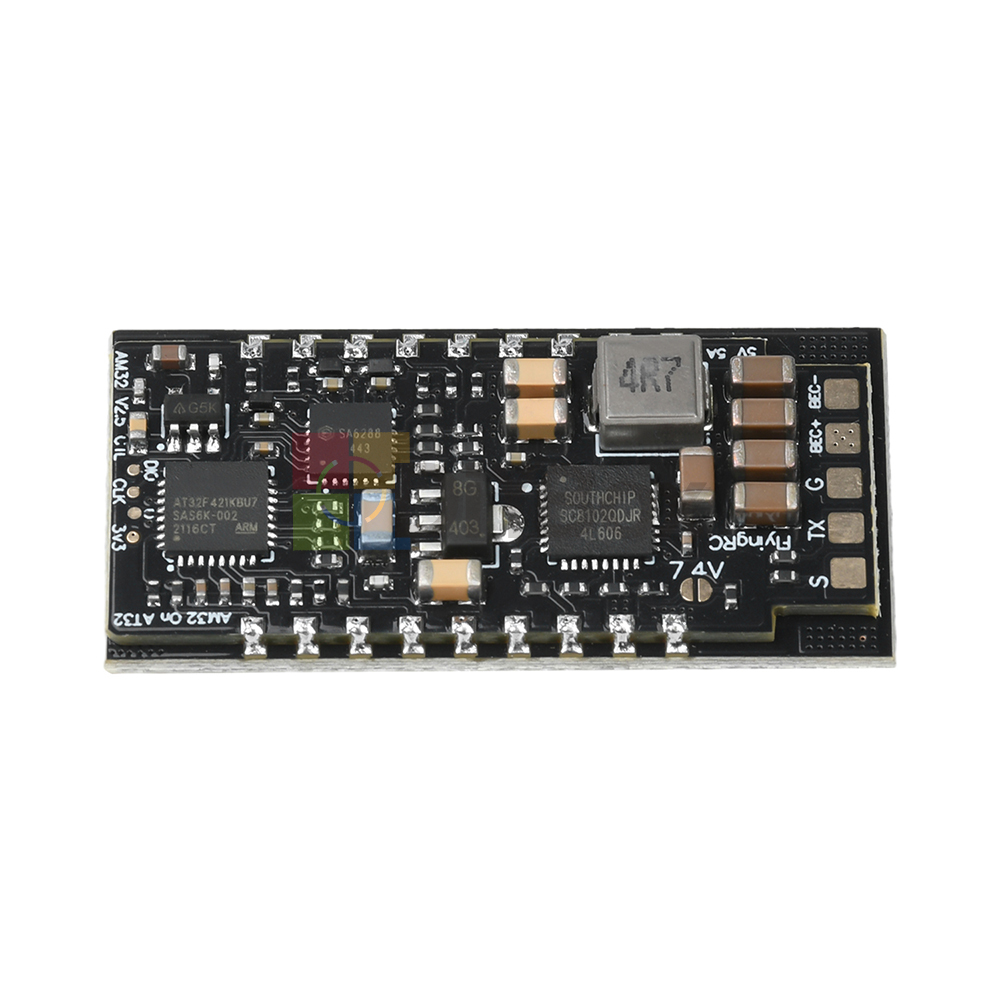

3-6S AM32 ESC V2.5 75A Brushless Airplane BEC 32-bit Drone RC FPV Model Control
Features

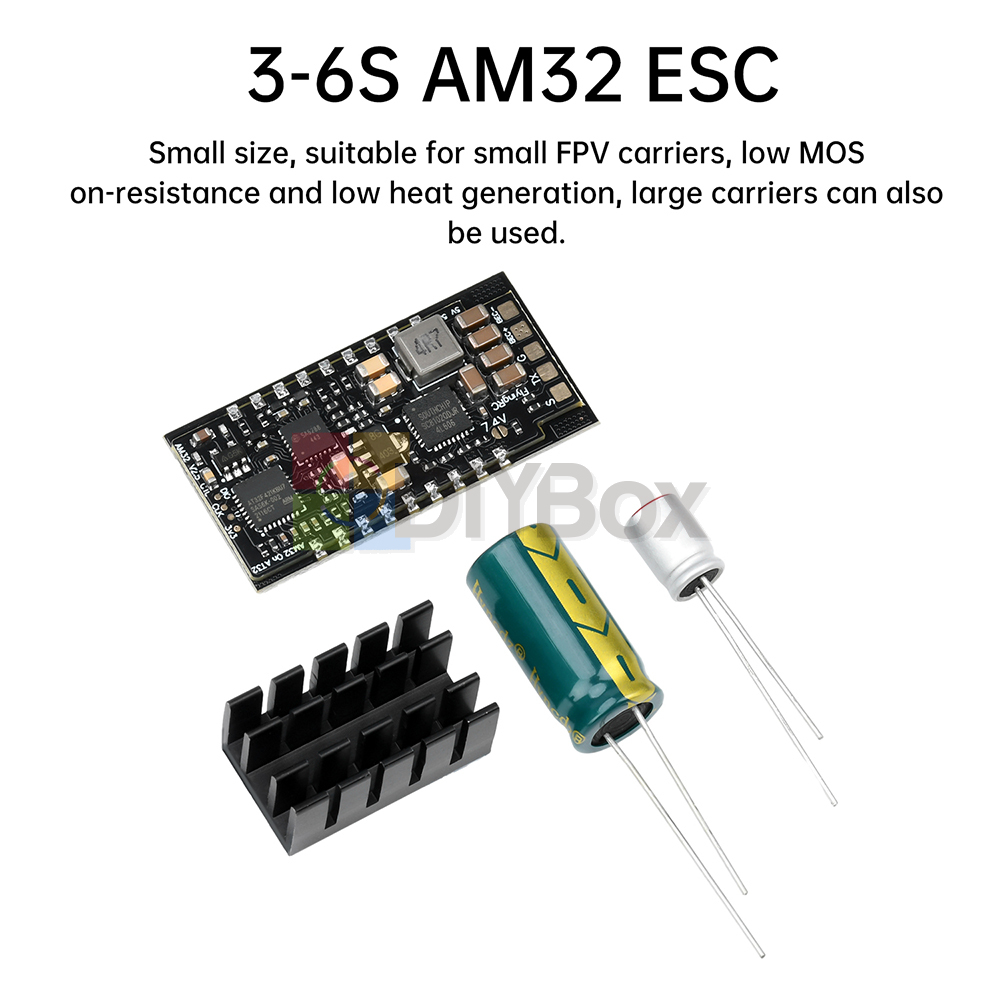

1. Small size, suitable for small FPV aircraft, MOS on low resistance and low heat, large aircraft can also be used.

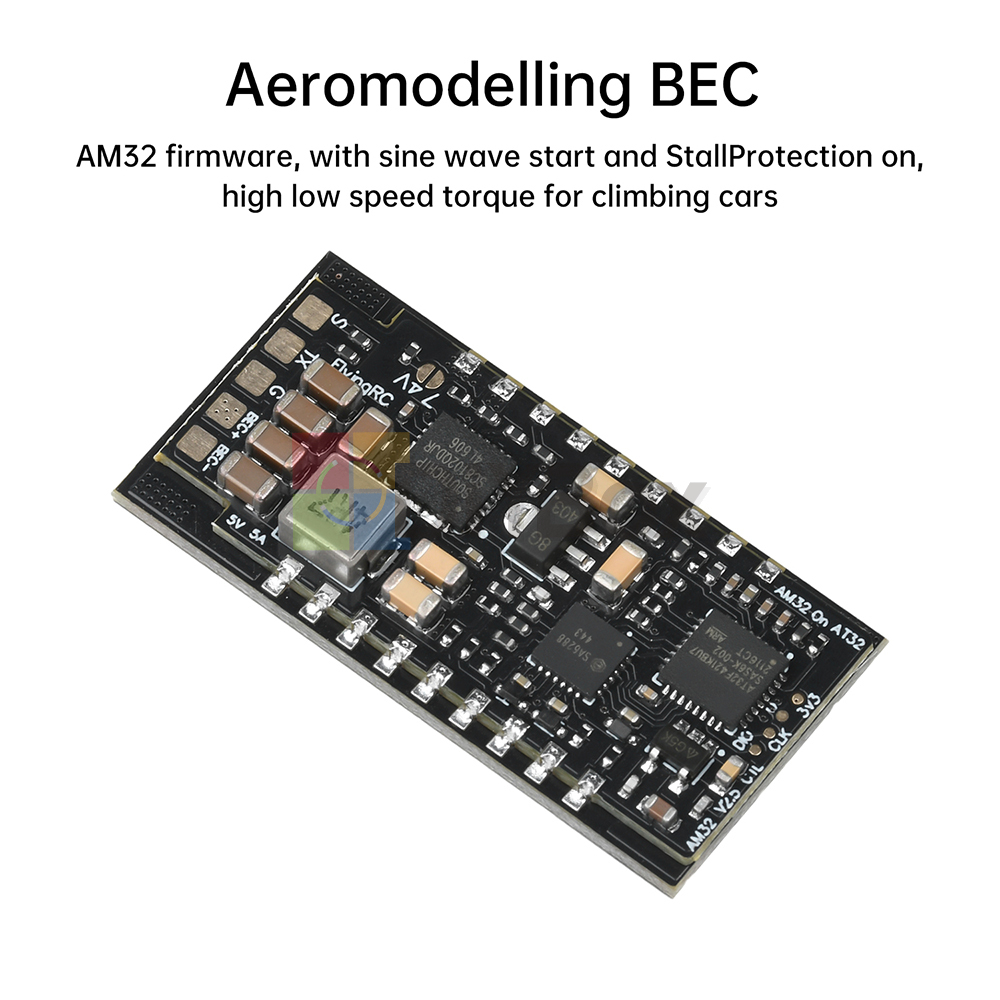

2.AM32 firmware, turn on the sine wave start and StallProtection, low-speed torque, suitable for climbing vehicles.

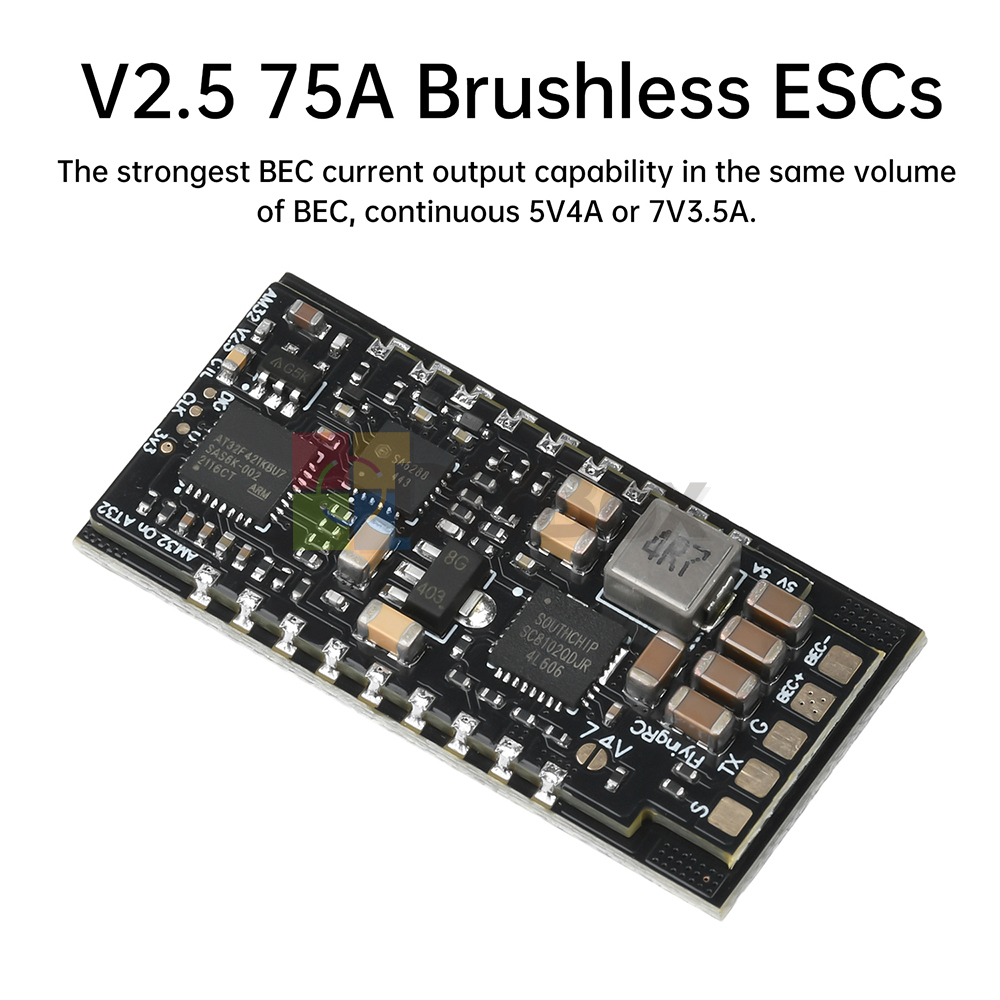

3.The strongest BEC current output capability in the same volume BEC, continuous 5V4A or 7V3.5A.

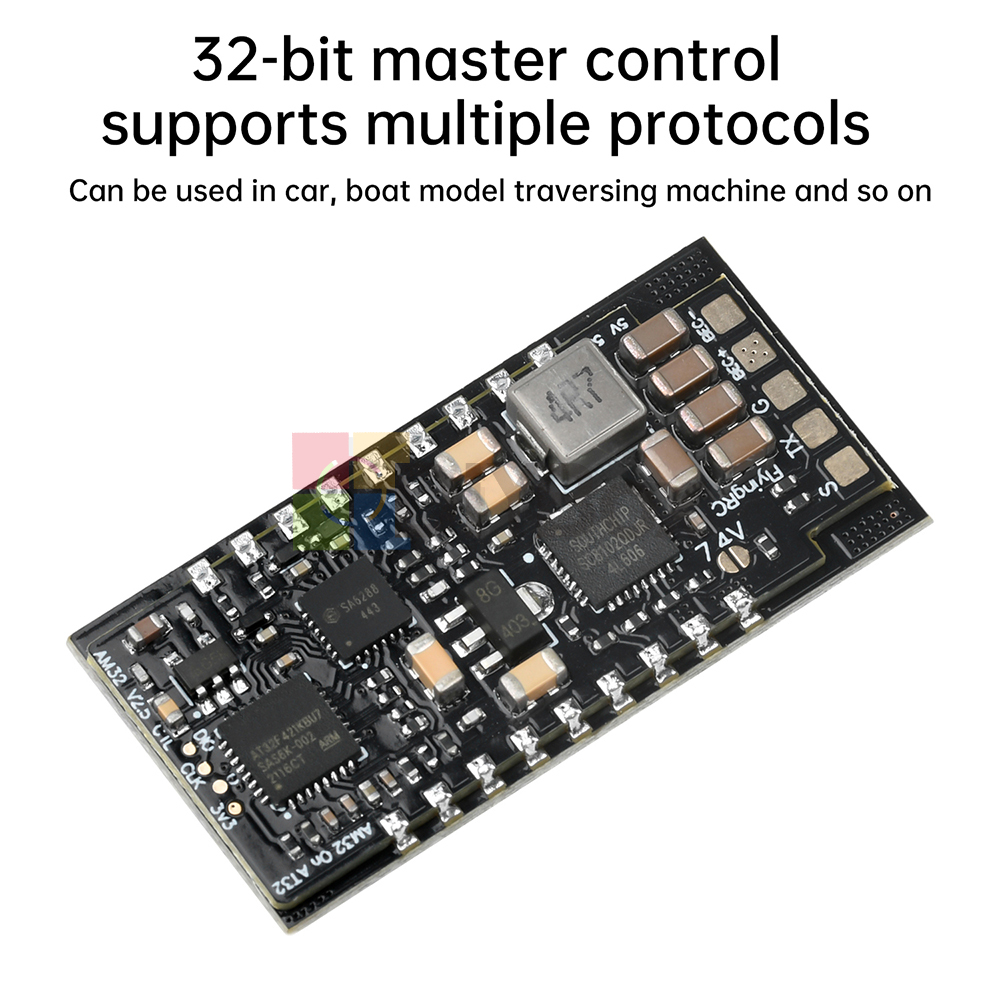

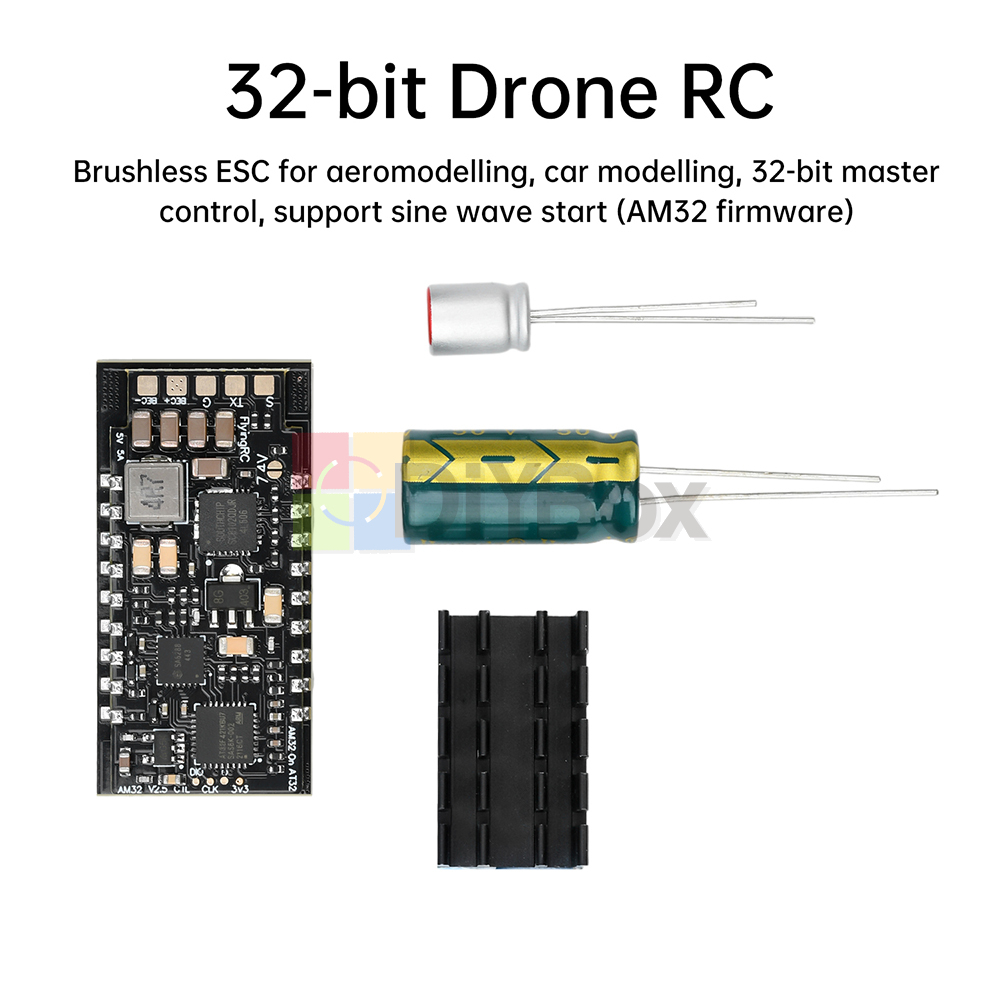

4. Brushless ESC for model airplane and car, 32-bit master control, support sine wave start (AM32 firmware).

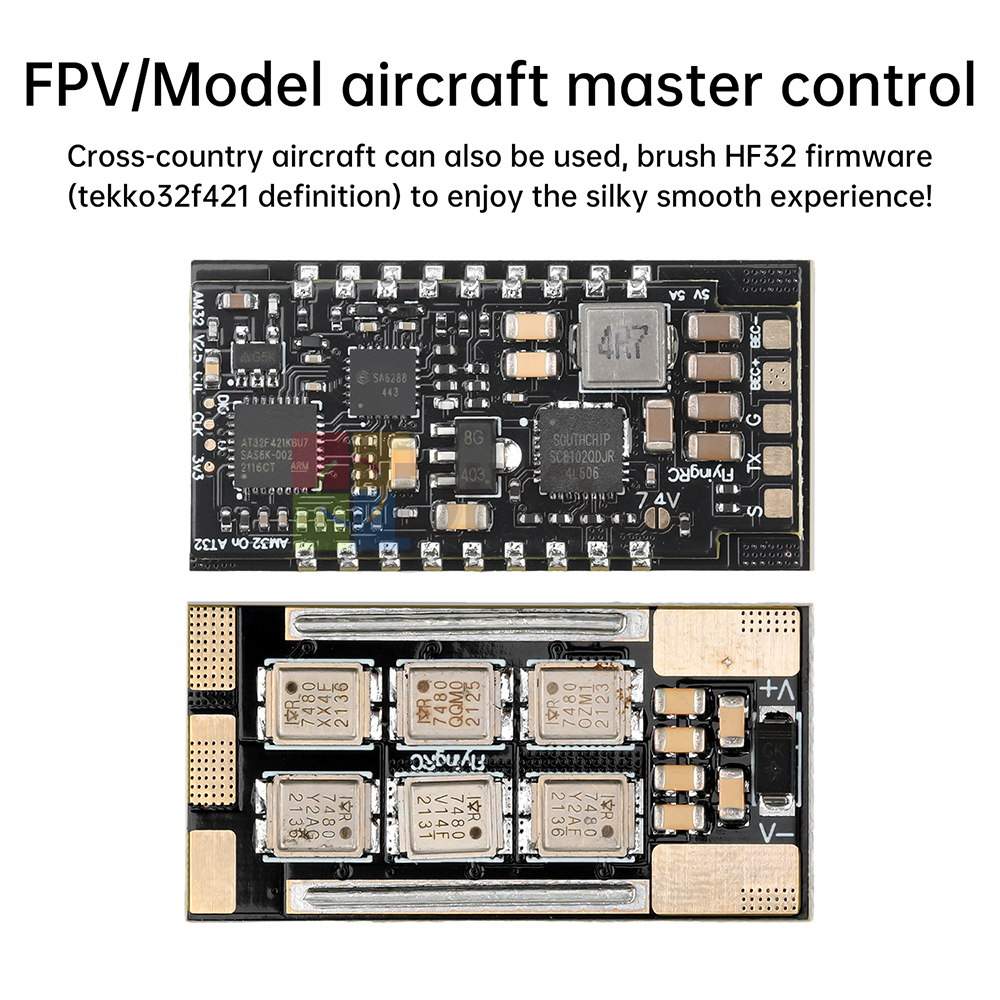

5. Traveling machine can also be used, brush HF32 firmware (tekko32f421 definition) to enjoy the silky experience!
6. Built-in 5V/7.4V 4.5A/3.5A BEC, RC car model can be used.
7.Fixed wing please use external BEC (ESC and BEC are heat generators, ESC and BEC at the same time for a long time high-current output is likely to lead to overheating protection)
Parameter:

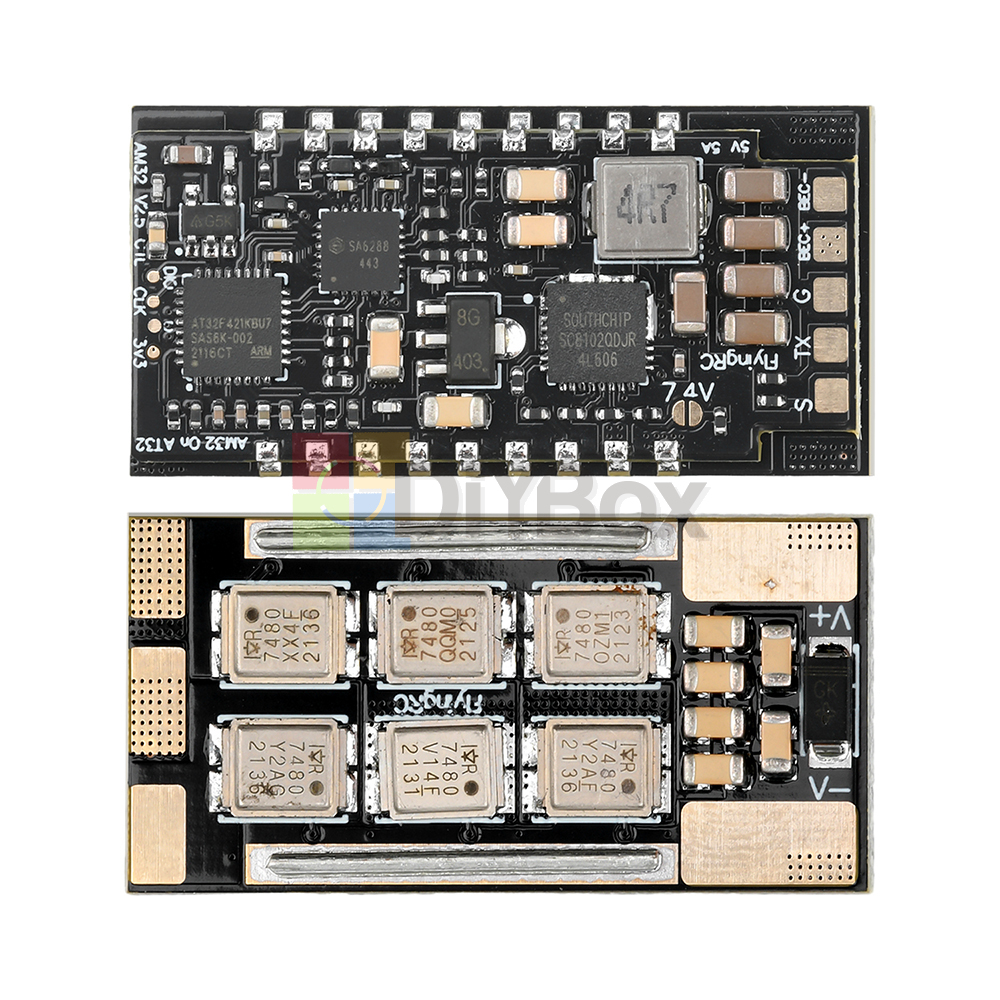

1.PCB design is more reasonable, use square copper bar instead of cylindrical copper bar, reduce heat; increase the wiring pad, more heat can be exported through the wire
2.PCB process upgraded, the control board to increase the resin plug holes, holes in the disk, both sides of the half-hole process; power board upgraded copper thickness of 20Z, good craftsmanship, can be seen!
3. The overall design is more reasonable, the heat sink directly touching the MOS tube, heat dissipation capacity MAX!
Product parameters:
Operating voltage: 3 ~ 6S (7V ~ 26V), theoretically support 8S, but due to over-voltage work resulting in burned ESCs are not returned on-board BEC: 5V 4A; 7.4V 3.5A
Nominal current: 75A continuous / 85A instantaneous
MOS tube model: IRF7480 MTRPB

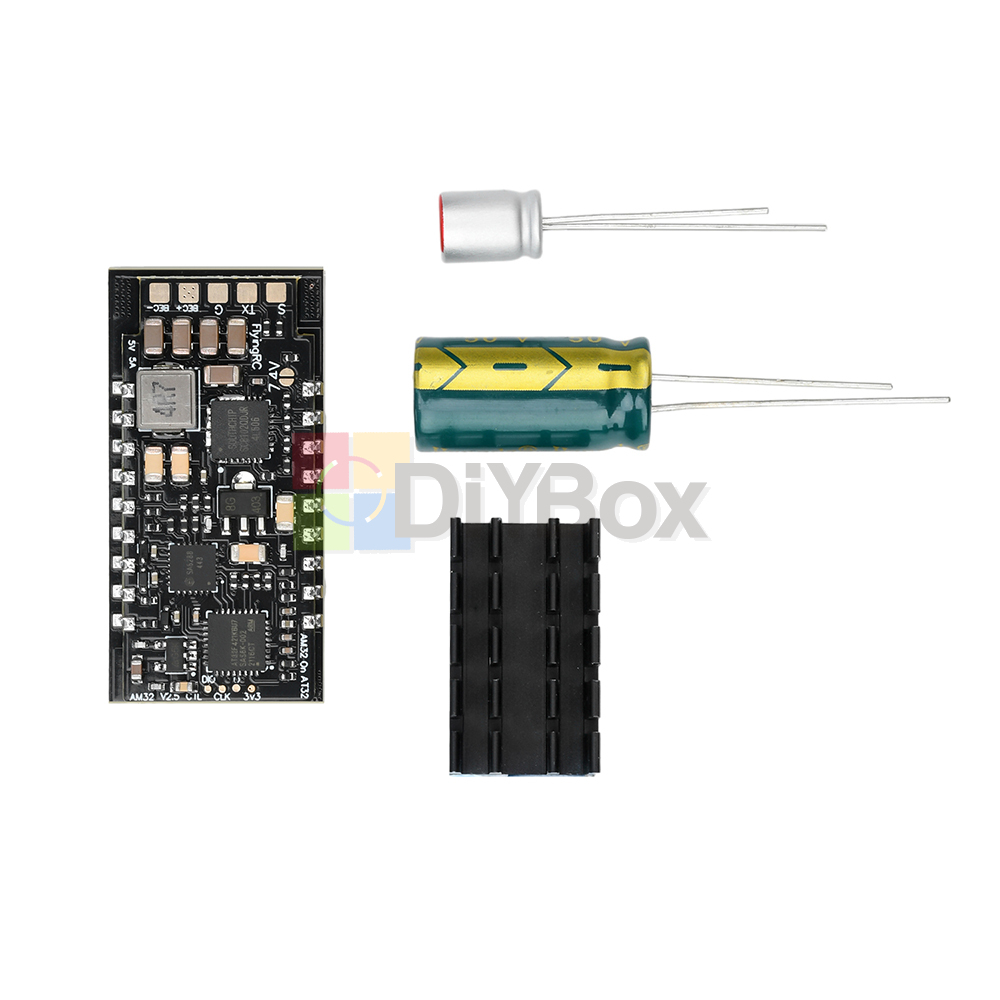

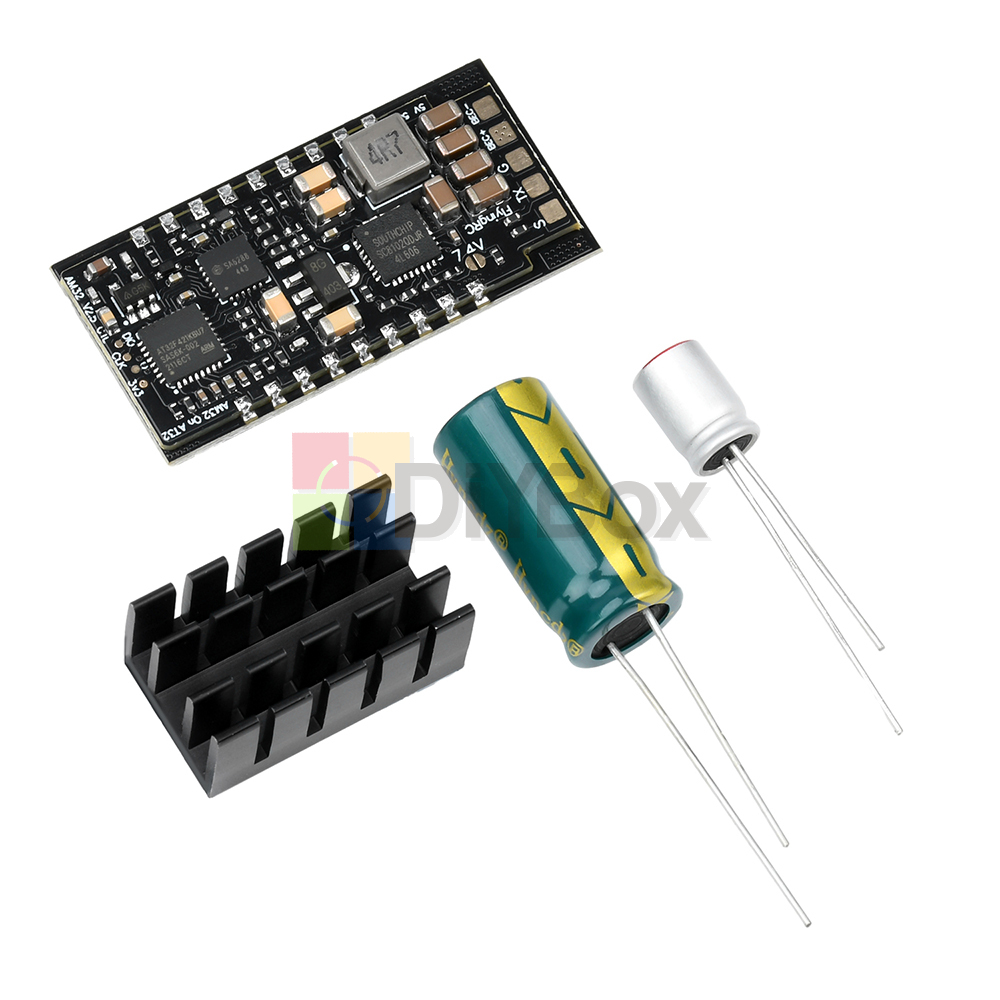

Package include
ESC*1
Heat sink*1
50V 470uF electrolytic capacitor*1
10V 330uF solid capacitor*1
