10A Rectifier Filter Board Single Power Supply Module 35/50V for Power Amplifier
1.Large current output capacity: continuous maximum output current 10A, instantaneous operating current up to 20A
2. High-efficiency rectifier and filter design: 25A bridge rectifier with built-in heat sink to ensure stable operation.

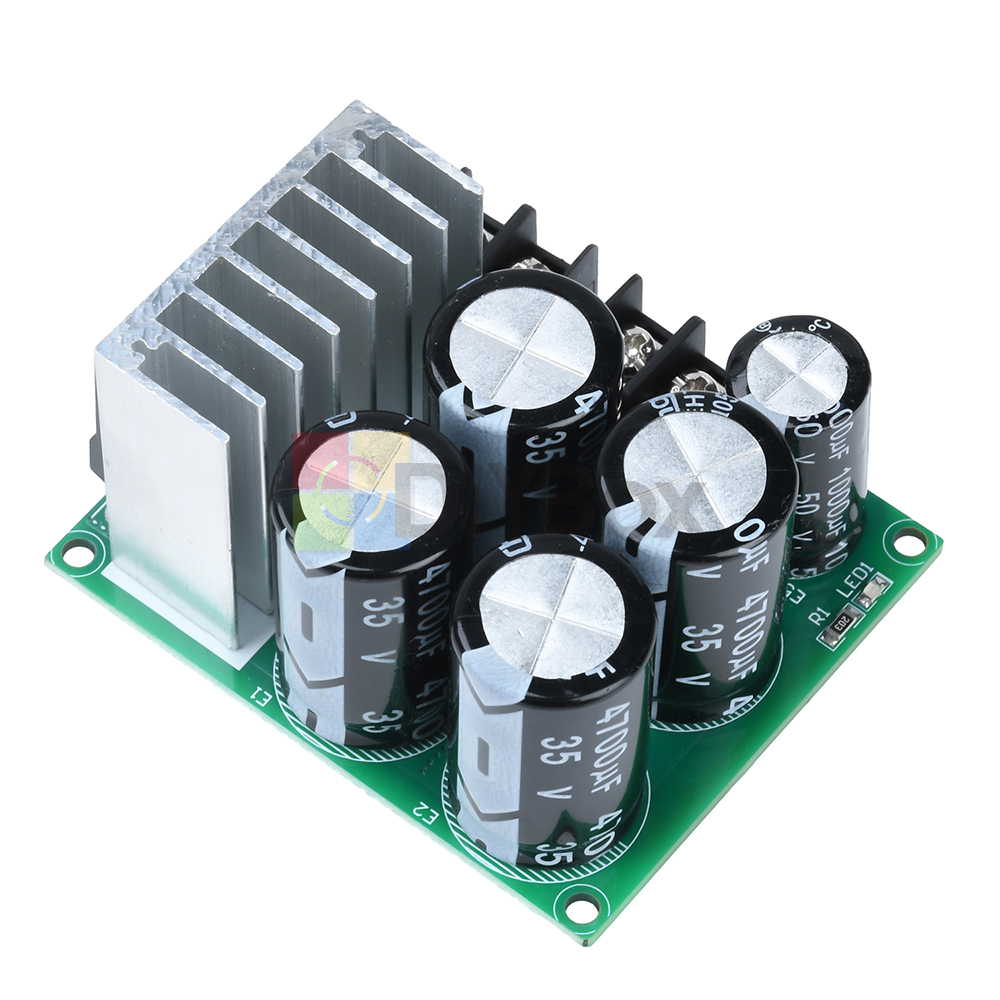

3. Multi-capacitor parallel filtering: main capacitor 4700uF/35V or 3300uF/50V, total capacity up to 18800uF or 13200uF.
4. Low ripple power output: provide low internal resistance, low ripple power supply, suitable for power supply equipment below 50V.
5. Wide applicability: suitable for audio, electrical appliances and other equipment, to meet the diverse power requirements

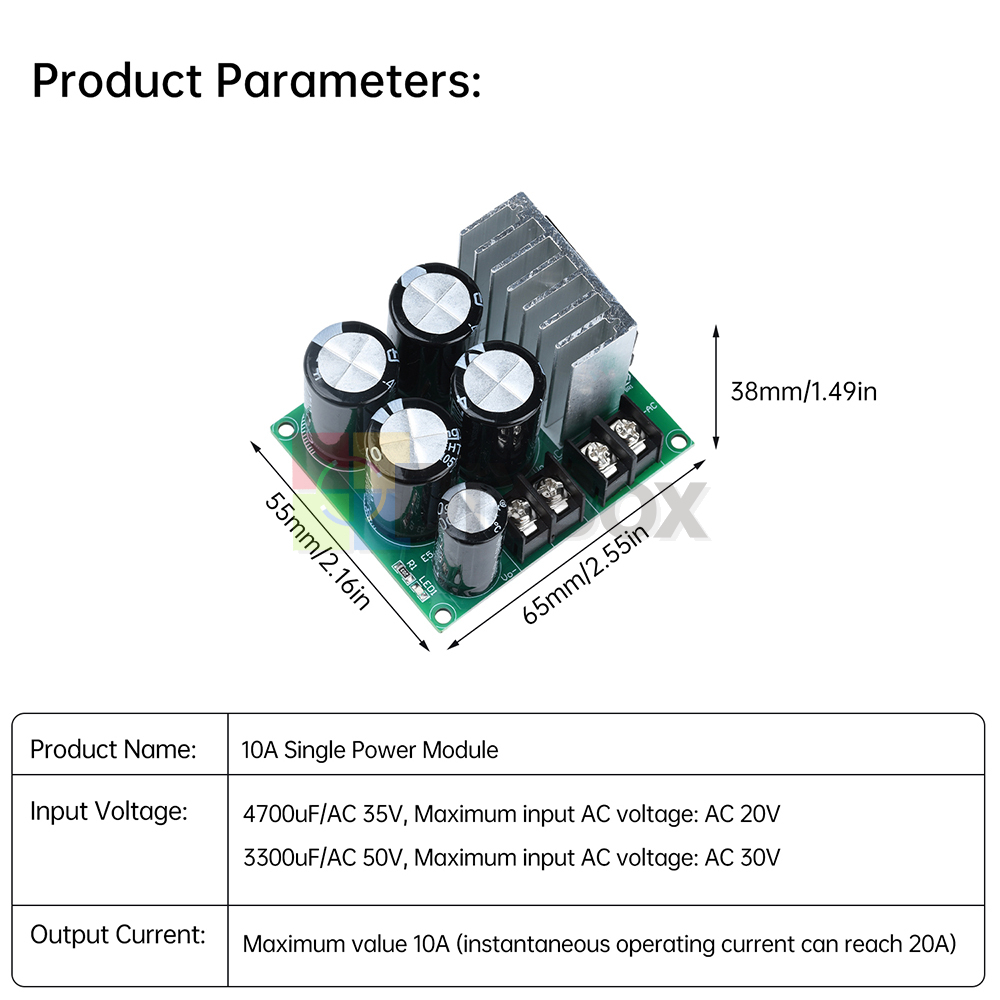

Product name: 10A single power supply module
Input voltage:
4700uF/AC 35V, Maximum input AC voltage: AC 20V

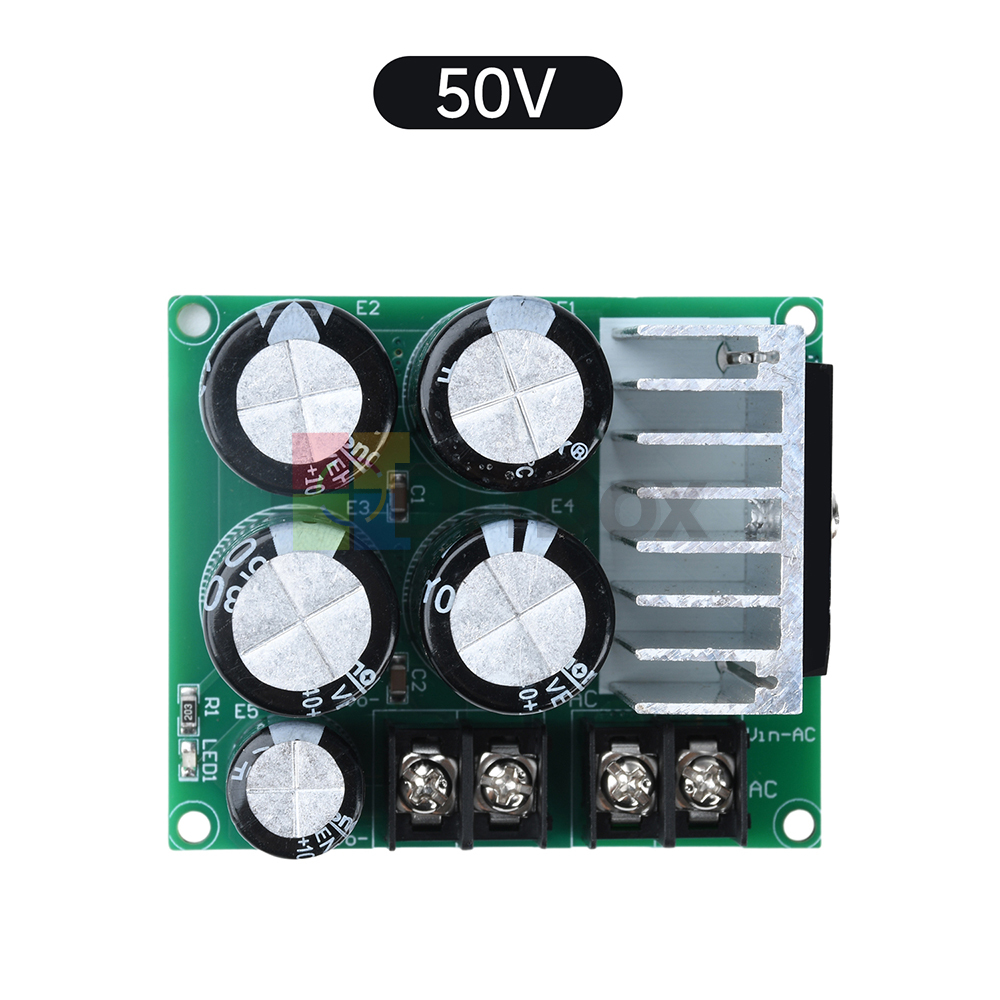

3300uF/AC 50V, maximum input AC voltage: AC 30V
Output Current: Maximum 10A (Instantaneous operating current can reach 20A)

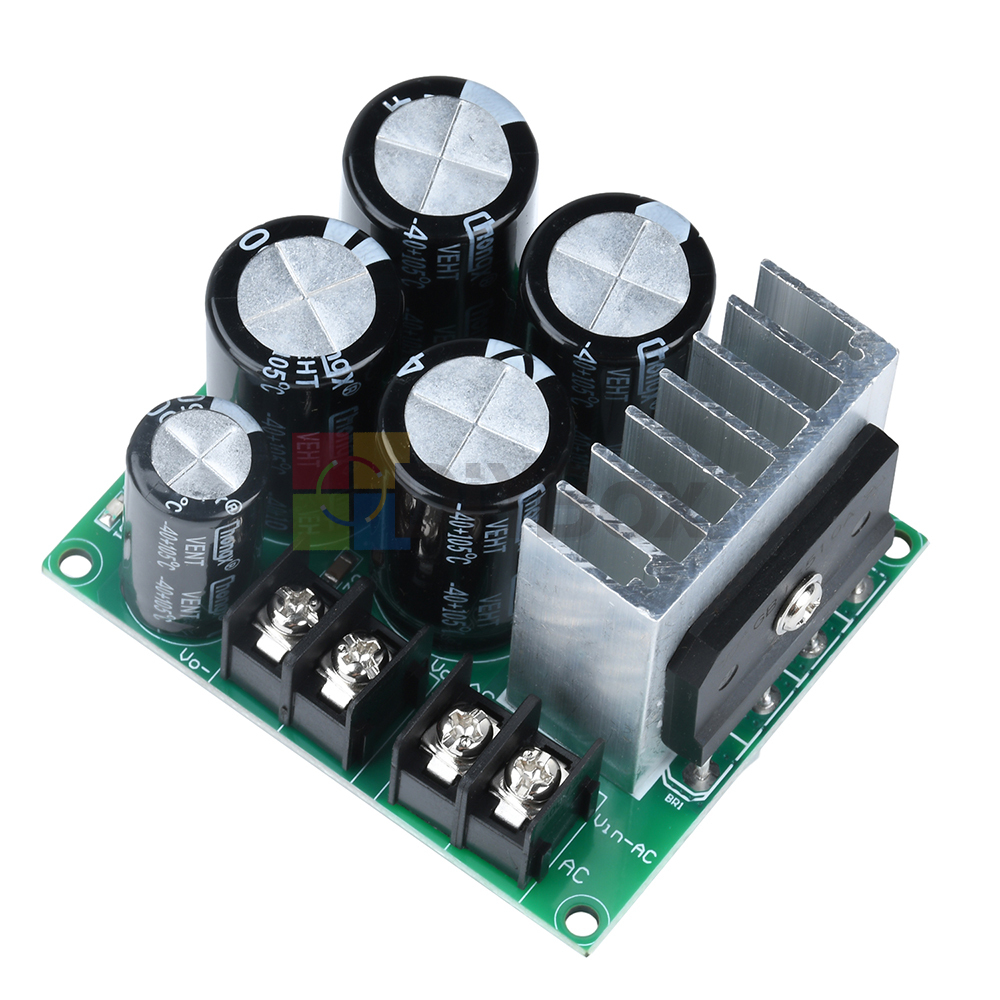

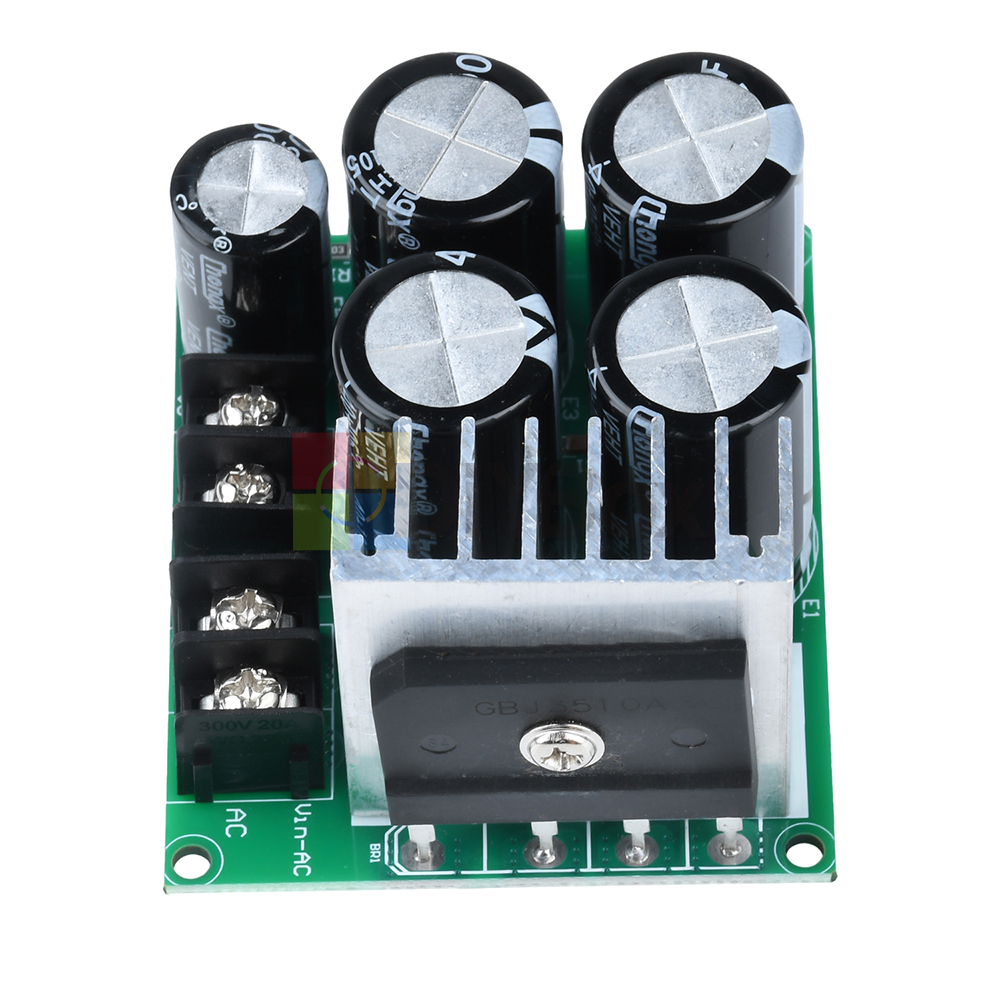

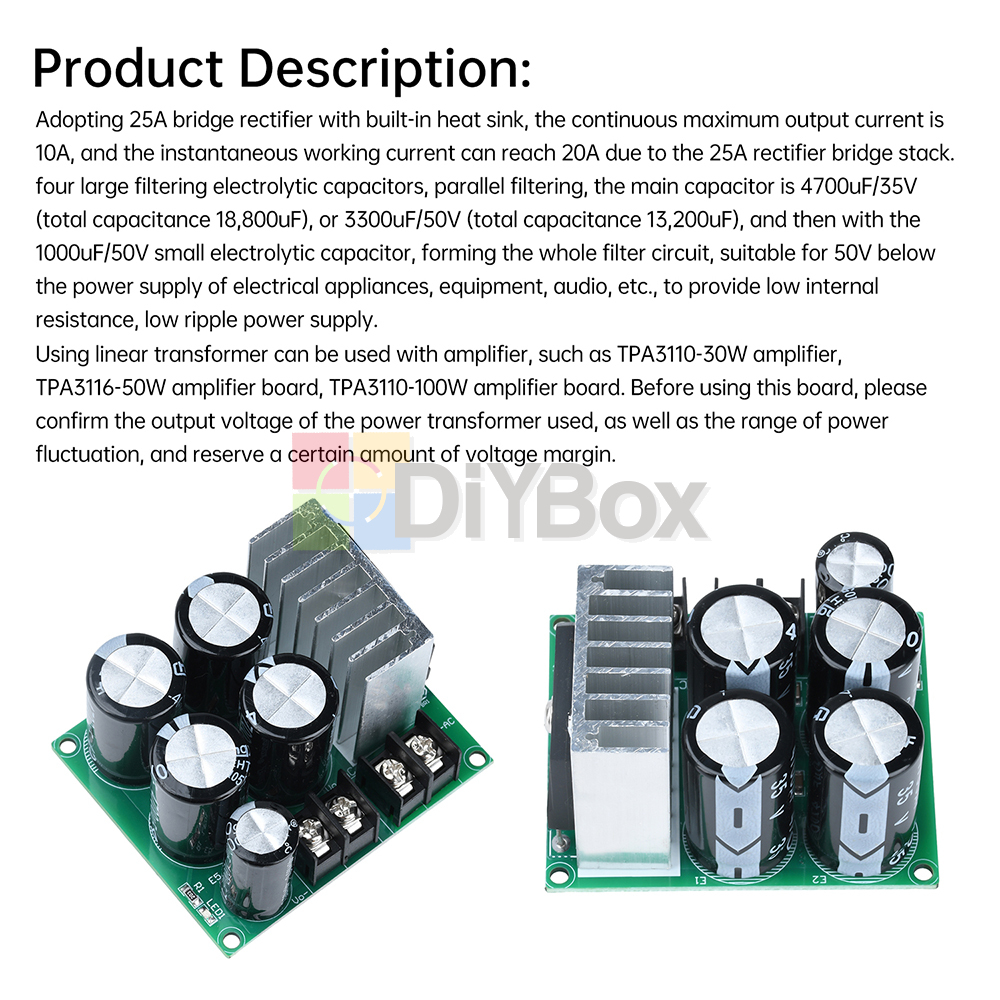

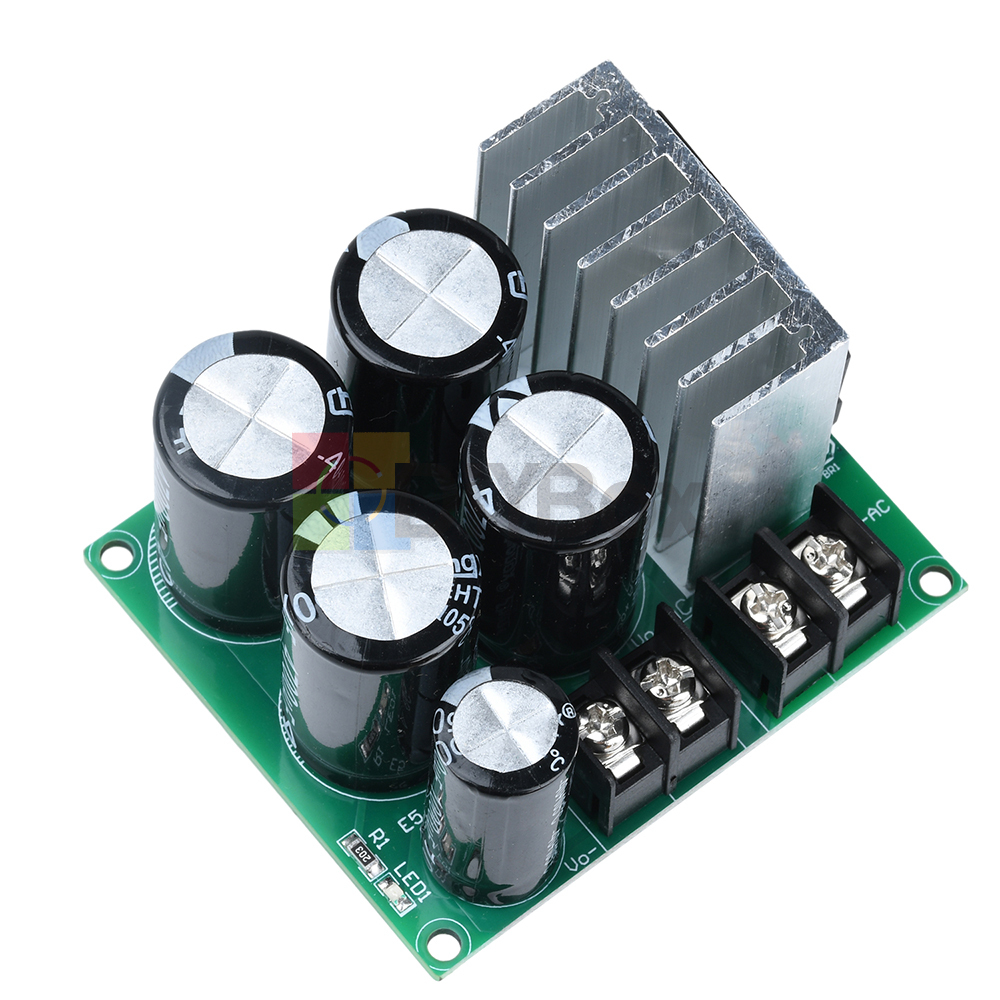

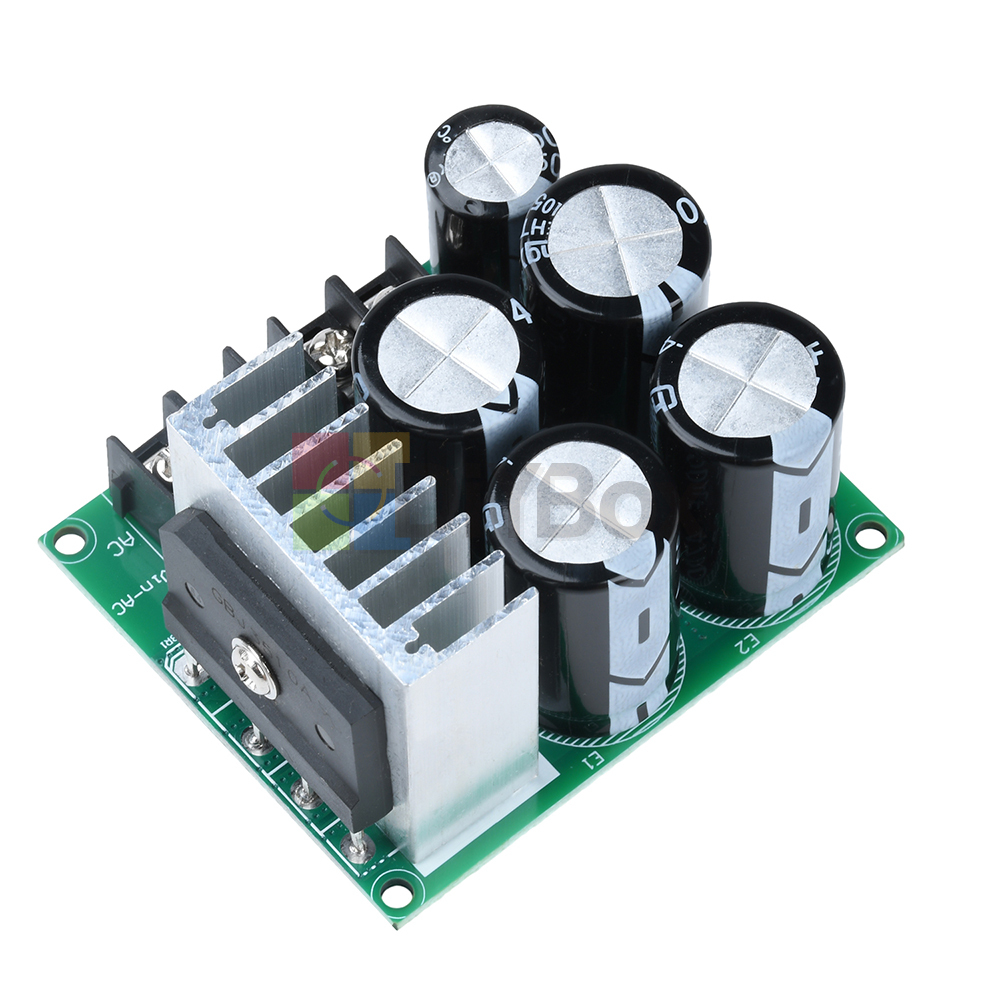

Adopting 25A bridge rectifier with built-in heat sink, continuous maximum output current 10A, due to 25A rectifier bridge stack, instantaneous working current can reach 20A. four large filtering electrolytic capacitors, parallel filtering, the main capacitor is 4700uF/35V (total capacitance 18,800uF), or 3300uF/50V (total capacitance 13,200uF), and then match the 1000uF/50V small electrolytic capacitors, composed of the entire filter circuit, suitable for 50V below the power supply of electrical appliances, equipment, audio, etc., to provide low internal resistance, low ripple power supply.
Using linear transformer can be used with amplifier, such as TPA3110-30W amplifier, TPA3116-50W amplifier board, TPA3110-100W amplifier board. Before using this board, please confirm the output voltage of the power transformer used, and the range of power fluctuation, and reserve a certain voltage margin.
1 x Module
