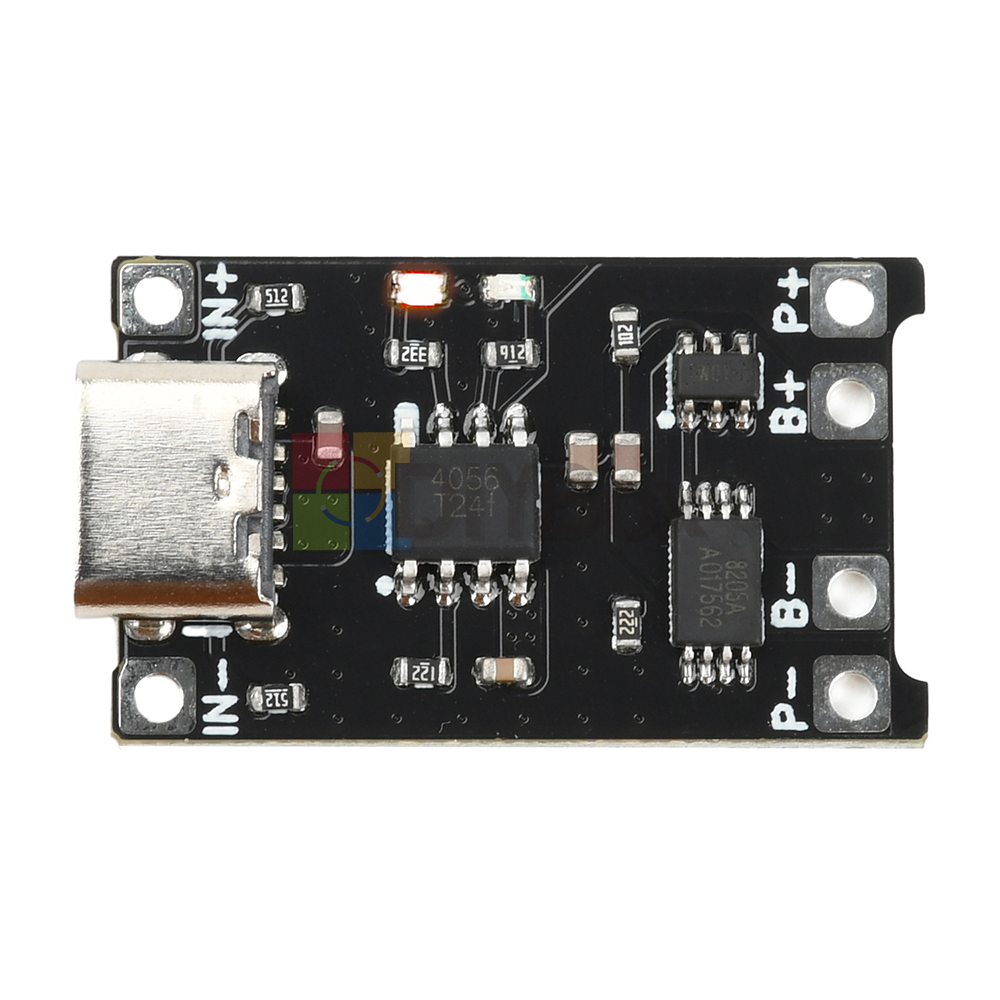

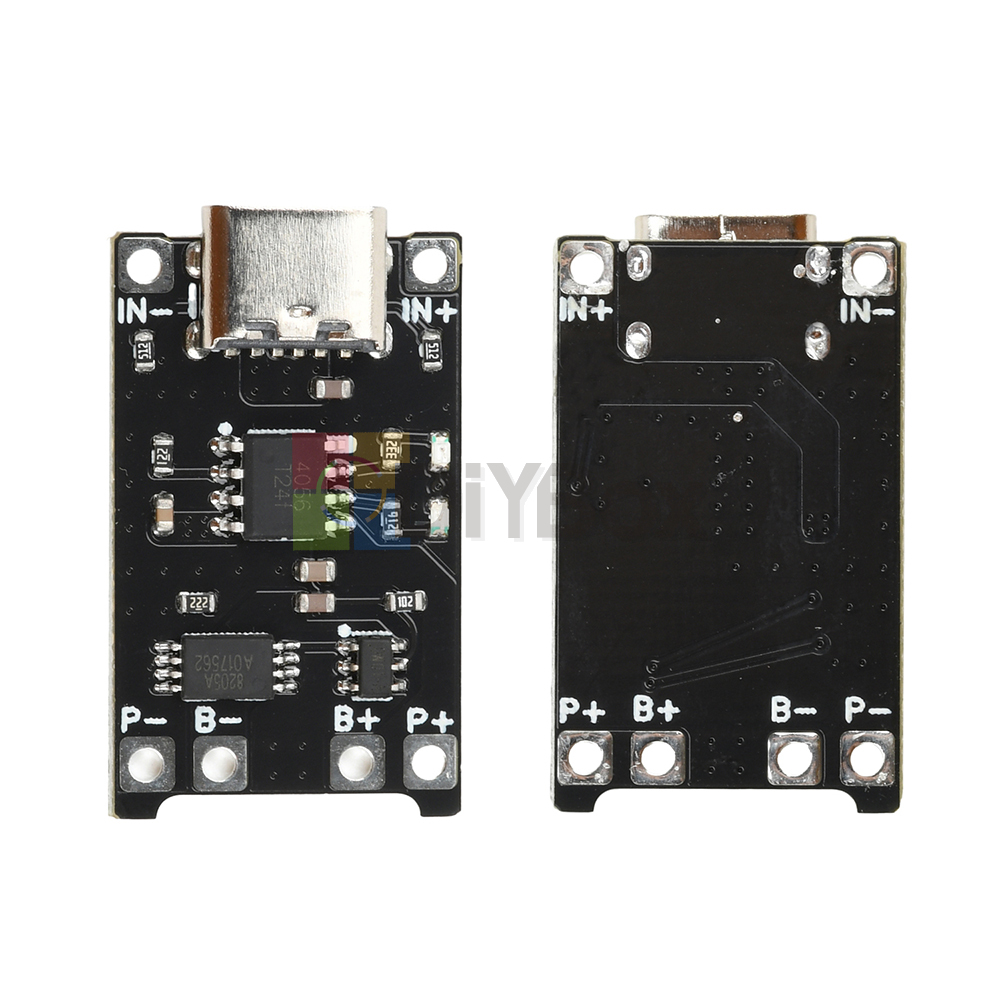

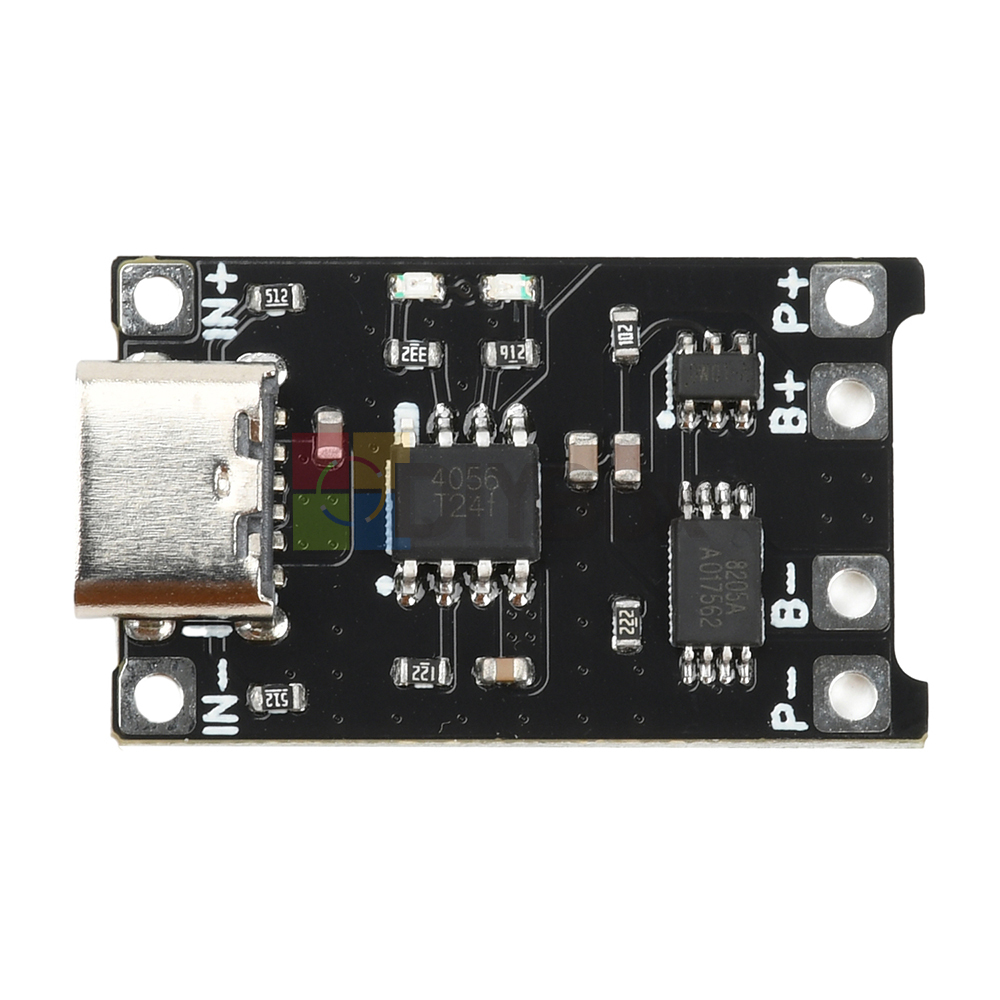

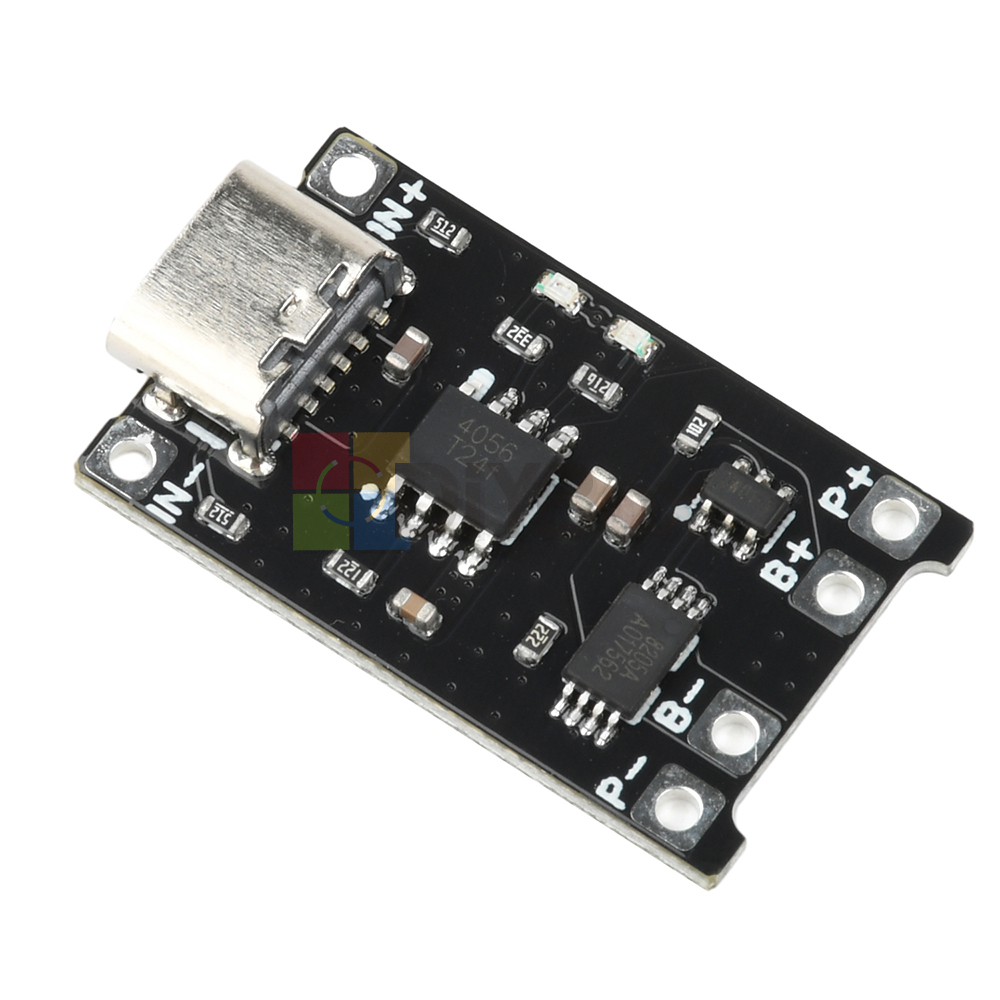

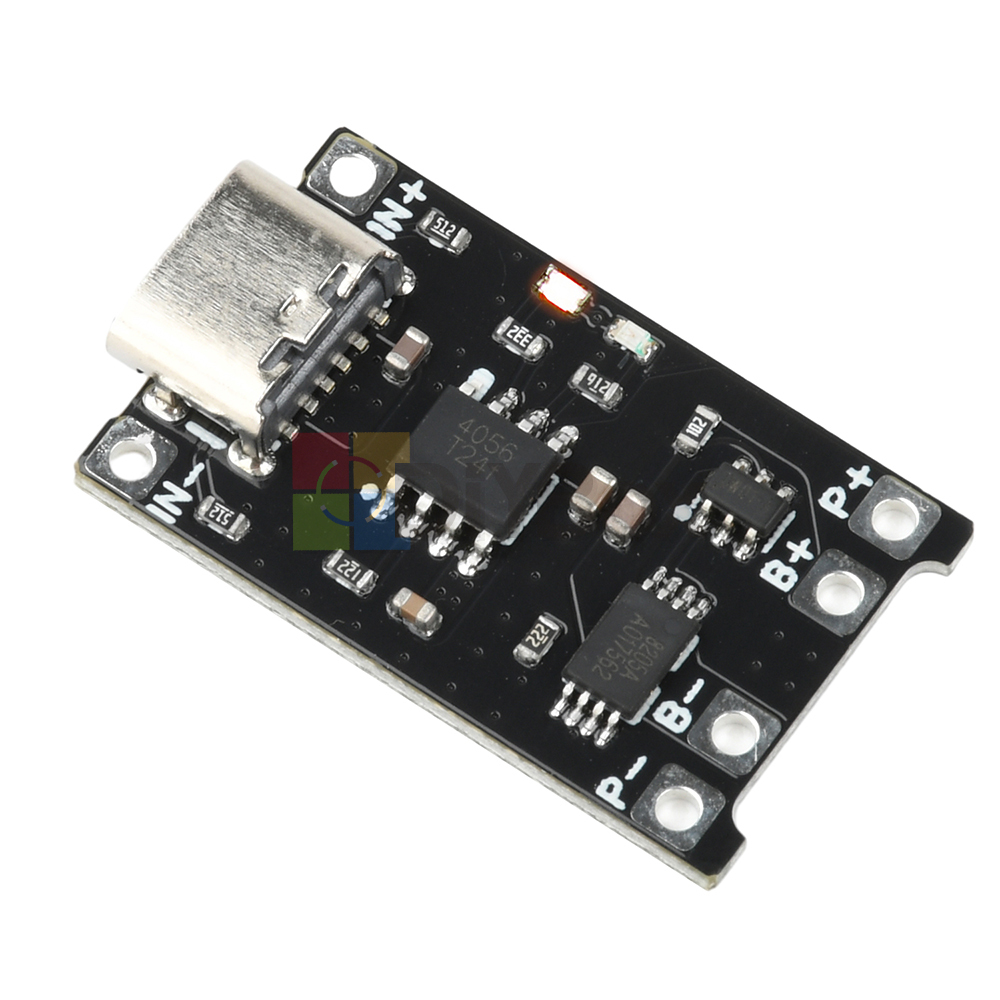

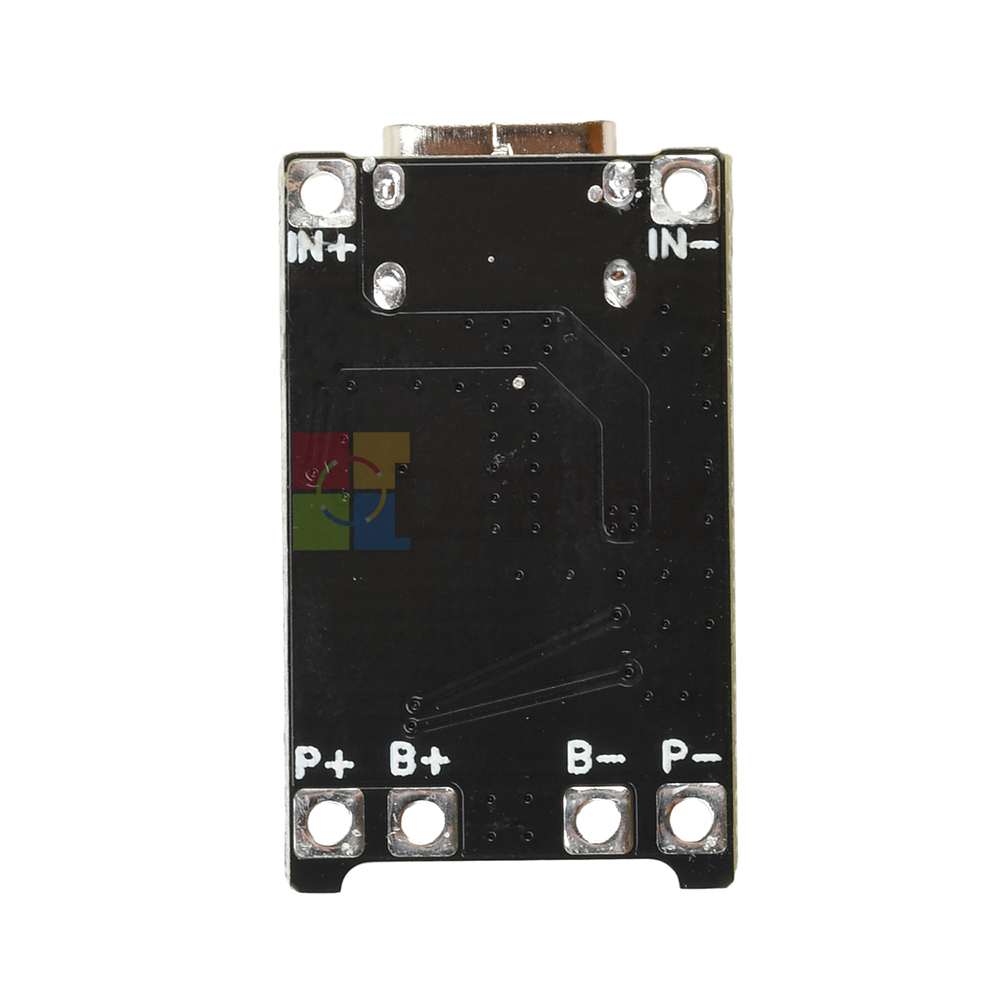

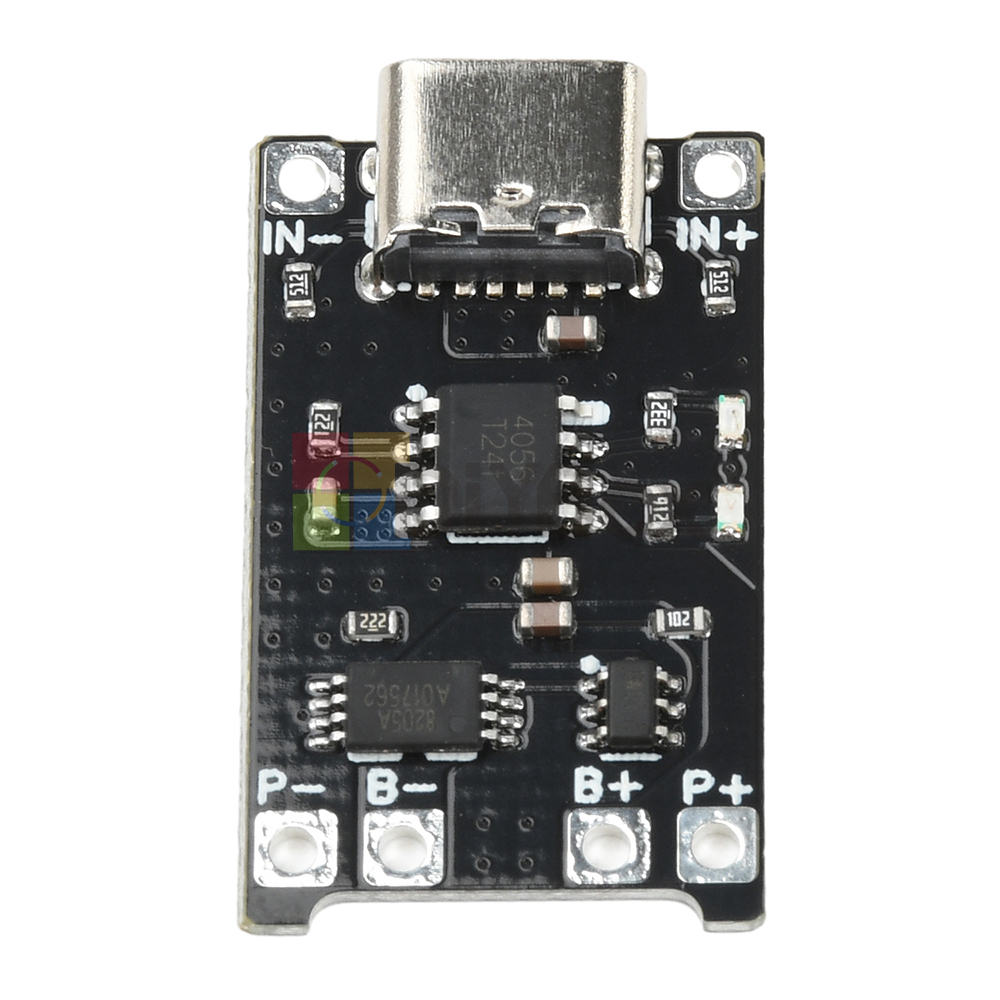

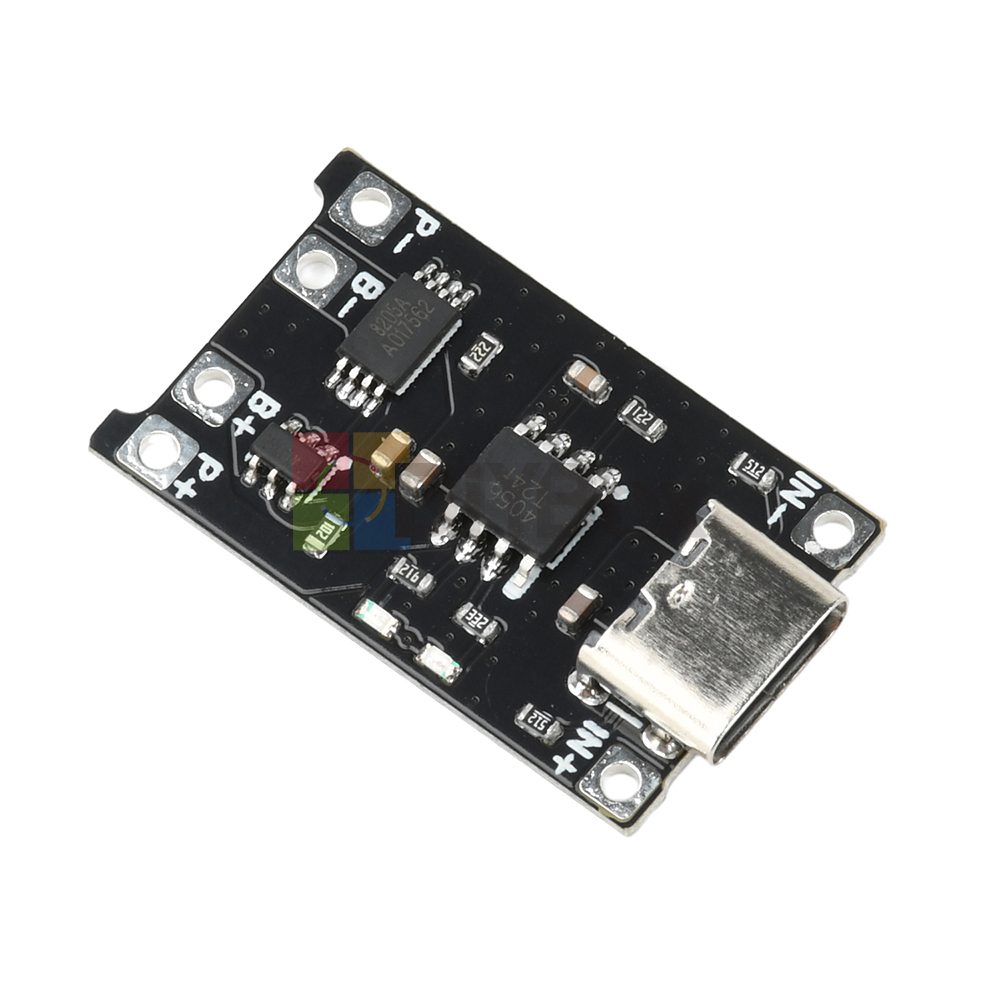

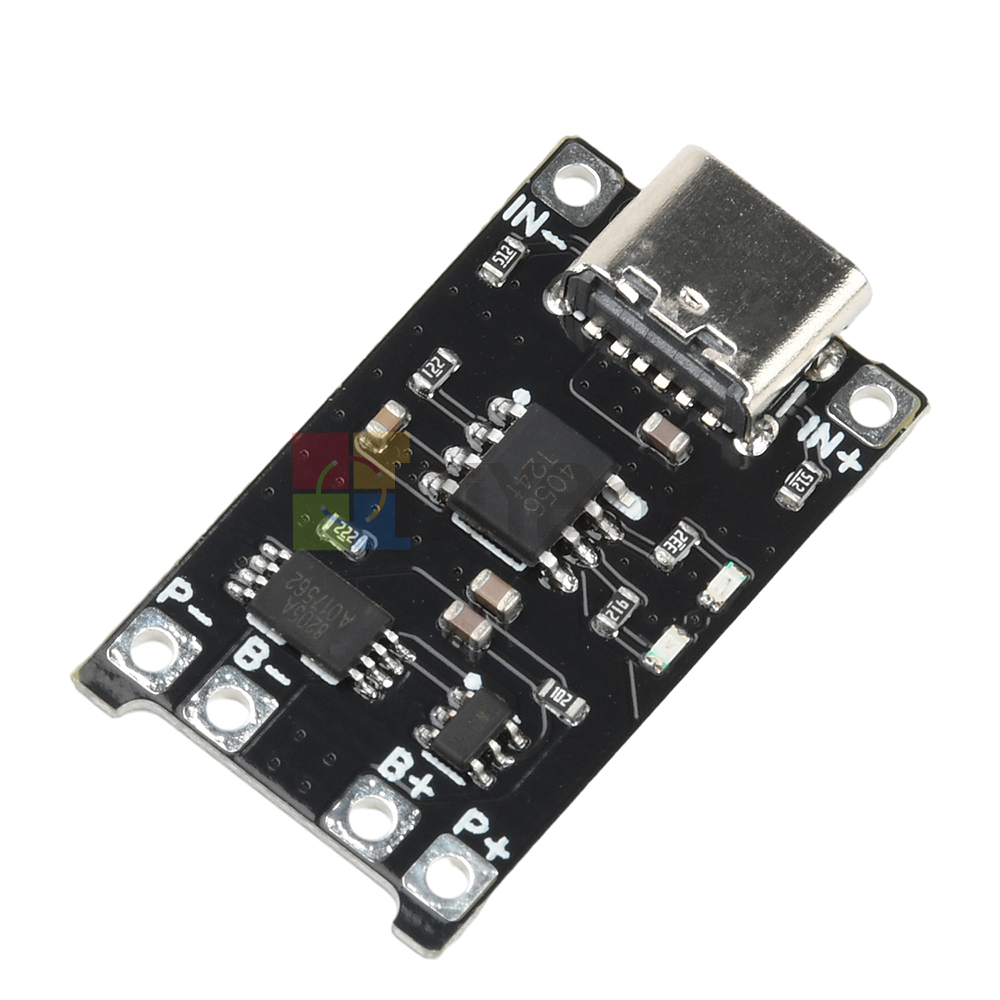

1-10pc TP4056 Li-ion Battery Charger Module Type-C USB Charging Protection Board
Features:
1. Efficient and fast charging: support up to 1.2A charging current, significantly shorten the charging time
2. Precise voltage control: preset 4.2V charging termination voltage, accuracy of 1%, to protect the battery life.
3. Multiple safety protection: with anti-backflow and anti-reverse connection functions to ensure a safer charging process.
4. Ultra-low standby power consumption: power consumption in shutdown mode is only 55μA, standby current is less than 2pA, energy saving and power saving
5. Flexible expansion design: reserved input soldering points, free to adapt to a variety of equipment and application scenarios
Parameter:

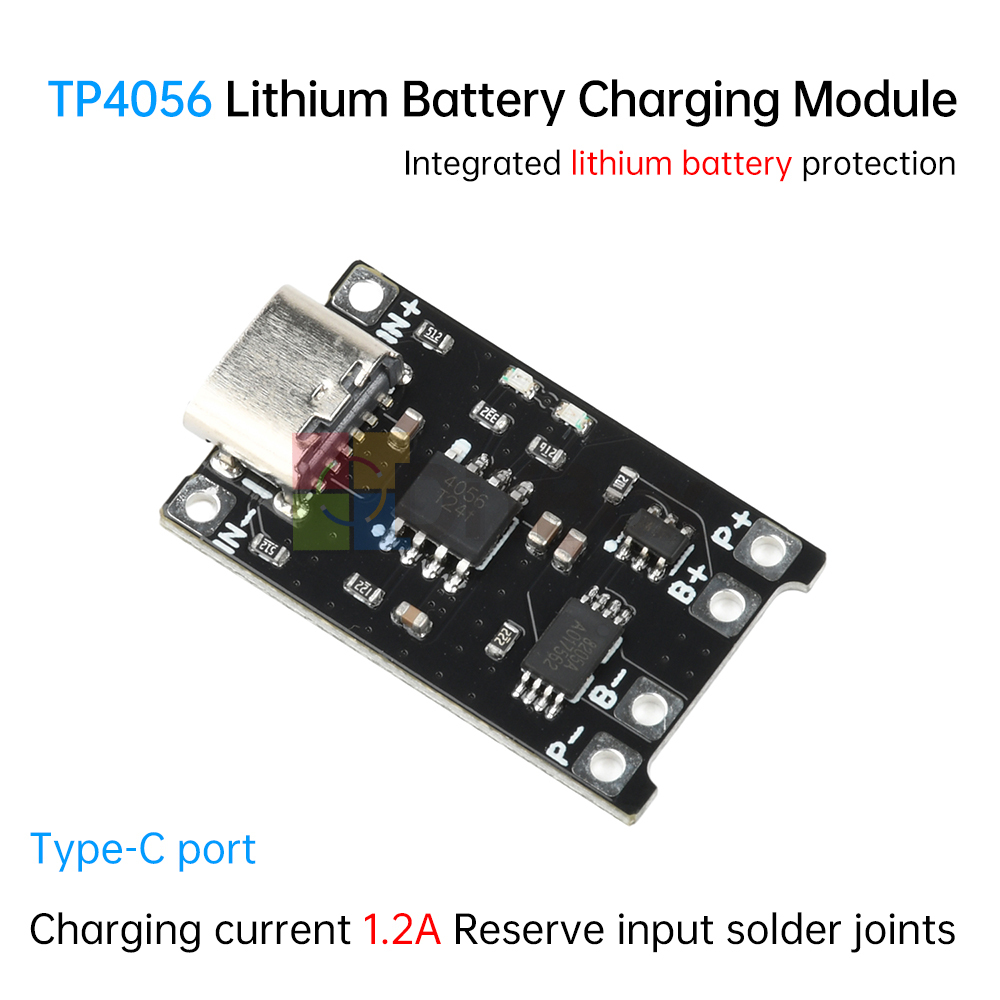

Product name: TP4056 lithium battery charging module
Input voltage: DC 4-8V
Maximum output current: 1.2A
Operating temperature: -40°C~85°C
Preset charging termination voltage: 4.2V, accuracy up to 1%
Standby current: <2pA
Power consumption: 55μA in shutdown mode
OV battery charging: supported
Linear charging current: 1.2A maximum
Three-stage charging: trickle/constant current/constant voltage
Protection function:
1. With BAT-VDD anti-backup function
2. Charging with battery anti-reverse connection function
Description:
TP4056 charging module is designed for lithium battery charging, integrating high efficiency, safety and flexibility, which is the ideal choice for electronic enthusiasts, DIY players and smart device developers. The module is equipped with the classic TP4056 chip, supporting a maximum of 1.2A fast charging current, significantly shortening the charging time, while the design of the reserved input soldering points, giving users more freedom to expand the space, easy to adapt to a variety of scenarios.
Package include:
Module x1
