Overview

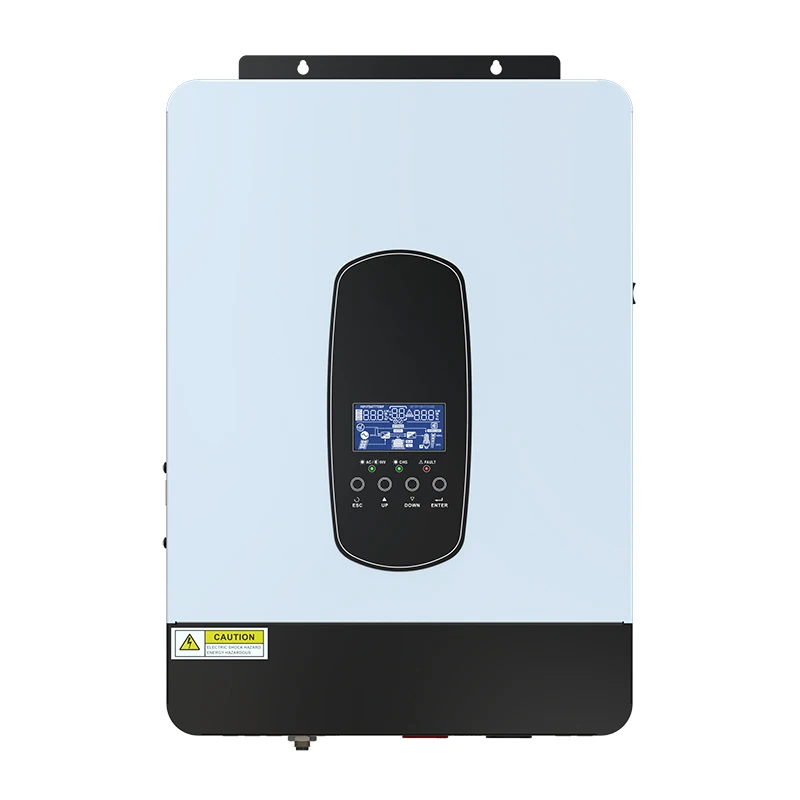

48V 7000VA (6200W) hybrid inverter

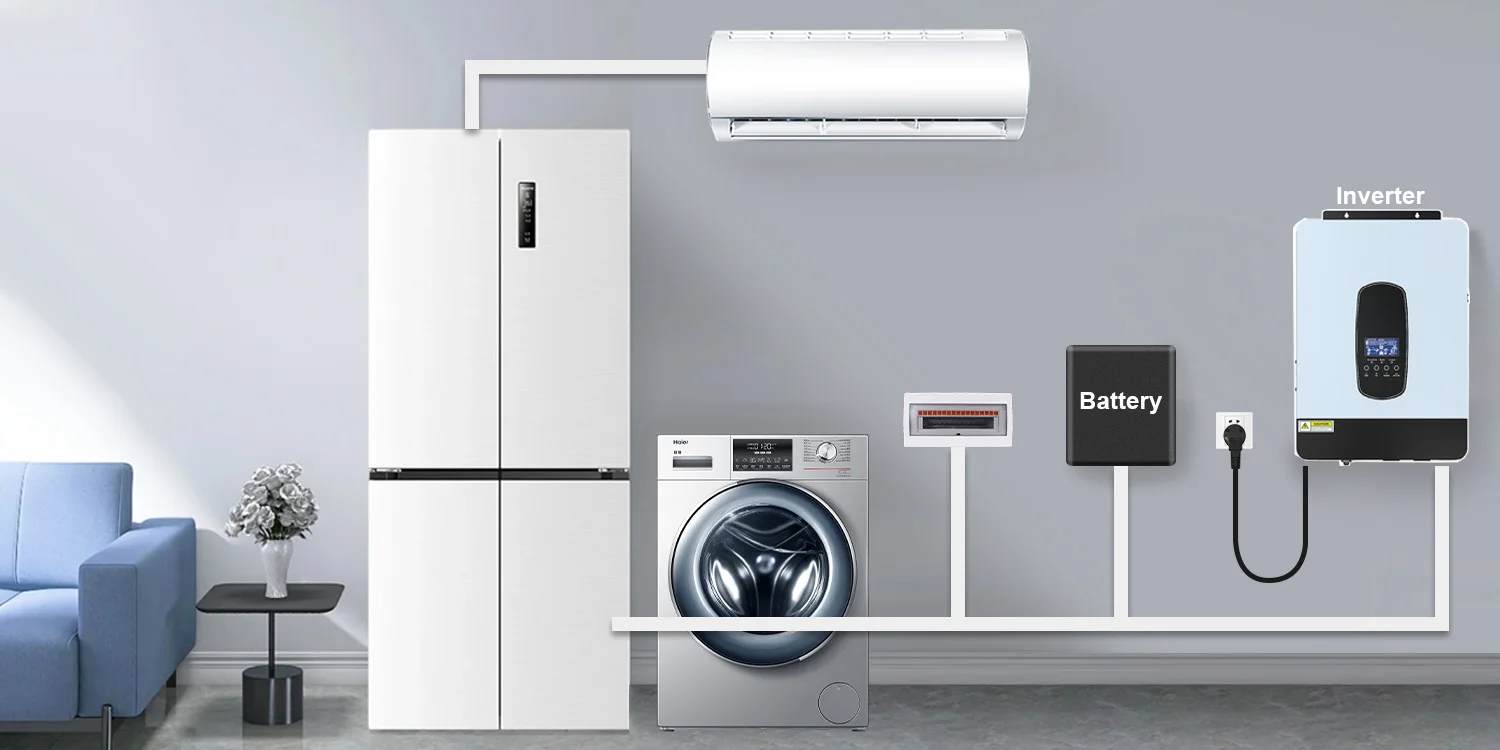

Three in oneThis is a multi-function inverter/charger that combines functions of an inverter, solar charger and battery charger to provide uninterrupted power supply with a portable size.
LCD screenIts comprehensive LCD display offers user-configurable and easily accessible button controls such as battery charging current, AC/solar charging priority and acceptable input voltage based on different applications.
Off-grid inverterThe off-grid inverter can work autonomously after leaving the power grid. It is equivalent to an independent small power grid. It mainly controls its own voltage and is a voltage source. It can carry resistive-capacitive and motor-inductive loads, has fast response and anti-interference, high adaptability and practicability, and is the first choice power supply product for emergency power supply during power outage and outdoor power supply.
Features
Pure sine wave inverter Programmable supply priority for PV,battery or Grid High PV input voltage range(55~450VDC) Built-in Max 110A(3.8KW&6.2KW)MPPT solar charge Compatibe with lithium-ion battery Support BMS communication with Lithium battery Smart battery charge design to optimize battery life Overload,high temperature,inverter output short circuit protection Cold start function Built-in anti-duskkitfor harsh enviromen(optional) WIFI&GPRS available for IOS and android(optional)
Specifications
MODEL
SP-7000
Rated Power
7000VA/6200W
INPUT
Voltage
230VAC
Selectable Voltage Range
170–280 VAC (for personal computers)
90–280 VAC (for home appliances)
Frequency Range
50 Hz/60 Hz (Auto sensing)
OUTPUT
AC Voltage Regulation (Batt.Mode)
230VAC±5%
Surge power
14000VA
Transfer Time
10ms(for personal computers)
20ms(for home appliances)
Waveform
Pure sine wave inverter
BATTERY&ACCHARGER
Battery Voltage
48VDC
Floating Charge Voltage
54VDC
Over charge Protection
61VDC
Maximum charge current
80A
SOLAR CHARGER
MAX.PV Array Power
6000W
MPPT Range@Operating Voltage
55-450VDC
Maximum PV Array Open Circuit Voltage
450VDC
Maximum Charging Current
110A
Maximum Efficiency
98%
PHYSICAL
Dimension.D*W*H(mm)
423*290*105mm
Net Weight(kgs)
7.55kg
Communication Interface
RS232/RS485 (Standard)
WLAN (Optional)
OPERATING ENVIRONMENT
Humidity
5 % bis 95 % Relative Humidity(Non-condensing)
Operating Temperature
10°℃ to 55℃
Storage Temperature
15°℃ to 60℃
