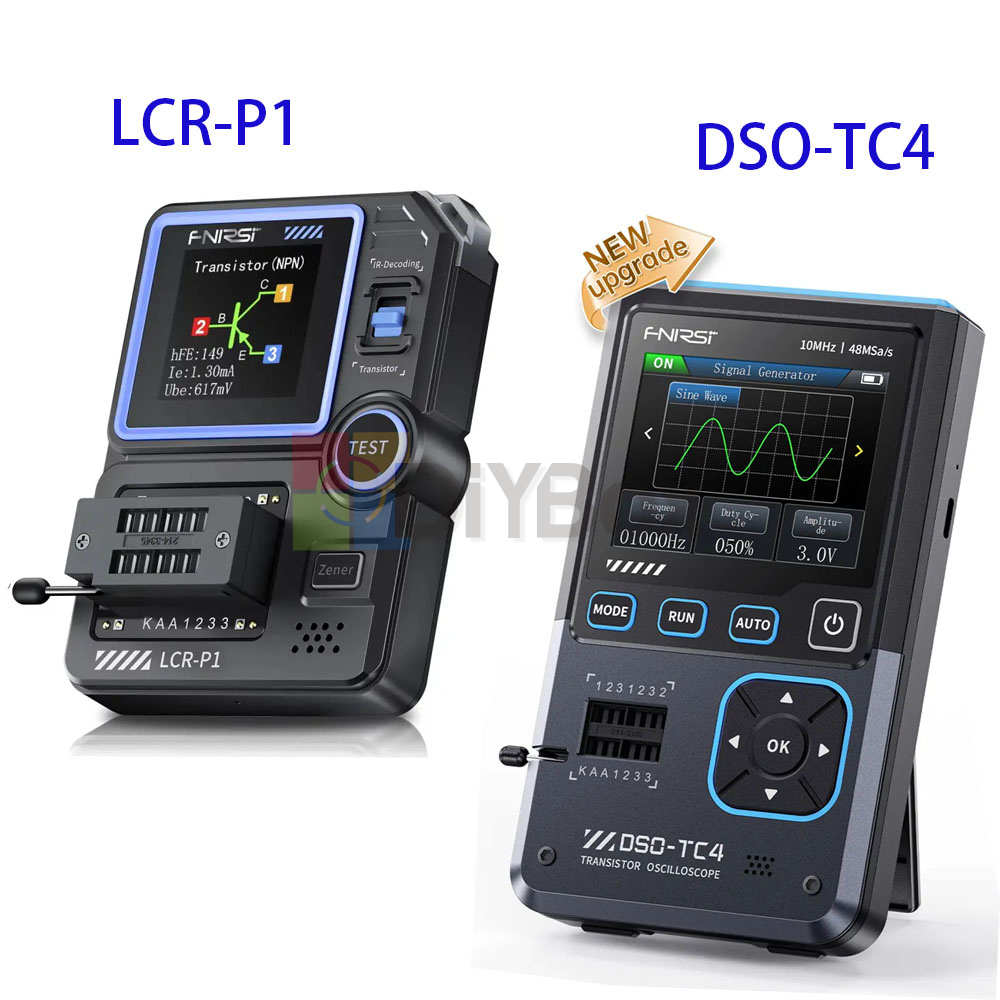

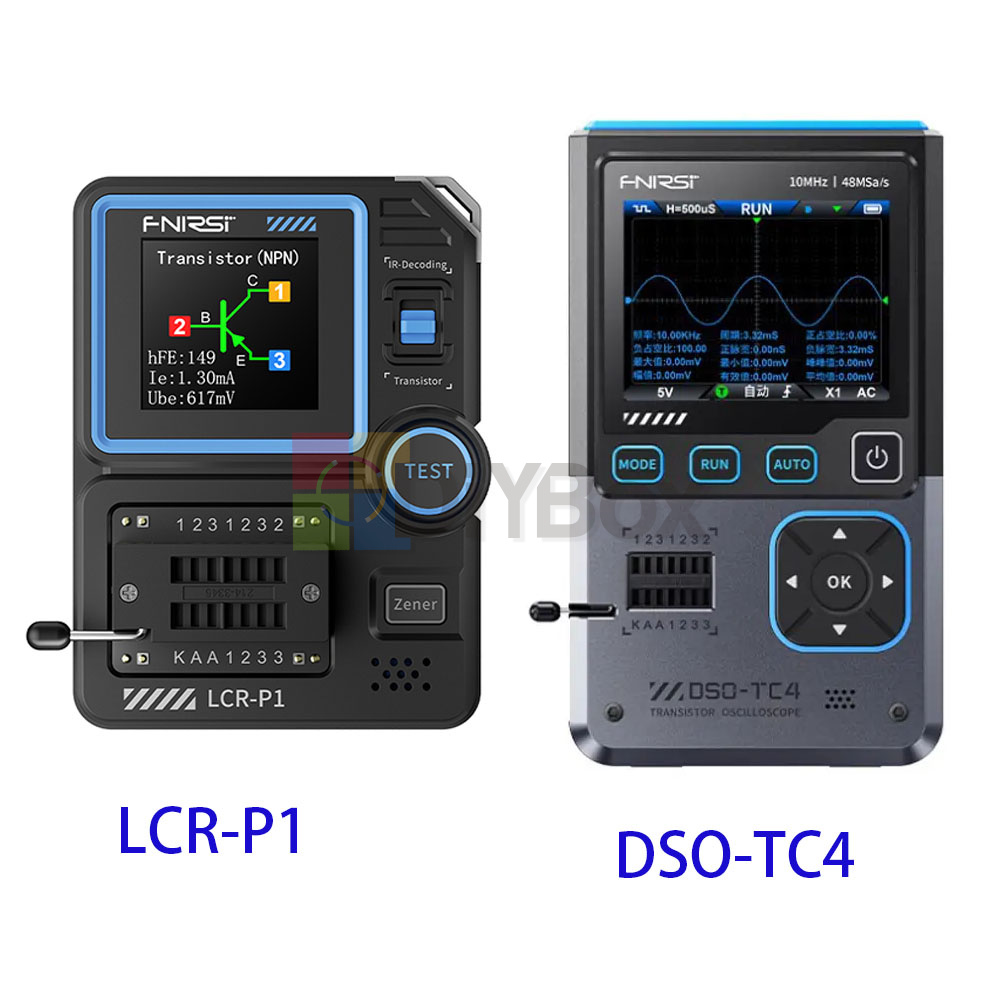

FNIRSI LCR-P1 Transistor Tester / DSO-TC4 Digital Oscilloscope Signal Generators

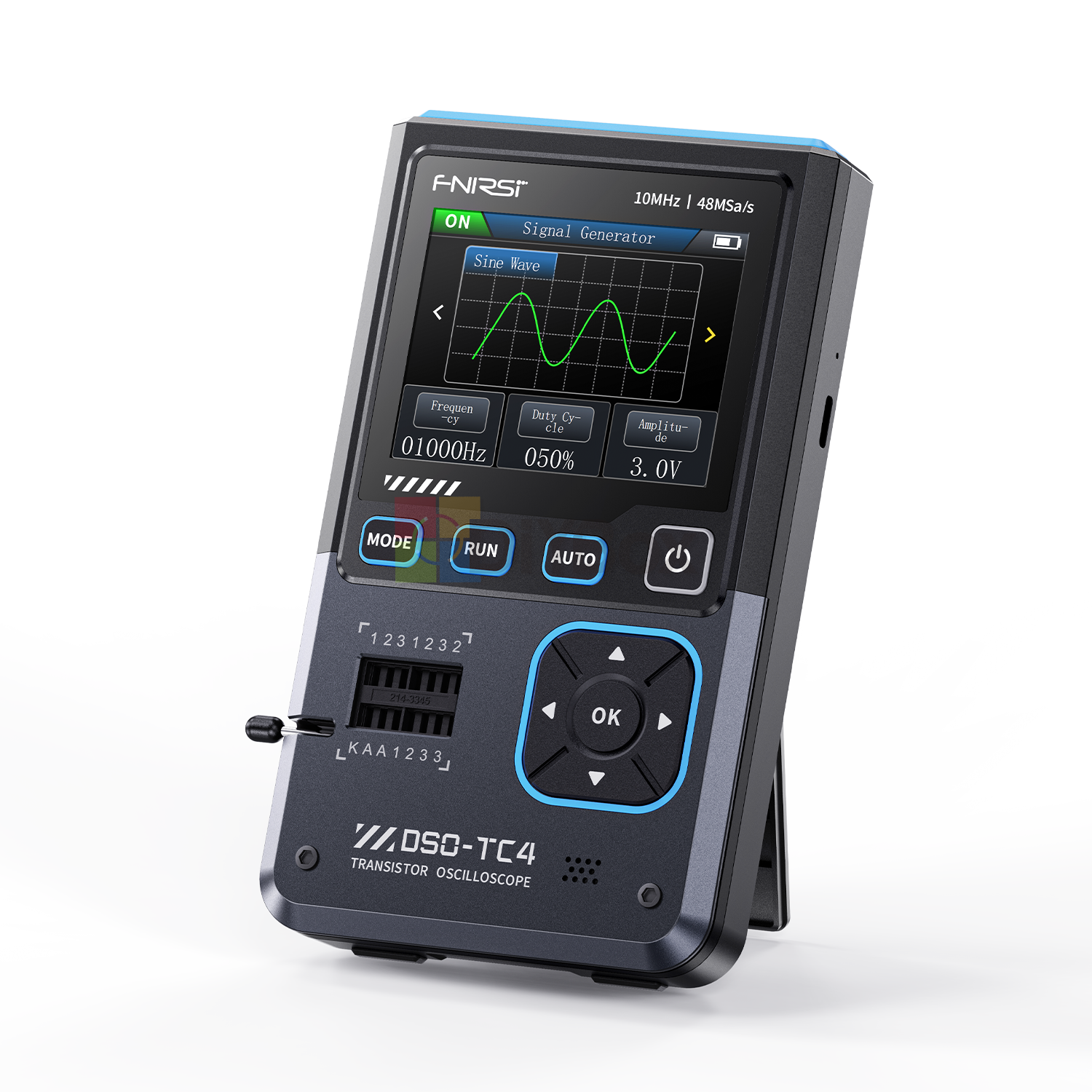

FNIRSI DSO-TC4

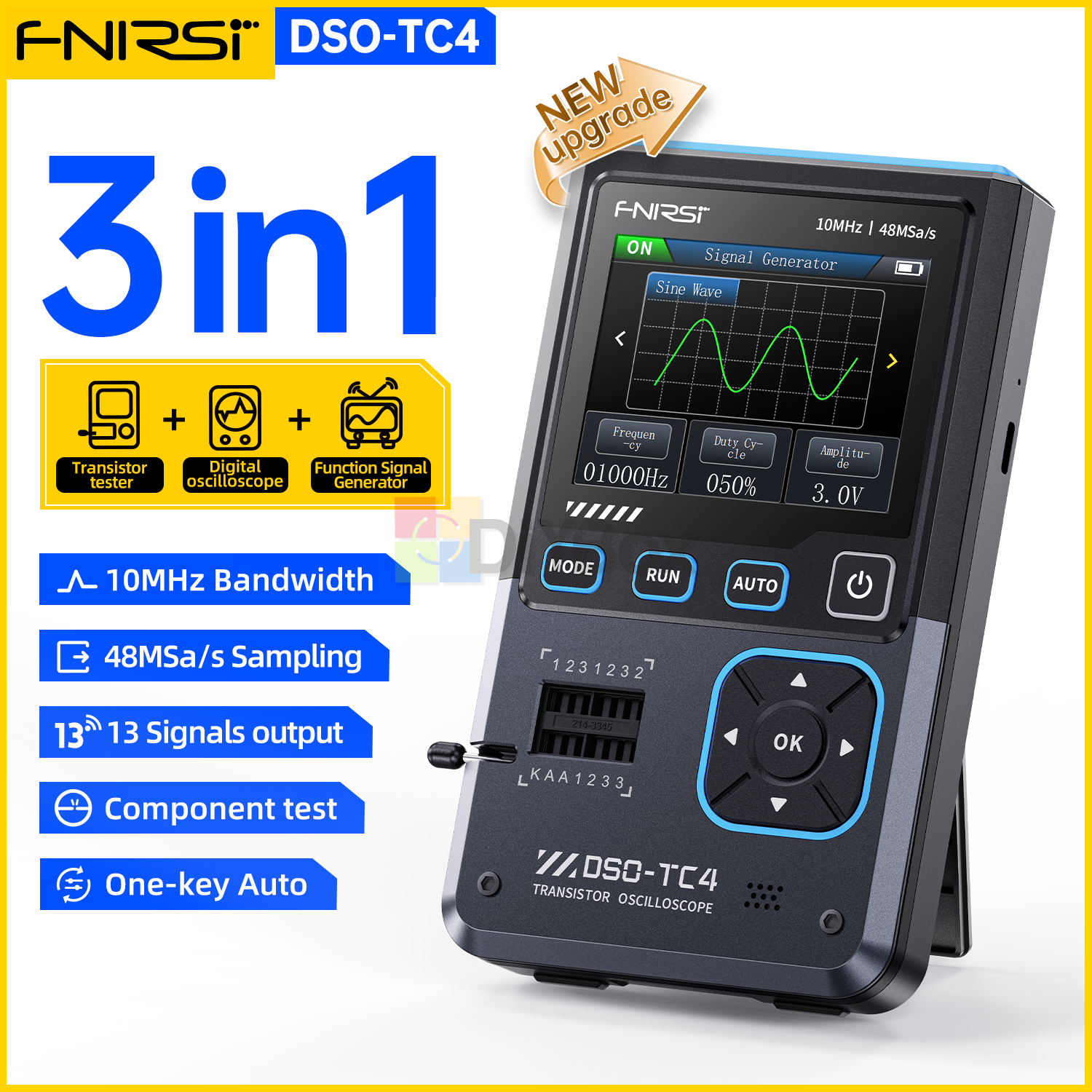

Features
1.USB computer data transfer: picture data transfer to the computer, data analysis more simple
2. High-performance digital oscilloscope: 10MHz bandwidth 48MSa/s sampling rate

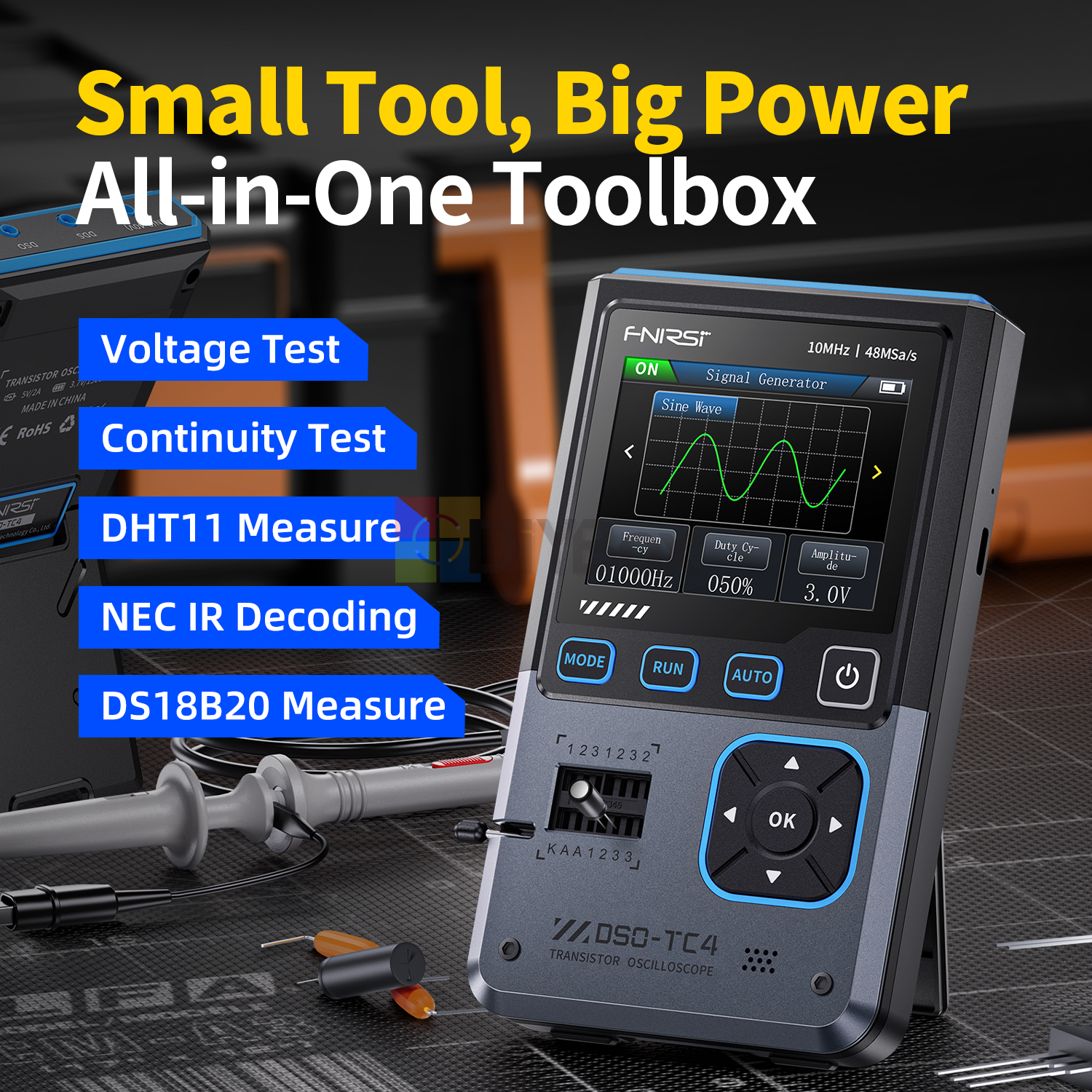

3.Multi-functional 3-in-1: Oscilloscope + transistor detector + signal generator for multiple uses
4. Equipped with 2.8-inch TFT color screen, clear and intuitive picture

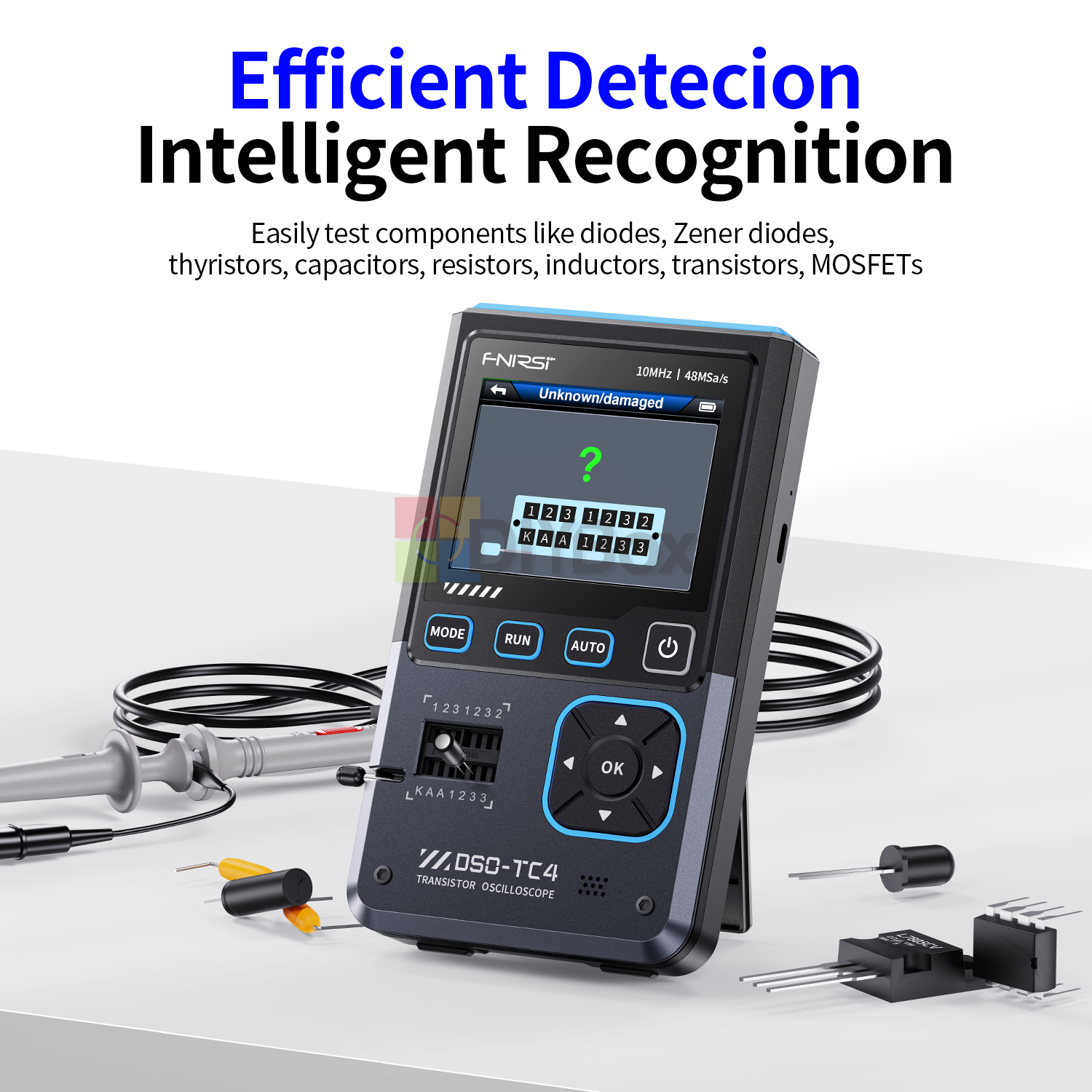

5.Efficient measurement: automatically identify the type and pin arrangement of the component under test, simplify the operation process and improve test efficiency.

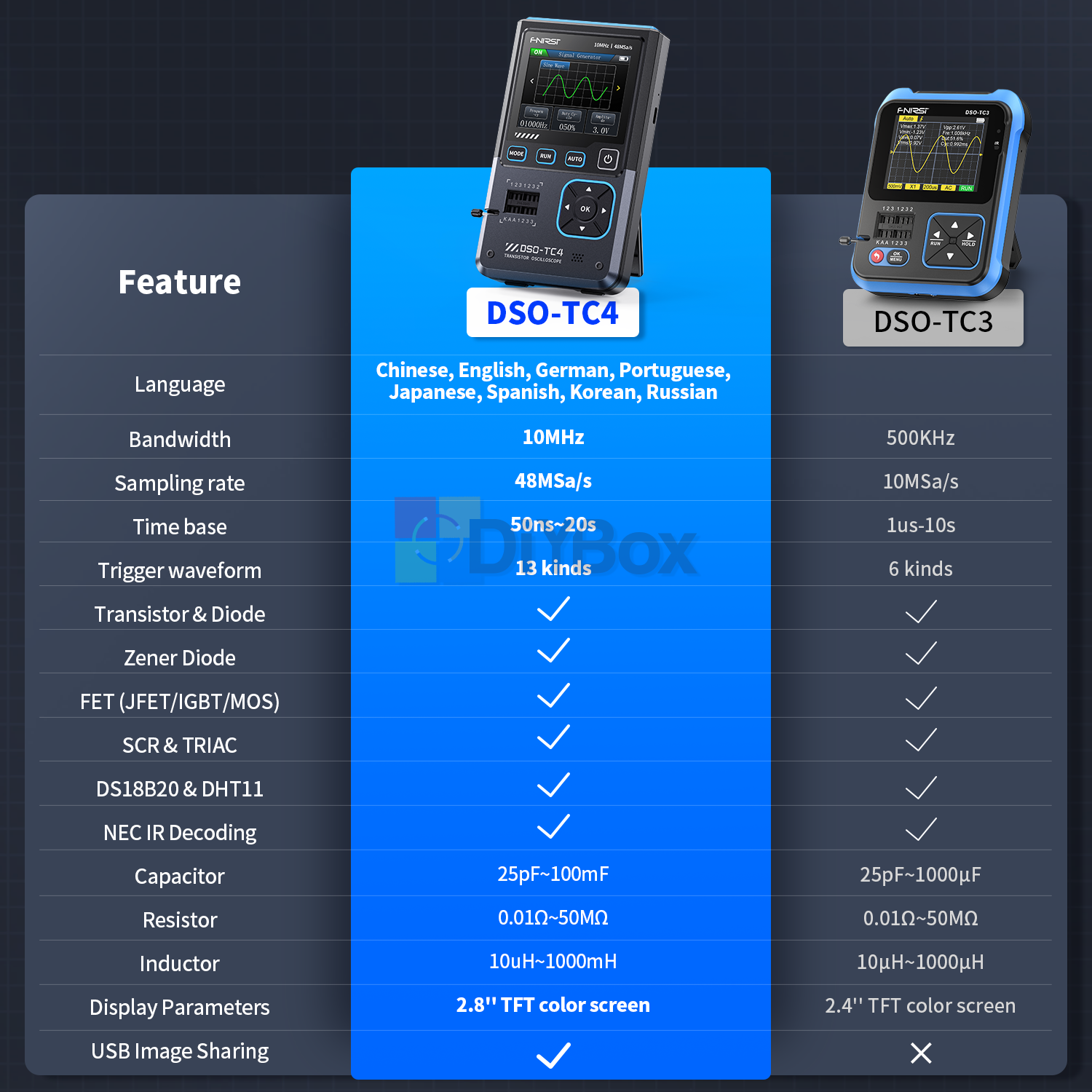

Specification
Language: Chinese, English, German, Portuguese, Japanese, Spanish, Russian, Korean
Bandwidth: 10MHZ
Sampling rate: 48Msa/s
Time base: 50ns~20s
Trigger waveform: 13 kinds
Transistor & Diode: √
Voltage regulator diode: √
Field Effect Tube(JFET/IGBT/MOS):√
Unidirectional Thyristor& Bidirectional Thyristor:√
DS18B20& DHT11:√
Infrared decoding:√
Anti-burn-in: √
USB Sharing: √
Capacitance: 25pF~1000uF
Resistance: 0.01Ω~50MΩ
Inductance: 10uH~1000uH
Screen: 2.8-inch TFT color screen
Interface: Type C
Battery: 1500mAh lithium battery

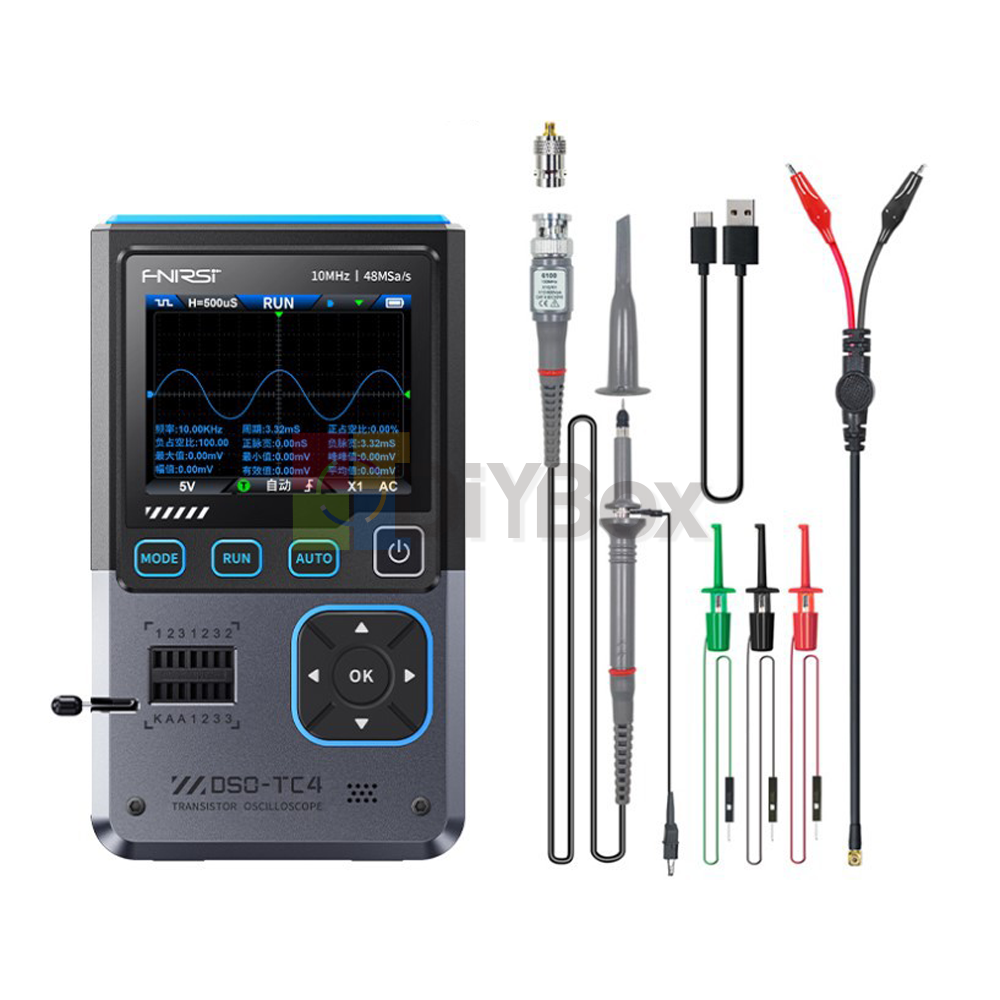

Package Includes
1 x Tester
1 x Instruction manual
1 x Adaptor
1 x P1600 Oscilloscope Probe
1 x USB-C Charging Cable
1 x Normal Probe
3 x Test Hook

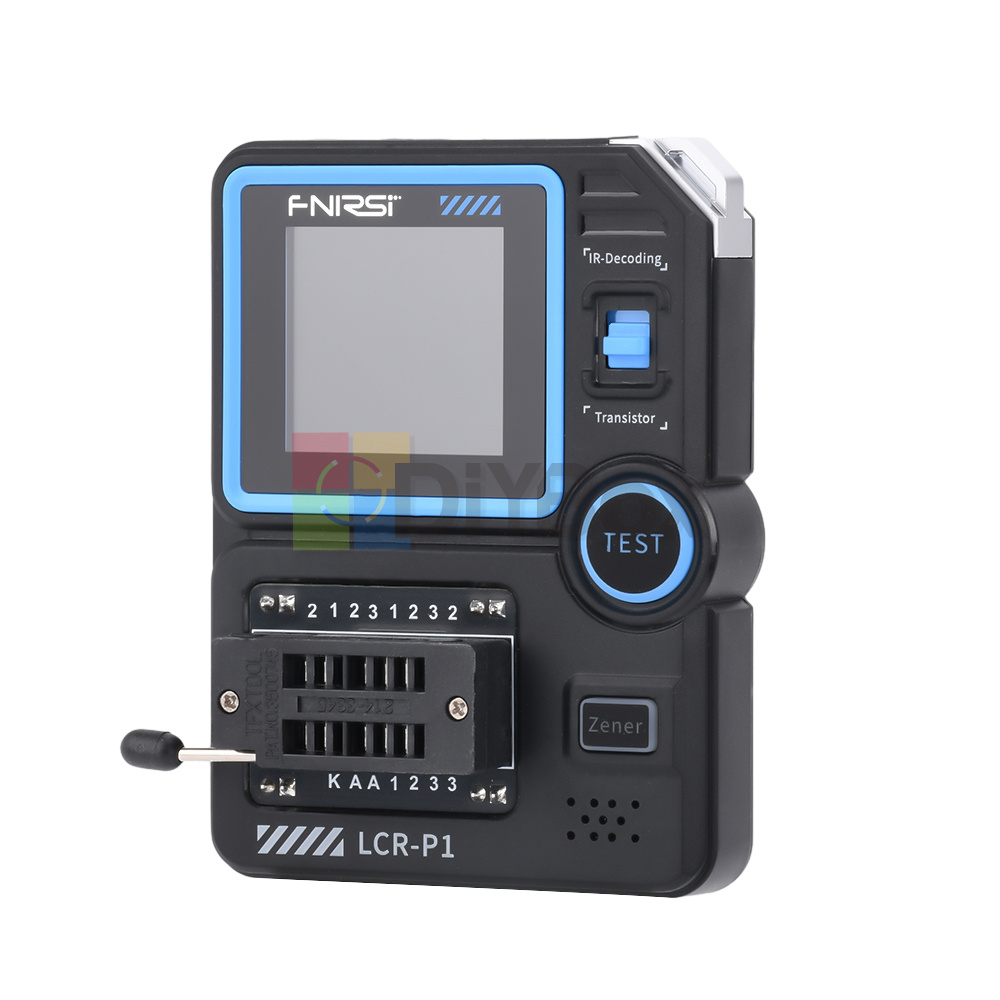

FNIRSI LCR-P1

Features
1. Accurate control: the use of independent measurement channel design, specifically tailored for the voltage regulator diode can be measured in the range of 0.01-32V, power supply before measurement, so that accurate measurement at your fingertips!
2. Anti-burn protection guards each measurement: undischarged capacitors in the insertion of the locking moment the machine will be discharged to the capacitor, humanized protection mechanism, anti-burn meter.
3. Replaceable patch holders for arbitrary measurement: incorporating the function of replaceable patch holders to easily cope with a variety of testing needs, enjoy the unprecedented ease and efficiency!
4. Accurate decoding: support NRC infrared signal decoding, easy to test the remote control.
5... Efficient detection and intelligent identification: gently plug a clip, a key to quickly identify the device parameters, saving time and effort.
6. Wide range of applications to meet different testing needs: product development, home appliance repair, educational institutions, scientific research experiments, etc.

Specification
Product Model: LCR-P1
Display: 1.44 inch
Battery capacity: 300mAH lithium battery (built-in lithium battery)
Charging specifications: USBType-C, 5V/1A

Technical parameters
Triode:
Range: 10<β<600
Description: amplification hfe,base-emitter voltage Ube,Ic/le,collector-emitter reverse cutoff current lceo,lces,protection diode forward voltage drop Uf

diode:
Range: forward voltage drop <4.5V
Description: forward voltage drop,junction capacitance,reverse leakage current

Voltage regulator diode:
Range: 0.01-4.5V , 0.01-32V
Description: (1-2-3 test area) forward voltage drop, reverse breakdown voltage, (K-A-A test area) reverse breakdown voltage
Field Effect Tube:
Range: JFET, IGBT, MIOSTET
Description:Gate Capacitance Cg,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Drain Current ld under Vgs,Protection Diode Forward Voltage Drop Uf,Turn-On Voltage Vt,Gate Capacitance Cg,Drain-Source Resistance Rds,Protection Diode Forward Voltage Drop Uf
Unidirectional thyristor/bidirectional thyristor:
Range: turn-on voltage <5V (unidirectional SCR), gate trigger current <6mA (bi-directional SCR)
Description: Gate Voltage

Capacitance:
Range: 25pF~100mF
Description: capacitance value, loss factor Vloss, internal resistance ESR

Resistor:
Range: 0.01Ω~50MΩ
Description:Resistance value

Inductance:
Range: 10uH-1000uH
Description:Inductance,DC resistance

Battery:
Range: 0.1-4.5V
Description:Voltage, Positive and negative polarity

Infrared remote control decoding:
Range: NEC protocol infrared code
Description:Display user code and data code, and display the corresponding infrared waveforms

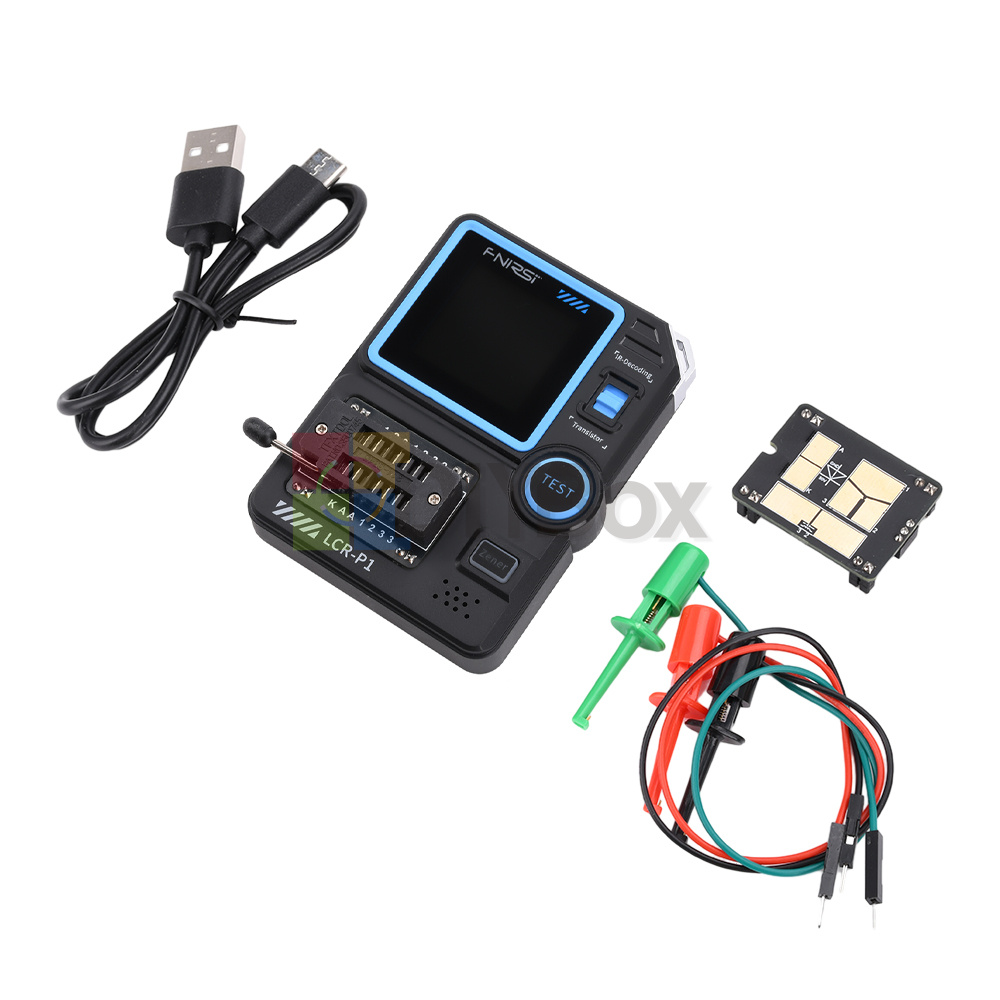

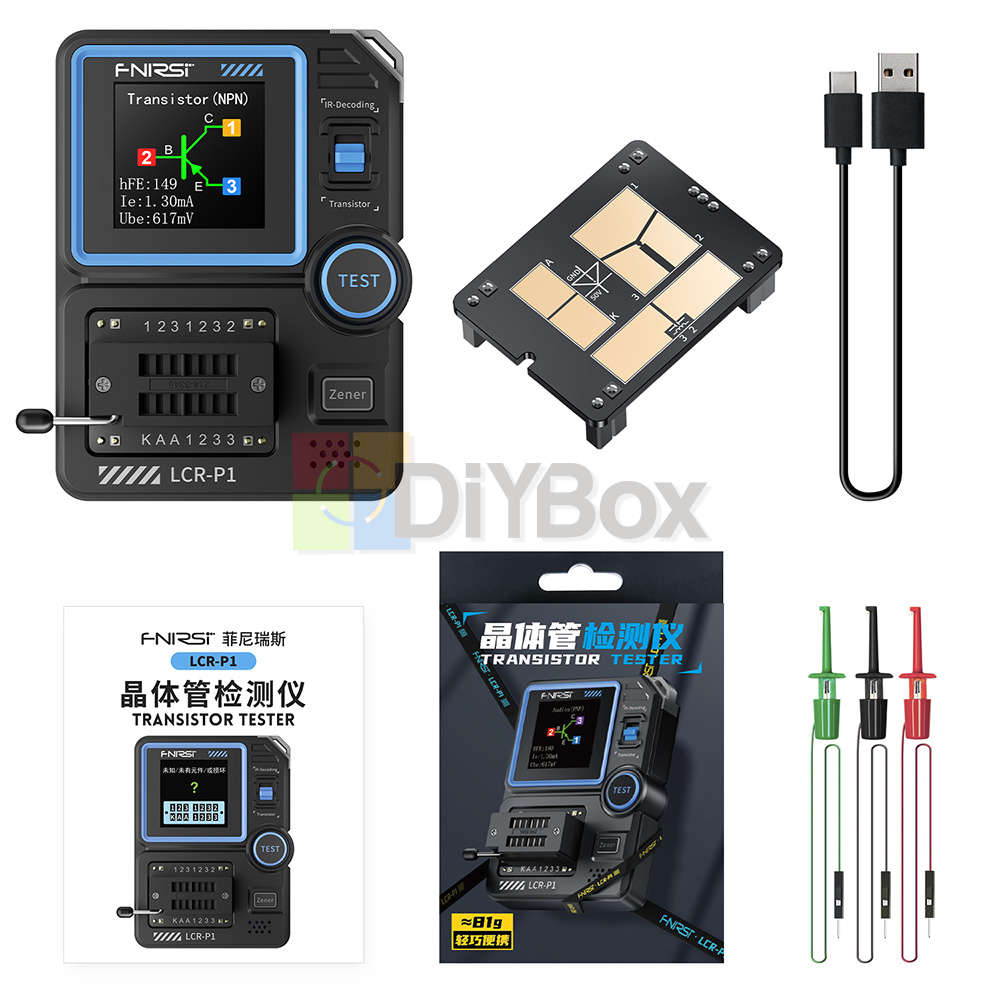

List
1 x Tester
1 x Instruction manual
1 x Type-C USB cable
1 x Featured Test Plate
3 x Test Hook
