If connecting to a computer, simply substitute
it in the diagram for the receiver shown below.
Use the sound card's LINE INPUT jack, NOT the MIC IN.
The following amplifier/receiver/minisystem input jacks can be used;
AUX, TAPE
IN/PLAY, LINE IN, CD, TUNER, MD (MiniDisc), VIDEO or DVD
(use the L&R AUDIO
jacks so labelled; ignore the yellow VIDEO jack
if present).
|
A
variable level output control and the ability to handle line, musical instrument
pickup,dynamic mic AND phono input signals makes this little item very handy
indeed. This is an excellent front end for sound reinforcement applications that don't require the complexity of a mixer but may have
to handle various source and output level requirements from job to job. DJs and roadies will benefit from having one of these in their tool
box to take the place of larger, more expensive equipment in a pinch. Plus
the TC-740A adds a rear-panel attenuator switch to allow use with higher level line sources which exceed
theTC-740's input capabilities, such as CD players, tape decks and MP3players.
$51.50
plus
shipping
- 12 volt DC operation;
will work anywhere in the world
- RIAA freq response
20hz-20,000hz +/- 0.5dB, S/N ratio 85dB
- Gold plated jacks and
black anodized metal casing
- LED power indicator;
output gain control, ground wire terminal
- Switchable RCA
or1/4" inputs with line attenuator selector
- Switchable for line, dynamic mics,
instrument pickup or phono
- Dimensions 142mm x 80mm x 46mm
- One year defective exchange warranty
|

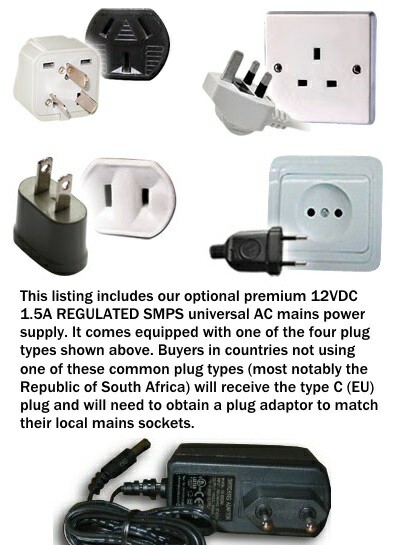

This model is also available on eBay with our standard SMPS AC power adaptor;
click HERE to visit the product listing...
|
|
(note that the TC-740A is a custom model
made for Phonopreamps.com,
and comes packed in a
standard TC-740 gift box...)


We include free of
charge a stereo patch cord (for connection
to a stereo) and a mini-plug adaptor (to use with computers).
The AC adaptor is also included. |
