9KW ATC ISO30 CNC Automatic Tool Changer Air Cooled Spindle Motor 24000RPM & BEST Brand VFD



Package include

      • 1x 9KW ISO30 ATC Air cooled spindle motor 800hz 24000rpm (220V or 380V is optional)
      • 1x ISO30 ER32 tool holder with pull stud
      • 1x 9KW BEST brand Inverter 220V or 11KW BEST brand Inverter 380V
      • English user manual


Note:

All parameters of the VFD will be debugged before delivery and sent out after testing with the ATC spindle, so you can save the trouble of manually setting parameters after receiving the goods!!!

  • 100% Brand New!!!


    Product Description

    1. Start the motorized spindle before the operation, and run it for 5-10 minutes, to carry out the running-in and preheating.

    2. Manually switch the knife for 3–4 times, turn the knife handle by hand to drive the spindle to rotate normally, and then start to operate.

    3. It must be switched when the spindle stops completely during the use, to prevent the cylinder shaft and the tie rod from being squeezed due to the friction. 4. The solenoid valve shall be kept clean, the exhaust shall be smooth, to prevent that the compressed air is accumulated in the cylinder, the piston cannot return to its original position, and the cylinder shaft and the pull rod are squeezed due to the friction after the tool-changing spindle holds the tool.

    5. The air pump and oil-water separator shall discharge oil and water once a day, to keep the compressed air dry and clean.
















  • 9KW 220V  VFD or 11KW 380V VFD



  • The difference between Fuling brand and BEST brand VFD


  • BEST brand VFD supports brake resistors.
    Fuling brand VFD does not support brake resistors.


  • BEST brand 9KW 220V VFD (Black color)


  • Technical parameters

    ◆ input voltage：1 phase AC220V±15% or 3 phase AC220±15%

    ◆ Output power range：0-220V

    ◆ output frequency：0~1000Hz

    ◆ Input frequency 50-60Hz

    ◆ Source of operation instruction：given by panel, terminal and RS485 communication


VFD also can be connected to the single phase 220V-240V AC power,you can connect R & T these two pins to the single phase 220V-240V AC power supply.

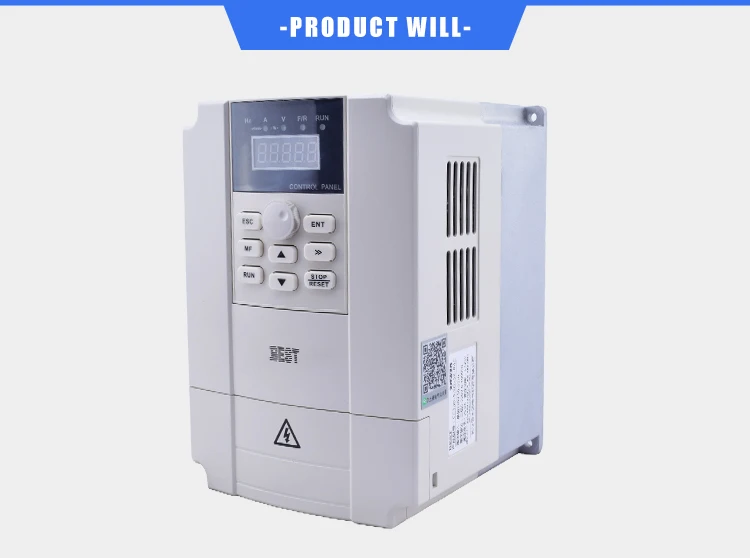

  • BEST brand 11KW 380VFD (White color)


  • Technical parameters

    ◆ input voltage：3 phase AC380V±15%

    ◆ Output power range：0-380V

    ◆ output frequency：0~1000Hz

    ◆ Input frequency 50-60Hz

    ◆ Source of operation instruction：given by panel, terminal and RS485 communication
