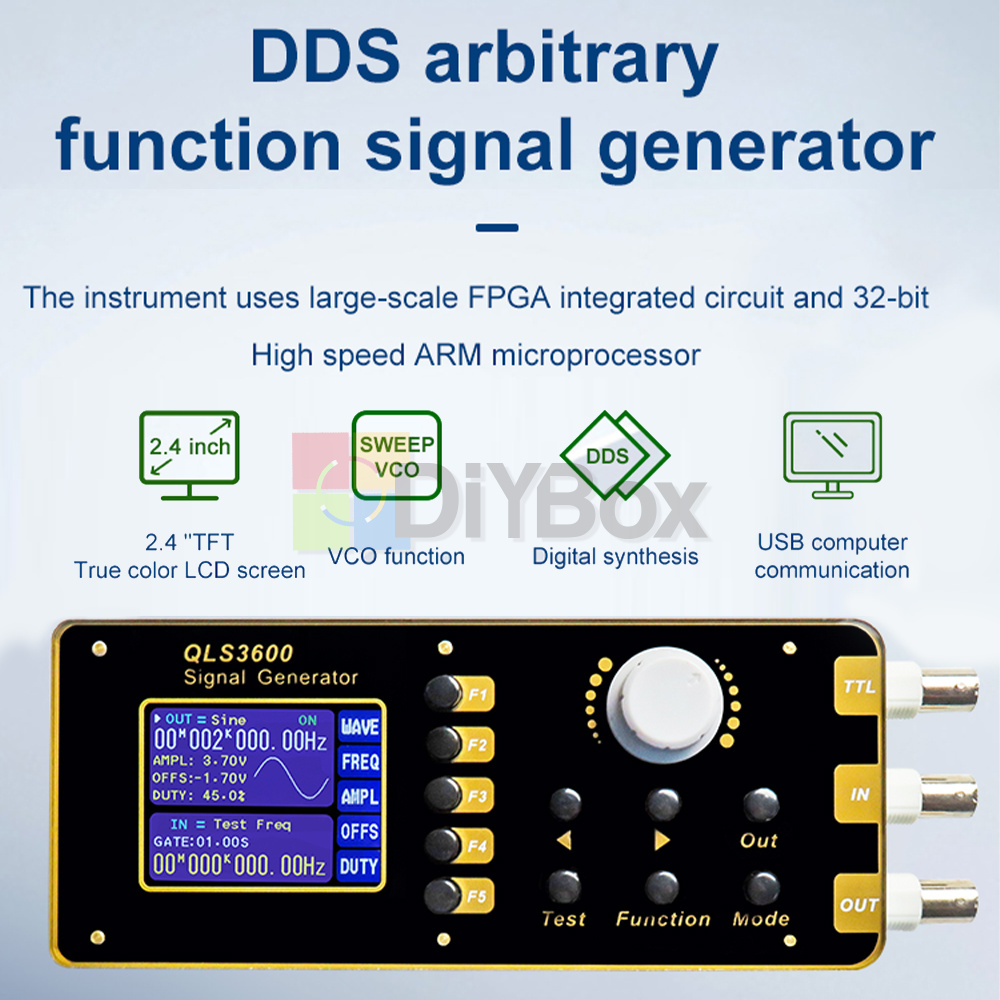

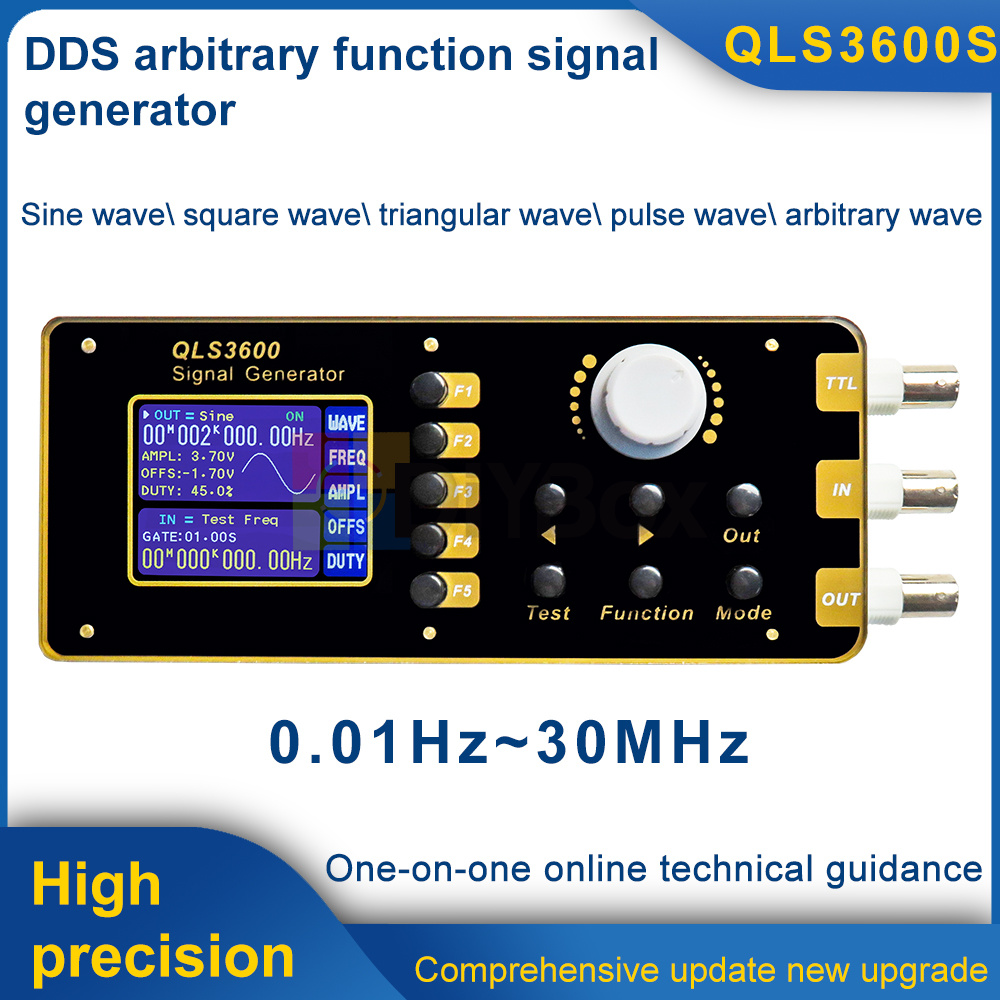

QLS3600S 2.4" TFT Arbitrary Wave DDS Function Signal Generator/ Frequency /Pulse

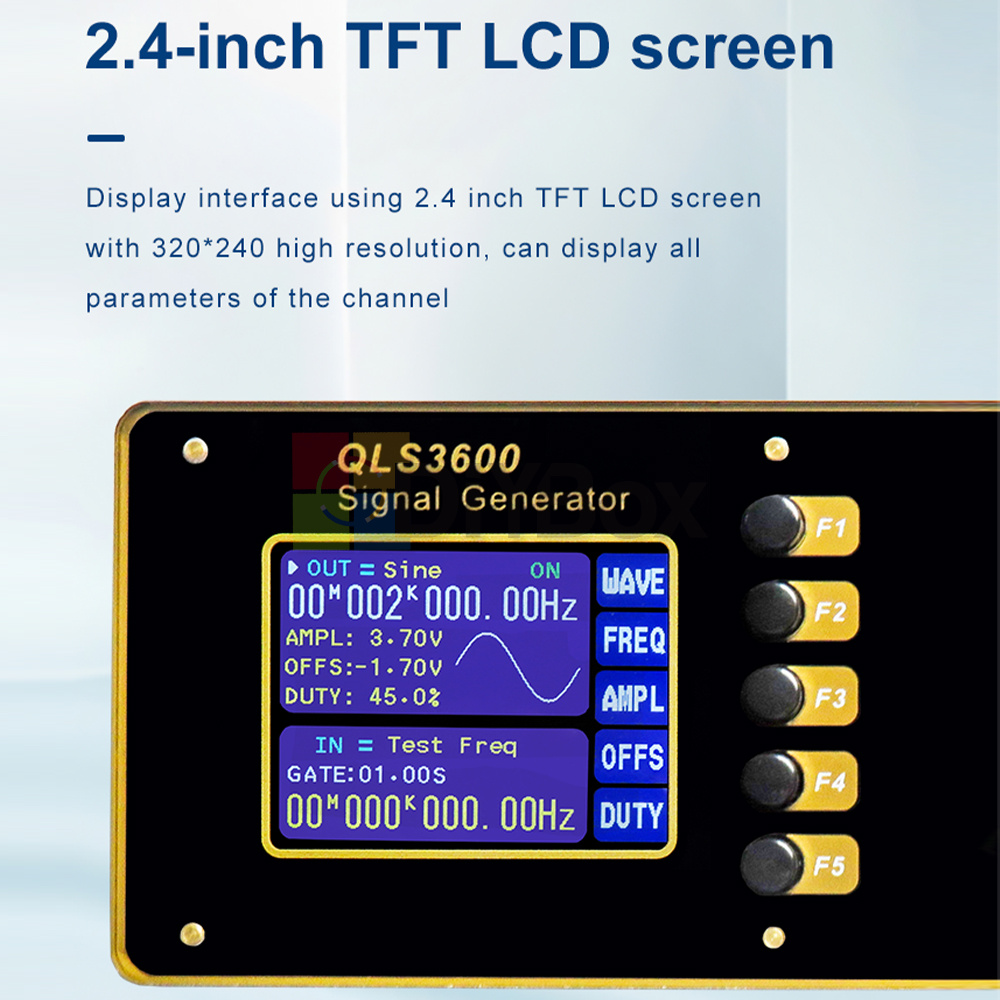

1. The display interface adopts 2.4-inch TFT LCD with 320*240 high resolution, which can display all the parameters of the channel.

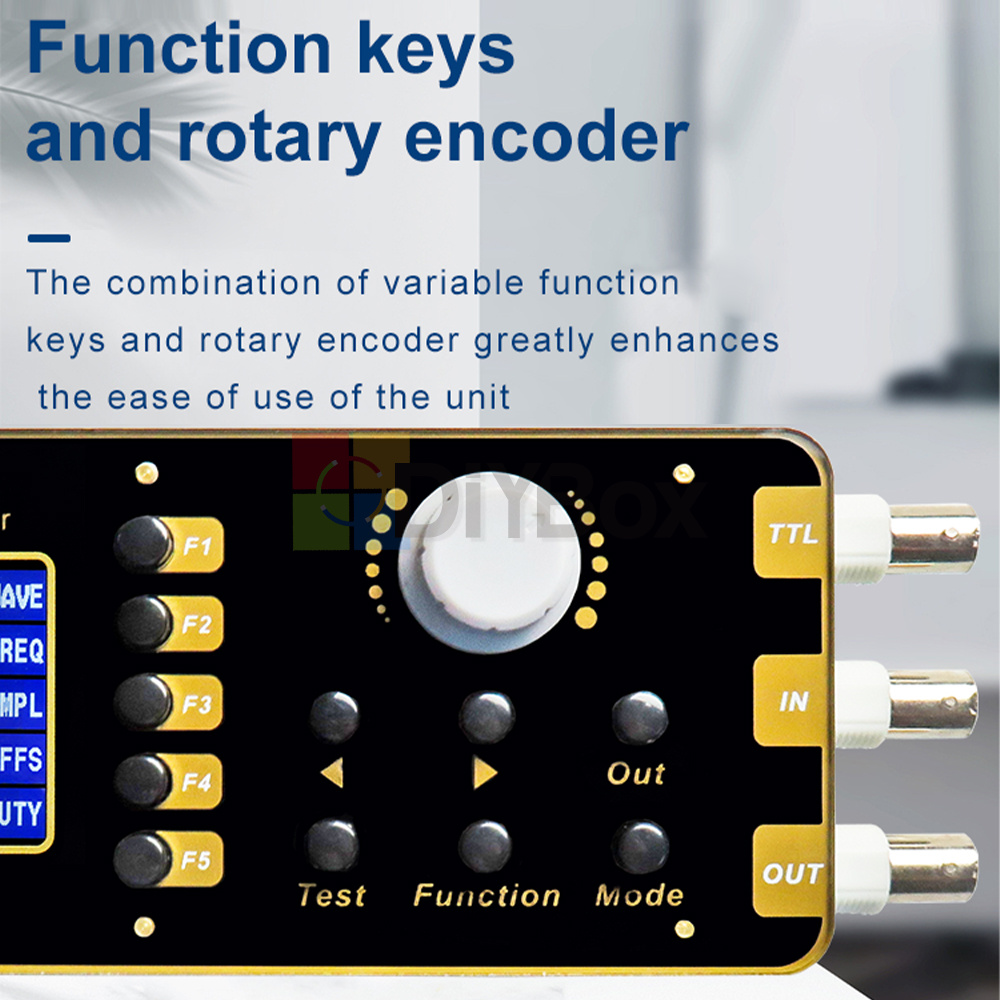

2. Function buttons and rotary encoder: with variable function buttons and rotary encoder greatly enhances the ease of use of the machine.
3. Language switching function: support the free switching of Chinese and English languages, which can meet the needs of different users.
4. Trigger output function: with manual trigger, external trigger two trigger modes, can be the machine output 1 ~ 999999 any pulse string
5. Apply to electronic engineers, electronic laboratories, production lines and teaching, scientific research, the ideal test, measurement equipment and other fields
6. With the end of the frequency scanning, frequency measurement, duty cycle measurement, pulse width, cycle measurement, counting function

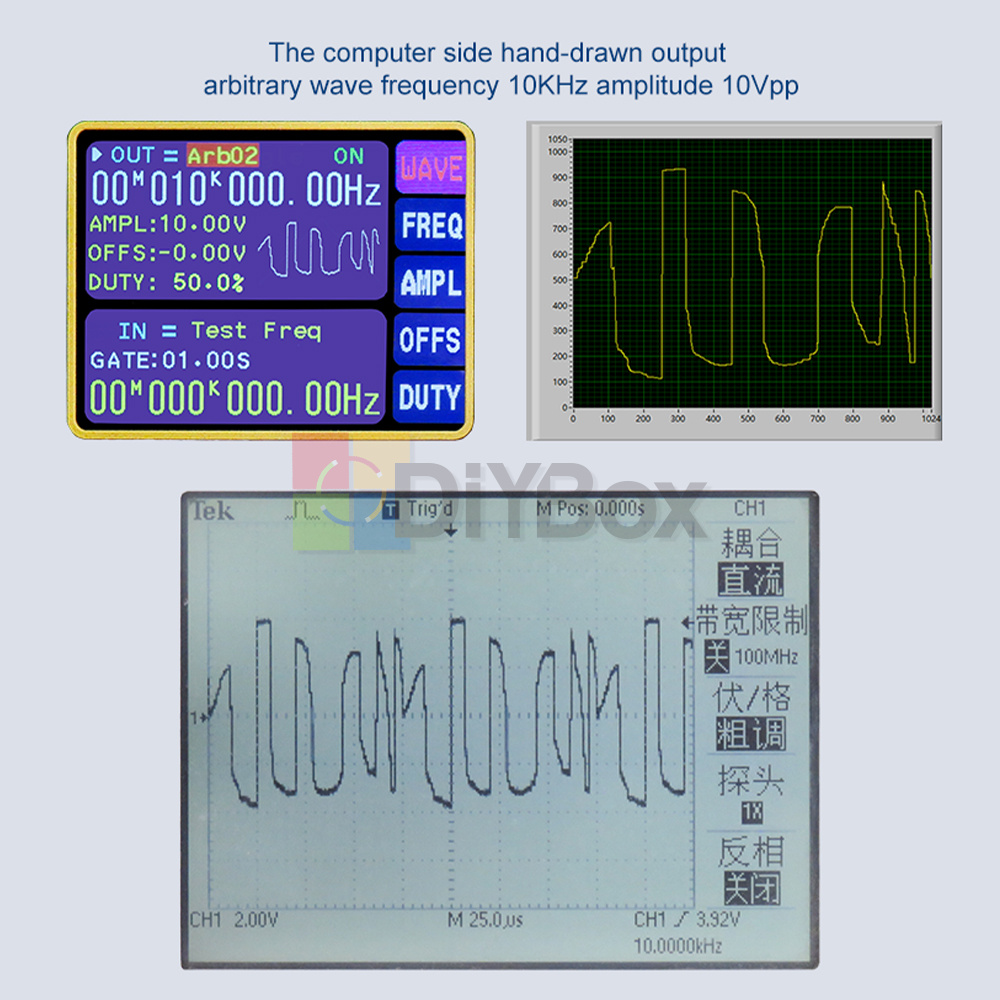

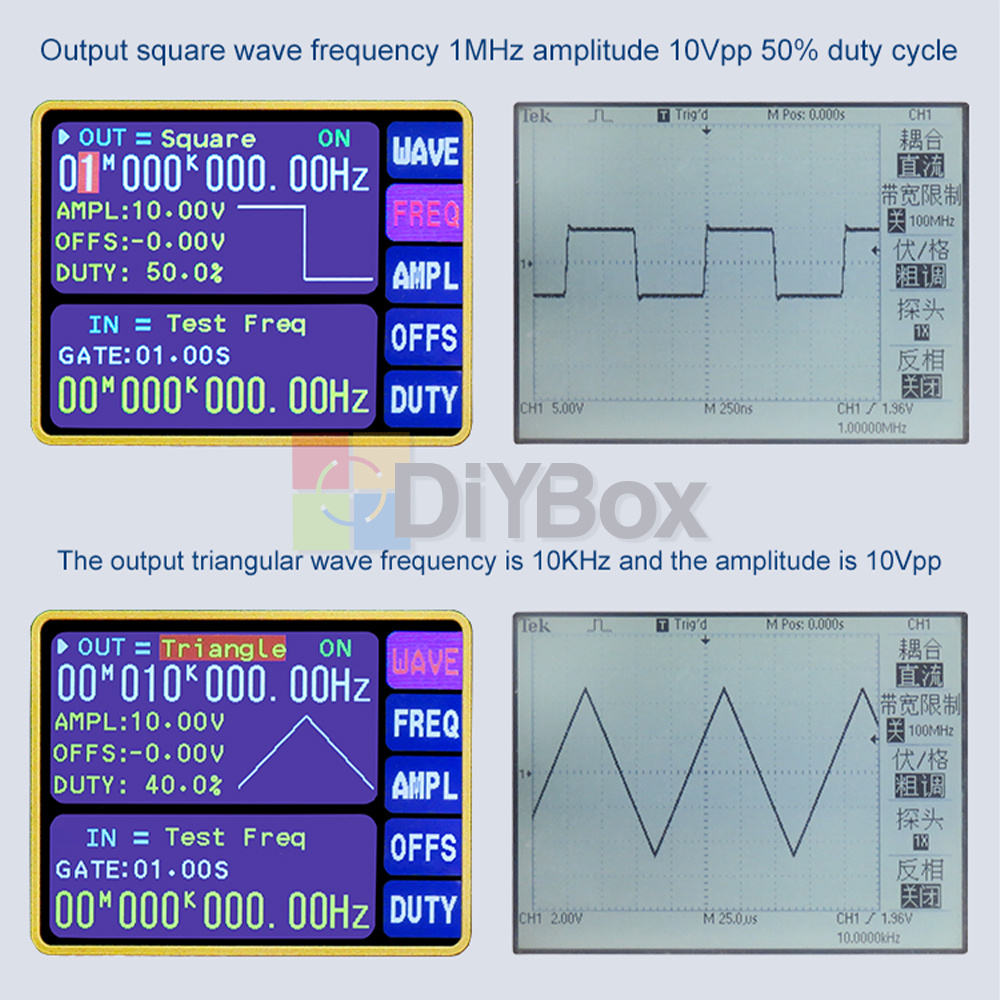

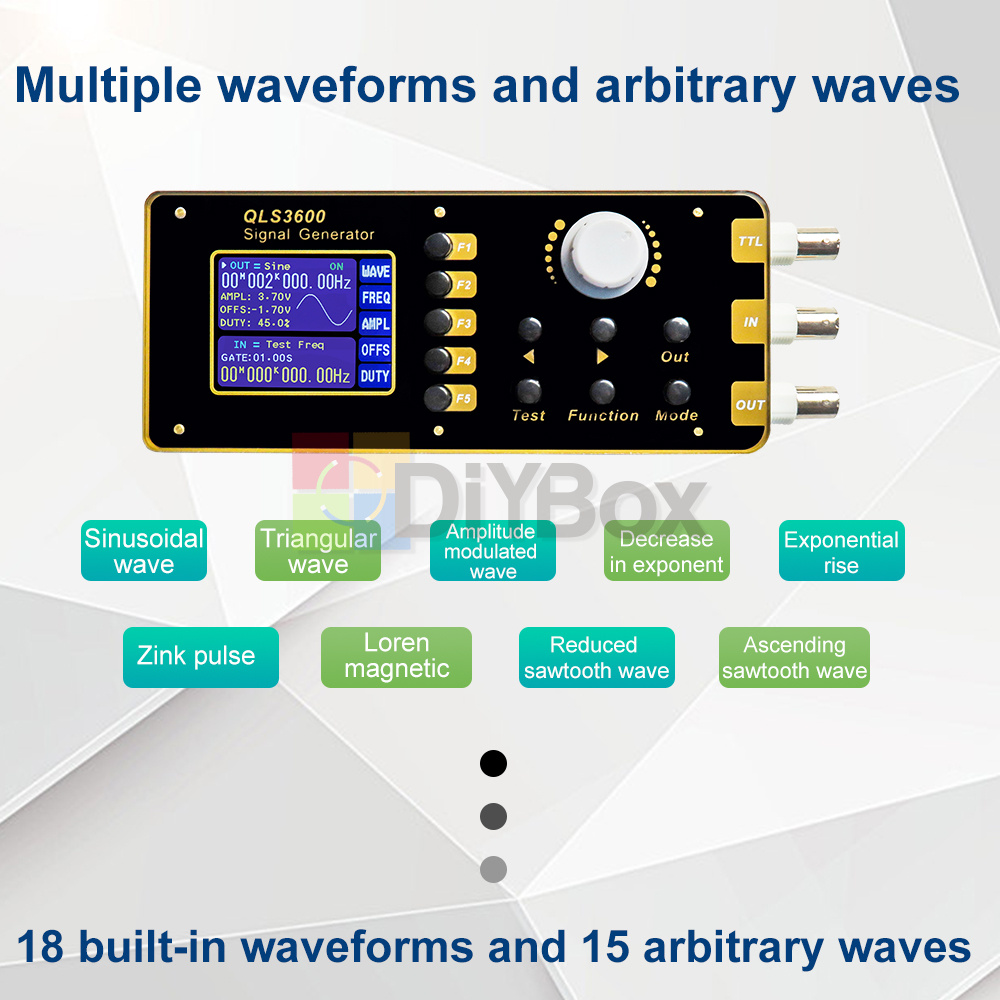

7. A variety of waveforms and arbitrary waveforms: 18 built-in waveforms and 15 arbitrary waveforms, such as sine, triangle, square, ascending sawtooth, descending sawtooth, Lorentz magnetism, Sink pulse, amplitude-modulated waveforms, exponential rise/fall and so on.
Power supply: DC 5V (with overvoltage protection)
Plug: US Plug
Frequency measurement range:
Sine wave
QLS3605S: 0Hz~5MHz
QLS3605P: 0Hz~5MHz
QLS325S: 0HZ~30MHz
QLS3610S: 0HZ~10MHZ
Square wave, triangle wave, sawtooth wave, arbitrary wave:
QLS3605S: 0Hz~5MHZ
QLS3605P: 0HZ~5MHZ
QLS3610S: 0HZ~10MHZ
QLS325S: 0HZ~10MHZ
Interface: USB to serial interface
Communication rate: 57600 bps
Communication protocol: Command line mode, open protocol
VOC voltage input port: left negative, right positive.
Product size: 187*71*24mm
Frequency measurement range: 0.01Hz~100MHz
Period Measurement: Maximum 20S, Resolution 0.01uS
Pulse width measurement: Maximum measurement 20S, resolution .0.01uS
Minimum input voltage: 0.5Vp-p
Maximum allowable input voltage: 10Vp-p
Counting range: 0~4294967295
Counting mode: Manual
Source selection: Ext.IN (analog signal)

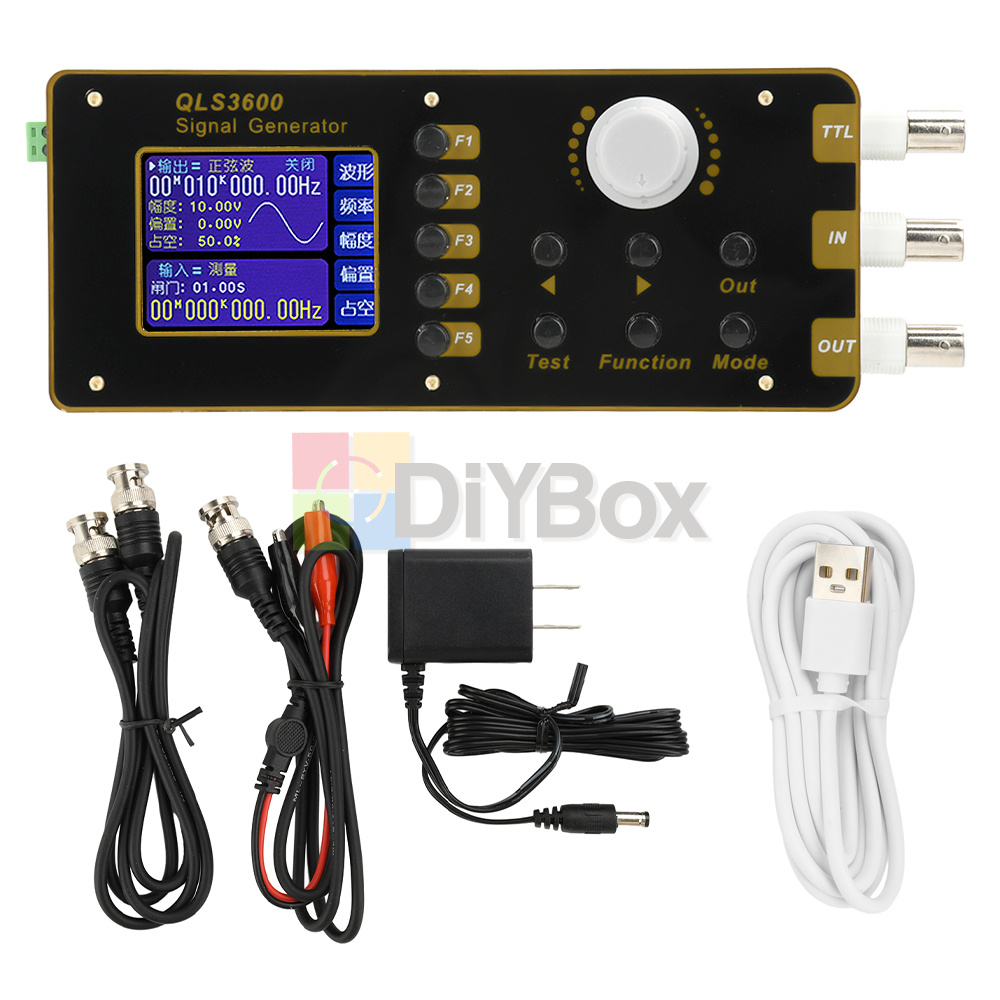

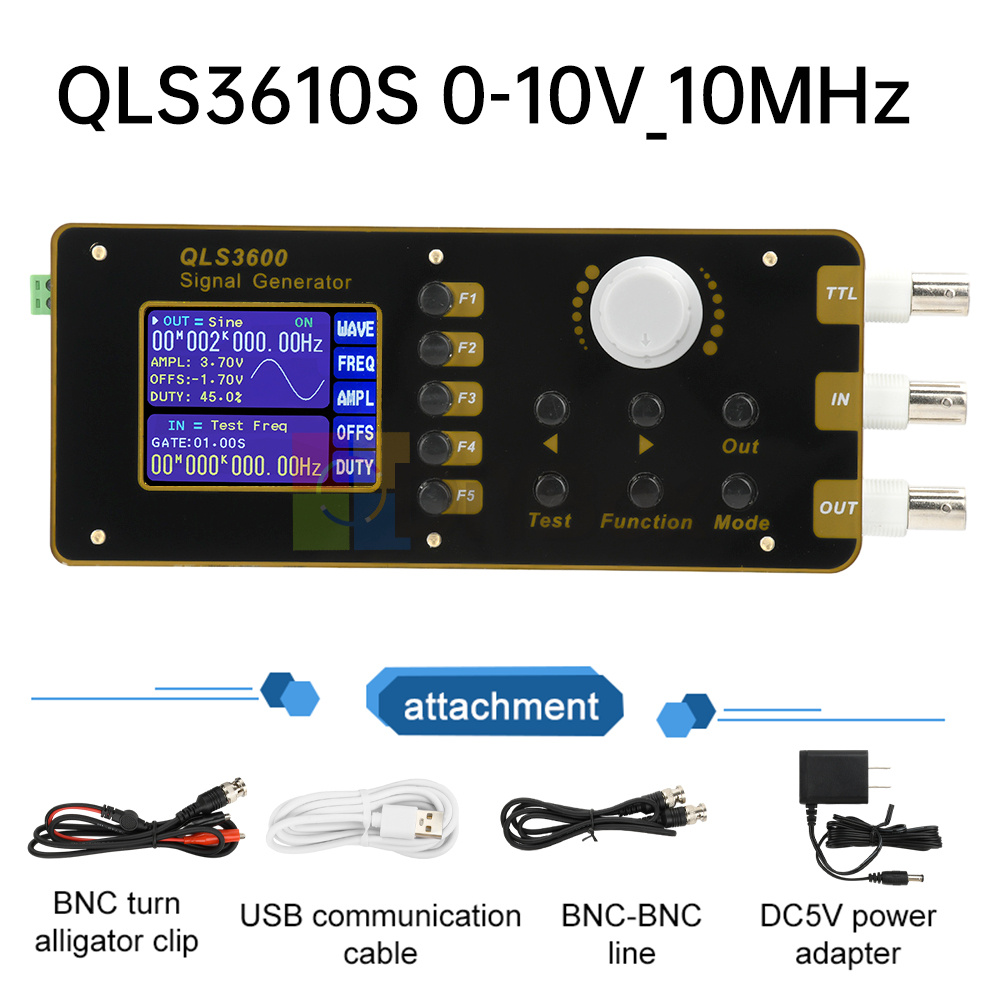

Host *1
Power Adapter*1
BNC-BNC cable *1
USB communication cable*1
BNC to clip cable *1
Instruction manual *1
