SONY 8.0MP 1 / 1.8 "CMOS
4K @60fps / 1080P @60fps HDMI Industrial Microscope Camera Support U Disk Storage Picture Mouse Operation with Measurement Function














Feature:

  • 1, Multifunction measurement function (Model 1 and Model 3)
  • 2, 1920*1080/3840*2160(4K) HDMI output (Long press the 5 second photo key to convert 1080P 4K)
  • 3, Two USB interfaces (one USB mouse, one U disk).
  • 4, Save the picture (picture) to the U disk or browse the pictures in the U disk.

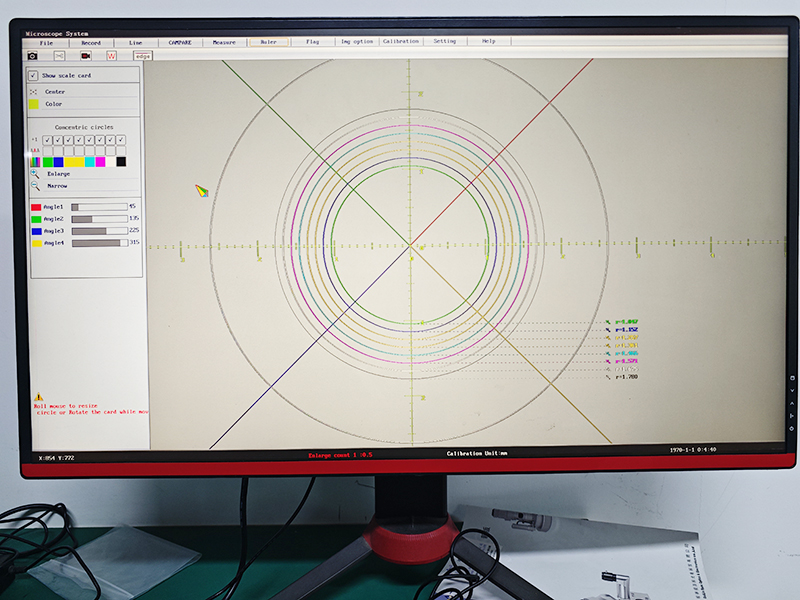

  • 5. Cross lines: 1-12 groups, color is optional, size adjustable.
  • 6. Freeze function: two split screen, four split screen

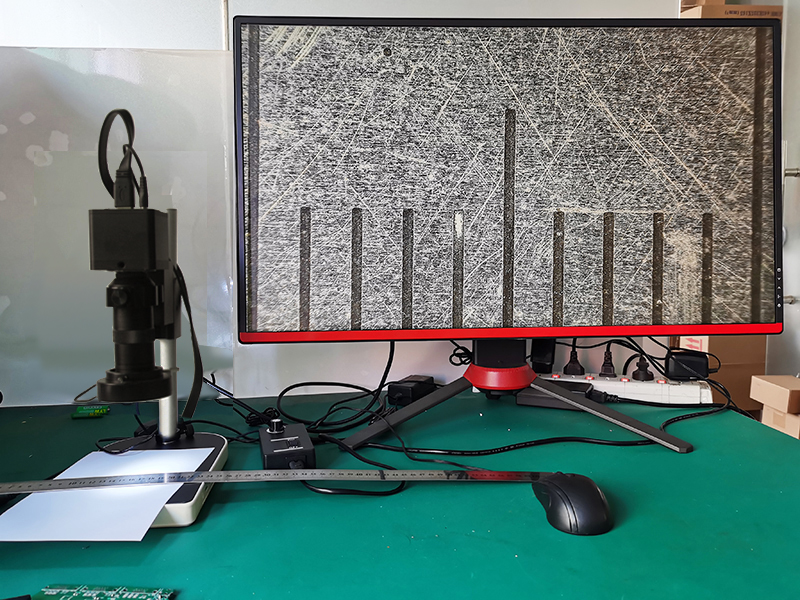

  • 7. Scale: any number of scale pixels can be adjusted arbitrarily.

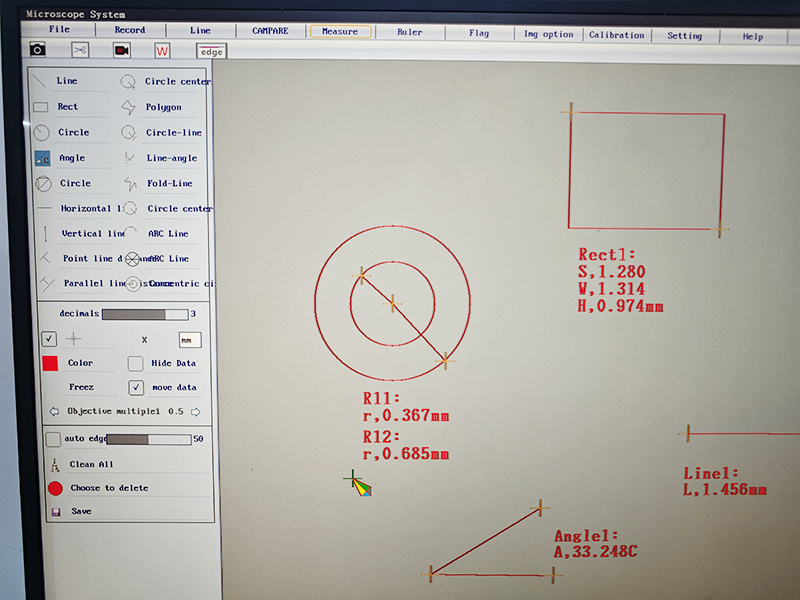

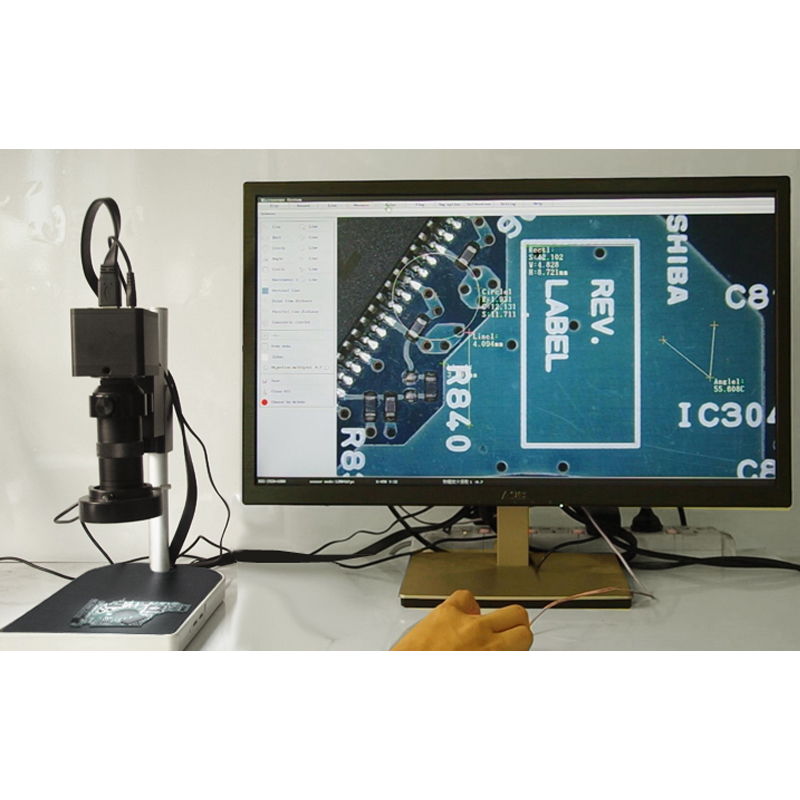

  • 8. Measure function: distance between two points, rectangle, circle, angle, etc.
Specification:

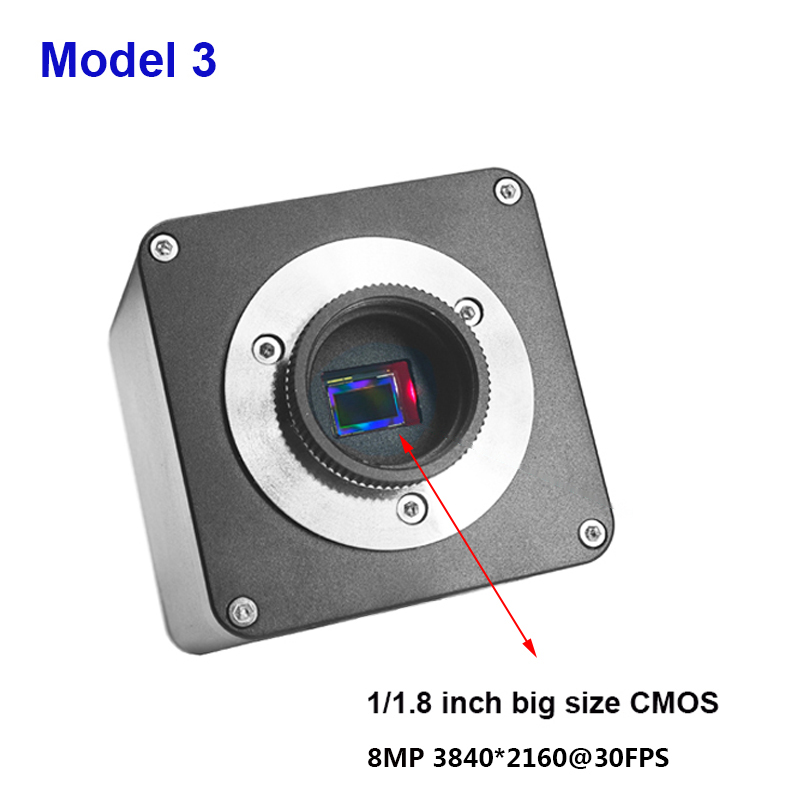

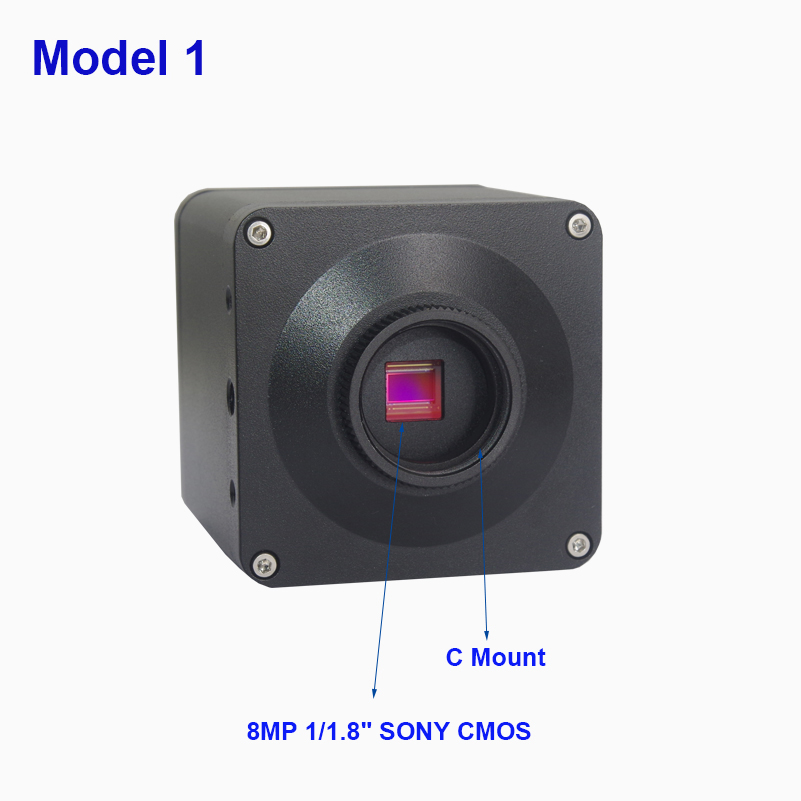

  • Sensor type: SONY 8 million pixels, 1 / 1.8 "CMOS color
  • Effective pixels: 3840*2160
  • Number of data bits: 10bit
  • Frame rate
    HDMI: 1920*1080 60 frames / sec . 3840*2160 60 frames / sec
    USB(Model 1 Camera ,Model 2 Camera): 1920*1080 30 frames / sec . 3840*2160 12 frames / sec
  • Scan mode: progressive
  • Shutter Type: Electronic Shutter
  • Dynamic range> 90dB
  • Signal to noise ratio: 55dB
  • Sensitivity: 2.0 V / lux-sec (550 nm)
  • Exposure method: manual / automatic
  • White Balance: Auto / Manual
  • Lens Interface: C / CS

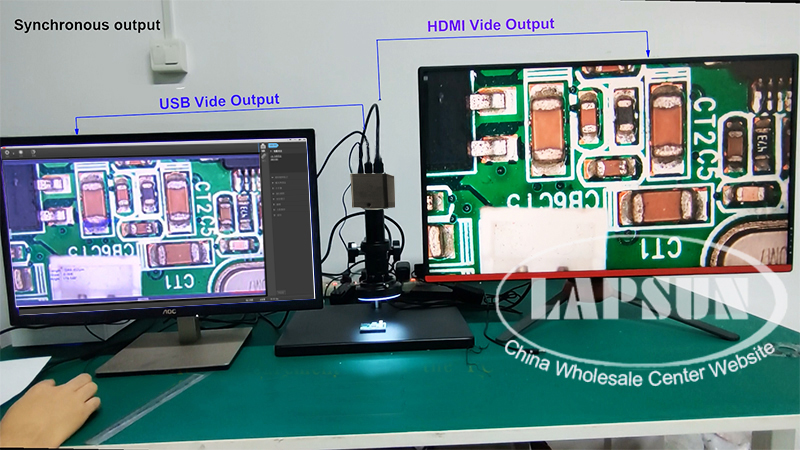

  • Video interface: standard HDMI interface,USB (Model 1 Camera ,Model 2 Camera)

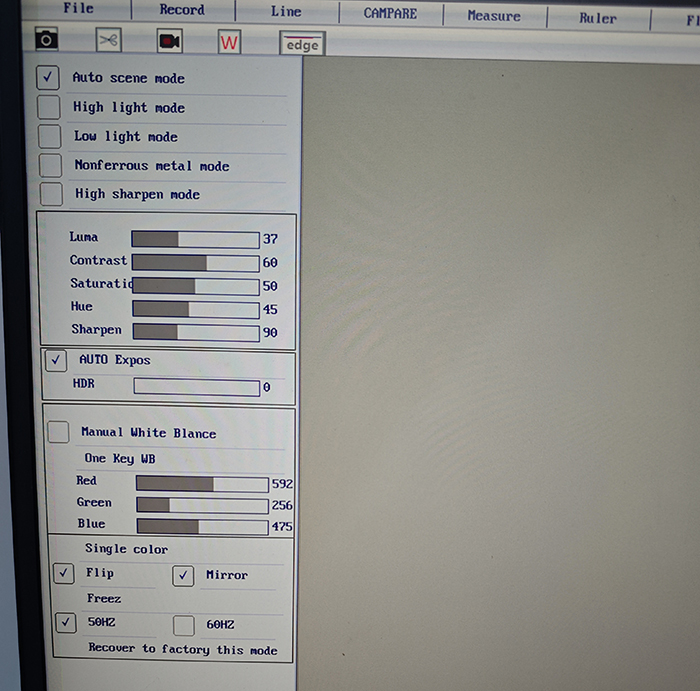

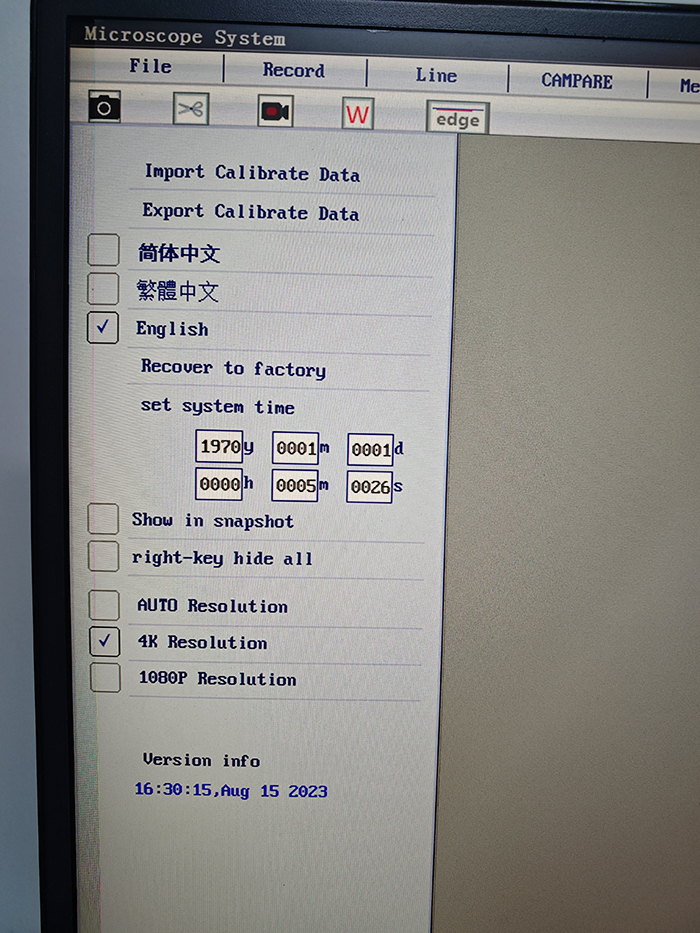

Model 2 Camera and Model 3 Camera (with Measurement Function ) Menu function:

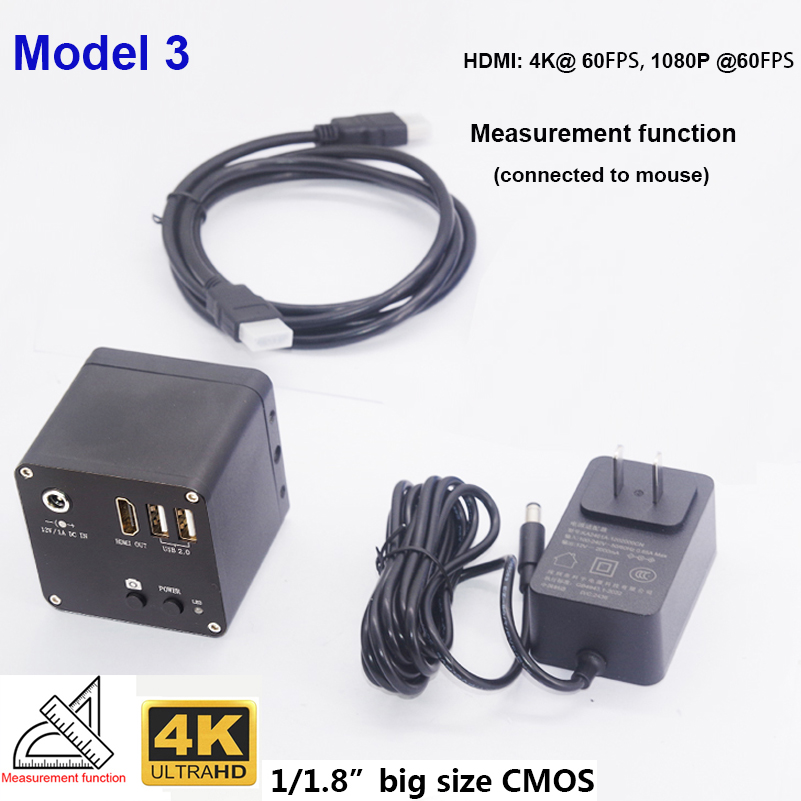

Package including:

  • 1 x Camera Body
  • 1 x HDMI Cable
  • 1 x DC 12V Power Supply (AU/US/UK/EU Plug is available)

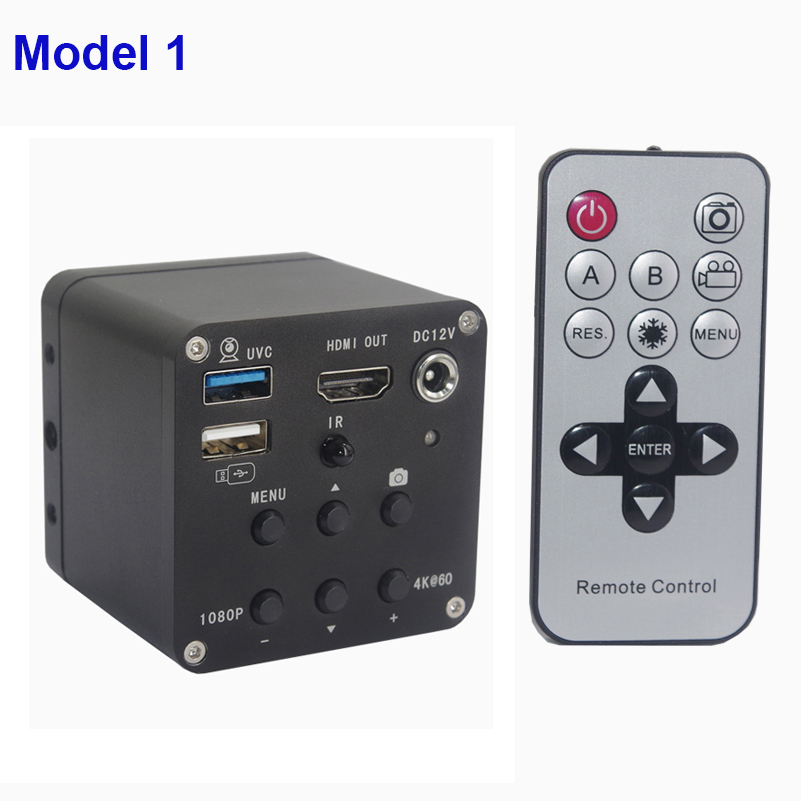

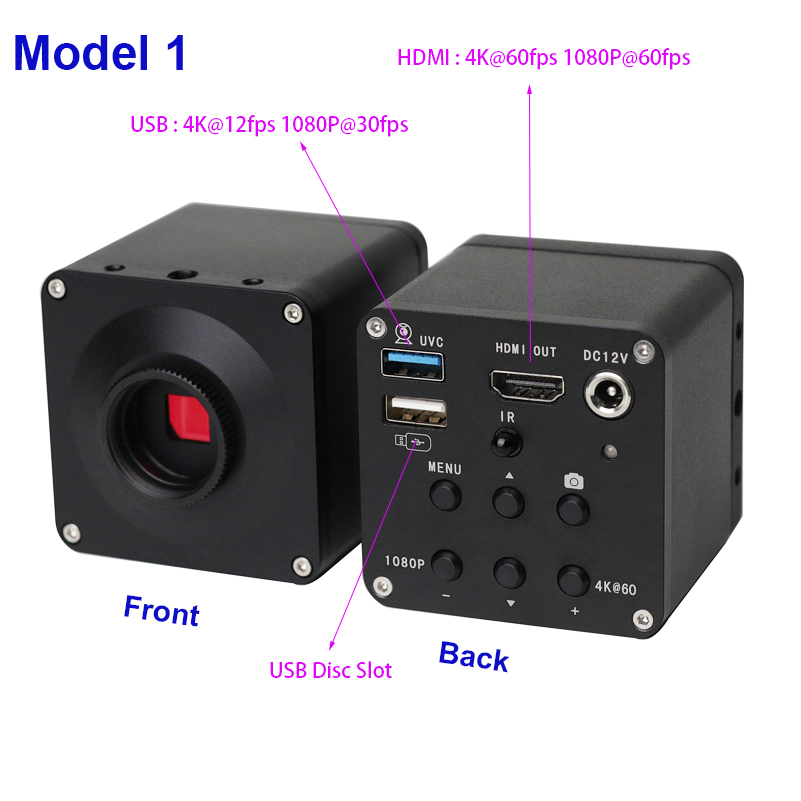

    Model 1:  has USB / HDMI output, Remote Control, But no measurement function

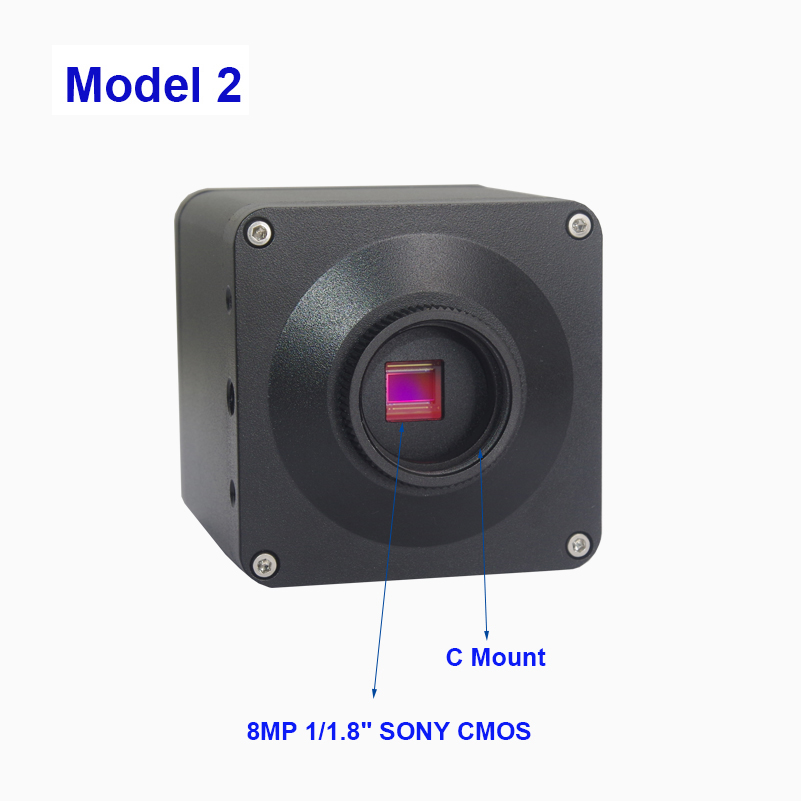

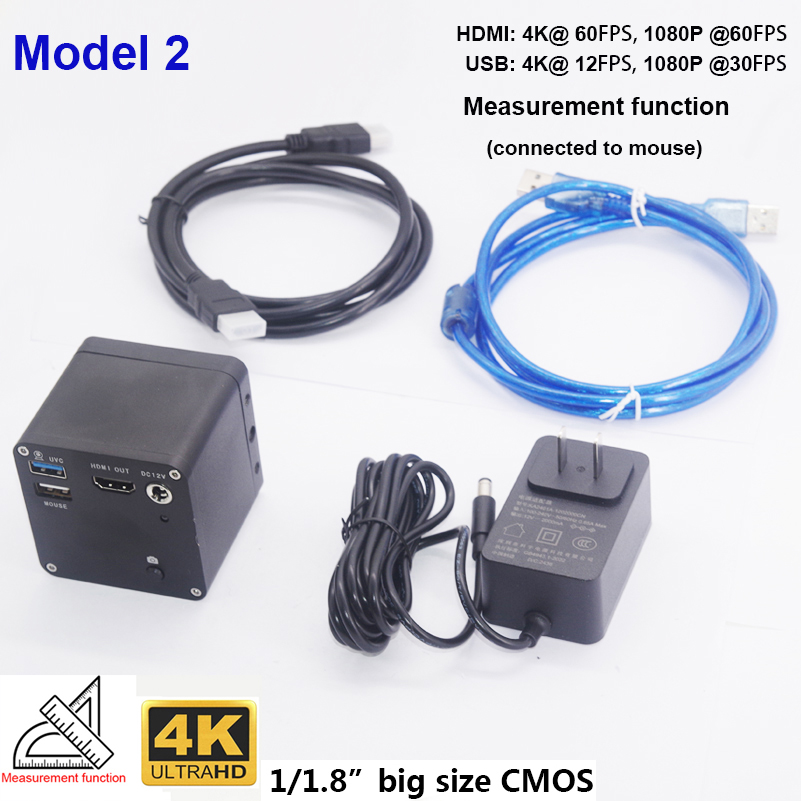

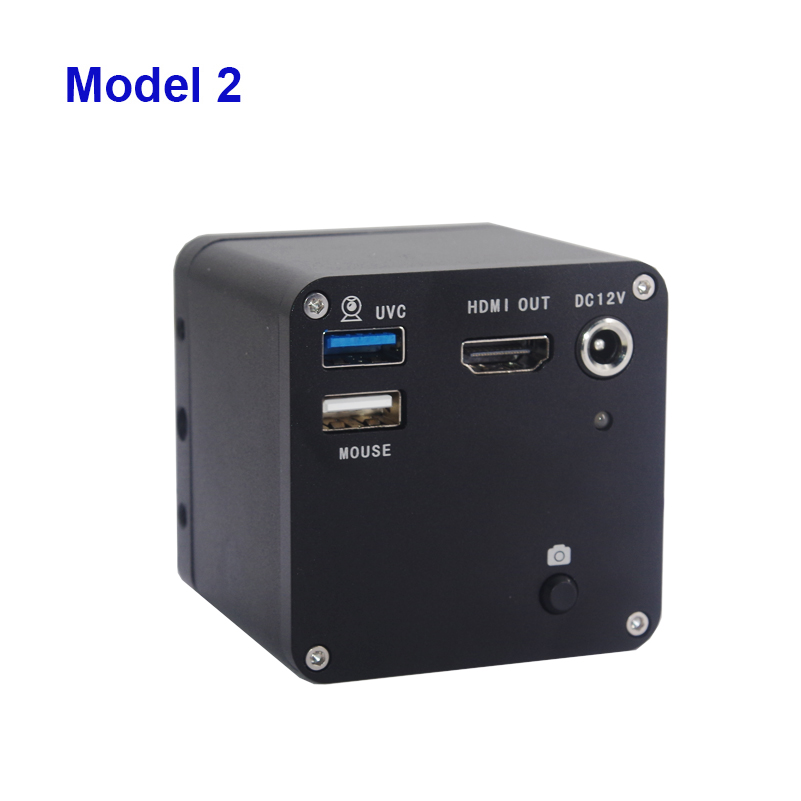

    Model 2:  has USB / HDMI output, measurement function, but no Remote control

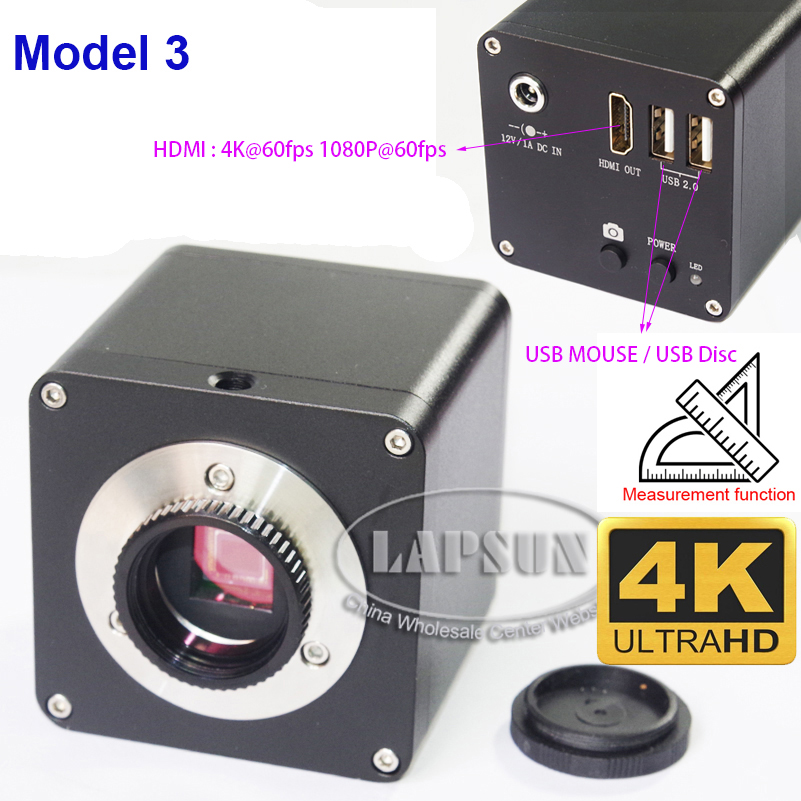

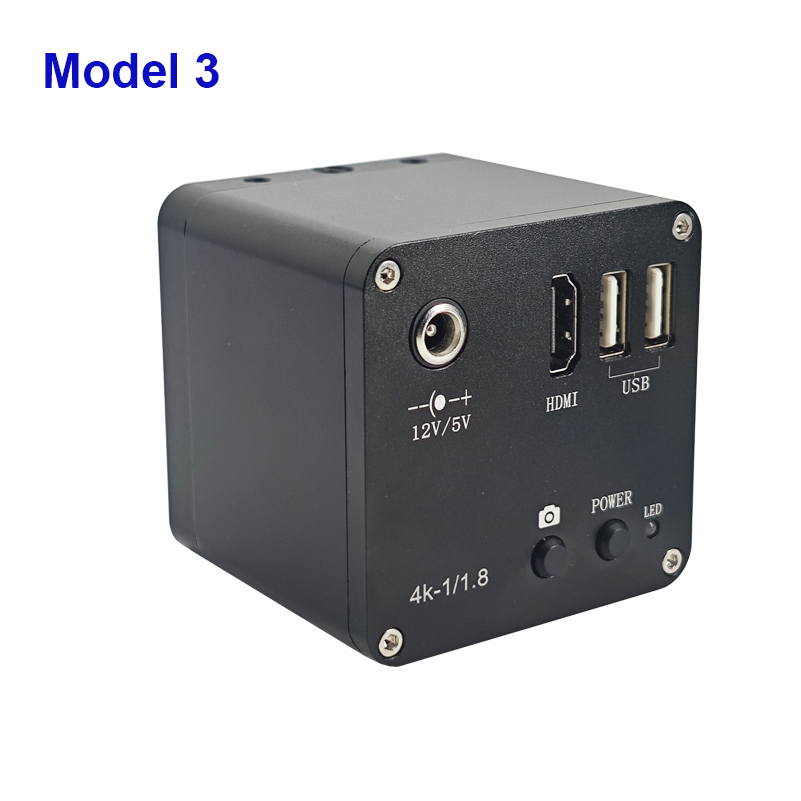

    Model 3:  has HDMI output, measurement function, but no USB output and remote control







---------------------------------------------------------------------------------------------------------------------



---------------------------------------------------------------------------------------------------------------------
