102mm LS1 LS6 Intake Manifold Cathedral Port 4.8 5.3 5.7 6.0 for GM - Black

102mm LS1 LS6 Intake Manifold Cathedral Port 4.8 5.3 5.7 6.0 for GM - Black

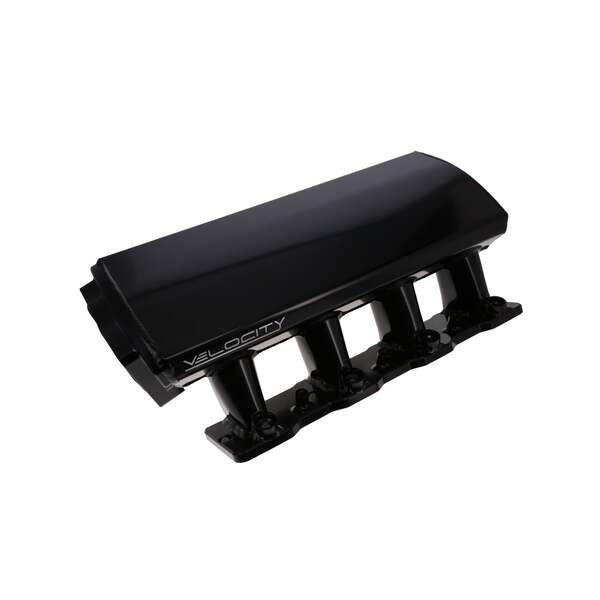

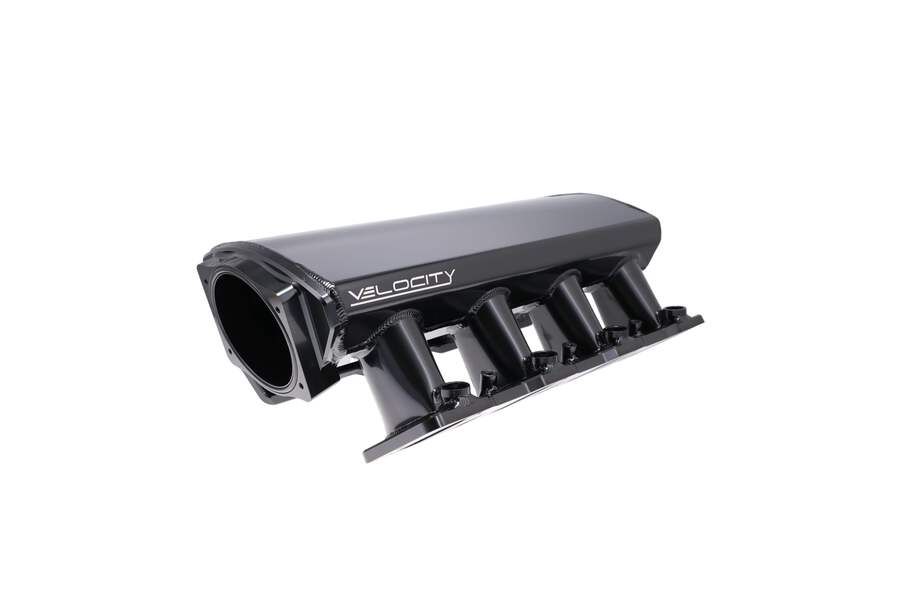

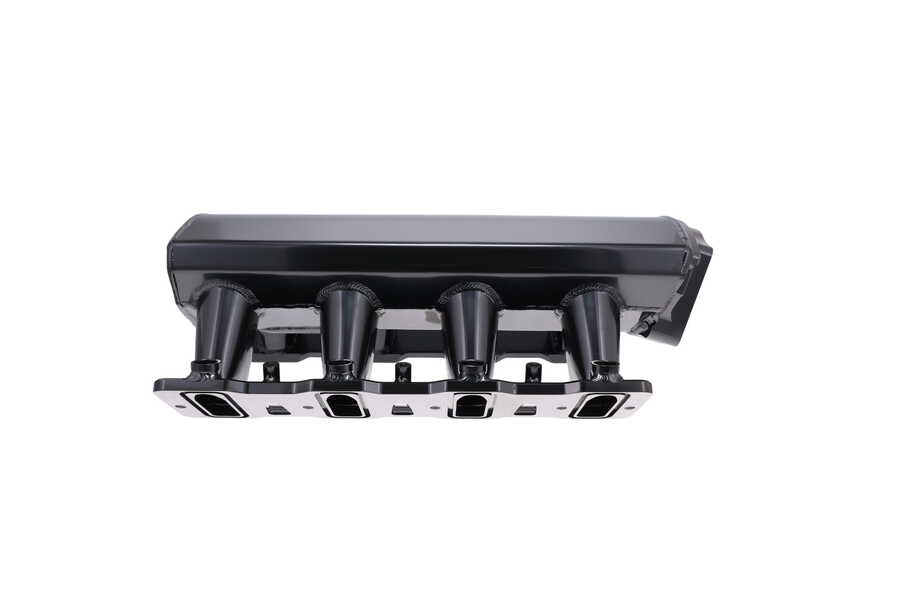

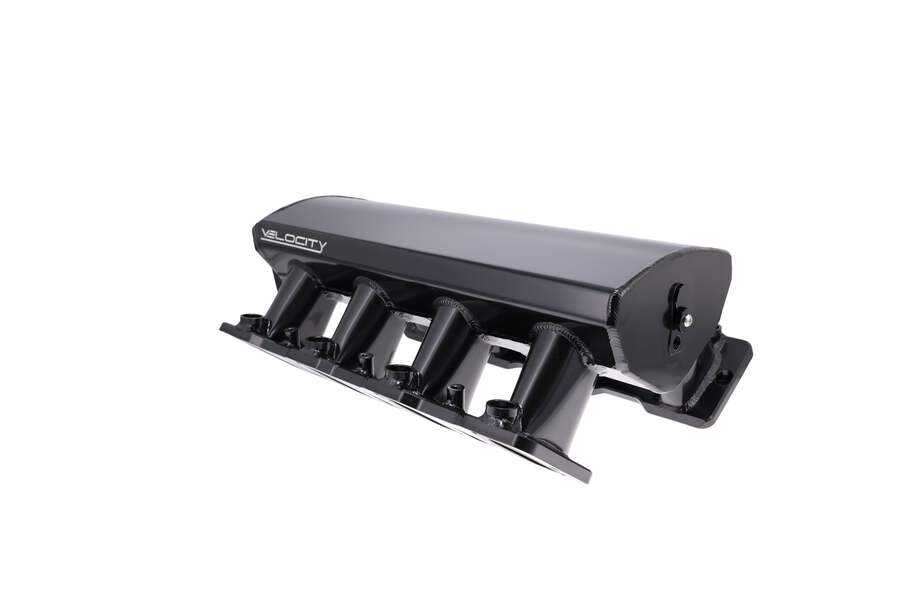

Upgrade your LS-powered build with the Top Street Performance GM LS 102mm Aluminum Intake Manifold. Designed for GM LS cathedral-port engines, this fabricated aluminum intake manifold delivers increased airflow capacity, improved throttle response, and enhanced high-RPM performance for street performance, drag racing, LS swap, and boosted engine applications.

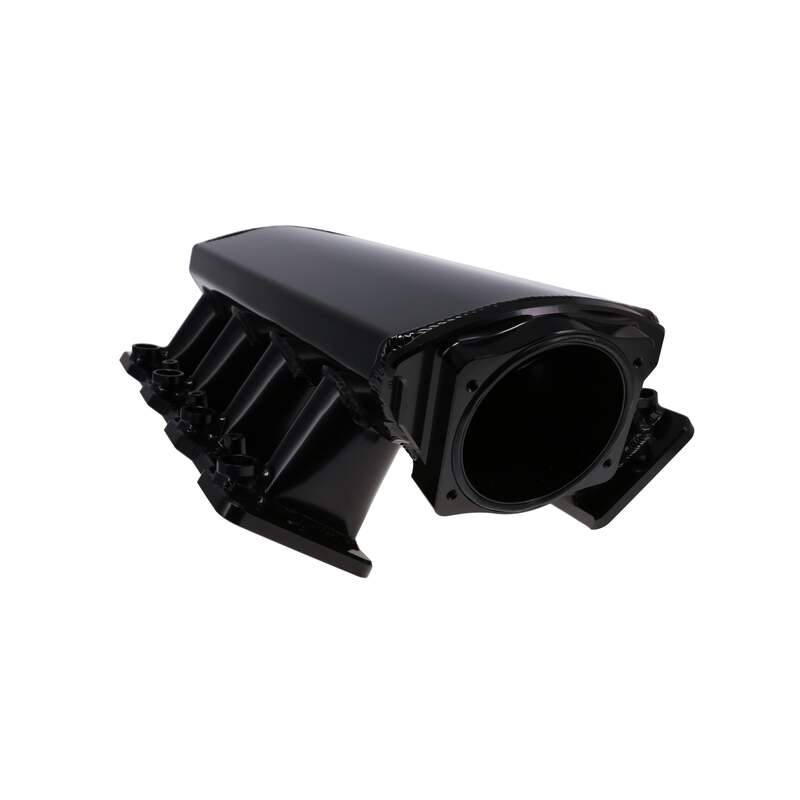

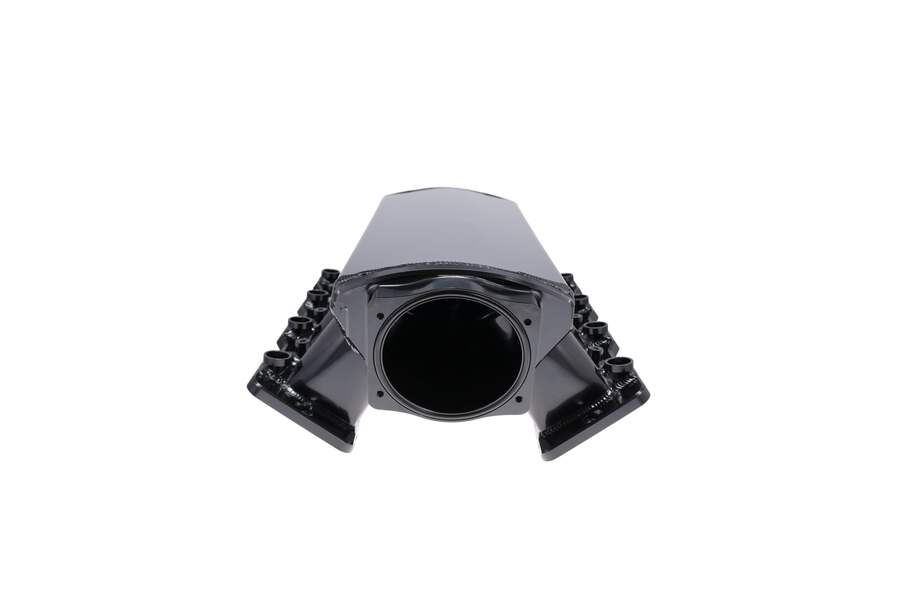

Engineered around a large 102mm throttle body opening, this LS intake manifold is designed to maximize airflow for high-output engine combinations. The fabricated aluminum construction features a large center plenum, short runners, and velocity stack runner entries that help improve airflow efficiency and cylinder distribution compared to many stock-style intake manifolds.

Constructed from TIG-welded T-6061 aluminum, this LS fabricated intake manifold provides exceptional durability while maintaining a lightweight design. Individual port O-rings help ensure a reliable seal at each intake runner and throttle body opening, while the black finish provides corrosion resistance and a clean performance appearance.

Whether you're upgrading a 5.3 LS intake manifold, building a high-performance 6.0 LS combination, completing a turbocharged LS project, or looking for a 102mm intake manifold capable of supporting serious horsepower, this LS aluminum intake manifold delivers the airflow and performance potential demanded by performance enthusiasts.

Fabricated Aluminum Intake Manifold Technology
The Top Street Performance LS 102mm Intake Manifold is engineered for enthusiasts seeking increased airflow and improved engine performance. Manufactured from TIG-welded T-6061 aluminum, this fabricated intake manifold utilizes a large center plenum, short runners, and velocity stack runner entries to help maximize airflow throughout the operating range. Individual port O-rings provide a secure seal while the black finish offers durability and corrosion resistance.

Performance Benefits
Designed for performance-oriented LS engine combinations, the single-plane intake design and 102mm throttle body opening support increased airflow demand for naturally aspirated and boosted applications. The runner and plenum design help provide balanced airflow distribution while supporting strong throttle response and high-RPM performance. Designed for a 1,500-6,500 RPM operating range.

COMPATIBLE WITH
GM LS Cathedral Port Engines
• 4.8 L / 293 in3 (LR4)
• 5.3 L / 325 in3 (L33, L59, LM4, LM7)
• 5.7 L / 346 in3 (LS1, LS6)
• 6.0 L / 364 in3 (LQ4, LQ9, LS2)

COMMON VEHICLE APPLICATIONS
• Chevrolet Silverado
• GMC Sierra
• Chevrolet Camaro
• Chevrolet Corvette
• Chevrolet Tahoe
• CTS-V

NOTES
• Fits LS-based engines with cathedral-port intake ports only
• Designed for electronic fuel injection applications
• 102mm throttle body opening
• Multi-port EFI configuration
• EV1 injector provisions
• LSA/LS9-style MAP sensor bung (GM #12592525)

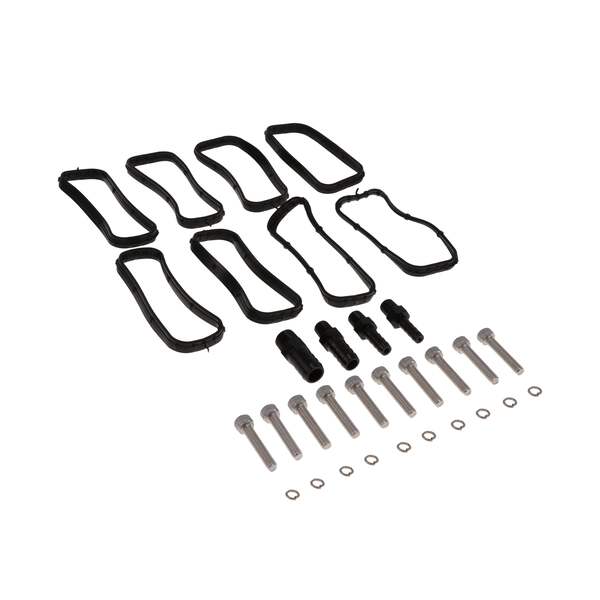

• Individual intake runner O-ring seals
• Verify hood clearance, fuel system compatibility, throttle body compatibility, and accessory clearance before installation
• Not compatible with rectangle-port LS cylinder heads

SPECIFICATIONS:
Basic Operating RPM Range: 1,500-6,500 RPM
Center Maximum Height: 6.750 in.
Color: Clear Anodized
Deck Height: Standard
Finish: Black
Front Maximum Height: 6.750 in.
Fuel Injection Style: Multi-port
Fuel Injector Stye Provision: EV1
Gasket Or Seal Included: Yes
Grade Type: Performance
Intake Port Shape: Cathedral
Material: Aluminum
Plenum Material: Aluminum
Plenum Thickness: 4 mm
Rear Maximum Height: 6.750 in.
Runner Length: 5.000 in.
Supplemental Boss Quantity: 4
Throttle Body Bore Size: 102 mm
