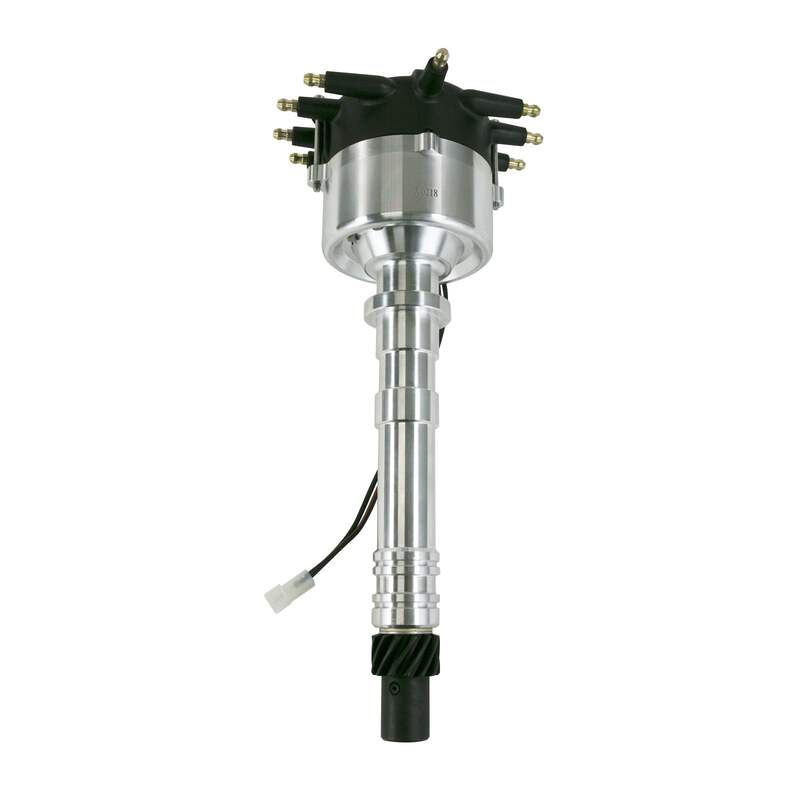

Low-Profile Pro Billet Distributor Crab Cap for Chevy V8 Big Small Block - Black


Low-Profile Pro Billet Distributor with Crab Cap for Chevy Small Block and Big Block V8 Engines

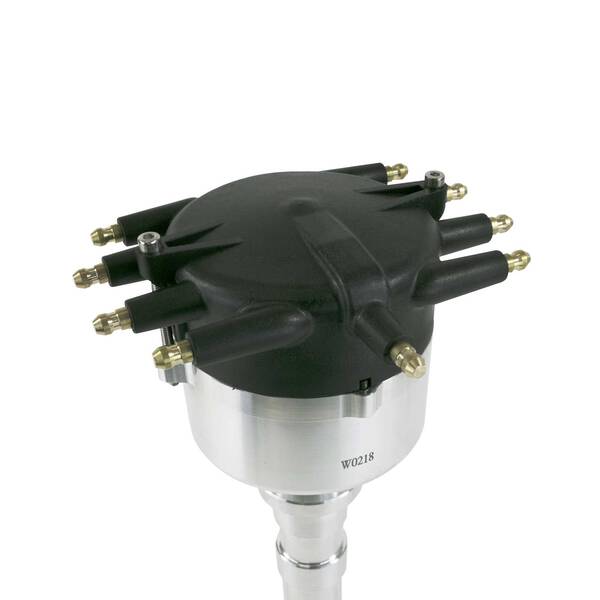

When engine bay space is limited — whether you're running a tall intake manifold, a large carburetor, or a hood clearance-sensitive build — a standard tall-cap distributor can become a problem. This TSP Pro Series Pro Billet distributor is built around a low-profile crab cap design that reduces overall height, giving you the clearance you need without sacrificing ignition performance on Chevy small block Gen. I or Mark IV big block V8 applications.

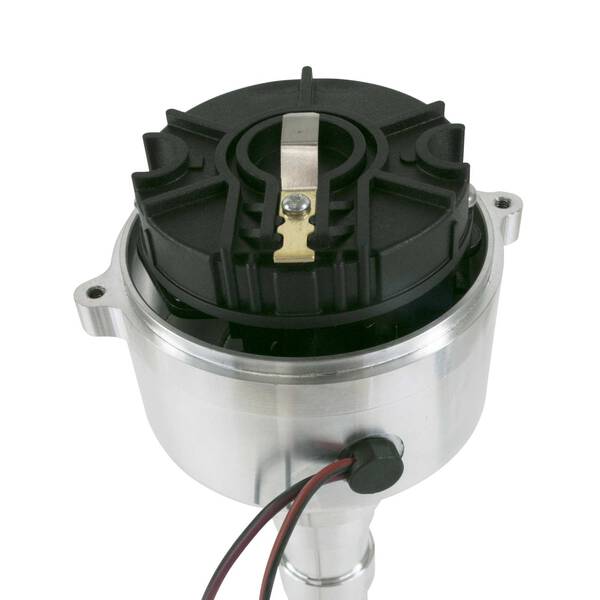

The machined aluminum housing is precision-built for strength and dimensional accuracy, and the magnetic trigger delivers a clean, consistent signal to your external ignition control box and coil across the full RPM range. Mechanical advance with three tunable bushings and four springs gives you direct control over your total advance curve — a key advantage for performance carbureted builds, engine swaps, and race-oriented street applications where factory-style computer-controlled timing is not part of the equation.

The adjustable slip collar allows you to fine-tune distributor phasing independently of the housing position, a useful feature when working with custom timing setups or performing precision ignition tuning. The steel distributor gear is compatible with cast iron hydraulic and solid flat-tappet camshafts — verify gear material compatibility with your camshaft manufacturer if your build uses a roller or specialty cam profile.

An external ignition control box is required and not included. This distributor produces 35,000+ volts through a compatible external coil. Includes three advance bushings, four advance springs for mechanical advance tuning.



Applications
Compatible with Chevrolet Small Block V8 Gen. I (262, 265, 267, 283, 302, 305, 307, 327, 350, 400 CID) and Chevrolet Big Block V8 Gen. II Mark IV (396, 402, 427, 454 CID). Confirmed common vehicle applications include Chevrolet Camaro, Chevelle, Nova, Impala, C10, Corvette, and GMC C/K trucks. Low-profile crab cap design is intended for engine bays where standard-height distributor caps create clearance conflicts. Will not fit tall deck blocks. Will not fit if a governor is installed.

COMPATIBLE WITH
CHEVROLET SMALL BLOCK V8 GEN. I
• 4.3 L / 262 in³
• 4.3 L / 265 in³
• 4.4 L / 267 in³
• 4.6 L / 283 in³
• 4.9 L / 302 in³
• 5.0 L / 305 in³
• 5.0 L / 307 in³
• 5.4 L / 327 in³
• 5.7 L / 350 in³
• 6.6 L / 400 in³

CHEVROLET BIG BLOCK V8 GEN. II (MARK IV)
• 6.5 L / 396 in³
• 6.6 L / 402 in³
• 7.0 L / 427 in³
• 7.4 L / 454 in³

NOTES
• Fits Chevrolet Gen. I small block and Gen. II (Mark IV) standard deck big block V8 engines.
• Low-profile crab-style cap design recommended for applications with limited distributor clearance.
• Mechanical advance only — no vacuum advance canister.
• Requires an external ignition box — not included.
• Not compatible with tall deck big block engines (366ci, tall deck 427ci truck engines).
• Not compatible with engines using a governor.
• Distributor gear is most compatible with cast iron hydraulic or solid flat tappet camshafts; consult cam manufacturer for recommended gear material.
• This distributor is designed for a 12 volt electrical system with an alternator and a performance ignition coil of 35,000 V or more.
• It is not compatible with a generator and cannot be uséd with a ballast resistor.

COMMON VEHICLE APPLICATIONS
Chevrolet Camaro (1967–1981)
Chevrolet Chevelle / Malibu / El Camino (1964–1977)
Chevrolet Nova (1966–1979)
Chevrolet Impala / Bel Air / Biscayne (1955–1976)
Chevrolet Corvette (1955–1982)
Chevrolet Monte Carlo (1970–1977)
Chevrolet C/K Trucks (1955–1987)
GMC C/K Trucks (1955–1987)

SPECIFICATIONS
Trigger Type: Magnetic
Advance Type: Mechanical
Cap Color: Black
Terminal Gender: Male
Mechanical Tach Drive: No
Slip Collar: Yes
Coil Included: No
Coil Type: External
Coil Output: 35,000+
Gear Material: Steel
Housing Material: Machined Aluminum
Ignition Box Required: Yes
Marine Use: No
Cylinders: 8
3 Bushings and 4 Springs for Mechanical Advance: Included
