xDuoo welcomes the all-new X5, a portable high-resolution audio player designed especially for the audio enthusiast within you. With a compact, handy design, the xDuoo X5 promises a top-quality audio experience. xDuoo has equipped the portable player with an advanced dual DAC chipset housing dual CS43131 DAC chips. For easy pairing with different IEMs and Headphones, the X5 features both 3.5mm single-ended as well as balanced 4.4mm connection ports. Enjoy your favourite music, and dive deeper into your library with the xDuoo X5. It supports high-capacity microSD cards(Up to 1TB) allowing you to carry your entire music library anywhere you go!!


SUPPORTS HD LOSSLESS SONGS

It supports up to DSD256

PCM32bit/384kHz at maximum, It accurately restores every note, allowing you to experience the authentic sound of master disc quality music.


SUPPORT A VARIETY OF MUSIC FORMATS

The X5 supports many kinds of music formats. Whether it's the professional like DSD and DXD, or common loss¬less formats such as WAV, APE, FLAC, and AIFF, it can handle them all with ease.

DSF, DFF, ISO, WAV, AIFF, FLAC, APE, MP3, WMA, OGG, M4A, AAC


HIGH-RESOLUTION DUAL DAC SETUP

In order to provide exceptional sound quality, the xDuoo X5 features a premium dual DAC setup. The player adopts dual CS43131 32-Bit DAC chips. They ensure high-resolution audio signal processing achieving high SNR, DNR performance with ultra-low THD+N performance.


PLAY WITH THE OUTPUT WITH 10-BAND EQ FUNCTION:

xDuoo X5 allows you to adjust the output to your liking. It has a builtin 10-band Equalizer that gives you a gain control range of ±12dB. You can fine-tune the output by finely adjusting the response for different frequency levels.


DUAL HEADPHONE OUTPUT PORTS:

xDuoo X5 houses a balanced and single-ended headphone output port. The device has a 4.4mm balanced headphone jack and a 3.5mm single-ended headphone jack. The balanced connection provides better performance with higher SNR, better resolution, and more dynamic overall response. The xDuoo X5 adopts a powerful amp section that outputs up to 270mW from the balanced headphone jack.


VOICE-ACTIVATED SONG SEARCH

xDuoo X5 features a unique voice-activated song search function. Once you are connected to the WiFi, you can search for songs via Voice commands. It will help you quickly find new songs


IN-CAR PLAY MODE

By connecting to the car's USB power supply, the X5 can start playing music simultaneously with the car's ignition. When the car is turned off, it will automatically shut down as well. It provides high quality audio sources for your car's sound system, allowing you to enjoy great music at any time during your journey!


USB DAC FUNCTION

When connected to a computer's USB port,it can not only transfer music files but also can be as a USB DAC, improving the audio

quality of the computer's output.It is an ideal choice for both listening to music and watching movies.


TWO-WAY BLUETOOTH AND USB DAC FUNCTIONALITY

xDuoo X5 supports two-way wireless Bluetooth connection with high-resolution SBC, AAC, and LDAC protocol support. With dual-way Bluetooth connectivity, the xDuoo X5 can be used as a sound source to transmit Bluetooth music signals to Bluetooth headphones and speakers. It can also connect to a smartphone or computer via Bluetooth and work as a Bluetooth decoder. You can also use the xDuoo X5 with your Computer, laptop, and smartphone as a USB DAC as well.


Main Parameters:

  • Power Source: built-in 3.7V/2600mAh lithium polymer battery

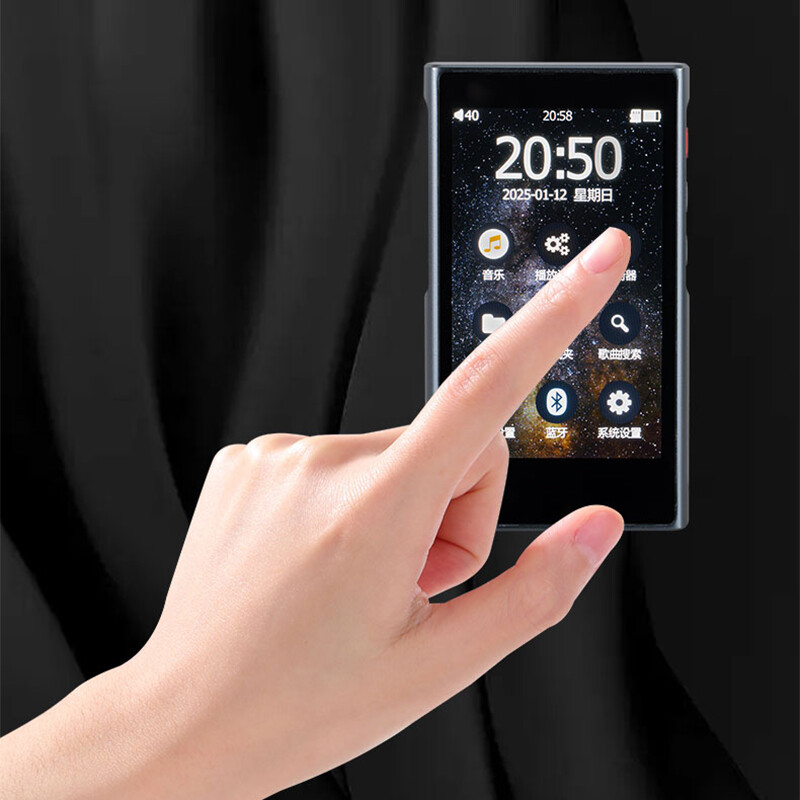

  • Screen: 3.5-inch IPS high-definition screen with a resolution of 480×800 pixels.
  • Operation: Multi-touch
  • TF Card Support: Supports up to 1TB TF/Micro SD cards (FAT32, EXFAT, NTFS).
  • Supported Music Formats:
    • DSD: DSD64-256(DSF、DFF、ISO)
    • WAV: 16-24Bit/44.1k-384kHz
    • AIFF: 16-24Bit/44.1k-192kHz
    • FLAC: 16-24Bit/44.1k-192kHz
    • APE: 16-24Bit/44.1k-192kHz
    • MP3:16Kbps-320 Kbps
    • WMA, OGG, M4A, AAC
  • Bluetooth Version：4.2
  • Bluetooth Functions: Input, Output.
  • Bluetooth Codes: SBC, AAC, LDAC.
  • USB DAC: Plug and Play.
  • Suitable Headphone Impedance: 16 - 300Ω
  • Battery Life: up to 10 hours.
  • Charging Time: About 3 hours.
  • Size：10.5*6.0*1.6cm
  • Weight：0.15kg

Output Parameters:

  • Unbalanced Headphone Output (3.5mm)
    • Output power: 200mW（32Ω/THD+N<0.001%）
    • Frequency Response: 20Hz~20kHz(±0.5dB)
    • SNR: ≥115 dB
    • Crosstalk: ＞75 dB
    • THD+N: 0.001%@1kHz（32Ω@1kHz）
  • Balanced Headphone Output (4.4mm)
    • Output power: 270mW（32Ω/THD+N<0.001%）
    • Frequency Response: 20Hz~20kHz(±0.5dB)
    • SNR: ≥120 dB
    • Crosstalk: ＞115 dB
    • THD+N: 0.0009%@1kHz（32Ω@1kHz）
  • Line Out (3.5mm)
    • Output level: 2.0Vrms
    • Frequency Response: 20Hz~20kHz(±0.5dB)
    • SNR: ≥115 dB
    • Crosstalk: ＞108 dB
    • THD+N: 0.001%@1kHz


​
