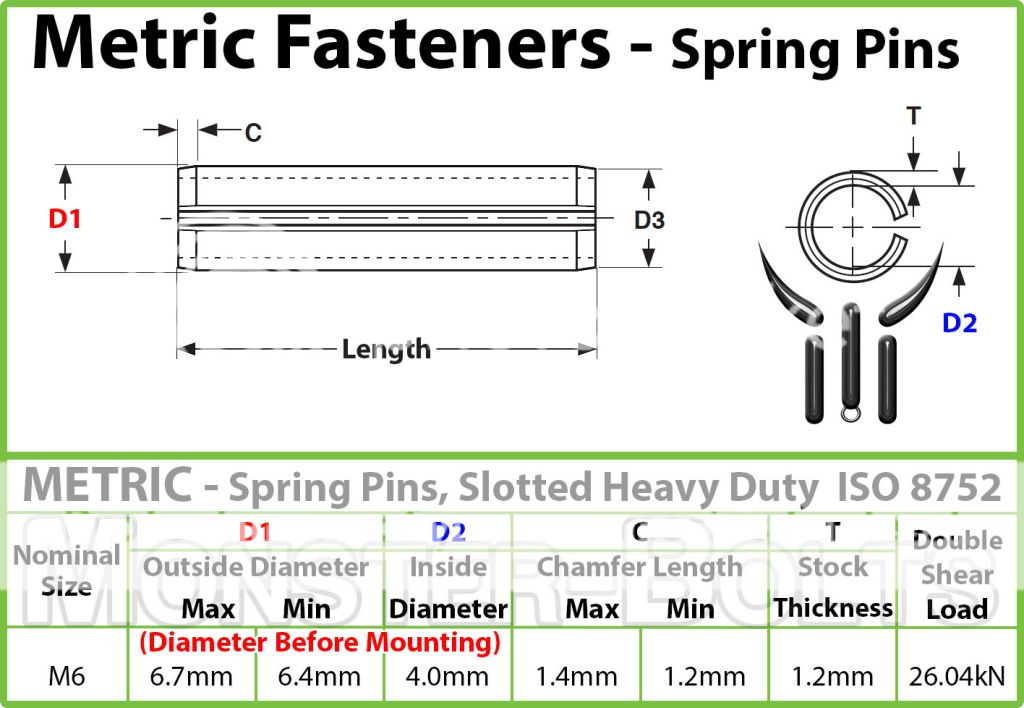

Bulk item - Metric M6 Slotted Spring Pins, to ISO 8752 specifications.  These are Heavy Duty Hardened Carbon Steel with Thermal Black.

Quantities are listed next to length for each item.

Nominal Pin Diameter :

 M6 / 6mm

Outside Diameter, before Mounting : 6.7mm - 6.4mm (Max / Min)

Inside Diameter, before Mounting : 4.0mm (Nominal)

Chamfer Length : 1.4mm - 1.2mm (Max / Min)

Stock Thickness :

 1.2mm

Double Shear Load, kN : 26.04 Min

Type :

 Slotted Spring Pin, Heavy Duty

System of Measurement :

 Metric

Material :

 Carbon Steel

Specifications :

 ISO 8752



Length and Quantity available :

M6 x 10mm - Qty 5,000

M6 x 12mm - Qty 5,000

M6 x 14mm - Qty 5,000

M6 x 16mm - Qty 5,000

M6 x 18mm - Qty 2,500 - Note Quantity change

M6 x 20mm - Qty 2,500

M6 x 22mm - Qty 2,500

M6 x 24mm - Qty 2,500

M6 x 26mm - Qty 2,500

M6 x 28mm - Qty 2,500

M6 x 30mm - Qty 2,500

M6 x 32mm - Qty 2,000 - Note Quantity change

M6 x 35mm - Qty 2,000

M6 x 36mm - Qty 2,000

M6 x 40mm - Qty 2,000

M6 x 45mm - Qty 1,000 - Note Quantity change

M6 x 50mm - Qty 1,000

M6 x 60mm - Qty 1,000

M6 x 65mm - Qty 1,000

M6 x 70mm - Qty 1,000

M6 x 75mm - Qty 1,000

M6 x 80mm - Qty 1,000

M6 x 85mm - Qty 500 - Note Quantity change

M6 x 90mm - Qty 500

M6 x 100mm - Qty 500
