Molecular Devices Spectramax Plus Plate Reader with Performance Test Validation ID 23577

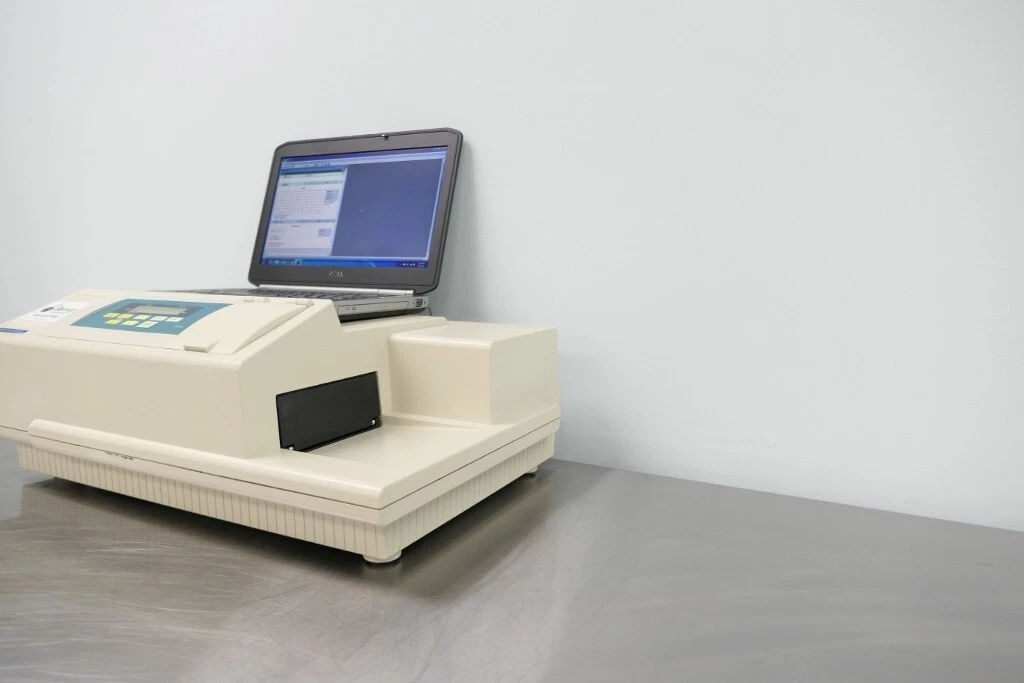

Molecular Devices Spectramax Plus Microplate Reader ID 23577

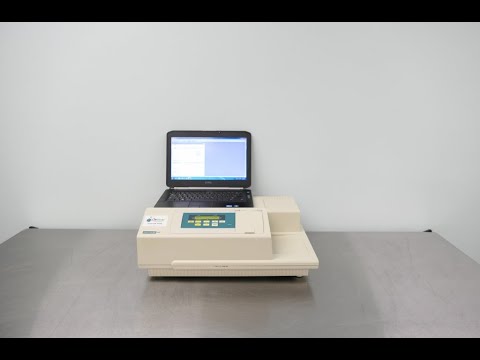

Video will open in a new window
Using the eBay App? Paste link into a browser window:

The Molecular Devices SpectraMax Plus provides an ultrafast, complete spectral range detection method for cuvettes and 96-well microplates with temperature-independent path length correction. This absorbance plate reader has a patented multi-channel optical design that mimics a dual-beam spectrophotometer, measuring each sample in the plate directly. This optical design eliminates measurement error due to variations in light output between optical fibers on other instruments for more reliable data reporting. The SpectraMax Plus has a wavelength of 190-1000 nm and a bandwidth of 2 nm. The nine-channel system delivers high precision and speed when reading cuvettes and 96-well microplates for endpoint measurements, kinetic assays, and spectral scans.

Specifications:

Wavelength Range 190 – 1000 nm
Wavelength Selection Monochromator, tunable 1.0 nm increments
Wavelength Bandwidth 2 nm
Wavelength Accuracy < ± 1.0 nm
Wavelength Repeatability ± 0.2 nm
Photometric Range 0.0 to 4.0 OD
Photometric Resolution 0.001 OD
Photometric Accuracy (Microplate) < ± 0.006 OD ± 1.0%, 0.0 – 2.0 OD
Photometric Accuracy (Cuvette)  < ± 0.005 OD ± 1.0%, 0.0 – 2.0 OD
Photometric Precision < ± 0.003 OD ± 1.0%, 0.0 – 2.0 OD
Photometric Baseline Flatness < 0.001 OD
Stray Light < 0.05% @ 230 nm
Light Source Xenon flash lamp
Microplate Read Time:
Normal Mode 96 wells in 12 seconds (single wavelength)

96 wells in 12* N seconds (N wavelengths)

Cuvette – 1 second
Kinetic read intervals 96 wells, 9-second minimum interval between readings (single wavelength)

1 column, 2-second minimum interval between readings (single wavelength)

Cuvette- 2-second minimum interval between readings (single wavelength)
Scan Speed
Cuvette: Normal scan 60*K nm/min (K = wavelength interval)
Cuvette: Speed scan 200*K nm/min
Microplate: Normal scan 33*K nm/min (8-well strip)
Microplate: Speed scan 135*K nm/min (8-well strip)
Temperature Range Ambient + 4 °C up to 45 °C when temperature regulation enabled. The ambient temperature must be >20°C to achieve temperature regulation at 45°C.
Temperature Uniformity (Microplate  ± 0.5 °C @ 37 °C
Temperature regulation 4 sensors
Dimensions 23x16x9”
Weight 29 lb (13.6 kg)
Power source 90-250 VAC, 50/60 Hz


Includes:

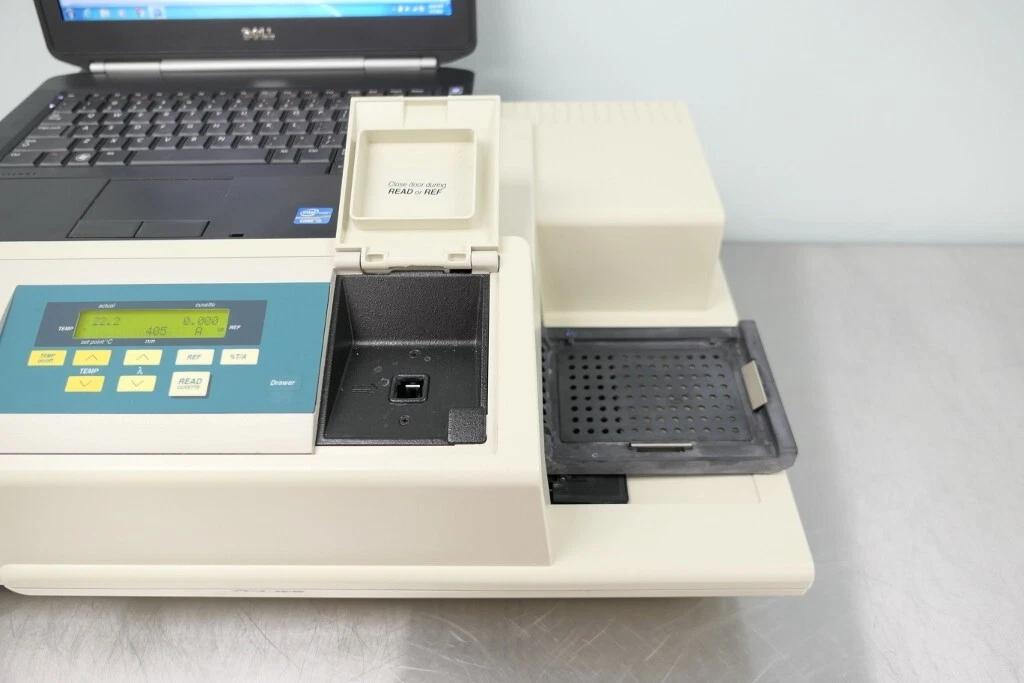

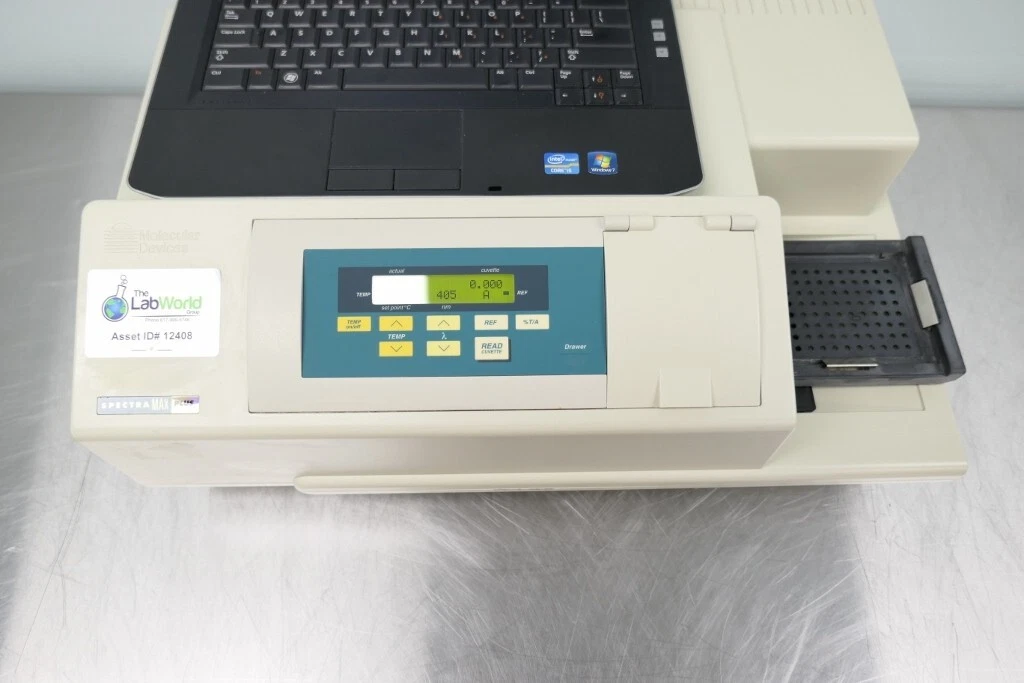

  • Molecular Devices Spectramax Plus Microplate Reader

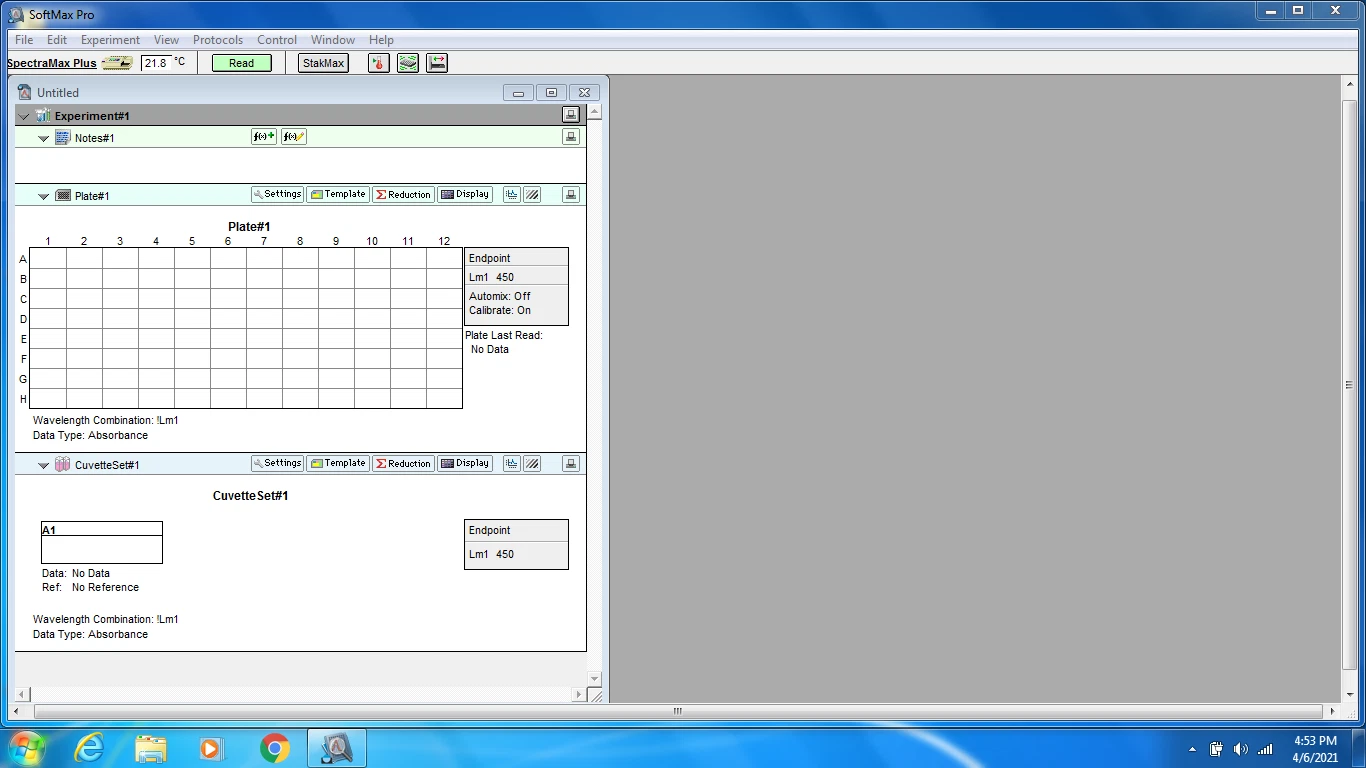

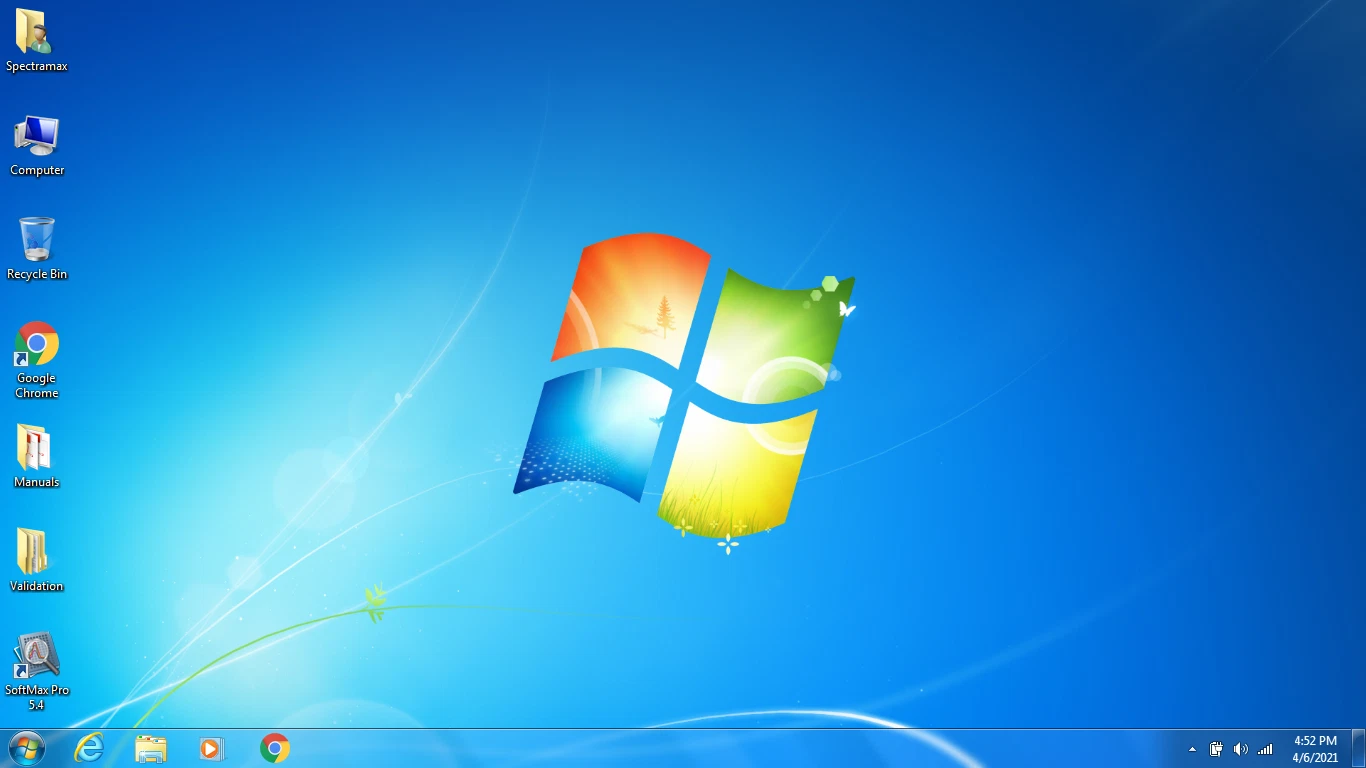

  • Laptop with SoftMax Pro 5.4
  • Absorbance Validation Report
  • Communication Cable
  • User Manual

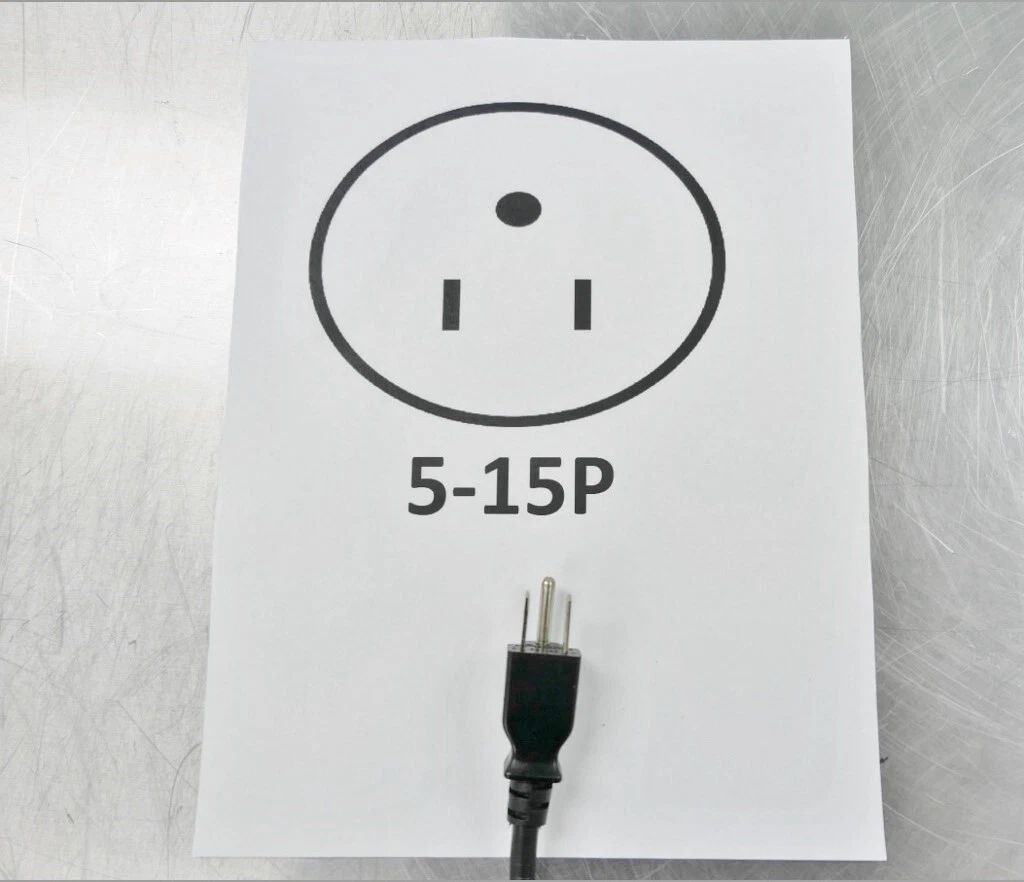

  • 120V Power Cord
  • 30-Day Warranty

Disclaimer: Please note any thermometers, gas supply tanks, regulators, or data-loggers seen in our photos is not included unless otherwise noted in the listing.  This is our testing tools to show buyer(s) the instrument is working properly up to manufacturer specification and has been tested by our service department.  If you see something and have questions please don’t hesitate to ebay message us.
