Solid State Logic SSL 2+ MKII - 2x4 USB Audio Interface

Solid State Logic SSL 2+ MKII - 2x4 USB Audio Interface

Brand New in Original Packaging
729707X2
Features
  • Ideal for producer, podcaster, and live-studio musician
  • Bus-powered, Mac or Windows compatible
  • 2 XLR mic preamps, 2 1/4-inch line, or Hi-Z ins
  • 2 discrete headphone and 4 1/4-inch line out
  • 32-bit, 192 kHz AD or DA converters
  • Legacy 4K analog enhancement
  • 48V, zero-latency monitoring
  • Stereo loopback and high-pass filters
  • MIDI I or O on 5-Pin DIN jacks
What's in the Box
  • 1 x Solid State Logic SSL 2 Plus MKII USB Audio Interface
  • 1 x USB Type-C Cable (1.5m long, Type-C to Type-C)
  • 1 x Type-C to Type-A USB Adapter
  • 1 x Safety Guide
  • 1 x SSL Production Pack Software Bundle (3 month trial)
Item Description
The original Solid State Logic SSL 2 Plus MKII - 2x4 USB Audio Interface raised the bar by delivering a level of performance never seen before in its class. SSL 2 Plus MKII builds upon the success of its predecessor, with a series of significant enhancements and carefully curated feature additions.
Class-Leading Mic Amps
The SSL 2 Plus MKII is equipped with two high-performance SSL-design microphone preamps delivering a massive 64 dB gain range, in conjunction with a class-leading 116.5 dB dynamic range and -130.5 dBu EIN.
Professional-Grade Outputs
The rear of the SSL 2 Plus MKII features four balanced outputs for studio monitors, rackmount kit, and FX pedals. With professional-grade outputs and a 120 dB dynamic range, it captures every detail.
Dual Headphone Outputs
The SSL 2 Plus MKII features independent headphone outputs conveniently located on the front panel. These re-engineered outputs (high-current NJM headphone amps) are capable of driving any type of headphones.
Ins and Outs

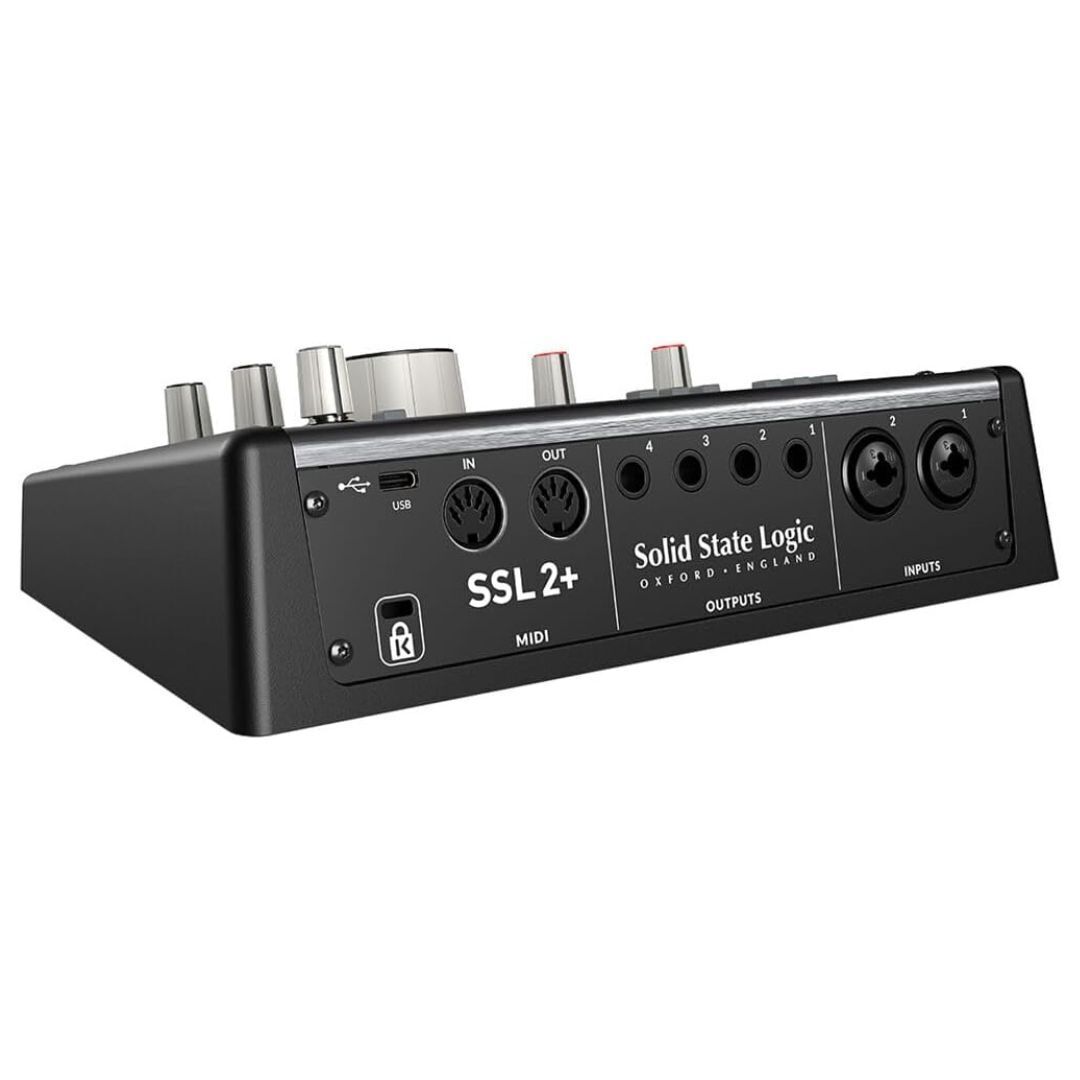

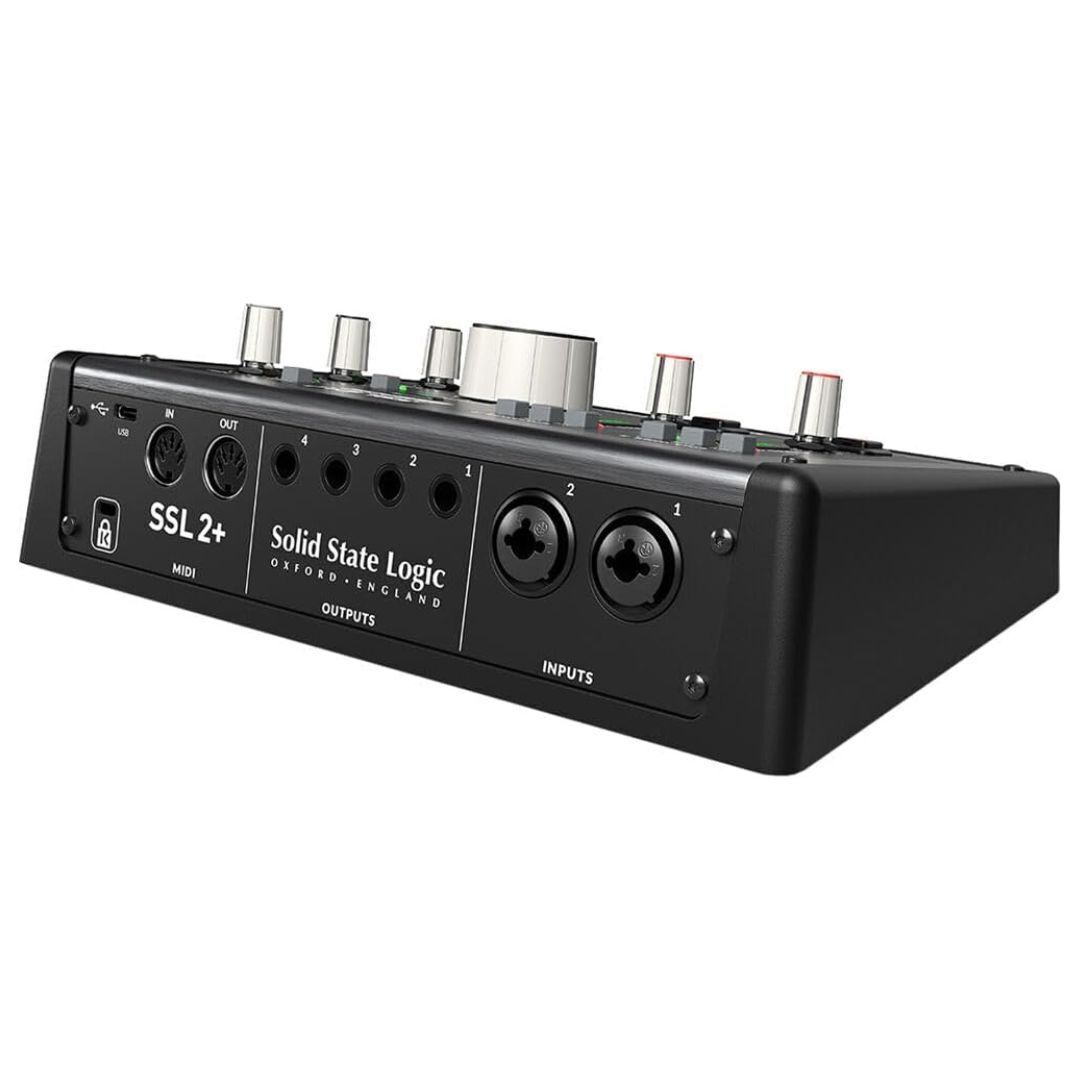

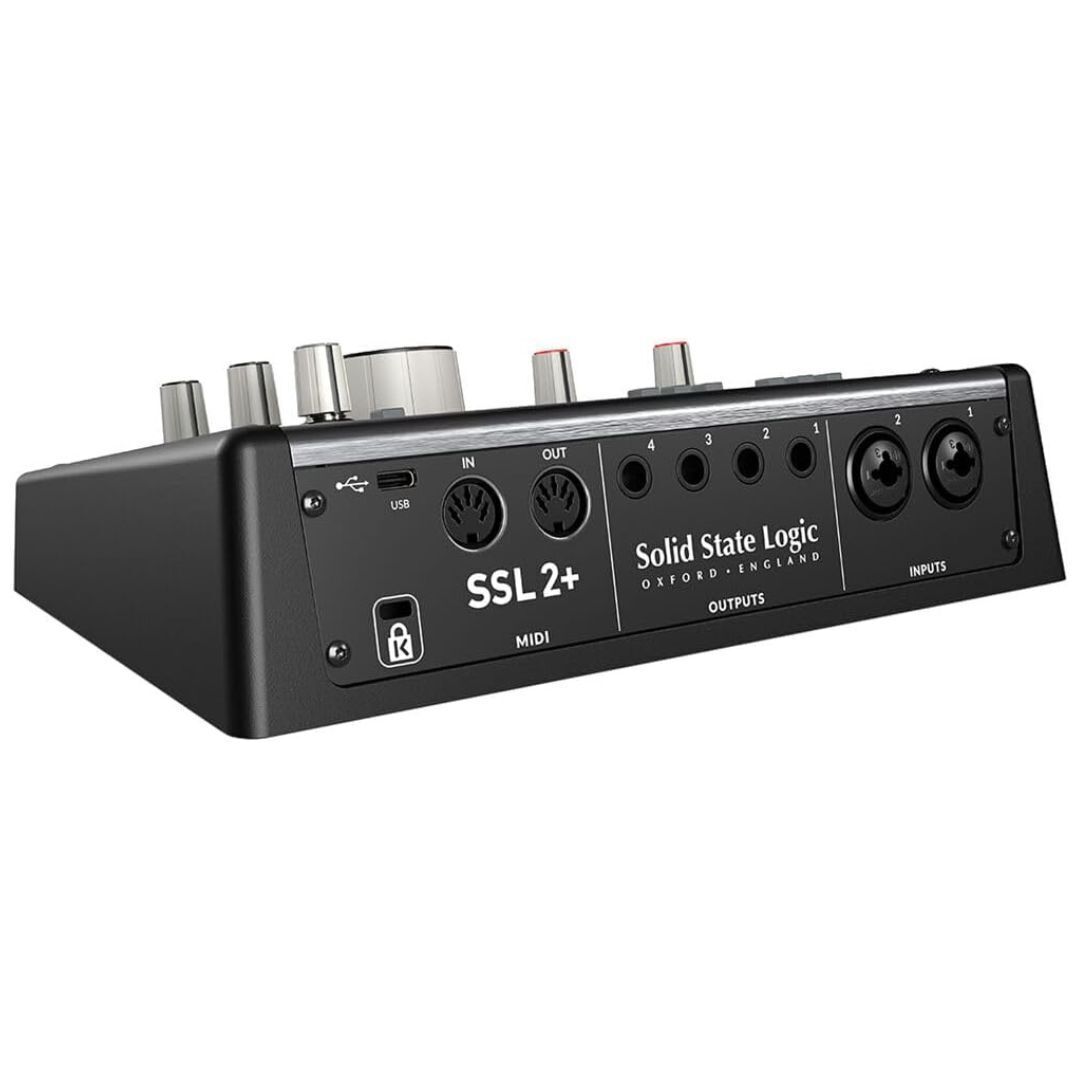

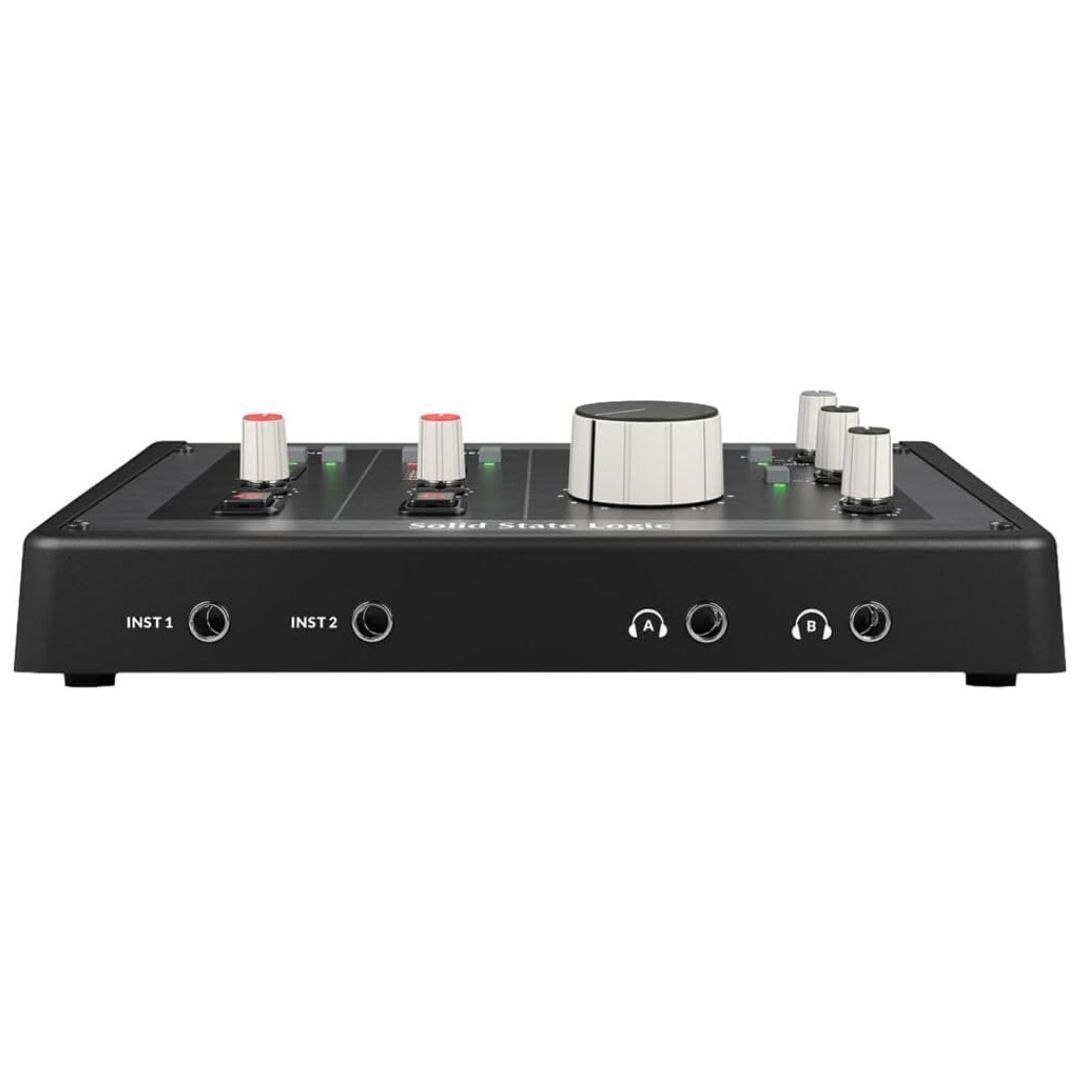

Front-access jack sockets provide convenient access to 2 instrument DI inputs and 2 independent outputs. On the rear, Neutrik XLR Combo sockets for Mic or Line inputs, 5-pin DIN MIDI I or O, and the USB.
Professional Studio Quality, Front to Back
The SSL 2 Plus MKII offers pro studio quality with next-gen converters, premium mic preamps, Neutrik connectors, and Alps pots. The updated front panel switches feature status LEDs for easy configuration.
Content Creators
Whether you are recording a podcast, live streaming via social media, or performing karaoke online with friends, SSL 2 Plus MKII is equipped with all the tools you need to make content with amazing sound. Class-leading mic preamps allow you to capture every nuance of your conversation or voiceover.
Music Producers
The SSL 2 Plus MKII interface features dual professional-grade headphone outputs, next-gen converters, and punchy mic or line inputs, capturing every detail of your sound. Paired with the SSL Production Pack, it’s your perfect studio sidekick, providing all the tools needed to create quality music.
Legacy 4K Analogue Enhancement Circuit
The SSL 4000 series consoles (often referred to as '4K') are renowned for imparting a unique 'mojo' to sounds and instruments that pass through them. This mojo comes from multiple stages of harmonic distortion from compressor VCAs, VCA faders, and other crucial components such as the transistor mix amps. Using modern components, SSL has developed a circuit that distills the two essential characteristics of the 4K sound into a single design. Legacy 4K Analogue Enhancement injects a controlled amount of finely-tuned, sweet-sounding harmonic distortion and a 'forward yet musical high-frequency EQ boost into the signal path, giving your sound the 4K mojo and presence that artists and engineers have loved for decades.
Next-Gen 32-bit 192 kHz
High-quality audio conversion is essential for artists and engineers alike and the SSL 2 Plus MKII is built around Next-Gen 32-bit 192 kHz Converters. The result is clearer, more detailed recordings, preserving every nuance of your performance. Capture stunning acoustic performances, and record drum machines, and synths with more punch and texture. Make your live streams sound like professional broadcasts and mix quicker and easier as sounds are more defined.
Specifications

Mic Preamps

  • Number of Preamps: 2 XLR Preamps
  • Gain Range: 64 dB
  • Dynamic Range: 116.5 dB A-weighted
  • Maximum Input Level: +9.7 dBu
  • Gain Range: 64 dB
  • Input Impedance: 1.2 kohm

Instrument Inputs

  • Inputs Location: At the front panel
  • Number of Inputs: 2 x Hi-Z (DI) 1/4-inch input jacks
  • Dynamic Range: 116 dB A-weighted
  • Max Instrument Input Level: +15 dBu

Line Inputs

  • Inputs Location: At the rear panel
  • Number of Inputs: 2 x Combo XLR / 1/4-inch Jack Input Sockets
  • Dynamic Range: 117 dB A-weighted
  • Max Line Input Level: +24 dBu
  • Input Impedance: 14 kohm

Balanced Line Outputs

  • Outputs Location: At the rear panel
  • Number of Line Outputs: 4 inputs
  • Sockets / Output Type: 4 x 1/4-inch TRS Jack Output Sockets
  • Dynamic Range: 120 dB A-weighted
  • Max Output Level: +14.5 dBu
  • Signals: All outputs are also DC-coupled and able to send +/-5v signal to allow CV control to Semi and Modular Synths, Eurorack and CV-enabled outboard FX.

MIDI In and Out

  • MIDI Functionality: The MIDI (DIN) In and Out allow the SSL 2+ MKII to be used as a MIDI interface.
  • MIDI In Port: MIDI IN will receive MIDI signals from keyboards or controllers
  • MIDI Out Port: MIDI OUT allows MIDI information to be sent out to trigger Synths, Drum machines or any MIDI controllable equipment you have available.

Headphone Outputs

  • Outputs Location: At the front panel
  • Number of Outputs: 2 x 1/4-inch Output Jacks
  • Controls: Outputs with individual level controls
  • Dynamic Range: 119.5 dB A-weighted
  • Max Output: +13 dBu
  • Frequency Response: +/- 0.05 dB

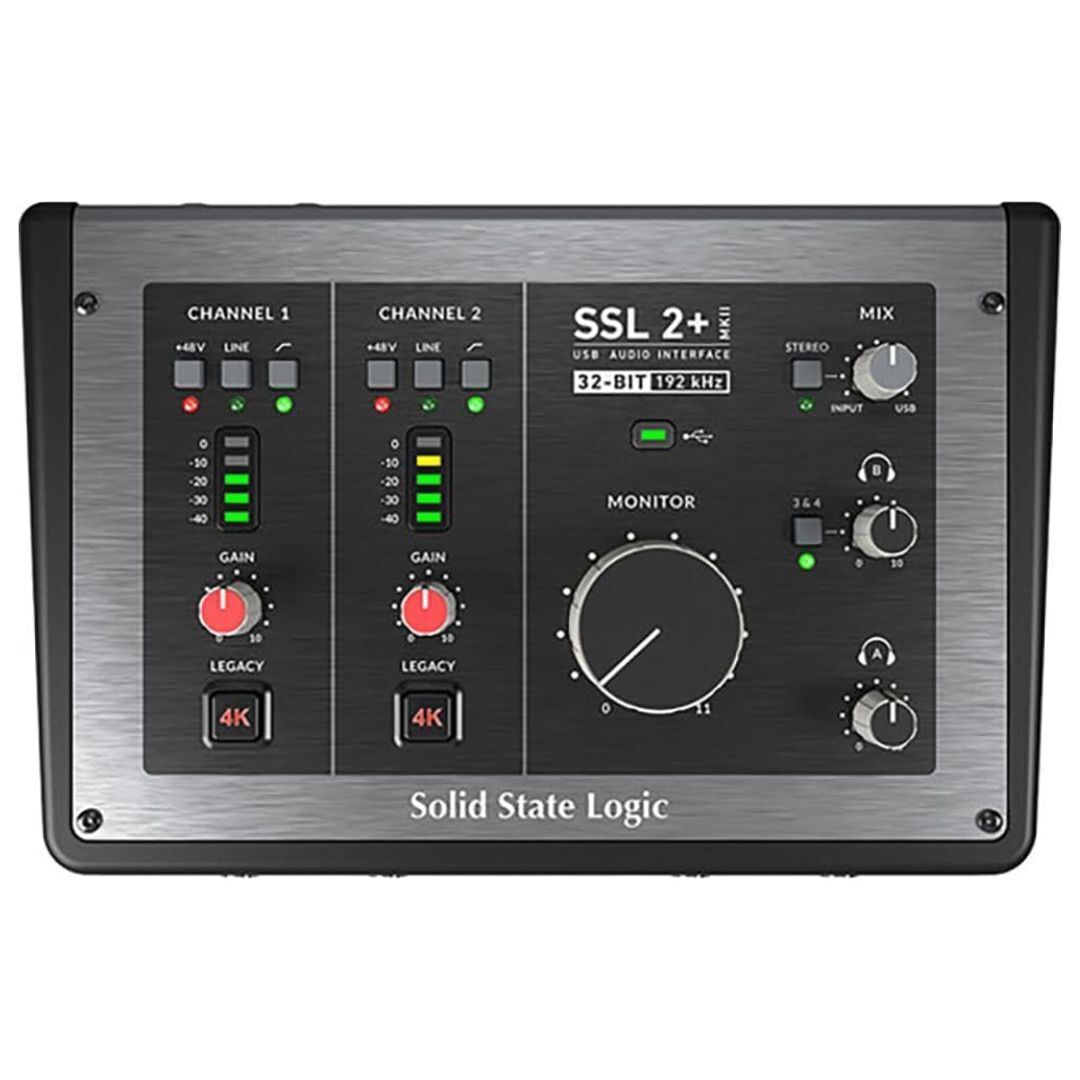

Input Channels 1 and 2

  • +48V: This switch enables phantom power on the combo XLR connector, which will be sent down the XLR microphone cable to the microphone.
  • Line: This switch changes the source of the channel input to be from the balanced Line input.
  • Hi-Pass Filter: This switch engages the Hi-Pass Filter with a cut off frequency at 75Hz with an 18dB/Octave slope.
  • LED Metering: 5 LEDs show the level at which your signal is being recorded into the computer. Scale markings are in dBFS.
  • Gain: This control adjusts the pre-amp gain applied to your microphone, line-level source or instrument.
  • 4K: It injects a combination of high-frequency EQ-boost, together with some finely tuned harmonic distortion to help enhance sounds.

Monitoring Section

  • Mix: This control directly affects what you hear coming out of your monitors and headphones.
  • Green USB LED: Illuminates solid green to indicate that the unit is successfully receiving power over USB.
  • Monitor Level: This control directly affects the level sent out of Outputs 1 (Left) and 2 (Right) to your monitors.
  • Headphones Outputs: Phones A and B allow for two sets of headphones to be connected, both of which can be configured to allow independent mixes for artists and engineers.
  • 3 and 4 Button: When unselected, Headphones B will receive the same mix as Headphones A (DAW Outputs 1-2). Engaging this button sources Headphones B from DAW Outputs 3-4

Connectivity and Security

  • Digital Interface: Not Available
  • Wireless Connectivity: Not Available
  • USB 2.0 Ports: 1 x USB Type-C
  • Media/Memory Card Slot: Not Available
  • Security Slot: The Kensington Security Slot can be used with a Kensington Lock to secure your SSL 2+ MK II.

Audio Performance

  • Sample Rate: 48kHz, Bandwidth: 20 Hz to 20 kHz
  • Measurement Device Output Impedance: 40 ohm (20 ohm unbalanced)
  • Measurement Device Input Impedance: 200 kohm (100 kohm unbalanced)

Operating Systems and Software

  • System Requirements (Mac): Mac OS 12 and above (Class-Compliant, Plug-and-play functionality)
  • System Requirements (Windows): Windows 10. Windows 11, and Windows 11 ARM (Requires ASIO/WDM driver to work properly)
  • Included Software: SSL Production Pack Software Bundle (3 month trial)

Dimensions and Weight

  • Product Dimensions (WxDxH): 234 mm x 159 mm x 70 mm (including knob heights)
  • Package Dimensions (WxDxH): 277 x 198 x 104 mm
  • Product Weight: 0.9 Kg
  • Package Weight: 1.22 kg
