Details
Descriptions:
1. Water flow sequence: enter water from the high pressure end, flow to the low pressure end, and ensure that the tungsten rod at the high pressure end is upward (tungsten rod structure laser tube), the water inlet is at the bottom, the tungsten rod at the low pressure end is placed downward, and the water outlet is at the top (applicable to All structured laser tubes). Drain all the air bubbles and fill it with water (no water, no water, and air bubbles will cause the inner tube to burst, and the warranty will not be covered). Finally, fasten the rubber tube with cable ties, so that no water seeps out, so as to prevent the ignition failure outside the tube caused by water leakage.
2. Required flow rate: 4-5 liters/minute of water flow. If you use a water pump, please ensure that the water quality is pure, and replace the pure water once a week.
3. Water temperature requirements: within 30 degrees, the higher the water temperature, the greater the power fluctuation of the laser tube, and the speed will obviously weaken.
4. Wiring treatment: After pulling out the high-voltage wires and low-voltage wires, wrap the copper wires tightly under the screw gaskets at both ends, tighten the screws to clamp the copper wires, (use electrical plastic bags to wrap the wires thickly, and wrap them as wide as possible. thicker, which can more effectively prevent ignition leakage, etc.), and then cover the high-voltage dust cover specially equipped for the high-voltage end to compress the entire high-voltage end, and use plastic wrap to wrap the high-voltage end or the entire pipe body to prevent dust Potential malfunction due to contamination of ambient humidity.

Package List:
1x CO2 Laser Tube

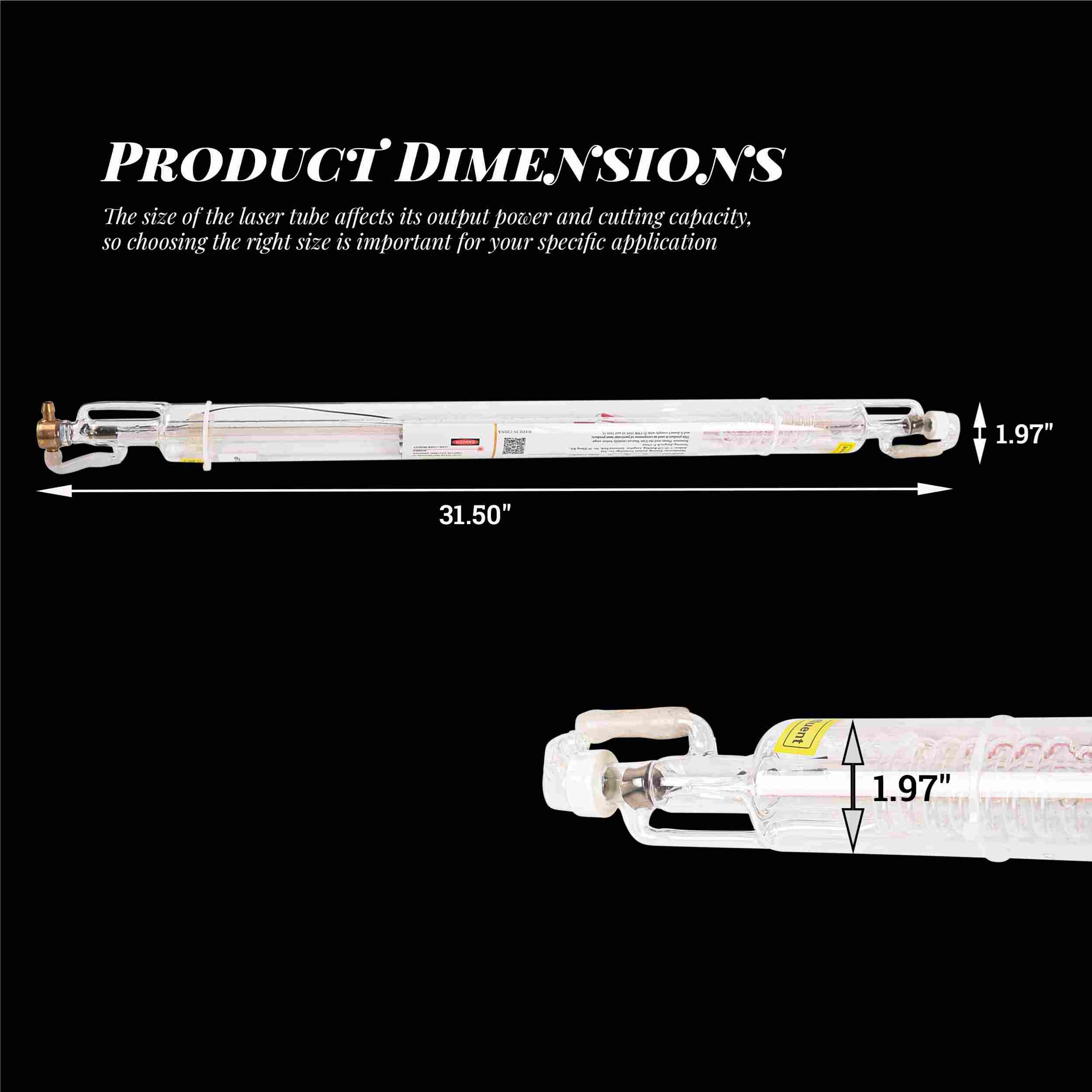

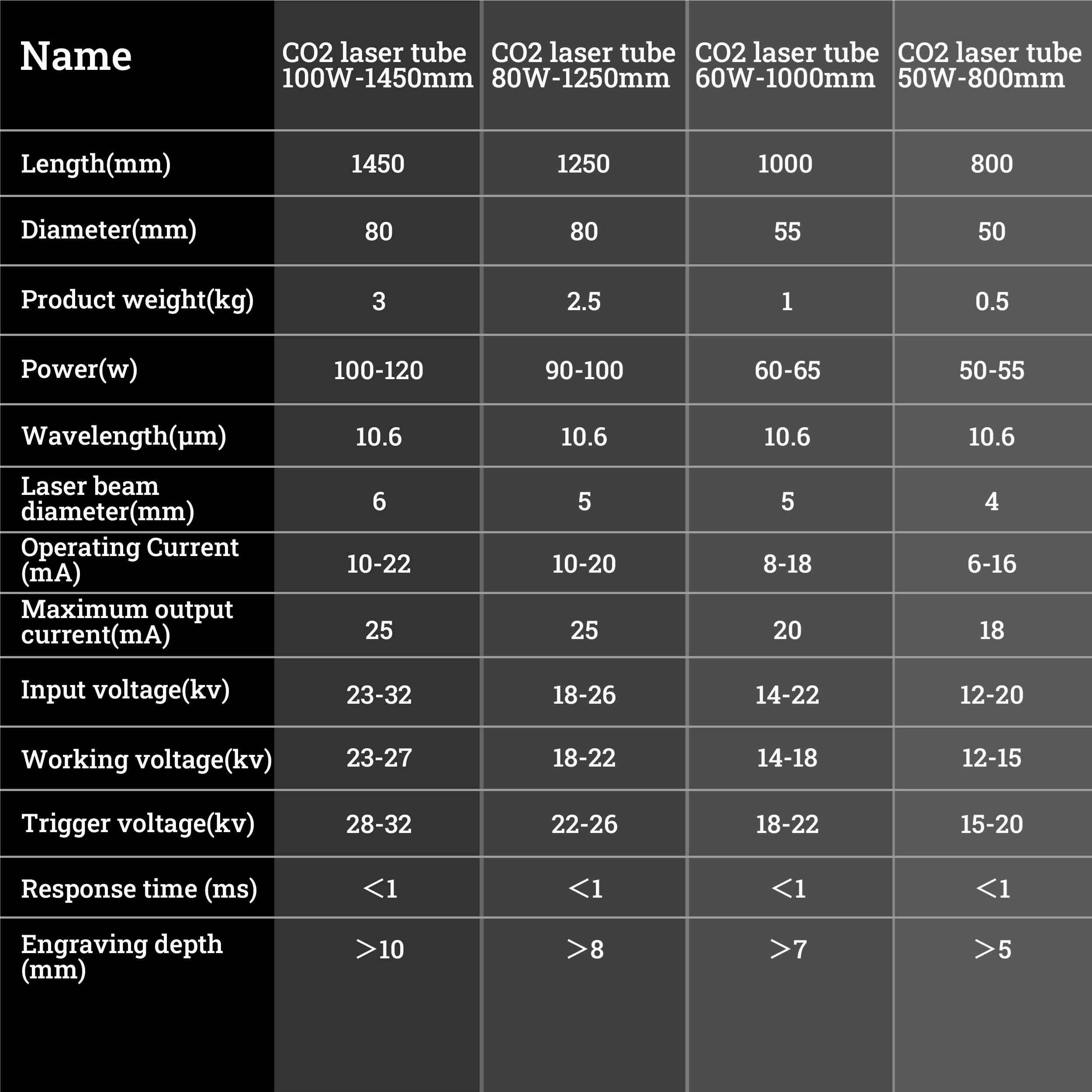

Power: 50W -55W Length: 800mm Diameter: 50mm;
Versatile and an excellent replacement for laser tubes of the same power or length. Please check the diameter and length of the laser tube before ordering to ensure that the laser tube can be installed on the machine as a replacement.

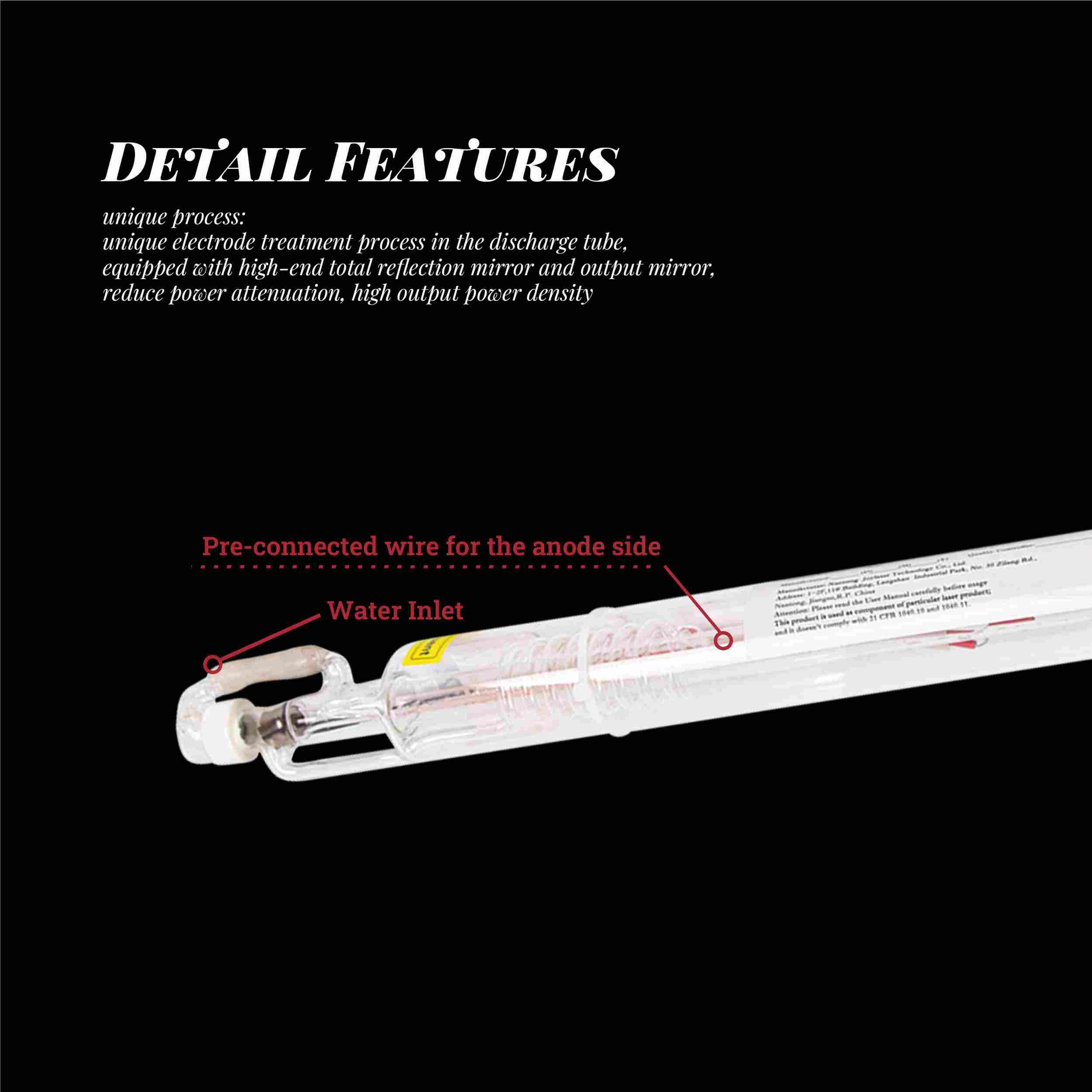

Pre-wiring: For the convenience of installation, the high-voltage and low-voltage ports have been connected in advance.

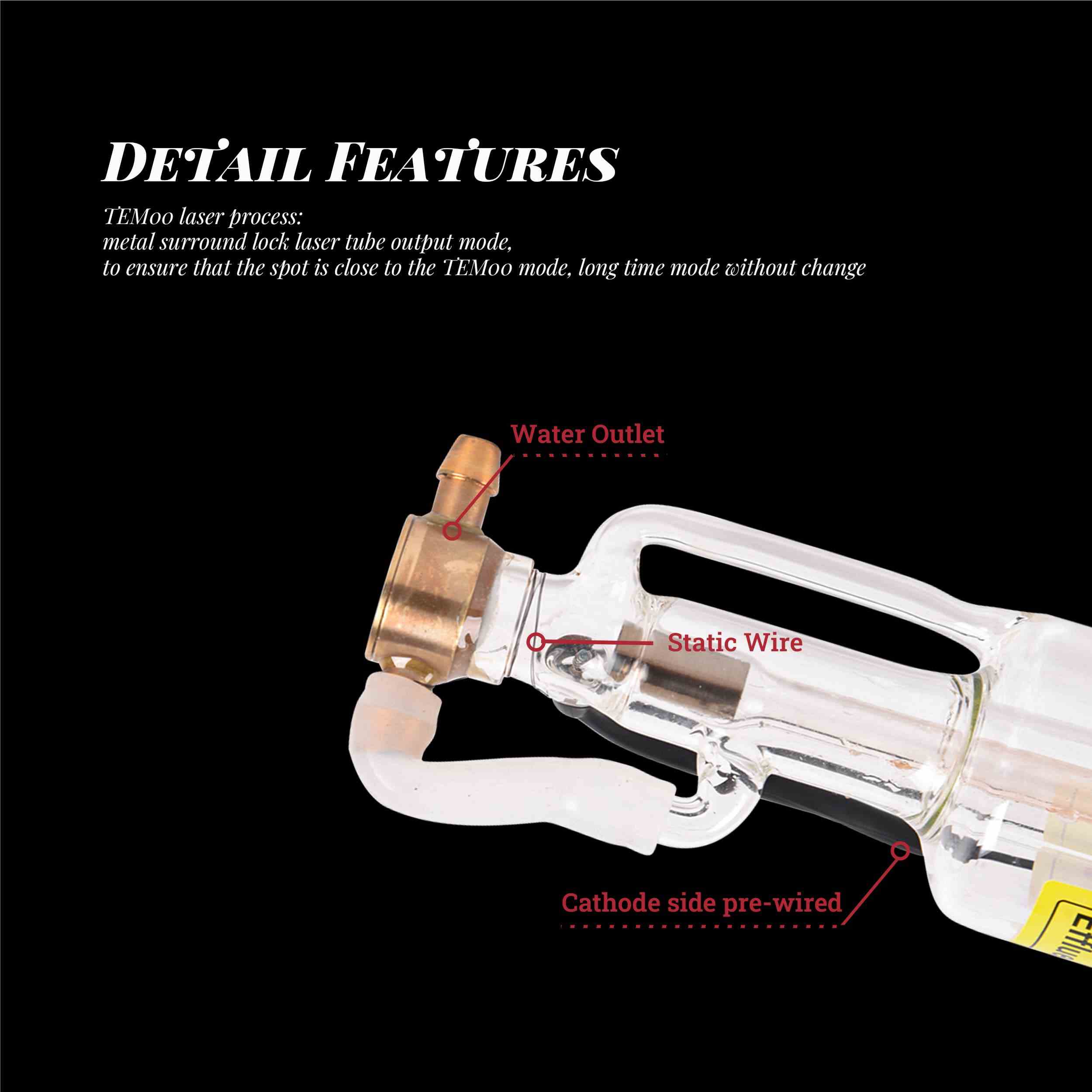

TEM00 mode: the output laser is TEM00 mode, with high spot concentration, high energy density, and stable spot, which makes the laser machine perform better.

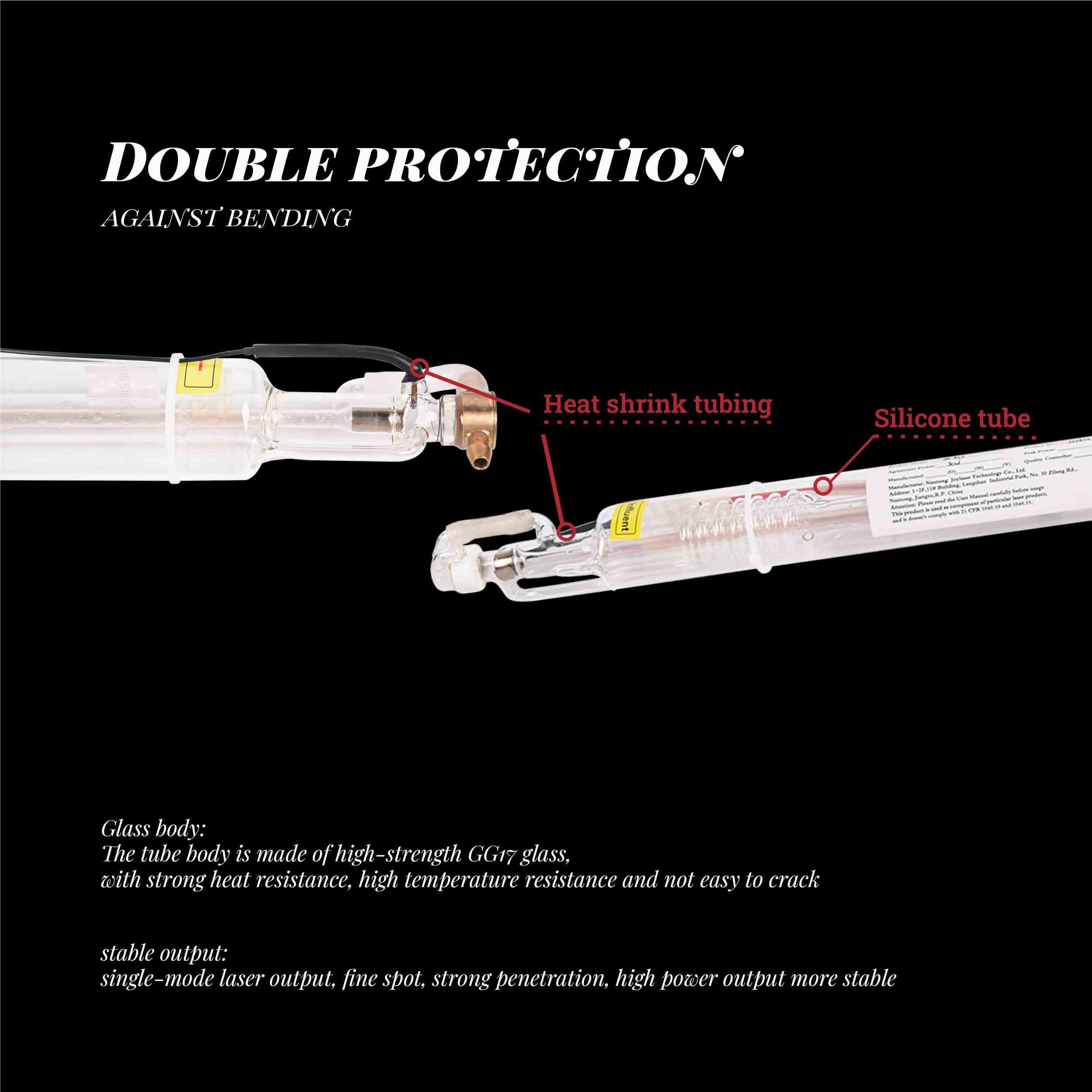

Metal head: The metal head is not as easy to break as the glass head laser tube, and has a longer service life.

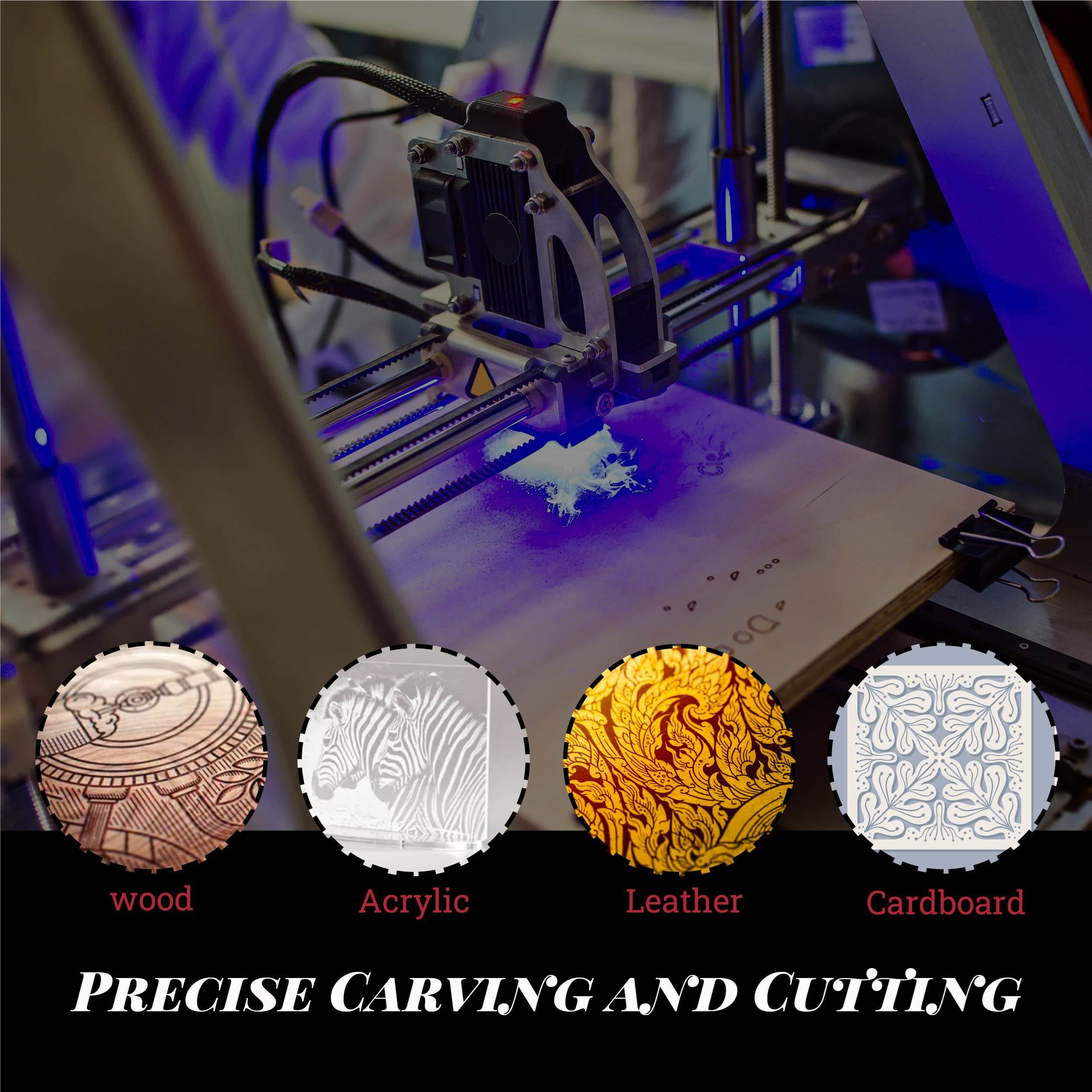

This CO2 laser tube is mainly used for laser cutting machine or laser engraving machine, which can engrave and cut acrylic, cloth, leather, bamboo, wood, engraving, etc.

We only ship to US mainland 48 states and worldwide via ebay international shipping program. We don't offer direct international shipping. Consult us if you live in Hawaii, Alaska or Virgin Islands. Also we don't ship to any APO/FPO/PO BOX address. We offer FedEx Ground or Home delivery in optional which can make it faster, charge additional shipping fee.

Delivery is any day from 1-4 business days (Monday through Friday, excluding weekends and holidays)

This item is covered by our 12 months unlimited mileage warranty.
