LED Controllers

We provide an extensive range of RF 2.4GHz wireless dimmer systems, RF CCT, RF RGB/RGBW and other full-series lighting control systems. Designed to work seamlessly with a wide variety of LEDs, that include low voltage LEDs of 5V, 12V, 24V and up to 48V, as well as mains voltage 100V-240V. Whatever the installation requirements are, you will always find a controlling and dimming solution to create the perfect lighting ambience with the range that is available here.

Note: To operate your lighting via the controller a remote control will be required. A selection of remotes and touch panels are available. Please scroll down to view all options.

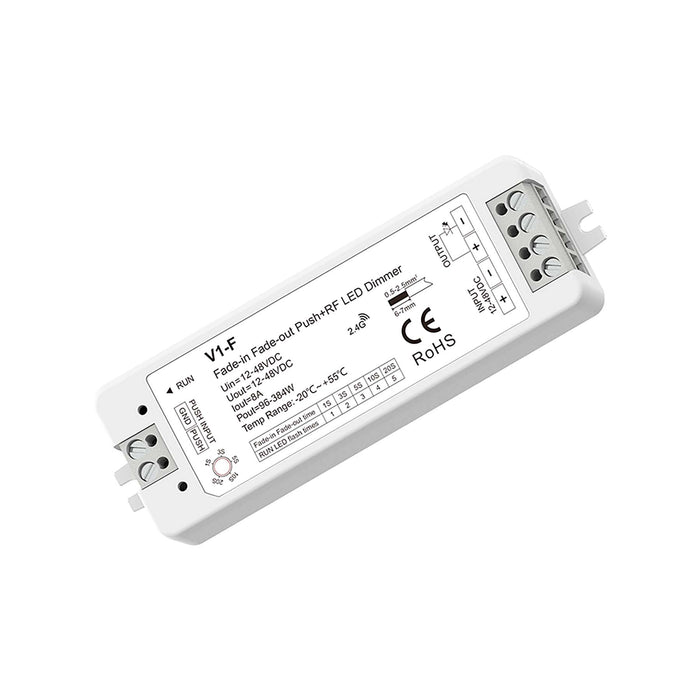

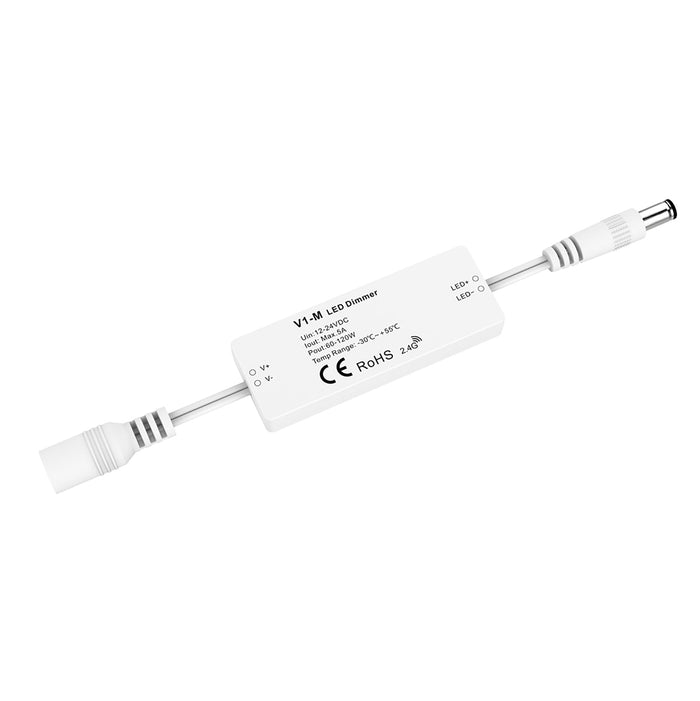

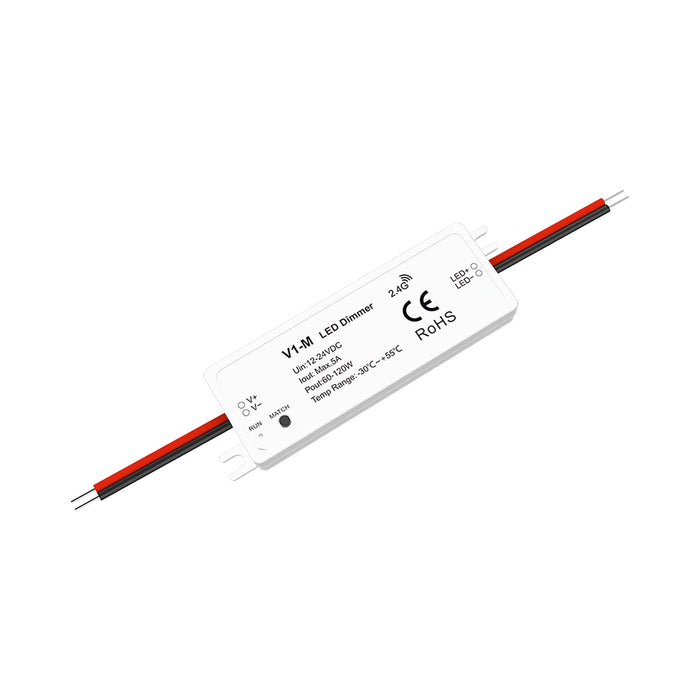

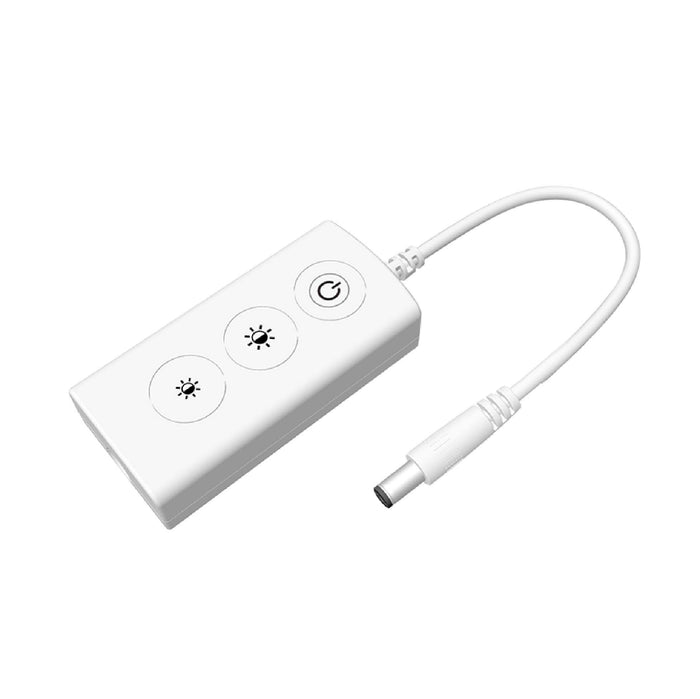

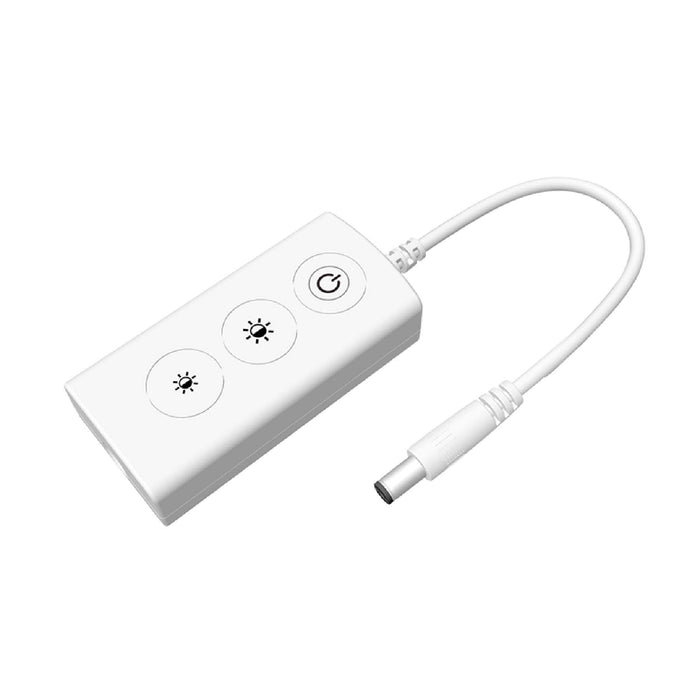

	V1-M(D) Dimming Controller	V1-M Dimming Controller	V1-F Fade-In Fade-Out Dimmer	VD1 Dimming Controller	VD1(WT) Dimming Wifi Controller
Input Voltage	DC12-24V	DC12-24V	DC12-48V	DC5-24V	DC5-24V
Output Voltage	DC12-24V	DC12-24V	DC12-48V	DC5-24V	DC5-24V
Output Current	Max. 5A	Max. 5A	1CH, 8A	Max. 5A	Max. 5A
Output Power	60W@12V, 120W@24V	60W@12V, 120W@24V	96-384W	25W@5V, 60W@12V, 120W@24V	25W@5V, 60W@12V, 120W@24V
Input Signal	RF 2.4GHz	RF 2.4GHz	RF 2.4GHz+Push Dim	RF 2.4GHz+3 Button	RF 2.4GHz+3 Button+Tuya APP
PWM Frequency	500Hz	2KHz	2KHz	2KHz	2KHz
IP Rating	IP20	IP20	IP20	IP20	IP20
Protection	Reverse Polarity, Over Heat, Short Circuit	Reverse Polarity, Over Heat, Short Circuit	Recover Automatically, Overheat, Overload, Short Circuit	Over Heat, Short Circuit	Over Heat, Short Circuit

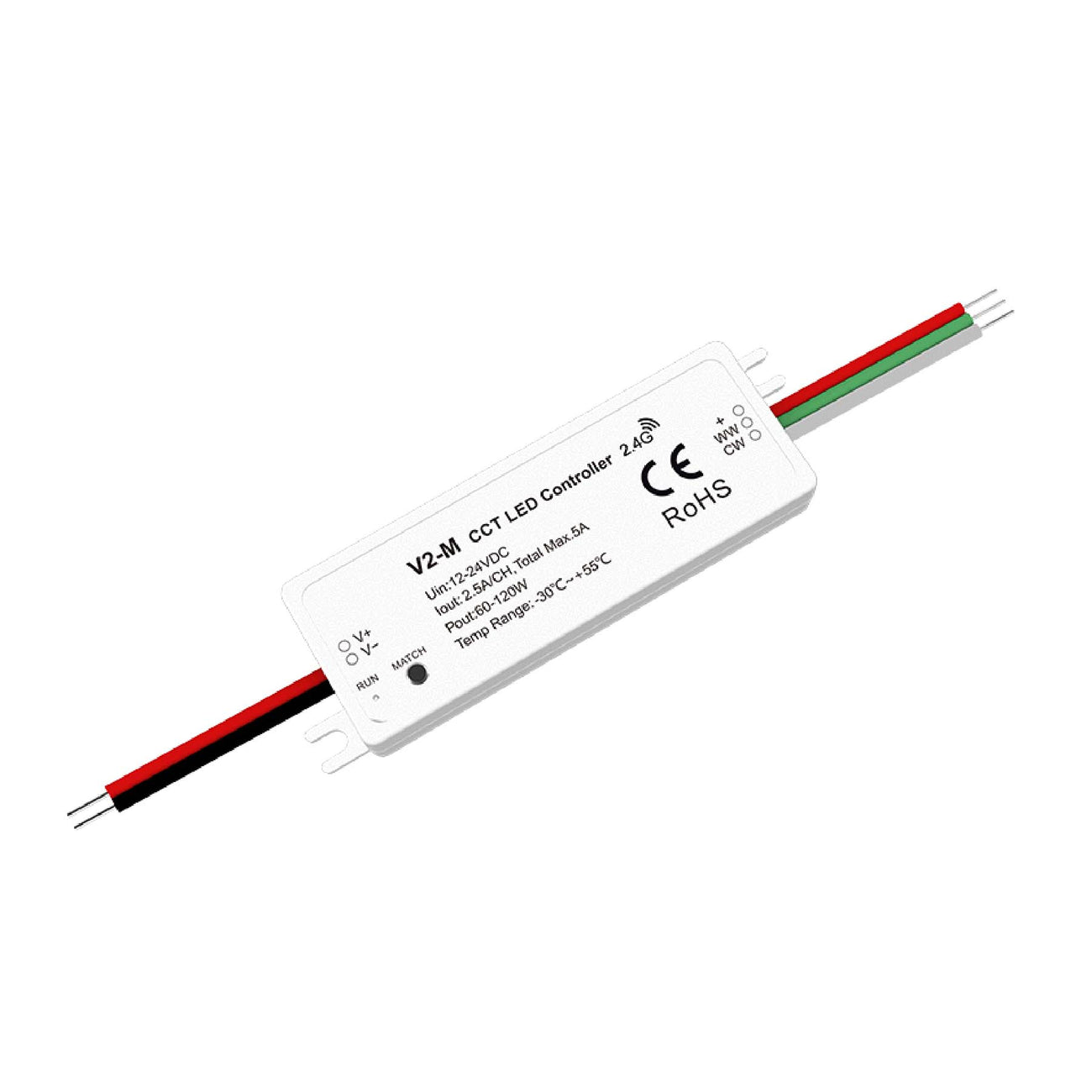

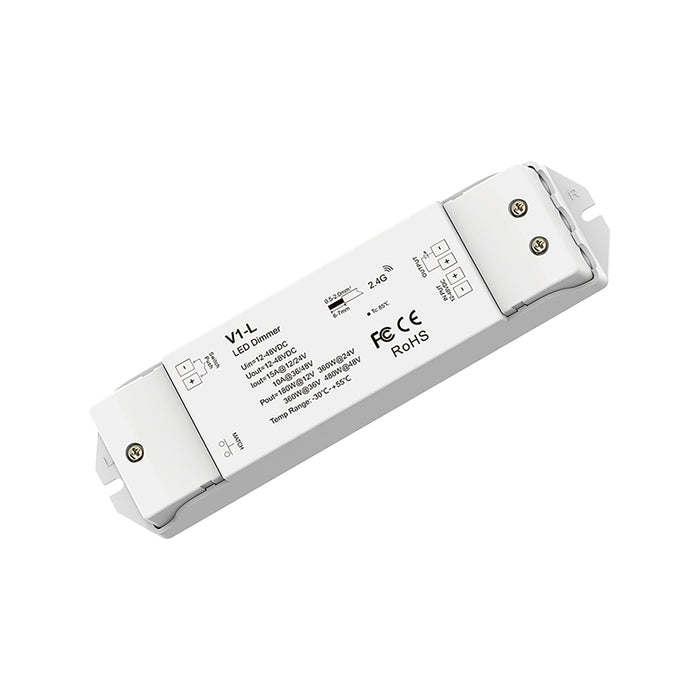

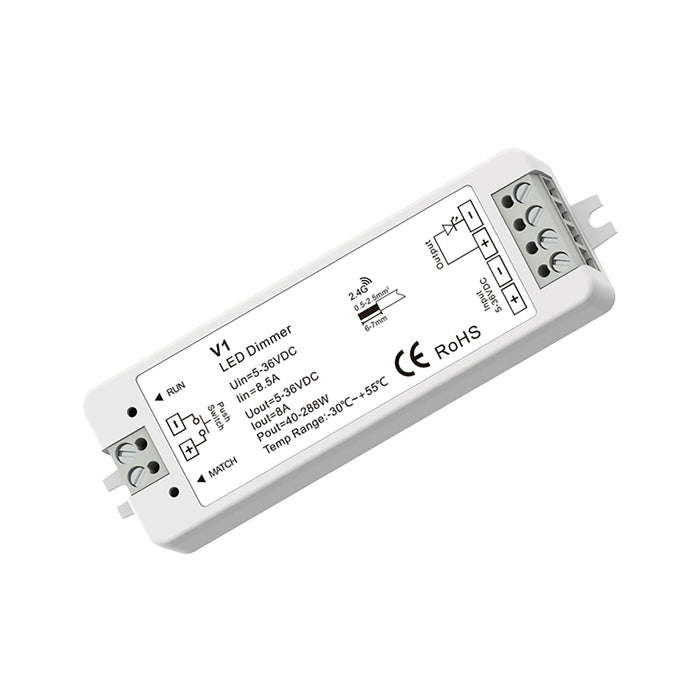

	V1 Dimming Controller	V1-L Dimming Controller	V2-M CCT Controller	V2 Dimming/CCT Controller
Input Voltage	DC5-36V	DC12-48V	DC12-24V	DC12-24V
Output Voltage	DC5-36V	DC12-48V	DC12-24V	2xDC12-24V
Output Current	8.5A	15A@12/24V, 10A@36/48V	2.5A/CH, Total Max. 5A	2CH, 5A/CH
Output Power	40W@5V, 96W@12V, 192W@24V, 288W@36V	180W@12V, 360W@24V, 360W@36V, 480W@48V	60W@12V, 120W@24V	2x(60-120W)
Input Signal	RF 2.4GHz+Push Dim	RF 2.4GHz+Push Dim	RF 2.4GHz	RF 2.4GHz
PWM Frequency	2000Hz	500Hz	2KHz	2KHz
IP Rating	IP20	IP20	IP20	IP20
Protection	Reverse Polarity, Over Load, Over Heat, Short Circuit	Reverse Polarity, Over Load, Over Heat, Short Circuit	Reverse Polarity, Short Circuit	Reverse Polarity, Short Circuit

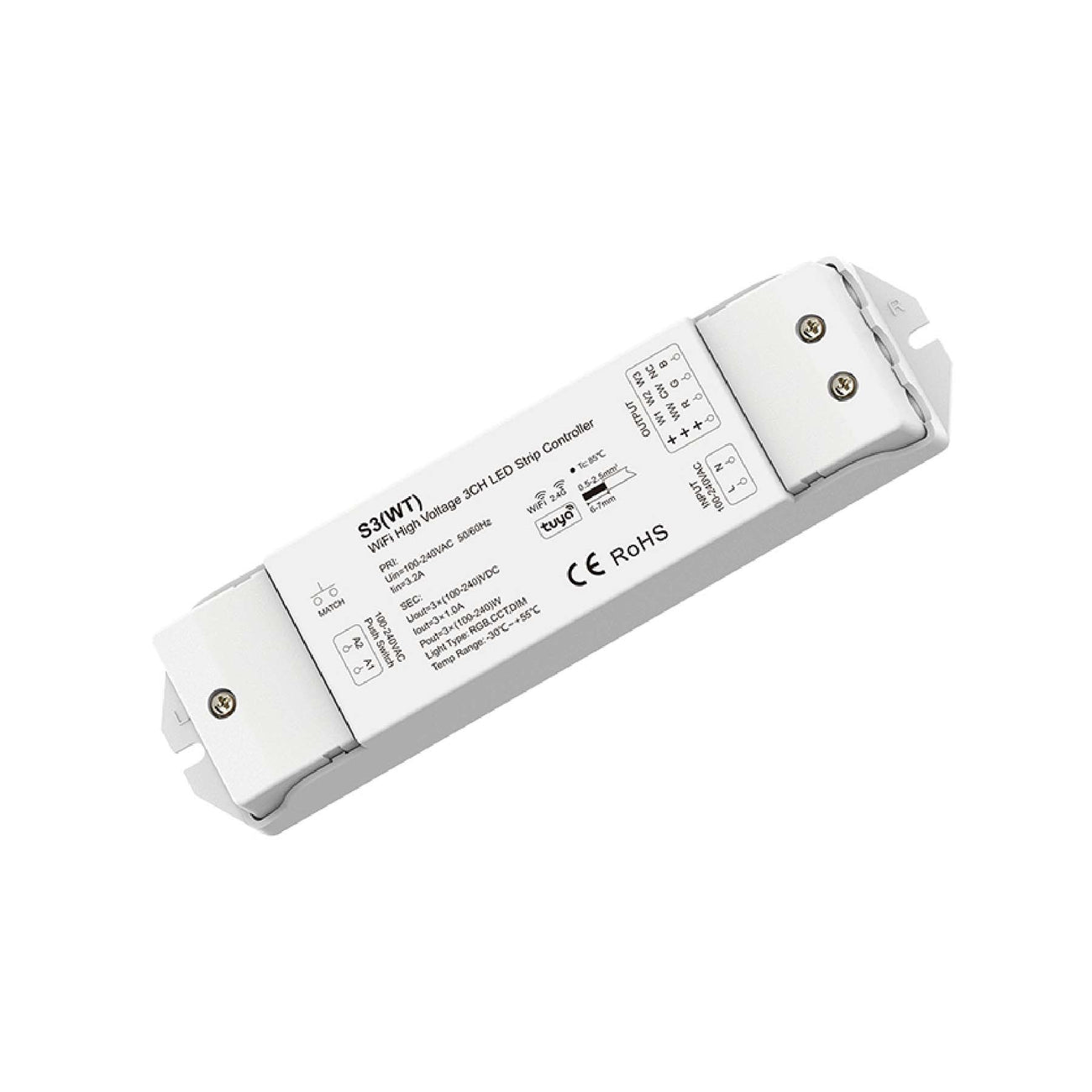

	V3 Dimming/CCT/ RGB Controller	VP Dimming/CCT/ RGB/RGBW Controller	S3 Dimming/CCT/ RGB Controller	S3(WT) Wifi Single Colour/CCT/RGB Controller
Input Voltage	DC12-24V	DC12-24V	AC100-240V	AC100-240V
Output Voltage	3xDC12-24V	4xDC12-24V	3xAC100-240V	3xAC100-240V
Output Current	3CH, 4A/CH	4CH, 4A/CH, Max. 6A	3CH, 1A/CH	3CH, 1A/CH
Output Power	144-288W(12-24V)	4x(48-96W)	3x(100-240W)	3x(100-240W)
Input Signal	RF 2.4GHz	RF 2.4GHz	RF 2.4GHz+Push Dim	Tuya APP+RF 2.4GHz+Push Dim
PWM Frequency	1000Hz	1000Hz	2KHz	2KHz
IP Rating	IP20	IP20	IP20	IP20
Protection	Reverse Polarity, Short Circuit	Reverse Polarity, Short Circuit	Reverse Polarity, Short Circuit	Reverse Polarity, Short Circuit


	VD3 RGB Controller	VD3(WT) RGB Controller	V5-M RGB+CCT Controller
Input Voltage	DC5-24V	DC5-24V	DC12-24V
Output Voltage	DC5-24V	DC5-24V	5xDC12-24V
Output Current	3CH, 1.5A/CH	3CH, 1.5A/CH	15.5A
Output Power	22.5W@5V, 54W@12V, 108W@24V	22.5W@5V, 54W@12V, 108W@24V	5x(36-72W)
Input Signal	RF 2.4GHz+3 Button	RF 2.4GHz+3 Button+Tuya APP	RF 2.4GHz
PWM Frequency	2KHz	2KHz	1000Hz
IP Rating	IP20	IP20	IP20
Protection	Over Heat	Over Heat	Reverse Polarity, Short Circuit

Range of Wireless RF 2.4GHz LED Remotes & Controllers

All remote and controllers that have wireless RF 2.4GHz built-in can be paired and communicates with one another. Typically, a single controller can pick up the signal from a remote within a range of 30 metres. If there are 2 controllers within the parameter of each other the signal range from a single remote would then increases to 60 metres, as each controller has an auto-transmitting function, hence, if more controllers are in use, then the signal can increase to more than 100 metres.

When multiple controllers are in use, they can carry out auto-synchronisation functions where they can be controlled by a single remote to perform a dynamic mode at the same response speed. While using a multizone remote allows individual control of multiple controllers.

A single wireless RF 2.4GHz can be paired to an unlimited number of controllers allowing a single remote to control multiple rooms or areas. While a single controller can be paired with up to 10 remotes. This overall, will give a greater flexibility in the controls of multizone controls.

LED Remote Controls:


1 Zone RF Remote Control (1xCR2032 Battery) eBay item number:116777448292	1 Zone RF Remote Control (1xCR2032 Battery) eBay item number:126775730643	1/4/8 Zone RF Remote Controls (2xAAA Battery) eBay item number:116391385183

1 Zone LED Panel Remote Controls (1xCR2032 Battery) eBay item number:116734894324	4 Zone LED Panel Remote Controls (2xAAA Battery) eBay item number:116734746279	4 Zone LED Panel Remote Controls (AC100-240V) eBay item number: 127308576108

1 Zone RF Remote Control

(1xCR2032 Battery)

eBay item number:116777448292

1 Zone RF Remote Control

(1xCR2032 Battery)

eBay item number:126775730643

1/4/8 Zone RF Remote Controls

(2xAAA Battery)

eBay item number:116391385183

1 Zone LED Panel Remote Controls

(1xCR2032 Battery)

eBay item number:116734894324

4 Zone LED Panel Remote Controls

(2xAAA Battery)

eBay item number:116734746279

4 Zone LED Panel Remote Controls

(AC100-240V)

eBay item number: 127308576108
