Chauvet DJ CoDot ILS 4 Pack with Carry case & frost lens

CoDot ILS
Party lighting fits in the palm of your hand with CoDot ILS. This puck-sized LED illuminator is the perfect solution for small spaces where conventional fixtures can’t fit. Each CoDot ILS has 1 quad-color (RGBW) LED to suit a range of applications. With D-Fi, ILS, and RF compatibility, this fixture works with the lighting control that best suits your needs. Make any area of your venue shine with CoDot ILS.

Highlights
Coin-sized LED illuminator designed for small applications where conventional fixtures won’t fit

Includes two lens options to meet different application criteria

Magnetic base easily mounts to metal surfaces

Threaded insert is compatible with camera tripods and accessories

ILS compatibility for use in the ILS ecosystem

Built-in DFI transceiver communicates DMX or ILS signals wirelessly

Built-in RF receiver for wireless control using the RFC or RFC-XL optional remotes

Easy navigation and access all functions directly from the LED display

Power linking multiple units from the USB type-C in and out

Specifications
DMX Channels:4 or 6Max Unobstructed Distance:600 ft (183 m)Light Source:1 LED (quad-color RGBW) 3 W, (0.8 A), 50,000 hours life expectancyStrobe Rate:0 to 20 HzOperating Frequency:2.4 GHzPower Linking:4 units @ 120 V; 4 units @ 230 VInput Voltage:100 to 240 VAC, 50/60 Hz (auto-ranging)Weight:0.2 lb (.1 kg)Size:2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)Approvals:CE, ROHS, UKCA, FCCBeam Angle (installed lens): 19°Beam Angle (included lens): 14°Illuminance (installed lens): 256 lux @ 2 mIlluminance (included Lens): 442 lux @ 2 mOperating Frequency: 2.4 GHzPower and Current: 7 W, 0.1 A @ 120 V, 60 HzPower and Current: 7 W, 0.1 A @ 230 V, 50 HzOptional Controllers: ILS Command, RFC, RFC-XL
What's Included
4 CoDot ILS8 lenses3 short USB cables (0.5m)3 long USB cables (2m)1 carry case1 external power supplyQuick Reference Guide

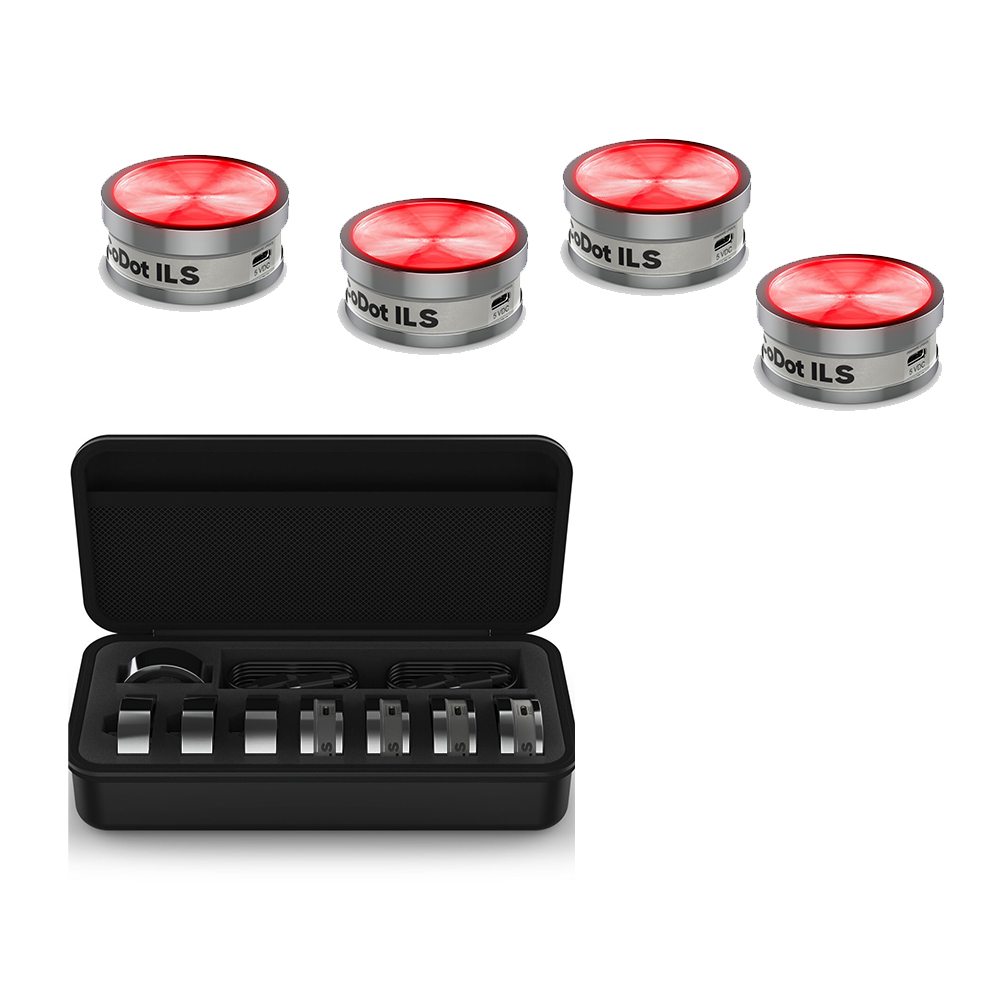

4-pack of coin-sized LED illuminators that comes with
over 15 accessories (1 carrying case, 8 lenses: 4 clear/4
diffused, 3 short USB-C cables, 3 long USB-C cables, 1
external power supply)

Coin-sized LED illuminator designed for small
applications where conventional fixtures won’t fit

Includes two lens options to meet different
application criteria

Magnetic base easily mounts to metal surfaces

Threaded insert is compatible with camera tripods
and accessories

ILS compatibility for use in the ILS ecosystem

Built-in DFI transceiver communicates DMX or ILS
signals wirelessly

Built-in RF receiver for wireless control using the RFC or
RFC-XL optional remotes

Easy navigation and access all functions directly from
the LED display

Power linkin

•DMX Channels: 4 or 6

•Light Source: 1 LED (quad-color RGBW) 3 W, (0.8 A),
50,000 hours life expectancy

•Strobe Rate: 0 to 20 Hz

•Beam Angle (installed lens): 19°

•Beam Angle (included lens): 14°

•Illuminance (installed lens): 256 lux @ 2 m

•Illuminance (included Lens): 442 lux @ 2 m

•Max Unobstructed Distance: 600 ft (183 m)

•Operating Frequency: 2.4 GHz

•Power Linking: 4 units @ 120 V; 4 units @ 230 V

•Input Voltage: 100 to 240 VAC, 50/60 Hz (auto-ranging)

•Power and Current: 7 W, 0.1 A @ 120 V, 60 Hz

•Power and Current: 7 W, 0.1 A @ 230 V, 50 Hz

•Weight: 0.2 lb (0.1 kg)

•Size: 2.2 x 2.1 x 0.9 in (57 x 54 x 24 mm)

•Optional Controllers: ILS Command, RFC, RFC-XL

•Approvals: CE, ROHS, UKCA, FCC
