Direct OEM Replacement ON-OFF Push Switch
With Dual LED lights in BLUE
NEW Square Push Latching type Switch Designed FOR:
Please check the hole size before purchase

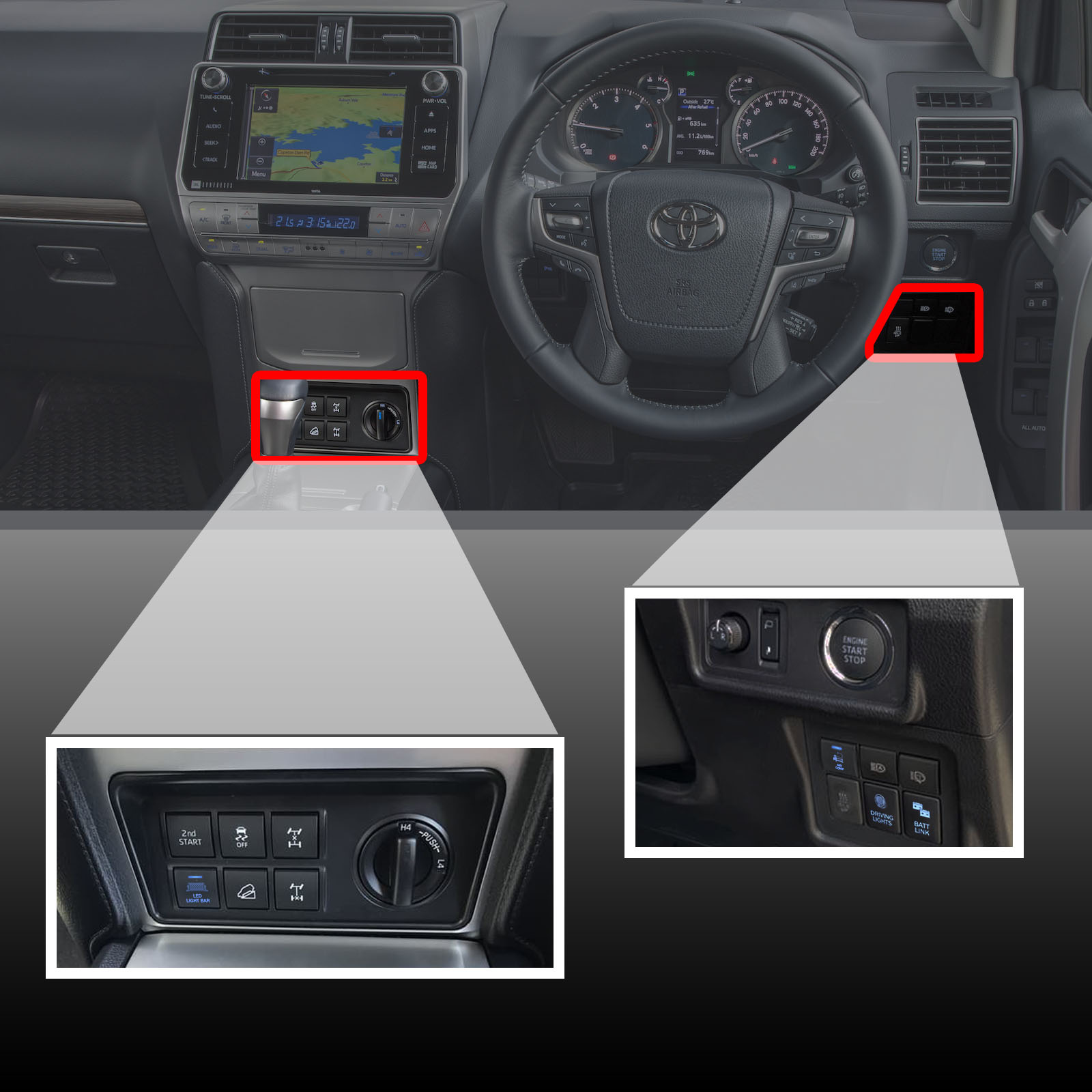

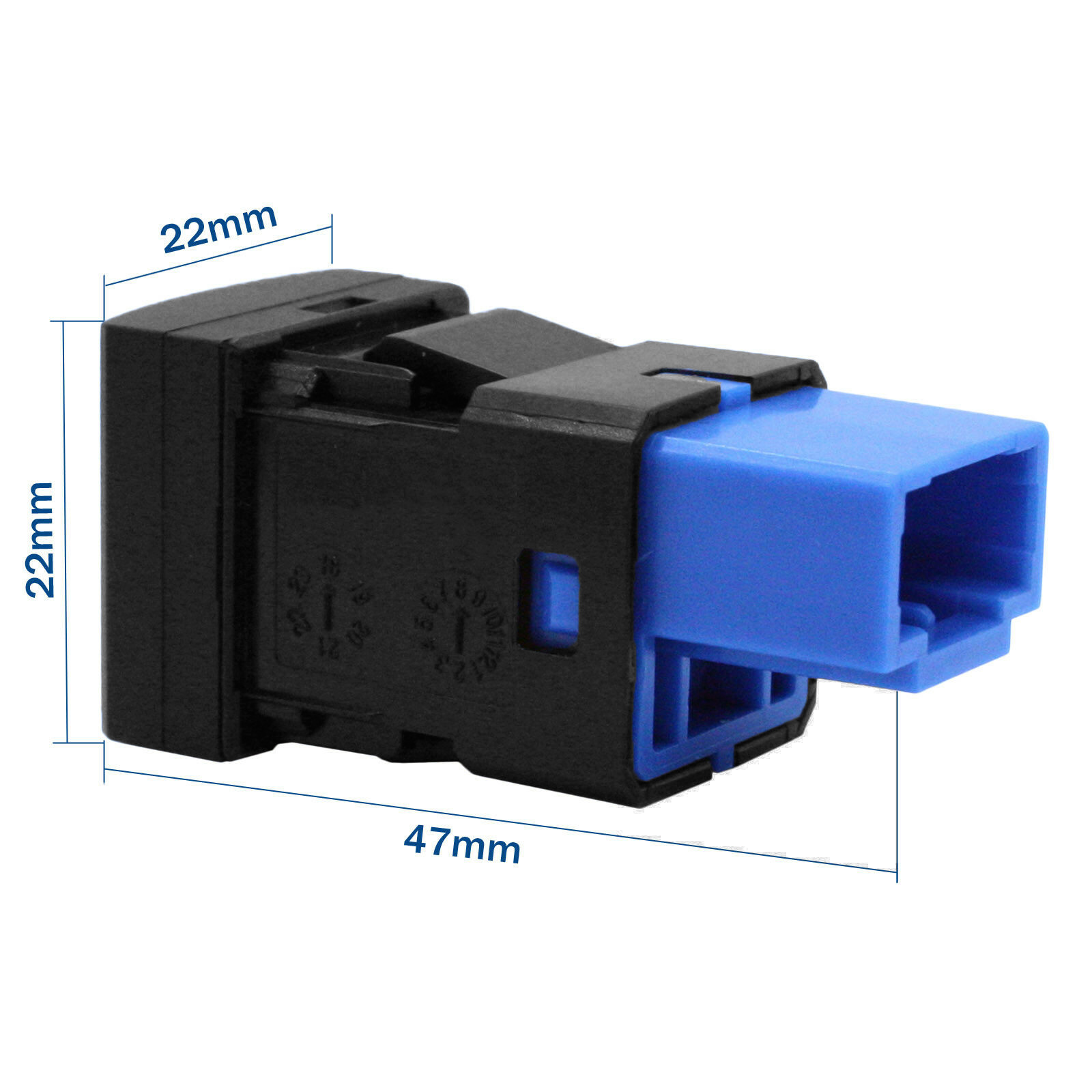

This 12 volt push switch from AOB is a single throw ON - OFF switch designed to operate your 12 volt accessories. It has a face surface size of 22 mm x 22 mm and uses the original mounting hole of the vehicle.
This Switch is an aftermarket switch that locks into your existing panel super easy to install in less than 10 min's.
- Single Pole Single Throw ON - OFF PUSH switch
- Black hard surface
- Laser etched Legend
- Single upper L.E.D light in BLUE
- Single lower L.E.D light in BLUE
- Upper light is ON when the switch is pressed IN
- Lower light can be wired to separate dash light circuit
- Rated at 3Amp 12V
- Wire Plug and wiring diagram supplied with switch
All symbols are Laser etched directly onto the switch face using modern high Tech laser engraving equipment to ensure long image life.
The switch is an electronic switch rated at 3amp's. Therefore in ALL cases the accessory MUST be wired through a fused relay.
AOBSWT100 series
Rear picture showing terminals and wiring harness supplied with switch
Wiring diagram will be supplied with switch purchase.

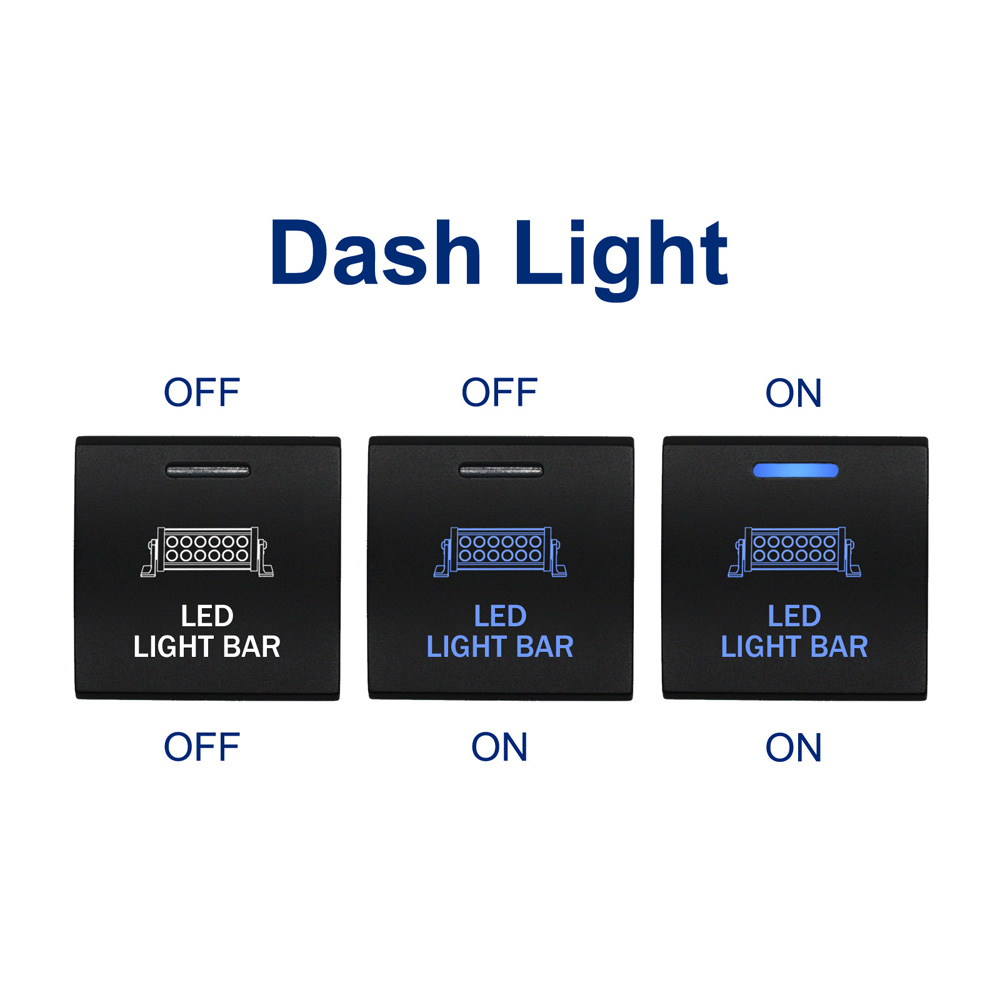

AOBSWT100 series Illumination
When switch is turned on the top light illuminates.
The bottom Etching (words) has an Independent wiring circuit to connect to your dash lights. You can connect it to the dash light circuit or leave off, your choice.
(this is a sample image with the LED LIGHT BAR logo)
