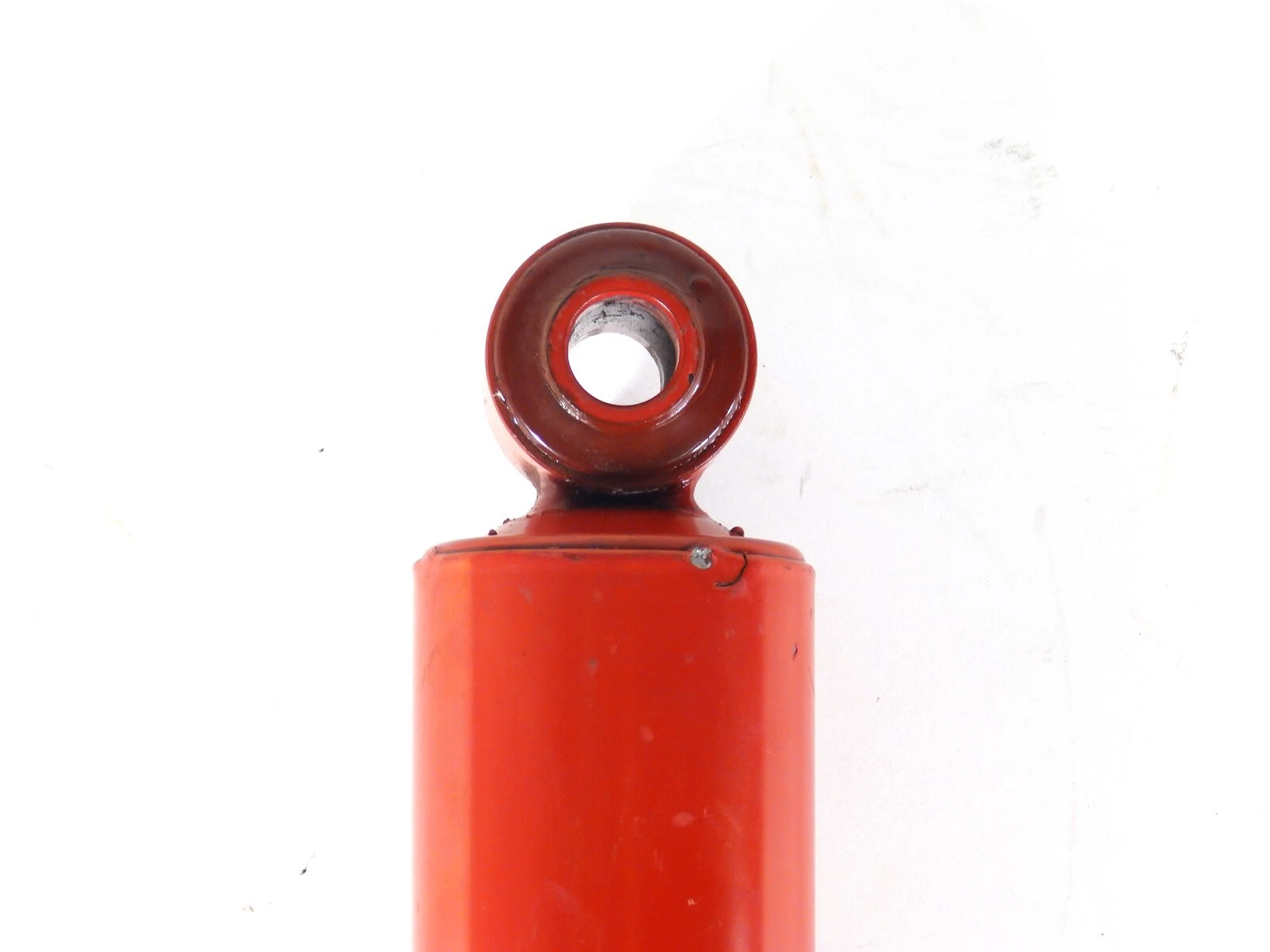

Shock Absorber KS214

DESCRIPTION AND SPECIFICATIONS

Heavy-duty shock absorber with eyelet ends for caravans, campervans and trailers. Made from steel and equipped with oil-based shock absorber type, this JOLTGUARD brand shock is designed to withstand harsh conditions and provide a smooth ride. The shock absorber has a 6-month manufacturer warranty and comes with a shock, making it a convenient all-in-one solution. The eyelet ends allow for easy installation and reference OE/OEM number is 20.06.08.



Extended Length: 20 inches / 505mm (Middle of Eyelet to Middle of Eyelet)
Compressed Length: 15 inches / 375mm  (Middle of Eyelet to Middle of Eyelet)
Travel Length: 130mm

Eyelet Diameter: 16.2mm
Eyelet Shim Width: 39.5mm
Eyelet Bushing WIdth: 37.6mm
Eyelet Strap Width: 29.6mm

Shock Width - Inner Cylinder: 50mm
Shock Width - Outer Sleeve: 60mm
Sheath Length: 225mm

Color: Red

Non-adjustable valving / compression rates.

Enclosed Oil Type Shock Absorber.
