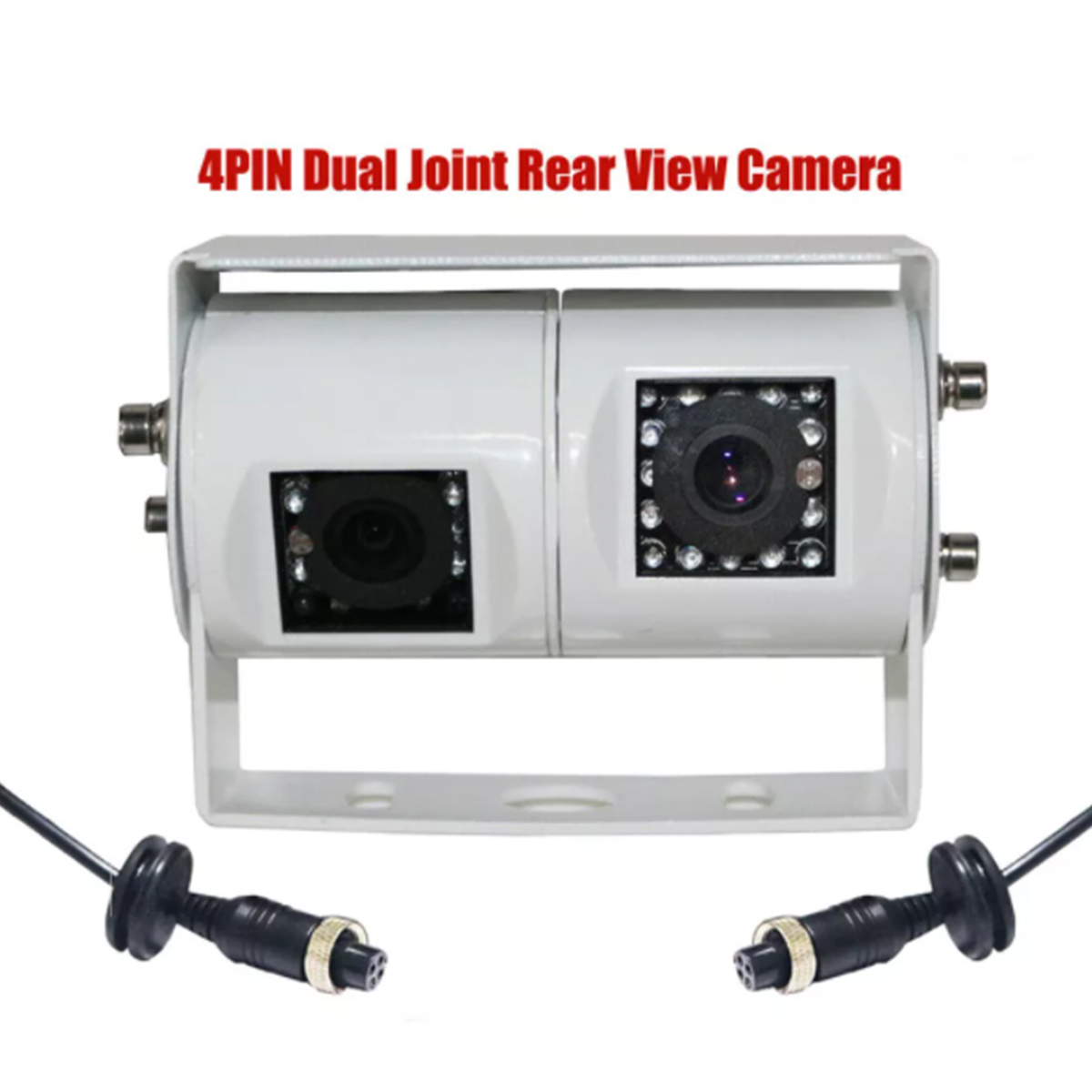

Dual Twin Joint Bracket 2x 4PIN Heavy Duty 12/24V CCD Camera
for Truck/Caravan/Bus/Trailer/RV/Horse/Float

Key Features

  • 2x 120 degree Wide angle viewing helps avoid accidents & injuries
  • 4 PIN Camera system
  • Colour infrared night vision waterproof CCD reverse camera
  • Suitable for use with trucks / caravans / cars etc.
  • Heavy duty CCD crystal clear 12/24-volt applicable reverse camera
  • Clear view day or night
  • The CCD image sensor (made by SHARP company) outputs digital signals that has better picture's clarity color contrasting and sharpness.
  • This heavy duty CCD camera is hard metal cased waterproof and mud proof
  • Can last for longer without heating up so you can show the rearview at all time
  • Allows you to connect it to one or 2 monitors and gives you a super wide viewing angle with 2 images
  • Could be used for split screen monitor if you want to view the same area with two cameras at two split screen
  • This system provides a clear bright extra eye in your vehicles blind spot and also allows a better view of the traffic behind while driving.
  • Feel safer reversing and increased awareness, see your child behind the car or the vehicle behind your caravan or trailer

CCD Color Image Sensor

◆ Image Sensor: CCD Sensor
◆ Signal System: PAL default & NTSC request

Currently, there are two types of image sensors: CCD sensor and CMOS sensor.

CCD：Charge Coupled Device, CCD sensors have higher quality and more pixels.

CMOS：Complementary Metal-Oxide Semiconductor, CMOS sensors traditionally have lower quality, lower resolution and lower sensitivity.

For Reference, the monitor dose not included:

CCD Image Sensor

CCD image sensor from Sharp
The reversing cameras feature a CCD image sensor from the Sharp company for better picture clarity, colour contrast, and sharpness. They also have night vision as each camera comes 16 individual infrared LED to enable users to see clear images, even at night or in low light conditions.



Tough and heavy-duty camera

This camera is built and designed to last. In addition, each camera comes in a hard metal case. Because it is waterproof and mud proof, it can withstand abuse and be exposed to the elements for an extended period of time. The reversing camera is shock resistant, too, so it can withstand strong vibrations without affecting picture quality.



120-degree viewing angle

This new line of reversing camera features a 120-degree viewing angle so it does not produce fish-eye view. When you look at the images being displayed on the monitor, it is as if you're looking at the images being reflected on your vehicle's rear view mirror.

Item Description

  1. IR LED: 24pcs (12 each camera)
  2. Image feature: Sharp CCD
  3. TV system: PAL/NTSC
  4. Effective pixels: N: 612(H)*592(V) P:612(H)*582(V)
  5. Horizontal Resolution(TV lines): 480 TV lines
  6. Lens angle: 2.8mm 120°
  7. Waterproof: IP68
  8. Power Source: 12V/24V
  9. Operation Temperature: -20°C ~+ 75°C (RH95% Max)
  10. Storage Temperature: -40°C ~+ 85°C (RH95% Max)
9 Inch Monitor+ 4 Camera-010.jpg (700×489)


What's included

1x Dual Joint Reversing Camera
