Shure GLXD24-B58-Z3 Frequency Band Digital Wireless Handheld System Black

Shure GLXD24-B58-Z3 Frequency Band Digital Wireless Handheld System Black

Brand New in Original Packaging
GLXD24-B58-Z3
Features
  • Featuring the industry standard BETA 58A vocal microphone
  • GLXD4+ receiver and GLXD2+ transmitter
  • Delivers superior, transparent digital audio
  • Works on Z3 frequency band
  • Lithium-Ion rechargeable batteries for up to 12 hours of use
  • GLXD4+ receiver housing made of PC/ABS
  • GLXD2+ transmitter housing made of aluminum alloy, ABS plastic
What's in the Box

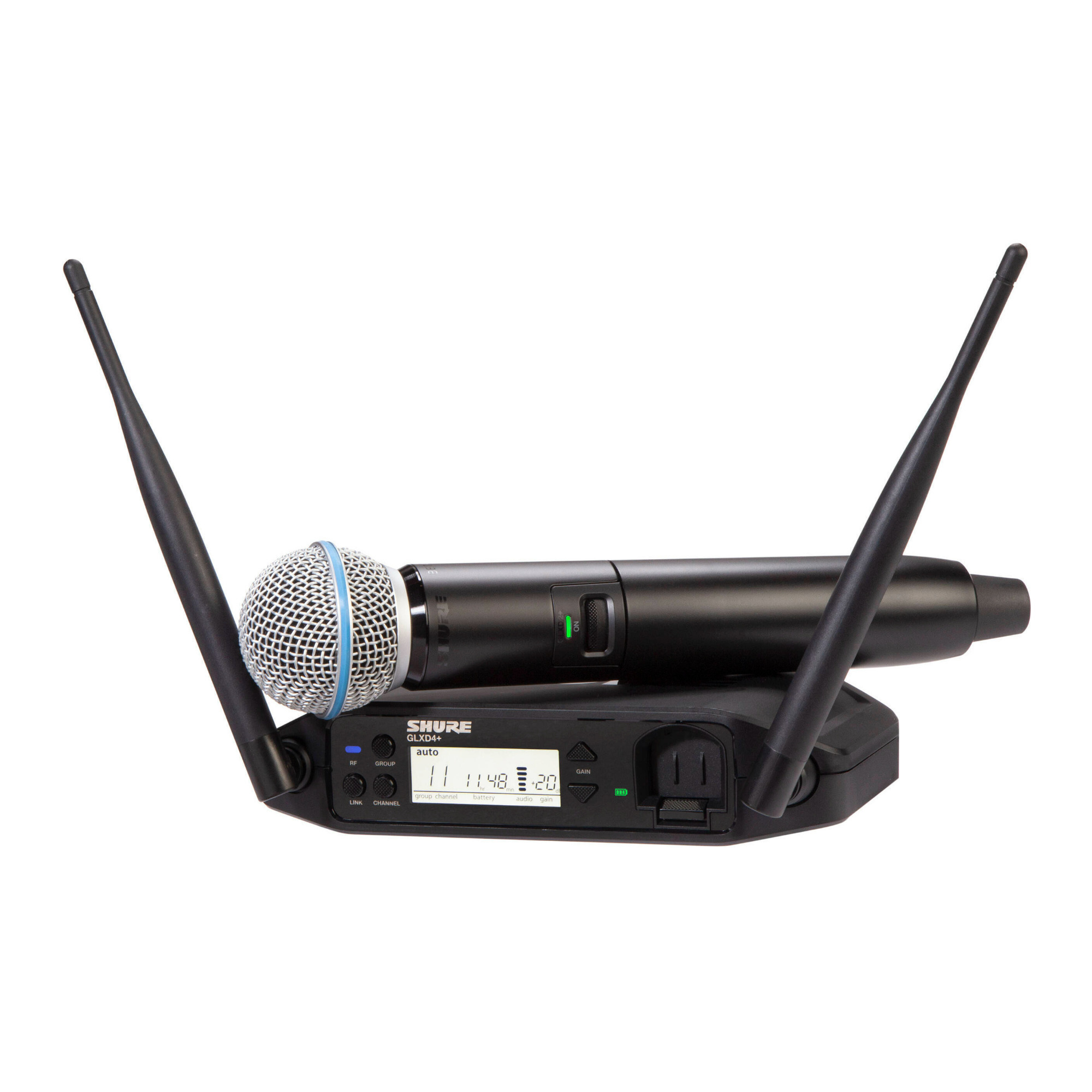

  • Shure GLXD24+/B58 Z3 Frequency Band Digital Wireless Handheld System with BETA 58A Microphone

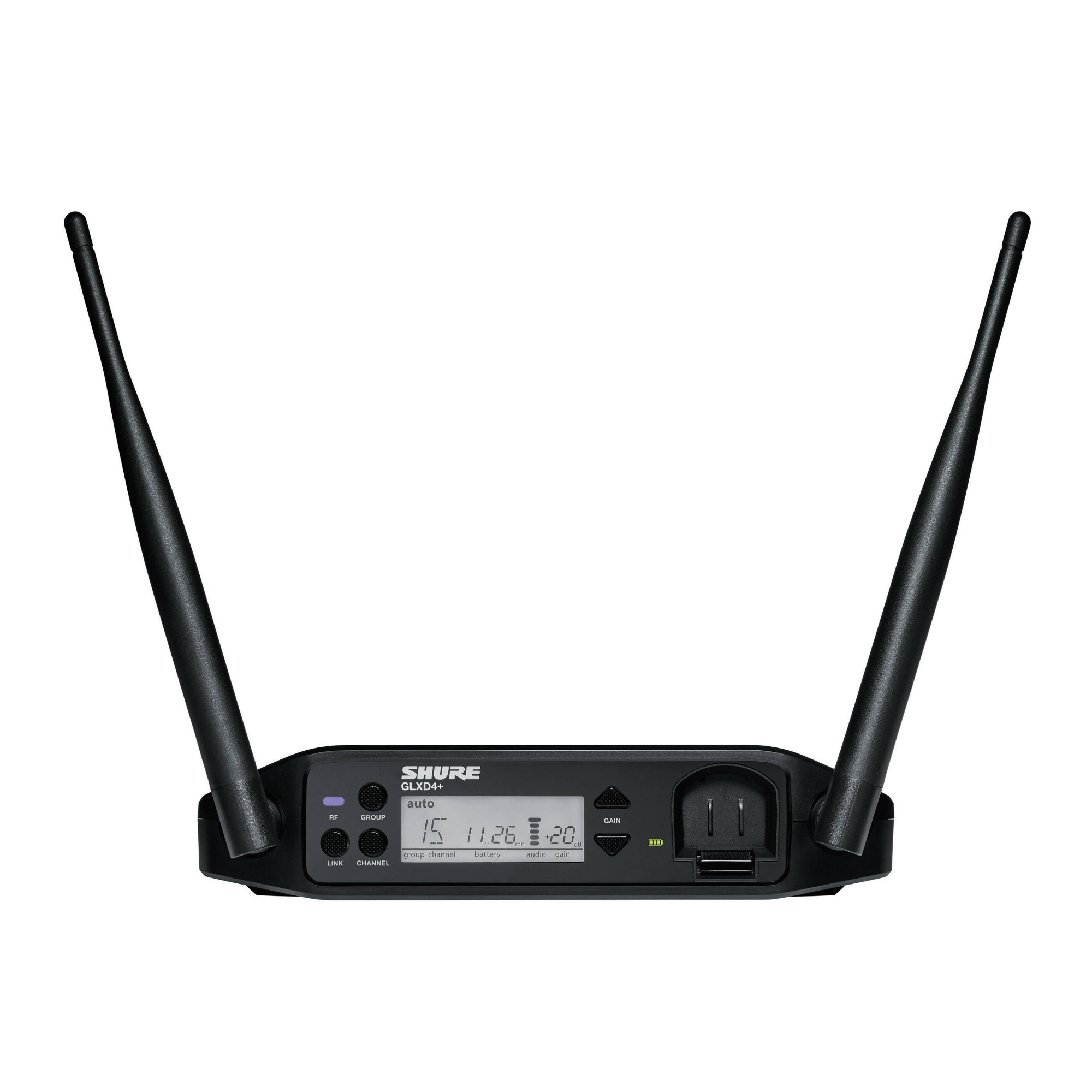

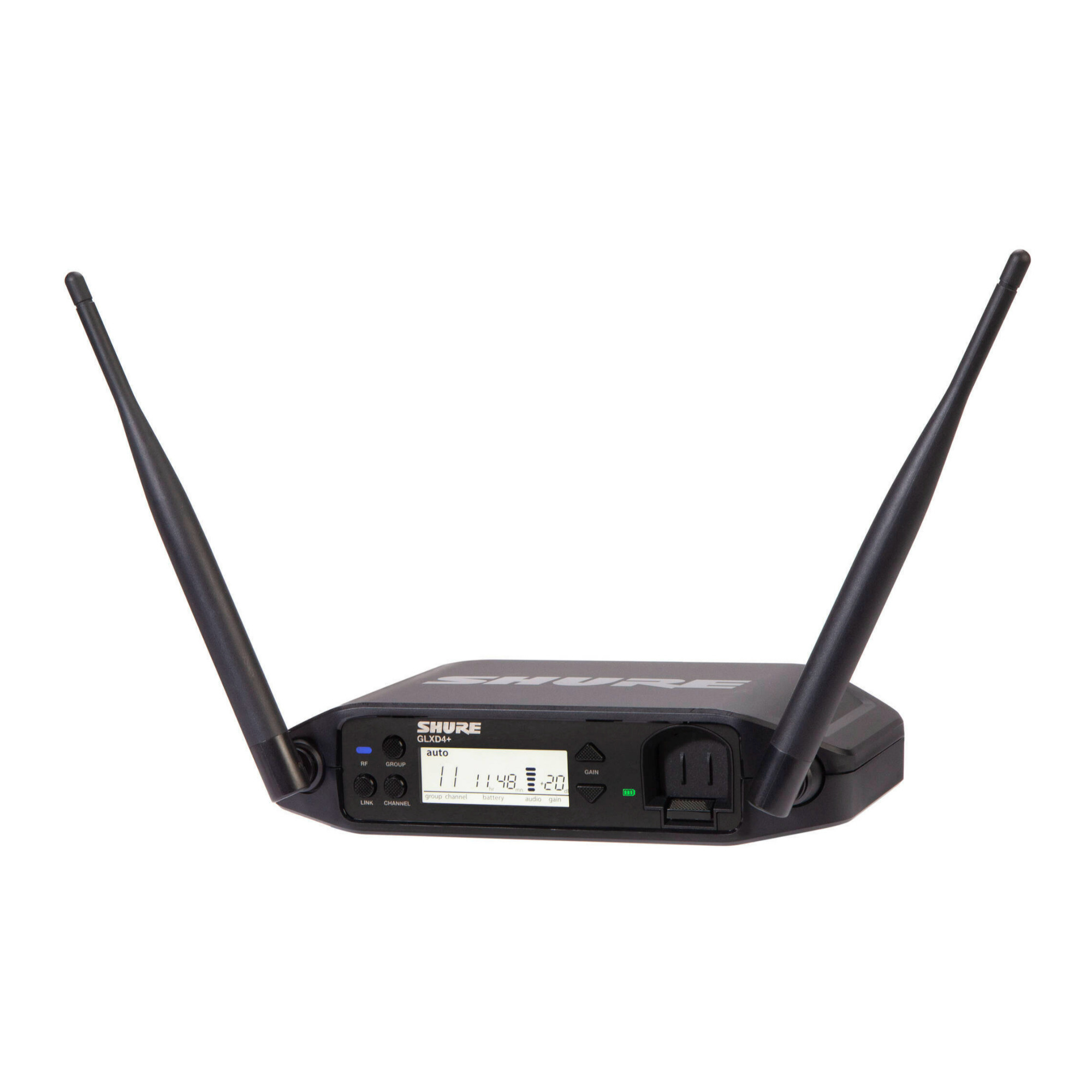

  • GLXD4+ Receiver

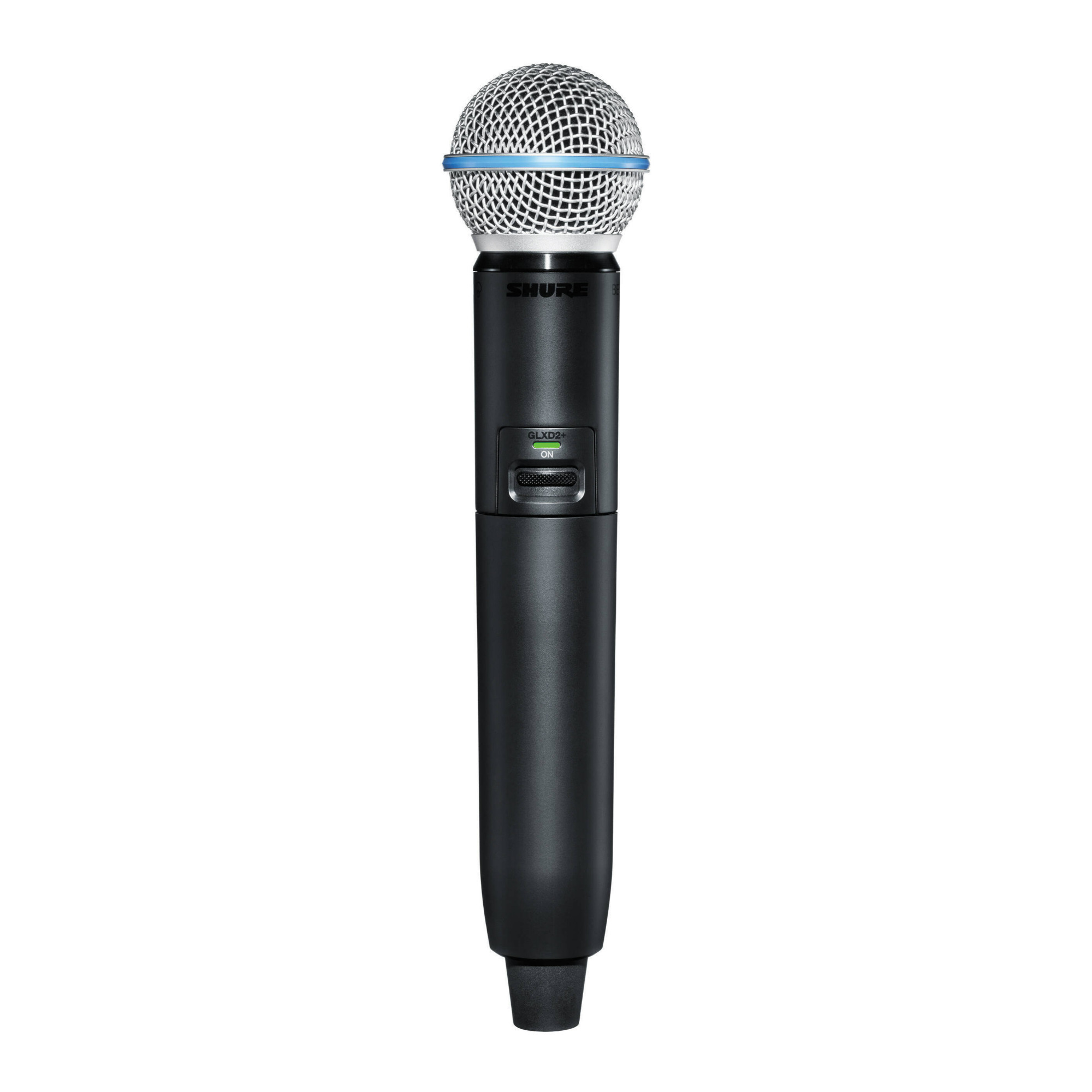

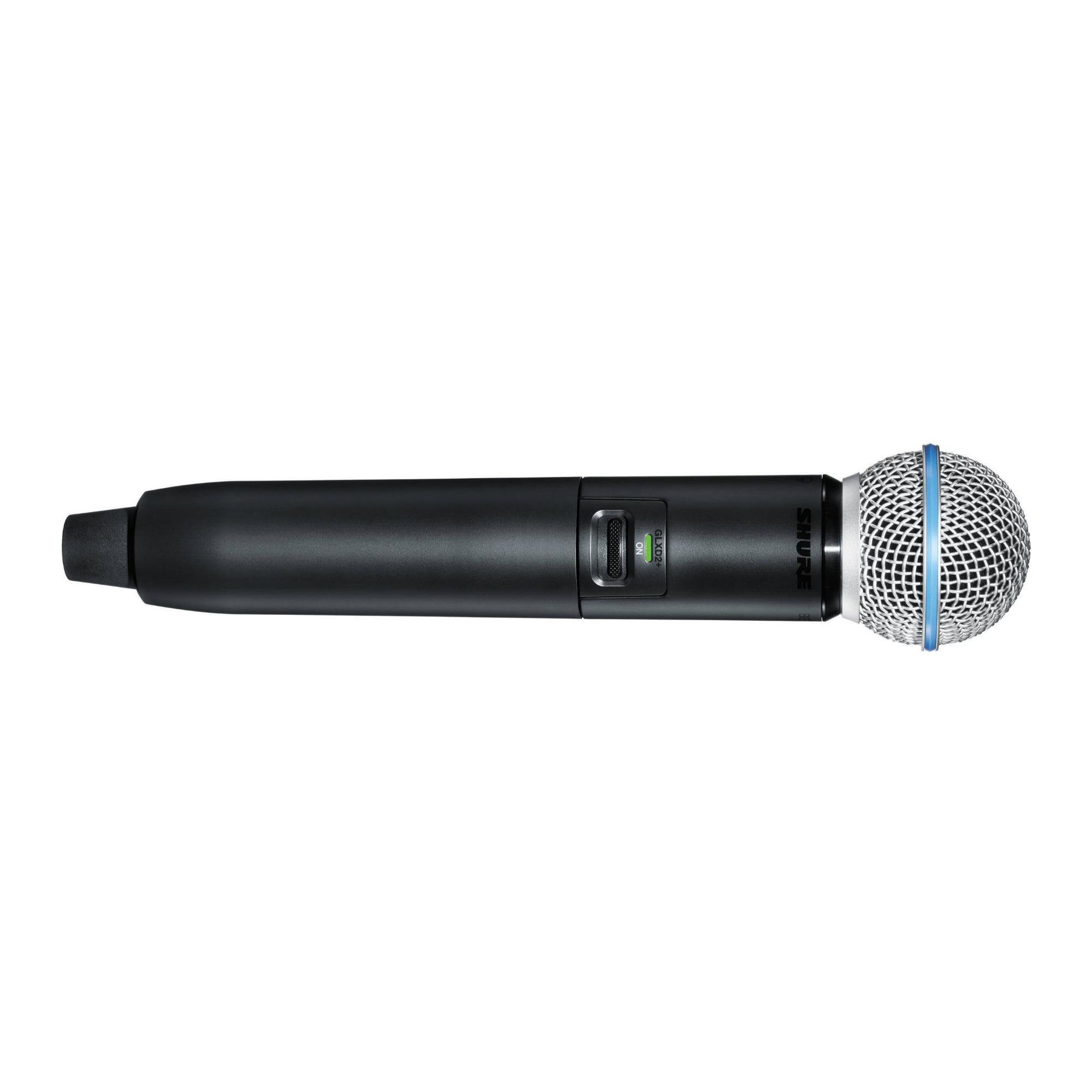

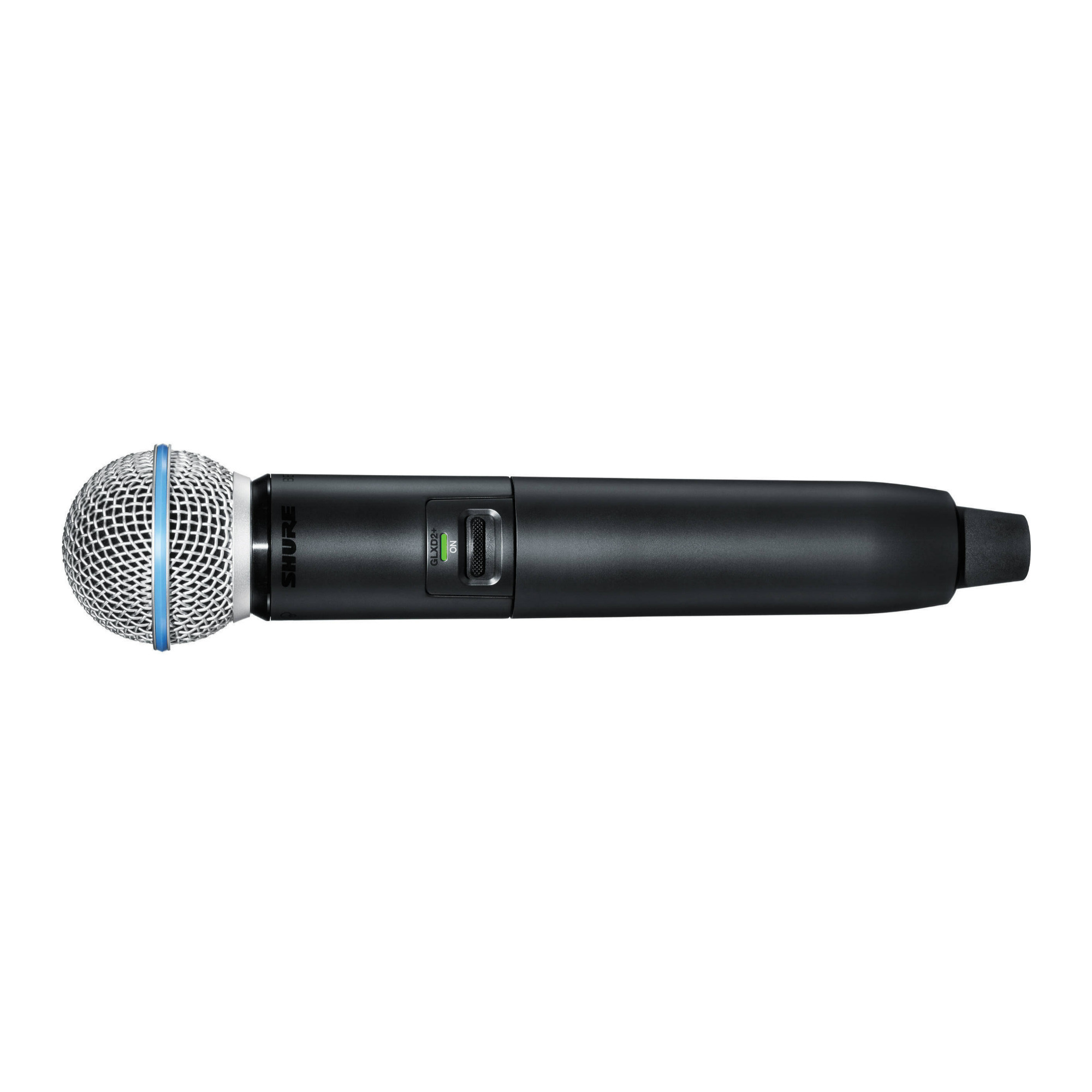

  • GLXD2+ Transmitter
  • User Guide
  • Limited 2-Year Warranty
Item Description

Featuring the industry standard BETA 58A vocal microphone, the new Shure GLXD24+/B58 Dual Band Vocal System delivers superior, transparent digital audio. The perfect combination of automatic frequency management with new Dual Band Technology provides reliable and consistent performance, while Shure proprietary Lithium-Ion rechargeable batteries provide up to 12 hours of use. This system works on a Z3 frequency band.
Specifications

Shure GLXD24+/B58 Z3 Frequency Band Digital Wireless Handheld System with BETA 58A Microphone


General

  • Frequency band: Z3
  • Tuning bandwidth: 2400 - 2483.5 MHz and 5725 - 5850 MHz
  • Transmit mode: Shure proprietary digital
  • RF output power: 10 mW E.I.R.P. maximum
  • Ambient temperature range:
    • Charging: 0-degree-C (32-degree-F) to 40-degree-C (104-degree-F)
    • Operating: 0-degree-C (32-degree-F) to 45-degree-C (113-degree-F)
  • Polarity: Positive pressure on microphone diaphragm (or positive voltage applied to tip of WA302 phone plug) produces positive voltage on pin 2 (with respect to pin 3 of low­impedance output) and the tip of the high impedance 1/4-inch output
  • Audio frequency response: 20 Hz – 20 kHz
  • Dynamic range: 122 dB, A-weighted
  • RF sensitivity: -88 dBm, typical
  • Total harmonic distortion: 0.2%, typical
  • Battery life: Up to 11.5 hours
  • Channel count:
    • Up to 4 typical, 8 optimal
    • 2.4 GHz only: Up to 4 typical, 5 optimal

GLXD4+ Receiver

  • Power requirements: 14.5 V – 17 V, 600 mA (efficiency level VI power supply)
  • Antenna type: Dual-band 1/2 wave sleeve dipole, non-removable
  • Dimensions:
    • Antenna folded: 7.2 x 4.8 x 1.6 inch (182.82 x 121.97 x 40.3 mm)
    • Antenna opened: 7.2 x 4.8 x 7.3 inch (182.82 x 121.97 x 185.6 mm)
  • Weight: 10.9 oz (310 g)
  • Housing: PC/ABS
  • Spurious rejection: > 35 dB, typical
  • Gain adjustment range: -20 to 40 dB, 1 dB increments
  • Phantom power protection: Yes
  • Audio Output
  • Configuration:
    • XLR output: Impedance balanced
    • 6.35 mm (1/4 inch) output: Impedance balanced
  • Impedance:
    • XLR output: 100 ohm
    • 6.35 mm (1/4 inch) output: 100 ohm (50 ohm, Unbalanced)
  • Maximum audio output level:
    • XLR connector: +1 dBV
    • 6.35 mm (1/4 inch) connector: +8.5 dBV
  • Pin assignments:
    • XLR output: 1=ground, 2=hot, 3=cold
    • 6.35 mm (1/4 inch) connector: Tip=audio, Ring=no audio, Sleeve=ground
  • Receiver Antenna Input
    • Impedance: 50 ohm
    • Maximum input level: -20 dBm

GLXD2+

  • Power requirements:
    • Shure rechargeable li-ion battery: SB904
    • USB power supply (US/Canada): SBC10-USB15WSUSTWJ
  • Dimensions: 9.69 inch (246 mm)
  • Weight: BETA 58: 7.9 oz (225 g), without battery
  • Housing: Aluminum alloy, ABS plastic
  • Maximum input level: BETA 58: 147 dB SPL

SB904

  • Battery type: Rechargeable Li-Ion
  • Nominal capacity: 2420 mAh (8.71 Wh)
  • Nominal voltage: 3.6 V
  • Dimensions (H x W x D): 2.87 x 0.83 x 0.82 inch (72.8 x 20.96 x 20.80 mm)
  • Weight: 1.89 oz (53.7 g)
  • Housing: PC/ABS
  • Ambient temperature range:
    • Charging: 0-degree-C (32-degree-F) to 40-degree-C (104-degree-F)
    • Operating: -18-degree-C (0-degree-F) to 45-degree-C (113-degree-F)
