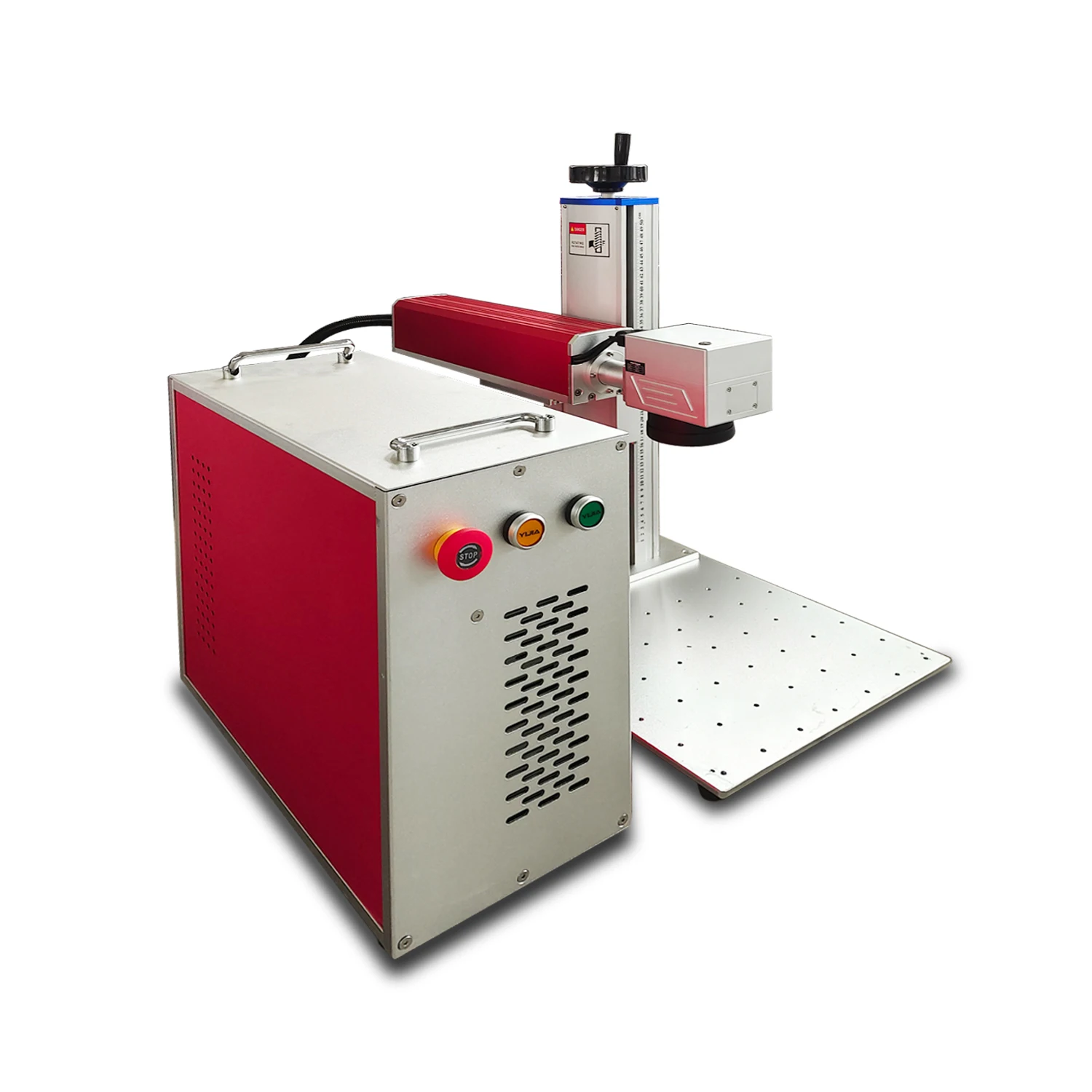

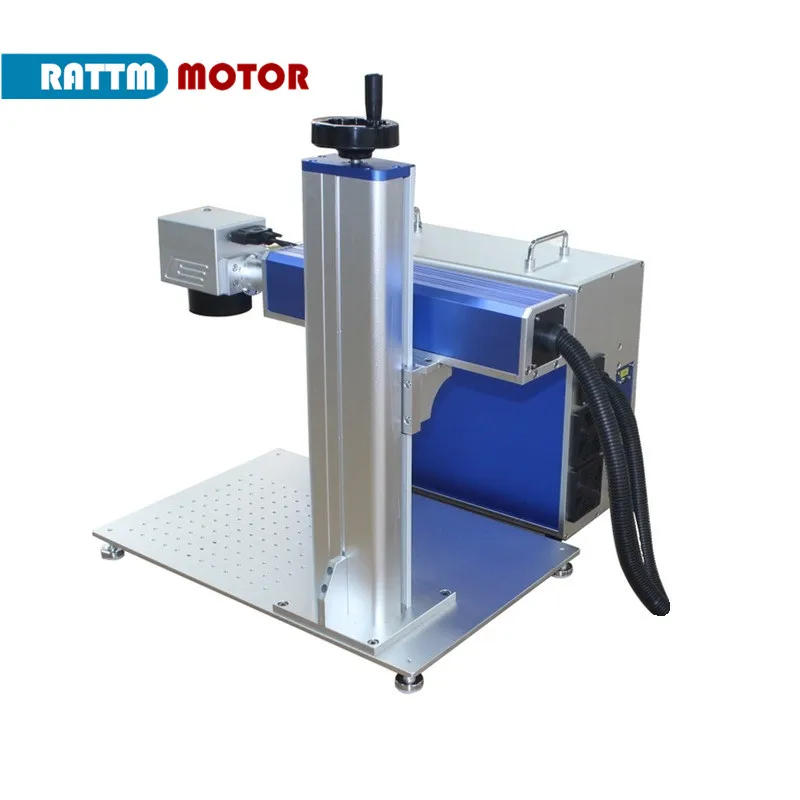

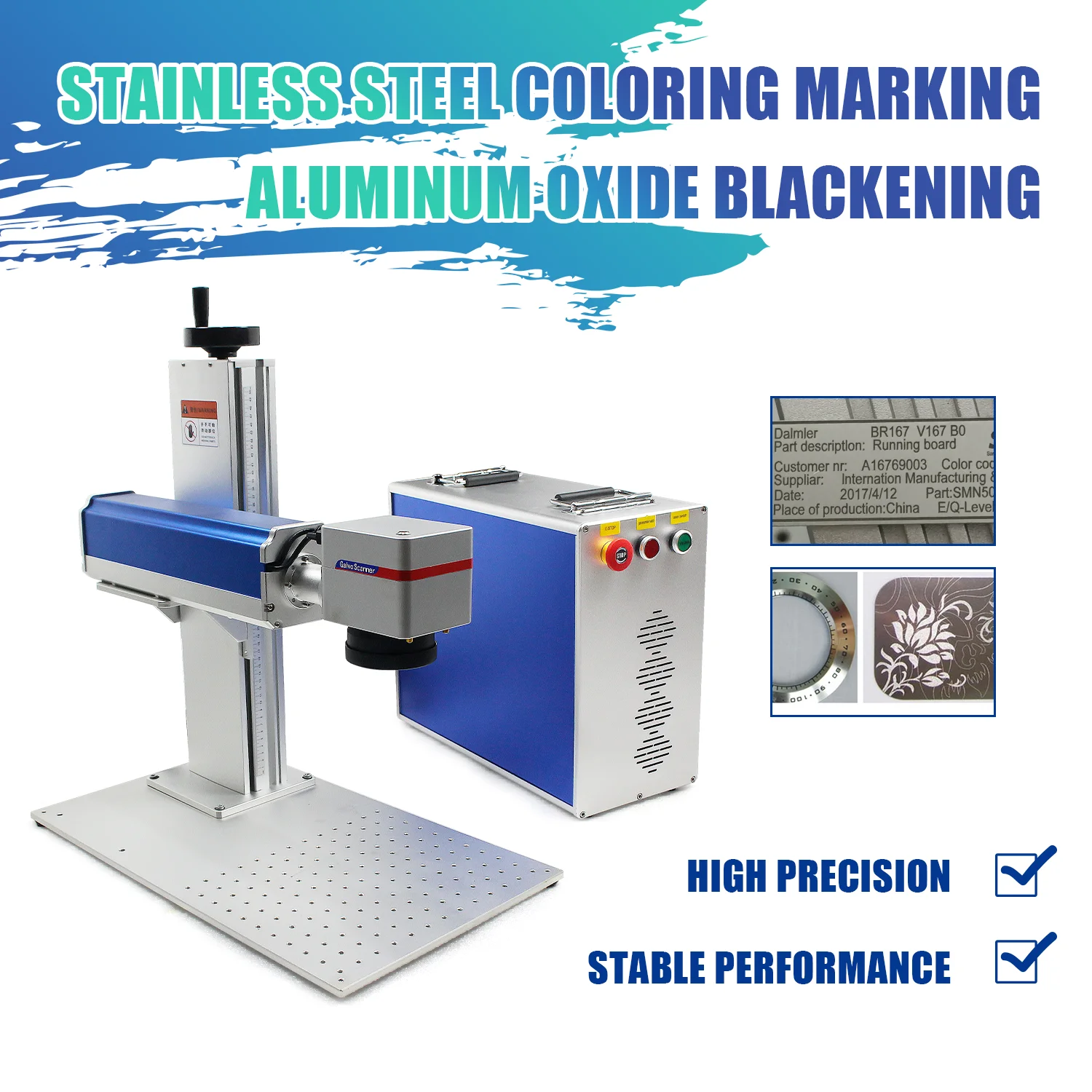

We have red and blue two colors,and we will send red color machine by default,if you need blue color,pls tell us.

Note:
We have two vision main board for this machine, BJJCZ model for EZCAD
software and BSL model for Lightburn software which is optional, pls choose
the one you want when you place the order.

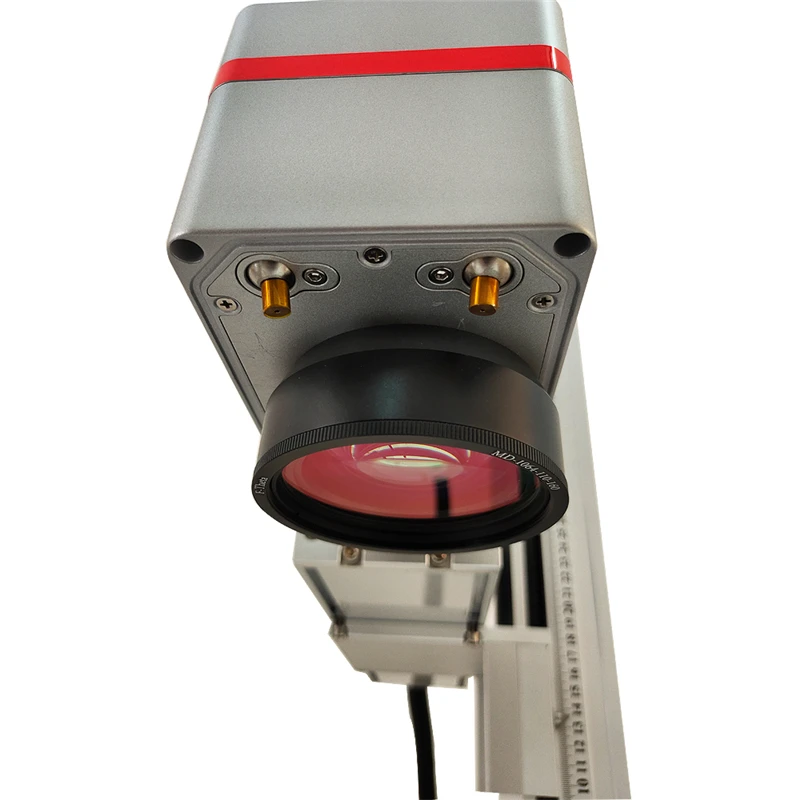

Note: The lens marking area is optional

we have 50x50/70x70/110x110/150x150/200x200/220x220/300x300mm these sizes.

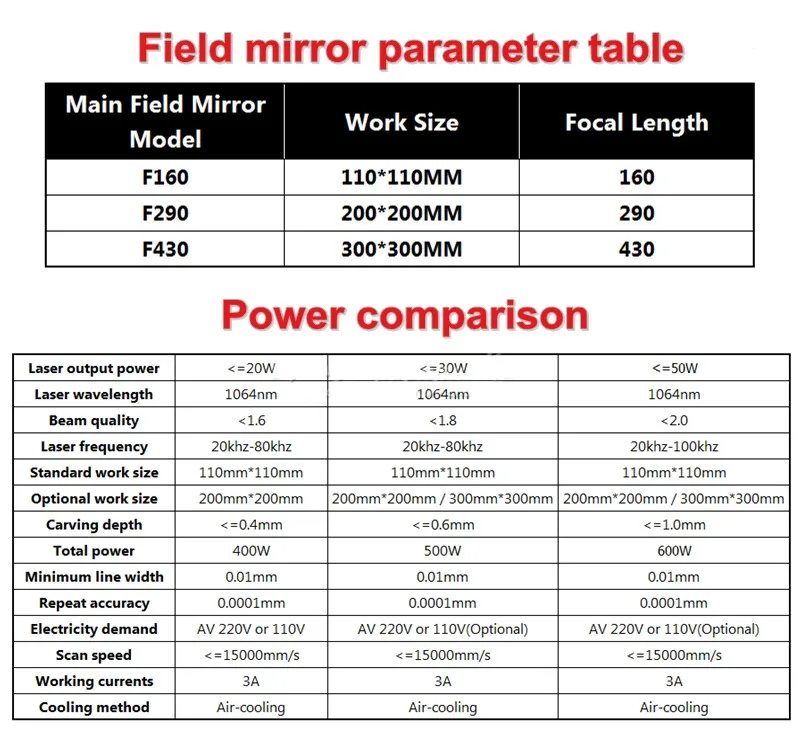

How to choose lens

With Same Lens , The Higher Power , more precise marking.
With Same Power, The Smaller Lens, more precise marking.
Bigger Lens Engrave Bigger Area.
Smaller Lens more precise marking.

if 20w laser choose 200mm*200mm lens , that means your focus distance is very tall ,power come to mark object is cery very weak , so not biggest lens area is best ,but choose suitable lens.

Our recommendations:

20w choose 70mm*70mm , 110mm*110mm
30w choose 70mm*70mm , 110mm*110mm , 150mm*150mm, 200mm*200mm
50w choose 70mm*70mm , 110mm*110mm ,200mm*200mm, 300mm*300mm

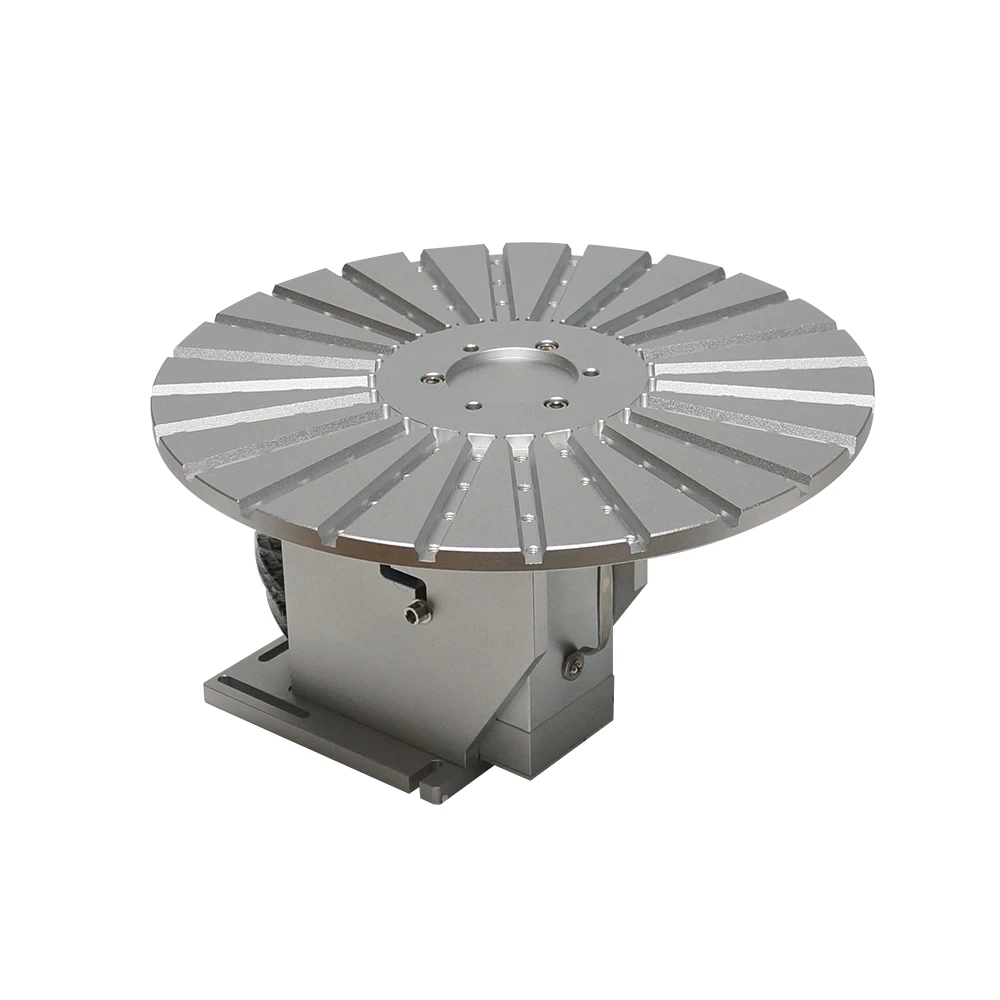

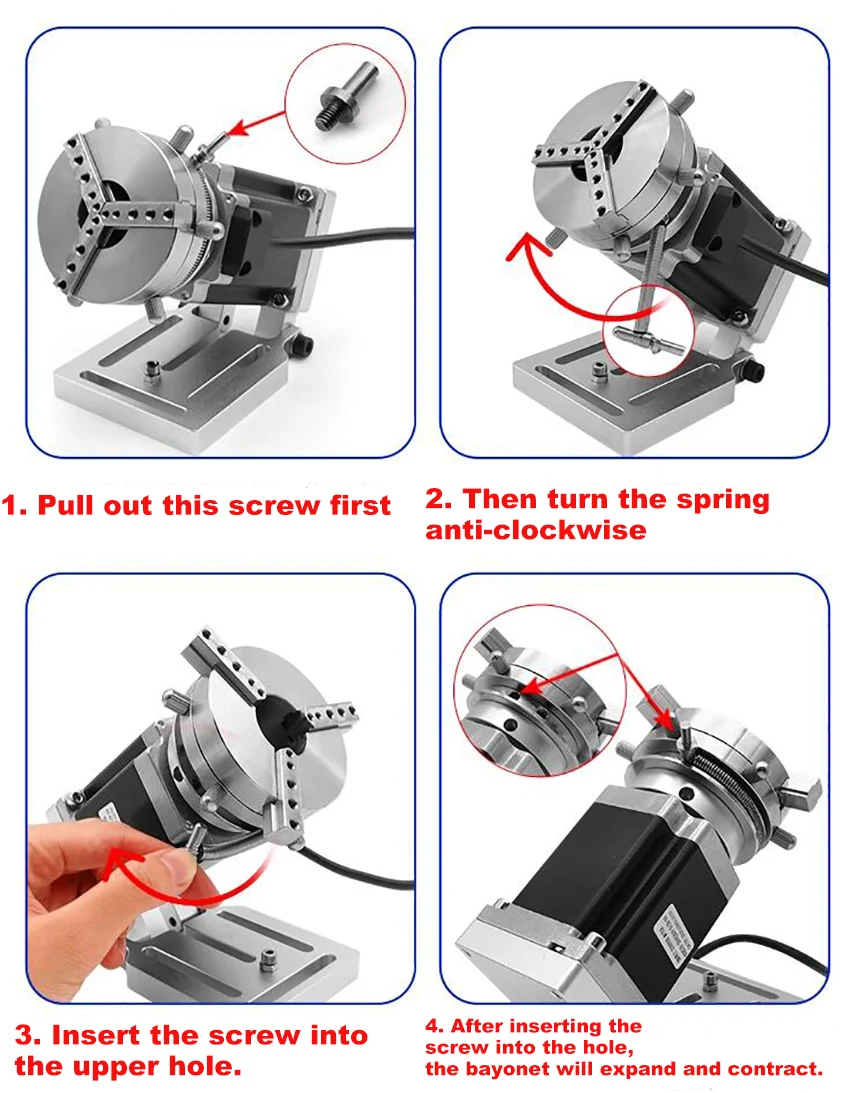

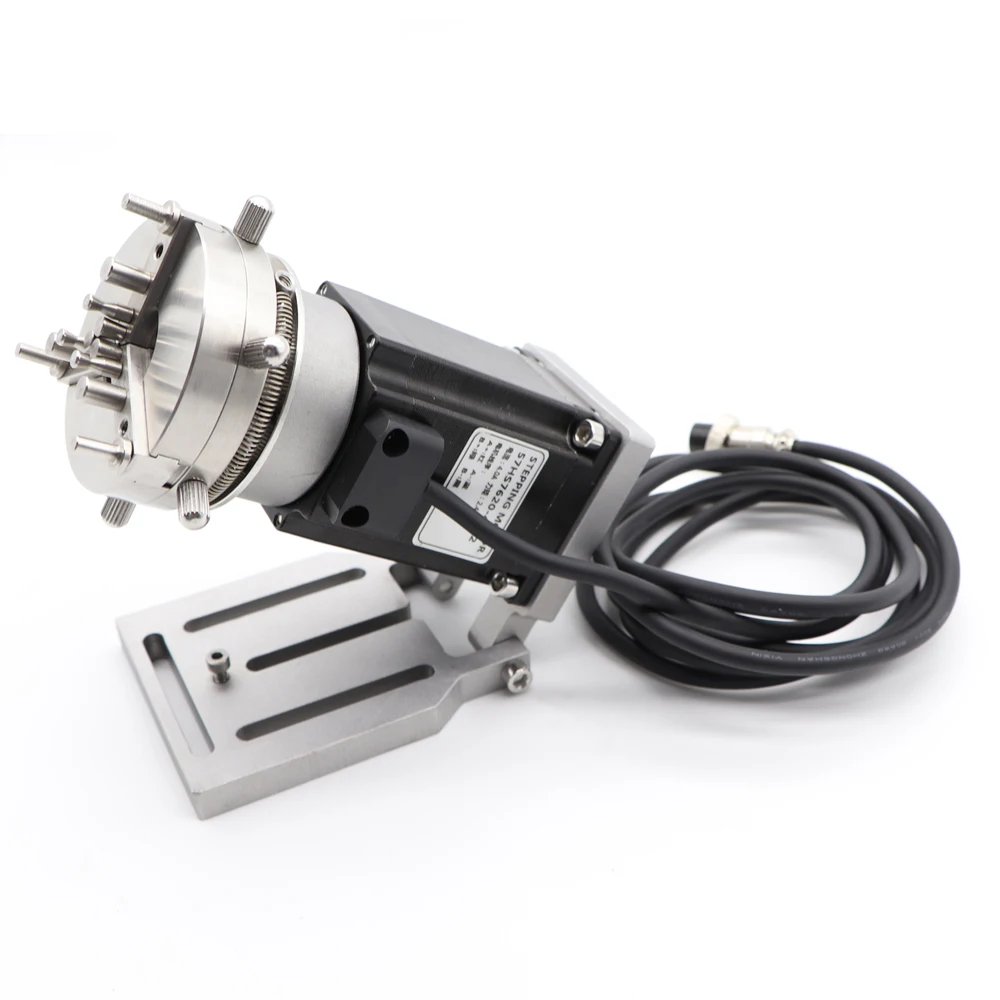

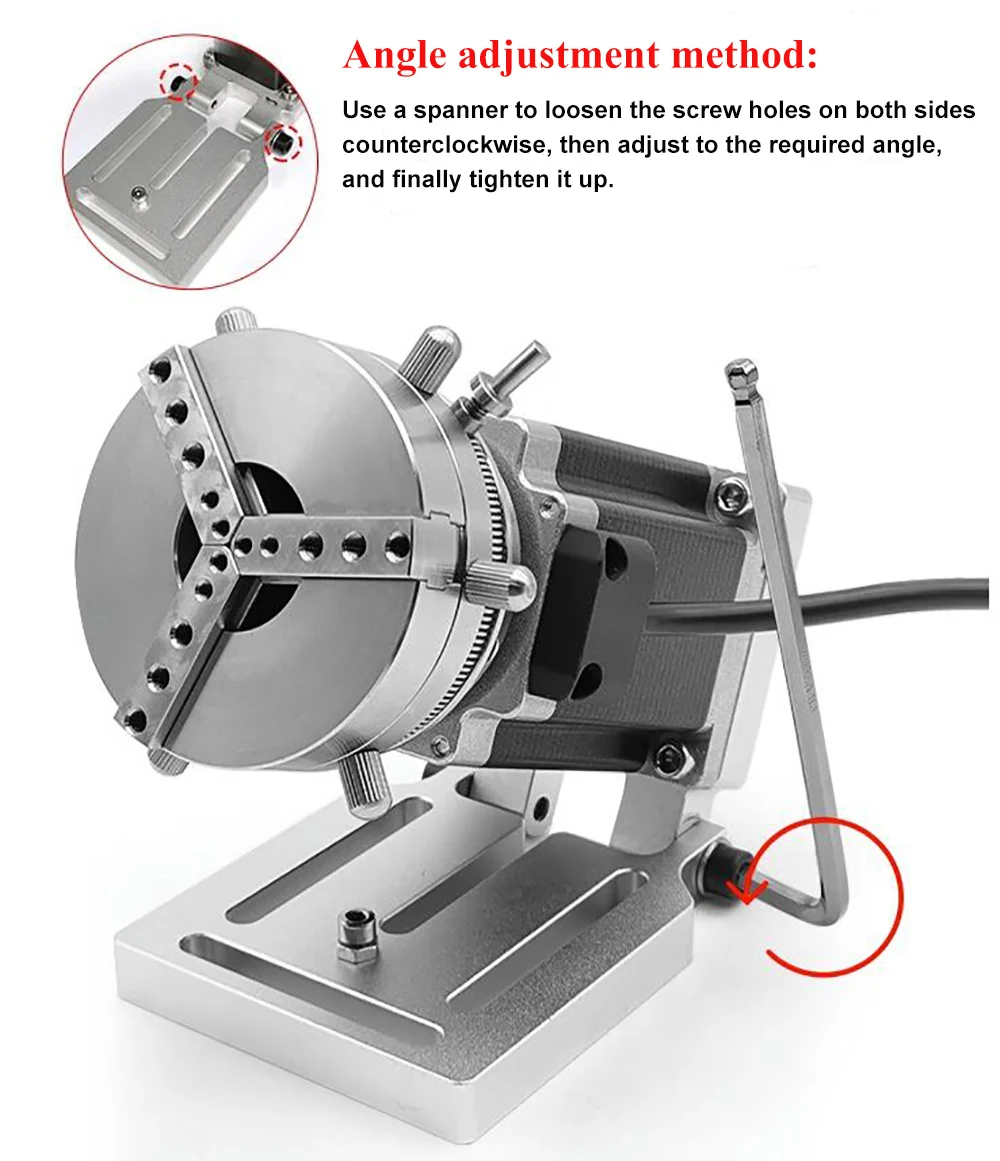

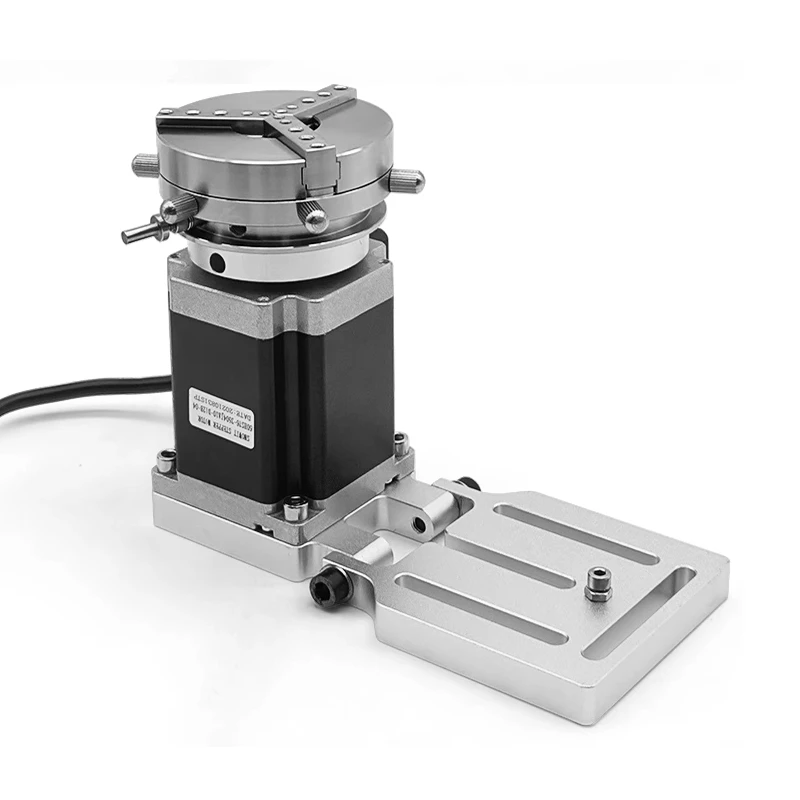

The Optional Rotation Axis

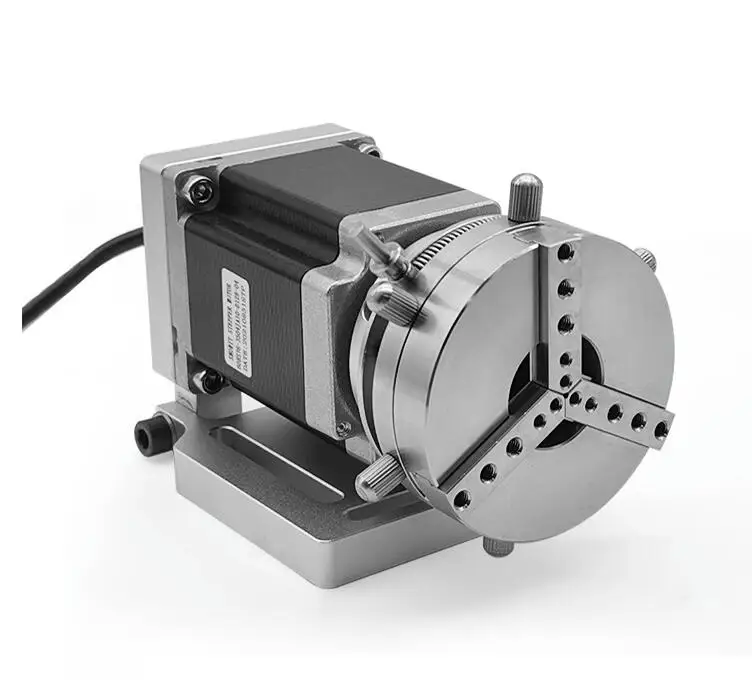

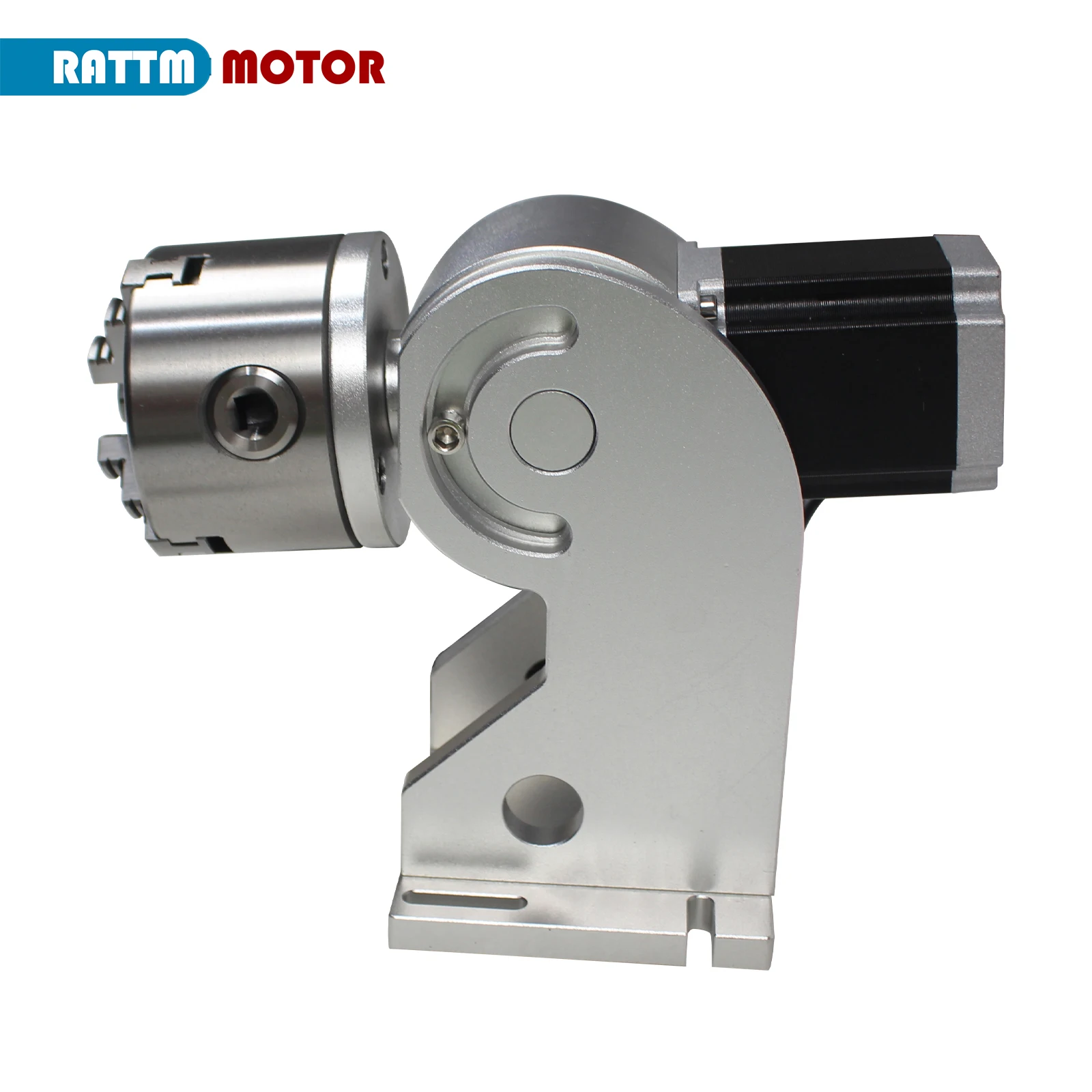

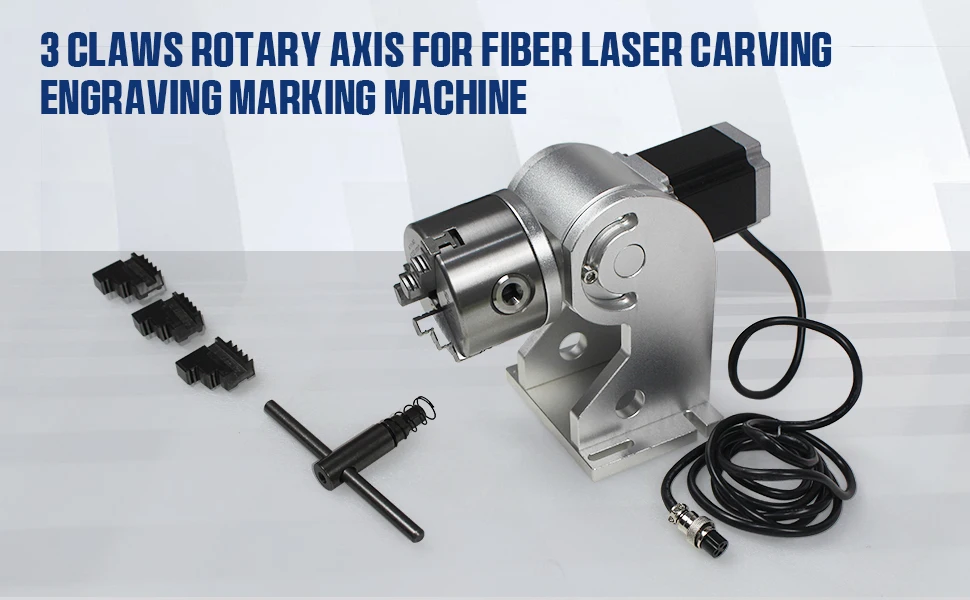

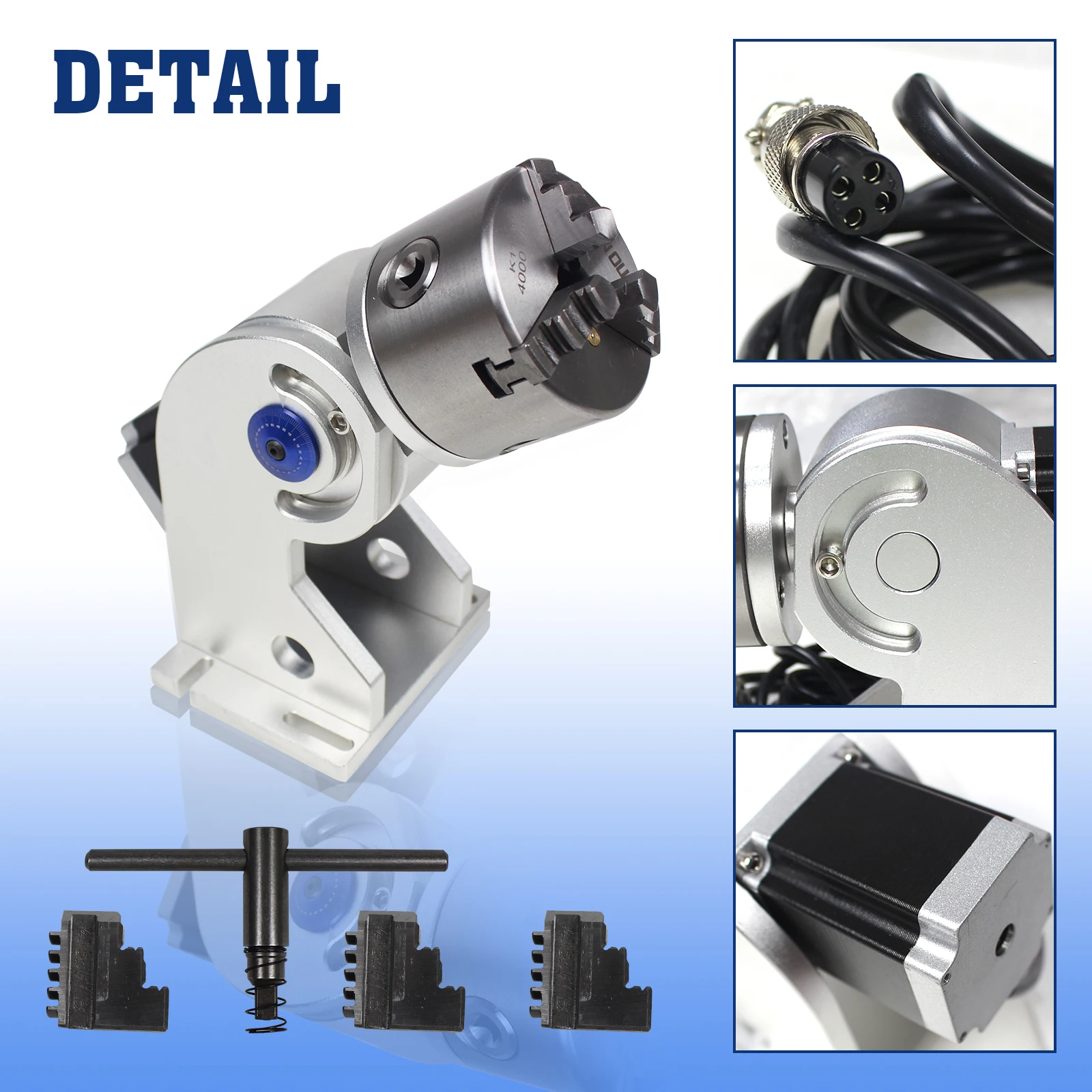

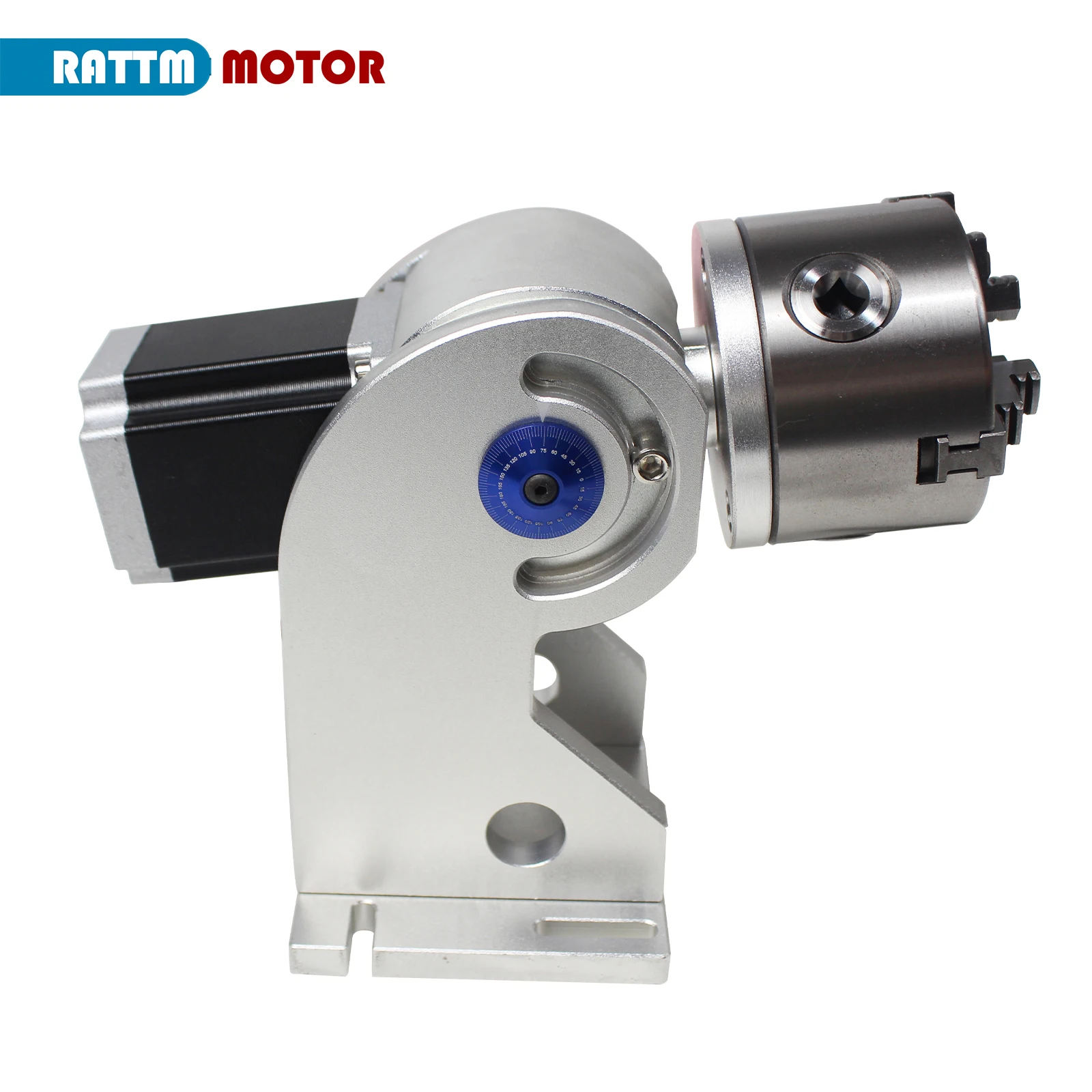

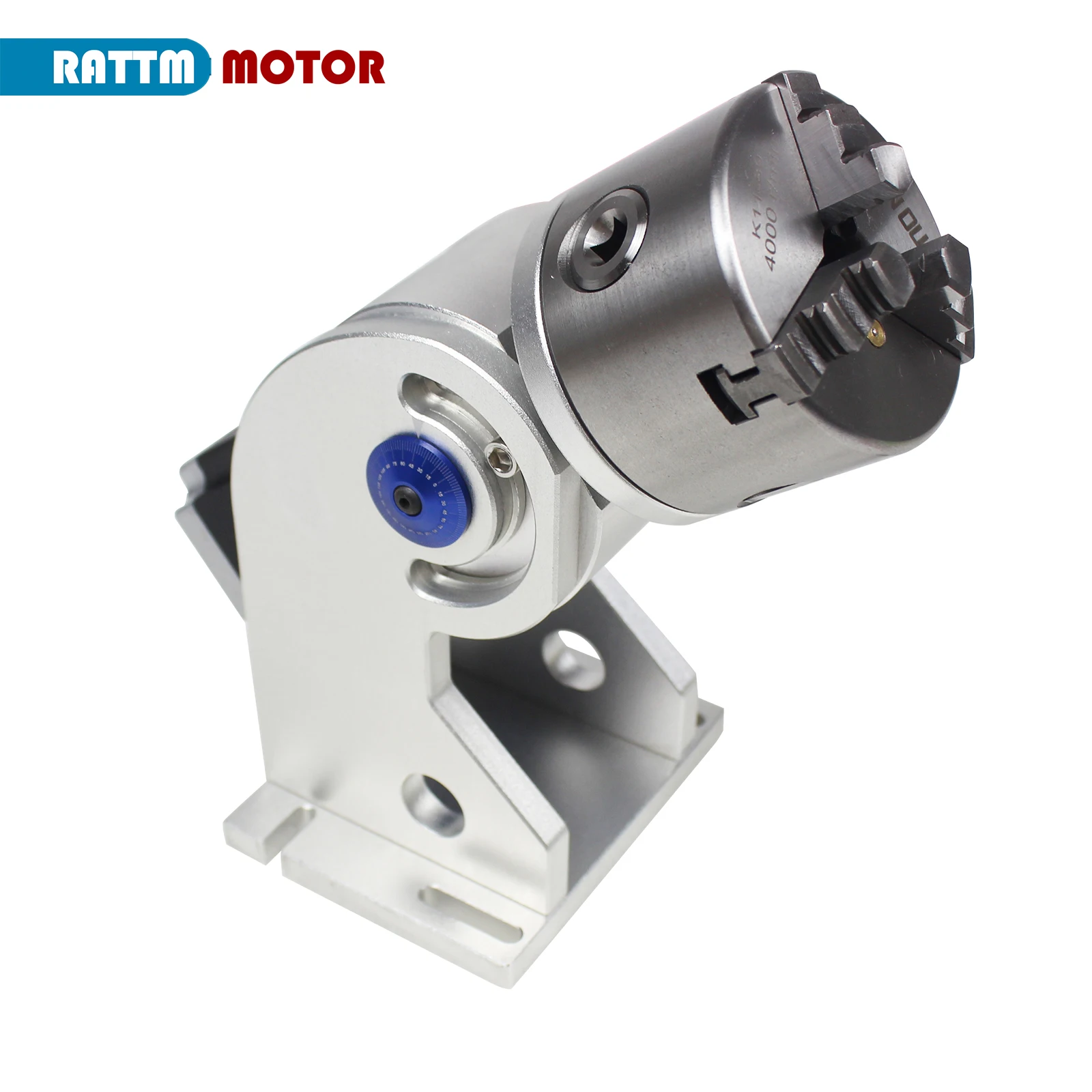

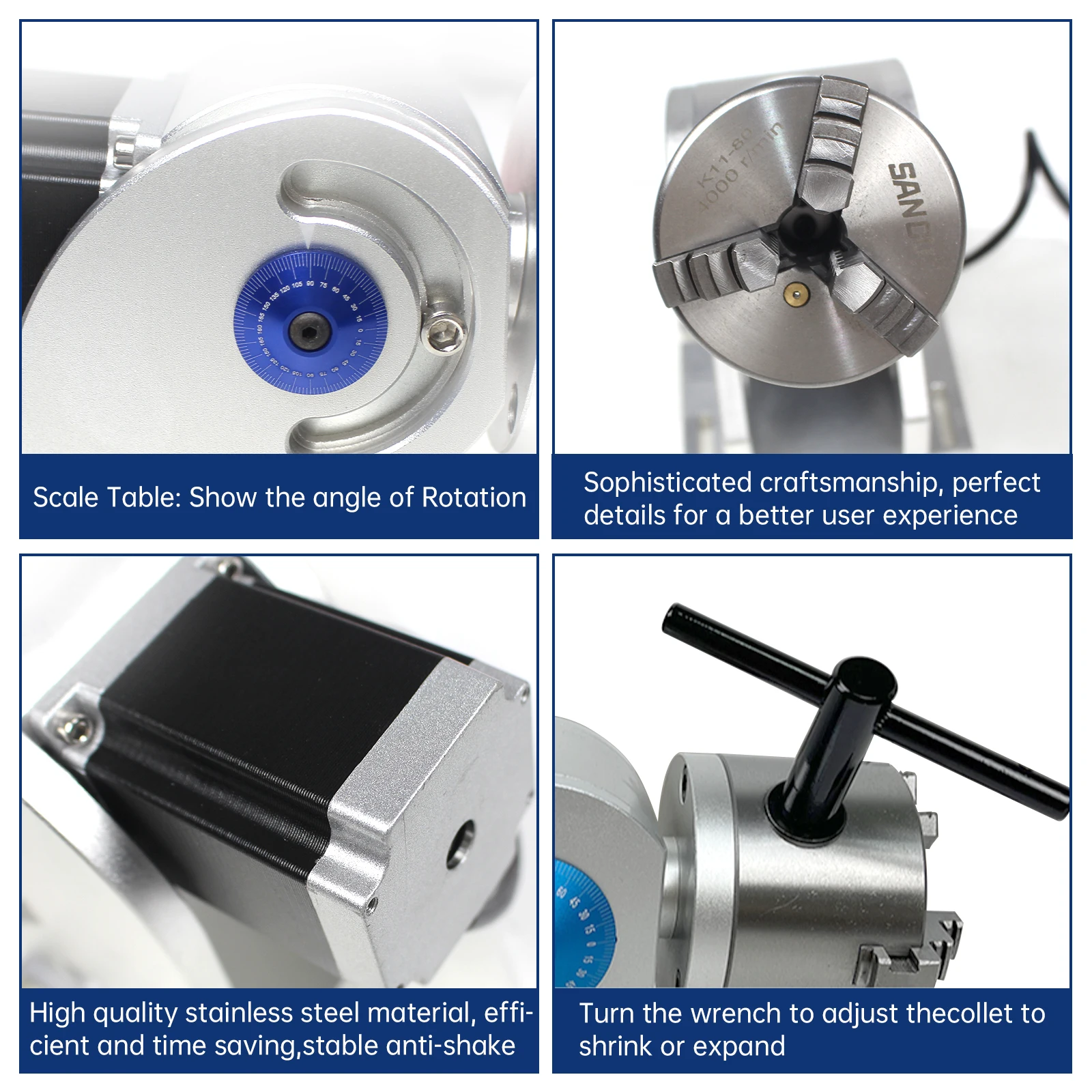

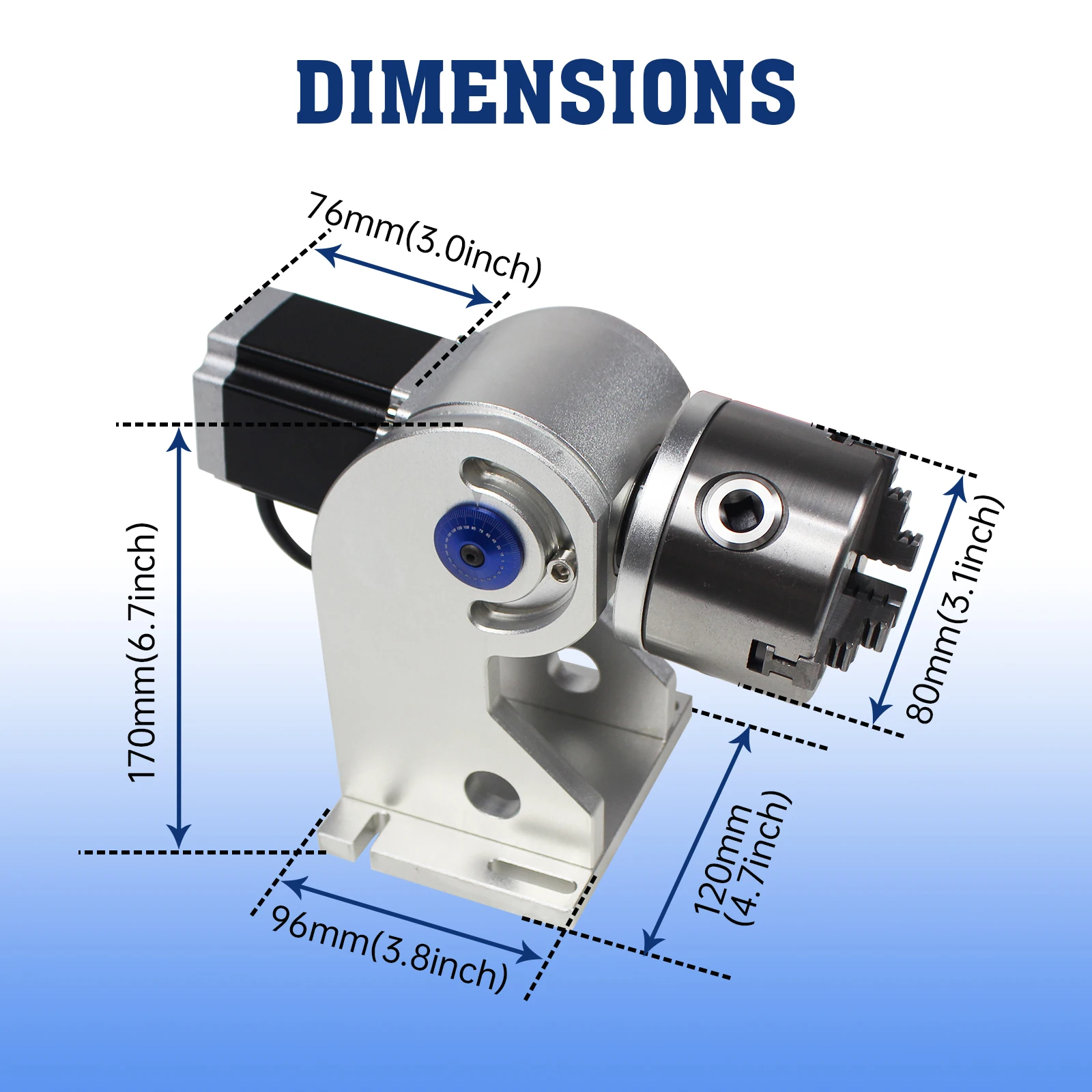

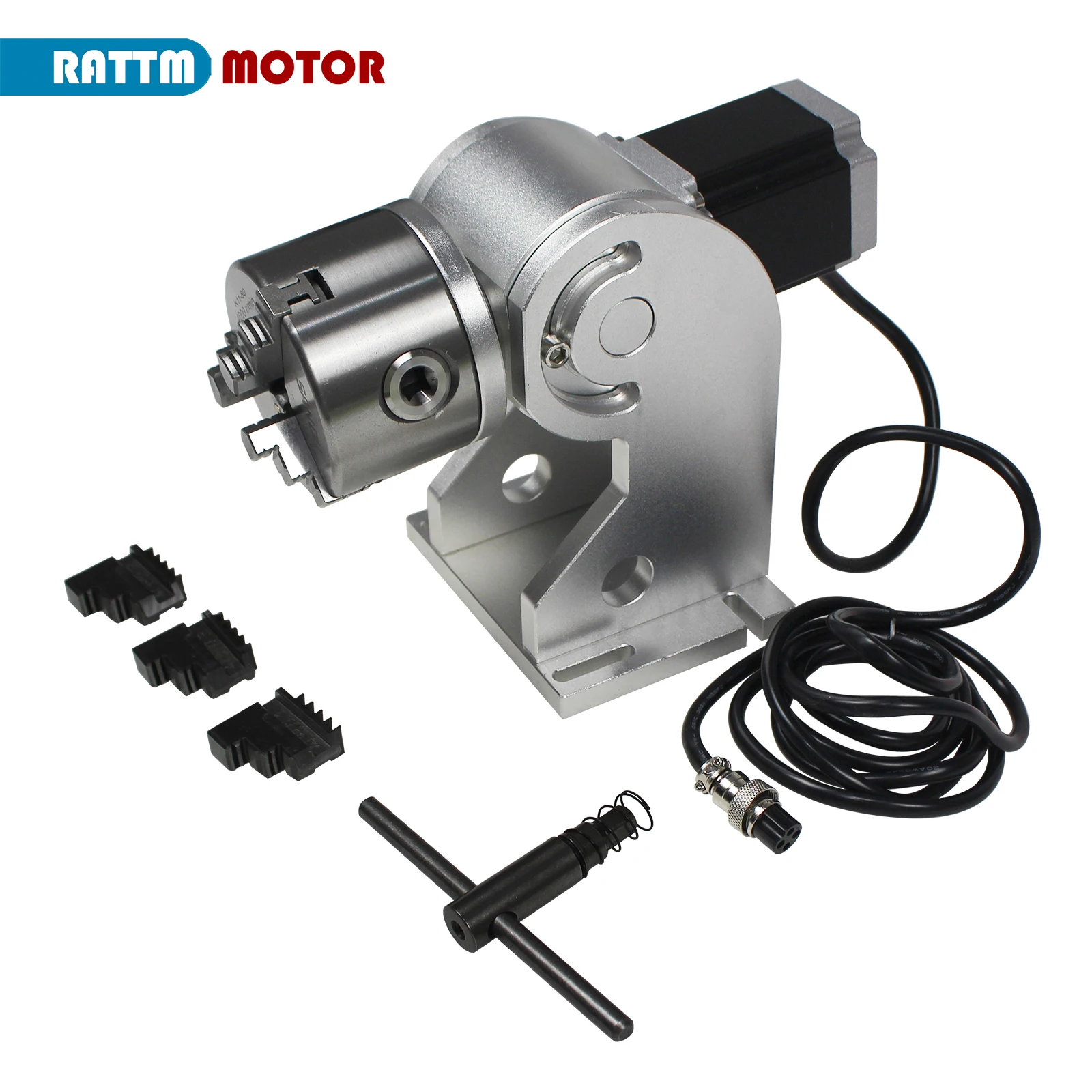

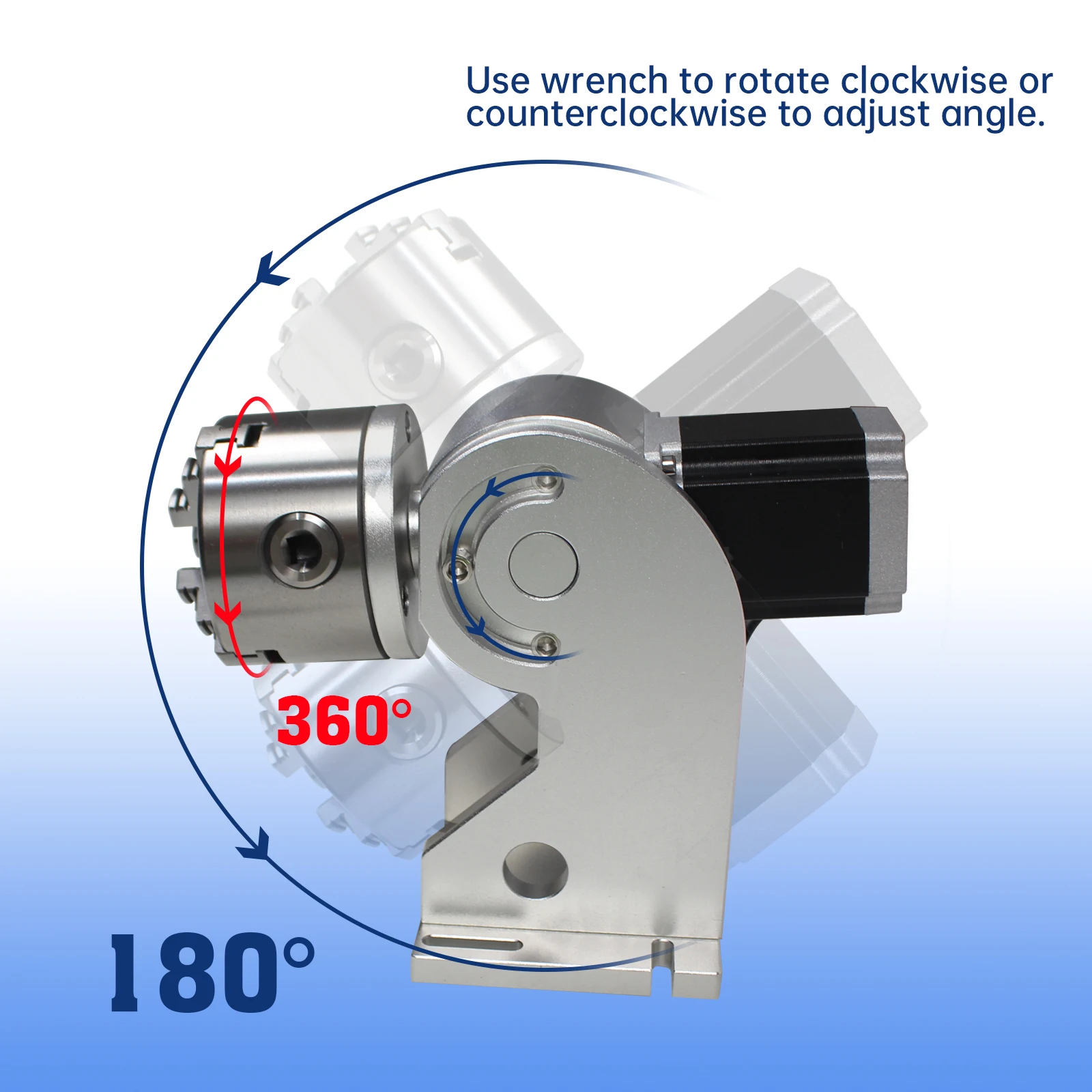

The "Conventional Rotary Axis D80" is the 80mm chuck style,which is also the most widely used style chosen by most customers,the application range of clamping is also the widest among the three.

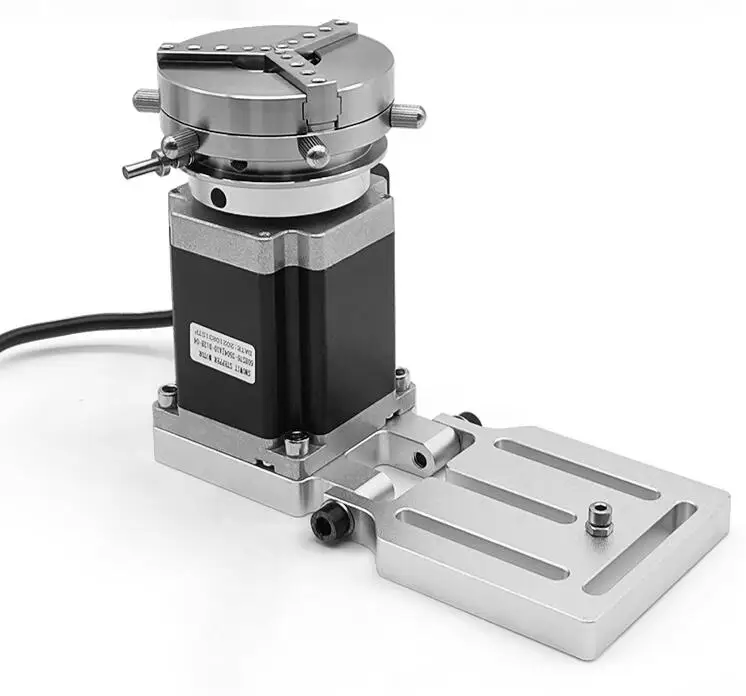

The "Ring Rotation Axis D50&D60" is mainly used for ring jewelry etc.

The "Round wheel Rotation Axis" is mainly used for pen marking.

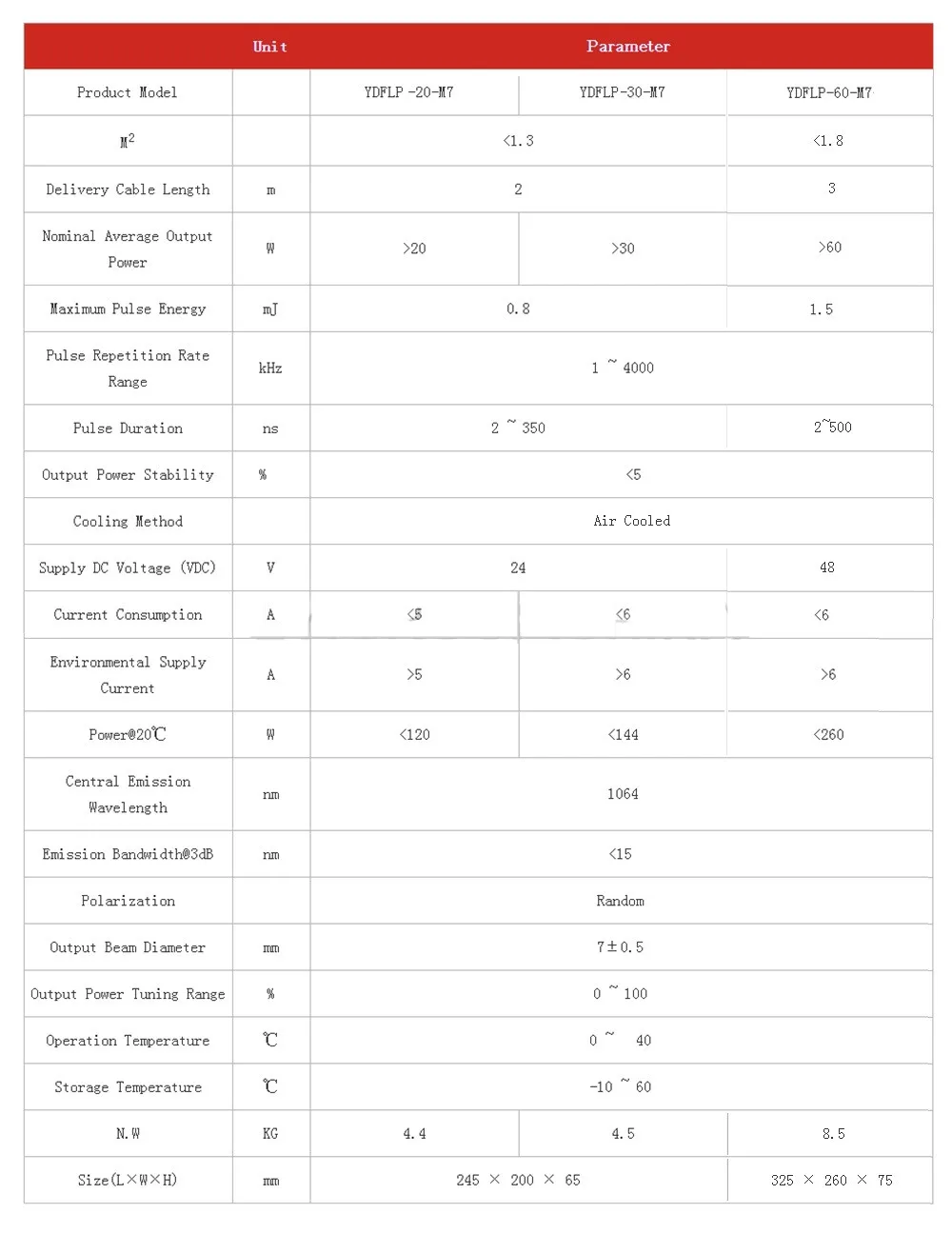

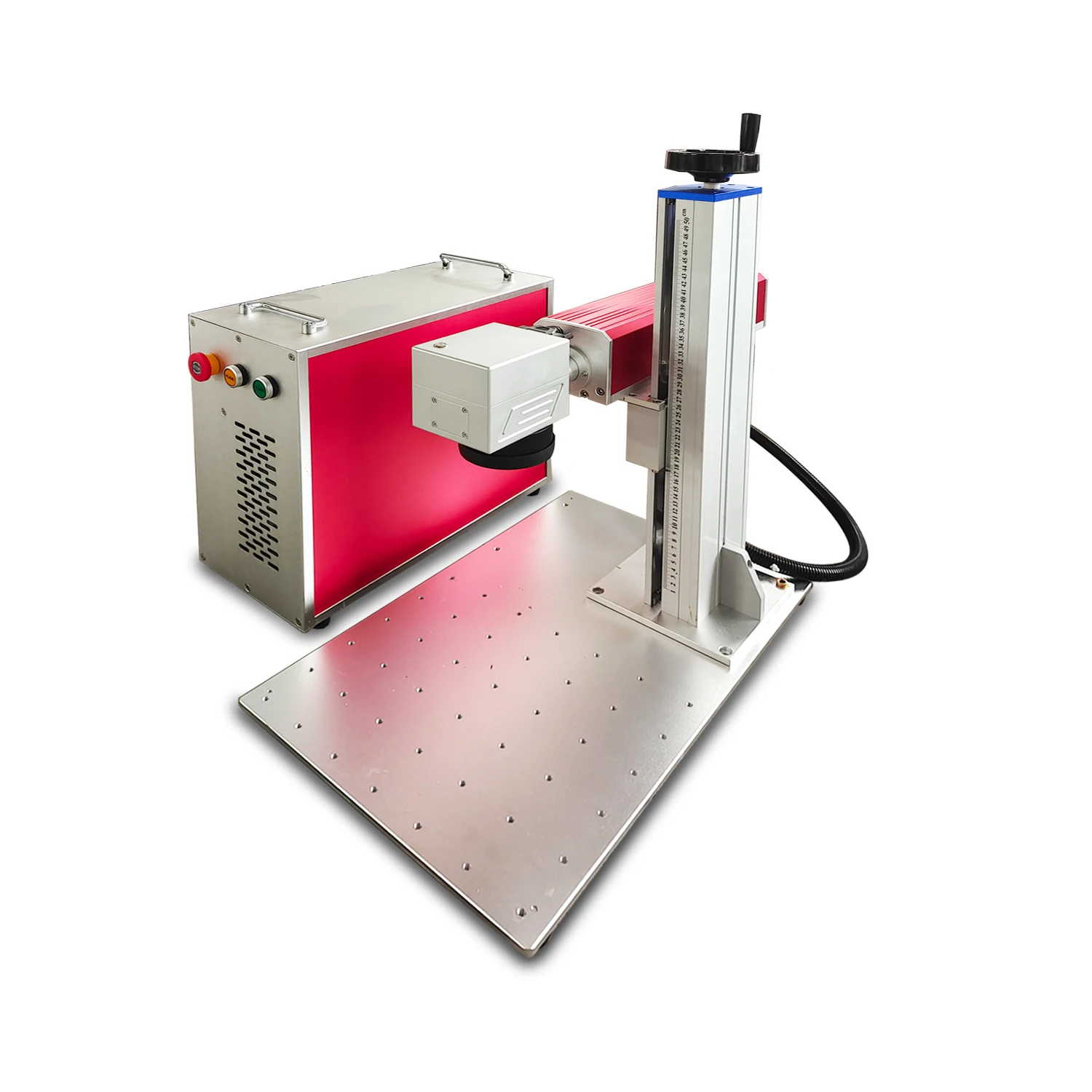

Technical Parameter

Model

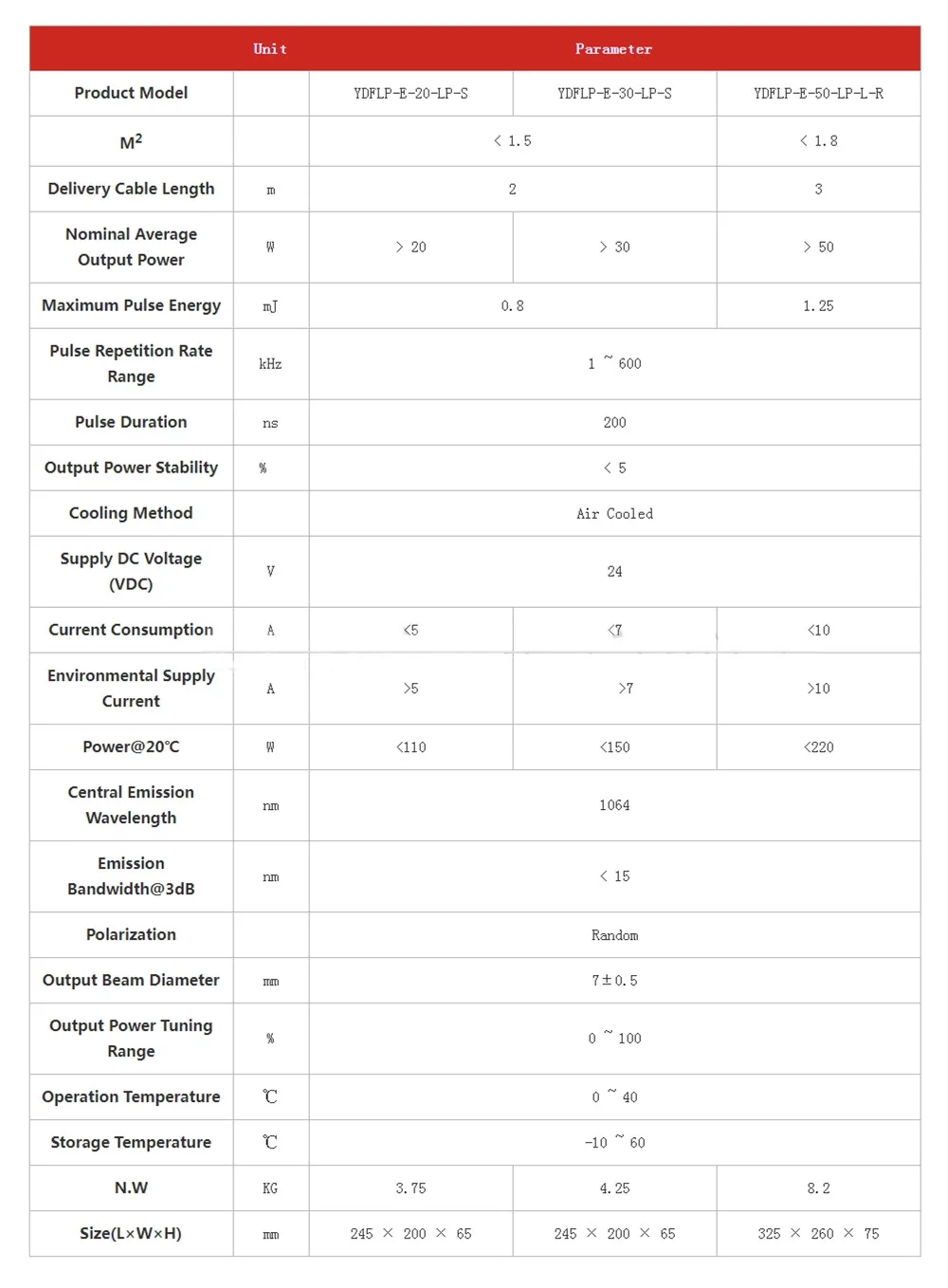

Laser power	20W QS/30W QS/50W QB Raycus
Field Mirror(Work Area)	150*150mm( 50*50mm / 70*70mm / 110*110mm / 200*200mm /300*300mm Optional. Support extra purchase.）
Cooling Mode	Air Cooling
Laser Wavelength	RAYCUS is 10.64 um
Frequency of pulse	RAYCUS is 20-100 KHz
Marking Depth	≤0.3 mm
Marking Speed	≤4000 mm/s(RC1001)
Marking Lines	1-10 lines
Minimum Line Width	0.01 mm
Minimum Character	0.15 mm
Repeatability Accuracy	±0.002 mm
Resolution Ratio	0.1 mm
Marking Content	Text, pattern, date, bar code, etc
Operation System	Microsoft Windows XP or Windows 2000,WIN 7, WIN8, WIN 10
Control Software	EZCAD ENGLISH Control Software
Graphic Format Supported	BMP, JPG, GIF, TGA, Ai, DXF, PLT, PNG, TIF, ai, DXF, DST, etc.
Unit Power	≤0.9 KW
Operation Temperature	5°C-40°C
Relative Moisture	≤ 90%, no fog
Dimensions(L*W*H)	95 x 78 x 55 cm
Power supply requirements	220 V or 110V
Weight	40KG
Warranty	2-Year

The motherboard supports win10 and supports 32-bit 64-bit.

1:Fully build the platform professional fiber laser marking machine shop, please customers to patronize. To look at the quality of the machine, use high-quality machine parts to give customers the best quality service! Provide S/N coding for our machines, machine lifetime service,

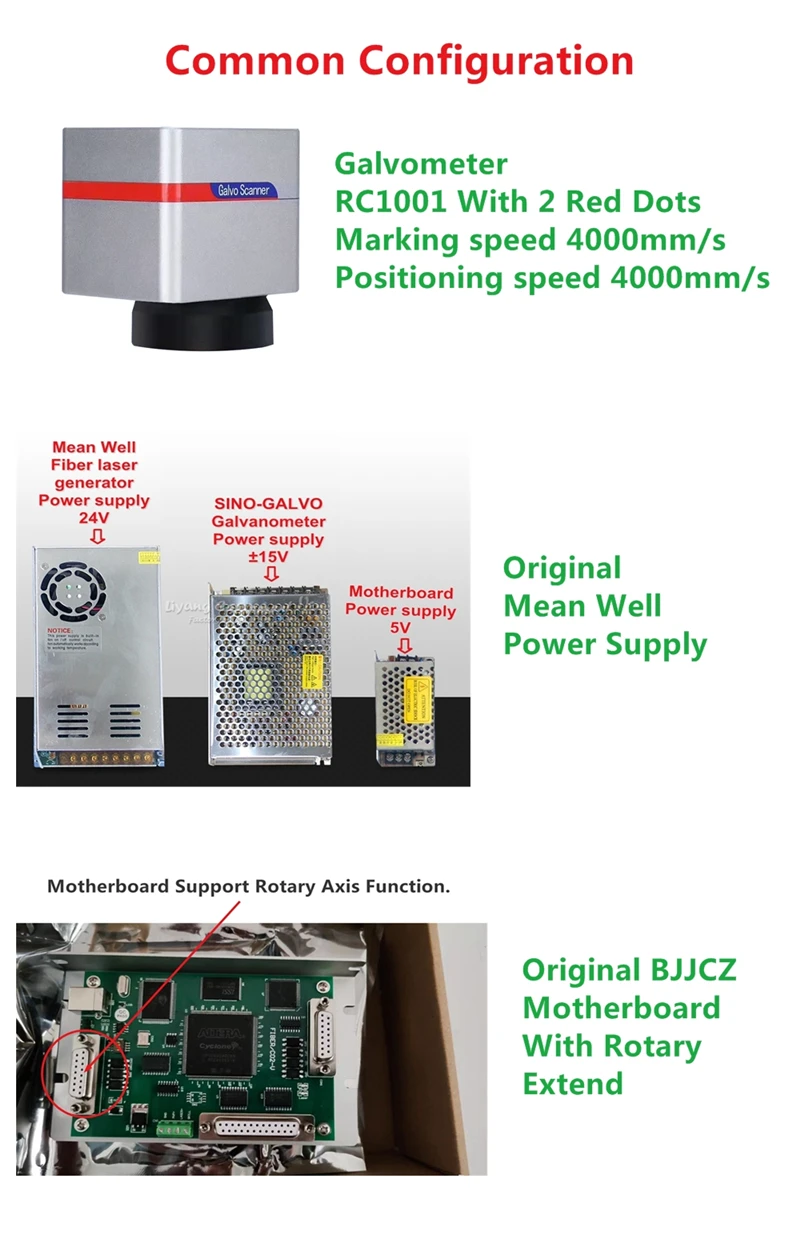

2: Machine configuration:

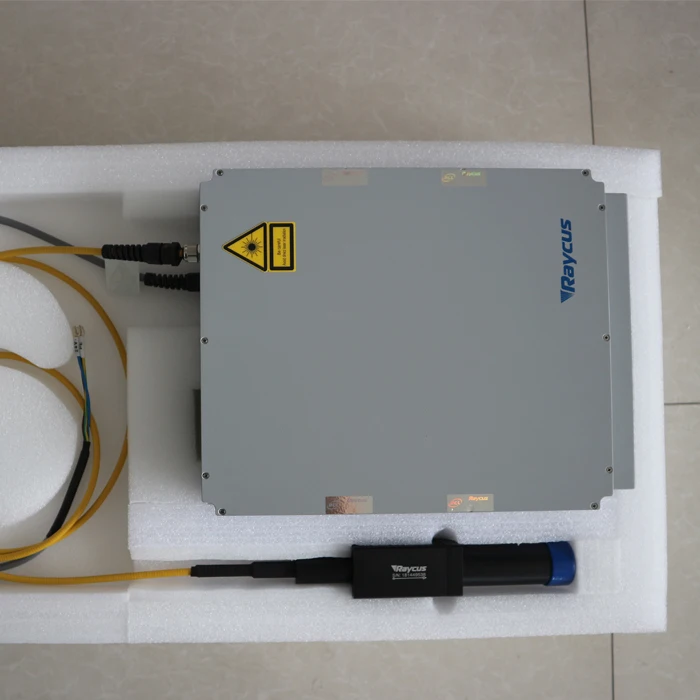

A;Fiber Laser brand: Raycus

B; SINO-GALVO RC1001 galvanometer with Red dots assistant focusing align.

C; Taiwan Meanwell (MW) power supply,

D; Motherboard with Rotary axis function, free built-in drive & rotary axis port.

E: Rotary axis (Optional)

3: In addition to these main accessories, we can gain an in-depth understanding of the machine configuration of the accessories and technical debugging of the main quality of the machine. It only provides you with a machine that runs stably and has a low failure rate. Machine accessories are related to the long life of the machine. In the short term, it is impossible to compare the stability and failure rate of the machine.

.
