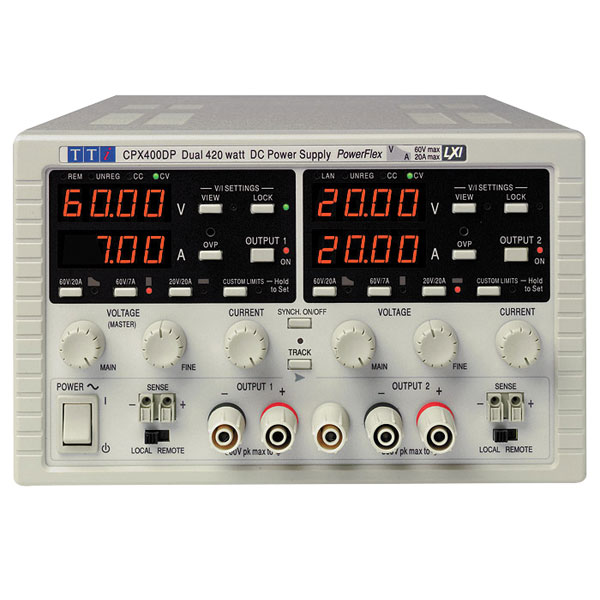

Aim-TTi CPX400DP Power Supply Twin 420W PowerFlex

Aim-TTi CPX400DP Power Supply Twin 420W PowerFlex


The Aim-TTi Twin CPX400DP is a different type of laboratory powersupply designed to meet the need for flexibility in the choice of voltage andcurrent. A conventional PSU has a fixed current limit giving a power capabilitythat reduces directly with the output voltage. The Aim-TTi Twin CPX400DPdesign enables higher currents to be generated at lower voltages within anoverall power limit envelope.
Each output can provide considerably highercurrent than a conventional PSU of the same maximum voltage and power (see powercurve). Example voltage and current combinations include 60V/7A, 42V/10A,28V/15A, and 20V/20A.

The PowerFlex regulation system used on the Aim-TTi Twin CPX400DPcombines a high frequency pre regulator with a linear post regulator to giveboth low noise and good transient response. Each output can operate in constantvoltage or constant current mode with automatic crossover and modeindication.

Separate voltage and current meters on each output give a resolution of 10mVand 10mA. The fixed resolution avoids the misinterpretation of readings that canoccur with auto ranging 3 or 3½ digit meters where the decimal point positionmoves as the reading changes. Coarse and fine voltage controls are provided. Thecurrent control is logarithmic enabling low current levels to be set accurately.A View Settings button enables limit settings to be checked and adjusted at anytime.

Each output incorporates remote sense terminals that can be enabled ordisabled at the flick of a switch. Remote sensing is essential for maintainingprecise regulation at the load and true metering of the loadvoltage.


  • PowerFlex design gives variable voltage and current combinations within amaximum power envelope
  • Up to 60V and up to 20A per output (420W maximum)
  • Constant voltage or constant current operation
  • Low output noise and good transient response
  • PowerFlex or fixed-range operation plus custom limits
  • True analogue controls with digital settings locking
  • Independent outputs or isolated voltage tracking (dual)
  • Outputs can be wired in series or parallel for 120V or 40A
  • Variable OVP trips; safety binding-post terminals
  • 4 digit fixed resolution meters; selectable remote sensing
  • Compact ½ rack 3U case (dual) or ¼ rack 3U case (single)
  • Duplicate terminals at rear
  • GPIB, RS-232, USB and LAN interfaces with LXI class C compliance
  • Manufacturers part no. Aim-TTiCPX400DP

Not recommended for use as a battery charger.



Specifications
Number of Outputs2
Output Current Max.20A
Output Current Min.0A
Output Voltage Max.60V
Output Voltage Min.0V
Power Rating840W
Supply Voltage Range110 to 240V
Temperature Range+5 to +40°C
