ONE YEAR WARRANTY

Specifications:
Thickness: 2" / 50mm
Vehicle Bolt Pattern(PCD): 5x5" / 5x127mm
Wheel Bolt Pattern(PCD): 5x5" / 5x127mm
Hub Diameter: 87.1mm / 4.43"
Thread Size: 1/2"x20

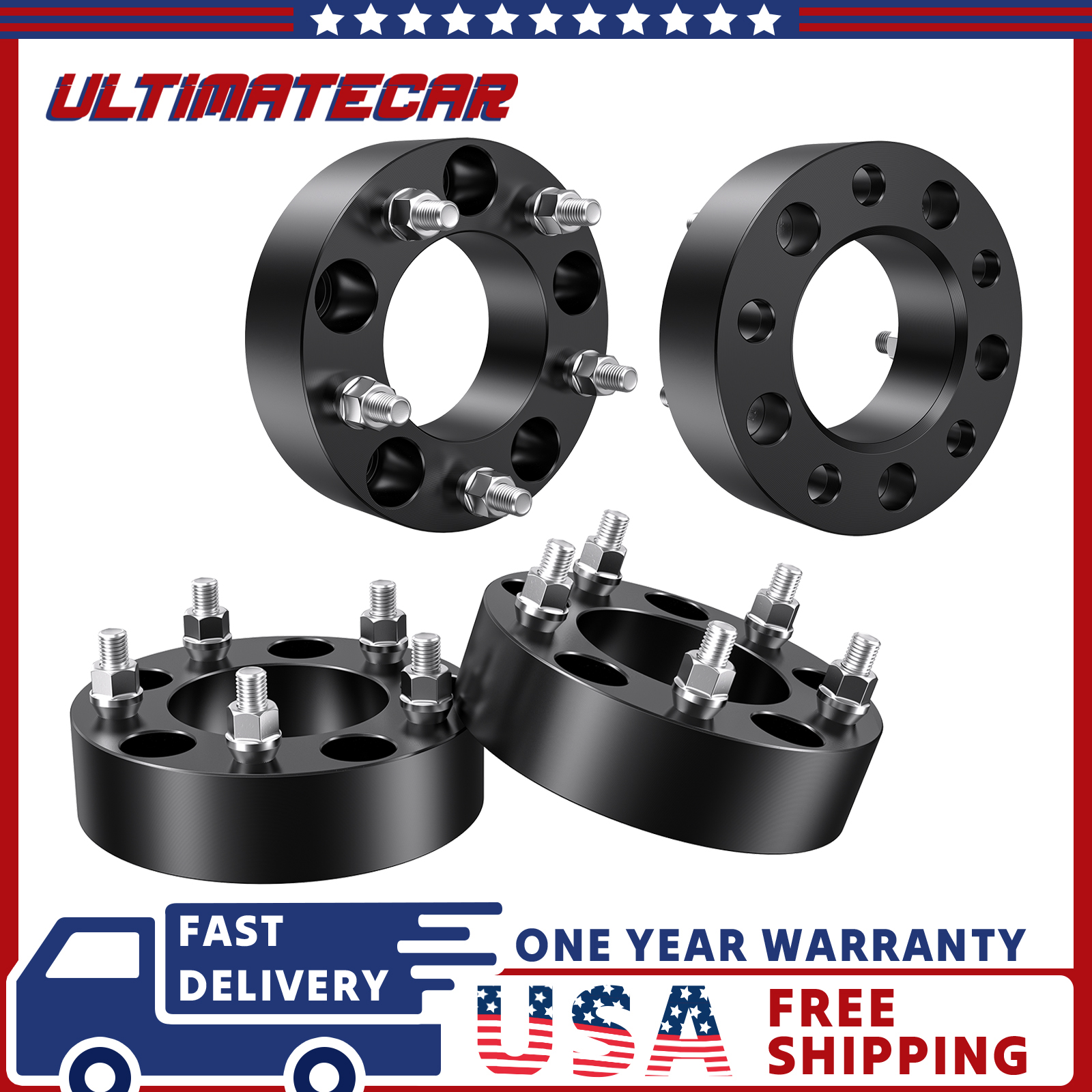

Package include: 4Pcs Wheel Spacers Adapters

Fitment:

Buick:
Buick LeSabre 1961-1985
Buick Riviera 1964-1978

Cadillac:
Cadillac DeVille 1959-1983
Cadillac Eldorado 1967-1978
Cadillac Fleetwood 1993-1996
Cadillac Seville 1977-1979

Chevrolet:
Chevrolet Astro 1985-2002

Ford:
Ford Thunderbird 1973-1976

GMC:
GMC Safari 1985-2002

Jeep:
Jeep Commander (XK) 2006-2010
Jeep Grand Cherokee (WJ) 1999-2004
Jeep Grand Cherokee (WK) 2005-2010
Jeep Wrangler (JK) 2007-2018

Lincoln:
Lincoln Continental 1973-1979

Mercury:
Mercury Marquis 1973-1978

Note: Please make sure you take the proper neasurements before purchasing.

What should I pay attention to during installation?
Check to make sure that the wheel spacer fits perfectly with the hub/axle stub and the inner mounting surface of the wheel.
Make sure that the wheel bolts being used are of the appropriate length, not too long or too short.
DO NOT proceed if both of the wheel spacer do not fit.
Please be sure to clean the rust on the hub before starting the installation, otherwise it will affect the working life of the spacers.
Make sure that you get 5-7 FULL TURNS of the lugs when installing. Torque them down to the manufacturers specs (up to and not greater than 110ft lbs).
Avoid using an impact wrench because improper usage may cause the lug nuts/bolts to break or loosen while driving causing a potential injury or accident.
All lug nuts, bolts and torque must be checked after driving the first 50 miles after installation. Afterwards, please check all lug nuts and bolts every 3,000-5,000 miles.
Alignment is necessary after installation, this will prevent any wobble and vibration from occurring.

How to measure the fender gap to choose suitable thickness?
Line up a straight edge ruler against the sidewall of the tire, use the measuring device to measure from the inside of the ruler to the inner fender lip.
Please take multiple measurements and use the smallest data point.(The most closest spot may be at the front or rear edge of the fender). The maximum recommended spacer
thickness= the smallest gap - 3/8"(10mm)

About the wheel bolts:
Your Factory wheel studs may extend past the surface of the wheel spacers. In this case you will need to:
Shorten the factory studs.
The wheels need to have the open slots (cavities) between mounting holes.
Purchase a set of shorter studs and replace them with the factory studs.
