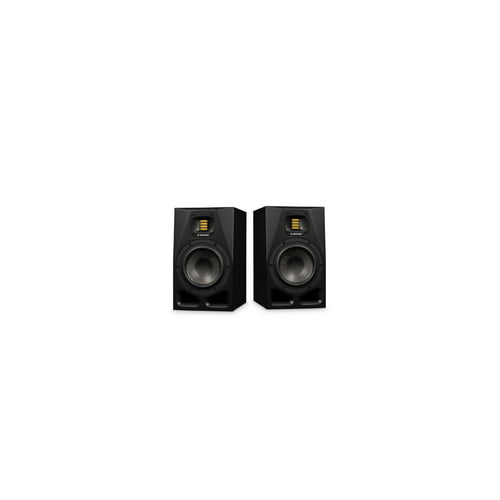

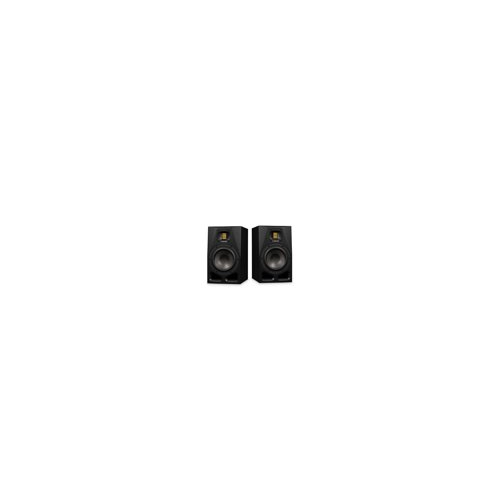

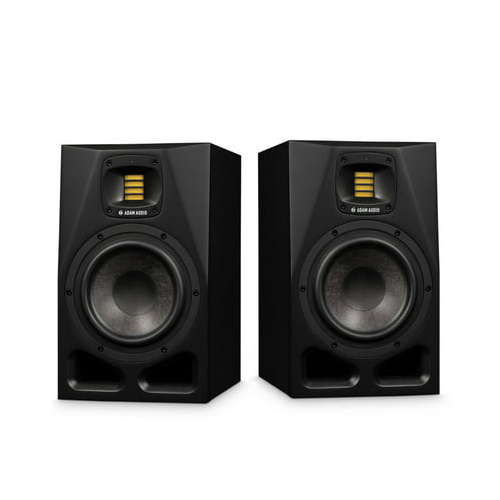

ADAM Audio A7V 7-Inch Active Studio Monitor Speaker (Pair)
ADAM Audio A7V 7-Inch Active Studio Monitor Speaker (Pair)
- Accurate, full-bodied sound in a compact form factor
- Designed for small studio spaces
- A frequency range of 41 Hz to 42 kHz
- Great for producing podcasts mixing string quartets
- Rotatable HPS Waveguide and X-ART Tweeter
- 2 x ADAM Audio A7V Powered Two-Way Studio Monitor

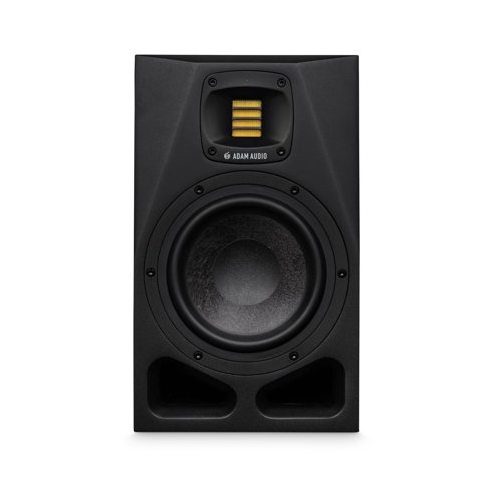

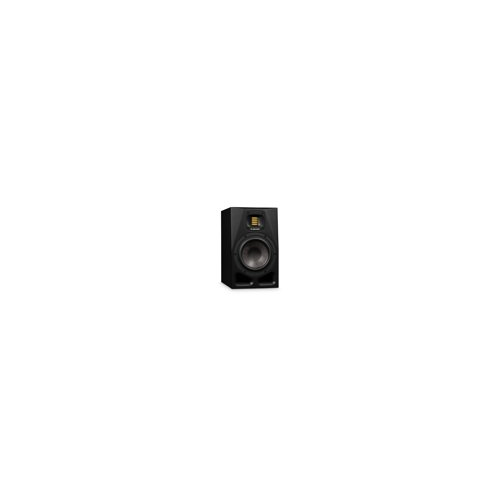

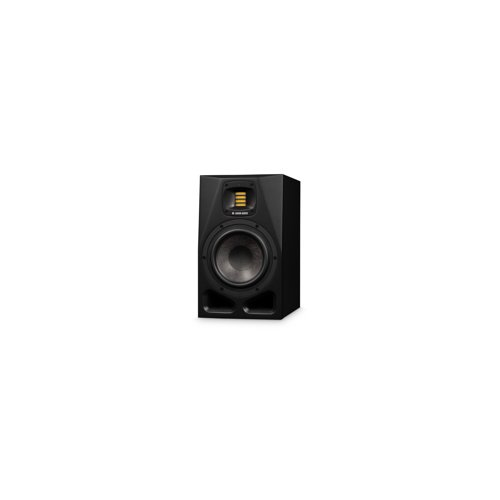

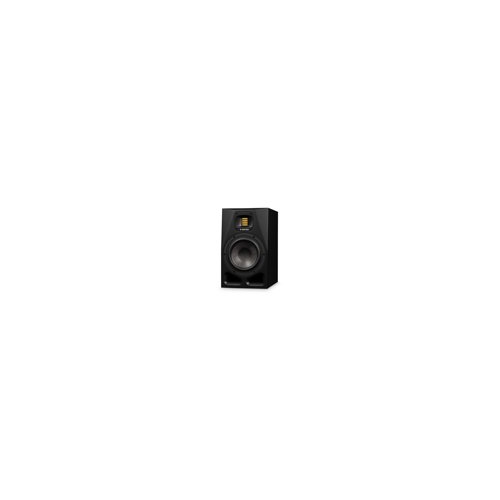

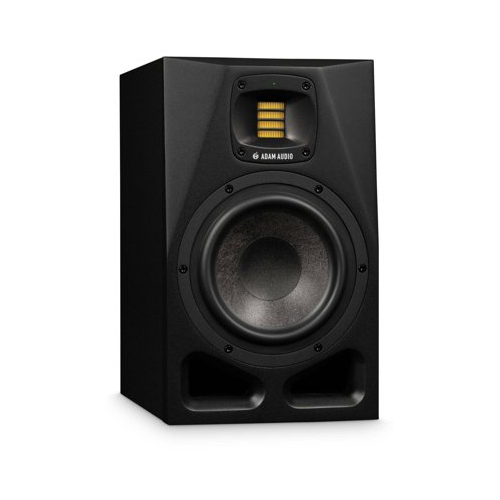

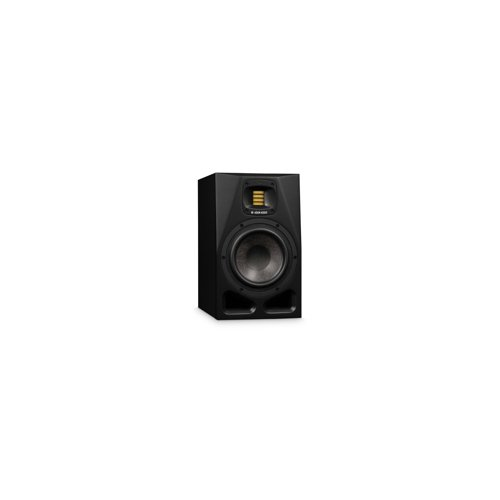

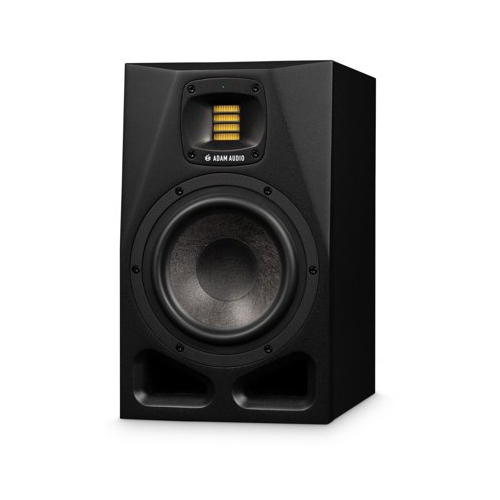

ADAM Audio A7V Powered Two-Way Studio Monitor
ADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad on the horizontal axis but tightly focused in the vertical plane. The A-Series introduces a rotatable HPS waveguide design. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically. The A-Series HPS Waveguide is made from a new glass fiber polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides precise transient responses and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line.
Multi-Layer Mineral Woofer
A Series of woofers are constructed with a unique blend of mineral stone fibers that have been baked together to create a lightweight but highly stable material. The mineral composition, layering, and geometry of each cone are specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end.
Hybrid Amplification
The A-Series combines the best of both digital and analog worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A-Series.
DSP-Based Electronics
The A-Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analog-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings.
Room Adaptation

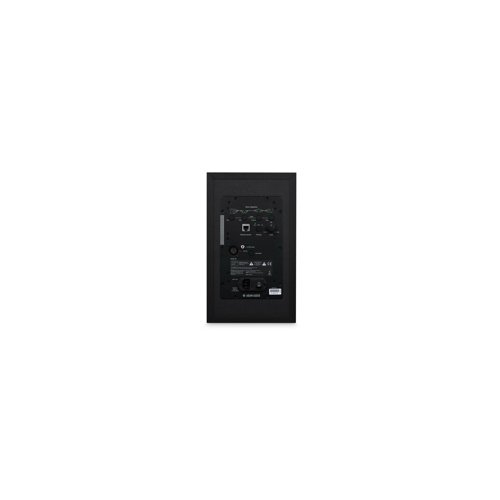

On the back panel of A-Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence, and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement.
Voicings
A “Voicing” is a pre-defined sound profile of the A-Series monitors. On the back panel, you will find two different selections, “UNR” and “Pure”. Here you will also find the “Ext” option which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.

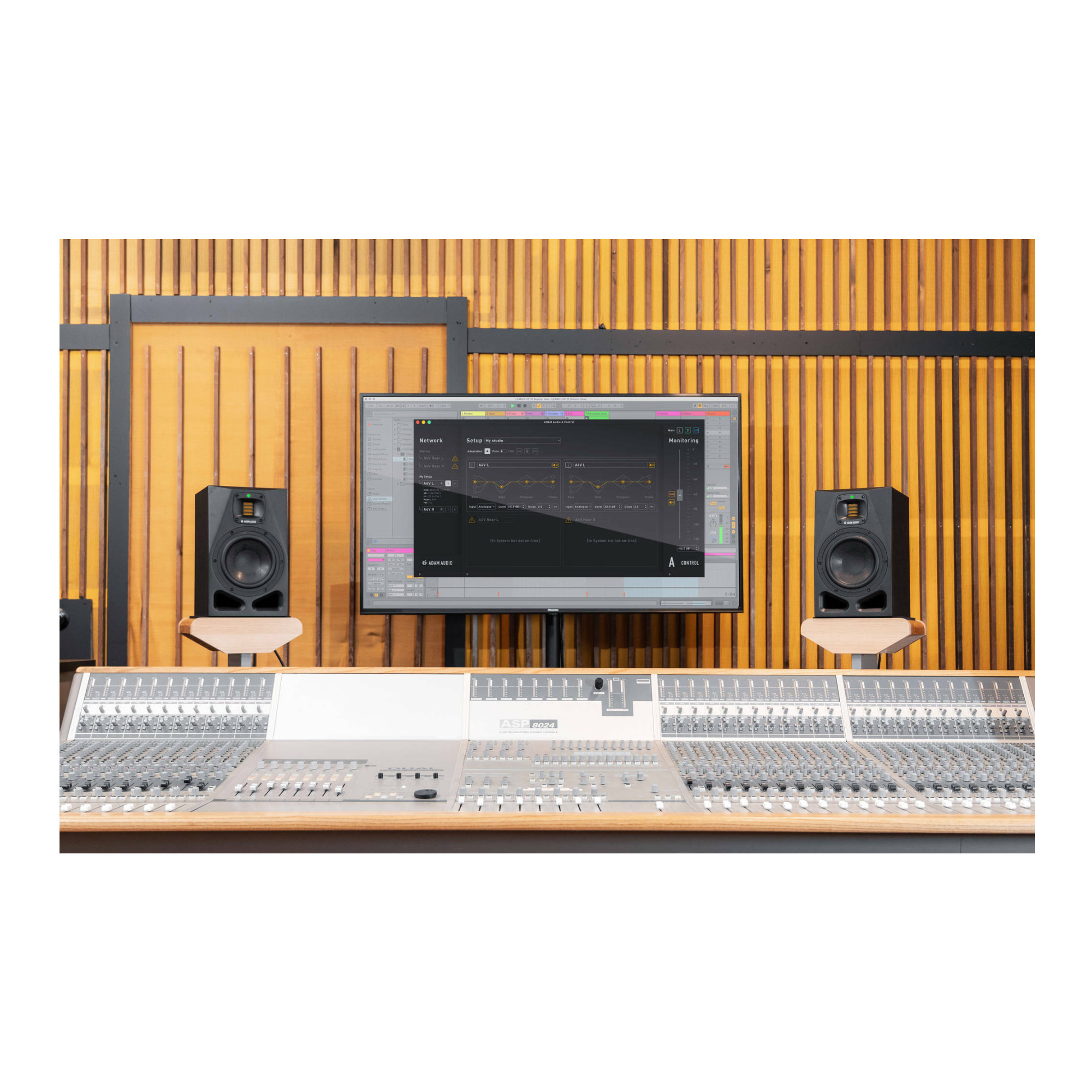

A Control (Real-Time Remote Control)
The DSP-based functionality of all A-Series monitors can be controlled remotely and in real-time over Ethernet using the free-to-download A Control software. A Control is available to download for Windows and macOS in the MyADAM area of www.adam-audio.com for customers who have registered their A-Series monitors.
Room Correction and Sonarworks Integration
A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry-leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste.
ADAM Audio A7V Powered Two-Way Studio Monitor (x2)
ADAM Audio HPS (high-frequency propagation system) waveguide technology enables tweeters to disperse sound with controlled consistency, broad on the horizontal axis but tightly focused in the vertical plane. The A-Series introduces a rotatable HPS waveguide design. You can shift A Series tweeters in 90-degree steps to continue to benefit from HPS waveguide technology whether you position the speakers horizontally or vertically. The A-Series HPS Waveguide is made from a new glass fiber polymer compound that helps create a clear sound, free of unwanted resonance. The ADAM Audio X-ART tweeter is at the heart of the rotatable HPS waveguide. Handmade in Germany, the X-ART tweeter provides precise transient responses and reproduces the finest sonic details. This X-ART tweeter is used in every A Series speaker, providing a detailed, consistent sound across the product line.
Multi-Layer Mineral Woofer
A Series of woofers are constructed with a unique blend of mineral stone fibers that have been baked together to create a lightweight but highly stable material. The mineral composition, layering, and geometry of each cone are specific to the driver used in each model. By combining this material with a new magnet system, A Series woofers produce high output with low distortion, delivering a clean low-end.
Hybrid Amplification
The A-Series combines the best of both digital and analog worlds. The woofers are driven by Class D amplifiers that help produce linear performance while reducing distortion. These amplifiers were chosen specifically for their power and efficiency, in terms of both energy consumption and sound reproduction. Low thermal dissipation allows for a smaller heat sink, which facilitated additional investment in the exceptional power and performance of the A-Series.
DSP-Based Electronics
The A-Series capitalizes on the transformative power of DSP-based electronics to provide greater tuning precision and better predictability than analog-only speakers. With firmware that can be updated through an Ethernet connection, over time you can expect to integrate the latest DSP-based capabilities from ADAM Audio—including new filter types and features, plus alternative voicings.
Room Adaptation
On the back panel of A-Series speakers, you will find four bands of room adaptation equalization: Bass, Desk, Presence, and Treble. Each band is adjustable in predefined steps, offering more than 100 tuning options to help compensate for the typical acoustic problems that arise from speaker placement.
Voicings
A “Voicing” is a pre-defined sound profile of the A-Series monitors. On the back panel, you will find two different selections, “UNR” and “Pure”. Here you will also find the “Ext” option which is dedicated to the extended functionality that comes with A Control via the Ethernet connection.
A Control (Real-Time Remote Control)
The DSP-based functionality of all A-Series monitors can be controlled remotely and in real-time over Ethernet using the free-to-download A Control software. A Control is available to download for Windows and macOS in the MyADAM area of www.adam-audio.com for customers who have registered their A-Series monitors.
Room Correction and Sonarworks Integration
A Series speakers are designed to be adaptable to changing requirements, preferences, and environments. Using the A Control software, you can push advanced filters directly to an embedded platform onboard the monitors to help compensate for imperfect room acoustics. This embedded platform supports filters from industry-leading third-party Sonarworks. Using Sonarworks software and a measurement mic, you can calibrate your speakers for a new room or shifting taste.
- Accurate, full-bodied sound in a compact form factor
- Designed for small studio spaces
- A frequency range of 41 Hz to 42 kHz
- Great for producing podcasts mixing string quartets
- Rotatable HPS Waveguide and X-ART Tweeter
- ADAM Audio A7V Powered Two-Way Studio Monitor
- Loudspeaker
- Power Cable
- Quick Start Guide
- Limited 2-Year Warranty (Plus 3-Year Optional Warranty with Product Registration)
Specifications
ADAM Audio A7V Powered Two-Way Studio Monitor
Audio Input Connectors
- Analog: XLR, RCA
- Input impedance: 9 kOhm / 3.3 kOhm
- Max. input level: +19 dBu
Amplification
- Woofer
- Amplifier Type: PWM
- Peak (10% THD, limiter deactivated): 110 W
- RMS (1% THD, limiter deactivated): 90 W
- Tweeter
- Amplifier Type: Class A/B
- Peak (10% THD, limiter deactivated): 20 W
- RMS (1% THD, limiter deactivated): 15 W
Control Options (via Network)
- Networking connector: RJ45
- Connection type: Ethernet
- Communication protocol: OCA using standard IP data
- Control software: A Control (Windows and macOS available)
- Room adaption options: Backplate, Extended, Sonarworks SoundID Reference integration
- Advanced room adaptation: 6 x PEQ, Level, Delay
- Third-party calibration compatibility: Import from Sonarworks SoundID Reference
Acoustics
- Frequency response @ -3 dB: 44 Hz – 41 kHz
- Frequency response @ -6 dB: 40 Hz – 45 kHz
- Max. peak SPL per speaker at 1 m: 105 dB SPL
- Crossover frequencies: 2.8 kHz
Drivers
- Woofer
- Basket Diameter: 7 inches
- Voice Coil Diameter: 1.3 inches (33 mm)
- Cone Material: MLM
- Tweeter
- Type: X-ART
- Diaphragm area: 4 inch² (2420 mm²)
- Equivalent diaphragm diameter: 2 inches (56 mm)
- Velocity transform ratio: 4 to 1
- Diaphragm weight: 0.17g
- Waveguide: HPS (rotatable)
- Waveguide dispersion: 120-degree horizontal, 70-degree vertical
Signal Processing
- AD converter: 24-bit
- Internal sample rate: 96 kHz
- Delay range, resolution: 0 – 10 ms, 0.1 ms
- Protection: Independent peak and thermo limiters for each driver, and amplifier thermo limiters
Control Options (via Backplate)
- Input sensitivity: 0 dBu = 100 dB SPL at 1 m @ 0 dB level setting
- Level: -12 dB to +12 dB
- Input selection: Balanced, unbalanced
- Voicings: Pure, UNR
- Room adaption:
- Bass: +2, 0, -2, -4 dB
- Desk: 0, -2, -4 dB
- Presence: +1, 0, -1 dB
- Treble: +1.5, 0, -1.5 dB
General Data
- Display: Front panel multi-colour LED
- Cabinet design: Dual front ported
- Cabinet material: Vinyl wrapped MDF and painted MDF front panel
- Mounting options: Threaded inserts on the bottom of the cabinet (4 x M8)
- Power consumption (max, idle, sleep): 220 W, 10 W, 3.5 W
- AC input voltage: 100 – 240 V, 50/60 Hz
- Power rating: 300 W max.
- Operating conditions: -10-degree C to +45-degree C; <75 % RH, non-condensing
- Weight: 8.7 kg (19 lb 3 oz)
- Dimensions (H x W x D): 337 x 200 x 280mm
